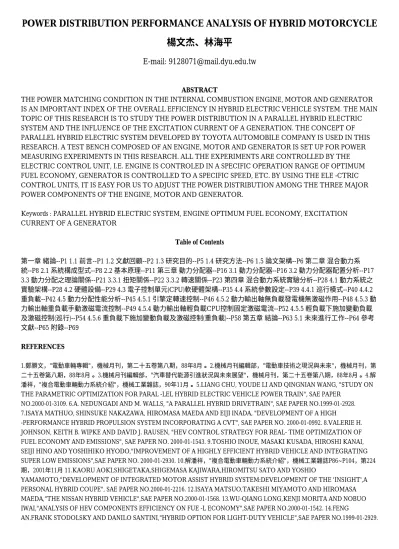

POWER DISTRIBUTION PERFORMANCE ANALYSIS OF HYBRID MOTORCYCLE 楊文杰、林海平
E-mail: [email protected]
ABSTRACT
THE POWER MATCHING CONDITION IN THE INTERNAL COMBUSTION ENGINE, MOTOR AND GENERATOR IS AN IMPORTANT INDEX OF THE OVERALL EFFICIENCY IN HYBRID ELECTRIC VEHICLE SYSTEM. THE MAIN TOPIC OF THIS RESEARCH IS TO STUDY THE POWER DISTRIBUTION IN A PARALLEL HYBRID ELECTRIC SYSTEM AND THE INFLUENCE OF THE EXCITATION CURRENT OF A GENERATION. THE CONCEPT OF PARALLEL HYBRID ELECTRIC SYSTEM DEVELOPED BY TOYOTA AUTOMOBILE COMPANY IS USED IN THIS RESEARCH. A TEST BENCH COMPOSED OF AN ENGINE, MOTOR AND GENERATOR IS SET UP FOR POWER MEASURING EXPERIMENTS IN THIS RESEARCH. ALL THE EXPERIMENTS ARE CONTROLLED BY THE ELECTRIC CONTROL UNIT, I.E. ENGINE IS CONTROLED IN A SPECIFIC OPERATION RANGE OF OPTIMUM FUEL ECONOMY, GENERATOR IS CONTROLLED TO A SPECIFIC SPEED, ETC. BY USING THE ELE -CTRIC CONTROL UNITS, IT IS EASY FOR US TO ADJUST THE POWER DISTRIBUTION AMONG THE THREE MAJOR POWER COMPONENTS OF THE ENGINE, MOTOR AND GENERATOR.
Keywords : PARALLEL HYBRID ELECTRIC SYSTEM, ENGINE OPTIMUM FUEL ECONOMY, EXCITATION CURRENT OF A GENERATOR
Table of Contents
第一章 緒論--P1 1.1 前言--P1 1.2 文獻回顧--P2 1.3 研究目的--P5 1.4 研究方法--P6 1.5 論文架構--P6 第二章 混合動力系 統--P8 2.1 系統構成型式--P8 2.2 基本原理--P11 第三章 動力分配器--P16 3.1 動力分配器--P16 3.2 動力分配器配置分析--P17 3.3 動力分配之理論關係--P21 3.3.1 扭矩關係--P22 3.3.2 轉速關係--P23 第四章 混合動力系統實驗分析--P28 4.1 動力系統之 實驗架構--P28 4.2 硬體設備--P29 4.3 電子控制單元(CPU)軟硬體架構--P35 4.4 系統參數設定--P39 4.4.1 巡行模式--P40 4.4.2 重負載--P42 4.5 動力分配性能分析--P45 4.5.1 引擎定轉速控制--P46 4.5.2 動力輸出軸無負載發電機無激磁作用--P48 4.5.3 動 力輸出軸重負載手動激磁電流控制--P49 4.5.4 動力輸出軸輕負載CPU控制固定激磁電流--P52 4.5.5 輕負載下施加變動負載 及激磁控制(巡行)--P54 4.5.6 重負載下施加變動負載及激磁控制(重負載)--P58 第五章 結論--P63 5.1 未來進行工作--P64 參考 文獻--P65 附錄--P69
REFERENCES
1.鄭勝文，"電動車輛專輯"，機械月刊，第二十五卷第八期，88年8月。 2.機械月刊編輯部，"電動車技術之現況與未來"，機械月刊，第 二十五卷第八期，88年8月。 3.機械月刊編輯部，"汽車替代能源引進狀況與未來展望"，機械月刊，第二十五卷第八期，88年8月。 4.解 潘祥，"複合電動車輛動力系統介紹"，機械工業雜誌，90年11月。 5.LIANG CHU, YOUDE LI AND QINGNIAN WANG, "STUDY ON THE PARAMETRIC OPTIMIZATION FOR PARAL -LEL HYBRID ELECTRIC VEHICLE POWER TRAIN", SAE PAPER
NO.2000-01-3109. 6.A. NEDUNGADI AND M. WALLS, "A PARALLEL HYBRID DRIVETRAIN", SAE PAPER NO.1999-01-2928.
7.ISAYA MATHUO, SHINSUKE NAKAZAWA, HIROMASA MAEDA AND EIJI INADA, "DEVELOPMENT OF A HIGH
-PERFORMANCE HYBRID PROPULSION SYSTEM INCORPORATING A CVT", SAE PAPER NO. 2000-01-0992. 8.VALERIE H.
JOHNSON, KEITH B. WIPKE AND DAVID J. RAUSEN, "HEV CONTROL STRATEGY FOR REAL- TIME OPTIMIZATION OF FUEL ECONOMY AND EMISSIONS", SAE PAPER NO. 2000-01-1543. 9.TOSHIO INOUE, MASAKI KUSADA, HIROSHI KANAI, SEIJI HINO AND YOSHIHIKO HYODO,"IMPROVEMENT OF A HIGHLY EFFICIENT HYBRID VEHICLE AND INTEGRATING SUPER LOW EMISSIONS",SAE PAPER NO. 2000-01-2930. 10.解潘祥，"複合電動車輛動力系統介紹"，機械工業雜誌P86~P104，第224 期，2001年11月 11.KAORU AOKI,SHIGETAKA,SHIGEMASA KAJIWARA,HIROMITSU SATO AND YOSHIO
YAMAMOTO,"DEVELOPMENT OF INTEGRATED MOTOR ASSIST HYBRID SYSTEM:DEVELOPMENT OF THE 'INSIGHT',A PERSONAL HYBRID COUPE", SAE PAPER NO.2000-01-2216. 12.ISAYA MATSUO,TAKESHI MIYAMOTO AND HIROMASA MAEDA,"THE NISSAN HYBRID VEHICLE",SAE PAPER NO.2000-01-1568. 13.WU-QIANG LONG,KENJI MORITA AND NOBUO IWAI,"ANALYSIS OF HEV COMPONENTS EFFICIENCY ON FUE -L ECONOMY",SAE PAPER NO.2000-01-1542. 14.FENG
AN.FRANK STODOLSKY AND DANILO SANTINI,"HYBRID OPTION FOR LIGHT-DUTY VEHICLE",SAE PAPER NO.1999-01-2929.
15.EDWARD D. TATE STEPHEN P.BOYD,"FINDING ULTIMATE LIMITS OF PERFORMANCE FOR HYBRID ELECTR -IC VEHICLES", SAE PAPER NO.2000-01-0000. 16.JONAS HELLGREN AND BENGT JACOBSON,"A SYSTEMATIC WAY OF
CHOOSING DRIVELINE CONFIGURATION AND SIZING COMPONENTS IN HYBRID VEHICLES", SAE PAPER NO. 2000-01-3098.
17.DAVID L.MCKAIN AND NIGEL N.CLARK, THOMAS H.BALON AND PAUL J.MOYNIHAN,SHEILA A.LYNCH AND THOMAS C.WEBB,"CHARACTERIZATION OF EMISSIONS FROM HYBRID-ELECTRIC AND CONVENTIONAL TRAN -SIT BUSES", SAE PAPER NO.2000-01-2011. 18.ROBERT CROW III, STEPHEN P. CORTESE, "DUAL USE HYBRIDELECTRIC TECHNOLOGY FOR CENTURY T -RUCK PROGRAM", SAE PAPER NO.2000-01-3421. 19.JEFFREY J. RONNING AND GREGORY L.GRANT, "GLOBAL HYBRID ELECTRIC VEHICLE MARKETS AND MIS -SIONS", SAE PAPER NO. 1999-01-2946. 20.IQBAL HUSAIN AND
MOHAMMAD S. ISLAM, "DESIGN, MODELING AND SIMULATION OF AN ELECTRIC VEH -ICLE SYSTEM", SAE PAPER NO.1999-01-1149. 21.MICHAEL PANAGIOTIDIS, GEORGE DELAGRAMMATIKAS AND DENNIS ASSANIS, "DEVELOPMENT AND USE OF A REGENERATIVE BRAKING MODEL FOR A PARALLEL HYBRID ELECTRIC VEHICLE", SAE PAPER NO. 2000-01-0995 22.BRADLEY GLENN, GREGORY WASHINGTON AND GIORGIO RIZZONI, "OPERATION AND CONTROL STRATEGIES FOR HYBRID ELECTRIC AUTOMOBILES", SAE PAPER NO.2000-01-1537. 23.YASUO NAKAJIMA, KIMITAKA YAMANE, TOSHIO SHUDO AND MASARU HIRUMA, "RESEARCH AND DEVELOPME -NT OF A HYDROGEN-FUELED ENGINE FOR HYBRID ELECTRIC VEHICLE", SAE PAPER NO.2000-01-0993. 24.X. ZENG, G.A. MAJOR, T.HIRAO AND T. IMAIIDA, "AN AUTOMOTIVE HYBRID HEATING SYSTEM FOR PA -RALLEL HYBRID PASSENGER CARS", SAE PAPER NO.2000-01-1276. 25.MICHAEL M.
SCHECHTER, "REGENERATIVE COMPRESSION BRAKING A LOW COST ALTERNATIVE TO ELECTR -IC HYBRIDS", SAE PAPER, NO,2000-01-1025 26.林振江，施保重，"混合動力車的理論與實際"，全華科技圖書股份有限公司，民國九十一年。 27.林展聖
，"並聯式混成動力機車傳動機構系統與其動態性能之研究"，大葉大學碩士論文，民國八十九年。 28.許宏偉，"並聯式混合動力機車之 實作與控制"，大葉大學碩士論文，民國九十年。 29.黃國修，"並聯式混合動力機車引擎系統最佳化"，大葉大學專題研究計畫成果報告
，民國八十九年六月。 30.王鋒銘，"多功能單板控制卡"，大葉大學自動化工程學系專題製作報告，民國八十九年。 31.曲毅民，"基本 電學"，大中國圖書公司，民國七十三年十一月。 32.HTTP://WWW.OTT.DOE.GOV/HEV/BACKGROUND.HTML
