■ TunnelField-E ff ectTransistors UltralowSchottkyBarriersinHexagonalBoronNitride-EncapsulatedMonolayerWSe

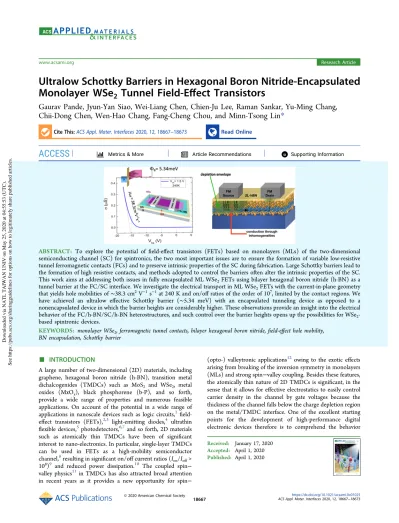

Ultralow Schottky Barriers in Hexagonal Boron Nitride-Encapsulated Monolayer WSe

Tunnel Field-E ffect Transistors

Gaurav Pande, Jyun-Yan Siao, Wei-Liang Chen, Chien-Ju Lee, Raman Sankar, Yu-Ming Chang, Chii-Dong Chen, Wen-Hao Chang, Fang-Cheng Chou, and Minn-Tsong Lin*

Cite This:ACS Appl. Mater. Interfaces 2020, 12, 18667−18673 Read Online

ACCESS

*

ABSTRACT: To explore the potential of field-effect transistors (FETs) based on monolayers (MLs) of the two-dimensional semiconducting channel (SC) for spintronics, the two most important issues are to ensure the formation of variable low-resistive tunnel ferromagnetic contacts (FCs) and to preserve intrinsic properties of the SC during fabrication. Large Schottky barriers lead to the formation of high resistive contacts, and methods adopted to control the barriers often alter the intrinsic properties of the SC.

This work aims at addressing both issues in fully encapsulated ML WSe₂FETs using bilayer hexagonal boron nitride (h-BN) as a tunnel barrier at the FC/SC interface. We investigate the electrical transport in ML WSe₂FETs with the current-in-plane geometry that yields hole mobilities of∼38.3 cm²V⁻¹s⁻¹at 240 K and on/off ratios of the order of 10⁷, limited by the contact regions. We have achieved an ultralow effective Schottky barrier (∼5.34 meV) with an encapsulated tunneling device as opposed to a nonencapsulated device in which the barrier heights are considerably higher. These observations provide an insight into the electrical behavior of the FC/h-BN/SC/h-BN heterostructures, and such control over the barrier heights opens up the possibilities for WSe₂- based spintronic devices.

KEYWORDS: monolayer WSe₂, ferromagnetic tunnel contacts, bilayer hexagonal boron nitride, field-effect hole mobility, BN encapsulation, Schottky barrier

■

A large number of two-dimensional (2D) materials, including graphene, hexagonal boron nitride (h-BN), transition metal dichalcogenides (TMDCs) such as MoS₂ and WSe₂, metal oxides (MxO_y), black phosphorene (b-P), and so forth, provide a wide range of properties and numerous feasible applications. On account of the potential in a wide range of applications in nanoscale devices such as logic circuits,¹ field- effect transistors (FETs),^2,3 light-emitting diodes,⁴ ultrathin flexible devices,⁵photodetectors,^6,7 and so forth, 2D materials such as atomically thin TMDCs have been of significant interest to nano-electronics. In particular, single-layer TMDCs can be used in FETs as a high-mobility semiconductor channel,⁸resulting in significant on/off current ratios (Ion/I_off>

10⁸)⁹ and reduced power dissipation.¹⁰ The coupled spin−

valley physics¹¹in TMDCs has also attracted broad attention in recent years as it provides a new opportunity for spin−

(opto-) valleytronic applications¹² owing to the exotic effects arising from breaking of the inversion symmetry in monolayers (MLs) and strong spin−valley coupling. Besides these features, the atomically thin nature of 2D TMDCs is significant, in the sense that it allows for effective electrostatics to easily control carrier density in the channel by gate voltages because the thickness of the channel falls below the charge depletion region on the metal/TMDC interface. One of the excellent starting points for the development of high-performance digital electronic devices therefore is to comprehend the behavior

Received: January 17, 2020 Accepted: April 1, 2020 Published: April 1, 2020 Downloaded via NATL TAIWAN UNIV on May 25, 2020 at 04:55:53 (UTC). See https://pubs.acs.org/sharingguidelines for options on how to legitimately share published articles.

of the metal in contact with TMDCs.¹³Schottky contacts with low barrier heights (ΦB) and low reverse leakage currents are key requirements in order to produce TMDC-based devices such as FETs that simultaneously preserves the intrinsic characteristics of the channel. This idea can also be extended to spin injection in these materials as long as there is a ferromagnetic (FM) contact¹⁶(FC) with a tunnel barrier such that the height of the overall barrier (FC/h-BN/SC) is low enough to enable optimization of values for contact and channel resistance. This is called the impedance matching phenomenon¹⁷and is a key element for injection and detection of spin in semiconductors.

Analysis of Schottky transistor’s electrical characteristics at room temperature alone cannot provide a complete under- standing of the mechanism of conduction and formation of barriers. However, temperature-dependent electrical behavior investigation may provide a detailed mechanism for current transport. To our knowledge, very little research in this direction of contact engineering for future lateral spin FET functionality has been made using FCs to ML TMDCs with an efficient tunnel barrier;¹⁴⁻¹⁶ however, contacts with in-plane magnetization might be a bottleneck for fully electrical spin transport proposed in the MLs in this case because MLs of TMDCs prefer spin polarization in the z-direction originating from the Ising spin orbit coupling because of breaking of the

mirror symmetry of the plane perpendicular to the 2d lattice plane,¹⁸ despite the gate tunability of the barrier heights.

Subsequent efforts were made to combine WS2 with perpendicular anisotropic magnets with Al₂O₃ barriers, but even in this case, the Schottky barrier heights are considerably higher with the best value of 147 meV without any apparent gate tunability.¹²

This work focuses on the measurement and understanding of the gate-dependent and temperature-dependent charge transport properties in tunnel FETs formed by the ML of WSe₂ crystals with FM metal contacts with perpendicular magnetic anisotropy. Our findings show that a combination with a thin layer of h-BN on top of ML WSe₂along with thick h-BN at the bottom not only allows for ultralow effective barrier heights but also allows this barrier height to be tuned with the gate voltages opening the possibility for modulation of these heights to yield comparable values for contact and channel resistance in the future for impedance matching and spin injection. The strategy of encapsulating allows for probing the intrinsic transport properties in the ML semiconducting channel (SC), while giving out the minimum effective Schottky barrier height as low as 5.34 meV using a 2D thermionic emission model¹⁹free from Fermi level pinning (FLP) effects.

This tunability is manifestly lost in the unencapsulated device.

For simplicity, here onward, we will refer the contact material Figure 1.(a) Schematic of the h-BN-encapsulated ML WSe₂ tunneling device with FCs; (b) optical microscopy image of the device. The rectangular part (red) represents the encapsulated structure; the optical image of the encapsulated sample before defining contacts. (c) (Top) energy level diagram for ML WSe₂with respect to the immediate contact material platinum; (bottom) schematic of the drain−source current under the forward bias condition underfinite bias and over threshold gate voltage. Note that the majority charge carriers are holes in our devices. The band bending around the FCs is not scaled. (d) PL spectrograph for ML WSe₂at 4.7 K (X^orepresents the neutral exciton peak); (inset) room temperature PL spectra for the same single layer of WSe₂shows the single signature peak at 1.67 eV for collective excitations in a ML.

as Pt, the part of the superstructure which is in immediate contact with bilayer h-BN and ML WSe₂.

■

Device Fabrication. ML WSe₂and thin h-BN are obtained by mechanical exfoliation from bulk 2H−WSe2 (see the Supporting Informationfor bulk crystal growth details) and h- BN crystals (2D Semiconductors Inc.) by the polydimethylsi- loxane (PDMS)-based method followed by subsequent dry transfer with the help of a micromanipulator onto the boron- doped SiO₂/Si(100) substrate (300 nm-thick SiO₂). Initially, the layer thickness is determined by the optical contrasts. This procedure has been followed to create two devices. One assembly forms the 2L-hBN/WSe₂/hBN stack (D1), while the other WSe₂/hBN stack (D2) is formed by deliberately misplacing the thin h-BN flake and the ML WSe2 flake to yield one encapsulated area and one nonencapsulated area, followed by annealing in an Ar/H₂atmosphere at 423 K for 3 h.Figure 1a shows the schematic of the tunnel FET device. In an effort to reduce the inhomogeneity between the devices, both the studied transistors are fabricated simultaneously on a single substrate. Si is used as a back gate to tune the carrier density in the channel. WSe₂is confirmed to be a single layer by confocal photoluminescence (PL) measurements, as shown inFigure 1d (see theSupporting Informationfor details). The high quality of the encapsulated SC with thin h-BN is reflected in the high neutral exciton X^osignal at low-temperature PL, as depicted in Figure 1d, compared to the defect peaks as opposed to an unencapsulated sample lying bare on the SiO₂/ Si substrate, as shown in Figure S3 (see the Supporting Information), obtained from the same bulk. It is important to note that the WSe₂beneath the thin h-BN does not come in contact with polymers during fabrication because of full encapsulation of the flake. ML WSe2 FET devices are fabricated by patterning (methyl methacrylate)/poly(methyl methacrylate) resists using e-beam lithography. The metallic FM electrodes consisting of a superstructure formed by Co/Pt with Pt (15 Å) as the immediate contact material on top of both D1 and D2 are deposited inside an ultrahigh vacuum chamber with a base pressure of ∼10⁻⁹ Torr. The magnetic behavior is confirmed by the polar magneto-optical Kerr effect (seeFigure S4) with the external magneticfield perpendicular to the sample surface. The channel lengths of both the devices are 4 and 3.5μm, respectively, and the widths of the flakes are generally between 2 and 2.5μm. The dielectric screening by h- BN on ML WSe₂not only helps with device mobility but also protects the channel from environmental effects and degradation. The optical microscopy image shown in Figure 1b illustrates thefinal device geometry for single-layer WSe2

FETs. Figure 1c illustrates the energy level diagram for ML WSe₂with respect to the immediate contact material platinum to the channel via the thin h-BN barrier (not shown).

Current−voltage (I−V) measurements are performed by applying a DC voltage across two electrodes and registering the current response in both devices.

DC Bias Electrical Transport and Schottky Analysis.

We now examine the two-probe I−V curves as a function of temperature in order to better comprehend the essence of the Schottky barrier in these devices. First, we discuss the I−V characteristics for the tunnel device with Pt/h-BN contacts to ML WSe₂.Figure 2a displays I−V curves on a logarithmic scale for several temperatures falling into the thermionic emission regime. The measured current response increases with the

increase in temperature. Thefigure demonstrates a rectifying behavior from symmetric electrodes, especially at 80 K.

Experimentally, even when designing symmetric electrodes, there is some difference in the widths of the electrodes in the order of“nm”. In fact, it is quite difficult to make them ideally symmetric. Hence, we believe that at low temperatures, because of the slight asymmetry of the electrodes, one of the electrodes starts behaving more resistive than the other one.

Therefore, the nearly symmetrical rectifying behavior in the I_ds−Vds at low temperatures is due to these back-to-back Schottky diode-like structures. A typical two-probe I−V curve taken in a wide temperature range is displayed inFigure S2a (see the Supporting Information) for this device with a channel length, L, of 4μm. Please note that our device channel length is∼ 4 μm, while the contact widths are ∼ 1 μm. For a constant channel length, because the tunneling (Schottky barrier) changes exponentially with voltage, increasing above some voltage results in a very small change of voltage on the contacts and most of it falling on the channel, and if the channel is larger comparative to contacts, leading to a (nearly) linear IV behavior. Two-probe conductance measured at 240 K as a function of V_gis shown inFigure S2b(see the Supporting Information) and exhibits decreasing conductance as V_g is swept toward positive voltages. In fact, this characteristic behavior is seen on both devices measured throughout the wide temperature range and indicates that the devices are intrinsically p-type as fabricated. It reflects that the Fermi level Figure 2.Charge transport in the encapsulated ML WSe₂device at V_g

= −18 V. (a) I−V curves for the ML WSe2 FET device with FM contacting WSe₂via a tunnel barrier formed by two-layer h-BN from T = 80 to 240 K; (b) Arrhenius plot ln(I_ds/T^3/2) vs 1000/T at different drain−source voltages Vds in the thermionic emission temperature range; (c) extraction of Schottky barrier heightΦBby taking the y-intercept value. Here, each data point represents the slope obtained from the Arrhenius plot in (b) under a specific Vds; (d) current I_dsplotted on a logarithmic scale as extracted from a single- layer WSe₂FET at T = 40 K and as a function of the gate voltage V_g for several values of the voltage V_ds between drain and source contacts. Notice that the on/off ratio approaches 10⁷ and a subthreshold swing of SS≈ 500 mV per decade.

lies deep within the band gap close to the valence band of WSe₂, which is expected to be of a very high work function metal contact material such as platinum here. The back gate voltage V_g applied to the Si substrate results in a 500 mV subthreshold slope for every decade of current change, shown inFigure 2d, at 40 K (for 300 nm SiO₂dielectric). Electrical transport across a Schottky contact into a semiconductor has been conventionally described by the 3D thermionic emission equation.²⁰

The same format of the equation is modified into a slightly different equation when we consider devices which fall in the regime of thin 2D materials as is our case. In such a situation, the drain−source current IDS can be defined by a 2D thermionic emission equation¹⁹ instead. This equation has the form of a reduced power law where temperature dependence goes as T^3/2 for a 2D transport channel and is given by

Ä ÇÅÅÅÅÅ ÅÅÅÅÅ i

kjjj y

{zzzÉ ÖÑÑÑÑÑ ÑÑÑÑÑ

I A ST q

k T

V exp n

DS 2D

3/2

B B

= * − Φ − DS

(1) where A* is the 2D equivalent Richardson constant, S is the contact area of the junction, q is the elementary charge,ΦBis the Schottky barrier height, n is the ideality factor, k_B is the Boltzmann constant, and V_DSis the drain−source bias.

To determineΦB, ln(I_ds/T^3/2) is plotted against 1000/T for various V_DSbiases, as shown inFigure 2b. The data are linear at each bias in the thermionic emission regime, and the slope (S) is subsequently plotted inFigure 2c as a function of drain− source bias. The y-intercept ofFigure 2c, denoted by S_oin the formula mentioned on thefigure, yields ΦBaccording to S_o=

−qΦB/1000k_B. For ML WSe₂ transistors D2 with direct Pt contacts,ΦBis found to be∼239 meV (Figure 3b) and shows

hardly any modulation with the change of gate voltages. On the other hand, the tunnel barrier-encapsulated device D1 attains good gate tunability (Figure 3a) and shows an effective Schottky barrier height as low as 5.34 meV, as shown inFigure 2c. It is worth mentioning that the true estimate of the Schottky barrier height comes from theflat band deviation of effective Schottky values from a linear region, and because the

device without encapsulation D2 does not show any signs of tunability (see Figure 3b), it is very hard to pin point the specific value of the barrier height in this case. Such an analysis, on the other hand, seemed possible with the encapsulated device, but the interference from leakage possibly via SiO₂for a broader range of gate voltages has not enabled us to make that conclusion decisively. Even so, the lower bound for the“true”

barrier height could be inferred as 32.5 meV, as shown in Figure 3a, because this value scales with the threshold gate voltage of the transistor within the temperature range where the thermionic emission model is valid. In addition, because the device can be tuned for the Schottky heights, a transition from the thermionic emission regime possibly into the tunneling dominant regime is achieved, pushing this effective value down to an ultralow value of 5.34 meV.

The D2 corresponds to direct Schottky contact by Pt to the ML WSe₂ flake. Temperature-dependent I−V characteristics show an asymmetry on either side of the bias, and the transistor behaves more like a Schottky diode, as shown in Figure S1d(see the Supporting Information). This reflects the dominance of transport assisted by thermionic emission and is consistent with the previous results²¹⁻²³for the direct normal metal (NM)−SC junction. On the other hand, for D1, as has been shown inFigure 2a, an almost symmetric behavior in the I_DS−VDSplot around zero bias could be seen, suggesting the dominance of tunnel transport over thermionic emission.²⁴ Thus, instead of increasing two-probe resistance, insertion of a 2L-hBN barrier reduces the device resistance, especially at low drain−source biases, which could be quite relevant for all practical purposes of electrical spin injection/detection performed generally at low biases.²⁵ The two terminal resistances at 10 K in the low bias regime exceed 500 MΩ for tunnel device D1, as shown inFigure S2(inset). This can be confirmed quantitatively by examining the 2D Arrhenius behavior using eq 1and extracting ΦB. Figure 2b shows the Arrhenius plot at different drain−source bias voltages. Figure 2c displays the resulting Schottky barrier height extracted from extrapolation of slopes, as shown inFigure 2b, as 5.34 meV as discussed above. This is a dramatic decrease, of almost 98%, in ΦB from no barrier to the 2L-hBN barrier (Figure 3a,b).

Notably, a significant fact is that the barrier height, which is related to the contact resistance, can be controlled by inserting h-BN barriers.Figure 2d shows the subthreshold slope curve for the estimation of the on/off ratio for the tunnel FET. The data shown for 40 K inFigure 2d as a function of gate voltages show that the best value for this ratio is of the order of 10⁷, which is comparable to previous high-performance devices made from the WSe₂ML as the SC with the NM contacts.²⁶ The Schottky barrier height is dependent solely on the work functions of the metal and SC for metals/SC junctions without interface states.²⁷Research on MoS₂Schottky contacts showed that the measured height of the Schottky barrier depends linearly on work functions.²⁸ However, it is an open issue whether or not interfacial states also play a part. It is known that such states can dramatically affect ΦBthrough FLP,^29,30as exhibited in our device D2. For a high density of interfacial states (DIS), ΦB can be completely determined by the interfacial states, independent of the metal work function.

The gate dependence of the barrier provides some insight into the role of interfacial states. In the conventional theory of Schottky barriers for semiconductors,³¹ both work functions and interface states play a role in determining the barrier height with relative importance depending on the DIS.

Figure 3.(a) Back-gate voltage-dependent effective Schottky barrier heightsΦBfor the two-layer hBN tunnel barrier device. The deviation from the linear response at Vg=−16 V (green dotted line) should define the flat band voltage (VF) and close to the realΦBfor Pt/hBN on ML WSe2. The shaded pink region suggests a crossover from the thermionic regime into the pure tunneling regime. (b) Back-gate voltage-dependent effective Schottky barrier heights ΦB for the nonencapsulated ML WSe2 device with the direct metal/semi- conductor junction. Notice the high values and nontunability of the barrier heights attributed to FLP effects (orange area).

Interestingly, in the two limits of DIS = 0 (work function model) and DIS → ∞ (FLP), the Schottky barrier is independent of the electron density. However, in the intermediate regime of DIS, the Schottky barrier height decreases with increasing electron density. As the same trend is observed in our ML WSe₂transistor D1, it provides evidence that work functions and interfacial states both play a role in determining the barrier height. Therefore, the data presented here for ML WSe₂, which also demonstrate lowering of the Schottky barrier height with the insertion of the 2L-hBN barrier, beg an explanation for the case of intermediate DIS and suggest that interfacial states are important for a full understanding of Schottky contacts to TMDCs. At the same time, the likelihood of transport being affected by intrinsic defects in the bulk and fabrication-related details could also be an open possibility. A detailed model explaining this, in addition to the experimental data and technique to probe the interface directly, is worthy of further investigation, however, out of the scope of this work.

I−V measurements combined with the gate dependence provide additional insight into the impacts of h-BN barriers on ΦB. For Pt directly in contact with ML WSe₂without the h-BN barrier, the Schottky barrier height does not decrease considerably and varies approximately from 239 ± 5.9 to 258± 1.6 meV at various gate voltages, as shown inFigure 3b (blue dots). With the insertion of the 2L-hBN barrier, ΦB

varies from 5.34± 0.08 meV at Vg=−18 V to 72 ± 2.6 meV at V_g = −14 V. In the measured range, the direct Pt contact Schottky barrier height is never less than for Pt with 2L-hBN.

A simple linear extrapolation indicates that for no barrier,ΦBis approximately 258 meV for gate voltages of above−14 V. On the other hand, with the insertion of 2L-hBN,ΦBis relatively low at all measured gates and goes to an ultralow value of 5.34 meV at V_g=−18 V. Thus, both back gate and 2L-hBN provide a wide parameter space to control the Schottky barrier height in the ML WSe₂tunnel FET device.

■

To reconcile the case for efficient tunneling in our encapsulated device, one has to be careful to see the Arrhenius plots over a broad temperature range. To clarify this point, let us focus on the temperature dependence of conductance which serves as afingerprint for the electronic hopping processes that are involved in the transport, as shown in the schematic in Figure 4a. In the WSe₂system, it is reported that the selenium vacancies can introduce localized donor states inside the band gap.³² Figure 4b shows the Arrhenius plot for T-dependent conductance at different Vdsat a constant gate voltage. It could be seen from temperature variation of G with different Vdsthat the charge transport phenomena can be described by two different mechanisms, known as activation transport models, in the respective high- and low-temperature regimes, with a characteristic threshold at around T* = 58 K. For this T > T*, carriers with a conductivity varying like G≈ exp(−T0/T) are dominated by the nearest-neighbor hopping mechanism. For T

< T*, a 2D variable-range hopping (VRH) mechanism equation with much weaker temperature dependence accord- ing to G ≈ exp(−T1/T)^0.33 can instead be used to fit the conductance. In many low-dimensional systems, such T dependence has been observed in accordance with Mott VRH theory³³ and is a signature for transport via localized states driving the system into a strongly localized regime.³⁴⁻³⁶ In Figure 4c, as a different set of data to verify the fitting

models used above, which shows temperature variation of G with different Vgs instead, for the same encapsulated sample D1, the slope of the Arrhenius plot changes around similar T*, implying the same crossover of conduction mechanisms. The two temperature regions for the different hopping regimes are even more pronounced at a small drain−source bias Vdsof 0.12 V where the probability of contact resistance dominating the total resistance is quite high. This emphasizes that the dominant transport mechanism is hopping through the contact regions over the WSe₂channel itself.

In this instance, we put forward an explanation that the contact region may be constituted by three different zones as depicted schematically inFigure 4a: (i) the dielectric insulating h-BN tunnel barrier, (ii) the strongly depleted zone (dark pink) underneath h-BN playing the role of an additional composite tunnel barrier, and (iii) the rear part of the depletion zone (smeared pink) of the ML WSe₂ where the hopping mechanism guarantees electronic conduction. If we pay close attention to the inhomogeneous channel composed of two components, the depletion part below h-BN and a semi- infinite section of a channel, electron hopping can profit from the electric field³⁷ or thermal activation energy³⁸ through localized states whenever there is an increase in either the bias Figure 4. Evidence for hopping transport in the Pt/hBN/WSe2

contact region; (a) band diagram for the Schottky contact region for the ML WSe2 device. The device can be separated into three locales. The direct tunneling locale comprises the h-BN tunnel barrier and one part of Schottky contact taken together. The second locale is in the tail portion of the depletion layer where holes (electrons) transport in a hopping mannerism. The third locale is where holes (electrons) either transport in the WSe2 channel by hopping or transport in the WSe2valence band (conduction band), contingent upon the carrier density. (b) Arrhenius plot of the temperature- dependent conductance G (symbols) at various Vdsat Vg=−18 V and thefitting results by the different hopping models (blue and yellow lines). Two hopping regimes are clearly separated by T* (vertical line) corresponding to a temperature of∼58 K. (c) Arrhenius plot of G for different values of Vg. Solid lines arefits to the data showing two distinct conduction behavior for various regions of T and Vg(charge density).

or temperature, particularly for the VRH procedure, and can effectively reduce resistance Riii. This fact could be investigated in more detail by experiments with a higher number of probes which can shed more light precisely on this subject through an elaborate investigation of channel resistances. These results are extremely promising indicators in the direction of the possibility of spin injection and transport in encapsulated ML WSe₂. Uniform h-BN barriers can provide the contact resistance needed to alleviate the conductance mismatch problem and the resistance value can be easily controlled by gate voltages, enabling the tuning ofΦBdown to almost zero, given the limits for gate leakage values (this might vary from device to device). This permits a minimization of the depletion region for a highly conductive spin transport channel.

■

We have examined the properties of p-type single-layer tunneling WSe₂FET devices with FM electrodes. In particular, using 2D thermionic emission analysis by current−voltage curves, we have measured the Schottky barrier height for Pt electrodes directly in contact with WSe₂ and have attributed the nontunability to FLP effects. Remarkably, we have found that with the insertion of a thin h-BN barrier between the Pt electrode and the WSe₂ flake encapsulated by thicker h-BN, the effective Schottky barrier height can be reduced to an ultralow one by as much as 97.7%. We have shown that the barrier height can be manipulated by both the h-BN presence and back gate voltages. From systematic studies of the bias, temperature, and back-gate voltage dependence of Schottky barrier heights, we surmise that in order to maintain a balance between interface tunneling resistance and channel resistance, which is mandatory for the observation of two-terminal spin signals, the understanding and the behavior of hopping via localized states in the contact depletion region could play a central role. Elimination of metal/TMDC chemical inter- actions by the h-BN insertion layer along with full boron nitride encapsulation of the channel allows us to better preserve the intrinsic properties of the 2D channel. The discussion presented here for hopping via h-BN tunnel barriers to 2D semiconductors allows us to satisfactorily describe and reproduce their experimental electrical response within the Schottky−Mott limit. Such low barrier heights and the ability to optimize them encourage and open up the avenues for future studies on purely electrical spin transport in MLs of WSe₂. These results promise to be important not only to those interested in WSe₂ in particular but also to the larger community exploiting 2D materials for optoelectronic and spintronics applications.

■

ML WSe₂and thin h-BN are obtained by mechanical exfoliation from bulk 2H−WSe2 grown by chemical vapor transport (see the Supporting Information for bulk crystal growth details) and h-BN crystals (2D Semiconductors Inc.) by the PDMS-based method followed by subsequent dry transfer with the help of a micro- manipulator onto the boron-doped SiO₂/Si(100) substrate (300 nm- thick SiO₂). Initially, the layer thickness is determined by the optical contrasts. Room temperature PL spectra were acquired with a home- built laser scanning confocal spectromicroscope with 532 nm laser excitation. The low-temperature PL spectra of WSe₂ MLs were measured by a micro-PL setup. The setup consist of a three-axis positioner and a 100× objective lens (NA = 0.82) integrated in a cryogen-free cryostat with a base temperature of 4.2 K. A He−Ne laser with a wavelength of 632.8 nm was used to excite the WSe₂. The

charge transport measurements have been performed in a four-probe cryostat system by Lakeshore by varying temperature from 6.6 to 280 K with a base pressure of 2× 10⁻⁶ mbar. For the back-gated two- terminal measurements, as described inFigure 2, we have used one of the Keithley 2636B channels to apply the drain−source bias Vdsand measure drain−source current Idsand used the other Keithley 2636B channel to apply the back-gate voltage V_g. Estimation of the mobility of our FET device with the 2L h-BN tunnel junction has been performed by the IDS − VG characterization. All measurements reported here use a voltage-biased scheme.

■

*^sı Supporting Information

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsami.0c01025.

Details of bulk single-crystal preparation, room temper- ature and low-temperature PL measurements, details of electrical measurements, polar MOKE measurement of the Co/Pt-layered FM superstructure at room temper- ature, and optical images of the device constituents (PDF)

■

Minn-Tsong Lin− Department of Physics, National Taiwan University, Taipei 10617, Taiwan; Institute of Atomic and Molecular Sciences and Research Center for Applied Sciences, Academia Sinica, Taipei 11529, Taiwan; orcid.org/0000- 0001-7735-4219; Email:[email protected]

Authors

Gaurav Pande− Department of Physics, National Taiwan University, Taipei 10617, Taiwan; Nano Science and Technology Program, Taiwan International Graduate Program, Academia Sinica, Taipei 11529, Taiwan

Jyun-Yan Siao− Department of Physics, National Taiwan University, Taipei 10617, Taiwan

Wei-Liang Chen− Center for Condensed Matter Sciences, National Taiwan University, Taipei 10617, Taiwan Chien-Ju Lee− Department of Electrophysics, National Chiao

Tung University, Hsinchu 30010, Taiwan

Raman Sankar− Institute of Physics, Academia Sinica, Taipei 11529, Taiwan; Center for Condensed Matter Sciences, National Taiwan University, Taipei 10617, Taiwan;

orcid.org/0000-0003-4702-2517

Yu-Ming Chang− Center for Condensed Matter Sciences, National Taiwan University, Taipei 10617, Taiwan

Chii-Dong Chen− Institute of Physics, Academia Sinica, Taipei 11529, Taiwan

Wen-Hao Chang− Department of Electrophysics, National Chiao Tung University, Hsinchu 30010, Taiwan; orcid.org/

0000-0003-4880-6006

Fang-Cheng Chou− Center for Condensed Matter Sciences, National Taiwan University, Taipei 10617, Taiwan; Taiwan Consortium of Emergent Crystalline Materials (TCECM), MOST, Taipei 106, Taiwan

Complete contact information is available at:

https://pubs.acs.org/10.1021/acsami.0c01025 Notes

The authors declare no competingfinancial interest.

■

We would like to acknowledge Ting-Ching Chu and Ching- Chou Tsai for constant fruitful discussions. This work was supported by the Ministry of Science and Technology (MOST), Taiwan, through the following grants: MOST 107- 2119-M-002-006 and MOST 108-2112-M-001-049-MY2.

■
