On the Topology of Wireless Sensor Networks
Sen Yang, Xinbing Wang, Luoyi Fu Dept. of Electronic Engineering Shanghai Jiao Tong University, China Email:{twood,xwang8,fly}@sjtu.edu.cn
Abstract—In this paper, we explore methods to generate optimal network topologies for wireless sensor networks (WSNs) with and without obstacles. Specifically, we investigate a dense network with n sensor nodes and m = nb (0 < b < 1) helping nodes, and evaluate the impact of topology on its throughput capacity. For networks without obstacles, we find that uniformly distributed sensor nodes and regularly distributed helping nodes have some advantages in improving the throughput capacity. We also explore properties of networks composed of some isomorphic sub-networks. For networks with obstacles, we assume there are M = Θ(nv) (0 < v ≤ 1) arbitrarily or randomly distributed obstacles, which block cells they are located in, i.e., sensor nodes cannot be placed in these cells and nodes’ communication cannot cross them directly. We find that the overall throughput capacity is bounded by the transmission burden in areas around these blocked cells and introduce a novel algorithm of complexity O(M ) to generate optimal sensor nodes’ topologies for any given obstacles’ distributions.
I. INTRODUCTION
Capacity is a fundamental issue in wireless sensor networks (WSNs). A typical WSN involves little or no infrastructure and sensor nodes may communicate in an ad hoc manner. In Gupta and Kumar’s seminal work, they adopt Protocol and Physical Model to describe a successful transmission and show that the per-node throughput capacity scales as Θ(1/√
n log n) in random networks, and the per-node transport capacity scales as Θ(1/√
n) in arbitrary networks, respectively [1]. These results provide us not only a theoretical bound but also a foundation in the network optimization and protocol design. Following their work, extensive research are conduced to understand the scaling laws in wireless sensor networks better. On the other hand, in some applications, helping nodes are introduced to improve the performance, which results in a heterogeneous network. In heterogeneous networks, access control is studied in [4], routing protocol is studied in [3], N. Li et al. studied topology control in [5], P. Li et al. studied the throughput capacity of networks with rectangular areas in [6]. Many other schemes such as mobility [7], motioncast [8], multi-channel multi-radio (MRMC) [9], network coding [10] and adding infrastructure [11] are also explored in literatures to improve the network capacity.
However, most of works above are for networks with regularly or uniformly distributed sensor nodes. While in practice, sensor nodes may not be placed uniformly, which could have a huge impact on network properties, including the capacity. For example, if lots of nodes are confined in a small region, it would lead to great interference and deteriorates the capacity. Also, if nodes are too sparse in a particular
area, communication might get difficult, which also harms networks’ performance. To the best of our knowledge, only a few works have dealt with the capacity of networks with inhomogeneous node density. In [12], [13], [14], [15], [16], capacity of inhomogeneous clustered networks are analyzed.
Corresponding scheduling and routing schemes to approach the upper bounds are discussed in [17].
On the other hand, almost all the previous works on capacity dealt with flat network region. While in practice, sensor networks are often deployed in complex environments, such as battle fields or mountainous areas, and there are often many obstacles distributed in these regions. These obstacles may constrain the distribution of sensor nodes and the transmission of packets. For example, in a building monitoring WSN, electromagnetic wave signal can be attenuated significantly when passing through furniture, walls or floors, which could have a great impact on network performance. Another example is WSNs deployed in a mountainous area, in which both routing strategy design and deployment of sensor nodes should consider the constraint of the complex landform. Routing strategy for network with obstacles (holes) is discussed in [18], [19], [20]. However, the capacity problem has not been well studied before. Generally, obstacles have a negative impact on the network capacity. But if we design the network topology appropriately, it could lead to a noneligible improvement.
For example, in building monitoring WSNs, capacity can be improved if we place less nodes in areas shadowed by obstacles. Also, in a mountainous region, if we deploy more nodes in open areas, network capacity can be much larger than that we put most of them in valleys or laps.
These motivate us to explore better network topologies for given network regions, especially for networks with obstacles.
In this paper, we investigate how node distributions influence the throughput capacity and explore the optimal nodes distri- bution on given conditions. We obtain some useful conclusions on generating the optimal topology for flat network areas.
For networks with obstacles, it’s difficult to derive a general solution for various obstacle distributions. However, a feasible algorithm with linear complexity can be proposed by dividing the whole network region into some small pieces and dealing with them respectively.
Our main contributions are as follows:
• For networks which consist of many isomorphic sub- networks, compared with the topology of sub-networks, the overall network’s topology results in a larger through- put capacity.
• For networks without helping nodes, uniform sensor nodes’ distribution is order optimal on maximizing throughput capacity.
• For networks with uniformly distributed sensor nodes, we find that regularly distributed helping nodes are optimal to maximize the network throughput capacity.
• For networks with non-uniformly distributed sensor nodes, though regularly distributed helping nodes are no longer optimal, any improvement on the distribution of helping nodes cannot make a significant change on the throughput capacity in the sense of scaling law.
• For networks with obstacles, we introduce a novel algo- rithm of complexity O(M ) to generate the optimal sensor nodes’ topology for any given obstacle distributions.
The rest of the paper is organized as follows. Section II gives the network model. In Section III, we derive the throughput capacity of networks with different topologies. In Section IV and V, we explore some general properties of network topologies. In Section VI, we study the throughput capacity of networks with obstacles and introduce an algorithm to generate the optimal sensor nodes’ topology for any given obstacle distributions. We finally conclude this paper in section VII.
II. NETWORKMODEL
In this section, we introduce the heterogeneous wireless sensor network model, definition of obstacles and routing strategies.
A. Network Components
We consider dense networks with n sensor nodes and m = nb (0 < b < 1) helping nodes. We assume that the network has asymmetric traffic, i.e., all the n sensor nodes are sources while only nd (0 < d < 1) sensor nodes are randomly chosen as destinations. Also, sensor nodes can serve as relays if needed. Differently, helping nodes do not have information to transmit or receive. They only help relay packets. Similar to [6], according to whether packets are forwarded by helping nodes, we divide network traffic into two modes, namely, normal mode and helping mode. In normal mode, packets are forwarded by only sensor nodes. While in helping mode, packets are firstly sent to the nearest helping node, and then forwarded to their destinations by helping network. We split the total bandwidth of sensor nodes into three parts: bandwidth for ad hoc transmissions in normal mode, uplink bandwidth in helping mode, and downlink bandwidth in helping mode, denoted by W1, W2 and W3, respectively. We also assume that helping nodes have an additional bandwidth, denoted by W4, to forward packets among themselves.
B. Definition of Obstacles
To describe networks with obstacles, we assume the network area is partitioned into K = Θ(nw) (0 < w≤ 1) cells. When there is no sensor node distributed in a cell, we assume that at the cell’s center there is a relay working in the same bandwidth as sensor nodes, which keeps the network’s connectivity. We assume there are M = Θ(nv) (0 < v ≤ w) number of
obstacle nodes in the network area, which can be arbitrarily or randomly distributed. Cells are blocked when there are obstacle nodes in them. Here, “blocked” has two implications:
no sensor node can be distributed in these cells and nodes’
communication cannot cross them directly. If several blocked cells are adjacent with each other, they form a polygon, which can be either convex or concave, we call it “obstacle polygons”.
C. Interference Model
Assume that the network is an unit square and we divide it into non-overlapping cells with equal size. Nodes can communicate with each other only when they are in the neigh- boring cells. To bound the interference among simultaneous transmissions, we apply a TDMA rotating scheduling scheme as that described in [6]. According to the power propagation model introduced in [21], the reception power at node Xj of the signal from node Xi is
Pij = CPi
dγij
where dij is the distance between Xi and Xj, and Pi is the power emitted by node Xi. Following Shannon’s Theorem, the achievable rate Rij of transmission from node Xito node Xj is:
Rij = W log(1 + SIN Rij)
where W is the channel bandwidth, and SIN Rij =
CPi
dγ ij
N +∑
k̸=iCPk
dγ kj
is the Signal-to-Interference and Noise Ratio at node Xj. In this paper we assume that sensor nodes use the same transmission power Ps and helping nodes use the same transmission power Ph, respectively. As derived in [6], we have the following lemma.
Lemma 1. [6] Each cell in the network can work at a transmission rate c1W , where c1 is a deterministic positive constant relevant to the cells’ scale and W is the channel bandwidth.
D. Routing Strategy
As sensor nodes can only communicate with nodes in neighboring cells, packets need to be forwarded through multi- hop transmissions to reach destination nodes. Thus, for net- works with and without obstacles, we adopt following routing strategies, respectively.
Routing Strategy I - for networks without obstacles:
Suppose a source node is located in cell Si and its destina- tion is located in cell Sj. Packet sent from the source node is forwarded along cells in the same vertical line of cell Si until it gets the cell in the same horizontal line of cell Sj, then the packet is forwarded along the cells in the same horizontal line of cell Sj until it reaches the destination node.
Routing Strategy II - for networks with obstacles:
1) If packet sent from the source node can be relayed to its destination by Routing Strategy I, do it.
Fig. 1. Centralized networks
2) Otherwise, if there are only convex obstacle polygons, firstly forward the packet along the routing path gener- ated by Routing Strategy I. When it can no longer be forwarded in current direction (vertical or horizontal), change the forwarding direction to another one (hori- zontal or vertical). Repeat this until it arrives at the destination node.
3) If there exist concave polygons obstacles and neither of the source node and the destination node are in the groove of a concave obstacles polygon, replace the concave obstacle polygons by their convex hulls, respectively, and then following Step 1) and 2) to forward the packet.
4) If source and destination nodes (or either of them) are in the grooves of concave obstacle polygons, we can find cells outside the corresponding convex hulls and nearest to source and destination nodes, respectively. Denote them by SA and SB, respectively. First we transmit the packet from the source node to cell SA, then following Step 1), 2) and 3) to forward this packet from cell SAto cell SB, and finally we forward the packet from cell SB
to the destination node.
E. Network Topology
In this paper, we investigate throughput capacity of networks with the following topologies and then generalize the results to get some useful conclusions.
1) Uniform Distribution: For networks with uniformly dis- tributed nodes, the probability density function (PDF) of the distribution is {
f (x) = 1 (−12 < x < 12) f (y) = 1 (−12 < y < 12)
(1) 2) Centralized Distribution: We consider a simple case of the non-uniform distribution first. As shown in Figure 1, nodes density is large at the center of the network and small at the edge. We call it “centralized distribution”. One of its possible PDFs can be described as follows:
{ f (x) = (4a− 4)x + 2 − a (−12 < x < 12)
f (y) = (4a− 4)y + 2 − a (−12 < y < 12) (2) where a (0≤ a ≤ 1) is the centralization coefficient, which determines the extension that nodes aggregate to the center.
Fig. 2. Multi-centralized networks
The larger a is, the more uniform the nodes are, or vice versa.
Particularly, when a = 1 nodes are distributed uniformly;
when a = 0 probability that nodes distributed at the edge of the network is 0.
3) Multi-centralized Distribution: In practice, network nodes often clustered in several locations of the network, not just the center of the network. We call it “multi-centralized distribution”. As shown in Figure 2, We can divide the whole network into many small sub-networks and each sub-network has similar network topology. In this paper, we assume that all the sub-network is a small centralized network, i.e., it satisfied the probability density function given in (2).
III. THETHROUGHPUTCAPACITY OFHETEROGENEOUS
WIRELESSSENSORNETWORKS WITHOUTOBSTACLES
In this section, we study the throughput capacity of hetero- geneous WSNs without obstacles by deriving an achievable per-node throughput. Communications in helping mode can be divided into three phases: Firstly, packet is sent from source node to the nearest helping node, then forwarded in the helping-network until it reaches the helping node nearest to the destination, and in the final phase packet is transmitted from that helping node to its destination [6]. We analyze the throughput capacity in normal mode and the three phases of helping mode, respectively. Denote achievable per-node throughput in normal mode and helping mode by Tn and Th, respectively. Thus, the achievable per-node throughput of the heterogeneous WSN, denoted by T , can be given as follows:
T = max{Tn, Th} (3) where
Th= min{Th1, Th2, Th3} (4) Here, Th1, Th2, Th3are achievable per-node throughput in the three phases of helping mode, respectively.
According to [6], for the network with n source nodes and nd destination nodes, we have
Lemma 2. [6] For each destination node, with high probability (w.h.p.), there are at most 2n1−ddata flows destined to it.
Thus, using similar techniques in [6], we can calculate networks’ throughput capacity as follows.
1) In normal mode, let Nx,max and Ny,max denote the maximal number of source nodes located in one column and the maximal number of destination nodes located in one row, respectively. Since each source node generate only one data flow and each destination node has at most 2n1−d flows destined to it w.h.p., the maximal number of flows crossing a cell, denoted by Fij,max, is
Fij,max≤ Nx,max+ 2n1−dNy,max (5) According to Lemma 1, each cell can achieve a constant transmission rate. Thus, the achievable throughput in normal mode is
Tn= Ω ( W1
Fij,max
)
(6) 2) In helping mode, let Cmax, Dmax, Nx,max′ and Ny,max′ denote the maximal number of source nodes in one cell, the maximal number of destination nodes in one cell, the maximal number of source nodes in one column and the maximal number of destination nodes in one row, respectively. Denote the maximal number of flows crossing a cell in the second phase of helping mode by Fij,max′ , we have
• In the first phase
Th1= Ω ( W2
Cmax )
(7)
• In the second phase
Fij,max′ ≤ Nx,max′ + 2n1−dNy,max′ (8) Th2= Ω
( W4
Fij,max′ )
(9)
• In the third phase Th3= Ω
( W3
n1−dDmax )
(10) In this section, we assume that all the helping nodes are placed regularly and only investigate the impact of the sensor nodes’ topology. Impacts of helping nodes’ topology are studied in the following sections. Following this trace of derivation, we can obtain the following theorems.
A. Uniform Network
The uniform network is a special case of [6], in which network region is assumed to be rectangular. Hence the following theorem can be derived from [6] directly.
Theorem 1. [6] An achievable throughput in uniform net- works, denoted by Tunif orm, is
Tunif orm= Ω (
max {
min
{ 1
√n log n, nd−1 }
, min
{
n2b−1, nd−1 }})
(11)
B. Centralized Network
To facilitate the calculation, here we will only consider the case that centralization coefficient is 0, i.e., nodes density at the center goes to the maximum. Results of such extreme case are also easier for us to compare with that of the uniform network.
1) Achievable Throughput in Normal Mode: Let Nxi and Nyj denote the number of source nodes located in the ith column and the number of destination nodes located in the jth row, respectively. We have
E[Nxi] = 2n(−2i + 1)(
c2log n n
)12 + 2n
(c2log n n
)14
E[Nyj] = 2nd(−2j + 1)(
c2log n n
)12 + 2nd
(c2log n n
)14 (12) Apply Chernoff bounds to equation (12), we can obtain the following lemma. The detailed proof is omitted due to the space limitation.
Lemma 3. For each cell, w.h.p.,
1) The number of source nodes which are located in the same column is at most 4n(−2i + 1)(
c2log n n
)12 + 4n
(c2log n n
)14 .
2) The number of destination nodes which are located in the same row is at most 4nd(−2j + 1)(
c2log n n
)12 + 4nd
(c2log n n
)14
when 1/4 < d < 1, and at most c3when 0 < d < 1/4, where c3 is a constant and c3>1−4d2 . Let Fkij denote the number of data flows crossing cell S(i, j). For each cell, we have
Fkij ≤ Nxi+ 2n1−dNyj
≤
4n(−2i + 1)(
c2log n n
)12 + 4n
(c2log n n
)14
+2n1−d [
4nd(−2j + 1)(
c2log n n
)12
+4nd
(c2log n n
)14]
when 14 < d < 1 4n(−2i + 1)(
c2log n n
)12 + 4n
(c2log n n
)14 +2c3n1−d when 0 < d <14
(13)
Notice that the left part of (13) are monotonically decreasing functions of i and j, we have
Fk,maxij = Fk11
=
9n
[(c2log n n
)14
−(
c2log n n
)12]
when 14 < d < 1 4n
[(c2log n n
)14
−(
c2log n n
)12]
+ 2c3n1−d when 0 < d < 14
= O
( max
{ n·
(log n n
)14 , n1−d
})
(14)
Denote the achievable throughput in normal mode by Tncentral, from (14), we can obtain that
Tncentral= Ω (
min {
n−1· ( n
log n )14
, nd−1 })
(15) 2) Achievable Throughput in Helping Mode: Since helping nodes are regularly placed, we can divide the network into m cells of length l′=√
1/m = n−b2. Let Th1central, Th2centraland Th3central denote the achievable throughput in phases I, II and III, respectively. Employing similar techniques, we can obtain that
Th1central= Ω
W2
8n
(−n−b+ n−b2 )2
= Ω(nb−1)
Th2central= Ω (
max {
nb2−1, nd−1 })
Th3central=
{ Ω(nb−1) when 0 < b < d < 1 Ω(nd−1) when 0 < b < d < 1 Thus, we have
Thcentral = min{Th1central, Th2central, Th3central}
= Ω
( min
{
nb2−1, nd−1 })
(16) Substituting (15) and (16) into (3), we can obtain the following theorem
Theorem 2. An achievable throughput in centralized net- works, denoted by Tcentral, is
Tcentral= Ω (
max {
min {
n−1· ( n
log n )14
, nd−1 }
, min
{
nb2−1, nd−1 }})
(17) C. Multi-centralized Network
Theorem 3. Denote the achievable throughput in multi- centralized networks denoted by Tmulti, we have
Tmulti = Ω (
max {
min {
k n·
( n
k2
logkn2 )14
, nd−1 }
, min
{
knb2−1, nd−1 }})
(18) Proof: Similar to that in centralized network, we have 1) In normal mode
For multi-centralized network, in every sub-network, there are n/k2nodes. Thus, in normal mode, cells’ length is k1 · 4
√
c4n k2
log n
k2
. Similar to that in section III-B, we can obtain that
Tnmulti= min {
k n·
( n
k2
logkn2 )14
, nd−1 }
2) In helping mode
The edge of cell in helping mode is still
√1
m while the area of each centralized sub-network is only k12. Thus, we can obtain that
Th1multi = Ω
W2
8kn2
(−k2· n−b+ k· n−2b)2
= Ω( nb−1)
Th2multi = Ω
min
W4
9k·kn2
(−n−b+ n−2b ), nd−1
= Ω
( min
{
knb2−1, nd−1 })
Th3multi =
Ω(nb−1) when 0 < b < d < 1 Ω(nd−1) when 0 < b < d < 1 Equation (18) can be obtained by substituting results above into (3) and (4).
IV. GENERALPROPERTIES OF“COMBINEDNETWORKS” From results in section III, we can see that compared with centralized network, the multi-centralized network has a larger throughput capacity. It seems that for network consisting some small isomorphic sub-networks (we call it “combined network”), if we extend the sub-network to the same scale1 as the overall network, its throughput capacity is still smaller than the combine network. Thus, we can obtain the following Theorem.
Theorem 4. For network composed of some isomorphic sub- networks, the throughput capacity of the overall network, denoted by eT , and the throughput capacity of sub-network of same network scales, denoted by eT , have the followinge relationship.
Te≥ eeT (19)
Proof: From Section III, we can see that the achievable throughput of a network without obstacles is determined by cells and rows of the largest nodes density, or equvalently, by variables Nx,maxNy,max, Cmax, Dmax, Nx,max′ and Ny,max′ . In the combined network which consists of k×k sub-networks, denote corresponding variables relevant to the overall network by f(·) and corresponding variables relevant to one particular sub-network (has not be extended) by (·)(s). We have
Cemax= Cmax(s)
Demax= Dmax(s)
Nex,max= kNx,max(s)
Ney,max= kNy,max(s)
Nex,max′ = kNx,max(s)′
Ney,max′ = kNy,max(s)′
(20)
1Here, “scale” means the size of network area, number of nodes and size of cells.
Furthermore, we have
Feij,max = Nex,max+ 2n1−dNey,max
= kN(s)x,max+ 2n1−dkNy,max(s)
= kFij,max(s) (21)
Similarly, we have
Feij,max′ = kFij,max(s)′ (22) Substituting (20), (21) and (22) into (6), (7), (9) and (10), we can obtain that
Ten = Ω (
W1
Feij,max
)
= Ω (
W1
kFij,max(s) )
Teh1= Ω ( W2
Cemax
)
= Ω ( W2
Cmax(s)
)
Teh2= Ω (
W4
Feij,max′ )
= Ω
W4
kFij,max(s)′
Teh3= Ω ( W3
Demax
)
= Ω ( W3
D(s)max
)
On the other hand, if we extend this sub-network to the same scale as the combined network, the number of nodes and the number of cells in this extended sub-network are both k2times larger than before. However, if the nodes distribution is not uniform, the maximal node density in one cell or in one row is larger than before. Denote the corresponding variables relevant to this extended sub-network by ff(·). We have
Teen= Ω
W1 Feeij,max
≤ Ω (
W1 k2·k1· Fij,max(s)
)
= eTn
Teeh1= Ω (
W2
ee Cmax
)
≤ Ω (
W2
k2· k12 · Cmax(s)
)
= eTh1
Teeh2= Ω
W4 Fee
′ ij,max
≤ Ω
W4
k2·1k · Fij,max(s)′
= eTh2
Teeh3= Ω (
W3 Deemax
)
≤ Ω (
W3 k2· k12 · Dmax(s)
)
= eTh3
Thus, we can obtain that Te = max{ eTn, eTh}
= max{ eTn, min{ eTh1, eTh2, eTh3}}
≥ max{eeTn, min{eeTh1, eTeh2, eTeh3}}
= Tee (23)
Conclusion in Theorem 4 means that compared with the topology of sub-networks, the overall network’s topology results in a larger throughput capacity, which provide us a method to generate a better topology to achieve a larger throughput capacity. Intuitively, the overall network has a more uniform distribution than the sub-networks. As discussed in the following section, uniform distribution tend to result in a larger capacity, which also demonstrates the conclusion in this section.
V. IMPACT OFNETWORKTOPOLOGY ONTHROUGHPUT
CAPACITY
A. Impact of Sensor Nodes’ Topology
Comparing the results in section III with each other, we can find that they have similar scales (take k as a constant).
In general, we have the following theorem.
Theorem 5. For the topology of sensor nodes, if the value range of nodes distribution’s PDF is limited, the gap in achievable throughput of non-uniform networks and uniform networks is at most a constant time.
Proof: Firstly, from the analysis in section IV, we can see that if size of cells stay unchanged, interference can not be changed by network topologies. Secondly, in the proof of Theorem 4, we have concluded that in networks without obstacles the achievable throughput is determined by the busiest cells, i.e., by variables Nx,maxNy,max, Cmax, Dmax, Nx,max′ and Ny,max′ . Let Nx,max and bNx,max denote the the maximal number of source nodes located in the same column in uniform and non-uniform network, respectively. Since the value range of the nodes distribution’s PDF is limited, i.e.,
∃M ∈ R+, for ∀ x, y we have |f(x)| ≤ M, |f(y)| ≤ M.
Thus, we have
E[Nx] = n· l
1 (24)
E[ bNxi] = n·
∫ il (i−1)l
f (y)dy
≤ n ·
∫ il (i−1)l
M dy
= M nl
= M E[Nx]
Using Chernoff Bounds, we can prove that w.h.p. Nx ≤ 2E[Nx] and bNxi ≤ 2E[ bNxi]. Thus, we can obtain that
Nbx,max ≤ MNx,max (25)
Similar results can be proved for Ny,max, Cmax, Dmax, Nx,max′ and Ny,max′ . Denoted the achievable throughput in uniform and non-uniform network by T and bT , respectively.
Following similar trace of derivation in Theorem 4’ proof, we can conclude that
T ≤ C(M) bT (26)
where C(M ) is a constant relative to M .
B. Impact of Helping Nodes’ Topology
In analyses above, we have only considered regularly dis- tributed helping nodes. In this subsection, we investigate the impact of variability in helping nodes’ distribution. Generally, we have the following theorem.
Theorem 6. For networks with uniformly distributed sensor nodes, regularly distributed helping nodes are optimal to maximize the network throughput capacity.
Proof: Firstly, we analyze the impact on interference.
In network with non-uniformly distributed helping nodes, we have to divide network area into cells of different lengths. Let l(r)denote length of cells in network with regularly distributed helping nodes, and lmax(n) denote the maximal cells’ length in network with non-uniformly distributed helping nodes, respectively. We can easily obtain that lmax(n) ≥ l(r). Denote the achievable rate per cell in networks with regularly and non-uniformly distributed helping nodes by W(r) and W(n), respectively. From the derivation of Lemma 1, we can obtain that W(r)≥ W(n).
Secondly, similar to the proof of Theorem 4, let Cmax(r) , D(r)max, Nx,max(r)′ and Ny,max(r)′ denote corresponding variables in networks with regularly distributed helping nodes, and Cmax(n) , D(n)max, Nx,max(n)′ and Ny,max(n)′ denote corresponding variables in networks with non-uniformly distributed helping nodes, re- spectively. In networks with non-uniformly distributed helping nodes, there must be cells of length larger than the average value. Thus, we can obtain that
Cmax(n) > Cmax(r)
D(n)max> D(r)max
Nx,max(n)′ > Nx,max(r)′
Ny,max(n)′ > Ny,max(r)′
(27)
Denote the achievable throughput capacity of network with regularly and non-uniformly distributed network by T(r) and T(n), respectively. Since that throughput capacity in helping mode is inversely proportional to variables above, we can conclude that
T(r)≥ T(n) (28)
Theorem 7. For networks with non-uniformly distributed sensor nodes, though regularly distributed helping nodes are no longer optimal, any improvement on the helping nodes’
topology cannot change the scale of network throughput capacity.
Proof: Firstly, consider the interference. According to the proof of Theorem 6, non-uniformly distributed helping nodes can only increase the interference and thus decrease the achievable per-cell transmission rate. Thus, it has a negative impact on the network throughput capacity.
=GRR
-GZK'XKG
<OXZ[GR9U[XIKGTJ
*KYZOTGZOUT4UJKY
｝
*GZG,RU]Y'XKGY=OZNZNK.KG\OKYZ
:XGTYSOYYOUT([XJKT

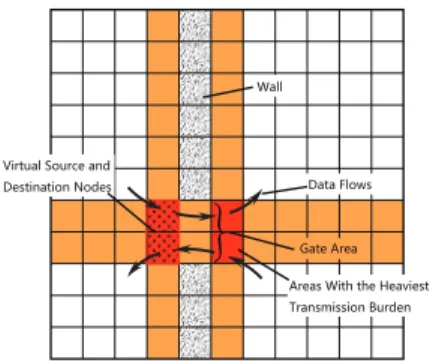

Fig. 3. A wall with gate in the network area
Secondly, if we do not consider the change of interference, network throughput capacity in helping mode is determined by variables Cmax, Dmax, Nx,max′ and Ny,max′ . Thus, if we change the helping nodes’ topology, network throughput capacity achieves the maximum when each cell, each column and each row has the same number of nodes, respectively.
However, similar to that in the proof of Theorem 5, we can easily show that this improvement is not larger than a constant time.
Combining conclusions above together, we can conclude that improvement on helping nodes’ topology cannot change the network throughput capacity in the sense of scaling law.
VI. OPTIMALTOPOLOGY FORNETWORKS WITH
OBSTACLES
In this section, we introduce a novel algorithm to generate the optimal network topology for any given obstacle distribu- tions and analyze its performance.
A. Algorithm to Obtain the Optimal Network Topology To design the optimization algorithm, we consider a simple scenario first. As shown in Figure 3, assume that there is a “wall” with a “gate” in the network, which divides the network area into two parts. In this case, area around the gate is the communication bottleneck since any data flow transmitting from one side of the wall to another side has to pass through the gate. To maximize the throughput capacity, we can reduce the transmission burden in this area by the following algorithm.
Algorithm - “Wall with Gate”:
1) Assume that there are bn, n1 and n2 number of nodes in the gate area, the left and the right part of the network, re- spectively, wherebn+n1+ n2= n. The expect number of data flows passing through the gate is u = f (bn, n1, n2), where function f (·) can be decided using techniques given in Section III. Thus the transmission burden of the gate area is B0= u/k0, where k0 is the number of cells in the gate area (nodes’ distribution in the gate area is assumed to be uniform since this area is relatively small).
2) Ignore the wall and the right part of the network. Put φ1 = gs(bn, n1, n2) number of virtual source nodes and ϕ1 = gd(bn, n1, n2) number of virtual destination nodes
=GRRY
I II III IV
V VI VII VIII
IX X XI XII
(RUIQKJ)KRRY
XIII XIV XV XVI
Fig. 4. Network dividing method I
uniformly in front of the gate (i.e., the area illustrated in Figure 3) to replace the ignored sensor nodes. Vir- tual source and destination nodes work as sources and destinations, respectively, generating virtual date flows.
Functions gs(·) and gd(·) are designed according to the routing strategy so that these numbers of virtual nodes have the same influence on the left part of the network as the ignored parts.2 Then we obtain a degraded sub- network without any obstacles.
3) For the degraded sub-network, use techniques and conclu- sions given in Sections III - V to generate an optimal sub- network topology T1 = T1(bn, n1, n2). The basic idea is to reduce the transmission burden of the shadowed areas and distribute it uniformly to the whole sub-network, or equivalently, to minimize the maximal transmission burden B1= max (Nxi + 2n1−dNyi) = h1(bn, n1, n2).
4) Repeat Step 2 and 3 for the right part of the network, respectively. Generate an optimal subnetwork topology T2 = T2(bn, n1, n2) and calculate the minimized sub- network transmission burden B2= h2(bn, n1, n2).
5) Use appropriate optimization methods to minimize the burden function B = max(B0, B1, B2). Calculate corre- sponding bn, n1 and n2. Thus, the optimal topology for the whole network, denoted by T, can be obtained by combining T1 and T2, i.e.,
T = T (bn, n1, n2) = T′(T1, T2) where T (·) and T′(·) are deterministic functions.
This “Wall with Gate” algorithm can be generalized to ob- tain optimal topologies for any given networks with obstacles.
Firstly, divide the network region into pieces by the following method.
Divide the network by walls - Method I: As shown in Figure 4, take blocked cells in a row (either vertical or horizontal) as a wall and cells without obstacles in this row as gates. Thus, the network region is divided into some sub-networks by these walls.
The optimal topology for this network region can be ob- tained by applying “Wall with Gate” algorithm to each of
2For the routing strategy given in Section II, we let gs(bn, n1, n2) = n1n2/n and gd(bn, n1, n2) = n1n2/n, respectively.
=GRRY (RUIQKJ)KRRY
Fig. 5. Network dividing method II
these sub-networks and gate areas. Note that since the gate areas here might be relatively large, nodes distribution in these areas can no longer be assumed to be uniform and Step 2 - 3 must be applied to these gate areas. Assuming that there are S sub-networks and R gates, we have
T = T (n1, n2, . . . , nS, bn1,bn2,· · · , bnR)
= T′(T1, T2, . . . , TS, bT1, bT2, . . . , bTR)
where ni(i = 1, 2, . . . S) is the number of sensor nodes in the ith sub-network, bnj (j = 1, 2, . . . R) is the number of sensor nodes in the jth gate area, Tk (k = 1, 2, . . . S) is the optimal topology of the kth sub-network and bTl(l = 1, 2, . . . R) is the optimal topology of the lth gate area.
B. Complexity of the Algorithm
Noticing that the algorithm complexity is proportional to the number of sub-networks S and number of gates R, to reduce the algorithm complexity, we can simplify the division of the network area. Note that in Figure 4, sub-networks I - IV can be combined into a larger sub-network, so do sub-networks V - V I, V II - V III, IX - XII and XIII - XV I. We can modify the network dividing method as follows.
Divide the network by walls - Method II: As shown in Figure 5, firstly construct a wall in the row (either vertical or horizontal) with the most number of blocked cells, dividing the network area into two parts. For each part, repeat this step iteratively until all the blocked cells are crossed by at least one wall.
The complexity of the algorithm is given by the following lemma.
Lemma 4. The algorithm complexity is O(M2) when using network dividing method I and is O(M ) when using method II.
Proof: Here, we consider the worst cases, i.e., cases that all blocked cells are not collinear. When using method I to divide the network area, there are 2M walls. Denote the number of sub-networks and number of gates by SI and RI, respectively. In the worst case, these 2M walls divide the network into M2 areas, i.e., SI = M2. Since there is a gate between any neighboring sub-network areas, there are at least
Cell I
Fig. 6. Cell I add four gates to the divided network
4∗ M2/2 gates, i.e., RI = 2M2. So the algorithm complexity is
ηI = O(SI+ RI) = O(M2) (29) When using method II, each cell with obstacles generate at most one wall, so there are at most M walls. Denote the number of sub-networks and number of gates by SII and RII, respectively. These walls divide the network into M + 1 areas, thus, SII = M + 1. Furthermore, as shown in Figure 6, each cell with obstacles can generate at most four additional gates to the network, i.e., RII ≤ 4M. So the algorithm complexity is
ηII = O(SII+ RII) = O(M ) (30)
Although method I generate more sub-networks, each sub- network is relatively simple and easy to analyze. In some particular cases, for example, in the case that the obstacle distribution has some symmetry properties, using method I might result in a smaller algorithm complexity.
VII. CONCLUSION
In this paper, we investigate the throughput capacity of heterogeneous WSNs with different network topologies and analyze the impact of topologies on network properties. We find that compared to sub-networks of the same scale, com- bined networks have a larger overall throughput capacity. We also find that uniformly distributed sensor nodes and regularly distributed helping nodes have some advantages in improv- ing the network capacity. Compared to regularly distributed helping nodes, any change of helping nodes’ topology cannot improve the network throughput capacity in the sense of scaling law. We further investigate the impact of obstacles and introduce an algorithm to generate the optimal sensor nodes distribution for any given network areas with obstacles.
VIII. ACKNOWLEDGMENT
This work is supported by National Fundamental research grant (2011CB302701), NSF China (No. 60832005); China Ministry of Education New Century Excellent Talent (No.
NCET-10-0580); China Ministry of Education Fok Ying Tung Fund (No. 122002); Qualcomm Research Grant; Shanghai
Basic Research Key Project (No.11JC1405100); National Key Project of China (2010ZX03003-001-01).
REFERENCES
[1] P. Gupta and P. R. Kumar, “The capacity of wireless networks,” IEEE Transaction on Information Theory, vol. 46, no. 2, pp. 388-404, Mar.
2000.
[2] A. Keshavarz-Haddad, V. Ribeiro, and R. Riedi, “Broadcast capacity in multihop wireless networks,” in Proc. ACM MobiCom, Sept. 2006.
[3] K. Yang, Y. Wu, and H.-H. Chen, “Qos-aware routing in emerging heterogeneous wireless networks,” IEEE Communications Magazine, 45(2):74-80, 2007.
[4] P. Li, X. Geng, and Y. Fang, “An adaptive power controlled mac protocol for wireless ad hoc networks,” IEEE Transactions on Wireless Communications, 8(1):226-233, Jan. 2009.
[5] N. Li and J. Hou, “Topology control in heterogeneous wireless net- works: Problems and solutions,” in Proc. IEEE INFOCOM, Hong Kong, China, Mar. 2004.
[6] P. Li and Y. Fang, The “Capacity of heterogeneous wireless networks,”
in Proc. IEEE INFOCOM, 2010.
[7] J. Luo, X. Liu, D. Ye, “Research on Multicast Routing Protocols for Mobile Ad-hoc Networks,” in Elsevier Computer Networks Journal, Vol. 52, No. 5, pp. 988-997, Apr. 2008.
[8] X. Wang, W. Huang, S. Wang, J. Zhang, C. Hu, “Delay and Capacity Tradeoff Analysis for MotionCast,” IEEE/ACM Transactions on Net- working, Vol. 19, no. 5, pp. 1354-1367, Oct. 2011.
[9] D. Shila, Y. Cheng, T. Anjali, and P. Wan, “Extracting more capac- ity from multi-channel multi-radio wireless networks by exploiting power”, in Proc. IEEE ICDCS, Genoa, Italy, Jun. 2010.
[10] H. Li, X. Liu, W. He, J. Li, W. Dou, “End-to-End Delay Analysis in Wireless Network Coding: A Network Calculus-Based Approach,” in Proc. of ICDCS, Minneapolis, Minnesota, 2011.
[11] D. Shila, Y. Cheng, and T. Anjali, “Throughput and delay analysis of hybrid wireless networks with multi-hop uplinks,” in Proc. IEEE INFOCOM, Shanghai, China, Apr. 2011.
[12] S. R. Kulkarni, P.Viswanath, “Deterministic Approach to Throughput Scaling in Wireless Networks”, IEEE Transaction on Information Theory, vol. 50(6), pp. 1041-049, Jun. 2004.
[13] E. Perevalov, R. S. Blum, D. Safi, “Capacity of Clustered Ad Hoc Net- works: How Large Is Large?” IEEE Transaction on Communication, Vol. 54, No. 9, pp. 1672-1681, Sept. 2006.
[14] R. K. Ganti and M. Haenggi, “Interference and Outage in Clustered Wireless Ad Hoc Networks,” IEEE Transaction on Information Theory.
Available at http://arxiv.org/abs/0706.2434v1
[15] A. Keshavarz-Haddad and R. H. Riedi, “Bounds for the capacity of wireless multihop networks imposed by topology and demand,” in Proc. ACM MobiHoc, pp. 256-265, Montreal, Canada, Sept. 2007.
[16] G. Alfano, M. Garetto, E. Leonardi, “Capacity Scaling of Wireless Networks with Inhomogeneous Node Density: Upper Bounds,” IEEE Journal on Selected Areas in Communications, vol. 27, no. 7, Sept.
2009.
[17] G. Alfano, M. Garetto, E. Leonardi, “Capacity Scaling of Wireless Networks with Inhomogeneous Node Density: Lower Bounds,” in Proc.
INFOCOM, Rio de Janeiro, Brazil, Apr. 2009.
[18] M. Li and Y. Liu, “Rendered Path: Range-Free Localization in Anisotropic Sensor Networks with Holes,” in Proc. ACM MobiCom, Montreal, Quebec, Canada, Sept. 2007.
[19] J. Lian, Y. Liu, K. Naik, and L. Chen, “Virtual Surrounding Face Geocasting with Guaranteed Message Delivery for Ad Hoc and Sensor Networks,” IEEE/ACM Transactions on Networking (TON), vol. 17, no. 1, Feb. 2009, pp. 200-211.
[20] Q. Fang, J. Gao, and L. Guibas. “Locating and bypassing routing holes in sensor networks,” in Proc. INFOCOM, vol. 23, pp. 2458-2468, Mar.
2004.
[21] T. Rappaport, “Wireless Communications: Principles and Practice (Second Edition),” Prentice-Hall PTR, 2002.
[22] A. E. Gamal, J. Mammen, B. Prabhakar, and D. Shah, “Optimal Throughput-Delay Scaling in Wireless Networks-Part I The Fluid Model,” Dept. Elect. Eng., Stanford Univ., Stanford, CA, 2005 [On- line]. Available: http://www.standford.edu/ jmammen/
