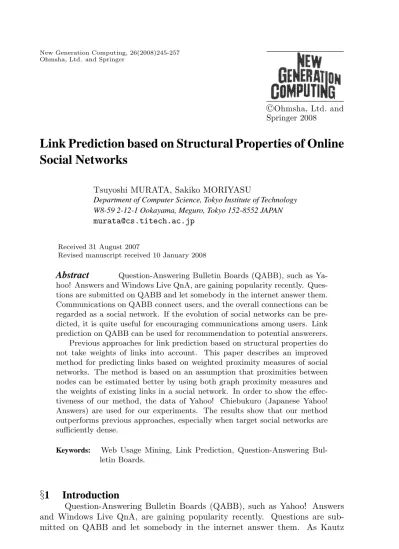

New Generation Computing, 26(2008)245-257 Ohmsha, Ltd. and Springer
Link Prediction based on Structural Properties of Online Social Networks
Tsuyoshi MURATA, Sakiko MORIYASU
Department of Computer Science, Tokyo Institute of Technology W8-59 2-12-1 Ookayama, Meguro, Tokyo 152-8552 JAPAN [email protected]
Received 31 August 2007
Revised manuscript received 10 January 2008
Abstract Question-Answering Bulletin Boards (QABB), such as Ya- hoo! Answers and Windows Live QnA, are gaining popularity recently. Ques- tions are submitted on QABB and let somebody in the internet answer them.
Communications on QABB connect users, and the overall connections can be regarded as a social network. If the evolution of social networks can be pre- dicted, it is quite useful for encouraging communications among users. Link prediction on QABB can be used for recommendation to potential answerers.
Previous approaches for link prediction based on structural properties do not take weights of links into account. This paper describes an improved method for predicting links based on weighted proximity measures of social networks. The method is based on an assumption that proximities between nodes can be estimated better by using both graph proximity measures and the weights of existing links in a social network. In order to show the effec- tiveness of our method, the data of Yahoo! Chiebukuro (Japanese Yahoo!
Answers) are used for our experiments. The results show that our method outperforms previous approaches, especially when target social networks are sufficiently dense.
Keywords: Web Usage Mining, Link Prediction, Question-Answering Bul- letin Boards.
§1 Introduction
Question-Answering Bulletin Boards (QABB), such as Yahoo! Answers and Windows Live QnA, are gaining popularity recently. Questions are sub- mitted on QABB and let somebody in the internet answer them. As Kautz
pointed out, the search for information often must come down to the search for person who holds the information privately.7) Communications on QABB con- nect users, and the connections of users as a whole can be regarded as a social network. If the evolution of social networks can be predicted, it is quite useful for encouraging communications among users. For example, suitable questions can be recommended to potential answerers based on the structures of previous communications. Another example is to predict future “hot” questions that will attract many users.
Link prediction is one of the challenging research topics of link mining.3) There are two main data sources for predicting links between nodes: 1) at- tributes of nodes, and 2) structural properties of networks that connect nodes.
In the case of online social networks, nodes represent users and their attributes (personal information) are not always available. The latter data source (struc- tural properties) is preferable for the purpose of predicting links of online social networks.
Although the links of practical social networks are not always uniform, previous approaches based on structural properties, such as Newman’s common neighbors9) and Adamic/Adar,1) do not take weights of links into consideration.
In general, weights of links between users correspond to the number of times they meet or communicate.
This paper proposes new graph proximity measures, which are called weighted graph proximity measures, for improving the performance of link pre- diction for social networks. The measure is based on an assumption that new links can be predicted better by using both graph proximity measures and the weights of existing links in a social network. The weight of a link between two users in a social network is defined as the number of encounters of the users on QABB. The data of Yahoo! Chiebukuro (Japanese Yahoo! Answers) are used for our experiments. The results show that our method outperforms previous approaches, especially when target social networks are sufficiently dense.
§2 Link Prediction for QABB
Based on the taxonomy of common link mining tasks described by Getoor,3) tasks of link mining are broadly categorized as the followings:
1. object(node)-related tasks (object ranking, object classification, object clustering, and object identification)
2. link(edge)-related tasks (link prediction)
3. graph-related tasks (subgraph discovery, graph classification, and gener- ative models for graphs)
Link prediction belongs to the second category, and it is the problem of predicting the existence of an edge between two nodes based on attributes of the nodes and/or other observed edges. Examples of link prediction include predicting links among actors in social networks (such as predicting friendship), and predicting interactions among proteins of metabolic networks in the field of bioinformatics.
There are several related works for link prediction. However, many of
them are not applicable for predicting links of online social networks, which is our target in this paper. The followings are the reasons that previous works are not appropriate for our target.
Different network properties Sarukkai’s work12) for link prediction is about Web access patterns using Markov Chains. He proposes Web sequence modeling, which is useful only for navigational purposes. Kashima6) proposes a parameterized probabilistic model of network evolution and efficient prediction algorithm for the model. The model is based on copy and paste mechanism between edges. Although it is appropriate for biological networks, it is not appropriate for online social networks.
No node attributes O’Madadhain10)proposes prediction algorithms for event- based network data. His approach combines feature vectors of node attributes and structural information of edges. In the case of online social networks, node attributes mean personal information and they are not available. Popescul11) introduces a structured logistic regres- sion model that can make use of relational features to predict the existence of links. The model depends on node attributes, which are not available in our experimental setting. Hasan4)proposes a method for identifying a set of attributes which are key to the performance of link prediction under supervised learning setup. The method also depends on node attributes.
Computationally infeasible Taskar13) proposes probabilistic model for the whole networks instead of predicting each link separately. Although the model have a universal application, it is computationally costy.
Calculation of parameters using maximum likelihood estimation needs approximation or sampling. Huang5) proposes a new link prediction method based on generalized clustering coefficient. However, his cycle formation model and parameter estimation require much computa- tional time.
As the approaches of link prediction based solely on structural informa- tion, Liben-Nowell8)presents a survey of predictors based on several graph prox- imity measures and compares their performance using academic co-authorship networks of physics. In general, online communities of question-answering bul- letin boards are more “open” rather than academic co-authorship networks, and they are therefore more dynamic. In this paper, we would like to investigate 1) whether the predictors based on graph proximity measures are appropriate for predicting links of open and dynamic online social networks and 2) whether the predictors can be improved by taking weights into consideration.
§3 Weighted Graph Proximity
As described above, link prediction based on graph proximity measure relies solely on structural properties of given network. The basic approach for predicting links is to rank all node pairs based on proximities in their graph. A connection weight score(x, y) is assigned to each pair of nodes x and y, and then
produce a ranked list in decreasing order of score(x, y). For a node x, let Γ(x) and w(x, y) denote the set of neighbors of x in a social network, and the weight of link between x and y respectively. Neighbors of x mean the nodes that are directly connected to x with an edge.
Several definitions of score(x, y) are proposed. Common neighbors9) de- fine score(x, y) as the number of neighbors that x and y have in common:
score(x, y) = |Γ(x) ∩ Γ(y)|
This is based on an assumption that the more neighbors are in common, the more likely that nodes x and y will be connected. Adamic and Adar1) refine the common neighbors by taking rarer neighbors more heavily. In other words, common neighbors of low degrees are taken more seriously in the following Adamic/Adar score:
score(x, y) = X
z∈Γ(x)∩Γ(y)
1 log|Γ(z)|
Preferential attachment is based on an assumption that the probability that a new link involves node x is proportional to the number of its neighbors.
The idea is famous as the growth model of the Web network2). score(x, y) = |Γ(x)| × |Γ(y)|
In this paper, we propose new scores that take weights of links into ac- count. Figure 1 shows an example of weighted common neighbors. Definition of the score of weighted common neighbor is given as follows:
score(x, y) = X
z∈Γ(x)∩Γ(y)
w(x, z) + w(y, z) 2
In Fig. 1, each node represents a user, and a link between two nodes represents encounter(s) on QABB. Each number indicates the weight of nearby link, and a thick link represents more than one encounters on QABB. According to the definition of original common neighbors, score(x, y) is 2 (the number of intermediate nodes between x and y). For the calculation of weighted common neighbors, the upper intermediate node is weighted rather than the lower one
Fig. 1 Weighted Common Neighbors
Fig. 2 Weighted Adamic/Adar
because of the weight of the link between x and upper intermediate node. The score of weighted common neighbor is 2.5.
Figure 2 shows an example of weighted Adamic/Adar. Definition of its score is given as follows:
score(x, y) = X
z∈Γ(x)∩Γ(y)
w(x, z) + w(y, z)
2 × 1
log(P
z0∈Γ(z)w(z0, z)) Original Adamic/Adar refines common neighbor (simple counting of in- termediate nodes) by weighting nodes of fewer outlinks heavily. Weighted Ada- mic/Adar refines the Adamic/Adar further by taking weights of links into consid- eration. In Fig. 2, score(x, y) of original Adamic/Adar is 1/log4 + 1/log3, while our weighted Adamic/Adar is 1.5/log5 + 1/log4. The idea of putting weights to links is based on an assumption that nodes x and y are closely related when 1) there are more intermediate nodes between them, 2) intermediate nodes have fewer outlinks, and 3) links between x (or y) and intermediate nodes have more weights, which means more encounters between x (or y) and intermediates on QABB.
Weighted preferential attachment is introduced in the same manner. Its definition is given as follows:
score(x, y) = X
x0∈Γ(x)
w(x0, x) × X
y0∈Γ(y)
w(y0, y)
§4 QABB Data
The service of Yahoo! Chiebukuro (Japanese Yahoo! Answers, http://chie- bukuro.yahoo.co.jp) started on April 2004, and it is one of the most popular question and answering sites in Japan. It is often reported that QABB services are popular especially in Japan and Korea. The English version of Yahoo! An- swers started on December 2005. In either service, a bulletin board is generated for each submitted question, and answers to the questions follow on the board.
Figure 3 shows an example of the Question-Answering on Yahoo! Chiebukuro.
In this example, a questioner asks the easiest way from Haneda Airport to Tokyo
Fig. 3 Yahoo! Chiebukuro
Station. Many other users post answers to the question, and one of them is se- lected as the best answer.
The data we used for our experiments were recorded from September 1, 2005 to September 30, 2005. The data are divided into two groups, and the former (September 1 - 15) is used for training and the latter (September 16 - 30) is for testing. The total number of questions or answers is 1,081,104, and the number of users during the period is 58,755. The data is composed of encrypted user ID, message ID, categories, contents of the questions or answers, date, time, and so on. We have used encrypted user ID, categories, date and time in our experiments. A social network is generated by putting links to all the pairs of the answerers in each question. Contents of questions or answers are not used in our experiments.
Links between users who already exist in training period are the target for link prediction, which is the same as Liben-Nowell’s experiments. For link prediction, proximities between all the pairs of users have to be calculated. We divide the whole QABB data into categories, and generate a social network for each category. This is because the whole social network is too big to analyze, and because more than 1/3 of users submit questions or answers to only one category.
§5 Experiments
Based on the above graph proximity measures, experiments of link pre-
Fig. 4 Overall Procedures for Our Experiments
diction for QABB social networks are performed. Figure 4 shows the overall procedures for our experiments. QABB data are divided into training period and testing period according to the timestamp of posting to QABB. Social net- works are generated based on the former data. As described in section 3, a node in the social networks represents a user and an edge represents encounter(s) be- tween connecting users on question-answering bulletin board(s). Each edge is weighted by the number of encounters of its connecting users. Graph proxim- ity measures for every pair of nodes are then calculated. Link candidates that connect the pairs of nodes are sorted in decreasing order of the graph proxim- ity measures. Then |Enew| high-ranking link candidates are predicted, where
|Enew| is the number of newly generated edges in testing period. Accuracies of the predictions are calculated as the number of correctly predicted links divided by |Enew|.
Table 1 shows the number of nodes, answers, and edges during training period as well as the number of edges, |Eold| (the number of edges in training
Table 1 Sizes of Social Networks for All Categories
Categories Training period Core
nodes answers edges edges |Eold| |Enew| Yahoo! JAPAN 5820 39546 94449 1290 43525 44963
News 4992 34433 76070 862 26889 22055
Health 9991 59931 149230 2351 66522 67970
Children 5804 26752 76197 1133 29243 30572
Manner 2782 10003 29535 414 8183 7733
Entertainments 7454 29734 68538 1411 22977 29966
Life 5409 21529 40026 985 13859 14736
Science 4568 17048 28486 813 8442 8963
Travel 3109 10321 17327 470 4562 4575
Business 2103 6256 10533 278 2198 2658
Internet 3198 14887 13573 575 5111 5106
Jobs 2179 5001 7811 206 807 893
Table 2 Percentages of the Performance of Link Predictions for QABB Networks
Categories CN CNw AA AAw PA PAw RD
Yahoo! JAPAN 29.5 32.0 29.9 32.2 24.5 24.7 2.8
News 23.5 25.2 23.8 25.4 25.2 25.9 3.1
Health 15.7 17.4 16.0 16.9 16.6 17.1 1.3
Children 20.5 22.9 22.3 23.0 19.4 22.0 2.4
Manner 29.2 30.2 29.4 30.3 27.5 27.6 5.3
Sports 23.2 25.4 24.8 25.6 16.2 15.9 2.1
Entertainments 15.2 16.1 15.3 16.1 14.4 14.6 1.6
Life 18.2 18.7 18.3 19.2 18.7 18.9 1.5
Science 15.8 15.9 16.1 16.4 12.6 12.3 1.4
Travel 20.1 22.0 20.5 22.0 16.0 15.2 2.3
Business 26.3 26.3 26.9 27.6 19.6 19.0 3.6 Internet 18.6 18.9 19.2 19.4 17.5 17.9 1.5
Jobs 14.5 14.9 16.9 16.9 16.6 15.0 2.2
Average 20.8 22.0 21.5 22.4 18.9 18.9 2.4
period), and |Enew| (the number of newly generated edges in testing period) between the nodes that exist in both training period and testing period.
Table 2 shows the results of the accuracies of link predication by original and weighted proximity measures of common neighbor, Adamic/Adar, and pref- erential attachment as well as random prediction. In the table, CN, AA, PA, and RD indicate common neighbors, Adamic/Adar, preferential attachment, and random respectively. CNw, AAw, and PAw are weighted proximity measures of CN, AA, and PA, respectively. Computational time for performing an exper- iment for one category is about 10-300 minutes, which depends on the size of target social network.
Figure 5 shows a bar chart of the performance of Yahoo! JAPAN category.
Y-axis represents the percentage of correct link predictions, and the bars cor- respond to weighted common neighbors, original common neighbors, weighted Adamic/Adar, original Adamic/Adar, weighted preferential attachment, orig- inal preferential attachment, and random respectively. Figure 6 shows a bar chart of the performance of the average of all categories.
In order to evaluate the performance of proposed methods in detail, ROC
Fig. 5 Performance of Link Prediction for Yahoo! JAPAN Category
Fig. 6 Performance of Link Prediction for the Average of All Categories
Fig. 7 ROC Curves for Yahoo! JAPAN Category
curves for the experiments are plotted. A ROC curve is a graphical plot of the fraction of true positives on the vertical axis against the fraction of false positives on the horizontal axis. The performance of plotted algorithm is better if its ROC curve is nearer the upper left-hand corner. The curve is often used as the evaluation of link prediction tasks.5) Figure 7 shows a ROC curve of the experiment of Yahoo! JAPAN. Focused one is also shown in Fig. 8. These curves show that the proposed weighted graph proximities always outperform original graph proximities.
Table 3 shows the results of the maximum number of degrees, the maxi- mum number of answers, and the average number of answers for each category.
Categories are sorted in decreasing order of average answers, which roughly cor- responds the average degrees of social networks. This table is for analyzing the relation between densities of social networks and their prediction performances.
Fig. 8 Focused ROC Curves for Yahoo! JAPAN Category
Table 3 Maximum Degrees for Each Category Max Deg Max Ans Ave Ans
Yahoo! JAPAN 1070 563 4.57
News 1764 1096 4.35
Health 4356 2782 4.23
Childern 986 273 4.61
Manner 591 154 4.79
Sprots 483 226 3.62
Entertainments 749 293 3.26
Life 1195 625 3.12
Science 409 194 2.81
Travel 454 181 2.82
Business 254 178 2.81
Internet 932 1231 2.16
Jobs 322 126 2.74
§6 Discussion
6.1 Link Prediction for Open and Dynamic Online Social Networks In Lieben-Nowell’s experiments, the numbers of core edges are from 486 to 1790, the numbers of |Eold| are from 519 to 6654, and the numbers of |Enew| are from 400 to 5751. Table 1 shows that the numbers of nodes in our experiments are about ten times of those of Lieben-Nowell’s experiments. Social networks of Yahoo! Chiebukuro are open to public and their numbers of users are much larger. Table 2, Fig. 5 and Fig. 6 show that link prediction based on graph proximity measures is effective for open and dynamic online social networks.
It is often reported that users of online social networks often misrepre- sent their personal attributes such as age, gender, job and so on. Our approach use structural properties of social networks only; it does not use any informa- tion about node (user) attributes. Link prediction based on graph proximity measures is thus promising for analyzing online social networks.
6.2 Performance Improvements of Graph Proximity Measures
[ 1 ] Link prediction based on original graph proximity measures
• Link prediction based on graph proximity measures perform better for denser graphs
Performances of link prediction are quite different among categories. We focus on “Health”, “Entertainments”, “Internet”, and “Jobs” that are relatively worse performance among all categories. Analysis of the degree distributions shows that the percentages of high-degree nodes in these social networks are small. Let us suppose that 70% of the maximum number of degree in each social network as the threshold for high-degree nodes. The numbers of nodes of high-degree nodes for the above cate- gories are 4, 42, 6, and 10 respectively (less than 3% of overall nodes).
On the other hand, social networks of the categories of “Manner” and
“Business” contain more high-degree nodes (8%-14% of overall nodes).
Based on the result, we can assume that the percentages of high-degree nodes of social networks affect the performance of link prediction. If a social network is sparse and is composed of low-degree nodes, many of the nodes will be disconnected from others, and differences among the values of graph proximity measures become obscure.
• Adamic/Adar performs better than common neighbors
As you can observe from Fig. 5 and Fig. 6, Adamic/Adar is the best and stable graph proximity measures for link prediction. Common neighbor is the second-best performance. This is the same as the results of Lieben- Nowell’s experiments.
• Preferential attachment performs worse for networks whose degree distri- butions are almost uniform
Performance of referential attachment is the worst among the three graph proximity measures. Preferential attachment is based on the idea that high-degree nodes will have more chances of getting more edges. If the degree distribution is almost uniform, this “rich get richer” strategy is not appropriate.
[ 2 ] Link prediction based on weighted graph proximity measures
You can see from Table 2, Fig. 5 and Fig. 6 that our weighted Adamic/Adar outperforms the original Adamic/Adar further. This shows that the number of encounters (weights) on QABB is an important factor for measuring proximities among users. In Table 2, categories are sorted in decreasing order of average number of answers for each bulletin board. In general, better predictions can be made for denser social networks (for upper categories in the table) by our weighted graph proximity measures.
Weighted common neighbors also outperforms original common neighbors for almost all categories. Weighted preferential attachment is slightly better than original preferential attachment only when social networks are relatively dense.
This is because weighted preferential attachment takes low-degree nodes that are connected with high-weight edges too seriously in the process of calculating score(x, y), which is against the idea of “rich get richer” strategy.
§7 Conclusion
This paper shows that link prediction based on graph proximity mea- sures is suitable for open and dynamic online social networks. We propose new weighted graph proximity measures for link prediction of social networks. By taking weights of links into consideration, the performances of link predictions are improved rather than previous proximity measures. We can expect that fur- ther improvements can be made by treating more recent links as more important, which is left for our future work.
Acknowledgements
We would like to express our thanks to Mr. Makoto Okamoto (Yahoo!
Japan Corporation), Prof. Kikuo Maekawa (The National Institute for Japanese Language), and Prof. Sadaoki Furui (Tokyo Institute of Technology) for allowing us to use the data of Yahoo! Chiebukuro.
References
1) Adamic, L. A., Adar, E., “Friends and Neighbors on the Web,” Social Networks, 25(3),pp.211-230, 2003.
2) Barabasi, A. L., Linked - The New Science of Networks, Perseus, 2002.
3) Getoor, L., Diehl, C. P., “Link Mining: A Survey,” SIGKDD Explorations, 7(2), pp.3-12, 2005.
4) Hasan, M. A., Chaoji, V., Salem, S., Zaki, M., “Link Prediction using Supervised Learning,” in Workshop on Link Discovery; Issues, Approaches and Applications (LinkKDD-2005), 2005.
5) Huang, Z., “Link Prediction Based on Graph Topology: The Predictive Value of the Generalized Clustering Coefficient,” in Workshop on Link Analysis; Dy- namics and Static of Large Networks, (LinkKDD-2006), 2006.
6) Kashima, H., Abe, N., “A Parameterized Probabilistic Model of Network Evo- lution for Supervised Link Prediction,” in Proc. of the Sixth IEEE Int. Conf.
on Data Mining(ICDM’06), 2006.
7) Kautz, H., Selman, B., Shah, M., “The Hidden Web,” AI Magazine, 18(2), pp.
27-36, 1997.
8) Liben-Nowell, D., Kleinberg, J., “The Link Prediction Problem for Social Net- works,” in Proc. of the Twelfth Int. Conf. on Information and Knowledge Man- agement (CIKM), pp.556-559, 2003.
9) Newman, M. E., “Clustering and Preferential Attachment in Growing Net- works,” Physical Review Letters E, 64 (025102), 2001.
10) O’Madadhaim, J., Hutchins, J., Smyth, P., “Prediction and ranking algorithms for event-based network data,” SIGKDD Explorations, 7(2), pp.23-30, 2005.
11) Popescul, A., Ungar, L. H., “Statistical relational learning for link prediction,”
in IJCAI Workshop on Learning Statistical Models from Relational Data, 2003.
12) Sarukkai, R. R., “Link Prediction and Path Analysis Using Markov Chains,” in Proc. of the Ninth Int. World Wide Web Conf. (WWW9), 2000.
13) Taskar, B., Wong, M.-F., Abbeel, P., Koller, D., “Link Prediction in Relational Data,” in Proc. of Neural Information Processing Systems Conf. (NIPS), 2003.
Tsuyoshi Murata, Dr.: He is an associate professor in the De- partment of Computer Science, Graduate School of Information Science and Engineering, Tokyo Institute of Technology. He ob- tained his doctor’s degree in Computer Science at Tokyo Insti- tute of Technology in 1997, on the topic of Machine Discovery of Geometrical Theorems. At Tokyo Institute of Technology, he conducts research on Web mining, diagrammatic reasoning and machine discovery.
Sakiko Moriyasu: She is a master course student of the Depart- ment of Computer Science, Graduate School of Information Sci- ence and Engineering, Tokyo Institute of Technology.
