Abstract
Two external-field-free methods are presented for measuring the azimuthal anchoring strength in twisted nematic liquid crystal (TNLC) cells. For asymmetrical TNLC samples, the twist angle is derived from the phase of the detected signal in a phase-sensitive heterodyne polarimeter and is then used to calculate the weak anchoring strength directly. The measurement resolution which is found to be about 0.01μJ/m2 makes the present method sensitive enough for the LC-based bio-sensing
application.Using the proposed method, the weak azimuthal anchoring strength of a composite liquid crystal mixture (40% LCT-061153 + 60% MJO-42761) in contact with a plasma-alignment layer is found to be 7.19 μJ/m2. For symmetrical TNLC samples, the liquid crystals are injected into a wedge cell, and the two-dimensional distributions of the twist angle and cell gap are extracted from the detected phase distribution using a genetic algorithm (GA). The azimuthal anchoring strength is then obtained by applying a fitting technique to the twist angle vs. cell gap curve. Utilizing the proposed approach, it is shown that the strong anchoring strength between a rubbed polyimide (PI) alignment layer and E7 liquid crystal is around 160 μJ/m2 while that between a rubbed PI alignment layer and MLC-7023 liquid crystal is approximately 32 μJ/m2.
Keywords：(120.2130) Ellipsometry and polarimetry; (120.3180) Interferometry;
(120.5060) Phase modulation;(120.5050) Phase measurement; (160.3710) Liquid
Determination of azimuthal anchoring strength in twisted nematic liquid crystal cells using
heterodyne polarimeter
Tsung-Chih Yu,1,2,*Yu-Lung Lo,1 and Rei-Rong Huang1
1Department of Mechanical Engineering, National Cheng Kung University, Tainan, 701, Taiwan
2Department of Medical Devices and Opto-Electronics Equipment, Metal Industries Research & Development Centre, Kaohsiung, 821, Taiwan
Abstract: Two external-field-free methods are presented for measuring the azimuthal anchoring strength in twisted nematic liquid crystal (TNLC) cells. For asymmetrical TNLC samples, the twist angle is derived from the phase of the detected signal in a phase-sensitive heterodyne polarimeter and is then used to calculate the weak anchoring strength directly. The measurement resolution which is found to be about 0.01µJ/m2 makes the present method sensitive enough for the LC-based bio-sensing application.
Using the proposed method, the weak azimuthal anchoring strength of a composite liquid crystal mixture (40% LCT-061153 + 60% MJO-42761) in contact with a plasma-alignment layer is found to be 7.19 µJ/m2. For symmetrical TNLC samples, the liquid crystals are injected into a wedge cell, and the two-dimensional distributions of the twist angle and cell gap are extracted from the detected phase distribution using a genetic algorithm (GA). The azimuthal anchoring strength is then obtained by applying a fitting technique to the twist angle vs. cell gap curve. Utilizing the proposed approach, it is shown that the strong anchoring strength between a rubbed polyimide (PI) alignment layer and E7 liquid crystal is around 160 µJ/m2 while that between a rubbed PI alignment layer and MLC-7023 liquid crystal is approximately 32 µJ/m2.
©2010 Optical Society of America
OCIS codes: (120.2130) Ellipsometry and polarimetry; (120.3180) Interferometry; (120.5060) Phase modulation;(120.5050) Phase measurement; (160.3710) Liquid crystals.
References and links
1. S. Faetti, and G. C. Mutinati, “Light transmission from a twisted nematic liquid crystal: accurate methods to measure the azimuthal anchoring energy,” Phys. Rev. E Stat. Nonlin. Soft Matter Phys. 68(2), 026601 (2003).
2. S. Faetti, and G. C. Mutinati, “An improved reflectometric method to measure the azimuthal anchoring energy of nematic liquid crystals,” Eur Phys J E Soft Matter 10(3), 265–279 (2003).
3. G. Barbero, D. Olivero, N. Scaramuzza, G. Strangi, and C. Versace, “Influence of the bias-voltage on the anchoring energy for nematic liquid crystals,” Phys. Rev. E Stat. Nonlin. Soft Matter Phys. 69(2), 021713 (2004).
4. T. Akahane, H. Kaneko, and M. Kimura, “Novel method of measuring surface torsional anchoring strength of nematic liquid crystals,” Jpn. J. Appl. Phys. 35(Part 1, No. 8), 4434–4437 (1996).
5. Y. Zhou, Z. He, and S. Sato, “A novel method for determining the cell thickness and twist angle of a twisted nematic cell by Stokes parameter measurement,” Jpn. J. Appl. Phys. 36(Part 1, No. 5A), 2760–2764 (1997).
6. Y. Zhou, Z. He, and S. Sato, “Generalized relation theory of torque balance method for azimuthal anchoring measurements,” Jpn. J. Appl. Phys. 38(Part 1, No. 8), 4857–4858 (1999).
7. J. G. Fonseca, and Y. Galerne, “Simple method for measuring the azimuthal anchoring strength of nematic liquid crystals,” Appl. Phys. Lett. 79(18), 2910–2912 (2001).
8. T. Govindaraju, P. J. Bertics, R. T. Raines, and N. L. Abbott, “Using measurements of anchoring energies of liquid crystals on surfaces to quantify proteins captured by immobilized ligands,” J. Am. Chem. Soc. 129(36), 11223–11231 (2007).
9. J. H. Kim, and H. Choi, “Technique for azimuthal anchoring measurement of nematic liquid crystals using magnetic field induced deformation,” Appl. Phys. Lett. 90(10), 101908 (2007).
10. S. Faetti, K. Sakamoto, and K. Usami, “Very strong azimuthal anchoring of nematic liquid crystals on uv- aligned polyimide layers,” Phys. Rev. E Stat. Nonlin. Soft Matter Phys. 75(5), 051704 (2007).
11. T. C. Yu, and Y. L. Lo, “A novel heterodyne polarimeter for the multiple-parameter measurements of twisted nematic liquid crystal cell using a genetic algorithm approach,” J. Lightwave Technol. 25(3), 946–951 (2007).
12. W. L. Lin, T. C. Yu, Y. L. Lo, and J. F. Lin, “A hybrid approach for measuring the parameters of twisted- nematic liquid crystal cells utilizing the Stokes parameter method and a genetic algorithm,” J. Lightwave Technol. 27(18), 4136–4144 (2009).
13. Y. Sato, K. Sato, and T. Uchida, “Relationship between Rubbing Strength and Surface Anchoring of Nematic Liquid Crystal,” Jpn. J. Appl. Phys. 31(Part 2, No. 5A), L579–L581 (1992).
14. P. Yeh, and C. Gu, Optics of liquid crystal displays. New York: John Wiley & Sons, Inc. (1999).
15. S. S. Lin, and Y. D. Lee, “Orientational microgrooves generated by plasma beam irradiation at surface of polymer films to align liquid crystals,” Jpn. J. Appl. Phys. 45(27), 24–28 (2006).
16. T. C. Yu, and Y. L. Lo, “A two-dimentional heterodyne polarimeter for determination of parameters in twisted nematic liquid crystal cells,” J. Lightwave Technol. 27(23), 5500–5507 (2009).
17. Y. L. Lo, H. W. Chih, C. Y. Yeh, and T. C. Yu, “Full-field heterodyne polariscope with an image signal processing method for principal axis and phase retardation measurements,” Appl. Opt. 45(31), 8006–8012 (2006).
18. F. Z. Yang, H. F. Cheng, H. J. Gao, and J. R. Samples, “Determination of the torsional anchoring of a twisted nematic liquid crystal using the half-leaky guided mode technique,” Liq. Cryst. 28(1), 51–57 (2001).
19. S. Faetti, and P. Marianelli, “Strong azimuthal anchoring energy at a nematic-polyimide interface,” Phys. Rev. E Stat. Nonlin. Soft Matter Phys. 72(5), 051708 (2005).
1. Introduction
The physical behavior of liquid crystals (LCs) is largely determined by their surface properties. Of the various surface properties, the surface energy plays a particularly important role in governing the physics of the LCs, and therefore in determining their technical applications. Accordingly, the literature contains many proposals for estimating the anchoring energy of LCs. For example, it has been shown that the azimuthal anchoring energy of nematic LCs can be measured using a torque balance method [1–3]. However, in applying this method, it is necessary to measure the cell parameters (e.g. the cell thickness and the twist angle) with an extremely high degree of precision. Therefore, a requirement exists for more straightforward means of measuring the fundamental properties of LC samples.
In response to this requirement, the literature contains numerous proposals for measuring the azimuthal anchoring strength using either external-field or external-field-free methods.
Akahane et al. [4] minimized the light transmitted through a TNLC cell by rotating both the cell and the analyzer, and then determined the twist angle and the optical retardation of the cell such that the surface azimuthal anchoring strength could be determined using an analytical formulation based on the Jones matrix. In 1997, Zhou et al. [5] presented a method for determining the cell thickness and twist angle of TNLC cells by measuring the Stokes parameters of the transmitted light. In a later study, the same group demonstrated the use of the Stokes parameter method (SPM) in determining the azimuthal anchoring strength in TNLC cells [6]. Fonseca and Galerne [7] proposed a simple method for measuring the azimuthal anchoring strength of nematic LCs by applying a fitting technique to the curve of the cell thickness vs. deviation angle of LC director in a wedge cell at the condition of waveguide regime. In a recent study, Govindaraju et al. [8] used Fonseca’s method to measure the anchoring energy of LC on surfaces in order to quantify different proteins captured by immobilized ligands.
The external-field-free methods described above provide a convenient means of determining the weak azimuthal anchoring strength in LC cells, but provide less accurate results when applied to LC cells with a strong azimuthal anchoring strength. Accordingly, various external-field methods have been proposed for measuring a wider range of anchoring strengths [9, 10]. However, these methods are theoretically complex and generally involve a time-consuming and complicated experimental procedure. In [11], the present group proposed a simple method for measuring the multiple parameters of a twisted TNLC sample by using a genetic algorithm (GA) to extract the twist angle and cell gap parameters inversely from the intensity ratio and phase of the signal obtained in a heterodyne polarimeter. In a more recent study [12], the same group proposed a hybrid approach based upon the Stokes parameter
method and a GA for enabling the full characterization of a TNLC cell, including the cell thickness, the twist angle, the pre-tilt angle, and the azimuthal angle.
This study proposes two external-field-free methods for measuring the weak and strong anchoring strengths in asymmetrically-aligned and symmetrically-aligned TNLC cells, respectively, using a phase-sensitive heterodyne interferometer. In the case of the asymmetrical TNLC cell, the cell parameters are optimized in such a way that the detected phase signal is rendered sensitive to the twist angle but insensitive to the cell thickness, and the twist angle of the sample is then extracted from the phase of the detected heterodyne signal. The twist angle is then used to calculate the anchoring strength directly. The proposing method is more sensitive than the one utilized by Govindaraju et al. [8] for quantifying proteins captured on surfaces through interactions with immobilized ligands and therefore is suitable for label-free bio-sensing application. For the symmetrical sample, the twist angle and cell gap of a wedge cell incorporating the LCs of interest are extracted from the 2-D phase distribution of the sample using a GA, and the azimuthal anchoring strength is then derived from the twist angle vs. cell gap curve using a fitting technique. The validity of the proposed weak anchoring strength measurement method is demonstrated using an asymmetrically-aligned TNLC cell containing a composite LC mixture of 40% LCT-061153 and 60% MJO-42761. Meanwhile, the validity of the strong anchoring strength measurement method is demonstrated by measuring the anchoring strengths between a rubbed polyimide (PI) layer and E7 liquid crystal and MLC-7023 liquid crystal, respectively.
2. Basic theory
In TNLC display devices, a uniform director alignment is generally obtained using rubbed polymer films. When the rubbing directions on the two substrates in the cell are orientated at an angle to one another, the nematic LCs injected into the cell form a twisted structure as a result of the surface anchoring force. If the surface anchoring energy is weak (and no external field is applied), the twisted structure induces a deviation of the director at the cell surface from the easy axis of the LC alignment layer, and the deviation angle can then be used to estimate the magnitude of the anchoring energy. In practice, the deviation angle is determined by the balance between the elastic power of the twisted LC structure and the torsional effect of the anchoring energy. For the case of a TNLC cell containing nematic LCs doped with a chiral material and having substrates rubbed in anti-parallel or parallel directions, the free energy per unit area is given by the sum of the elastic energy Fb and the surface anchoring energy Fs [13], i.e.
2 ,
b s
F=F + F (1)
( )2
22
0 ,
b 2 t
F K
d φ φ
= − (2)
1 2
sin ( ),
s 2
F = wφ ∆φ (3)
where K22 is the twist elastic constant; d is the cell thickness; φt is the real twist angle; φ0 is the intrinsic pre-twist angle of the sample material and is equal to φ0 = 2πd/p where p is the natural pitch of the material; wφ is the azimuthal anchoring strength, and ∆φ is the deviation of the surface LC director from alignment (rubbing) direction. (Note that for a nematic LC with chiral pitch of p = ∞, φ0 = 0).
In this study, two external-field-free methods are proposed for measuring the azimuthal anchoring strength in TNLC cells. In the first case, the two substrates of the TNLC cell are prepared in the same way such that the LCs are symmetrically aligned. As a result, an identical (strong) azimuthal anchoring strength is obtained at both substrates. In the second case, the two substrates are prepared using different methods such that a strong anchoring
effect is obtained at the lower substrate while a weak anchoring effect is obtained at the upper substrate. Consequently, the LCs are asymmetrically aligned.
In the case of the symmetrical cell, the anchoring strength, wφ, can be obtained by minimizing the free energy, F, with respect to ∆φ [13], i.e.
22 22
2 ( ) 2
sin 2 sin( ),
t t
e t
K K
wφ d d
φ φ
φ φ φ
= =
∆ − (4)
where φe is the twist angle induced by the easy axis of the LC alignment layer. In the case of the asymmetrical cell, the anchorage effect at the lower substrate is so strong relative to that at the upper substrate that the value of wφ at the lower substrate can be approximated as infinity. In other words, no torque-induced deviation of the LC director occurs at the lower substrate. Consequently, the azimuthal anchoring strength at the upper substrate can be obtained as
2 22
sin 2( ).
t
e t
w K
φ d
φ
= φ φ
− (5)
Thus, by measuring the real twist angle φt and the cell thickness d, Eqs. (4) and (5) enable the strong and weak azimuthal anchoring strengths in symmetrically-aligned and asymmetrically-aligned TNLC cells, respectively, to be obtained analytically given a knowledge of the twist elastic constant K22 and the twist angle induced by the easy axis of the LC alignment layer φe.
3. Azimuthal anchoring strength measurement for asymmetrical TNLC cells 3.1 Basic measurement principle
As shown, the light source has the form of a He-Ne laser. The laser beam is passed through a Glan-Thompson polarizer rotated to 0° and is then modulated by an electro-optic modulator (EOM) driven by a saw-tooth waveform signal with an angular frequency ω and with a slow axis oriented at −45° to the x-axis. The light is then passed through the TNLC sample and is incident upon a quarter-wave plate (QWP) whose slow axis is set such that it forms an angle of 45° with that of the EOM. Finally, the light emerging from the QWP is passed through an analyzer (a Glan-Thompson polarizer rotated to −45°) and is incident upon a photo-detector (PD).

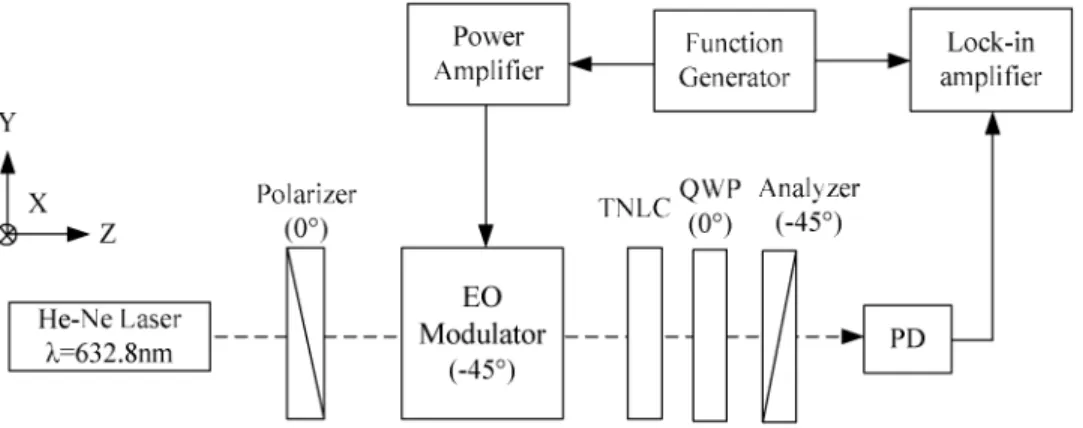

Fig. 1. Schematic illustration of heterodyne polarimeter used to measure twist angle of asymmetrical TNLC cell.
The light intensity at the PD, and the electric field vector emerging from the configuration shown in Fig. 1, are given by
/ 4
/ 4
1 1
0 cos sin
2 2 ( )
1 1 0 sin cos
2 2
cos( ) sin( )
cos sin 2 2 1 ,
sin cos 0
sin( ) cos( )
2 2
i i TNLC
E e M
e
t t
i
t t
i
π π
α α
α α φ
ω ω
α α
α α ω ω
− −
−
=
−
−
(6)
where α is the azimuthal angle of the entrance LC director. The Jones matrix of an asymmetrically-aligned TNLC cell can be expressed as [14]
sin sin
cos sin cos 2
( ) ,
sin cos sin sin
cos 2
t
t t
TNLC t
t t
t
i M
i
φ φ φ
φ φ φ φ
Χ Χ
Χ − ⋅Γ ⋅ ⋅
− Χ Χ
= − ⋅ ΧΧ Χ + ⋅ Γ ⋅ Χ Χ
(7)
with
2 2
( / 2) ,
2 /
t
d n φ
π λ
Χ = + Γ
Γ = ∆
(8)
where φt is the twist angle of the LC cell, Γ is the linear retardation, d is the cell gap, and n∆ is the birefringence of the LC material. Therefore, the intensity of the PD output signal is given by
( )
( ) ( )
( )
( )
*
I
2 2 2 2 2 2
A
B
2 2 2
8 2 2 cos 2 8 cos 2 8 8 cos 2
cos 8 cos 2 8 cos 2 cos 2 8 sin 2 sin 2
sin 8 (1 cos 2 ) (1 cos 2 )(8 2 )
DC
t t
t
t
I E E
t
t
φ φ
ω φ α φ α α
ω φ
∝ ⋅
Χ + Γ − Γ Χ + Χ Χ + − Χ
= + ⋅ − Γ + Γ Χ − ΓΧ Χ
+ ⋅ Χ + Χ + − Χ − Γ
( )
( )
2 2
1
cos sin
sin
sin , tan
DC
DC
DC
I A t B t
I A B t
I K t A
B
ω ω
ω σ
ω σ σ −
= + +
= + + +
= + + =
(9)
In other words, the detected heterodyne signal has the form of a sinusoidal signal with the same angular frequency as the EOM driving voltage. As shown in Eq. (9), the detected signal consists of a DC term, IDC, and a modulated term, Ksin(ω σt+ ) . The phase σ of the sinusoidal term can be expressed as a function of the TNLC cell parameters ( , , )α φt d and can be extracted using the phase-lock method. Figures 2(a) and 2(b) illustrate the variation of the phase term in Eq. (9) for twist angles in the range −180° ~180° and retardation values in the range 0 ~2 µm. (Note that the azimuthal angle is assumed to be α = 0°.) It can be seen that the phase, σ, and the twist angle, φt, are linearly related at retardation values of approximately 0.3 µm, 0.9 µm, and 1.5 µm. Furthermore, it is noted that the slope of the linearity at d∆n = 0.3
µm is greater than that at the other retardation values. Thus, in extracting the twist angle from the phase of the heterodyne detected signal, a retardation of around 0.3 µm represents the optimal value in terms of enhancing the measurement resolution. Note that further simulations (results not shown here) reveal that there is no better value of the azimuthal angle than α = 0° when extracting the twist angle from the phase of the detected signal.
Fig. 2. (a) Variation of σ as function of φt and d∆n, (b) alternative view of phase variation shown in (a). (Note that α = 0°).
Figures 3(a) and 3(b) show the variation of σ as a function of the retardation d∆n in the range 0.30 µm to 0.38 µm for twist angles φt ranging from −180° ~180° and a constant azimuthal angle of α = 0. It can be seen from Fig. 3(a) that for a given twist angle, the phase σ is insensitive to the retardation d∆n, i.e. the phase value varies only slightly as the retardation is increased from 0.30 µm to 0.38 µm. Meanwhile, Fig. 3(b), which presents the same results but from a different perspective, gives a clear illustration of the twist angle dependent phase σ performance in the retardation d∆n range 0.30 µm to 0.38 µm. It can be seen from Fig. 3(b) that the rate of change of the phase σ with the twist angle is approximately constant for twist angles in the range −150° ~150°. From inspection, the average sensitivity (i.e. the average slope), ∆σ/∆ , is found to be around 1.2. In the heterodyne polarimeter shown in Fig. 1, φt the phase of the detected signal can be measured with a resolution of 0.1°, and thus it follows that the twist angle can be extracted with a precision of around 0.08°. Thus, the information in Fig. 3(b) provides not only an optimal design of retardation range in 0.3 µm ~0.38 µm and twist angle range in −150° ~150° for the azimuthal anchoring strength measurement but also the measurement performance of the proposing system.

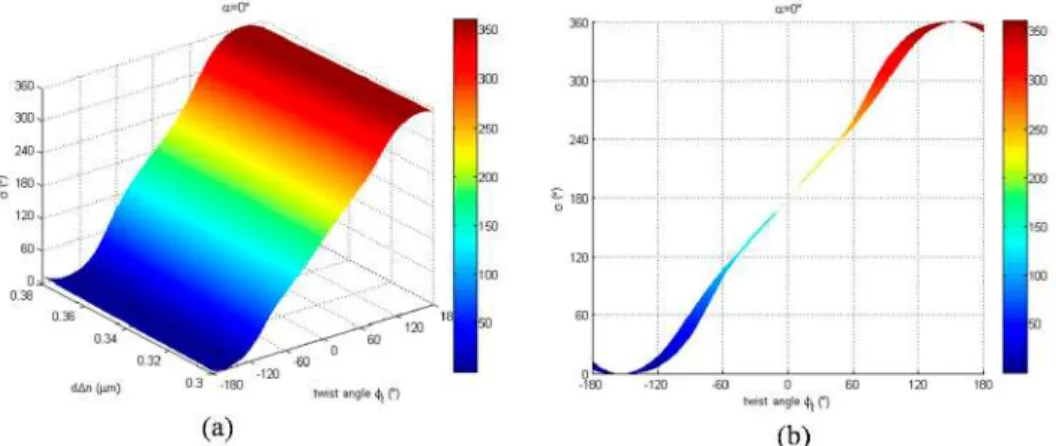

Fig. 3. (a) Variation of σ as function of d∆n in range 0.30µm ~0.38µm for twist angles of φt =
−180° ~180°, (b) alternative view of phase σ variation shown in (a). (Note that α = 0°).
For an asymmetrical TNLC cell with a strong anchoring substrate (input surface) and a weak anchoring substrate (output surface), the azimuthal anchoring strength of the weak alignment layer can be calculated from Eq. (5) in Section 2 given a knowledge of the actual twist angle φt, the cell thickness d, the twist elastic constant K22 and the twist angle induced by the easy axis of the LC alignment layer φe. Figure 4 shows the simulation results obtained for the correlation between the real twist angle and the azimuthal anchoring strength of the weak alignment layer in a TNLC cell with parameters of φe = 120°, K22 = 7.35 pN, and d = 3 µm. The results show that for a weak anchoring strength of around 7 µJ/m2, the measurement resolution of the twist angle (i.e. 0.08°) equates to an azimuthal anchoring strength resolution of approximately 0.01 µJ/m2, and the smaller the anchoring strength, the more sensitive the anchoring strength measurement.
Fig. 4. Variation of weak azimuthal anchoring strength wφ with real twist angle φt for asymmetrically-aligned TNLC cell with φe = 120°, K22 = 7.35 pN, and d = 3µm.
3.2 Experimental setup and results for asymmetrical cells
In setting up the heterodyne polarimeter shown in Fig. 1, a frequency stabilized He–Ne laser (Model: SIOS SL 02/2) with an output power of 3 mW was used as the light source and the EOM (Conoptics, Model 370) was driven by a saw-tooth signal with a frequency of 1 kHz.
The phase of the detected signal was acquired using a lock-in amplifier (SR830, Stanford Research Systems Inc.,). The asymmetric TNLC sample was constructed by filling an empty test cell (twist angle φe = 120°, pre-tilt angle 3°, and cell gap 2.91 µm) with a composite LC mixture (K22 = 7.35 pN) comprising 40% LCT-061153 and 60% MJO-42761. The LCs were aligned at the lower substrate via a PI rubbing layer and at the upper substrate by a plasma- alignment layer. In performing the measurement process, the azimuthal angle of the entrance LC director was set to α = 0°. The retardation of the TNLC sample, d∆n, was estimated to be 0.352 µm, i.e. within the optimal range of 0.3 µm ~0.38 µm. The weak azimuthal anchoring strength at the plasma-alignment layer was calculated from Eq. (5) using the method described in Subsection 3.1. Note that prior to the measurement process, the heterodyne signal detected without the TNLC sample in the system was calibrated in order to eliminate the phase effect induced by the EOM.
Figures 5(a) ~5(c) show the correlation between the phase σ and the twist angle for azimuthal angles of α = 0°, 1° and −1°, respectively. Note that the value of α = 0° represents the optimal azimuthal angle, while the values of α = + 1° and −1° are used to investigate the effect of small errors in the optimal azimuthal angle on the calculated value of the anchoring strength. The measured phase σ of the asymmetric TNLC sample is −67.5° ( = 292.5°). In Fig. 5(a), the real twist angle φ is found to be 80.21° at a phase t σ of 292.5°. Substituting this
value of φ into Eq. (5) together with the cell parameters (t φe, ,d K22) provided by the manufacturer, the azimuthal anchoring strength of the weak alignment layer is found to be 7.19 µJ/m2. This result is reasonable since the azimuthal anchoring strength of E7 liquid crystal at a plasma-alignment surface is known to be around 14.8 µJ/m2 [15]. Substituting the twist angle values extracted from Figs. 5(b) and 5(c) into Eq. (5) together with the cell parameters (φe, ,d K22), the azimuthal anchoring strengths of the weak alignment surface in the TNLC cell are found to be 7.13 µJ/m2 and 7.24 µJ/m2, respectively. In other words, an error of 1° in the azimuthal angle results in a deviation of no more than 0.06 µJ/m2 in the calculated value of the weak anchoring strength. Thus, the proposed method provides a robust means of calculating the azimuthal anchoring strength in asymmetrical TNLC cells even when small errors exist in the azimuthal angle setting.
Fig. 5. Correlation between measured phase and extracted twist angle in asymmetrical TNLC cell for azimuthal angles of (a) α = 0°; (b) α = 1°; and (c) α = −1°.
4. Azimuthal anchoring strength measurement for symmetrical TNLC cells 4.1 Basic measurement principle
In symmetrical TNLC cells, the LC director deviates from the easy axis of both substrates, and thus the method described in Subsection 3.1 cannot be used to measure the anchoring strength since the value of α is unknown. Therefore, this section proposes an alternative method for measuring the azimuthal anchoring strength of symmetrical aligned LC samples using a TNLC wedge cell and a genetic algorithm (GA).
Figure 6 shows the simulation results obtained by Eq. (4) for the variation of the twist angle with the cell thickness for known azimuthal anchoring strengths of wφ = 30~150 µJ/m2 at both substrates with φe = 60° and K22 = 6.5 pN in each case. Using the theoretical φt - d curve, the unknown azimuthal anchoring strength of a symmetrically-aligned LC sample can
be obtained simply by fitting the experimental φt - d curve obtained by the GA. Note that the azimuthal strength obtained by fitting the multiple φt - d curves is expected to be more accurate than that obtained when using a sample with a uniform cell gap.
Fig. 6. Simulated twist angle vs. thickness (φt - d) curves for symmetrical TNLC cells with different azimuthal anchoring strengths in the range 30 µJ/m2 (lower) to 150 µJ/m2 (upper).
Figure 7 presents a schematic diagram of the measurement system utilized to measure 2-D parameters distributions from a TNLC cell. As shown, the configuration is modified from the one described in Section 3. A beam expander is used to extend the single-point methodology to full-field measurement and a QWP whose slow axis forms an angle of 45° with that of the EOM was placed at three positions, namely Position 1, Position 2, and Position 3 (see Fig. 7) sequentially in the measurement process. After passing the analyzer, the expanded beam is incident on a CCD triggered by a complex programmable logic device (CPLD) with a phase- shift driver. As the QWP is placed at Position 1, the form of the detected signals I1 consists of a DC term IDC and a modulated term K1sin(ω σt+ 1). Similarly, as the QWP was placed at Position 2 and Position 3, the detected signal can be expressed as I2=IDC+K2sin(ω σt+ 2)
and I3=IDC+K3sin(ω σt+ 3), respectively. In accordance with the method presented in [16], the phase maps of (σ1, σ2, σ3) of heterodyne signals can be carried out as follows
4 2
4 3
2 4
4 2
1,2,3 1,2,3
1 0 1,2,3
1,2,3 1,2,3
( ( ) ( ) )
tan .
( ( ) ( ) )
T T
T T T
T T
I t dt I t dt
I t dt I t dt
σ −
−
=
−
∫ ∫
∫ ∫
(10)
The full-field distributions of the azimuthal angle α, cell thickness d and twist angle φt are extracted using a GA, and the strong azimuthal anchoring strength is then obtained by applying a fitting method to the experimental results for the twist angle vs. cell thickness.
Fig. 7. Schematic illustration of heterodyne polarimeter used to measure parameters of TNLC wedge cell containing symmetrically-aligned LCs.
4.2 Experimental setup and results for symmetrical cells
In the measurement system shown in Fig. 7, empty polyimide-rubbed wedge-shaped cells (provided by LCD&PMR lab, NCTU, Taiwan) with pre-tilt angle of 3° were used as samples for the measurement. The twist angle induced by the easy axis of the LC alignment layer was equal to φe = 60°, and the cell was filled with either E7 liquid crystal (K22 = 6.5 pN, Merck Co.) or MLC-7023 liquid crystal (K22 = 8.25 pN, Merck Co.). The surfaces of the samples are separated by a 20µm spacer, and are not separated by a spacer at the other end. The illuminating light was provided by a frequency-stabilized He-Ne laser (Model: SIOS SL 02/2) with an output power of 3 mW, and the EOM (Conoptics, Model 370) was driven by a saw- tooth signal with a frequency of 1 kHz. In acquiring the intensity images, the exposure time of the 8-bit gray-level CCD (JAI, CV-A11) was set to a quarter period of 0.25 ms. Figure 8 illustrates the interface between the CPLD and the CCD [17]. The control clocks in the CPLD were processed using a cascaded sequence of frequency dividers in an embedded 2 MHz oscillator. Meanwhile, the frequencies of the external trigger signals provided to the function generator and the CCD were set to 1 kHz and 10 Hz, respectively. The phase of the CCD trigger signal was shifted sequentially using a bits / delay controller, and the exposure time, trigger mode and other settings of the CCD were controlled by a computer through IMAQ 1409 and RS-232 interfaces. The mean intensity values of the 30 frames acquired over a 3 second period were then used in computing the phase maps of (σ1, σ2, σ3).
Fig. 8. Block diagram showing interface between CCD and CPLD [16].
Before inserting the sample into the experimental setup, the DC bias of the EOM was adjusted such that the detected signal and the driving signal were in phase (i.e., σinitial =0) in order to eliminate the effect of the phase effect induced by the EOM. Having calibrated the detected signal, the sample was introduced into the measurement system and the QWP was inserted at Position 1 (see Fig. 7). The 2-D phase distribution, σ1, was then obtained from the detected signal. The QWP was then moved to Position 2, and the new 2-D phase distribution, σ2, was obtained. Finally, the QWP was removed from the experimental system, and the corresponding 2-D phase distribution, σ3, was obtained.
Figure 9(a) presents a typical image acquired by the CCD camera of the wedge cell filled with E7 liquid crystals. Note that the diffraction patterns in the image are the result of small particles on the lens surface and interference fringes introduced by the optical components within the interferometer. Figures 9(b)–10(d) show the corresponding 2-D distributions of σ1, σ2, and σ3.
Fig. 9. (a) Typical image acquired by CCD camera of wedge cell containing E7 liquid crystals, (b)~(d): phase distributions σ1 ~σ3 for sample shown in (a).
The measured 2-D phase distributions (σ1, σ2, σ3) were substituted into the GA as the objective values for the error function, and the optimal values ofα , φt, and d (i.e. the parameter values which minimized the error function) were extracted. In Eq. (9), it can be seen that the phase term of the detected signal varies as a function of cos2X. That is, as the cell gap d increases, the term Χ =[φt2+ Γ( / 2) ]2 1/ 2 also increases, and cos2X varies periodically between −1 and 1. Figures 10(a) and 10(b) show the variations of terms A and B in Eq. (9) as a function of d. The periodic properties of A and B lead to a corresponding periodicity in the measured phase distributions. This phenomenon is inevitable, and causes the GA to extract multiple solutions for the TNLC parameters if the search space for the cell
gap parameter is assigned the full range of 0~20 µm. Therefore, in implementing the GA, the TNLC sample parameters ( ,α φt, ) were randomly assigned within the ranges d
0 180
45 65
1 4 , 4 7 , or 7 10 .
t
m d m m d m m d m
α φ
µ µ µ µ µ µ
° ≤ ≤ °
° ≤ ≤ °
≤ ≤ ≤ ≤ ≤ ≤
(11)
Fig. 10. Variations of A and B in Eq. (9) as function of cell gap d.
Figures 11(a)–11(c) present the cell parameter distributions obtained from the GA for the E7 wedge cell, while Figs. 12(a)–12(c) present the equivalent results for the MLC-7023 wedge cell. Finally, Figs. 13(a) and 13(b) show the azimuthal anchoring energies of the E7 and MLC-7023 wedge cells, respectively, obtained by fitting the cell thickness and twist angle data presented in Figs. 11 and 12. The anchoring strengths of the E7 and MLC-7023 cells are found to be 160 µJ/m2 and 32 µJ/m2, respectively, and are therefore consistent with the values presented in previous studies [18,19]. For example, in [18], the azimuthal anchoring energy of E7 liquid crystal on a rubbed PI alignment layer was found to be 58 µJ/m2, while in [19], the azimuthal anchoring energy of 5CB liquid crystal on a rubbed PI layer was found to be 330 µJ/m2. Thus, even though the experimental values obtained for the azimuthal anchoring energies of E7 and MLC-7023 liquid crystal are different from the values presented in the literature, they are still within a reasonable range.

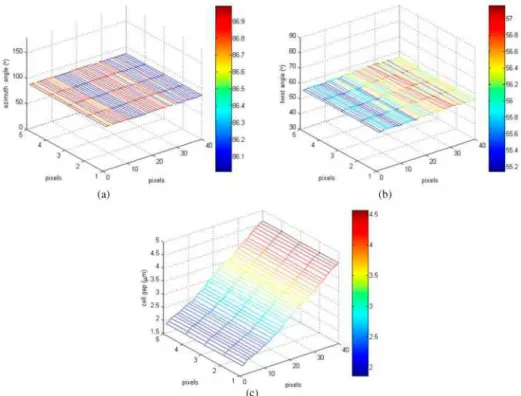

Fig. 11. Cell parameter distributions of E7 wedge cell: (a) azimuthal angle, (b) twist angle (φe
= 60° ± 2°), and (c) cell gap (1.8 µm ~4.5 µm).
Fig. 12. Cell parameter distributions of MLC-7023 wedge cell: (a) azimuthal angle, (b) twist angle (φe = −60° ± 2°), and (c) cell gap (7.3µm ~9.5 µm).

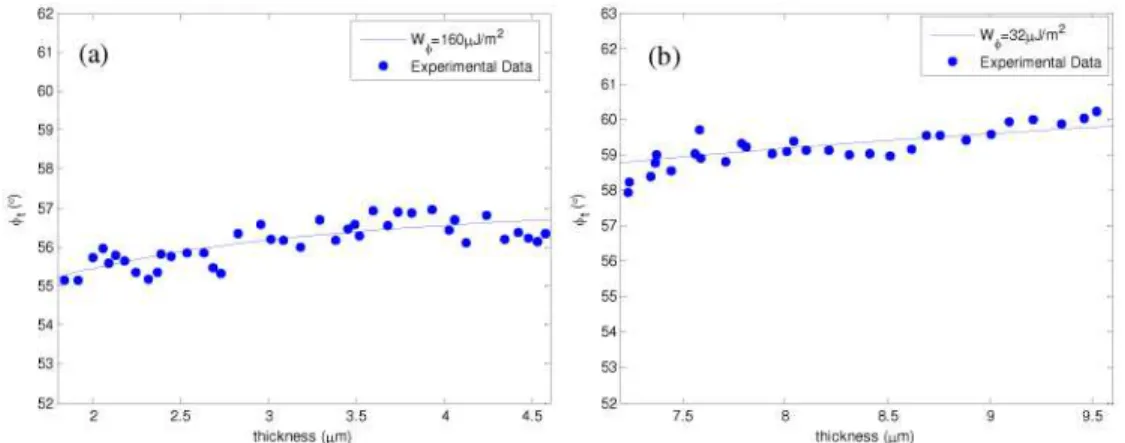

Fig. 13. Variation of twist angle with cell thickness and fitted values of azimuthal anchoring strength for: (a) E7 wedge cell, and (b) MLC-7023 wedge cell.
5. Conclusions
This study has demonstrated the use of a phase-sensitive heterodyne interferometer in determining the azimuthal anchoring strengths of asymmetrical and symmetrical TNLC cells.
For the case of asymmetrical TNLC cells, the twist angle of the cell is extracted from the phase of the detected heterodyne signal and is then used to compute the weak azimuthal anchoring strength directly. It’s not necessary to rotate the optical elements during measurement, and the resolution 0.01µJ/m2 is better than the standard error 0.3µJ/m2 obtained by Govindaraju et al. [8] for quantifying proteins captured on surfaces through interactions with immobilized ligands. The present method thus may provide a more straightforward and more sensitive way for the future bio-sensing applications. For symmetrical TNLC samples, the LC is inserted into a wedge cell and the correlation between the twist angle and the cell gap is extracted from the recorded phase measurements using a genetic algorithm (GA). A fitting technique is then applied to the twist angle vs. cell gap measurements in order to determine the corresponding value of the strong azimuthal anchoring strength. Unlike the method presented in ref [7], this method can be used as the sample is not in the waveguide regime. The experimental results have shown that the weak azimuthal anchoring strength of a composite liquid crystal mixture (40% LCT-061153 + 60% MJO-42761) on a plasma- alignment layer is equal to 7.19 µJ/m2. Meanwhile, it has been shown that the strong azimuthal anchoring strengths of E7 liquid crystal and MLC-7023 liquid crystal on rubbed polyimide alignment substrates are equal to 160 µJ/m2 and 32 µJ/m2, respectively. The azimuthal anchoring strengths obtained in this study are in good general agreement with the results presented in the literature, and thus the validity of the proposed approach is confirmed.
The phase-sensitive measurement methods proposed in this study not only eliminate the effects of intensity variations, but also minimize the influence of energy absorption at the optical elements within the measurement system. Moreover, the common-path configuration and heterodyne scheme reduce the effects of environmental perturbations and improve the SNR of the detected signal. As a result, the resolution of the measurement results is significantly improved. Finally, the use of a wedge cell in determining the azimuthal anchoring strength of symmetrical TNLC samples yields a more accurate estimate of the anchoring strength than that obtained using a sample with a uniform cell gap.
Acknowledgements
The authors gratefully acknowledge the financial support provided to this study by MIRDC (Metal Industries Research & Development Centre), Taiwan, and the National Science Council of Taiwan under Grant No. NSC96-2628-E-006-005-MY3.
