N A N O E X P R E S S Open Access

Single-crystalline chromium silicide nanowires and their physical properties

Han-Fu Hsu 1 , Ping-Chen Tsai 1 and Kuo-Chang Lu 1,2*

Abstract

In this work, chromium disilicide nanowires were synthesized by chemical vapor deposition (CVD) processes on Si (100) substrates with hydrous chromium chloride (CrCl

3

· 6H

2

O) as precursors. Processing parameters, including the temperature of Si (100) substrates and precursors, the gas flow rate, the heating time, and the different flow gas of reactions were varied and studied; additionally, the physical properties of the chromium disilicide nanowires were measured. It was found that single-crystal CrSi

2

nanowires with a unique morphology were grown at 700°C, while single-crystal Cr

5

Si

3

nanowires were grown at 750°C in reducing gas atmosphere. The crystal structure and growth direction were identified, and the growth mechanism was proposed as well. This study with magnetism, photoluminescence, and field emission measurements demonstrates that CrSi

2

nanowires are attractive choices for future applications in magnetic storage, photovoltaic, and field emitters.

Keywords: CVD; Chromium silicide nanowires; Field emission; Ferromagnetic property

Background

Recently, transition metal silicide nanowires have been widely studied [1-9] for their utilization in semicon- ductor device technologies. Low-resistivity silicides, such as TiSi

2

, CoSi

2

, and NiSi, have been applied for intercon- nection in CMOS devices [10]. The group of refractory semiconducting silicides, composed of silicon and metals, have different physical properties that are useful and importantly meaningful. Among them, semicon- ducting silicides, such as CrSi

2

and ß-FeSi

2

, with a nar- row energy gap (0.1 to 0.9 eV) have been extensively investigated for their potential use in silicon-integrated optoelectronic devices [11] such as LEDs [12,13] and IR detectors [14]. In particular, CrSi

2

is a narrow bandgap (0.35 eV) semiconductor [15-17], offering applications in the Schottky barrier solar cell technology [18]. Hex- agonal CrSi

2

with a C40-type structure has a high melting point and excellent resistance to oxidation, deformation, and stretching, being considered to be a potential structural material for aerospace and energy generation industries [19]. Additionally, it is a

thermoelectric conversion component that could be ap- plied to generate electric power at high temperatures [20]; the figure of merit (ZT) of CrSi

2

has been mea- sured to be 0.25 at 900 K [21]. CrSi

2

also has good field emission with relatively low work function (3.9 eV) [22]

as compared with generally studied field emission mate- rials such as CNTs (5 eV) [23] and ZnO (5.3 eV) [24].

With excellent intrinsic properties of CrSi

2

, one- dimensional CrSi

2

nanowires are expected to improve field emission performances by bulk and thin film CrSi

2

. Though there have been some previous studies on CrSi

2

nanowires [25-28], two special aspects can be found in this research. Firstly, we conducted a more systematic study on the influences of each processing parameter on growth. Secondly, we provided a low-cost and simple method to synthesize high-quality CrSi

2

nanowires with very good physical properties.

Methods

In our experiments, we synthesized chromium disilicide nanowires with chemical vapor deposition (CVD) pro- cesses. Single-crystal Si (001) wafers, the native oxide of which was etched by BOE solution, were substrates. The metal source was from hydrous chromium chloride (CrCl

3

· 6H

2

O) powders, and the flow gas is Ar gas

* Correspondence: [email protected]

1

Department of Materials Science and Engineering, National Cheng Kung University, No.1, University Rd, Tainan 701, Taiwan

2

Center for Micro/Nano Science and Technology, National Cheng Kung University, No.1, University Rd, Tainan 701, Taiwan

© 2015 Hsu et al.; licensee Springer. This is an Open Access article distributed under the terms of the Creative Commons

Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction

in any medium, provided the original work is properly credited.

(2)

(99.99%). The CrCl

3

· 6H

2

O powders were put in the up- stream zone of the furnace, where the temperature ranged from 700°C to 800°C, while the silicon (001) sub- strates were put in the downstream zone with the same temperature range. During the growth process, with oxy- gen environment, CrSi

2

nanowires may transform to be CrSi

2

(core)/SiO

2

(shell) nanowires due to oxidation. To understand what factors influence the growth of chro- mium disilicide nanowires, we varied reaction time and temperatures of substrates and the metal source. Scanning electron microscopy (SEM), X-ray diffraction (XRD), and transmission electron microscopy (TEM) studies were conducted for morphology observation and structure iden- tification of the nanowires. Additionally, physical proper- ties, including magnetism (SQUID), photoluminescence (PL), and field emission (Keithley-237), were measured.

Results and discussion

In this work, we controlled different parameters to realize how they influence the nanowires’ growth, morphology, and physical properties. With source and substrate at 700°C and the flow gas of 120 sccm, we obtained dense CrSi

2

nanowires with a length of approximately 20 μm as shown in Figure 1a by chemical vapor deposition. Inte- restingly, in Figure 1b, the nanowires grew from the par- ticle with almost coherent growth direction and the

morphology was rare. XRD analysis in Figure 1c shows (111), (003), and (112) major plane peaks, indicating that the nanowires have a C40 hexagonal structure. The TEM image of Figure 2a shows that the nanowires are 10 to 50 nm in diameter. In Figure 2b, the high-resolution transmission electron microscopy (HRTEM) image and the corresponding fast Fourier transform (FFT) pattern in the inset identifies the materials to be single-crystal CrSi

2

nanowires of a hexagonal structure with lattice constants, a = 0.4428 nm and c = 0.6369 nm (JCPDS card no. 35–

0781); the growth direction is [001], and the interplanar spacing of plane (003) is 0.2098 nm. Additionally, we tried 750°C with hydrogen as reducing atmosphere and ob- tained Cr

5

Si

3

nanowires of approximately 10 μm in length and of a different morphology as shown in Figure 1d. In Figure 1e, we found that the nanowires grew from nano- particles again. XRD analysis in Figure 1f shows two phases, CrSi

2

and Cr

5

Si

3

; for further investigation on the atomic structures of the nanowires, we conducted TEM analysis as shown in Figure 2. From the TEM image of Figure 2c, the nanowire was of approximately 80 nm in diameter. The HRTEM image and the corresponding FFT pattern in the inset of Figure 2d confirm that the single-crystal Cr

5

Si

3

nanowire has a BCT D8m structure with lattice constants, a = 0.9165 nm and c = 0.4638 nm (JCPDS card no. 51–1357); also, the nanowire is with

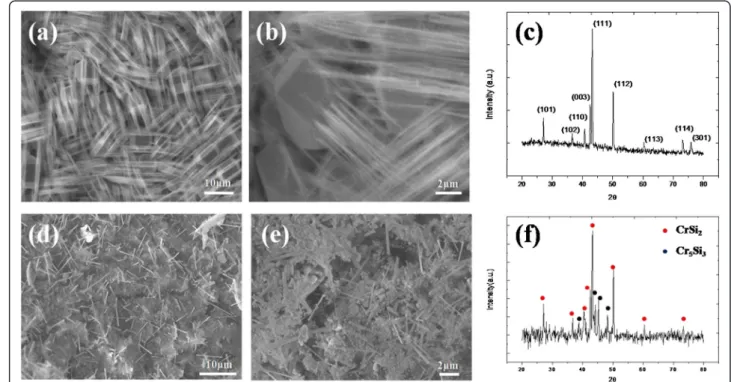

Figure 1 SEM images and XRD analysis of chromium silicide nanowires. (a) Low magnification, (b) high-resolution SEM images, and (c) XRD

analysis of CrSi

2

nanowires grown at 700°C. (d) Low magnification, (e) high-resolution SEM images and (f) XRD analysis of Cr

5

Si

3

nanowires grown

at 750°C with H

2

atmosphere.

(3)

Figure 2 TEM analysis of chromium silicide nanowires. (a) Low magnification, (b) high-resolution TEM images of CrSi

2

nanowires grown at 700°C. The inset in (b) shows the corresponding fast Fourier transform (FFT) pattern with a zone axis of [1 –10]. (c) Low magnification, (d) high-resolution TEM images of Cr

5

Si

3

nanowires grown at 750°C. The inset in (d) shows the corresponding FFT pattern with a zone axis of [0 –11].

Figure 3 Schematic illustration of the growth mechanism. (1) 4CrCl

3(g)

+ 11Si

(s)

→ 4CrSi

2(s)

+ 3SiCl

4(g)

; 4SiCl

4(g)

+ 2CrCl

3(g)

→ 2CrSi

2(l)

+ 11Cl

2(g)

.

(2) Growth of CrSi

2

particles and nanowires. (3) High-density CrSi

2

nanowires. (I) 10CrCl

3(g)

+ 12Si

(s)

+ 3H

2(g)

→ 2Cr

5

Si

3(s)

+ 6SiCl

4(g)

+ 6HCl

(g)

.

(II) Growth of Cr

5

Si

3

nanowires.

(4)

[100] growth direction, and the interplanar spacing of plane (200) is 0.4571 nm.

The growth mechanism of the chromium silicide nano- wires in this study is interesting. Figure 3 is the schematic illustration of the growth mechanism, showing the

Figure 4 SEM images of CrSi

2

nanowires at different heating times of (a) 1.5, (b) 4, and (c) 12 h, respectively.

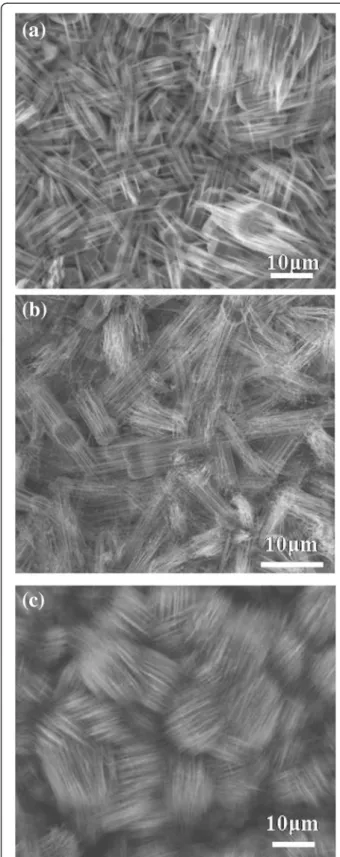

Figure 5 SEM images of CrSi

2

nanowires at different gas flow

rates of (a) 60, (b) 120, and (c) 240 sccm, respectively.

(5)

proposed growth steps of the CrSi

2

nanowires. When the system was heated below 700°C, CrCl

3

· 6H

2

O trans- formed to CrCl

3

and H

2

O:

CrCl 3 :6H 2 O ð Þ g → CrCl 3 g ð Þ þ 6H 2 O

The CrCl

3

gas molecules then agglomerated on the sil- icon substrate. As the system temperature reached the reaction temperature, 700°C, CrCl

3

gas reacted with the silicon substrate to form CrSi

2

nanoparticles and SiCl

4

based on step (1) of Figure 3:

4CrCl

3 gð Þ

þ 11Si

ð Þs

→ 4CrSi

2 sð Þ

þ 3SiCl

4 gð Þ

T ¼ 700℃

The SiCl

4

product then reacted with CrCl

3(g)

to form CrSi

2

, following step (2) of Figure 3:

4SiCl

4 gð Þ

þ 2CrCl

3 gð Þ

→ 2CrSi

2 lð Þ

þ 11Cl

2 gð Þ

T ¼ 700℃

Notably, the CrSi

2

nanowires precipitated from polygonal particles, and the growth direction seems consistent as shown in Figure 1b. The nanowires and polygonal particles may have the same stacking plane, (003), based on our TEM analysis, and nanowires grew from voids and defects on the surface of any polygonal particles with <001 >

growth direction, following step (3) of Figure 3 as shown in a SEM image of Additional file 1: Figure S1. We con- ducted experiments with the heating times of 1.5, 4, and 12 h at 700°C, obtaining the corresponding results shown in Figure 4a, b, c, respectively. We found nanowires and particles at 1.5 h, more nanowires growing from particles at 4 h, and dense nanowires appearing with buried particles at 12 h, respectively. With a longer duration, more nano- wires can overcome the activation energy, successfully

nucleate, and grow to be nanowires, contributing to CrSi

2

nanowires of a high density. According to the observations, we proposed that the mechanism of the nanowire growth is a self-catalytic process.

As the substrate temperature was at 750°C, CrCl

3

gas reacted with H

2

gas and the silicon substrate to form Cr

5

Si

3

nanoparticles, HCl, and SiCl

4

, following step (i) of Figure 3:

10CrCl

3 gð Þ

þ 12Si

ð Þs

þ 3H

2 gð Þ

→ 2Cr

5

Si

3 sð Þ

þ 6SiCl

4 gð Þ

þ6HCl

ð Þg

T ¼ 750℃

The SiCl

4

also reacted with CrCl

3

to form CrSi

2

, which is the reason why the XRD analysis shows both CrSi

2

and Cr

5

Si

3

phases.

Also, we investigated the influence of the carrier gas flow rate when synthesizing chromium silicide nano- wires. We conducted experiments at the gas flow rate of 60, 120, and 240 sccm at 700°C, obtaining the cor- responding results shown in Figure 5a, b, c, respectively.

It can be found that chromium disilicide nanowires appeared without particles at 60 sccm and with few par- ticles at 120 sccm and that the morphology gradually transformed from nanowires to films at 240 sccm.

The CVD synthesis system can be divided into three sub-systems, which are momentum control system, mass transfer control system, and surface reaction control sys- tem. At a lower gas flow rate, mass transfer control sys- tem would be the main reaction mechanism, with which gas adsorption and desorption occurred on the Si wafer and fabrication of chromium silicide nanowires was pre- ferred. On the other hand, at a higher gas flow rate, sur- face reaction control system would be the main reaction

Figure 6 The field emission measurements of CrSi

2

NWs; the inset shows the corresponding ln(J/E

2

)-1/E plot.

(6)

mechanism, with which CrCl

3

reacted on the Si wafer surface by chemical vapor deposition; thus, chromium silicide films appeared.

In addition to understanding the growth behaviors of the chromium silicide nanowires, we explored their physical properties. Figure 6 is the field emission mea- surements for CrSi

2

NWs, showing the plot of the current density (J) as a function of the applied field (E) with the inset of the ln(J/E

2

)-1/E plot. The sample was measured in a vacuum chamber pump to approximately 10

−6

Torr. According to the Fowler-Nordheim (F-N) plot and the Fowler-Nordheim equation:

J ¼ Aß 2 E 2 =φ

exp  −Bφ 3=2 =ßE

;

where J is the current density, E is the applied electric field, φ is the work function, and A, B are constants,

respectively. We put +1,000 V on the sample with a 100-μm spacing between the anode and cathode, and we defined the turn-on field could obtain a current density of 10 μA/cm

2

and the turn-on field we measured for CrSi

2

nanowires was 7.5 V/μm. The field enhancement factor ß has been calculated to be 1,366 from the slope of ln(J/E

2

) = ln(Aß

2

/φ) − Bφ

3/2

/ßE (for CrSi

2,

φ = 3.9 eV [19]), demonstrating that CrSi

2

NWs are promising emitters.

The outstanding field emission properties of CrSi

2

NWs are attributed to their metallic property and special one- dimensional geometry with a high aspect ratio as com- pared with those of many other materials.

On magnetization analysis for chromium disilicide nano- wires coated with a silicon oxide layer of a few nanometers in thickness, we prepared samples of 2.5 mm × 2.5 mm with the applied magnetic field of ±3,000 Oe perpendi- cular to the substrates. Notably, Figure 7 shows that the CrSi

2

/SiO

x

nanowires grown here were found to be

Figure 8 PL spectrum for the CrSi

2

nanowires. (a) Energy states of CrSi2 bulk. (b) Photoluminescence measurements of CrSi2 NWs with Gaussian fitting.

Figure 7 The magnetism measurements of CrSi

2

/SiO

x

nanowires.

(7)

ferromagnetic with the saturation magnetization of 8 × 10

−7

emu, M

R

, remanence, of 2 × 10

−7

emu, and H

C

, coercive force, of about 179 Oe, respectively, which is different from the antimagnetic behavior in CrSi

2

and SiO

X

. The ferromagnetic characteristic results from the bonding formation between the Si sp hybrid orbitals and the Cr 3d orbitals at the SiOx/CrSi

2

interface, where the oxygen atoms play an important role, bonding with silicon atoms and making chromium atoms with un- paired electrons, which contributes to ferromagnetism at nanoscale [25].

On photoluminescence analysis, Bhamu et al. studied the density of state (DOS) of CrSi

2

bulk, including 1.33 eV, 0.56 eV above Fermi state, and 2.23 eV under Fermi state [29]. Figure 8b shows our PL spectrum in the visible re- gion for the CrSi

2

nanowires, where the wide peak was present (red line) and through Gaussian fitting; the other two peaks, 396 nm (green line) and 465 nm (blue line), were calculated. Theoretically, the electron-hole pair re- combinations of 1.33 eV, 0.56 eV conduct state to −2.23 eV valance state were 348 and 430 nm for CrSi

2

bulk. In reality, the difference results from dimension, bulk, and nanowires; as the particle size reduces, wider bandgap light absorption band will move to shorter wavelengths, which is so-called blueshift [30]; however, there may be redshift as well; as the particle size decreases, the internal stress will increase, causing changes in the band structure [31]

and the electron wave function overlap to increase the en- ergy gap narrowing [32]; if the redshift factor is larger than the blueshift, then we will see redshift phenomenon, which is the case here.

Conclusions

In this study, using a CVD method, we have successfully synthesized chromium silicide nanowires of two phases with unique morphologies. Effects of some processing pa- rameters, including the temperature, gas flow rate, and heating time, were investigated; for example, the growth of chromium disilicide nanowires were influenced by CrSi

2

vapor supersaturation, CrSi

2

vapor formation rate, and CVD control system. Also, the growth mechanism has been proposed. Field emission and photoluminescence measure- ments demonstrate that the CrSi

2

nanowires are potential field-emitting and photovoltaic materials with a low turn- on field. Additionally, the magnetic property measurements for the CrSi

2

/SiO

x

nanowires, showing a ferromagnetic characteristic, demonstrate promising applications for mag- netic storage and biological cell separation.

Additional file

Additional file 1: Figure S1. SEM image of CrSi

2

nanowires growing from voids and defects on the surface of silicide particles at 700°C.

Competing interests

The authors declare that they have no competing interests.

Authors ’ contributions

HFH and KCL conceived the study and designed the research. HFH conducted the experiments. HFH, PCT, and KCL wrote the manuscript.

All authors read and approved the final manuscript.

Acknowledgements

KCL acknowledges the support from the National Science Council through grants 100-2628-E-006-025-MY2 and 102-2221-E-006-077-MY3.

Received: 10 December 2014 Accepted: 21 January 2015

References

1. Lu CM, Hsu HF, Lu KC. Growth of single-crystalline cobalt silicide nanowires and their field emission property. Nanoscale Res Lett. 2013;8:308.

2. Chiu WL, Chiu CH, Chen JY, Huang CW, Huang YT, Lu KC, et al. Single- crystalline δ-Ni2Si nanowires with excellent physical properties. Nanoscale Res Lett. 2013;8:290.

3. Lu KC, Wu WW, Ouyang H, Lin YC, Huang Y, Wang CW, et al. The influence of surface oxide on the growth of metal/semiconductor nanowires. Nano Lett. 2011;7:2753 –8.

4. Wu WW, Lu KC, Chen KN, Yeh PH, Wang CE, Lin YC, et al. Controlled large strain of Ni silicide/Si/Ni silicide nanowire heterostructures and their electron transport properties. Appl Phys Lett. 2011;97:203110.

5. Wu WW, Lu KC, Wang CW, Hsieh HY, Chen SY, Chou YC, et al. Growth of multiple metal/semiconductor nanoheterostructures through point and line contact reactions. Nano Lett. 2010;10:3984 –9.

6. Chou YC, Lu KC, Tu KN. Nucleation and growth of epitaxial silicide in silicon nanowires. Mat Sci Eng R. 2010;70:112 –25.

7. Lu KC, Wu WW, Wu HW, Tanner CM, Chang JP, Chen LJ, et al. In situ control of atomic-scale Si layer with huge strain in the nanoheterostructure NiSi/Si/

NiSi through point contact reaction. Nano Lett. 2007;8:2389 –94.

8. Lu KC, Tu KN, Wu WW, Chen LJ, Yoo BY, Myung NV. Point contact reactions between Ni and Si nanowires and reactive epitaxial growth of axial nano-NiSi/Si. Appl Phys Lett. 2007;90:253111.

9. Liang YH, Yu SY, Hsin CL, Huang CW, Wu WW. Growth of single-crystalline cobalt silicide nanowires with excellent physical properties. J Appl Phys.

2011;110:074302.

10. Chen LJ. An integral part of microelectronics. JOM. 2005;57:24 –30.

11. Derrien J, Chevrier J, Lethanh V, Mahan JE. Semiconducting silicide-silicon heterostructures: growth, properties and applications. Appl Surf Sci.

1992;382:56 –8.

12. Ng WL, Lourenco MA, Gwilliam RM, Ledain S, Shao G, Homewood KP.

An efficient room-temperature silicon-based light-emitting diode. Nature.

2001;410:192 –4.

13. Leong D, Harry M, Reeson KJ, Homewood KP. A silicon/iron-disilicide light-emitting diode operating at a wavelength of 1.5 mum. Nature.

1997;387:686 –8.

14. Bost MC, Mahan JE. An investigation of the optical constants and band gap of chromium disilicide. J Appl Phys. 1988;63:839 –44.

15. Shinoda D, Asanabe S, Sasaki Y. Semiconducting properties of chromium disilicide. J Phys Soc Jpn. 1964;19:269 –72.

16. Bellani V, Guizzetti G, Marabelli F, Piaggi A, Borghesi A, Nava F, et al.

Theory and experiment on the optical properties of CrSi

2

. Phys Rev B.

1992;46:9380 –9.

17. Mattheiss LF. Electronic structure of CrSi

2

and related refractory disilicides.

Phys Rev B. 1991;43:12549 –55.

18. Anderson WA, Delahoy AE, Milano RA. 8 percent efficient layered Schottky- barrier solar cell. J Appl Phys. 1974;45:3913 –5.

19. Bewlay BP, Lipsitt HA, Jackson MR, Chang KM. Processing microstructures and properties of Cr-Cr sub 3 Si, Nb-Nb sub 3 Si, and V-V sub 3 Si eutectics.

Mater Manuf Processes. 1994;9:89 –109.

20. Nishida I. The crystal growth and thermoelectric properties of chromium disilicide. J Mater Sci. 1972;7:1119 –24.

21. Rowe DM. CRC handbook of thermoelectrics. Boca Raton, FL: CRC Press;

1995. p. 701.

22. Chung IJ, Hariz A. Surface application of metal silicides for improved

electrical properties of field-emitter arrays. Smart Mater Struct. 1997;6:633 –9.

(8)

23. Bonard JM, Salvetat JP, Stockli T, Forro L, Chatelain A. Field emission from carbon nanotubes: perspectives for applications and clues to the emission mechanism. Appl Phys A. 1999;69:245 –54.

24. Minami T, Miyata T, Yamamoto T. Transparent conducting zinc-co-doped ITO films prepared by magnetron sputtering. Surf Coat Technol.

1998;108:583 –7.

25. Hou TC, Han YH, Lo SC, Lee CT, Ouyang H, Chen LJ. Room-temperature ferromagnetism in CrSi

2

(core)/SiO

2

(shell) semiconducting nanocables.

Appl Phys Lett. 2011;98:193104.

26. Zhang Y, Wu Q, Qian W, Liu N, Qin X, Yu L, et al. Morphology-controlled growth of chromium silicide nanostructures and their field emission properties. CrystEngComm. 2012;14:1659 –64.

27. Seo K, Varadwaj KSK, Cha D, In J, Kim J, Park J, et al. Synthesis and electrical properties of single crystalline CrSi

2

nanowires. J Phys Chem C.

2007;111:9072 –6.

28. Lee CT, Li TY, Chiou SH, Lo SC, Han YH, Ouyang H. First-principles analyses of unusual ferromagnetism observed in CrSi

2

(core)/SiO

2

(shell) nanocables.

J Appl Phys. 2013;113:17E140.

29. Bhamu KC, Sahariya J, Ahuja BL. Electronic structure of ceramic CrSi2 and WSi2: Compton spectroscopy and ab-initio calculations. J Phys Chem Solids.

2013;74:765 –71.

30. Wang Y, Herron N. Nanometer-sized semiconductor clusters: materials synthesis, quantum size effects, and photophysical properties. J Phys Chem.

1991;95:525 –32.

31. Fu H, Zunger A. Electronic structure, surface effects, and the redshifted emission InP quantum dots. Phys Rev B. 1997;56:1496 –508.

32. Smith CA, Lee HWH, Leppert VJ, Risbud SH. Ultraviolet-blue emission and electron-hole states in ZnSe quantum dots. Appl Phys Lett. 1999;75:1688 –90.

Submit your manuscript to a journal and benefi t from:

7 Convenient online submission 7 Rigorous peer review

7 Immediate publication on acceptance 7 Open access: articles freely available online 7 High visibility within the fi eld

7 Retaining the copyright to your article

Submit your next manuscript at 7 springeropen.com

數據

Figure 1 SEM images and XRD analysis of chromium silicide nanowires. (a) Low magnification, (b) high-resolution SEM images, and (c) XRD analysis of CrSi 2 nanowires grown at 700°C
Figure 3 Schematic illustration of the growth mechanism. (1) 4CrCl 3(g) + 11Si (s) → 4CrSi 2(s) + 3SiCl 4(g) ; 4SiCl 4(g) + 2CrCl 3(g) → 2CrSi 2(l) + 11Cl 2(g)
Figure 5 SEM images of CrSi 2 nanowires at different gas flow rates of (a) 60, (b) 120, and (c) 240 sccm, respectively.
Figure 6 The field emission measurements of CrSi 2 NWs; the inset shows the corresponding ln(J/E 2 )-1/E plot.
+2

參考文獻

相關文件

Performance metrics, such as memory access time and communication latency, provide the basis for modeling the machine and thence for quantitative analysis of application performance..

Work Flow Analysis: Since the compound appears in only 2% of the texts and the combination of two glyphs is less than half of 1% of the times when the single glyphs occur, it

A floating point number in double precision IEEE standard format uses two words (64 bits) to store the number as shown in the following figure.. 1 sign

A floating point number in double precision IEEE standard format uses two words (64 bits) to store the number as shown in the following figure.. 1 sign

In the following we prove some important inequalities of vector norms and matrix norms... We define backward and forward errors in

Figure 6 shows the relationship between the increment ∆y and the differential dy: ∆y represents the change in height of the curve y = f(x) and dy represents the change in height

Thus the given improper integral is convergent and, since the integrand is positive, we can interpret the value of the integral as the area of the shaded region in Figure

interpretation of this result, see the opening paragraph of this section and Figure 4.3 above.) 2... (For
