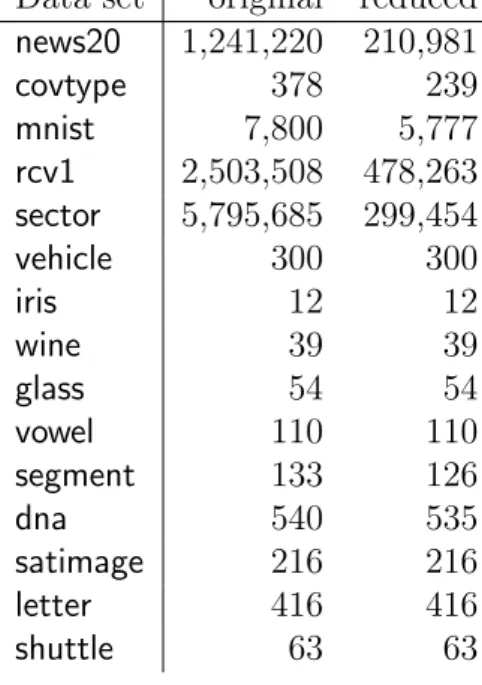

4.1 The number of features in the feature vectors used in Algorithm 3.
‘original’ indicates the length of the original feature vector while the length of the reduced feature vector is listed in the column ‘reduced.’ 19 5.1 The summary of data statistics. The second column shows the number

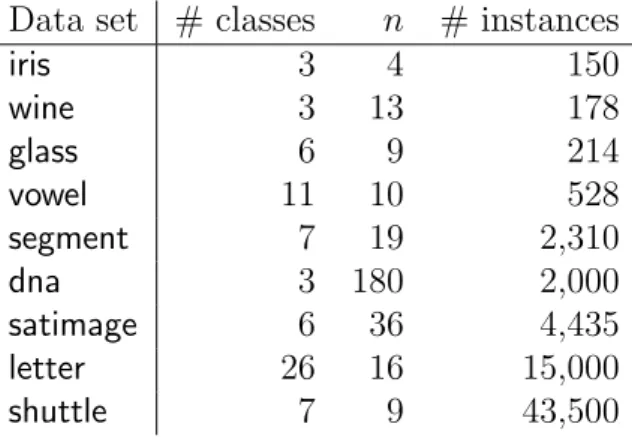

of classes/labels in the data set. n is the number of features. The last two columns are the number of training and testing data respectively. 21 5.2 The summary of UCI/Statlog data statistics. The second column
shows the number of classes/labels in the data set. n is the number of
features. The last column is the number of data instances. . . 21
5.3 Cross-validation accuracy for each classifiers on data sets. For each data set, the highest accuracy is bold-faced. . . 24

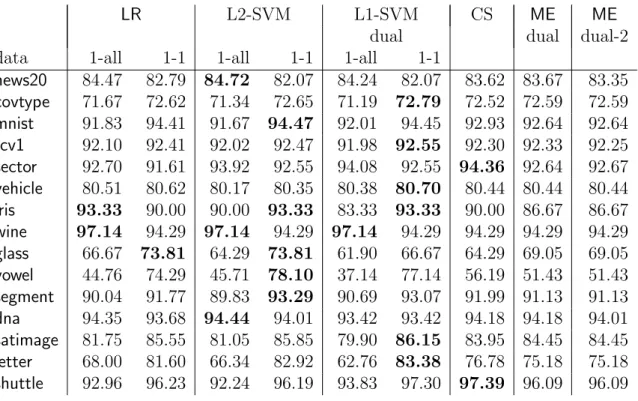

5.4 Testing accuracy for each classifiers on data sets. For each data set, the highest accuracy is bold-faced. . . 24
5.5 The best C for each classifiers on data sets. . . 25

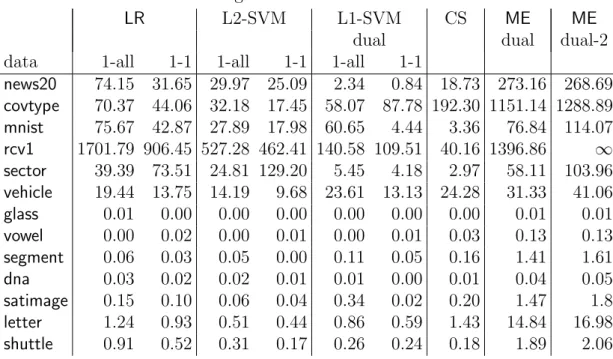

5.6 Training time for each classifiers on data sets. . . 25

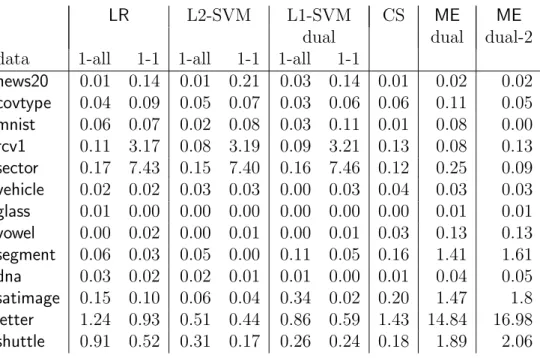

5.7 Testing time for each classifiers on data sets. . . 26
vi
Introduction
Support vector machine (SVM) (Boser et al., 1992; Cortes and Vapnik, 1995) is a popular data classification tool. SVM uses a hyperplane to distinguish between positive and negative instances, and keeps the margin as wide as possible. Sometimes it is not easy to seperate data points directly. The kernel trick is introduced to map the instances into another higher dimentional space to make the classification task easier.
The SVM applying kernel trick is called non-linear SVM, otherwise it is called linear SVM. For many applications such as document classification in which data is usually really large, linear SVM is suitable for data not mapped where the performance is similar between linear and non-linear SVM.
Several works make much efforts to solve linear SVM in many ways. Lin et al. (2008) proposed a trust region Newton method (TRON) to solve large-scale l2-loss linear SVM.
Chang et al. (2008) also solved l2-linear SVM, with the coordinate descent method and showed that it is more efficient and stable than Pegasos (Shalev-Shwartz et al., 2007) and TRON. Hsieh et al. (2008) again applied the coordinate descent method to solve linear SVMs with not only l2-loss but also l1-loss. It was shown to be faster than Pegasos, TRON and SVMperf (Joachims, 2006), and reach an -accurate solution in O(log(1/)) iterations.
The original SVM solves the binary classification problem. In other words, there
1
2
are only two classes of instances to be classified. If in one problem there are more than two classes, we call this a multi-class classification problem. There are already several works (e.g., Mayoraz and Alpaydin, 1999; Weston and Watkins, 1998) on solving multi- class problems. Hsu and Lin (2002) compares multi-class non-linear SVMs with RBF kernels of different approaches and other multi-classifiers. One group of approaches is based on several binary SVMs. In (Bottou et al., 1994), a one-against-all method is applied to deal with multi-class tasks. Rifkin and Klautau (2004) also studies the one-against-all approach. With the one-against-all method, for every class a classifier is trained. The instance will be classified to the class whose classifier gives the highest score. The other approach is called one-against-one (Knerr et al., 1990). In this approach the classifier for every pair of classes is trained. The decision of which class the instance belongs to depends on the majority votes of some associated classifiers.
Besides the approaches combining multiple binary classifiers to deal with multi-class tasks, the other group of approaches called “all-together” methods can be capable of multi-class classification. Crammer and Singer (2000) proposed a method to do with multi-class task and we usually solve the dual form. Because in the dual form there are still many variables, the coordinate descent method can be applied to solve the problem. Keerthi et al. (2008) extended the coordinate descent method to a sequential dual method to solve the dual form. Fan et al. (2008) provided an implementation in the LIBLINEAR package.
Another “all-together” model called Maximum Entropy (ME) (Berger et al., 1996) is widely used in NLP applications. ME is based on the joint features which are extracted from the instance-label pair. Huang et al. (2009) proposed an iterative scaling and coordinate descent method to solve the primal form of ME. The same method is also applied to solve logistic regression (LR) problem because LR can be considered as a
special case of ME. For the dual form of ME and LR, Yu et al. (2011) solved it with the coordinate descent method as well. In the experiments of both papers, the NLP data is of multi-class with 0/1 feature values, whereas the data for LR is binary. There are no experiments conducted with these methods on multi-class data of real-valued features.
It is quite interesting that people of NLP groups get used to apply ME in their researches. In ME data appear in the form of feature vectors encoded with all the instance-label pairs instead of simply considering the instance-label pairs appearing in the data. And NLP researchers manipulate their data with “feature reduction”
approach. Since the performance of classifiers may be different in terms of instance format. We would like to know the reason they take this approach or it is just a customary choice. In this thesis we will conduct experiments on several multi-class data sets with linear classifiers such as SVM and ME to see the performance, and also study effects of different format of instances.
CHAPTER II
Models
2.1 Support Vector Machine
Support Vector Machine (SVM) (Boser et al., 1992; Cortes and Vapnik, 1995) is a popular tool for classification. Given a set of instance-label pairs (xi, yi), where i = 1, . . . , l, xi ∈ Rn, yi ∈ {+1, −1}, SVM solves the following unconstrained optimization problem,
minw f (w) ≡ 1
2wTw + C
l
X
i=1
ξ(w; xi, yi).
ξ(w; xi, yi) is the loss function and C ∈ R is the penalty parameter. 12wTw is the regularization term and it is added to avoid overfitting. One can tune the performance, and strike a balance between loss function and regularization term by setting different values of C. There are two common forms of loss function. One is L1-SVM which solves the following problem,
minw f (w) ≡ 1
2wTw + C
l
X
i=1
max(1 − yiwTxi, 0). (2.1)
The other is L2-SVM, which solves the following problem with squared loss function,
minw f (w) ≡ 1
2wTw + C
l
X
i=1
max(1 − yiwTxi, 0)2. (2.2)
Regularized logistic regression (LR) related to SVM uses logistic loss function and
4
solves the following problem,
minw f (w) ≡ 1
2wTw + C
l
X
i=1
log(1 + e−yiwTxi). (2.3)
The statements above follows Chang et al. (2008).
In some applications we want to add the bias term. For convenience we can extend the instance by including the bias term b:
xTi ← [xTi, 1] and wT ← [wT, b].
In the multi-class classification problem, instance-label pairs also given in the for- mat as that in binary problem, but yi ∈ {1, . . . , k}, where k is the number of labels.
The i-th SVM solves the following problem,
minwi
1
2wTi wi+ C
l
X
i=1
max(1 − yjwTi xj, 0). (2.4)
The decision function for predicting labels on xj is
arg max
i=1,...,k wTi xj.
The approach used in (2.4) is called one-against-all (Bottou et al., 1994). For each class we train one model, in total we obtain k models. In i-th SVM we consider instances with label yi as positive ones and others as negative instances.
The other approach is called one-against-one (Knerr et al., 1990). We train models for every pair of classes. For class i and j, we solve the following problem,
minwij
1
2wijTwij + C
l
X
k=1
max(1 − ykwTijxk, 0). (2.5)
We train models for every pair of classes, therefore k(k − 1)/2 models could be obtained. When predicting labels, for each model we calculate wTijxi. If sign(wijTxi) says xi is in the class i, the model votes for class i, otherwise it votes for class j. xi will be classified in the class with majority votes.
6
2.2 Crammer and Singer
Given a set of instance-label pairs (xi, yi), where i = 1, . . . , l, x ∈ Rn, yi ∈ {1, . . . , k}. The multi-class model proposed by Crammer and Singer (2000) is obtained by solving the following optimization problem,
min
wm,ξi
1 2
k
X
m=1
wmTwm+ C
l
X
i=1
ξi
subject to wyTixi− wmTxi ≥ emi − ξi, i = 1, . . . , l, (2.6)
where
emi =
0 if yi = m, 1 if yi 6= m.
The decision function is
arg max
m=1,...,kwTmx.
The dual of (2.6) is:
minα
1 2
k
X
m=1
kwmk2+
l
X
i=1 k
X
m=1
emi αmi
subject to
k
X
m=1
αmi = 0, ∀i = 1, . . . , l (2.7) αmi ≤ Cymi, ∀i = 1, . . . , l, m = 1, . . . , k,
where
wm =
l
X
i=1
αmi xi, ∀m, α¯i = [α1i, . . . , αik]T, α = [α11, . . . , α1k, . . . , α1l, . . . , αlk]T (2.8)
and
Cymi =
0 if yi 6= m, C if yi = m.
(2.9)
2.3 Maximum Entropy (ME)
Maximum entropy (ME) is widely applied in applications such as natural language processing (NLP) and document classification. It is suitable for problems with proba- bility interpretations. In the application of NLP, one can predict the labels with the maximal probability for a given word sequence (Berger et al., 1996). This task is dif- ferent from traditional classification problems in which labels are assigned to a single instance.
ME models the conditional probability as:
Pw(yi|xi) ≡ Sw(xi, yi) Tw(xi) ,
Sw(xi, yi) ≡ ewTf (xi,yi), Tw(xi) ≡P
i=1Sw(xi, yi),
where i = 1, . . . , l, x ∈ Rn, yi ∈ {1, . . . , k}. xi indicates a context, yi is the label of the context. f (xi, yi) is a real-valued vector extracted from context xi and label yi. It is assumed that f (xi, yi) has finite features. Tw can be considered as a normalization term to make P
iPw(yi|xi) = 1.
One can obtain the empirical probability ˜P (xi, yi) from training instances. ME minimizes the following negative likelihood,
minw −X
xi,yi
P (x˜ i, yi)Pw(yi|xi),
or equivalently,
minw
X
xi
P (x˜ i) log Pw(xi) − wTP (f ),˜
where
P (x˜ i, yi) = Nxi,yi/N. (2.10)
Nxi,yi is the number of occurrences of (xi, yi) in the training data and N is the total number of training samples. P (x˜ i) = P
iP (xi, yi) is the marginal probability
8
of xi. P (f ) =˜ P
xi,yif (xi, yi) is the expected feature vector. In reading data of LIBSVM format, ˜P (xi, yi) = 1/l because every instance has an unique label and there are totally l instances, and ˜P (xi) = 1/l because ˜P (xi, yj) = 0 ∀j 6= i. One can add a regularization term to avoid overfitting and solve the following optimization problem,
minw f (w) ≡X
xi
P (x˜ i) log Pw(xi) − wTP (f ) +˜ 1
2σ2wTw, (2.11) where σ2 is the penalty parameter. The dual form of (2.11) is:
minα
1
2σ2w(α)Tw(α) +X
i
X
j:αiyj>0
αiyjlog αiyj
subject to X
y
αiy = ˜P (xi) and αiyj ≥ 0 ∀i, j, (2.12)
where
w(α) ≡ σ2 P (f ) −˜ X
i,j
αiyjf (xi, yj)
! .
And the derivation of (2.12) is in Yu et al. (2011). The vector α ∈ Rlkis composed of l blocks,
α = [ ¯α1, . . . , ¯αl]T and ¯αi = [αi1, . . . , αik]T,
where k is the number of labels, and αi corresponds to xi in the data set. If α∗and w∗ are respectively the optimal solution for dual and primal problems, then w∗(α∗) = w∗.
Methods
In this chapter several optimization problems will be solved with different methods.
3.1 Trust Region Newton Method (TRON)
The trust region Newton method (TRON) (Lin et al., 2008) solves the optimization problem with the following sub-problem,
mins qk(s)
subject to ksk ≤ ∆k, (3.1)
where qk(s) is the following quadratic model,
qk(s) ≡ ∇f (wk)Ts + 1
2sT∇2f (wk)Ts,
where ∇f (wk) and ∇2f (wk) are the graident and the Hessian at wk respectively, ∆k is the size of the trust region. Generally TRON requires that the objective function is twice differentiable in order to calculate the Hessian-vector product.
9
10
Algorithm 1 Trust region Newton method.
• Given w0.
• For k = 0, 1, . . .
– Find an approximate solution sk of the trust region sub-problem (3.1).
– Update wk and ∆k according to (3.2).
At each iteration k, wk and ∆k is updated with the following rules,
wk+1 =
wk+ sk if ρk> η0, wk if ρk≤ η0,
∆k+1 ∈
[σ1min{kskk, ∆k}, σ2∆k] if ρk< η1, [σ1∆k, σ3∆k] if ρk∈ (η1, η2), [∆k, σ3∆k] if ρk> η2, ρk = f (wk+ sk) − f (wk)
qk(sk) ,
(3.2)
where ρk is the ratio of the actual function value reduction to the approximated re- duction. One can pre-specify parameters η0 > 1, 1 > η2 > η1 > 0, and σ3 > 1 > σ2 >
σ1 > 0. In Lin et al. (2008) it is suggested that
η0 = 10−4, η1 = 0.25, η2 = 0.75, σ1 = 0.25, σ2 = 0.5, σ3 = 4.
The precedure is in Algorithm 1.
3.1.1 Logistic Regression (LR)
TRON requires gradient and Hessian for computation. The gradient of (2.3) is
w + C
l
X
i=1
yixi eyiwTxi− 1. And the Hessian is
I + 2CXTDX,
where I is the identity matrix and D is a diagonal matrix with
Dii= σ(yiwTxi)/(1 − σ(yiwTxi)), σ(yiwTxi) = 1 1 + eyiwTxi. 3.1.2 L2-Loss Support Vector Machine (L2-SVM)
The gradient of (2.2) is
w + 2CXI,:T (XI,:T w − yI),
where I ≡ {i | 1 − yiwTxi > 0} is the set of indices, y = [y1, . . . , yl]T and X = [x1, . . . , xl]T.
Because (2.2) is differentiable but not twice differentiable, we use the generalized Hessian of (2.2) as the following,
I + 2CXTDX = I + 2CXI,:TDI,IXI,:, (3.3)
where I is the identity matrix. D is a diagonal matrix defined as the following,
Dii=
1 if 1 − yiwTxi > 0, 0 if 1 − yiwTxi ≤ 0.
The Hessian-vector product of (3.3) and s is
s + 2CXI,:T (DI,I(XI,:s)).
3.2 Coordinate Descent
Coordinate descent method is applied to solve the following constrained optimiza- tion problem,
min
α∈Rl
f (α)
subject to Aα = b and 0 ≤ α ≤ Ce,
12
where A ∈ Rm×l, b ∈ Rl and e is a vector of ones.
It is too expensive to update all variables in one iteration. Coordinate descent method solves one variable or a block of elements of α at a time to form a sub-problem as the following,
minz f (α + z) (3.4)
subject to zi = 0, ∀zi ∈ B/
Az = 0 and 0 ≤ αi+ zi ≤ C, ∀zi ∈ B,
where Az = 0 is the linear constraint, B contains variables to be updated.
3.2.1 Support Vector Machine Dual with L1-loss and L2-loss
Hsieh et al. (2008) proposed a coordinate descent method to solve the dual form of (2.2) and (2.1),
minα f (α) = 12αTQα − e¯ Tα
subject to 0 ≤ αi ≤ U, ∀i, (3.5)
where ¯Q = Q + D, D is a diagonal matrix and Qij = yiyjxixj. For L1-SVM, U = C and Dii= 0 , ∀i and for L2-SVM, U = ∞ and Dii= 1/(2C) , ∀i.
We apply the coordinate descent method to solve the sub-problem,
minz f (αk,i+ ze)
subject to 0 ≤ αki + z ≤ U, (3.6)
where αk,i = [αk+11 , . . . , αk+1i−1, αki, . . . , αkl]T, ∀i = 2, . . . , l and f (αk,i+ ze) is a single variable function of z:
f (αk,i+ ze) = 1 2
Q¯iid2+ ∇if (αk,i)d + constant, (3.7)
where ∇if is the i-th component of the gradient ∇f . If Qii > 0 one can easily obtain the solution:
αk,i+1i = min
max
αk,ii − ∇if (αk,i) Q¯ii , 0
, U
. (3.8)
3.2.2 Crammer and Singer
Since (2.7) in which there are kl variables is too large, Keerthi et al. (2008) extends the coordinate descent method the solve the sub-problem by splitting α into blocks.
Every time we choose a block ¯αi to solve the following sub-problem,
minα¯i
k
X
m=1
1
2A(αmi )2 + Bmαmi subject to
k
X
m=1
αmi = 0,
αmi ≤ Cym
i, m = {1, . . . , k}, where
A = xTi xi and Bm = wmTxi+ emi − Aαmi .
Because some variables will become bounded, they can be shrunken during training.
We can eliminate the number of variabls need to be solved. These active variables could be considered as a sub-vector ¯αUii, where Ui ⊂ {1, . . . , k} is an active set. Then we solve the following sub-problem with other variables not in Ui fixed,
min
¯ αUii
X
m∈Ui
1
2A(αmi )2+ Bmαmi subject to X
m∈Ui
αmi = − X
m /∈Ui
αim,
αmi ≤ Cym
i, m ∈ Ui.
(3.9)
There are two possibilities that we don’t solve the sub-problem of ¯αi. If |Ui| < 2, then the whole vector ¯αi is fixed by the constraints in (3.9), thus we can shrink the
14
Algorithm 2 The coordinate descent method for (2.7)
• Given α and the corresponding wm
• While α is not optimal
– Randomly permute {1, . . . , l} to {π(1), . . . , π(l)}
– For i = π(1), . . . , π(l)
If ¯αi is active and xTi xi 6= 0
· Solve a |Ui|-variable sub-problem (3.9)
· Maintain wm for all m by (3.10)
whole vector ¯αi. If A = 0 then xi = 0, with (2.8) we can know that any value of ¯αmi won’t affect the vector wm, thus we can finish solving the sub-problem.
After solving the sub-problem, if ˆαim is the new value and αmi is the old value then we can update wm by
wm ← wm+ (αmi − ˆαmi )yixi. (3.10) And we can save all the elements that ˆαmi 6= αmi to save computation time. The procedure in in Algorithm 2.
3.2.3 Maximum Entropy (ME)
Yu et al. (2011) proposed a coordinate descent method to solve (2.12). Every time we pick a block ¯αi to form the sub-problem,
minz h(z) subject to X
j
zyj = 0 and zyj ≥ −αiyj ∀j,
(3.11)
where
h(z) ≡ DME( ¯α1, . . . , ¯αi+ z, . . . , ¯αl)
= X
j
(αiyj+ zyj) log(αiyj + zyj) + 1
2σ2 w(α) − σ2X
j
zyjf (xi, yj)
!2
+ constant
= X
j
(αiyj+ zyj) log(αiyj + zyj) −X
j
zyjw(α)Tf (xi, yj) + σ2
2 zTKiz + constant, where Ki ∈ R|Y |×|Y | is a matrix with Kyyi 0 = f (xi, y)Tf (xi, y0), ∀y, y0 ∈ Y, Y = {1, . . . , k}.
Following Memisevic (2006), the sub-problem becomes a two-level coordinate de- scent method. Each time we pick two variables αiy1 and αiy2, we form the following one-variable sub-problem,
mind h(z + d(ey1 − ey2))
= (αiy1 + zy1 + d) log(αiy1 + zy1 + d) + (αiy2 + zy2 − d) log(αiy2 + zy2 − d) + σ2 (Kiz)y1 − (Kiz)y2 − w(α)T (f (xi, y1) − f (xi, y2)) d
+σ2
2 (Kyi1y1 + Kyi2y2 − 2Kyi1y2)d2+ constant subject to − (αiy1 + zy1) ≤ d ≤ αiy2 + zy2
(3.12)
In Yu et al. (2011), a coordinate descent method also proposed to solve LR dual problem. One can obtain the one-variable sub-problem,
minz g(z) ≡ (c1+ z) log(c1+ z) + (c2− z) log(c2− z) + a
2z2+ bz subject to − c1 ≤ z ≤ c2,
(3.13)
where c1, c2, a, b ∈ R.
By assigning
a ← σ2(Kyi1y1 + Kyi2y2 − 2Kyi1y2)
b ← σ2 (Kiz)y1 − (Kiz)y2 − w(α)T (f (xi, y1) − f (xi, y2)) c1 ← αiy1 + zy1 and c2 ← αiy2 + zy2,
(3.14)
(3.12) is in the same form as (3.13), then we can solve it with the modified Newton method in Yu et al. (2011).
In Algorithm 3, α can be initialized as:
αiyj =
P (x˜ i, yj) if |Ei| = 0,
(1 − ) ˜P (xi, yj) ∀yj ∈ E/ i
|Ei|P (x˜ i) ∀yj ∈ Ei
if |Ei| 6= 0,
(3.15)
16
Algorithm 3 Coordinate Descent Method for the dual of ME (2.12)
• Set initial α by (3.15).
• w(α) ← σ2 P
i
P
j ˜P (xi, yj) − αiyj
f (xi, yj) .
• While α is not optimal For i = 1, . . . , l
∗ Solve the sub-problem (3.11) and get the optimal ˆz∗.
∗ Update α and w(α) by (3.16).
where Ei ≡ {yj | ˜P (xi, yj) = 0}, ˜P (xi) and ˜P (xi, yj) is defined in (2.10). And the update rule for w(α) and α is
¯
αi ← ˆz∗,
w(α) ← w(α) − σ2X
j
ˆ
zy∗j− αiyj
f (xi, yj).
(3.16)
Features of Different Schemes
Researchers of NLP groups tend to apply ME to conduct experiments on their data. It is quite interesting that why they applied ME instead of other classification models. One feature of ME is that instead of instances with knowledge of its associated label is required, feature vectors encoded with every instance-label pair are used in the optimization procedure. In NLP data, property (4.2) usually holds (Jurafsky and Martin, 2008). Therefore in the beginning we construct the feature vector with the following rules,
f (xi, yi) = [f1, f2, . . . , ft, . . . , fk]T, (4.1)
ft =
xTi if yi = t, [0, . . . , 0] otherwise.
This setting satisfies the property,
f (xi, yi)Tf (xi, yj) = 0 ∀i 6= j, (4.2)
which can be applied in Algorithm 3.
With (4.1), there are kn features in one vector, where k and n are the number of labels and features respectively. Since in SVM we consider instances as vector of dimention n, (4.1) could be treated as the ‘expansion’ of instances in ME dual. At first
17
18
glance the lengthened instances may lead to longer computation time. In fact, we could consider (4.1) as putting the original instance into a new longer instance of length kn, and this approach will lead to a vector with leading and trailing zeros. Because the instances are stored in a sparce format, the duplicating zeros add not much workloads for reading each feature vectors. But the number of instances becomes k times will lead to more cost in calculation than with SVM.
For all the feature vectors of the same associated label there are some positions where the value is always zero, these features can be reduced to reach the smaller size of feature vectors and the reduced vectors also possess the property (4.2). Data sets with high sparcity enjoy the advantage of this reducing technique. Reduced vectors can be written in the form of (4.3). Table 4.1 contains the statistics of size of original and reduced feature vectors of several data sets. news20, rcv1 and sector are benefit from the feature reducing approach.
f0(xi, yi) = [f10, f20, . . . , ft0, . . . , fk0]T, (4.3) ft0 = ftIt
where
It= {j | yi = t, ∃xmj 6= 0 ∀m = 1, . . . , l}, (4.4) is the index set of reduced instances of label t and ft is in (4.1).
ME dual-2 uses reduced feature vectors for computation. Before the computation a look-up table is constructed to memorize the positions of non-zero values in the feature vectors of different labels. The action of looking up the table can be the bottleneck.
This phenomenon doesn’t exist in ME dual because we just read all the features in the optimization procedure without accessing the table to check whether the features should be involved in the calculation or not.
Table 4.1: The number of features in the feature vectors used in Algorithm 3. ‘original’
indicates the length of the original feature vector while the length of the reduced feature vector is listed in the column ‘reduced.’
Data set original reduced news20 1,241,220 210,981
covtype 378 239
mnist 7,800 5,777
rcv1 2,503,508 478,263 sector 5,795,685 299,454
vehicle 300 300
iris 12 12
wine 39 39
glass 54 54
vowel 110 110
segment 133 126
dna 540 535
satimage 216 216
letter 416 416
shuttle 63 63
Comparing to Crammer and Singer, we can see some common properties. The solution of primal form of ME could be considered as the concatenaton of classifiers of each class, that is, w could be split into k vectors of length n. Thus we can treat these two models as the one-against-all classfiers because their decision functions are in the same form. Furthurmore, in solving Crammer and Singer, we can also apply the feature reduction technique to reduce the size of the primal solution, and the same trick could be adopted in the multi-class SVM with one-against-all approach. However, in the thesis we only compare the different scheme of features on ME dual to see the effect.
CHAPTER V
Experiment
In this chapter, we will run experiments with different methods on various data sets.
The original LIBLINEAR package can deal with multi-class classification by applying one-against-all approach. The package is available at
http://www.csie.ntu.edu.tw/~cjlin/liblinear/.
And the one-against-one version is implemented by modifying the code of LIBLIN- EAR. The implementation of ME dual is similar to the Java code version in Yu et al.
(2011).
All the experiments are conducted on a 64-bit machine with Intel Xeon 2.5GHz CPU and 16GB main memory.
5.1 Data Sets
Data sets are roughly seperated into two categories. Table 5.1 lists the statistics of large-scale data sets. Besides other data sets, mnist is scaled. Table 5.2 lists the UCI/Statlog data sets. In the UCI/Statlog data sets dna, satimage, letter and shuttle provide training and testing sets, while others don’t provide training and testing sets so that these data sets will be divided into an 80/20 split as the training set and the testing set.
20
Table 5.1: The summary of data statistics. The second column shows the number of classes/labels in the data set. n is the number of features. The last two columns are the number of training and testing data respectively.
Data set # classes n # training # testing
news20 20 62,061 15,935 3,993
mnist 10 780 11,982 1,984
covtype 7 54 464,810 116,202
rcv1 53 47,236 518,571 15,564
sector 105 55,197 6,412 3,207
vehicle 3 100 78,823 19,705
Table 5.2: The summary of UCI/Statlog data statistics. The second column shows the number of classes/labels in the data set. n is the number of features. The last column is the number of data instances.
Data set # classes n # instances
iris 3 4 150
wine 3 13 178
glass 6 9 214
vowel 11 10 528
segment 7 19 2,310
dna 3 180 2,000
satimage 6 36 4,435
letter 26 16 15,000
shuttle 7 9 43,500
All the data sets are available at http://www.csie.ntu.edu.tw/~cjlin/libsvmtools/
datasets/multiclass.html
5.2 Setting
We compare the following six implementations.
1. LR: Logistic regression solved with trust region Newton method (Lin et al., 2008).
We use the implemention of LIBLINEAR 2.91 with option -s 0.
2. L2-SVM: L2-loss support vector machine solved with coordinate descent method.
The SVM uses L2-regularization term. The option in LIBLINEAR is -s 2.
3. L1-SVM: L1-loss support vector machine solved with coordinate descent method.
22
It also uses L2-regularization term. The option in LIBLINEAR is -s 3.
4. CS: Crammer and Singer method with coordinate descent method. The option in LIBLINEAR is -s 4.
5. ME dual: ME dual implementation using original feature vectors.
6. ME dual-2: Similar implementation as ME dual using reduced feature vectors.
For binary solvers such as LR, L2-SVM and L1-SVM, we implement the one-against- one approach which is denoted as “1-1” while one-against-all is denoted as “1-all.”
We search for best parameters with cross-validation. C is found in the range of [2−5, 2−4, . . . , 23]. Too large C leads to much more training time and cannot get much improvement in testing accuracy. And default value of is choosed as 0.1. For the stopping condition, ME dual uses the relative function difference,
fk(w) − fk−1(wk−1) fk−1(wk−1)
. (5.1)
The procedure stops when (5.1) is less than 10−8.
5.3 Comparison
The result for cross-validation is in Table 5.3. For LR, L2-SVM and L1-SVM, data sets only news20, sector and iris have higher accuraries with the one-against-all approach. LR and L1-SVM perform similarly for vehicle and wine. While the difference of accuracies for wine and dna is little by using L2-SVM with both approaches. One can also see that Crammer and Singer outperforms other models on sector, wine and shuttle, but the accuracy of every classifiers on wine is almost the same.
Table 5.4 gives the result for testing accuracy. LR, L2-SVM and L1-SVM perform better in one-against-all approach on news20, sector and wine. LR also has higher ac- curacy with one-against-all approach on iris. For Crammer and Singer, it outperforms
other classifiers on sector and shuttle. The difference of accuracies among Crammer and Singer, ME dual and ME dual-2 is less than one percent. Crammer and Singer outperforms the other two ME implementations on sector, iris, vowel, letter and shuttle, but worse on glass and satimage. For segment and dna, the three implementations per- form similarly. We also observe that L1-SVM and L2-SVM outperform other classifiers most of the time.
Best C values of each classifier on every data sets are listed in Table 5.5. Data sets news20, wine and dna favor small C values while for vehicle, segment, letter and shuttle large C values are preferred.
For almost all the classifiers take more time in training with one-against-all ap- proach. LR spends more time in training on sector with one-against-one approach.
The same situation happens to L1-SVM on covtype. One can see that Crammer and Singer spends least time on mnist, rcv1 and sector. Among three “all-together” imple- mentations, Crammer and Singer takes least time than other two on all data sets. The result of training time is in Table 5.6. For testing time, for all classifiers they spend more time with one-against-one models. The result is in Table 5.7.
24
Table 5.3: Cross-validation accuracy for each classifiers on data sets. For each data set, the highest accuracy is bold-faced.
LR L2-SVM L1-SVM CS ME ME
dual dual dual-2
data 1-all 1-1 1-all 1-1 1-all 1-1
news20 83.44 81.63 83.23 80.73 82.96 80.23 82.24 82.22 81.69 covtype 71.50 72.49 71.26 72.52 71.15 72.67 72.43 72.44 72.43 mnist 91.24 93.72 90.95 93.99 91.28 94.10 92.37 92.06 92.04 rcv1 92.93 93.27 92.93 93.42 92.81 93.43 93.08 93.04 93.02 sector 92.20 90.52 93.22 91.52 93.75 91.56 94.01 92.00 92.19 vehicle 80.29 80.40 80.04 80.34 80.18 80.59 80.28 80.32 80.32 iris 88.33 85.83 88.33 86.67 88.33 86.67 86.67 85.83 85.83 wine 97.20 97.20 97.90 97.20 97.90 97.90 97.90 96.50 95.80 glass 56.98 59.30 58.14 59.88 54.65 58.72 54.07 58.72 58.72 vowel 48.23 68.32 49.41 76.12 46.81 72.34 58.16 58.63 58.63 segment 91.99 93.99 91.99 95.13 92.26 94.91 94.21 93.99 93.99 dna 94.14 93.93 93.79 93.57 93.64 94.21 93.71 93.71 93.79 satimage 83.92 87.66 83.18 87.76 82.18 87.89 86.44 86.53 86.53 letter 68.01 81.13 66.63 82.60 63.34 82.53 75.94 74.98 74.98 shuttle 92.77 96.08 91.96 96.05 93.65 97.10 97.15 95.99 95.99
Table 5.4: Testing accuracy for each classifiers on data sets. For each data set, the highest accuracy is bold-faced.
LR L2-SVM L1-SVM CS ME ME
dual dual dual-2
data 1-all 1-1 1-all 1-1 1-all 1-1
news20 84.47 82.79 84.72 82.07 84.24 82.07 83.62 83.67 83.35 covtype 71.67 72.62 71.34 72.65 71.19 72.79 72.52 72.59 72.59 mnist 91.83 94.41 91.67 94.47 92.01 94.45 92.93 92.64 92.64 rcv1 92.10 92.41 92.02 92.47 91.98 92.55 92.30 92.33 92.25 sector 92.70 91.61 93.92 92.55 94.08 92.55 94.36 92.64 92.67 vehicle 80.51 80.62 80.17 80.35 80.38 80.70 80.44 80.44 80.44 iris 93.33 90.00 90.00 93.33 83.33 93.33 90.00 86.67 86.67 wine 97.14 94.29 97.14 94.29 97.14 94.29 94.29 94.29 94.29 glass 66.67 73.81 64.29 73.81 61.90 66.67 64.29 69.05 69.05 vowel 44.76 74.29 45.71 78.10 37.14 77.14 56.19 51.43 51.43 segment 90.04 91.77 89.83 93.29 90.69 93.07 91.99 91.13 91.13 dna 94.35 93.68 94.44 94.01 93.42 93.42 94.18 94.18 94.01 satimage 81.75 85.55 81.05 85.85 79.90 86.15 83.95 84.45 84.45 letter 68.00 81.60 66.34 82.92 62.76 83.38 76.78 75.18 75.18 shuttle 92.96 96.23 92.24 96.19 93.83 97.30 97.39 96.09 96.09
Table 5.5: The best C for each classifiers on data sets.
LR L2-SVM L1-SVM CS ME ME
dual dual dual-2
data 1-all 1-1 1-all 1-1 1-all 1-1
news20 2−1 2−2 2−5 2−5 2−5 2−5 2−5 2−3 2−4 covtype 23 23 2−1 21 2−1 21 21 23 23 mnist 20 20 2−3 2−5 20 2−5 2−5 2−2 2−2 rcv1 23 23 2−1 2−1 2 20 2−1 22 22 sector 23 23 22 23 21 22 20 23 23 vehicle 23 23 22 20 23 23 23 23 23 iris 2−1 23 20 20 22 22 20 2−2 2−2 wine 20 2−2 2−4 2−5 2−3 2−5 2−3 2−2 2−1 glass 23 23 21 20 23 22 21 21 21 vowel 22 23 2−2 23 20 23 23 23 23 segment 23 23 23 23 23 23 23 23 23 dna 2−2 2−3 2−5 2−5 2−5 2−5 2−5 2−4 2−4 satimage 23 22 20 2−2 23 2−1 22 23 23 letter 23 23 23 23 22 23 23 23 23 shuttle 23 22 23 23 23 23 23 21 21
Table 5.6: Training time for each classifiers on data sets.
LR L2-SVM L1-SVM CS ME ME
dual dual dual-2
data 1-all 1-1 1-all 1-1 1-all 1-1
news20 74.15 31.65 29.97 25.09 2.34 0.84 18.73 273.16 268.69 covtype 70.37 44.06 32.18 17.45 58.07 87.78 192.30 1151.14 1288.89 mnist 75.67 42.87 27.89 17.98 60.65 4.44 3.36 76.84 114.07 rcv1 1701.79 906.45 527.28 462.41 140.58 109.51 40.16 1396.86 ∞ sector 39.39 73.51 24.81 129.20 5.45 4.18 2.97 58.11 103.96 vehicle 19.44 13.75 14.19 9.68 23.61 13.13 24.28 31.33 41.06 glass 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.01 0.01 vowel 0.00 0.02 0.00 0.01 0.00 0.01 0.03 0.13 0.13 segment 0.06 0.03 0.05 0.00 0.11 0.05 0.16 1.41 1.61
dna 0.03 0.02 0.02 0.01 0.01 0.00 0.01 0.04 0.05
satimage 0.15 0.10 0.06 0.04 0.34 0.02 0.20 1.47 1.8 letter 1.24 0.93 0.51 0.44 0.86 0.59 1.43 14.84 16.98 shuttle 0.91 0.52 0.31 0.17 0.26 0.24 0.18 1.89 2.06
26
Table 5.7: Testing time for each classifiers on data sets.
LR L2-SVM L1-SVM CS ME ME
dual dual dual-2
data 1-all 1-1 1-all 1-1 1-all 1-1
news20 0.01 0.14 0.01 0.21 0.03 0.14 0.01 0.02 0.02 covtype 0.04 0.09 0.05 0.07 0.03 0.06 0.06 0.11 0.05 mnist 0.06 0.07 0.02 0.08 0.03 0.11 0.01 0.08 0.00 rcv1 0.11 3.17 0.08 3.19 0.09 3.21 0.13 0.08 0.13 sector 0.17 7.43 0.15 7.40 0.16 7.46 0.12 0.25 0.09 vehicle 0.02 0.02 0.03 0.03 0.00 0.03 0.04 0.03 0.03 glass 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.01 0.01 vowel 0.00 0.02 0.00 0.01 0.00 0.01 0.03 0.13 0.13 segment 0.06 0.03 0.05 0.00 0.11 0.05 0.16 1.41 1.61 dna 0.03 0.02 0.02 0.01 0.01 0.00 0.01 0.04 0.05 satimage 0.15 0.10 0.06 0.04 0.34 0.02 0.20 1.47 1.8 letter 1.24 0.93 0.51 0.44 0.86 0.59 1.43 14.84 16.98 shuttle 0.91 0.52 0.31 0.17 0.26 0.24 0.18 1.89 2.06
Discussion and Conclusion
From the experiment, one can observe that one-against-one approach can reach higher accuracy for most of the time. If there are k classes in the data set, for one- against-all approach there are k sub-models whereas there are k(k − 1)/2 sub-models with one-against-one approach. And the size of data to be trained for each sub-problem with one-against-one approach is less than that with one-against-all approach.
The difference of number of sub-models between both approaches will become large when there are large number of classes. Therefore the amount of time we spend and the amount of memory we take will be a crucial concern when we train data of many classes. One-against-one approach leads to higher accuracy because more sub-models for each class are obtained. But it also results in longer testing time because there are more models to be tested for each instance. In total one-against-one approach takes less time in training, but when the number of classes is really large like sector, the situation will become different. However, one should make a trade-off among different factors.
For “all-together” methods, the data sets in this work are not so favorable of these approaches. Overall ME dual and ME dual-2 take a large number of logarithm com- putations which take more time than regular arithmetic calculations. ME dual-2 uses reduced feature vectors and outputs the solution with rich sparcity, which leads to
27
28
less testing time. But it takes much time in looking up the table of indices of reduced feature vectors and results in more training time than ME dual. Although ME is widely used in the NLP applications, in the experiment it takes little advantage. Nevertheless, the feature reduction approach can be furthur studied that we can apply the technique to other models with one-against-all approach.
A. L. Berger, V. J. Della Pietra, and S. A. Della Pietra. A maximum entropy approach to natural language processing. Computational Linguistics, 22(1):39–
71, 1996.
B. E. Boser, I. Guyon, and V. Vapnik. A training algorithm for optimal mar- gin classifiers. In Proceedings of the Fifth Annual Workshop on Computational Learning Theory, pages 144–152. ACM Press, 1992.
L. Bottou, C. Cortes, J. S. Denker, H. Drucker, I. Guyon, L. Jackel, Y. LeCun, U. A. M¨uller, E. S¨ackinger, P. Simard, and V. Vapnik. Comparison of classifier methods: a case study in handwriting digit recognition. In International Confer- ence on Pattern Recognition, pages 77–87. IEEE Computer Society Press, 1994.
K.-W. Chang, C.-J. Hsieh, and C.-J. Lin. Coordinate descent method for large- scale L2-loss linear SVM. Journal of Machine Learning Research, 9:1369–1398, 2008. URL http://www.csie.ntu.edu.tw/~cjlin/papers/cdl2.pdf.
C. Cortes and V. Vapnik. Support-vector network. Machine Learning, 20:273–
297, 1995.
K. Crammer and Y. Singer. On the learnability and design of output codes for multiclass problems. In Computational Learning Theory, pages 35–46, 2000.
R.-E. Fan, K.-W. Chang, C.-J. Hsieh, X.-R. Wang, and C.-J. Lin. LIB- LINEAR: A library for large linear classification. Journal of Machine Learn- ing Research, 9:1871–1874, 2008. URL http://www.csie.ntu.edu.tw/~cjlin/
papers/liblinear.pdf.
C.-J. Hsieh, K.-W. Chang, C.-J. Lin, S. S. Keerthi, and S. Sundararajan. A dual coordinate descent method for large-scale linear SVM. In Proceedings of the Twenty Fifth International Conference on Machine Learning (ICML), 2008. URL http://www.csie.ntu.edu.tw/~cjlin/papers/cddual.pdf.
C.-W. Hsu and C.-J. Lin. A comparison of methods for multi-class support vector machines. IEEE Transactions on Neural Networks, 13(2):415–425, 2002.
F.-L. Huang, C.-J. Hsieh, K.-W. Chang, and C.-J. Lin. Iterative scaling and coordinate descent methods for maximum entropy. In Proceedings of the 47th Annual Meeting of the Association of Computational Linguistics (ACL), 2009.
Short paper.
29
30
T. Joachims. Training linear SVMs in linear time. In Proceedings of the Twelfth ACM SIGKDD International Conference on Knowledge Discovery and Data Min- ing, 2006.
D. Jurafsky and J. H. Martin. Speech and Language Processing: An Introduction to Natural Language Processing, Computational Linguistics and Speech Recogni- tion. Prentice Hall, second edition, 2008.
S. S. Keerthi, S. Sundararajan, K.-W. Chang, C.-J. Hsieh, and C.-J. Lin. A sequential dual method for large scale multi-class linear SVMs. In Proceedings of the Forteenth ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, pages 408–416, 2008. URL http://www.csie.ntu.edu.tw/
~cjlin/papers/sdm_kdd.pdf.
S. Knerr, L. Personnaz, and G. Dreyfus. Single-layer learning revisited: a stepwise procedure for building and training a neural network. In J. Fogelman, editor, Neu- rocomputing: Algorithms, Architectures and Applications. Springer-Verlag, 1990.
C.-J. Lin, R. C. Weng, and S. S. Keerthi. Trust region Newton method for large- scale logistic regression. Journal of Machine Learning Research, 9:627–650, 2008.
URL http://www.csie.ntu.edu.tw/~cjlin/papers/logistic.pdf.
E. Mayoraz and E. Alpaydin. Support vector machines for multi-class classifica- tion. In IWANN (2), pages 833–842, 1999. URL http://citeseer.nj.nec.com/
mayoraz98support.html.
R. Memisevic. Dual optimization of conditional probability models. Technical report, Department of Computer Science, University of Toronto, 2006.
R. Rifkin and A. Klautau. In defense of one-vs-all classification. Journal of Machine Learning Research, 5:101–141, 2004. ISSN 1533-7928.
S. Shalev-Shwartz, Y. Singer, and N. Srebro. Pegasos: primal estimated sub- gradient solver for SVM. In Proceedings of the Twenty Fourth International Con- ference on Machine Learning (ICML), 2007.
J. Weston and C. Watkins. Multi-class support vector machines. Technical Report CSD-TR-98-04, Royal Holloway, 1998.
H.-F. Yu, F.-L. Huang, and C.-J. Lin. Dual coordinate descent methods for logistic regression and maximum entropy models. Machine Learning, 85(1-2):41–75, Octo- ber 2011. URL http://www.csie.ntu.edu.tw/~cjlin/papers/maxent_dual.
pdf.
