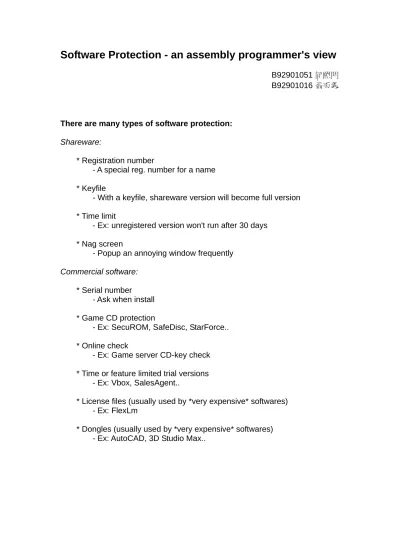

Software Protection - an assembly programmer's view
B92901051 何熙明 B92901016 翁秉義
There are many types of software protection:
Shareware:
* Registration number
- A special reg. number for a name
* Keyfile
- With a keyfile, shareware version will become full version
* Time limit
- Ex: unregistered version won't run after 30 days
* Nag screen
- Popup an annoying window frequently Commercial software:
* Serial number
- Ask when install
* Game CD protection
- Ex: SecuROM, SafeDisc, StarForce..
* Online check
- Ex: Game server CD-key check
* Time or feature limited trial versions - Ex: Vbox, SalesAgent..
* License files (usually used by *very expensive* softwares) - Ex: FlexLm
* Dongles (usually used by *very expensive* softwares) - Ex: AutoCAD, 3D Studio Max..
- In this project we focus on "registration number" protection.
General scheme:
Name = GetDlgItemText(NameEditBox);
InputRegNumber = GetDlgItemText(RegNumber);
RegNumber = f(Name);
if (RegNumber = InputRegNumber) // Registration success!
else
// Registration failed..
Registration number protection is not safe. In fact, for many cases it's really weak.
How to crack it?
* Patch
- directly patch the instructions in .exe file
Ex:
...
...
mov esi, offset RegNumber mov edi, offset InputRegNumber
mov ecx, length
repz cmpsb
jz Reg_success
call Reg_failed
ret
Reg_success:
...
...
- We can modify "jz" to "jmp"!
* Don't patch
- Dump RegNumber in debugger (and write it down :Q) - Don't work when RegNumber is encrypted
* Write KeyGen
- RegNumber = f(Name);
- Try to figure out function f and use it in a small program - We can simply type any name and get registration number!
We'll show how to defeat:
* UEStudio '05 v5.00b+1 (http://www.ultraedit.com/)
* PowerMap3D (PaPaGO!) v7.5 (http://www.papago.com.tw/) Goal: Write working KeyGens for them.
Steps:
- Use OllyDbg to load .exe - Trace
- Copy disassembled code
- Fix references. In this project, we use FASM (http://flatassembler.net/)
Conclusion:
* About assembly language:
Software protection is very closely linked to assembly language.
If you want to protect your software, you *MUST* know assembly language.
Programmers with little or no assembly language knowledge *CANNOT* protect their work.
- We have seen one that the programmer writes the time limit straightly into the Windows registry file. How weak!
* About software protection:
In general, there's no lock which is not unlockable.
There *MUST* be a key, which can *ABSOLUTELY* be found.
However, if finding out the key takes a very long time, it is equivalent to safety.
In this project, we discovered that using only registration number is *NOT* safe.
More protecting methods must be used to ensure safety.
