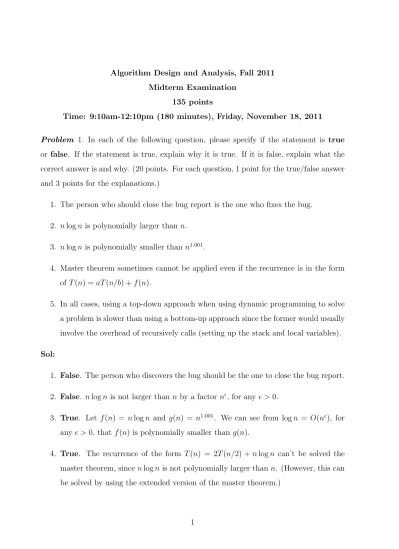

Algorithm Design and Analysis, Fall 2011 Midterm Examination
135 points
Time: 9:10am-12:10pm (180 minutes), Friday, November 18, 2011
Problem 1. In each of the following question, please specify if the statement is true or false. If the statement is true, explain why it is true. If it is false, explain what the correct answer is and why. (20 points. For each question, 1 point for the true/false answer and 3 points for the explanations.)
1. The person who should close the bug report is the one who fixes the bug.
2. n log n is polynomially larger than n.
3. n log n is polynomially smaller than n1.001.
4. Master theorem sometimes cannot be applied even if the recurrence is in the form of T (n) = aT (n/b) + f (n).
5. In all cases, using a top-down approach when using dynamic programming to solve a problem is slower than using a bottom-up approach since the former would usually involve the overhead of recursively calls (setting up the stack and local variables).
Sol:
1. False. The person who discovers the bug should be the one to close the bug report.
2. False. n log n is not larger than n by a factor nϵ, for any ϵ > 0.
3. True. Let f (n) = n log n and g(n) = n1.001. We can see from log n = O(nϵ), for any ϵ > 0, that f (n) is polynomially smaller than g(n).
4. True. The recurrence of the form T (n) = 2T (n/2) + n log n can’t be solved the master theorem, since n log n is not polynomially larger than n. (However, this can be solved by using the extended version of the master theorem.)
5. False. If some subproblems in the subproblem space need not be solved at all, the top-down approach has the advantage of solving only those subproblems that are definitely required.
Problem 2. “Short answer” questions: (32 points)
1. Describe two benefits of using the paper prototype instead of the regular software prototype. (4 points)
2. What are the 3 things required in every bug report? (6 points)
3. Explain why a binary tree cannot correspond to an optimal prefix code if it is not full (no internal node has only one children). (4 points)
4. Show how you would use an adjacency matrix to represent directed graph G in Figure 5. (3 points)
5. Show how you would use adjacency lists to represent directed graph G in Figure 5.
(3 points)
6. Draw a breadth-first tree of directed graph G in Figure 5. Assume that we start the breadth-first search on vertex 2. (4 points)
7. Draw a depth-first forest of directed graph G in Figure 5. Assume that we start the depth-first search on vertex 2. (4 points)
8. Following the previous question, after the depth-first search you performed on G, mark the type of each edge in the original graph G. The types of the edges include tree edges, forward edges, back edges, and cross edges. (4 points)
Sol:
1. The main idea of using paper prototype is to keep down the cost of time spent on implementing a real prototype, so that the total producing time can be well managed. The productivity gains can be significant once the time is less consumed.
2. The three things that are needed in every bug report are (1) steps to reproduce, (2) what you expected to see, and (3) what you saw instead.
Figure 1: Adjacency lists
3. Let T be a binary tree which is not full. Then there must exist an internal node u who has only one child v. We can merge u and v into a single node. Therefore, this new tree has depth less than T.
4. 1 2 3 4 5 6 7 8
1 0 0 0 0 0 0 0 0
2 1 0 1 1 0 0 0 0
3 0 1 0 0 1 0 0 0
4 1 1 0 0 0 1 0 0
5 0 1 0 0 0 0 0 1
6 1 0 0 1 0 0 0 0
7 0 0 0 0 0 1 0 0
8 0 0 0 0 1 0 1 0
5. See Figure 1.
6. See Figure 2.
7. See Figure 3.
8. See Figure 4.
Problem 3. Determine the cost and the structure of an optimal binary search tree for a set of n = 7 distinct keys with the probabilities in Table 1.
Figure 2: BFS
Table 1: Keys and Their Probabilities
i 0 1 2 3 4 5 6 7
pi 0.04 0.06 0.08 0.02 0.10 0.12 0.14 qi 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.05
If you do not remember what pi and qi represents, here are some hints. You are given a sequence K =⟨k1, k2, ..., k7⟩ of 7 distinct keys in sorted order (so that k1 < k2 < ... < k7).
For each key ki, we have a probability pi that the search will be ki. Some searches may be for values not in K, and so we also have 7 + 1 “dummy keys” d0, d1, ..., d7 representing values not in K. In particular, d0 represents all values less than k1, dnrepresents all values greater than kn, and for i = 1, 2, ..., 6 the dummy key di represents all values between ki
and ki+1. For each dummy key di, we have a probability qi that a search will correspond to di. (10 points)
Sol: Use the recursive function told in the class(In the dp3.pdf). The results are shown in the following two table. (Table 2 and Table 3) And the optimal binary search tree is in the Figure 6.
Figure 3: DFS
Figure 4: 2-8
Figure 5: Directed Graph G
0 1 2 3 4 5 6 7
1 0.06 0.16 0.28 0.42 0.49 0.64 0.81 1.00 2 0.06 0.18 0.32 0.39 0.54 0.71 0.9
3 0.06 0.2 0.27 0.42 0.59 0.78
4 0.06 0.13 0.28 0.45 0.64
5 0.05 0.2 0.37 0.56
6 0.05 0.22 0.41
7 0.05 0.24
8 0.05
Table 2: The table the recursive result of w[i,j]. The column index is the index for dummy keys(qj), and the row index is for pi
0 1 2 3 4 5 6 7 1 0.06 0.28 0.62 1.02 1.34 1.83 1.42 3.12 2 0.06 0.30 0.68 0.93 1.41 1.96 2.61
3 0.06 0.32 0.57 1.04 1.48 2.13
4 0.06 0.24 0.57 0.99 1.55
5 0.05 0.30 0.72 1.20
6 0.05 0.32 0.78
7 0.05 0.34
8 0.05
Table 3: The table the recursive result of e[i,j]. The column index is the index for dummy keys(qj), and the row index is for pi
Figure 6: Optimal binary search tree.
Problem 4. Use a recursion tree to determine a good asymptotic upper bound on the recurrence T (n) = T (n/2) + n2. Use the substitution method to verify your answer. (10 points, 5 points for the recursion tree and 5 points for the substitution method)
Sol: Suppose that T (i)≤ cn2, for all i < n. Then
T (n) = T (n/2) + n2
≤ c(n/2)2+ n2
= (c
4+ 1)n2
≤ cn2,
as long as c≥ 4/3. Hence, T (n) = O(n2).
Problem 5. Given an unweighted graph G = (V, E), we need to find the shortest path from u to v, where u, v ∈ V . Show that the problem of finding the shortest path from u to v exhibits the optimal substructure property. (Hint: prove that the shortest path between u and v contains the shortest paths from u to another vertex w and from w to v) (5 points)
Sol: If we find the shortest path of u to v denoted as P . Then we assume one vertex in the path P denoted as w. The path between u and w in the P is Puw. And the path between w to v in the P denoted as Pwv. We want to prove that the Puw in the shortest path P is shortest path between u and w. If the Puw is not the shortest path from u and w. Then we can find another path Puw∗shorter than Puw. The path Puw∗+ Pwv < Puw+ Pwv, and it is contradiction. So the path from u to w in the P is a shortest path too. Then this problem has the optimal substructure.
Problem 6. Suppose you are given an array A[1..n] of sorted integers that has been circularly shifted k positions to the right. For example, [35, 42, 5, 15, 27, 29] is a sorted array that has been circularly shifted k = 2 positions, while [27, 29, 35, 42, 5, 15] has been shifted k = 4 positions. We can obviously find the largest element in A in O(n) time. Describe an O(log n) algorithm based on the divide-and-conquer strategy to find the largest element in A. (You need to show that your algorithm’s time complexity is O(log n)) (10 points)
Sol: When the input array contains identical numbers, no algorithm can solve this prob- lem in the O(log n). So we assume the numbers of input array are all distinct.
1. Divide the input array into two part AL and AR.
2. Compare the first number of ALand AR. If AL[1] > AR[1], then we know the biggest number is in the AL, and vice versa.
3. Then we divide ALinto two part, recursively find the biggest number until the base case.(only one number in the array)
We divide the array into two part each iteration. So we have log n iteration, and one comparision per iteration. The time complexity is O(log n).
Problem 7. There is a river which flows horizontally through a country. There are N cities on the north side of the river and N cities on the south side of the river. The X coordinates of the N cities on the north side of the river are n1, n2, ..., nN, and the X coordinates of the N cities on the south side of the river are s1, s2, ..., sN. Assume that we can only build bridges between cities with the same number; that is, we can only build bridges between cities with coordinates ni and si, where 1≤ i ≤ N. In this problem, we ask you to determine the maximum number of bridges we can build without any bridges crossing with each other. Note that n1through nN and s1 through sN are both not sorted.
1. Describe your definition of a subproblem. Use that definition, prove that this prob- lem exhibits optimal substructure. (5 points)
2. Describe a dynamic-programming algorithm to solve the problem. (10 points) 3. What is the time complexity of your algorithm? (3 points)
Sol:
1. First we sort the coordinates of the N cities on the north side in non-decreasing order. Assume that a1, a2, . . . , an is the sorted sequence and bj is the coordinate of the city at the south side which corresponds to the city located at aj in the north, that is, for each 1 ≤ i ≤ N, if ai = nj then bi = sj, where 1 ≤ j ≤ N and
a1 ≤ a2 ≤ · · · ≤ an. In this case, the problem of finding the maximum number of bridges we can build without any bridges crossing with each other is equivalent to finding the longest increasing subsequence of {b1, b2, . . . , bN}, since if there are k bridges can be built, there exists an increasing subsequence of b1, . . . , bN of length k, and the sequence formed by the corresponding ai of that increasing subsequence is also non-decreasing by definition.
Let L(k) denote the length of the longest increasing subsequence of b1, . . . , bk. Since the increasing subsequence can be extended from the subsequence that ends with bi if bk > bi, for i = 1, 2, ..., k− 1, the recurrence relation for the optimal solution is
L(k) = max
1≤i≤k−1{L(i) + 1 | bi < bk}.
2. Algorithm 1 is a dynamic programming algorithm for solving the longest increasing subsequence, which returns the length of the longest increasing subsequence of the input string.
Algorithm 1 LIS(A[1..n])
1: for i = 1 to n do
2: L[i] = 1
3: for i = 1 to n do
4: for j = 1 to i− 1 do
5: if A[i] > A[j] then
6: L[i] = max{L[i], L[j] + 1}
7: LIS length = 0
8: for i = 1 to n do
9: if L[i] > LIS length then
10: LIS length = L[i]
11: return LIS length
3. It takes O(N log N ) for sorting and O(N2) for computing the longest increasing subsequence. Therefore, the time complexity of the algorithm is O(N2).
Problem 8. Modern computers use a cache to store a small amount of data in a fast memory. Even though a program may access large amounts of data, by storing a small subset of the main memory in the cache - a small but faster memory - overall access time can greatly decrease. When a computer program executes, it makes a sequence
⟨r1, r2, ..., rn⟩ of n memory requests, where each request is for a particular data element.
For example, a program that accesses 4 distinct elements {a, b, c, d} might make the sequence of requests⟨d, b, d, b, d, a, c, d, b, a, c, b⟩. Let k be the size of the cache. When the cache contains k elements and the program requests the (k+1)st element, the system must decide, for this and each subsequent request, which k elements to keep in the cache. More precisely, for each request ri, the cache-management algorithm checks whether element ri is already in the cache. If it is, then we have a cache hit; otherwise, we have a cache miss. Upon a cache miss, the system retrieves ri from the main memory, and the cache- management algorithm must decide whether to keep ri in the cache. If it decides to keep ri and the cache already holds k elements, then it must evict one element to make room for ri . The cache-management algorithm evicts data with the goal of minimizing the number of cache misses over the entire sequence of requests.
Typically, caching is an on-line problem. That is, we have to make decisions about which data to keep in the cache without knowing the future requests. Here, however, we consider the off-line version of this problem, in which we are given in advance the entire sequence of n requests and the cache size k, and we wish to minimize the total number of cache misses.
We can solve this off-line problem by a greedy strategy called furthest-in-future, which chooses to evict the item in the cache whose next access in the request sequence comes furthest in the future.
1. Write pseudocode for a cache manager that uses the furthest-in-future strategy.
The input should be a sequence ⟨r1, r2, ..., rn⟩ of requests and a cache size k, and the output should be a sequence of decisions about which data element (if any) to evict upon each request. What is the running time of your algorithm? (10 points) 2. Show that the off-line caching problem exhibits optimal substructure. (5 points)
3. Prove that furthest-in-future produces the minimum possible number of cache misses (prove that this greedy choice is correct). (5 points)
Sol:
1. Algorithm 2 is the pseudocode for implementing the furthest-in-future strategy. The running time of the algorithm is O(n2k).
Algorithm 2 FURTHEST-IN-FUTURE(⟨r1, ..., rn⟩)
1: for i = 1 to n do
2: if ri is in the cache then
3: “cache hit,” do nothing
4: else
5: if cache is not full then
6: put ri in cache
7: else
8: “cache miss”
9: maxdist = 0
10: furthest = cache[j]
11: for j = 1 to k do
12: l = i + 1
13: while ri ̸= cache[j] do
14: l = l + 1
15: dist[j] = l− i
16: if dist[j] > max dist then
17: furthest = cache[j]
18: max dist = dist[j]
19: evict furthest and put ri in cache
2. Suppose that C(n, k) is the minimum number of cache misses of an optimal solution upon request sequence⟨r1, ..., rn⟩. Then, C(n−1, k) would be the minimum number if cache misses upon request sequence ⟨r1, ..., rn−1⟩. Otherwise if there exists an
algorithm which involves fewer cache misses upon request sequence ⟨r1, ..., rn−1⟩ than A∗, which is an optimal algorithm, there must exist an algorithm that involes fewer cache misses upon ⟨r1, ..., rn⟩ than A∗. This contradicts to the fact that C(n, k) is the minimum. Therefore the off-line caching problem exhibits optimal substructure.
3. Let A∗ denote the furthest-in-future algorithm. For any other algorithm A, we shall show that the number of cache misses produced by A is less than or equal to the number of cache misses produced by A∗.
Let request ri be the request which triggers A and A′ to behave differently at the first time, where A′ is the algorithm that choose the item in the cache whose next appearance in the request sequence comes furthest in the future upon ri. More specifically, suppose that A evicts a and A′ evicts a′ while a cache miss occurs upon ri, a ̸= a′. Design A′ to behave the same as A afterwards (i.e., a with respect to A′ as a′ is to A, when evicting), until a is requested. Then, since a is in the cache on the machine executing A′ but not on the one executing A, the number of cache misses will increase by 1 only for A. Suppose that b is evicted upon a, by regarding b for A′ as a′ for A, A′ can be designed to behave the same as A until a′ is requested.
After then, A and A′ are identical. By repeating the above substitution, we will have an algorithm A′ = A∗ in the end. Therefore the number of cache misses of A∗ will be less than or equal to that of A.
Problem 9. I have the tradition of letting the students write some feedbacks about the course in the exam and I would like to continue this tradition (though you have just given me some feedbacks in homework 2, but hey, 10 exam points for free!): please write down 3 things you like about this course and 3 things that you would like to see some changes (and your suggestion about how we should change them). (10 points)
Sol: Skipped.
