A Multiple-Window Video Embedding Transcoder Based on
H.264/AVC Standard
Chih-Hung Li, Chung-Neng Wang, and Tihao Chiang
Department of Electronics Engineering, National Chiao-Tung University, 1001 Ta-Hsueh Road, Hsinchu 30010, Taiwan
Received 6 September 2006; Accepted 26 April 2007 Recommended by Alex Kot
This paper proposes a low-complexity multiple-window video embedding transcoder (MW-VET) based on H.264/AVC standard for various applications that require video embedding services including picture-in-picture (PIP), multichannel mosaic, screen-split, pay-per-view, channel browsing, commercials and logo insertion, and other visual information embedding services. The MW-VET embeds multiple foreground pictures at macroblock-aligned positions. It improves the transcoding speed with three block level adaptive techniques including slice group based transcoding (SGT), reduced frame memory transcoder (RFMT), and syntax level bypassing (SLB). The SGT utilizes prediction from the slice-aligned data partitions in the original bitstreams such that the transcoder simply merges the bitstreams by parsing. When the prediction comes from the newly covered area without slice-group data partitions, the pixels at the affected macroblocks are transcoded with the RFMT based on the concept of partial reencoding to minimize the number of refined blocks. The RFMT employs motion vector remapping (MVR) and intra mode switching (IMS) to handle intercoded blocks and intracoded blocks, respectively. The pixels outside the macroblocks that are affected by newly covered reference frame are transcoded by the SLB. Experimental results show that, as compared to the cascaded pixel domain transcoder (CPDT) with the highest complexity, our MW-VET can significantly reduce the processing complexity by 25 times and retain the rate-distortion performance close to the CPDT. At certain bit rates, the MW-VET can achieve up to 1.5 dB quality improvement in peak signal-to-noise-ratio (PSNR).
Copyright © 2007 Chih-Hung Li et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
1. INTRODUCTION
Video information embedding technique is essential to several multimedia applications such as picture-in-picture (PIP), multichannel mosaic, screen-split, pay-per-view, channel browsing, commercials and logo insertion, and other visual information embedding services. With the superior coding performance and network friendliness, H.264/AVC [1] is regarded as a future multimedia standard for service providers to deliver digital video contents over local access network (LAN), digital subscriber line (DSL), integrated services digital network (ISDN), and third eration (3G) mobile systems [2]. Particularly, the next gen-eration Internet protocol television service (IPTV) could be realized with H.264/AVC over very-high-bit-rate DSL (VDSL), which can support higher transmission rates up to 52 Mbps [3]. The service with high transmission rate facil-itates the development of video services with more func-tionalities and higher interactivity for video over DSL ap-plications. For video embedding applications, the video
em-bedding transcoder (VET) is essential to deliver multiple-window video services over one transmission channel.
The VET functionality can be realized at the client side where multiple sets of tuners and video decoders acquire video content of multiple channels for one frame. The con-tent delivery side sends all the bitstreams of selected channels to the client while the client side reconstructs the pixels with an array of decoders in parallel and then re-composes the pixels into single frame in the pixel domain at the receivers. Each receiver needsN decoders running with a powerful
pic-ture composition tool to tile the varying size picpic-tures fromN
channels. Thus, the overall cost is increased asN is increased.
To reduce the cost of the VET service, fast pixel composition and less memory access can be achieved based on the archi-tecture design [4–16]. To realize the VET feature at the client side, the key issues are inefficient bandwidth utilization and high hardware complexity that hinders the multiple-window embedding applications deployment.
To increase the bandwidth efficiency and reduce hard-ware complexity, the VET functionality is realized at the
server/studio side to deliver selected video contents that are encapsulated as one bitstream. The challenges are to simulta-neously maintain the best picture quality after transcoding, to increase the picture insertion flexibility, to minimize the archival space of bitstreams, and to reduce hardware com-plexity. To optimize rate-distortion (R-D) performance, the bits of the newly covered blocks at the background picture are replaced by the bits of the blocks at the foreground pic-tures. To increase the flexibility of picture insertion, the fore-ground pictures are inserted at the macroblock boundaries of processing units. To minimize the bitstream storage space, H.264/AVC coding standard is adopted as the target format. To decrease the hardware complexity, a low-complexity al-gorithm for composition is needed. Therefore, we proposed a fast H.264/AVC-based multiple-window VET (MW-VET), which encapsulates on-the-fly multiple channels of video content with a set of precompressed bitstreams into one bit-stream before transmission.
To transmit the video contents via the unitary chnel, the MW-VET embeds downsized video frames into an-other frame with a specified resolution as the foreground ar-eas. It can provide preview frames or thumbnail frames by tiling a two-dimensional array of video frames from multi-ple television channels simultaneously. With the MW-VET, users can acquire multiple-channel video contents simulta-neously. Moreover, the MW-VET bitstreams are compliant to H.264/AVC and it can facilitate the multiple-window video playback in a way transparent to the decoder at the client side.
For real-time applications, video transcoding should re-tain R-D performance with the lowest complexity, minimal delay, and the smallest memory requirement [17]. Particu-larly, the MW-VET should maintain good quality after multi-generation transcoding that may aggravate the quality degra-dation. An efficient VET transcoder is critical to address the issue of quality loss. For complexity reduction, existing ap-proaches [18–21] convert the bitstreams that are of MPEG-2 standard in the transform domain. Application of the exist-ing transcodexist-ing techniques to H.264/AVC is not feasible since the advanced coding tools including in-the-loop deblocking filter, directional spatial prediction, and 6-tap subpixel in-terpolation all operate in the pixel domain. Consequently, the transform domain techniques have higher complexity as compared to the spatial domain techniques.
To maintain transcoded picture quality and to reduce the overall complexity, we present three transcoding techniques: (1) slice-group-based transcoding (SGT), (2) reduced frame memory transcoding (RFMT), and (3) syntax level bypass-ing (SLB). The application of each transcodbypass-ing technique de-pends on the data partitions of the archived bitstreams and the paths of error propagation. For slice-aligned data parti-tions, the SGT that composes the VET bitstreams at the bit-stream level can provide the highest throughput. For region-aligned data partitions, the RFMT efficiently refines the pre-diction mismatch and increases throughput while maintain-ing better R-D performance. For the blocks that are not af-fected by the drift error, the SLB de-multiplexes and multi-plexes the bitstreams into a VET bitstream at the bitstream
level. As the foreground bitstreams are encoded as full res-olution, a downsizing transcoding [22–24] is needed prior to the VET transcoding. The spatial resolution adaptation transcoders have been widely investigated in the literatures and are not studied herein.
Our experimental results show that the MW-VET ar-chitecture significantly reduces processing complexity by 25 times with similar or even higher R-D performance as com-pared to the conventional cascaded pixel domain transcoder (CPDT). The CPDT cascades several decoders and an en-coder for video embedding transcoding. It offers drift free performance with the highest computational cost. With the fast transcoding techniques, the MW-VET can achieve up to 1.5 dB quality improvement in peak signal-to-noise ratio (PSNR).
The rest of this paper is organized as follows:Section 2 describes the issues for the video embedding transcoding. Section 3reviews the related works andSection 4describes our H.264/AVC-based MW-VET.Section 5shows the simu-lation results andSection 6gives the conclusion.
2. PROBLEM STATEMENT
Transcoding process could be viewed as the modification process of incoming residue according to the changes in the prediction. As shown inFigure 1(a), the output of transcod-ing is represented by Rn=Q HTrn =QHTrn+ Pred1 yn −Pred2 y n , (1) where the symbols HT and Q indicate an integer transfor-mation and quantization, respectively. The symbols rn and rn denote the residue before and after the transcoding. The
symbols Pred1(yn) and Pred2(yn) represent the predictions
from the reference dataynandyn, respectively. In this paper,
we use the symbol “bar” above the variables to denote the re-constructed values after decoding and the symbol “prime” to denote the refined values after transcoding. The suffix of each variable represents the index of block. The process to embed the foreground videos onto the background can incur drift error in the prediction loop since the reference frames at the decoder and the encoder are not synchronized.
When the predictions before and after the transcoding are identical, Figure 1(a) can be simplified to Figure 1(b). The quantized datarnhas no further quantization distortion
with the same quantization step. Thus, the transcoded bit-stream has almost identical R-D performance with the origi-nal bitstream as represented in:
Pd·Pe·rn=IHT
IQQHTrn
=rn, (2)
where the symbolPedenotes the encoding process from the
pixel domain to the transform domain. The symbolPd
de-notes the decoding process from the transform domain back to the pixel domain. The symbols IHT and DQ mean an inverse integer transformation and dequantization, respec-tively.
By (2), the transcoding process inFigure 1(b)can be fur-ther simplified to that inFigure 1(c), where the data of the
xn rn − & QHT Pred1(yn) Original Rn Rn DQ & IHT rn + xn −r n HT & Q Pred1(yn) Pred2(yn) The same QP Pred2(yn) DQ & IHT r n xn + Transcoder Transcoded (a) xn rn − &HTQ Pred1(yn) Original Rn Rn DQ & IHT rn HT & Q The same QP Pred2(yn) DQ & IHT r n xn + Transcoder Transcoded (b) xn rn − & QHT Pred1(yn) Original Rn Pred2(yn) DQ & IHT r n xn + Transcoder Transcoded (c)
Figure 1: Illustration of a novel transcoder: (a) the simplified transcoding process, (b) the simplified transcoder when the predic-tion blocks are the same, (c) the fast transcoder that can bypass the input transform coefficients.
original bitstreams can be bypassed without any modifica-tion. It leads to a transcoding scheme with the highest R-D performance and the lowest complexity.
Video transcoding is intended to maximize R-D perfor-mance with the lowest complexity. Therefore, the remain-ing issue is to transcode efficiently the incomremain-ing data such that picture quality is maximized with the lowest complexity. Specifically, the incoming data are refined only when the ref-erence pixels are modified to alleviate the propagation error. To reduce computational cycles and preserve picture quality, the residue data with identical reference pixels are bypassed. 3. RELATED WORKS ON PICTURE-IN-PICTURE
TRANSCODING
Depending on which domain is used to transcode, the tran-scoders can be classified as either pixel domain or transform domain approaches.
3.1. Cascaded pixel domain transcoder
The cascaded pixel domain transcoder (CPDT) cascades multiple decoders, a pixel domain composer, and an encoder, as shown inFigure 2. It decompresses multiple bitstreams, composes the decoded pixels into one picture, and
recom-BG bitstream FG bitstream 1 FG bitstream 2 . . . FG bitstreamN H.264 decoder H.264 decoder H.264 decoder . . . H.264 decoder PDC H.264 encoder PIP bitstream PDC: pixel-domain composition
Figure 2: Architecture of the CPDT.
presses the picture into a new bitstream. The reencoding pro-cess of CPDT can avoid drift errors from propagating to the whole group of pictures.
However, the CPDT suffers from noticeable visual qual-ity degradation and high complexqual-ity. Specifically, the re-quantization process decreases quality of the original bit-streams. The quality degradation exacerbates especially when the foreground pictures are inserted at different time using the CPDT with multiple iterations. In addition, the reencod-ing makes the significant complexity increase of the CPDT too costly for real-time video content delivery. The com-plexity and memory requirement of the CPDT could be re-duced with fast algorithms that remove inverse transforma-tion, motion compensatransforma-tion, and motion estimation.
3.2. DCT domain transcoding with motion
vector remapping
The inverse transformation can be eliminated with the dis-crete cosine transform (DCT) domain inverse motion com-pensation (IMC) approach proposed by Chang et al. [18–20] for the MPEG-2 transcoders. The matrix translation manip-ulations are used to extract a DCT block that is not aligned to the boundaries of 8×8 blocks in the DCT domain. Chang’s approach could achieve 10% to 30% speedup over the CPDT. There are other algorithms to speed up the DCT domain IMC in [25–27].
The motion estimation can be eliminated with motion vector remapping (MVR) where the new motion vectors are obtained by examining only two most likely candidate mo-tion vectors located at the edges outside the foreground ture. It simplifies the reencoding process with negligible pic-ture quality degradation.
3.3. DCT domain transcoding with backtracking
A DCT domain transcoder based on a backtracking process is proposed by Yu and Nahrstedt [21] to further improve the transcoding throughput. The backtracking process finds the affected macroblocks (MBs) of the background pictures in the motion prediction loop. Since only a small percentage of the MBs at the background are affected, only the damaged MBs are fixed and the unaffected MBs are bypassed.
In practice, for most effective backtracking, the future motion prediction path of each affected MB needs to be an-alyzed and stored in advance. To construct the motion pre-diction chains, Chang et al. [18–20] completely reconstructs all the refined reference frames in the DCT domain for each group-of-picture (GOP). With the motion prediction chains, the transcoder decodes minimum number of MBs to render the correct video contents. The speedup of motion compen-sation is up to 90% at the cost of the buffering delay of the transcoder for one GOP period. The impact of the delay on the real-time applications depends on the length of a GOP in the original bitstream.
However, the backtracking method has no use for the H.264/AVC-based transcoder due to the deblocking filter, the directional spatial prediction, and interpolation filter. In addition, to track the prediction paths of H.264/AVC bit-streams, almost 100% of the blocks need decoding, which is over the 10% reported in [21]. Thus, the expected complex-ity reduction is limited. Furthermore, it introduces an extra delay of one GOP period.
In summary, to speed up the CPDT, there are many fast algorithms to manipulate the incoming bitstreams in the transform domain. However, this is not the case for the H.264/AVC standard. To our best knowledge, all the state-of-the-art transcoding schemes with H.264 as input bitstream format perform the fast algorithms in the pixel domain [28– 36]. There are several reasons to manifest the necessity of pixel domain manipulation. As shown in the appendix the pixel domain transcoder actually takes less complexity than the transform domain transcoder. The detail derivations are given in the appendix for brevity. In addition, the transform domain manipulation introduces drift because the motion compensation is based on the filtered pixels which are the output of the in-the-loop deblocking filter. The filtering op-eration is defined in the pixel domain and cannot be per-formed in the transform domain due to its nonlinear opera-tions [28–30]. As a result, the transform domain transcoder for the H.264/AVC standard typically leads to an unaccept-able level of error as shown in [37]. Therefore, we conclude that the spatial domain technique is a more realistic approach for H.264/AVC-based transcoding. To resolve issues of low computational cost, less drift error, and small memory band-width, we present an H.264/AVC-based transcoder in the spatial domain.
4. LOW-COMPLEXITY MULTIPLE-WINDOW VIDEO EMBEDDING TRANSCODER (MW-VET)
For real-time delivery of high quality video bitstreams, our goal is to build the bitstreams with the picture quality close to that of the original bitstream using smallest complexity. To minimize cost and memory requirement and retain the best picture quality, we present a low-complexity multiple win-dow video embedding transcoder (MW-VET) suitable for both interactive and noninteractive applications. InTable 1, we list all the symbol definitions used in the proposed archi-tectures.
Table 1: Symbol definitions.
Symbol Meaning
CAVLD Content adaptive variable length decoding CAVLC Content adaptive variable length coding
LB Line buffer FM Frame memory DB Deblocking filter IP Intra prediction MC Motion compensation ME Motion estimation
HT & Q Integer transform and quantization
DQ & IHT Dequantization and inverse integer transform
PDC Pixel domain composition
RDO MD Rate-distortion optimized mode decision
MUX Multiplexer (syntax element selector)
4.1. Rationale
To embed foreground pictures as multiple windows to one background picture, the MW-VET inserts the fore-ground pictures at MB-aligned positions. To minimize complexity, it uses several approaches including slice-group-based transcoding (SGT), reduced-frame-memory transcoder (RFMT), and syntax level bypassing (SLB) to adapt the prediction schemes compliant with the H.264/AVC standard. As the prediction is applied to the slice-aligned data partitions within the original bitstreams, the SGT merges the original bitstreams into one bitstream by parsing and concatenation leading to a fast transcoding. For noninter-active services, the SGT can provide the highest transcoding throughput if the original bitstreams are coded with the slice-aligned data partitions.
When the prediction is applied to the region-aligned data partitions, the specified pixels at the background pic-ture are replaced by the pixels of the foreground picpic-tures. For the pixels in the affected MBs, the RFMT can mini-mize the total number of refined blocks by partially reencod-ing only those MBs. The RFMT employs both motion vec-tor remapping (MVR) for intercoded blocks and intramode switching (IMS) for intracoded blocks, respectively. The pix-els within the unaffected MBs are transcoded by the SLB that passes the syntax elements from the original bitstreams to the transcoded bitstream.
Based on the occurrence of modified reference pixels at the prediction loop, the MBs are classified into three types:
w-MB, p-MB, and n-MB. As shown in Figure 3, the small rectangle denotes the foreground picture (FG) and the large rectangle denotes the background picture (BG). Each small square within the rectangle represents one MB. Thew-MBs
represent the blocks whose reference samples are entirely or partially replaced by the newly inserted pictures. Thep-MBs
represent the blocks whose reference pixels are composed of the pixels atw-MBs. The remaining MBs of the background
pictures are denoted asn-MBs for the unaffected MBs. We
observe that most of the MBs within the processing picture arep-MBs and only a small percentage of MBs are w-MBs. As
FG BG Framen−1 BG FG Framen FG BG Framen + 1 w-MB p-MB n-MB Intraprediction path Interprediction path
Figure 3: Illustration of the wrong reference problem.
forw-MBs, the coding modes or motion vectors of the
orig-inal bitstream are modified to fix the wrong reference prob-lem. For thep-MBs, the wrong reference problem is
inher-ited from thew-MBs. Thus, the coding modes and motion
vectors are refined for each p-MB. All n-MBs’ information
in the original bitstream can be bypassed because the predic-tors before and after transcoding are identical.
4.2. Slice-group-based transcoding
The slice-group-based transcoding (SGT) is used when the prediction within the original bitstream of background pic-ture uses the slice-aligned data partitions [38]. Based on the slice-aligned data partitions, the SGT operates at the bit-stream level to provide the highest throughput with the low-est complexity. The rationale is that H.264/AVC defines a set of MBs to the slice group map types according to the adaptive data partition [1]. The concept of slice group is to separate the picture into isolated regions to prevent error propagation from leading error resiliency and random access. Each slice is regarded as an isolated region as defined in H.264/AVC stan-dard. For each region, the encoder performs the prediction and filtering processes without referring to the pixels of the other regions.
For the video embedding feature using static slice groups, the large window denotes a background slice and the embed-ded small windows denote foreground slices. After video em-bedding transcoding, all the slices are encoded separately at the slice level and encapsulated to one bitstream at the slice level. Based on archived H.264/AVC bitstreams with the slice groups, a VET can replace the syntax elements of MBs in the foreground slices with the syntax elements of other bit-streams with identical spatial resolutions. Therefore, all the syntax elements are directly forwarded as is to the final bit-stream via an entropy coder. In conclusion, the SGT is effec-tive for noninteraceffec-tive applications with multiple static win-dows.
4.3. Reduced frame memory transcoding
Based on the partially reencoding techniques, the initial RFMT architecture is shown inFigure 4. After decoding all the bitstreams into pixel domain with multiple H.264/AVC decoders and composing all the decoded pictures into one frame by the PDC, the reencoder side only refines the residue of the affected MBs rather than reencoding all the decoded
pixels as the CPDT architecture. For those unaffected MBs, the syntax elements are bypassed from each CAVLD and are sent to the MUX which selects the corresponding syntax el-ements based on the PIP scenario. Lastly, the CAVLC encap-sulates all the reused syntax elements and the new syntax el-ements of refined blocks into the transcoded bitstream.
To increase the throughput, the R-D optimized mode de-cision and motion vector reestimation within the reencoder side ofFigure 4are replaced with the intramode switching (IMS) and motion vector remapping (MVR) as shown in Figure 5[39]. Specifically, the reencoder as enclosed by the dashed line stores the decoded pixels into the FM. Then, the MVR and IMS modules retrieve the intra modes and the mo-tion vectors from the original bitstreams to predict the char-acteristics of motion and the spatial correlation of the source. With such information, we examine only a subset of possible motion vectors and intra modes to speed up the refinement process. According to the refined motion vectors and coding modes, the MC and IP modules perform motion compen-sation and intraprediction from the data in the FM and LB. The reconstruction loop including HT, Q, DQ, IHT, and DB generates the reconstructed data of the refined blocks which are further stored in the FM to avoid the drift during the transcoding. In conclusion, other than the IMS and MVR modules all the modules inFigure 5are the same as those inFigure 4.
To decouple the dependency between the foreground and the background, there is an encoding constraint for the fore-ground bitstream that the unrestricted motion vectors and the intra-DC modes are not used for the blocks at the first column or the first row. When the foreground video is from an archived bitstream or an encoder of live video, the unre-stricted motion vectors and the intra DC mode can be mod-ified and the loss of R-D performance is negligible according to our experiment. Particularly, we rescale the DC coefficient of the first DC block within an intracoded frame based on the neighboring reconstructed pixels in the background. Except the first block, the foreground bitstreams can be multiplexed directly into the transcoded bitstream.
With the constrained foreground bitstreams, the final ar-chitecture of the MW-VET is simplified as shown inFigure 6. The highly efficient MW-VET adopts only the content adap-tive variable length decoding (CAVLD) for the foreground bitstreams and uses one shared frame memory for the back-ground bitstream. At first, two frame memories are dedicated for the decoder and the reencoder inFigure 5to store the de-coded pixels and the reconstructed pixels, respectively. How-ever, the decoded data of affected blocks are no longer use-ful and could be replaced with the reconstructed pixels after the refinement. Therefore, we use a shared frame memory to buffer the reference pixels for both the decoding and reen-coding process. Specifically, the operation of the transcoder begins with the decoding by the CAVLD. The MC and the IP modules in the left-hand side use the original motion vectors and intra modes to decode the source bitstream into pixels stored in the FM and used for the coefficient refinement. On the other hands, the MC and the IP modules in the right-hand side use the refined motion vectors and intra modes to
BG bitstream FG bitstream 1 FG bitstream 2 FG bitstreamN . . . CAVLD CAVLD CAVLD CAVLD H.264 decoder H.264 decoder H.264 decoder H.264 decoder DQ+IHT+MC+IP+DB+FM+LB DQ+IHT+MC+IP+DB+FM+LB DQ+IHT+MC+IP+DB+FM+LB DQ+IHT+MC+IP+DB+FM+LB . . . PDC (Bypass path) . . . (Bypass path) (Bypass path) (Bypass path) (Partial re-encoding) ME+RDO MD+ MC+IP+HT+Q+ IHT+DQ+DB+ FM+LB MUX CAVLC PIP bitstream

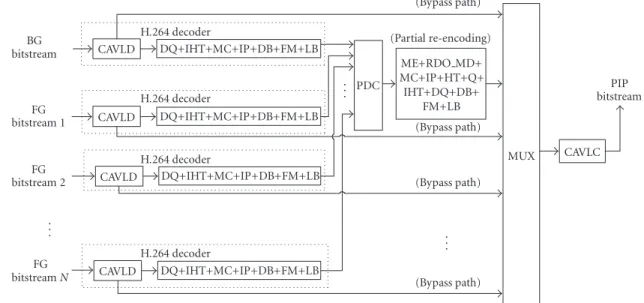

Figure 4: Initial architecture of RFMT with RDO refinement based on the partially reencoding.
BG bitstream FG bitstream 1 FG bitstream 2 FG bitstreamN . . . CAVLD CAVLD CAVLD CAVLD H.264 decoder H.264 decoder H.264 decoder H.264 decoder DQ+IHT+MC+IP +DB+FM+LB DQ+IHT+MC+IP +DB+FM+LB DQ+IHT+MC+IP +DB+FM+LB DQ+IHT+MC+IP +DB+FM+LB . . . PDC (Bypass path) . . . (Bypass path) (Bypass path) (Bypass path) (Partial re-encoding with MVR & IMS)
+ + MVR IMS FM MC IP LB DB HT & Q DQ & IHT MUX CAVLC PIP bitstream
Figure 5: Intermediate architecture of RFMT with the MVR and the IMS refinement.
refine the decoded pixels of the affected blocks. In addition to one shared FM, the transcoding process is the same as that inFigure 5.
In case the PIP scenario generates the background block with top and left pixels next to the foreground pictures, our RFMT needs to decode each foreground bitstreams. Then, the transcoder switches the mode of this block to DC mode and computes the new residue according to the reconstructed values of two foreground pictures. Moreover, if the fore-ground pictures occupy the whole frame, the feature of chan-nel preview is realized with the degenerated architecture of Figure 7. The remaining issues are how the IMS and the MVR modules deal with the wrong reference problem of
back-ground bitstream. There are two goals: refining the affected blocks efficiently and deciding the minimal subset of refined block while retaining the visual quality of transcoded bit-stream.
4.3.1. Intramode switching
For the intracoded w-MBs, we need to change the
tramodes to fix the wrong reference problem since the in-traprediction is performed in the spatial domain. The neigh-boring samples of the already encoded blocks are used as the prediction reference. Thus, when we replace parts of the background picture with the foreground pixels, the MBs
BG bitstream FG bitstream 1 FG bitstream 2 FG bitstreamN . . . CAVLD CAVLD CAVLD CAVLD . . . Intra mode Motion vectors DQ & IHT MC IP + LB FM DB MVR IMS LB IP MC (Bypass path) . . . (Bypass path) (Bypass path) (Bypass path) HT & Q DQ & IHT + + MUX CAVLC PIP bitstream
Figure 6: Final architecture of RFMT with shared frame memory for the constrained FG bitstreams.
FG bitstream 1 FG bitstream 2 . . . FG bitstreamN CAVLD CAVLD . . . CAVLD MUX CAVLC PIP bitstream
Figure 7: A transcoding scheme for channel preview.
around the borders may have visual artifacts due to the newly inserted samples. Without drift error correction, the distor-tion propagates spatially all over the whole frame via the in-tra prediction process in a raster scanning order. A sin-traight- straight-forward refinement approach is to apply the R-D optimized (RDO) mode decision to find the best intra mode from the available pixels and then reencode new residue.
To reduce complexity we propose an intramode switch-ing (IMS) technique for the intracoded w-MBs since the
best reference pixels should come from the same region. The mode switching approach selects the best mode from the more probable intraprediction modes.
Each 4×4 block within a MB could be classified accord-ing to the intramodes as shown in Figure 8. Similarly, the mode of thew-block should be refined while the modes of p-blocks are unchanged. For the w-blocks, the IMS is
per-formed according to the relative position with respect to the foreground pictures as shown inFigure 9. To speed up the IMS process, a table lookup method is used to select the new intramode according to the original intramode and the
rel-FG BG w-block p-block p-block Prediction direction
Figure 8: The wrong intrareference problem within a macroblock depending on the intramodes.
ative position. Tables2and3enumerate the IMS selection exhaustively.
With the refined intramode, we compute the new residue and coded block patterns. It should be noted that only the reconstructed quantized values are used as the original video is unavailable. Given that thenth 4×4 block is thew-block.
The refinement of thenth 4×4 block is defined by
rn=xn−IP2 xj =rn+ IP1 xi −IP2 xj , (3)
where the symbol xndenotes the decoded pixel. The
sym-bols IP1(xi) and IP2(xj) denote intraprediction from the
ref-erence pixels xi and xj by using the original mode, and
FG BG 1 2 3 4 5 6 7
Figure 9: Relative position of each case in intramode switching method.
Table 2: Cases of Intra4 mode switching. Case Corresponding
4×4 block Original Mode∗ Switched Mode∗
1 Left column of blocks 1, 2, 4, 5, 6, 8 0
2 Top left of block 4, 5, 6 2
3 Top row of blocks 0, 2, 3, 4, 5, 6, 7 1
4 Top right of blocks 3, 7 0
5 Top row of blocks 0, 2, 3, 4, 5, 6, 7 1
6 Left column of blocks 1, 2, 4, 5, 6, 8 0
7 Right column of blocks 3, 7 0
∗0: Intra4×4Vertical
1: Intra4×4Horizontal 2: Intra4×4DC
3: Intra4×4Diagonal Down Left 4: Intra4×4Diagonal Down Right 5: Intra4×4Vertical Right 6: Intra 4×4Horizontal Down 7: Intra 4×4Vertical Left 8: Intra4×4Horizontal Up
Table 3: Cases of Intra16 mode switching.
Case Original Mode∗ Switched Mode∗
1, 6 1, 2, 3 1 2 3 2 3, 5 0, 2, 3 1 ∗0: Intra16×16Vertical 1: Intra16×16 Horizontal 2: Intra16×16 DC 3: Intra16×16 Plane
residue extracted from the source bitstream. Then, the re-fined residue is requantized and dequantized as
r n=Pd·Pe·rn=Pd·Pe· rn+ IP1 xi −IP2 xj =Pd·Pe·rn+Pd·Pe·IP1 xi −Pd·Pe·IP2 xj =rn+ IP1 xi +ei−IP2 xj −ej, (4) where the symbols eiandej are the quantization errors of
IP1(xi) and IP2(xj). Lastly, the reconstructed data of thenth
4×4 block is shown in as x n=rn+ IP2 xj =rn+ IP1 xi +ei−ej =xn+en, (5)
where the symbolendenotes the refinement error due to the
additional quantization process.
For thep-blocks, we recalculate the coefficients with the
refined samples ofw-blocks. The refinement of w-blocks may
incur drift error that is amplified and propagated to the sub-sequent p-blocks by the intraprediction process. In order to
alleviate the error propagation, we recalculate the coefficients of p-blocks based on the new reference samples with the
original intramodes as shown in (6), where we assume the
mth 4×4 block is the intracoded p-block that uses the
de-coded data of thenth 4×4 block as prediction,
rm =xm−IP1 x n =rm+ IP1 xn −IP1 x n =rm+ IP1 xn−xn =rm+ IP1 en . (6)
Similarly, the refined residue should be requantized and de-quantized as represented in (7) where the symbolemdenotes
the drift error in themth 4×4 block and is identical to the quantization error of intraprediction of refinement erroren
in thenth 4×4 block: x m=rm + IP1 x n =Pd·Pe·rm+Pd·Pe·IP1 en + IP1 x n =rm+ IP1 en +em+ IP1 x n =xm−IP1 xn + IP1 x n + IP1 en +em =xm+ IP1 x n−xn+en +em=xm+em. (7)
Similarly, the nextp-block can be derived: xm+1=xm+1+em+1,
em+1=Pd·Pe·em−em, m=1, 2, 3,. . . .
(8) The generalized projection theory says that consecutive pro-jections onto two nonconvex sets will reach a trap point be-yond which future projections do not change the results [40]. After several iterations of error correction, the drift error cannot be further compensated. Therefore, we only perform error correction to the p-blocks within intracoded w-MB
rather than all the subsequentp-blocks. We observe that
er-ror correction for thep-blocks within intracoded w-MB
im-proves the averaged R-D performance up to 1.5 dB. However, error correction for the intracodedp-MBs has no significant
quality improvement.
4.3.2. Motion vector remapping
The motion information of intercodedw-MBs needs to be
reencoded since the motion vectors of the original bitstreams point to wrong reference samples after the embedding pro-cess, since only the motion vector difference is encoded in-stead of the full scale motion vector. Owing to such pre-diction dependency, the new foreground video creates the wrong reference problem.
To solve the wrong reference issue, reencoding the mo-tion informamo-tion is necessary for the surrounding MBs near the borders between foreground and background videos. In H.264/AVC, the motion vector difference is encoded accord-ing to the neighboraccord-ing three motion vectors rather than the motion vector itself. Hence an identical motion vector pre-dictor is needed for both encoder and decoder. However, due
to foreground picture insertion, the motion compensation of background blocks may have wrong reference blocks from the new foreground pictures. Consequently, the incorrect motion vectors cause serious prediction error propagated to subsequent pictures through the motion compensation pro-cess.
Within the background pictures, the reference pixels pointed by the motor vector may be lost or changed. For the MBs with wrong prediction reference, the motion vectors need to be refined for correct reconstruction at the receiver. To provide good tradeoff between the R-D performance and complexity, only the MBs using the reference blocks across the picture borders are refined. The refinement process can be done with motion reestimation, mode decision, and en-tropy coding. It takes significant complexity to perform ex-haustive motion reestimation and RDO mode decision for every MB with wrong prediction reference. Therefore, we use a motion vector remapping method (MVR) that has been ex-tensively studied for MPEG-1/2/4 [20–22]. Before applying the MVR to the intercodedw-MBs, we select the Inter 4×4 mode as indicated inFigure 10. The MVR modifies the mo-tor vecmo-tor of every 4×4w-block with a new motion vector
pointing to the nearest of the four boundaries at the fore-ground picture. With the newly modified motion vectors, the prediction residue is recomputed and the HT transform is used to generate the new transform coefficients. Finally, the new motion vector and refined transform coefficients of w-blocks are entropy encoded as the final bitstream. The refine-ment process of MVR can be represented by (9), where the symbols MC(xi) and MC(xj) denote motion compensation
from the reference pixelsxiandxj, respectively: rn=xn−MC xj =rn+ MC xi −MCxj =rn+ MC xi−xj . (9)
The refined residue data is requantized and dequantized as
r n=Pd·Pe·rn=Pd·Pe· rn+ MC xi−xj =Pd·Pe·rn+Pd·Pe·MC xi−xj =rn+ MC xi−xj +en, (10)
where the symbolenis the quantization error of MC(xi−xj).
In the transcoded bitstream, the decoded signal of thenth 4× 4 block is represented in (11) where the symbolenindicates
the refinement error:
x n=rn+ MC xj =rn+ MC xi−xj +en+ MC xj =xn+en. (11) The refinement may occur at the border MBs with the skip mode. Since two neighboring motion vectors are used to in-fer the motion vector of an MB with the skip mode, the bor-der MBs with the skip mode may be classified as two kinds of
w-MBs due to the insertion of the foreground blocks. Firstly,
for thew-MBs whose motion vectors that do not refer to a
reference bock covered by the foreground pictures, the skip mode is changed to Inter 16×16 mode to compensate the mismatch of motion vectors by the motion inference. Sec-ondly, for the w-MBs whose motion vectors point to
ref-erence blocks covered by the foreground pictures, the skip
FG BG
(a)
FG BG
w-block
(b)
Figure 10: Illustration of motion vector remapping. (a) Original coding mode and motion vectors. (b) Using Inter 4×4 mode and refined motion vectors.
mode is changed to Inter 16×16 mode and the motion vec-tor is refined to new position by the MVR method. Then, the refined coefficients are computed according to the new pre-diction.
To fix the wrong subpixel interpolation after inserting the foreground pictures, the blocks whose motion vectors point to the wrong subpixel positions are refined. H.264/AVC sup-ports finer subpixel resolutions such as 1/2, 1/4, and 1/8 pixel. The subpixel samples do not exist in the reference buffer for motion prediction. To generate the sub-pixel samples, a 6-tap interpolation filter is applied to full-pixel samples for the subpixel location. The sub-pixel samples within 2-pixel range of picture boundaries are refined to avoid vertical and horizontal artifacts. The refinement is done by replacing the wrong subpixel motion vectors with the nearest full-pixel motion vectors and the new prediction residues are reen-coded.
4.4. Syntax level bypassing
To minimize the transcoding complexity, the blocks within intercodedp-MBs and n-MBs are bypassed at the syntax level
after the CAVLD. Since the blocks withinp-MBs and n-MBs
are not affected by the picture insertion directly, the syntax data can be forwarded unchanged to the multiplexer.
As for the intracoded frames, the affected blocks by video insertion are refined to compensate the drift error. We ob-serve that the correction of p-blocks within the w-MBs can
significantly improve the quality. In addition, the correction of intracodedp-MBs might get a bit of quality improvement
with drastically increased complexity.
As for the intercoded frames, we examine the effective-ness of error compensation by (12). Themth block is
inter-codedp-block and the residue is recomputed with the refined
pixel values by rm =xm−MC xi =rm+ MC xi −MCxi =rm+ MC xi−xi . (12)
Table 4: Corresponding operations of each block type during the VET transcoding.
Block type Operations
w-MB
Intracodedw-block IMS and CR∗
Intercodedw-block MVR and CR∗
Intracodedp-block CR∗
Intercodedp-block SLB
n-block SLB
p-MB SLB
n-MB SLB
∗CR means coefficient recalculation.
Table 5: Encoder parameters for the experiments.
Frame size
QCIF (176×144), CIF (352×288), SD (720×480), HD (1920×1088)
Frame rate 30 frames/s
GOP structure IPPPP. . . P
Total frame 100
Intraperiod 15
Reference frame number 1
Motion estimation range
16 for QCIF, 32 for CIF, 64 for SD, and 176 for HD Quantization step size 17, 21, 25, 29, 33, 37
Similarly, the transcoded data can be represented by (13) where the refinement error of thew-block is propagated to
the nextp-block: x m=rm+ MC xi =Pd·Pe·rm+Pd·Pe·MC xi−xi + MCxi =rm+ MC xi =xm−MC xi + MCxi =xm+ MC xi−xi . (13)
Let us assume the refinement ofw-block performs well and
the term of MC(xi−xi) is smaller than the quantization step
size, it means that the quantization of MC(xi−xi) becomes
zero. If our assumption is valid, the termPd·Pe·MC(xi−xi)
in (13) can be removed. Thus, the drift compensation of in-tercoded p-block has no quality improvement despite
ex-tra computations. In terms of complexity reduction, we by-pass all the transform coefficients of p-MB and n-MB to the transcoded bitstream.
In summary, the proposed MW-VET deals with each type of block efficiently according toTable 4. In addition, the par-tially reencoding method can preserve picture quality. For the applications requiring multigeneration transcoding, the deterioration caused by successive decoding and reencoding of the signals can be eliminated with the reuse of the cod-ing information from the original bitstreams. As the motion
10 20 30 40 50 60 70 80 90 100 Frame number 0 20 40 60 80 Pe rc en ta ge (% ) w-MB p-MB w-block p-block
Figure 11: Percentage of the macroblock types and the block types during the VET transcoding.
compensation with multiple reference frames is applied, the proposed algorithm is still valid. Specifically, it first classifies the type of each block (i.e.,n-block, p-block, and w-block
according toFigure 3). The classification is based on whether the reference block is covered by foreground pictures and it does not matter what reference picture is chosen. In other words, the wrong reference problem with multiple reference frame feature is an extension ofFigure 3. Then, the afore-mentioned MVR and SLB processes are applied to each type of intercoded block.
5. EXPERIMENT RESULTS
The R-D performance and execution time are compared based on the transcoding methods, test sequences, and picture insertion scenarios. For a fair comparison, all the transcoding methods have been implemented based on H.264/AVC reference software of version JM9.4. In addition, all the transcoders are built using Visual. NET compiler on a desktop with Windows XP, Intel P4 3.2 GHz, and 2 Giga bytes DRAM. To further speed up the H.264/AVC based transcoding, the source code of the reference CAVLD mod-ule is optimized using a table lookup technique [41]. In the simulations, the test sequences are preencoded with the test conditions as shown inTable 5. The notation for each new transcoded bitstream is “background foreground x y,” where
x and y are the coordinates of the foreground picture. The
values ofx and y need to be on the MB boundaries within the
background picture. To evaluate the picture quality of each reconstructed sequence, the two original source sequences are combined to be the reference video source for peak-signal-to-noise ratio (PSNR) computation.
The percentage of each MB type and each 4×4 block type is shown inFigure 11. In general, thep-MBs occupy 30% to
80% of MBs and the percentage of thew-MBs is less than
15%. In addition, thew-blocks occupy only 5% of the 4×4 blocks. Bypassing all thep-blocks that are 95% of blocks
ac-celerates the transcoding process as shown inTable 6. On the average, as compared to the CPDT, the MW-VET can achieve 25 times of speedup with improved picture quality.
Table 7lists the PSNR comparison to show the effective-ness of error correction for different kinds of blocks. The

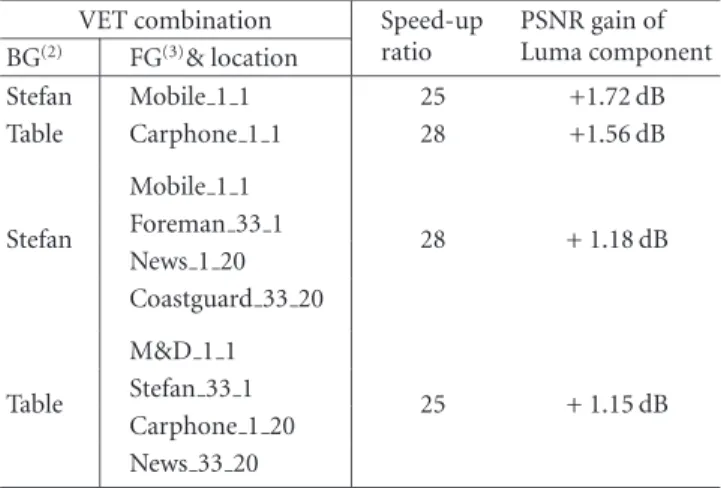

Table 6: Improvement of execution time and quality as compared to CPDT.(1)
VET combination Speed-up
ratio PSNR gain of Luma component BG(2) FG(3)& location Stefan Mobile 1 1 25 +1.72 dB Table Carphone 1 1 28 +1.56 dB Stefan Mobile 1 1 28 + 1.18 dB Foreman 33 1 News 1 20 Coastguard 33 20 Table M&D 1 1 25 + 1.15 dB Stefan 33 1 Carphone 1 20 News 33 20
(1)Intel P4 3.2 G, 2 GB SDRAM, Windows XP, and Visual. NET compiler.
(2)All are in SD resolution. (3)All are in QCIF resolution.
Table 7: Effectiveness of error correction for different kinds of p-blocks.
Methods PSNR (dB)
Golden 43.73
CPDT 42.02
RFMT w/o EC 41.18
RFMT with EC for thep-blocks
in intra-codedw-MBs 43.16
RFMT with EC for all intracodedp-blocks 43.33 RFMT with EC for all intercodedp-blocks 43.14
golden method is not a transcoding scheme. The R-D curves of golden method are obtained from encoding the original picture-in-picture source sequences. The inclusion of the R-D curves of golden method is to highlight the upper bound of a transcoder. The error correction ofp-blocks in the
intra-codedw-MBs can obtain a significant gain in picture
qual-ity. However, the error correction for other p-blocks almost
has no quality improvement while the complexity increases dramatically. Therefore, the results verify our derivations in Section 4.
The R-D performance of different approaches at various bit rates and different VET scenarios are compared. We em-bedded one foreground picture into one background picture at different positions in Figures12and13. The performance of RFMT is better than that of CPDT. At medium and high bit rates, the RFMT can offer up to 1.5 dB improvement in PSNR. Even through the mode and motion vectors obtained by our IMS and MVR is not always the optimal solution, the simulation results show that our IMS and MVR approaches provide a solution close to the optimal case. In the compar-ison, we have plotted the R-D curves named as RFMT RDO to show the optimal R-D performance when the partial
reen-0 5 10 15 20 25 30
Bit rate (Mbits/s) 28 30 32 34 36 38 40 42 44 PS NR o fY (d B ) Golden CPDT RFMT RDO RFMT IMS MVR (a) Table SD Carphone QCIF 1 1
0 5 10 15 20 25 30
Bit rate (Mbits/s) 28 30 32 34 36 38 40 42 44 PS NR o fY (d B ) Golden CPDT RFMT RDO RFMT IMS MVR (b) Table SD Carphone QCIF 33 20
Figure 12: Rate-distortion performance of the luminance compo-nent by one foreground embedding for Table SD Carphone QCIF.
coding is performed under RDO mode decision and motion vector reestimation. It could be observed that the R-D per-formance of RFMT with IMS and MVR is very close to that of RFMT RDO.
Figure 14shows the R-D curve of transcoding bitstreams that embed four foreground pictures onto one background picture at the same time. As compared with the one-foreground VET scenarios, the performance has a little degradation because that the ratio ofw-blocks and p-blocks
increases.Figure 15shows the performance of multigenera-tion transcoding that embeds one foreground picture to the background picture every generation. Our MW-VET can re-tain the R-D performance while the CPDT degrades every generation. Thus, the proposed MW-VET is robust for the multigeneration transcoding.
0 5 10 15 20 25 30 Bit rate (Mbits/s)
26 28 30 32 34 36 38 40 42 44 PS NR o fY (d B ) Golden CPDT RFMT RDO RFMT IMS MVR (a) Mobile SD Foreman QCIF 1 1
0 5 10 15 20 25 30
Bit rate (Mbits/s) 26 28 30 32 34 36 38 40 42 44 PS NR o fY (d B ) Golden CPDT RFMT RDO RFMT IMS MVR (b) Mobile SD Foreman QCIF 33 20
Figure 13: Rate-distortion performance of the luminance compo-nent by one foreground embedding for Mobile SD Foreman QCIF.
6. CONCLUSIONS
In this paper, we present an efficient multiple-window video embedding transcoder (MW-VET) to embed the multiple foreground videos into one background video. The pic-tures are inserted at the MB-aligned positions to retain high flexibility. To minimize complexity with negligible quality loss, the MW-VET uses three novel approaches including slice group-based transcoding (SGT), reduced frame mem-ory transcoding (RFMT), and syntax level bypassing (SLB). These approaches are used based on the H.264/AVC coding standard compliant prediction schemes.
As the prediction is applied to the slice-aligned data par-titions within the original bitstreams, the SGT parses and
0 5 10 15 20 25
Bit rate (Mbits/s) 26 28 30 32 34 36 38 40 42 44 PS NR o fY (d B ) Golden CPDT RFMT RDO RFMT IMS MVR (a) Mobile SD M&D QCIF 1 1 Stefan QCIF 33 1 Carphone QCIF 1 20 News QCIF 33 20
0 5 10 15 20 25
Bit rate (Mbits/s) 28 30 32 34 36 38 40 42 44 PS NR o fY (d B ) Golden CPDT RFMT RDO RFMT IMS MVR (b) Table SD M&D QCIF 1 1 Stefan QCIF 33 1 Carphone QCIF 1 20 News QCIF 33 20
Figure 14: Rate-distortion performance of the luminance compo-nent by four foregrounds embedding.
merges the bitstreams directly. When the prediction is ap-plied to the region-aligned data partitions, the MBs with wrong prediction reference are processed with the RFMT that partially reencodes the blocks to minimize the num-ber of refined blocks. To handle intercoded and intracoded blocks that suffer from the wrong reference problem, the RFMT employs motion vector remapping (MVR), and in-tramode switching (IMS), respectively. The unaffected MBs are handled by the SLB in terms of transcoding throughput and picture quality.
Our results show that the MW-VET as compared to the cascaded pixel domain transcoder (CPDT) can significantly reduce the processing complexity by 25 times with similar or higher R-D performance. In addition, the MW-VET can
0 5 10 15 20 25 Bit rate (Mbits/s)
26 28 30 32 34 36 38 40 42 44 PS NR o fY (d B ) Golden CPDT RFMT RDO RFMT IMS MVR (a) Mobile SD M&D QCIF 1 1 Stefan QCIF 33 1 Carphone QCIF 1 20 News QCIF 33 20
0 5 10 15 20 25
Bit rate (Mbits/s) 28 30 32 34 36 38 40 42 44 PS NR o fY (d B ) Golden CPDT RFMT RDO RFMT IMS MVR (b) Table SD M&D QCIF 1 1 Stefan QCIF 33 1 Carphone QCIF 1 20 News QCIF 33 20
Figure 15: Rate-distortion performance of the luminance com-ponent by four foregrounds embedding and multi-generation transcoding.
achieve up to 1.5 dB quality improvement in PSNR. Based on the MW-VET, the quality improvement over the CPDT is significant for multigeneration transcoding.
APPENDICES
A. WHY TRANSFORM DOMAIN APPROACHES ARE INEFFICIENT FOR H.264/AVC-BASED TRANSCODING
In this appendix, we will show that it is inefficient to de-velop a transcoder in the transform domain as commonly
proposed for previous standards such as MPEG-1/2/4. There are several reasons to support such a claim.
(1) In H.264/AVC, the transformation and quantization processes are so optimized that traverse back to the pixel domain is not as expensive as before.
(2) The intraprediction and deblocking filter introduce stronger spatial domain error propagation although they are effective to exploit the spatial redundancy. (3) The IMC becomes inefficient when the motion
com-pensation uses quarter-pixel resolution combined with 6-tap interpolation.
The following text will describe the detailed study to support such a claim.
A.1. Integer transform with quantization scaling
The transformation used in H.264/AVC is an integrated transform with quantization scaling, which means the scal-ing multiplication is merged with the quantization. The in-teger transform with quantization scaling is performed with simple integer operations such as shifting and addition, which indicates no rounding mismatch between the encoder and the decoder. The relationship between the pixel values at the encoder and the decoder can be represented by
IHTDQQHT(x)=x, (A.1) wherex and x mean the original data and the decoded data
respectively. However, the data after de-quantization is not the original HT coefficients:
DQQHT(x)=HT(x). (A.2) In order to obtain the transform coefficients at the transcoder side, an inverse operation of quantization is needed. The in-verse quantization of HT coefficients is derived as follows. The following shows the quantization of HT coefficients Yi, j:
Zi, j = Yi, j×MFi, j+ f S1, with S1=15 + QP 6 , f =2S1 3 or 2S1 6 . (A.3) The following shows that the data after the dequantization is different from the original HT coefficients:
Wi, j= Zi, j×Vi, j S2 =Yi, j•MFi, j+f S1 •Vi, j S2=Yi, j with S2= QP 6 . (A.4) The symbols MFi, j and Vi, j are multiplication and
rescal-ing factors, respectively, as defined in H.264/AVC standard. To obtain the HT coefficients, the dequantization process should be replaced by converting quantized coefficients to dequantized HT coefficients. The process is computed as
Yi, j =
Yi, j S1
MFi·j . (A.5)
However, (A.5) requires a division operation with higher complexity and additional rounding error.
A.2. Directional intra prediction
The intraprediction as defined in the spatial domain poses challenges to the transform domain transcoding. To imple-ment intraprediction in the transform domain significantly increases complexity because the HT transform is not or-thogonal, which means the transpose is not equal to the in-verse for HT transform as represented in below:
HT ⎛ ⎜ ⎜ ⎜ ⎜ ⎝ ⎡ ⎢ ⎢ ⎢ ⎢ ⎣ × × × × × × × × × × × × A B C D ⎤ ⎥ ⎥ ⎥ ⎥ ⎦ ⎞ ⎟ ⎟ ⎟ ⎟ ⎠= ⎛ ⎜ ⎜ ⎜ ⎜ ⎝Cf ⎡ ⎢ ⎢ ⎢ ⎢ ⎣ × × × × × × × × × × × × A B C D ⎤ ⎥ ⎥ ⎥ ⎥ ⎦C T f ⎞ ⎟ ⎟ ⎟ ⎟ ⎠ = ⎛ ⎜ ⎜ ⎜ ⎜ ⎝Cf ⎡ ⎢ ⎢ ⎢ ⎢ ⎣ × × × × × × × × × × × × A B C D ⎤ ⎥ ⎥ ⎥ ⎥ ⎦C −1 f ⎞ ⎟ ⎟ ⎟ ⎟ ⎠. (A.6) The detailed operations of HT domain intraprediction could be found in [42]. As compared to the pixel domain intrapre-diction, the computation increases especially in the number of multiplication as listed inTable 8.
A.3. In-the-loop deblocking filtering
The de-blocking filter defined in the spatial domain intro-duces mismatch error during HT domain transcoding. Par-ticularly, the deblocked pixels stored in the reference frame memory are used for motion compensation. Thus, mismatch error will propagate to the next frames via motion compen-sation until the subsequent intracoded frame or slices at the decoder. To prevent the mismatch error, implementing the de-blocking filter in the HT domain is required. However, this kind of implementation increases the complexity and memory requirement.
A.4. Subpixel interpolation
The complexity of HT domain IMC increases due to the 6-tap interpolator defined in H.264/AVC. Detailed derivations are given in the following. A 4×4 motion-compensated block can be represented as the summation of four blocks in the spatial domain where
Bpred(4×4) full pel= 4 k=1 Vk(4×4)BkHk(4×4), V1(4×4)=V2(4×4)= 0 Ih 0 0 , H1(4×4)=H3(4×4)= 0 0 Iw 0 , V3(4×4)=V4(4×4)= 0 0 I4−h 0 , H2(4×4)=H4(4×4)= 0 I4−w 0 0 . (A.7)
Table 8: Computation complexity of intraprediction for different approaches.
Mode∗ HT domain Spatial domain
Mul∗∗ Addition Mul∗∗ Addition
0 8 12 0 128 1 8 12 0 128 2 1 1 0 135 3 168 136 0 159 4 232 200 0 160 5 192 176 0 155 6 192 176 0 155 7 128 112 0 152 8 64 48 0 155 ∗0 Intra 4×4Vertical ∗1 Intra 4×4Horizontal ∗2 Intra 4×4DC
∗3 Intra 4×4Diagonal Down Left ∗4 Intra 4×4Diagonal Down Right ∗5 Intra 4×4Vertical Right ∗6 Intra 4×4Horizontal Down ∗7 Intra 4×4Vertical Left ∗8 Intra 4×4Horizontal Up ∗∗: Multiplication
We start the discussion of IMC from a 4×4 block with inte-ger MV. The HT coefficients of prediction block can be cal-culated from four HT blocks as indicated by
HTBpred(4×4) full pel
=HT 4 k=1 Vk(4×4)BkHk(4×4) = 4 i=1 HTVk(4×4)BkHk(4×4) = 4 k=1 CfVk(4×4)C−f1 CfBkC−f1 ×CfHk(4×4)CTf CfVk(4×4)C−f1 = 4 k=1 HTBk ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ c 0 0 0 0 a 0 0 0 0 c 0 0 0 0 a ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ CfHk(4×4)CTf . (A.8)
The terms of (CfVi(4×4)C−f1) and (CfHi(4×4)CTf) can be pre-computed and stored in memory. The computation of (A.8) needs 576 multiplications and 384 additions.
The subpixel interpolation filter increases the complexity of transform domain IMC. The half-pixel sample is interpo-lated from integral pixel samples by applying a 6-tap finite impulse response (FIR) filter, whose weights are (1,−20, 20, 5/8,−5, 1)/32. The HT coefficients of a prediction block on the half-pixel position have to be calculated from nine blocks
as indicated in the following equation:
HTBpred(4×4) sub pel
= 9 k=1 ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ CfVavg(4×9)Vk(9 ×4)C−f1 HTBk ⎡ ⎢ ⎢ ⎢ ⎢ ⎣ c 0 0 0 0 a 0 0 0 0 c 0 0 0 0 a ⎤ ⎥ ⎥ ⎥ ⎥ ⎦ CfHk(4 ×9)Havg(9×4)CTf ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ , (A.9) where V1(9 ×4)=V2(9 ×4)=V3(9 ×4)= 0 Ih 0 0 , V1(9 ×4)=V2(9 ×4)=V3(9 ×4)= 0 Ih 0 0 , H1(4 ×9)=H2(4 ×9)=H3(4 ×9)= 0 0 Iw 0 , V4(9 ×4)=V5(9 ×4)=V6(9 ×4)= ⎡ ⎢ ⎢ ⎣ 0 I4 0 ⎤ ⎥ ⎥ ⎦, H4(4 ×9)=H5(4 ×9)=H6(4 ×9)= 0 I4 0 , V7(9 ×4)=V8(9 ×4)=V9(9 ×4)= 0 0 I5−h 0 , H7(4 ×9)=H8(4 ×9)=H9(4 ×9)= 0 I5−w 0 0 , Vavg(4×9)= 1 32 ⎡ ⎢ ⎢ ⎢ ⎢ ⎣ 1 −5 20 20 −5 1 0 0 0 0 1 −5 20 20 −5 1 0 0 0 0 1 −5 20 20 −5 1 0 0 0 0 1 −5 20 20 −5 1 ⎤ ⎥ ⎥ ⎥ ⎥ ⎦, Havg(4×9) is the transpose ofVavg(4×9).
(A.10)
The computation of (A.9) requires 1296 multiplications and 864 additions. Assume that the frame size isM by N and the
probability of full-pixel MV isα, the total amount of
compu-tation for the HT domain IMC involves with
576×MN 4 ×α + 1296× MN 4 ×(1−α) =MN 4 (1296−720α) multiplications and 384×MN 4 ×α + 864× MN 4 ×(1−α)= MN 4 (864−480α) additions. (A.11)
As for the spatial domain IMC, the total amount of compu-tation covers M(N−1) +N(M−1) + (M−1)(N−1)×4 =12MN−8(M + N) + 4 multiplications and M(N−1) +N(M−1) + (M−1)(N−1)×5 + 64 ×MN 4 ×2=47MN−10(M + N) + 5 additions. (A.12) On the average, the SD resolution bitstream has 25% of tion vectors pointing to full-pixel locations and 75% of mo-tion vectors pointing to half-pixel locamo-tions. Therefore, the complexity increase by subpixel interpolation in the HT do-main is not preferable for transcoding. From the results of (A.11) and (A.12), the required multiplications and addi-tions of HT domain IMC are about 23 times and 3 times as compared to that of spatial domain IMC, respectively. ACKNOWLEDGMENT
This work was supported in part by the National Science Council of the Republic of China, under Grant NSC 95-2221-E009-074-MY3.
REFERENCES
[1] ITU-T Rec. H.264 and ISO/IEC 14496-10 (MPEG4-AVC), “Advanced Video Coding for Generic Audiovisual Services,” v1, May 2003; v2, January 2004; v3, September 2004; v4, July 2005.
[2] S. Wenger, “H.264/AVC over IP,” IEEE Transactions on Circuits
and Systems for Video Technology, vol. 13, no. 7, pp. 645–656,
2003.
[3] M. D. Nava and C. Del-Toso, “A short overview of the VDSL system requirements,” IEEE Communications Magazine, vol. 40, no. 12, pp. 82–90, 2002.
[4] S. Naimpally, L. Johnson, T. Darby, R. Meyer, L. Phillips, and J. Vantrease, “Integrated digital IDTV receiver with features,”
IEEE Transactions on Consumer Electronics, vol. 34, no. 3, pp.
410–419, 1988.
[5] D. Gillies, R. Schweer, and H. Zibold, “VLSI realisations for picture in picture and flicker free television display,” IEEE
Transactions on Consumer Electronics, vol. 34, no. 1, pp. 253–
261, 1988.
[6] M. Burkert, F. Frieling, U. Langenkamp, U. Libal, M. Mende, and G. Scheffler, “IC set for a picture-in-picture system with on-chip memory,” IEEE Transactions on Consumer Electronics, vol. 36, no. 1, pp. 23–31, 1990.
[7] C. A. Mancini and C. P. Markhauser, “Microprocessor con-trolled picture in picture system,” IEEE Transactions on
Con-sumer Electronics, vol. 36, no. 3, pp. 375–379, 1990.
[8] M. Honzawa, M. Koyama, T. Hibino, H. Miyashita, and Y. Shi-ine, “New picture in picture LSI enhanced functionality for high picture quality,” IEEE Transactions on Consumer
Electron-ics, vol. 36, no. 3, pp. 387–394, 1990.
[9] L. D. Johnson, J. N. Pratt, and D. C. Greene, “Low cost picture-in-picture for color TV receivers,” IEEE Transactions on
[10] S. Tsuchida and C. Yoshida, “Multi-picture system for high resolution wide aspect ratio screen,” IEEE Transactions on
Con-sumer Electronics, vol. 37, no. 3, pp. 313–319, 1991.
[11] G. W. Perkins, R. C. Hathaway, S. W. Lai, et al., “A low cost, monolithic, color picture-in-picture device,” IEEE
Transac-tions on Consumer Electronics, vol. 40, no. 3, pp. 306–316, 1994.
[12] A. Rick, T. Herfet, and S. J. Prange, “Digital color decoder for PIP-applications,” IEEE Transactions on Consumer Electronics, vol. 42, no. 3, pp. 716–720, 1996.
[13] M. Brett and D. Wendel, “High performance picture-in-picture (PIP) IC using embedded DRAM technology,” IEEE
Transactions on Consumer Electronics, vol. 45, no. 3, pp. 698–
705, 1999.
[14] M. Schu, G. Scheffler, C. Tuschen, and A. Stolze, “System on silicon-IC for motion compensated scan rate conversion, picture-in-picture processing, split screen applications and display processing,” IEEE Transactions on Consumer
Electron-ics, vol. 45, no. 3, pp. 842–850, 1999.
[15] M. Schu, D. Wendel, C. Tuschen, M. Hahn, and U. Lan-genkamp, “System-on-silicon solution for high quality con-sumer video processing—the next generation,” IEEE
Transac-tions on Consumer Electronics, vol. 47, no. 3, pp. 412–419, 2001.
[16] C. Hentschel, R. J. Bril, Y. Chen, R. Braspenning, and T.-H. Lan, “Video quality-of-service for consumer terminals—a novel system for programmable components,” IEEE
Transac-tions on Consumer Electronics, vol. 49, no. 4, pp. 1367–1377,
2003.
[17] I. Ahmad, X. Wei, Y. Sun, and Y.-Q. Zhang, “Video transcod-ing: an overview of various techniques and research issues,”
IEEE Transactions on Multimedia, vol. 7, no. 5, pp. 793–804,
2005.
[18] S.-F. Chang and D. G. Messerschmitt, “Compositing motion-compensated video within the network,” in Proceedings of the
4th IEEE ComSoc International Workshop on Multimedia Com-munications (MULTIMEDIA ’92), pp. 40–56, Monterey, Calif,
USA, April 1992.
[19] S.-F. Chang and D. G. Messerschmitt, “Manipulation and compositing of MC-DCT compressed video,” IEEE Journal on
Selected Areas in Communications, vol. 13, no. 1, part 2, pp.
1–11, 1995.
[20] Y. Noguchi, D. G. Messerschmitt, and S.-F. Chang, “MPEG video compositing in the compressed domain,” in Proceedings
of IEEE International Symposium on Circuits and Systems (IS-CAS ’96), vol. 2, pp. 596–599, Atlanta, Ga, USA, May 1996.
[21] B. Yu and K. Nahrstedt, “Internet-based interactive HDTV,”
Multimedia Systems, vol. 9, no. 5, pp. 477–489, 2004.
[22] Y.-P. Tan and H. Sun, “Fast motion re-estimation for arbitrary downsizing video transcoding using H.264/AVC standard,”
IEEE Transactions on Consumer Electronics, vol. 50, no. 3, pp.
887–894, 2004.
[23] C.-H. Li, C.-N. Wang, and T. Chiang, “A fast downsizing video transcoding based on H.264/AVC standard,” in Proceedings of
the 5th IEEE Pacific Rim Conference on Multimedia (PCM ’04),
pp. 215–223, Tokyo, Japan, November-December 2004. [24] H. Shen, X. Sun, F. Wu, H. Li, and S. Li, “A fast downsizing
video transcoder for H.264/AVC with rate-distortion optimal mode decision,” in Proceedings of IEEE International
Confer-ence on Multimedia and Expo (ICME ’06), vol. 1, pp. 2017–
2020, Toronto, Ontario, Canada, July 2006.
[25] N. Merhav and V. Bhaskaran, “A fast algorithm for DCT-domain inverse motion compensation,” in Proceedings of IEEE
International Conference on Acoustics, Speech, and Signal Pro-cessing (ICASSP ’96), vol. 4, pp. 2307–2310, Atlanta, Ga, USA,
May 1996.
[26] J. Song and B.-L. Yeo, “A fast algorithm for DCT-domain in-verse motion compensation based on shared information in a macroblock,” IEEE Transactions on Circuits and Systems for
Video Technology, vol. 10, no. 5, pp. 767–775, 2000.
[27] S. Liu and A. C. Bovik, “Local bandwidth constrained fast in-verse motion compensation for DCT-domain video transcod-ing,” IEEE Transactions on Circuits and Systems for Video
Tech-nology, vol. 12, no. 5, pp. 309–319, 2002.
[28] H. Shen, X. Sun, F. Wu, H. Li, and S. Li, “A fast downsiz-ing video transcoder for H.264/AVC with rate-distortion opti-mal mode decision,” in Proceedings of IEEE International
Con-ference on Multimedia and Expo (ICME ’06), pp. 2017–2020,
Toronto, Ontario, Canada, July 2006.
[29] J. Bialkowski, M. Barkouwsky, F. Leschka, and A. Kaup, “Low-complexity transcoding of inter coded video frames from H.264 to H.263,” in Proceedings of IEEE International
Confer-ence on Image Processing (ICIP ’06), pp. 837–840, Atlanta, Ga,
USA, October 2006.
[30] J. H. Hur and Y. L. Lee, “H.264 to MPEG-4 transcoding using block type information,” in Proceedings of IEEE International
Conference Region 10 (TENCON ’05), pp. 1–6, Melbourne,
Australia, November 2005.
[31] Y.-P. Tan and H. Sun, “Fast motion re-estimation for arbitrary downsizing video transcoding using H.264/AVC standard,”
IEEE Transactions on Consumer Electronics, vol. 50, no. 3, pp.
887–894, 2004.
[32] P. Zhang, Y. Lu, Q. Huang, and W. Gao, “Mode mapping method for H.264/AVC spatial downscaling transcoding,” in
Proceedings of International Conference on Image Processing (ICIP ’04), vol. 4, pp. 2781–2784, Singapore, October 2004.
[33] I.-H. Shin, Y.-L. Lee, and H.-W. Park, “Motion estimation for frame-rate reduction in H.264 transcoding,” in Proceedings of
the 2nd IEEE Workshop on Software Technologies for Future Em-bedded and Ubiquitous Systems (WSTFES ’04), vol. 4, pp. 63–
67, Vienna, Austria, May 2004.
[34] D. Lefol and D. Bull, “Mode refinement algorithm for H.264 inter frame requantization,” in Proceedings of IEEE
Interna-tional Conference on Image Processing (ICIP ’06), pp. 845–848,
Atlanta, Ga, USA, October 2006.
[35] J. Zhang, A. Perkis, and N. D. Georganas, “H.264/AVC and transcoding for multimedia adaptation,” in Proceedings of the
6th COST 276 Workshop, Thessaloniki, Greece, May 2004.
[36] X. Xiu, L. Zhuo, and L. Shen, “A H.264 bit rate transcoding scheme based on PID controller,” in Proceedings of IEEE
In-ternational Symposium on Communications and Information Technologies (ISCIT ’05), vol. 2, pp. 1074–1077, Beijing, China,
October 2005.
[37] D. Lefol, D. Bull, and N. Canagarajah, “Performance evalua-tion of transcoding algorithms for H.264,” IEEE Transacevalua-tions
on Consumer Electronics, vol. 52, no. 1, pp. 215–222, 2006.
[38] C.-H. Li, C.-N. Wang, and T. Chiang, “A low complexity picture-in-picture transcoder for video-on-demand,” in
Pro-ceedings of IEEE International Conference on Wireless Networks, Communications and Mobile Computing (WirelessCom ’05),
vol. 2, pp. 1382–1387, Maui, Hawaii, USA, June 2005. [39] C.-H. Li, H. Lin, C.-N. Wang, and T. Chiang, “A fast
H.264-based picture-in-picture (PIP) transcoder,” in Proceedings
of IEEE International Conference on Multimedia and Expo (ICME ’04), vol. 3, pp. 1691–1694, Taipei, Taiwan, June 2004.
[40] A. Levi and H. Stark, “Restoration from phase and magni-tude by generalized projections,” in Image Recovery Theory and
Application, pp. 277–319, Academic Press, Orlando, Fla, USA,
