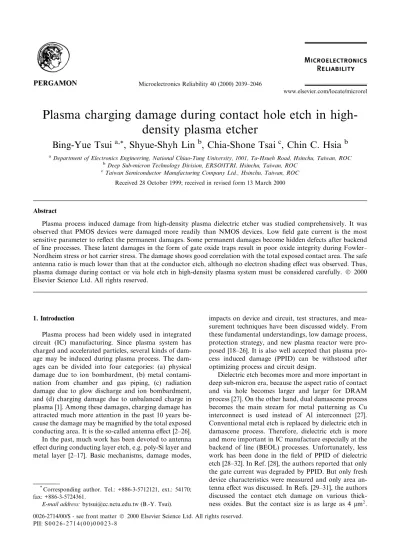

Plasma charging damage during contact hole etch in

high-density plasma etcher

Bing-Yue Tsui

_{, Shyue-Shyh Lin}

_{, Chia-Shone Tsai}

_{, Chin C. Hsia}

a_{Department of Electronics Engineering, National Chiao-Tung University, 1001, Ta-Hsueh Road, Hsinchu, Taiwan, ROC} b_{Deep Sub-micron Technology Division, ERSO/ITRI, Hsinchu, Taiwan, ROC}

c_{Taiwan Semiconductor Manufacturing Company Ltd., Hsinchu, Taiwan, ROC}

Received 28 October 1999; received in revised form 13 March 2000

Abstract

Plasma process induced damage from high-density plasma dielectric etcher was studied comprehensively. It was observed that PMOS devices were damaged more readily than NMOS devices. Low ®eld gate current is the most sensitive parameter to re¯ect the permanent damages. Some permanent damages become hidden defects after backend of line processes. These latent damages in the form of gate oxide traps result in poor oxide integrity during Fowler± Nordheim stress or hot carrier stress. The damage shows good correlation with the total exposed contact area. The safe antenna ratio is much lower than that at the conductor etch, although no electron shading e€ect was observed. Thus, plasma damage during contact or via hole etch in high-density plasma system must be considered carefully. Ó 2000 Elsevier Science Ltd. All rights reserved.

1. Introduction

Plasma process had been widely used in integrated circuit (IC) manufacturing. Since plasma system has charged and accelerated particles, several kinds of age may be induced during plasma process. The dam-ages can be divided into four categories: (a) physical damage due to ion bombardment, (b) metal contami-nation from chamber and gas piping, (c) radiation damage due to glow discharge and ion bombardment, and (d) charging damage due to unbalanced charge in plasma [1]. Among these damages, charging damage has attracted much more attention in the past 10 years be-cause the damage may be magni®ed by the total exposed conducting area. It is the so-called antenna e€ect [2±26]. In the past, much work has been devoted to antenna e€ect during conducting layer etch, e.g. poly-Si layer and metal layer [2±17]. Basic mechanisms, damage modes,

impacts on device and circuit, test structures, and mea-surement techniques have been discussed widely. From these fundamental understandings, low damage process, protection strategy, and new plasma reactor were posed [18±26]. It is also well accepted that plasma pro-cess induced damage (PPID) can be withstood after optimizing process and circuit design.

Dielectric etch becomes more and more important in deep sub-micron era, because the aspect ratio of contact and via hole becomes larger and larger for DRAM process [27]. On the other hand, dual damascene process becomes the main stream for metal patterning as Cu interconnect is used instead of Al interconnect [27]. Conventional metal etch is replaced by dielectric etch in damascene process. Therefore, dielectric etch is more and more important in IC manufacture especially at the backend of line (BEOL) processes. Unfortunately, less work has been done in the ®eld of PPID of dielectric etch [28±32]. In Ref. [28], the authors reported that only the gate current was degraded by PPID. But only fresh device characteristics were measured and only area an-tenna e€ect was discussed. In Refs. [29±31], the authors discussed the contact etch damage on various thick-ness oxides. But the contact size is as large as 4 lm2_.

*_{Corresponding author. Tel.: +886-3-5712121, ext.: 54170;}

fax: +886-3-5724361.

E-mail address: [email protected] (B.-Y. Tsui).

0026-2714/00/$ - see front matter Ó 2000 Elsevier Science Ltd. All rights reserved. PII: S0026-2714(00)00023-8

In Ref. [32], the authors studied the PPID of damascene process, but the etcher used is not a high-density plasma system.

In this paper, we report a comprehensive assessment of the PPID during dielectric etch in a high-density plasma (HDP) etcher. A set of test structures with var-ious contact number, contact size, and contact space was designed. Various device parameters were measured before and after the stress to separate the latent damages from the permanent defects. Hot carrier resistance was also evaluated. It is observed that under the same area antenna ratio, dielectric etch induces more severe dam-age to gate oxide than the conductor etch does. Thus, PPID during dielectric etch must be considered care-fully.

2. Experiments

Both NMOS and PMOS devices were fabricated by a standard 0.25 lm single-poly-triple-metal CMOS tech-nology using shallow trench isolation structure. Gate

oxide was thermally grown to 5 nm thick. N‡ _{and P}‡

doped-Si was used as gate electrode for NMOS and PMOS devices, respectively. All devices used to monitor damage are identical and the channel length and channel width is 0.24 and 5 lm, respectively. In order to place more contacts to poly-Si gate, and to exclude the e€ect of di€erent antenna ratio during poly-Si etch, the an-tenna ratio of poly-Si pad area to gate oxide area was set to 2 K for all devices. Devices with contact number of 125, 625, 1275, and 2875 corresponding to the area an-tenna ratio (AAR) of 7, 37, 75, and 170, respectively, were designed. The typical contact size is 0:3  0:3 lm2

and the contact space is 0.3 lm. For some test structures the contact size and contact space are changed to study the e€ect of contact size and contact density, respec-tively. Contact etch was performed in a high-density plasma system with inductively coupled plasma (ICP) source. The plasma density at wafer surface is about 1011

ions/cm2_{. All devices were protected by P±N diode and}

connected by the ®rst layer metal to avoid damages from other plasma processes. Fig. 1 shows the schematic di-agram of the test structure used in this work.

Low ®eld leakage current of gate oxide (Ig) at 2.5 V,

linear region threshold voltage (Vth), transconductance

(gm), sub-threshold swing (S) were all measured before

and after Fowler±Nordheim (F±N) stress to separate the latent damages from the permanent defects. The speci-®cation of Igis 10 pA which is a typical limitation of the

noise and leakage current of the automatic measurement system. The F±N stress was performed in inversion polarity at the current density of 1 mA/cm2 _{for 10 s.}

Channel hot carrier stress was performed on NMOS-FET devices at maximum substrate current and

PMOSFET devices at maximum gate current to evaluate the impact of damages on device integrity.

3. Results and discussion

Since the poly-Si area must be large enough to con-tain more contact holes, the damage level at poly-Si etch step must be examined ®rst. Four device parameters, Ig,

Vth, gm, and S, were all measured on NMOS and PMOS

devices with various AAR at poly-Si layer. The contact number is one and the metal pad is connected to a protection diode. It is observed that even if the AAR of poly-Si is as high as 10 K, no degradation of any pa-rameters were observed. These results imply that the poly-Si AAR of 2 K used for contact hole etch experi-ments will not introduce damage during poly-Si etch. Furthermore, the protection diode at metal-1 level is e€ective to avoid damage at metal etch step. All dam-ages observed for higher contact hole AAR must be attributed to the contact hole etch step.

3.1. Damage observation

Fig. 2(a)±(c) shows the cumulative probability plots of Ig, Vth, and gmof NMOS devices with various contact

number before F±N stress, respectively. Although slight di€erence of mean value of Igis observed, all of them are

within the speci®cation. The slight di€erence of Ig may

arise from the di€erent surface leakage current, since various structures are placed at various position of the test chip. Neither yield nor deviation degrades with the increase of contact number for all parameters. Fig. 3(a)± (c) shows the cumulative probability plots of Ig, Vth, and

Fig. 1. Schematic diagram of the test structure used to study the plasma process induced damage during contact hole etch. The area antenna ratio at poly-Si layer is 1000. Structures with various contact number, contact size, and contact density are all designed and measured.

gmof PMOS devices with various contact number before

F±N stress, respectively. PMOS devices with large

con-tact number show wider spread of Ig. Although the

distribution of Vthand gmof PMOS devices do not show

any contact number dependence, the obvious correlation between Igdistribution and contact number re¯ects that

PPID occurred and resulted in permanent damage to PMOS devices during contact etch. Sub-threshold swing was also measured, but no contact number dependence was observed for both NMOS and PMOS devices.

From the direct measurement results, two important phenomena were observed. At ®rst, Ig is the most

sen-sitive parameter to reveal damage among the measured

DC parameters of devices. This can be easily under-stood. Oxide charges induced by PPID can be neutral-ized after BEOL processes. However, most of the trap sites cannot be removed at the relatively low process temperature (around 400°C). Low ®eld Ig is related to

oxide trap sites while the other device parameters are related to the trapped charges. Therefore, Igcan re¯ect

PPID more sensitively. The current±voltage character-istics of high Ig devices show stress induced leakage

current (SILC). This con®rms the existence of oxide trap sites. This result is similar to that reported in Refs. [29±31,33]. Secondly, PMOS device is damaged more easily than NMOS device. This may be due to the

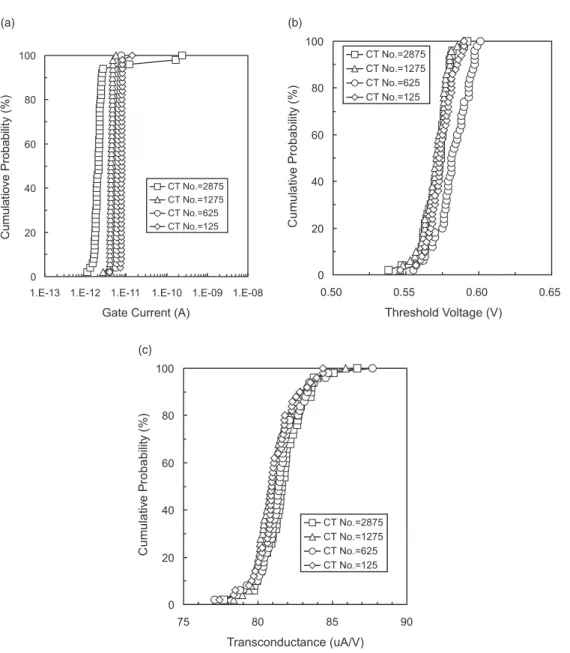

Fig. 2. Cumulative probability plots of (a) gate current Ig, (b) threshold voltage Vth, and (c) transconductance gmof NMOS devices

polarity of charging during plasma process or due to the di€erence of poly-Si doping type and is still under in-vestigation.

3.2. Latent damages

To determine if any defects were passivated during BEOL processes, another device populations were F±N stressed to 10 mC/cm2_{, and Ig, Vth, gm, and S were}

measured. Fig. 4(a) is the cumulative probability plot of Igof PMOS devices with various contact numbers after

stress. It shows that devices with more contact holes

have much wider Ig distribution after stress than those

with less contact holes. The Vthshift after stress, de®ned

as Vth …after stress† ÿ Vth…before stress†, is larger for

devices with more contact holes as shown in Fig. 4(b).

However, no apparent gm and S shift di€erence was

observed on PMOS devices with di€erent antenna ratio after stress (not shown). These phenomena indicate that most of the plasma process induced defects were passi-vated during BEOL processes. Since these defects only results in Vth shift but not gm and S shift after stress,

these passivated defects were located in gate oxide but not at oxide/silicon interface.

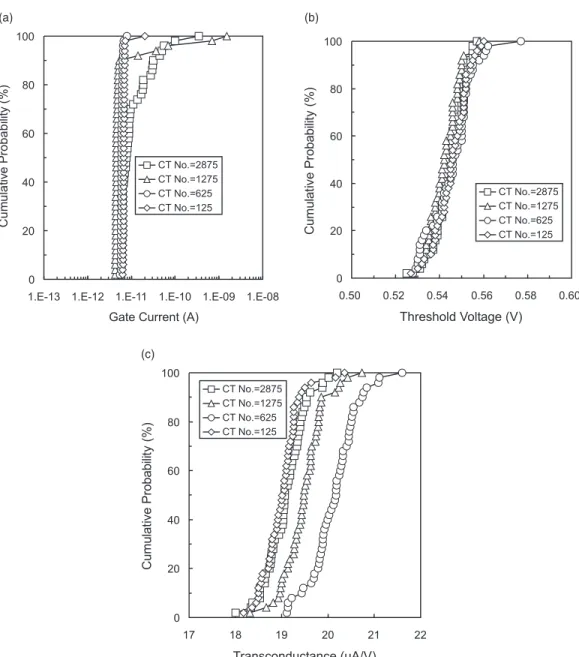

Fig. 3. Cumulative probability plots of (a) gate current Ig, (b) threshold voltage Vth, and (c) transconductance gmof PMOS devices

NMOS devices were also F±N stressed to reveal la-tent damages. However, except the mean value of NMOS devices with 2875 contact holes (AAR ˆ 170) increased from 2 to 10 pA, the other parameters did not show contact number dependence. The latent damages in NMOS devices are much less than that in PMOS devices. This con®rms that NMOS device shows less PPID than PMOS device in this experiment.

It should be noted that the F±N stress used is not strong. The only purpose is to re-generate the hidden damages. So, if device was not damaged by PPID, Igwill

not increase after F±N stress. The results indicate that the device with largest AAR is damaged seriously during contact etch. Since the sensitivity of F±N test is lower than hot carrier test, hot carrier stress was performed in the next step. It was shown that hot carrier stress could resolve latent damages even if the contact number is only several hundreds.

3.3. Impact on hot carrier resistance

Fig. 5(a) shows the Vth shift of PMOS devices with

various contact numbers after hot carrier stress at

Vdsˆ ÿ5 V and Vgsˆ ÿ0:8 V. Higher contact number

structure shows higher Vthdegradation rate. The other

parameters such as gm and S do not show contact

number dependence. There are two possible explana-tions. First, no signi®cant interface states were generated during hot carrier stress. It is reasonable because it is well accepted that the major degradation mechanism of PMOS devices under hot carrier stress is oxide trap but not interface state [34±36]. Secondly, the injected elec-trons were trapped at those trap sites generated during plasma process. Since the plasma process induced de-fects are uniformly distributed in channel region, the trapped electrons are distributed broader. The Vthshift

of NMOS devices stressed at Vdsˆ 4:5 V and Vgsˆ 1:6 V

also show contact number dependence similar to that of PMOS devices as shown in Fig. 5(b). These results con®rm that defects located in gate oxide were passi-vated during BEOL processes and can be re-generated during electrical stress. Although the amount of Vth

degradation of NMOS devices is higher than that of PMOS devices, the di€erence between various contact numbers of NMOS devices is less apparent than that of PMOS devices. This is consistent with the conclusion in previous sections that NMOS device shows less PPID than PMOS device. Furthermore, the major degradation mechanism of NMOS and PMOS devices under hot carrier stress are the interface traps and oxide traps, respectively. The observed phenomenon also supports the argument that the latent damages are in the form of oxide traps.

3.4. E€ect of contact hole size and contact hole density

At ®rst, cumulative probability of Ig of NMOS and

PMOS devices with various contact hole size of 0.2, 0.25 and 0.3 lm (aspect ratio of 3.75, 3.0, and 2.5) and var-ious contact hole space of 0.3, 0.6, and 1.2 lm are measured. Since the contact number is 600 and 625 for devices with various contact hole size and various con-tact hole space, respectively. No di€erence of Ig

distri-bution was observed. This is not surprising according to the results shown in Section 3.1. To improve the reso-lution, hot carrier stress was performed on PMOS

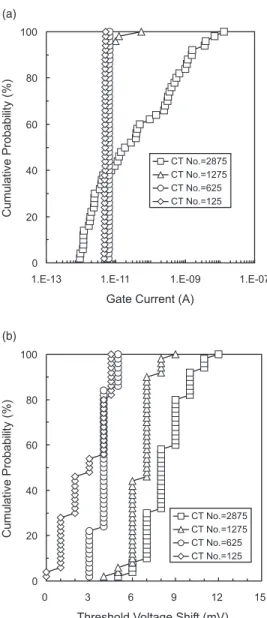

Fig. 4. Cumulative probability plots of (a) gate current and (b) threshold voltage shift of PMOS devices with various contact number after F±N stress at inversion polarity at 1 mA/cm2_for

devices. The stress condition is the same as that used in Section 3.3.

Fig. 6 shows the Vth shift of PMOS devices with

various contact hole sizes after hot carrier stress. It seems that smaller contact hole results in smaller Vth

shift. This may be due to the reduction of antenna ratio by a factor of 2.25 as contact hole size is reduced from 0.3 lm to 0.2 lm. No electron shading enhanced e€ect was observed.

Fig. 7 shows the Vth shift of PMOS devices with

various contact hole spaces after hot carrier stress. It is surprising that the larger the contact hole space, the larger the Vth shift. This may be due to the local ®eld

disturbing e€ect [37]. To deeply understand the mecha-nism, additional work on the local ®eld distribution which is beyond the scope of this paper is required. Fortunately, the contact hole space will be pushed to technology limitation to improve the circuit density. This wide space layout does not occur at real circuit.

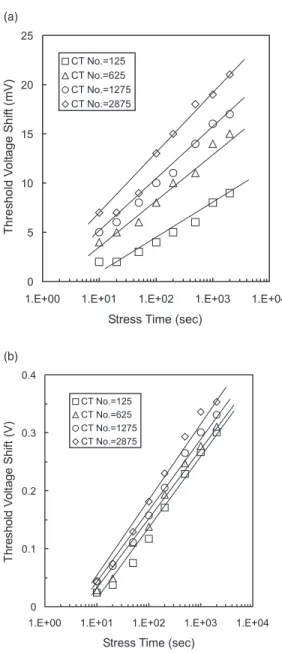

Fig. 5. Threshold voltage shift of (a) PMOS devices and (b) NMOS devices with various contact numbers after hot carrier stress. The PMOS devices is stressed at Vdsˆ ÿ5 V and

Vgsˆ ÿ0:8 V. The NMOS devices is stressed at Vdsˆ 4:5 V and

Vgsˆ 1:6 V.

Fig. 6. Threshold voltage shift of PMOS devices with various contact hole size of 0.2, 0.25 and 0.3 lm. The contact space is 0.3 lm and the number is 600.

Fig. 7. Threshold voltage shift of PMOS devices with various contact hole space of 0.3, 0.6, and 1.2 lm. The contact size is 0.3 lm and the contact number is 625.

4. Conclusions

In this work, the PPID during contact hole etch in a HDP system was investigated comprehensively. Among the devices DC parameters, Ig is the most sensitive

pa-rameter to reveal the permanent defects. Some perma-nent defects were hidden during the BEOL process. These latent damages in the form of oxide trap exist in gate oxide. They can be re-generated after F±N stress or hot carrier stress. NMOS devices show less PPID than NMOS devices in this work.

The PPID shows good correlation with the number of contact, i.e. the total area of contact holes. The hot carrier degradation decreases with the decrease of con-tact hole size due to the reduction of antenna ratio. The PPID is enhanced by the wide contact hole space. For-tunately, it will not be issues in real circuit. It is also observed that the safe antenna ratio of contact hole etch is much less than that of conductor. Therefore, PPID during contact hole or via hole etch must be considered carefully.

Acknowledgements

The authors wish to thank Dr. Y. S. Jean for part of hot carrier stress. This work is partially supported by the National Science Council, ROC, under the contract no. NSC89-2215-E-009-074.
