An approach to mining the multi-relational imbalanced database

(1)

An approach to mining the multi-relational imbalanced database

Chien-I Lee

a

, Cheng-Jung Tsai

b,*

, Tong-Qin Wu

a

, Wei-Pang Yang

c

a_{Department of Information and Learning Technology, National University of Tainan, Tainan, Taiwan, ROC} b_{Department of Computer Science, National Chiao Tung University, Hsinchu, Taiwan, ROC} c_{Department of Information Management, National Dong Hwa University, Hualien, Taiwan, ROC}

Abstract

The class imbalance problem is an important issue in classification of Data mining. For example, in the applications of fraudulent telephone calls, telecommunications management, and rare diagnoses, users would be more interested in the minority than the majority. Although there are many proposed algorithms to solve the imbalanced problem, they are unsuitable to be directly applied on a multi-relational database. Nevertheless, many data nowadays such as financial transactions and medical anamneses are stored in a multi-rela-tional database rather than a single data sheet. On the other hand, the widely used multi-relamulti-rela-tional classification approaches, such as TILDE, FOIL and CrossMine, are insensitive to handle the imbalanced databases. In this paper, we propose a multi-relational g-mean decision tree algorithm to solve the imbalanced problem in a multi-relational database. As shown in our experiments, our approach can more accurately mine a multi-relational imbalanced database.

Keywords: Data mining; Classiﬁcation; Imbalance; Relational database

1. Introduction

Most structural data nowadays, like ﬁnancial transac-tions and medical anamneses, are stored in the multi-rela-tional database. A multi-relamulti-rela-tional database usually consists of numerous data sheets and each of them would contain a number of tuples. A data sheet is also called a relation and there are usually one target relation and several non-target relations in a multi-relational database. Each tuple in the target relation is composed of several attribute values and a target class, but a tuple in the non-target rela-tions contains only the attribute values. Therefore, a tuple in the target relation is also called target tuple. No matter the target or non-target relation, they all possess a primary key and some foreign keys. The foreign key usually

con-nects to the primary or foreign key in other relations to make the database operations such as join or select feasible. There are mainly two kinds of connection between the rela-tions, which are (a) the connections between a primary key K and some foreign keys pointing to K; (b) the connections between two foreign keys K1and K2which connect to an identical primary key K.

Unfortunately, the classification techniques of tradi-tional data mining, such as decision trees (Quinlan, 1993), neural networks (Mitchell, 1997) and support vector machines (Burges, 1998), are only applied for a singular data sheet. In order to extract out the practical and valu-able information from the relational databases, many multi-relational classification approaches had been pro-posed in recent years. The most widely used category of approaches to multi-relational classification is Inductive Logic Programming (Lavrac & Dzeroski, 1994) such as FOIL (Quinlan et al., 1993), Golem (Muggleton & Feng, 1990), Progol (Muggleton, 1995), TILDE (Blockeel, De Raedt, & Ramon, 1998), and CrossMine (Yin, Han, Yang, & Yu, 2004). However, the rules mined by these methods will be guided by the negative/major tuples. That is, 0957-4174/$ - see front matter 2007 Elsevier Ltd. All rights reserved.

doi:10.1016/j.eswa.2007.05.048

*

Corresponding author. Tel.: +886 6 2133111x777; fax: +886 6 3017137.

E-mail addresses:leeci@mail.nutn.edu.tw(C.-I. Lee),tsaicj@cis.nctu. edu.tw(C.-J. Tsai),wpyang@cis.nctu.edu.tw,wpyang@mail.ndhu.edu.tw

(W.-P. Yang).

www.elsevier.com/locate/eswa Expert Systems with Applications 34 (2008) 3021–3032

Expert Systems with Applications

(2)

although it can generate a classifier with high accuracy, it is unable to provide the rules precisely for the positive/minor tuples. For some practical applications such as fraudulent telephone calls and rare diagnoses, users would be more interested in the minor tuples. Although there are also many proposed solutions for the imbalanced problem ( Jap-kowicz & Stephen, 2002; Tsai, Lee, Chen, & Yang, 2007), they are unsuitable to be directly applied in a rela-tional database. Thus, in this paper, we propose a multi-relational g-mean decision tree, called Mr.G-Tree, as the new solutions for an imbalanced multi-relational database. As it is named, Mr.G-Tree is a decision-tree-based algo-rithm. We focus on the decision-tree-based approaches since decision tree has several advantages (Rastogi & Shim, 2000), which are (a) decision tree is more efficient for large training data than neural networks which would spend a lots time on thousands of iterations; (b) a decision tree algorithm does not require the domain knowledge or prior knowledge; (c) decision tree displays the good classification accuracy compared to other techniques. For clear explana-tion, in the paper we will use ‘‘the positive’’ or ‘‘the minor-ity’’ to denote the minor but interesting tuples, and on the contrary ‘‘the negative’’ or ‘‘the majority’’ to represent the major but trivial target classes in a database.

The remainder of this paper is organized as follows. Sec-tion2is the review of the related works. In Section3, multi-relational g-mean decision tree will be introduced. The performance evaluation of will be shown in Section 4. Finally, the conclusion and future research directions will be demonstrated in Section 5.

2. Related work

In this section, we ﬁrst introduce the main principle for inducing a decision tree in Section 2.1. We then review some approaches which were proposed to mine a multi-relational database in Section2.2. The imbalanced problem will be discussed in Section2.3.

2.1. Decision tree

A decision tree (Han & Kamber, 2001; Quinlan, 1993) is a ﬂow-chart-like tree structure, which is constructed by a recursive divide-and-conquer algorithm. In a decision tree, each internal node denotes a test on an attributes, each branch represents an outcome of the test, and each leaf node has an associated target class. The top-most node in a tree is called root and each path from the root to a leaf node represent a rule. A typical decision tree is shown in Fig. 1. To classify an unknown example, beginning with the root node, successive internal nodes are visited until this example reaches a leaf node. The class of this leaf node is then assigned to this example as a prediction. For instance, the decision inFig. 1will approve a golden credit card application if the applicant has a salary higher than 85000 and his repayment record is good.

2.2. Multi-relational classiﬁer

In the current field of the multi-relational classification, the most common one is Inductive Logic Programming (ILP). The formal definition of the ILP problem is:

‘‘Given background knowledge B, positive tuples TP, and negative tuples TN, ﬁnd a hypothesis H, which is a set of Horn clauses, such that"tp 2 TP : H [ Bj=tp and "tn 2 TN : H [ Bj5tn’’.

The well known ILP systems are FOIL (Quinlan et al., 1993), Golem (Muggleton & Feng, 1990), Progol ( Muggle-ton, 1995), TILDE (Blockeel et al., 1998), and CrossMine (Yin et al., 2004). First-order inductive learning (FOIL) takes CN2 algorithm (Clark & Niblett, 1989) as the basis and applies top-down and general-to-specific search to establish numerous rules. Each rule will include as many the positive as possible. On the contrary, Golem adopts bottom-up and specific-to-general search, it uses the tech-niques of RLGG (Relative Least General Generalization) to undertake generalization among a number of specific rules. Regarding with Progol, it is based on the AQ algo-rithm (Michalski, 1969) and integrates the searching meth-ods in FOIL and Golem. However, higher calculating cost will be caused when the database is enlarged as the com-mon disadvantage for traditional ILP approaches.

In order to reduce the time cost, TOP-down induction of ﬁrst order logical decision trees (TILDE) is proposed. TILDE is a binary logical decision tree and based on the C4.5 algorithm. Experiments also show that its accuracy is deﬁnitely better than the traditional ILP approaches (Bostro¨m, 1995). However, TILDE is inapplicable the large-scale databases. To solve the scalability problem, based on FOIL, CrossMine algorithm (Yin et al., 2004) is proposed. In order to reduce the requirement of memory, CrossMine virtually joins target relation and non-target relation together. It propagates the primary key and the target class in target relation to all non-target relations. Accordingly, there are two additional columns ‘‘IDs’’ and ‘‘class labels’’ in each non-target relation. By this

(3)

tion approach, CrossMine can calculate the foil gain in each relation without joining all the relations into an indi-vidual table and therefore the memory cost can be well reduced. Owing to the well consideration of connections among all relations, its accuracy performs much better than FOIL.

2.3. Class imbalanced problem

The proposed techniques aiming at the class imbalanced problem so far could be classiﬁed into three categories as follows (Barandela, Sanchez, Garcia, & Rangel, 2003): 2.3.1. Sampling-based

Over-sampling and under-sampling are two main tech-niques in this category. Over-sampling could be further classified into random over-sampling and focused over-sam-pling (Aha, Kibler, & Albert, 1991; Han, Wang, & Mao, 2005). Random over-sampling approach over-samples the minority class at random until it matches the size of the majority class. Focused over-sampling approach over-sam-ples the minority class only with data close to the bound-aries between the minority class and the majority class. Similarly, under-sampling could be also classified into ran-dom under-sampling and focused under-sampling ( Deh-meshki, Karakoy, & Casique, 2003; Derouin, Brown, Beck, Fausett, & Schneider, 1991; Lewis & and Catlett, 1997). The former approach removes the majority class at random until it contains as many examples as the minor-ity class, and the latter one removes the majorminor-ity examples lying further away. The main idea of focused under-sam-pling is to remove the noise or outlier data and to reduce the size of majority class by sampling. The combination of over-sampling and under-sampling has also been pro-posed (Cohen, Hilario, Sax, Hugonnet, & Geissbu¨hler, 2006; Zhou & Liu, 2006). However, over-sampling will increase the training set size and therefore enlarge the com-putational burden and the impact of noise data; under-sampling has been proven to be ineffective since it results in excluding some useful information (Barandela et al., 2003; Japkowicz & Stephen, 2002).

2.3.2. Cost-based

Cost-Modifying approach (Pazzani et al., 1994; Zadrozny & Elkan, 2001) reduces the relative misclassiﬁ-cation cost of the majority class (or increasing that of the minority class) to make it correspond to the size of the minority class. However, it is hard for a user to assign a proper cost when he/she is unfamiliar with the domain knowledge (Japkowicz & Stephen, 2002).

2.3.3. Imbalance-insensitive

This approach is more attractive and has been proven to be more eﬀective than the above two approaches ( Jap-kowicz & Stephen, 2002). The main idea of this technique is to develop an approach that is insensitive to the imbal-ance problem. Proposed techniques including example

weighting, rule removing, attribute correlation analysis, etc. (Anto, Susumu, & Akira, 2000; Ezawa, Singh, & Nor-ton, 1996; Fawcett & Provost, 1996; Kubat, Holte, & Mat-win, 1998; Lawrence, Burns, Back, Tsoi, & Giles, 1998). Among the proposed imbalance-insensitive approaches, some of them are limited to speciﬁc dataset and some take a lot of training time due to the natural property of neural network. Comparatively, SHRINK (Kubat et al., 1998) is applicable to most applications with numeric attribute data and eliminates the disadvantage described above. SHRINK was developed by the principle of BRUTE ( Rid-dle, Segal, & Etzioni, 1994), it searches for the most accu-racy for not only the minority, but also the majority simultaneously by the use of g-mean to reach the best par-tition. However, its shortcoming is to only take care of numeric attribute and search for the best interval in a single one to each attribute. Once if the positive are distributed in two extremities of attribute values, SHRINK will have a poor accuracy.

3. Multi-relational g-mean decision tree algorithm

Although there are many multi-relational database min-ing classiﬁers as described in Section2.1, they can not solve the imbalanced problem. Furthermore, the proposed algo-rithms to solve the imbalanced dataset are unsuitable to be directly applied on a multi-relational database either. Thus, in this paper, we propose the Multi-relational g-mean deci-sion tree, called Mr.G-Tree, to solve this problem. Without loss of generality, only the case that there are two target classes in a database will be discussed in our paper. If more than two target classes are involved, the target class with the smallest ratio or the interesting one can be identiﬁed as the minority, and the rest will be regarded as the majority.

3.1. G-mean based classiﬁcation model

The confusion matrix in Table 1 was a widely used matrix to illustrate different classification measurements. In this matrix, a means the number of the negative that is accurately classified, b is the number that the negative is classified into the positive, c denotes the number that the positive is classified into the negative, and d signifies the number of the positive that is accurately classified. The traditional accuracy is defined as (a + d)/ (a + b + c + d). However, to handle the imbalanced prob-lem, g-mean in Eq. (1) was introduced to represent the

Table 1

The confusion matrix

Predicted negative Predicted positive

True negative a b

(4)

average proportion for the accuracy of the minority and the majority (Rastogi & Shim, 2000).

g¼ fða dÞ=½ða þ bÞ ðc þ dÞg1=2: ð1Þ

As stated in Section2.3, the shortcomings of SHRINK are (a) it establishes only a best interval for each attribute; (b) it is inapplicable to the categorical attribute. These two properties would reduce the predicted accuracy when there are categorical attributes in the training data and when the minority distribute over several intervals of an attribute (Tsai et al., 2007). In order to build a classiﬁer which can handle the imbalanced data more accurately, based on g-mean measurement, we establish a best interval for each numeric attribute and a best subset for each categorical attribute in every internal node o. Each best interval/best subset of the attribute i denotes a test for a tuple. To give higher importance to a test with smaller error, each test is associated with a weight as in Eq. (2) according to its g-mean value gi

wi¼ log½gi=ð1 giÞ: ð2Þ

Then all of them are combined as a splitting function as shown in Function 3 for an internal node of Mr.G-Tree. SFðoÞ ¼X

i

hi wi; ð3Þ

In Eq.(3), hi= 1 if the value of attribute i falls in this inter-val and hi=1 otherwise. However, to ensure that all weight is larger than 0, the test with gi< 0.5 is discarded.

The best interval of a numeric attribute is deﬁned as [1/2(aip+ minai), 1/2(aiq+ maxai)], where minaiand maxai, respectively denotes the minimal and maximal attribute value of the interval with the maximal g-mean, aip is the attribute value of tuple p with the order prior to the tuple with attribute value minai, and aipis the attribute value of tuple q with the order posterior to the tuple with attribute value maxai. The reason is that when predicting the unseen data, the output hiof an example with attribute value lies in the [aip, minai] and [aiq, maxai] is unclear. To deal with cat-egorical attribute, we adopt Set Theory to establish the best subset. First, for each categorical attribute, we classify all tuples by their target classes and establish a corresponding power set. Each power set would contain 2k-2 subsets, where k is the number of values in this categorical attri-bute. For each subset, the tuples belonging to it are regard

as the positive, and are regard as the negative otherwise. Finally, the g-mean of each subset is computed and the sub-set with the maximal g-mean is selected as the best subsub-set. However, when a categorical attribute contains many val-ues, the computational cost for a categorical attribute by our approach would be nontrivial. To solve this problem, when the number of values in a categorical attribute is lar-ger than 10, we use a simpler approach. That is, for each value, the tuples belonging to it are regard the positive, and are regard as the negative otherwise. As a result, there are only k subsets when k is larger than 10.

In addition, when a leaf node is not pure, most decision tree algorithms will assign this leaf node a negative class if there are more negative instances in this node. However, such a method may reduce the accuracy of the positive that the users are interested in. Thus, in order to mine the posi-tive more accurately, when assigning the target class to a leaf node, Mr.G-Tree adds in the consideration of the imbalanced problem as shown inDeﬁnition 2.Fig. 2 repre-sents the corresponding pseudo code.

Deﬁnition 1. Given a training dataset T that includes both the minority and majority. For any leaf node Ni on Mr. G-Tree, assume that NP represents the number of the minority in Ni, NN represents the number of the majority in Ni, TP represents the number of all the majority in T, and TN represents the number of all the majority in T; if NP 6 (NN· TP)/TN, then the target class of leaf node Ni will be negative, and vice versa.

Example 1. To make readers understand our approach mentioned in this section more clearly, here we take the sin-gle-relational database inTable 2as an example. This data-base contains 20 tuples in which 2 tuples are the positive and 18 ones are the negative and the column BMI denotes ‘‘body mass index’’. The Mr.G-Tree trained fromTable 2is illustrated inFig. 3. In the Node 1 ofFig. 3, the best inter-val of Attribute ‘‘age’’ is [48, 66] and its g-mean is [(13/ 18)· (2/2)]1/2= 0.85, consequently the weight of this best interval is log [0.85/(1 0.85)] = 0.75. Similarly, the best interval, g-mean, and weight of Attribute ‘‘BMI’’ is [13, 18], 0.85, and 0.75, respectively. As for the subsets and the corresponding g-mean of Attribute ‘‘sport’’ and ‘‘smoking’’ in Node 1, we detail them inTable 3in which S(i) denote a subset that contains the attribute-value i. Obviously, the best subset Attribute ‘‘sport’’ is [occasional,

Procedure Leaf_Node(n) Begin

For each leaf node

If NP≤(NN ×TP) / TN then

The target class of this node is negative; Else

The target class of this node is positive; End if

End

(5)

never] and the g-mean and weight of this subset is [(8/ 18)· (2/2)]1/2

= 0.67 and log [0.67/ (1 0.67)] = 0.31, respectively. Note that since the g-mean of the best subset S(yes) in Attribute ‘‘smoking’’ is less than 0.5, it is not used in Node 1. Finally, we can get the splitting function SF(o) in each node o inFig. 3is

SFð1Þ: 0:75 hage½48; 66 þ 0:75 hBMI ½13; 18 þ 0:31 hsport½occasional; never; SFð2Þ: 0:66 hsmoking½yes:

3.2. Handling an imbalanced multi-relational database In order to mine the multi-relational database and avoid the shortcomings of waste memory by joining all data-sheets to a single one, Mr.G-Tree extended the concepts of propagation introduced in CrossMine to virtually link the target relation and non-target relation together. Yet, CrossMine will generate redundant target classes in each non-target relation, which will result in the incorrect g-mean calculated. For example, assuming there are two tuples t1and t2in target relation R1and both of them link to the tuple a1in non-target relation R2. If applying Cross-Mine, tuple a1 will possess two target classes simulta-neously, aﬀecting the original distribution of target classes in non-target relation R2. If g-mean is calculated by such propagation outcomes, the unreal values for all attributes in R2will be obtained owing to two target classes of a1 are considered. Take the attribute ‘‘smoking’’ in

Table 4 as the example, there are only 9 tuples in non-target relation ‘‘Physical’’, but if taking the propagation method proposed in CrossMine, the number of tuples will be increased to 18 and then the original class distribution in non-target relation ‘‘Physical’’ will be changed.

In order to solve this problem, Mr.G-Tree introduces the g-mean Tuple ID propagation algorithm, also known as GTIP algorithm. GTIP maintains the original data dis-tribution in each non-target relation by restoring the num-ber of target classes of each tuple to a single one as described in Deﬁnition 2.

Deﬁnition 2. Given a non-target relation R0 and assume that each tuple ti in R0 contain two additional columns ‘‘IDs’’ and ‘‘class labels’’ after the propagation. If the class labels of a tuple are all the positive, this tuple will be regarded as a positive tuple; if the class labels of a tuple are all the negative, it will be regarded as a negative tuple; if tuple ticontains both positive and negative class labels, this tuple would contains CP/(CP + CN) positive class and CN/(CP + CN) negative class, where CP and CN, respec-tively represents the numbers of the positive and that of the negative in the class labels column.

ByDeﬁnition 2, GTIP can prevent the original distribu-tion of target class in non-target reladistribu-tion from the distor-tion and the inaccurate g-mean. Fig. 4 is the pseudo code of GTIP algorithm. Here we again take Table 4c as an example. The result of GTIP is shown inTable 5.

In addition, semantic links is always a major issue in the research ﬁeld of Multi-relational database. The research shows that the relations with longer semantic links will become less important in the Multi-relational database (Liu, Yin, & Han, 2005). Thus, in order to design a classi-ﬁer suitable for the multi-relational database, Mr.G-Tree Table 2

A training database

Patient Age BMI Sport Smoking Diagnosis

1 41 12 Daily Yes Health

2 64 14 Occasional Yes Cancer

3 57 17 Occasional No Health

8 49 17 Never Yes Cancer

9 52 15 Never No Health

13 33 32 Never Yes Health

14 28 33 Occasional Yes Health

Fig. 3. The classiﬁcation model constructed by usingTable 2.

Table 3

The power set and corresponding g-mean of Attribute (a) ‘‘sport’’ and (b) ‘‘smoking’’ in Node 1 ofFig. 3

(a) Subset S(d, o) S(o, n) S(d, n) S(d) S(o) S(n) G-mean ffiffiffiffiffiffiffiffiffiffiffi4 1812 q ffiffiffiffiffiffiffiffiffiffiffi 8 1822 q ffiffiffiffiffiffiffiffiffiffiffi 6 1812 q ffiffiffiffiffiffiffiffiffiffiffi 9 1802 q ffiffiffiffiffiffiffiffiffiffiffi 12 1812 q ffiffiffiffiffiffiffiffiffiffiffi 14 1812 q

(b) Subset S(yes) S(no)

G-mean ffiffiffiffiffiffiffiffiffiffiffi4 1822 q ffiffiffiffiffiffiffiffiffiffiffi 10 1802 q

(6)

takes the semantic link into account and defines a non-tar-get relation as the effective relation or non-effective relation as shown in Definition 3. While constructing each node, Mr.G-Tree will only propagate the IDs and class labels to an effective relation and then calculate the best inter-vals/subsets of all attributes in the effective relation. In other words, the tuples used to build the node in an upper layer will be closer to the target relation, which can solve the problem of weaker semantic links.

Deﬁnition 3. Assume that the length of semantic links between a non-target relation and the target relation is l, and the depth of Mr.G-Tree is d (the depth of root node is 0). While constructing a node in k-layer of Mr.G-Tree, a

non-target relation is deﬁned as an effective relation if l 6 d, and is deﬁned as a non-effective relation otherwise. 3.3. The detailed step of Mr.G-Tree

Integrating the methods mentioned in Sections 3.1 and 3.2, we detail the steps of multi-relational g-mean decision tree as follows.Fig. 5is the pseudo code of Mr.G-Tree.

1. Performing GTIP algorithm to all eﬀective relation. 2. Calculating the best interval or best subset of each

attribute in every eﬀective relation and compute the g-mean.

Procedure GTIP(R’) Begin

For each non-effective relation R’ /* a non-effective will be defined in Definition 3 For each primary key and foreign-key k in R’

If R’ can connect to a relation R that contain the column “class labels” via

R’.k then

Propagate IDs and class labels from R to R’; End if

For each tuple tiin relation R’

Assign tuple ti with CP / (CP+CN) positive class and CN / (CP+CN) negative

class;

Return the new target class to each tuple; End

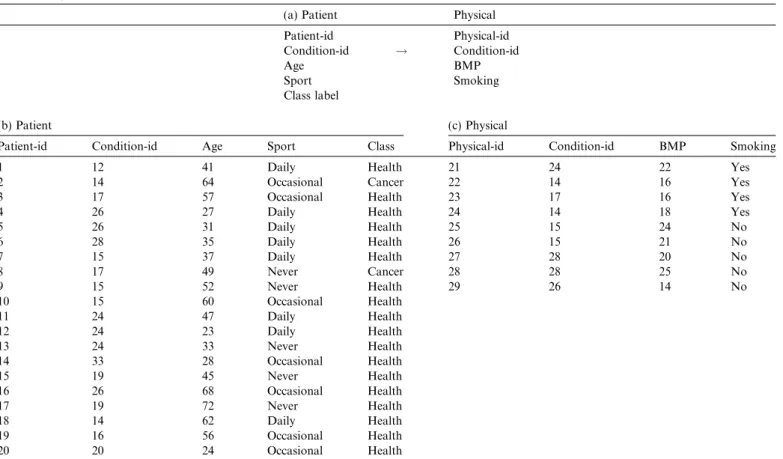

Fig. 4. The pseudo code of g-mean tuple ID propagation algorithm. Table 4

A relational database in which (a) the connection between two relations ‘‘Patient’’ and ‘‘Physical’’; (b) the details of relation ‘‘Patient’’; (c) the details of relation ‘‘Physical’’

(a) Patient Physical

Patient-id Physical-id Condition-id ! Condition-id Age BMP Sport Smoking Class label (b) Patient (c) Physical

Patient-id Condition-id Age Sport Class Physical-id Condition-id BMP Smoking

1 12 41 Daily Health 21 24 22 Yes

2 14 64 Occasional Cancer 22 14 16 Yes

3 17 57 Occasional Health 23 17 16 Yes

4 26 27 Daily Health 24 14 18 Yes

5 26 31 Daily Health 25 15 24 No 6 28 35 Daily Health 26 15 21 No 7 15 37 Daily Health 27 28 20 No 8 17 49 Never Cancer 28 28 25 No 9 15 52 Never Health 29 26 14 No 10 15 60 Occasional Health 11 24 47 Daily Health 12 24 23 Daily Health 13 24 33 Never Health 14 33 28 Occasional Health 15 19 45 Never Health 16 26 68 Occasional Health 17 19 72 Never Health 18 14 62 Daily Health 19 16 56 Occasional Health 20 20 24 Occasional Health

(7)

3. Discarding the attribute if its best g-mean is less than 0.5.

4. Calculating the weight of every attribute as wi= log [gi/(1 gi)].

5. Let hidenote the output function of attribute i. If an attribute value lies in the best interval then hi= 1; hi=1 otherwise.

6. Combining the output function and weight of all the attributes to generate the splitting function in each node o as SF(oÞ ¼Pihi wi.

7. A tuple is allotted to the left child node if the SF is greater than 0; otherwise, to the right one.

8. When other relations are able to link to an eﬀective relation through primary key and foreign key, the data in the column of IDs and class labels will be

Procedure Traintree(D) Begin

Initial Mr. G-Tree’s current depth d = 0; If D is pure or each weight wi = 0 in D then

Return; Else

If the Mr.G-Tree get deeper then d = d + 1; Initial Left_D =φ , Right_D =φ;

End if

For each non-effective relation R’ Call GTIP(R’);

For each effective relation R For every attribute i

If the attribute is numeric then

Sort all examples according the value of this attribute; For each positive example j

Calculate the interval;

Calculate the g-mean gi of the interval [1/2(aip+ minai), 1/2(aiq+ maxai);

Select the best interval whose gi is the maximal;

If gi < 0.5 then discard this attribute;

Elseif gi = 1 then wi = 1;

Else wi= log[gi / (1-gi)]

End if Else

Building the corresponding power set; For each subset

Classify all examples to the corresponding subset by their class; Calculate the g-mean giof this subset;

Select the best subset whose gi is the maximal;

If gi < 0.5 then discard this attribute;

Elseif gi = 1 then wi = 1;

Else wi= log[gi / (1-gi)]

End if End if

Classification function SF = hi×wi;

For each training example t∈D

If SF(t)≥0 then Left_D = Left_D∪t; Else Right_D = Right_D∪t; End if Traintree (Left_D); Traintree (Right_D); Call Leaf_Node(D); End

Fig. 5. The pseudo code of Mr.G-Tree. Table 5

The propagation results ofTable 4c by using GTIP Physical

Physical-id Condition-id BMP Smoking IDs Class labels

21 24 22 Yes 11, 12, 13 c:0, h:1 22 14 16 Yes 2, 18 c:1/2, h:1/2 23 17 16 Yes 3, 8 c:1/2, h:1/2 24 14 18 Yes 2, 18 c:1/2, h:1/2 25 15 24 No 7, 9, 10 c:0, h:1 26 15 21 No 7, 9, 10 c:0, h:1 27 28 20 No 6 c:0, h:1 28 28 25 No 6 c:0, h:1 29 26 14 No 4, 5, 16 c:0, h:1

(8)

propagated to this relation. After that, setting the relation as the eﬀective one.

9. Repeating the steps from 1 to 8 until all the nodes are pure or can not be further spilt.

10. Assigning the target class to each leaf node according toDeﬁnition 2.

3.4. An example of Mr.G-Tree

Here, we clearly introduce the process of Mr.G-Tree by using Table 4 again. In the beginning, Mr.G-Tree calcu-lates the best interval/subset and the corresponding g-mean of Attribute ‘‘age’’ and ‘‘sport’’ in the eﬀective relation ‘‘Patient’’. As described inExample 1, the best interval of the numeric attribute age sport is [48, 66] and the corre-sponding g-mean is 0.85; as for the categorical attribute ‘‘sport’’, its best subset is [occasional, never] and 0.67 for g-mean. The weight for those two attributes is respectively wage= 0.75 and wsport= 0.31. Hence, the splitting function in the root node of Mr.G-Tree is

SFð1Þ ¼ 0:75 hage½48; 66 þ 0:31 hsport½occasional; never: Since the non-target relation ‘‘Physical’’ can link to effec-tive relation ‘‘Patient’’ through foreign key ‘‘condition-id’’, Mr.G-Tree will propagate the data in the column ‘‘IDs’’ and ‘‘class labels’’ to the relation ‘‘Physical’’ in the next loop. The propagation results have been shown in Table 5. In the meanwhile, the relation ‘‘Physical’’ will be set as effective one. Next, Mr.G-Tree calculates the g-mean of Attribute ‘‘age’’, ‘‘sport’’, ‘‘BMP’’, and ‘‘smoking’’ from all effective relation. The result comes that the g-mean of Attribute ‘‘age’’ and ‘‘sport’’ are both less than 0.5, so the two attributes are discarded. However, the best interval of the numeric attribute ‘‘BMP’’ is [15, 19] and the corre-sponding g-mean is 0.84; as for the categorical attribute ‘‘smoking’’, its best subset is [yes] and 0.77 for g-mean. The weight for those two attributes is wsmoking= 0.52 and wBMP= 0.72, respectively. Hence, the splitting function in Node 2 of Mr.G-Tree is

SFð2Þ ¼ 0:52 hsmoking½yes þ 0:72 hBMP½15; 19:

Finally, taking use of the rules described inDeﬁnition 2to assign the target class to all leaf nodes, we can get the Mr.G-Tree as illustrated inFig. 6.

4. Experimental analyses

In this section, the software and hardware environment and the experimental databases for our experiments will be shown in Section4.1. The measurement for evaluation of an imbalanced database will be introduced in Section4.2. Finally, the comparisons among TILDE, CrossMine and Mr.G-Tree are illustrated in Sections4.3 and Section 4.4. 4.1. The experimental environment and databases

We implemented our Mr.G-Tree and two state-of-the-art multi-relational classiﬁers TILDE and CrossMine in Microsoft Visual C++ 6.0 for performance analysis. All experiments in this paper are implemented under the Win-dows 2000 professional on a PC equipped with Intel Pen-tium IV 3.0 GHz CPU and 512 MB DDR memory. Our experimental databases can be divided into 2 parts as follows.

4.1.1. Real multi-relational databases

Two real multi-relational databases: Financial database and Mutagenesis database which had been used in Cross-Mine (Yin et al., 2004) are again applied. Financial data-base includes 1 target relation, 7 non-target relations and 75982 tuples; Mutagenesis database contains 1 target rela-Fig. 6. The Mr.G-Tree constructed by using the relational database in

Table 4.

Table 6

The details of two real multi-relational databases Id

Database Financial (1) Mutagenesis (2)

# Non-target relation 7 3

# Attribute in target relation 4 4

# Positive tuples in target relation 76 64 # Total tuples in target relation 400 2 # Tuples in all relations 75,982 15,218

Table 7

The parameters of synthetic multi-relational database generator

Name Description Parameter

jRj Number of relation x

T Number of tuples in each relation y

Imbalance The percentage of positive tuples in target relation

z% Tmin Minimal number of tuples in each relation 50

Amin Minimal number of attributes in each relation 2

Amax Maximal number of attributes in each relation 5

Vmin Minimal value in each attribute 2

Vmax Maximal value in each relation 1000

Fmin Minimal number of foreign keys in each relation 2

Fmax Maximal number of foreign keys in each

relation

(9)

tion, 3 non-target relations and 15,218 tuples. The details of the two databases are listed inTable 6.

4.1.2. Synthetic multi-relational databases

To have further experimental analysis, we code a data generator to generate proper synthetic multi-relational dat-abases (Quinlan et al., 1993). Each synthetic multi-rela-tional database contains one target relation and several non-target relations. Table 7 is the related parameter of our data generator. Five parameters: Tmin, Amin, Amax, Vmin and Fmin, will be ﬁxed by referencing the settings applied in CrossMine.

4.2. The measurement

Since the accuracy which is widely used to evaluate a classiﬁer is not a proper metric (Joshi, 2002); in this paper, we use the accuracy of the minority as shown in Eq. (4), where c and d have been described inTable 1, to evaluate the accuracy of a classiﬁer on the minority.

accuracyþ¼ d=ðc þ dÞ; ð4Þ

Furthermore, ZR and ZP(Joshi, 2002) in Eqs.(5) and (6) are utilized to evaluate the overall accuracy between Clas-sifier A and B. In Eqs. (5) and (6), RA, RB, PA, and PB, respectively represents the recall of Classifier A, the recall of Classifier B, the precision of A and that of B; ncdenotes the total number of the positive, nA

0 is the number of the po-sitive predicted by A, nB

0 is the number of the positive pre-dicted of B, R = (RA+ RB)/2, and P = [(nA0 PAÞ + (nB 0 PBÞ]/(nA0þ nB0Þ. ZR¼ RA RB ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi 2Rð1 RÞ=nc p ð5Þ ZP ¼ PA PB ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi Pð1 P Þð1=nA 0þ 1=nB0Þ p : ð6Þ

If ZRP1.96, the overall accuracy of RA is better than RB(denoted by RA RB). If jZRj < 1.96, the overall accuracy of RB is better than RA(denoted by RA RB). IfjZRj<1.96, there is no significant difference between Clas-sifier A and B and will be denoted by RA RB.The way to use the ZPto evaluate two classifiers is similar. By using ZR and ZP, we can compare two classifiers in the aspect of overall accuracy as follows.

(a) If (RA RB and PA PB) or (RA RB and PA PB) or (RA RBand PA PB), then the over-all accuracy of Classiﬁer A is better than the Classiﬁer B (A > B).

(b) The method of judgment for (B > A) is identical to the one mentioned above.

(c) If (RA RB and PA PB), that will be A B. (d) It may happen that one metric is signiﬁcantly better

but the other is significantly worse. If (RA RB and PA PB) or (RA RB and PA PB), F-mea-sure as shown in Eq. (7) would be utilized as the way for the accuracy judgment. However, since F-measure does not have any probabilistic interpre-tation, we cannot apply any significance test to its value. So we use a heuristic such that the improve-ment in F-measure by at least 1% is required to call a classifier is better.

F-measure¼ ð2 PA RAÞ=ðPA RAÞ ð7Þ

4.3. The comparison among TILDE, CrossMine and Mr.G-Tree on real multi-relational databases

In this section, we apply two real multi-relational dat-abases to compare the accuracy of the positive and the overall accuracy among TILDE, CrossMine and Mr. G-Tree. Fig. 7 is the comparison of the accuracy of the positive in two real relational databases and Table 8 is the comparison of overall accuracy. In Table 8, the com-parison is marked in bold if the Condition d mentioned

0 10 20 30 40 50 60 70 80 90 100 2 Databases

Accuracy of the positive (%)

TILDE CrossMine Mr.G-Tree

1

Fig. 7. The comparison of the accuracy of the positive in two real relational databases.

Table 8

The comparison of overall accuracy in two real relational databases

Database-id Classiﬁer ZR ZP F-measure Overall accuracy

1 Mr.G vs. TILDE 2.348 0.722 40 vs. 31.69 Mr.G > TILDE

Mr.G vs. CrossMine 2.159 2.149 40 vs. 41.32 Mr.G CrossMine

2 Mr.G vs. TILDE 2.07 1.181 71.43 vs. 57.14 Mr.G > TILDE

(10)

in Section 4.2 is met and consequently the F-measure is used to compare the classiﬁers. All experiments related to the overall accuracy in the following will be presented in the same way. FromFig. 7, it is clear that Mr.G-Tree per-forms much better than TILDE and CrossMine in predict-ing the positive. From Table 8, it can be noted that the overall accuracy of Mr.G-Tree is greater than TILDE and is comparable to CrossMine.

4.4. The comparison among TILDE, CrossMine and Mr.G-Tree on synthetic multi-relational database

In Section4.3, the number of relations in two real dat-abases is less than 10. However, in a real case, there might be a lot of relations in a multi-relational database. In order to evaluate if the accuracy of each classifier will be influ-enced when the number of relations is increased, we fix the variable y and z in Table 7, respectively as 500 and 10% to generate 4 synthetic multi-relational databases. Fig. 8shows the comparison for the accuracy of the posi-tive; Table 9 is the comparison of overall accuracy. Note that, since TILDE combines all relations into a single one, when the number of relations is large, it will cause the shortage of memory space and then be infeasible. Such a condition is occurred in our experiments when the

number of relation is over 50 and we mark this condition by ‘‘–’’ inTable 9since ZRand ZPare both incomputable. All experiments related to the comparison of overall accu-racy between Mr.G-Tree and TILDE in the following will be presented in the same way. FromFig. 8, it is found that the accuracy of the positive in Mr.G-Tree is always higher than TILDE and CrossMine. InTable 9, it is worth to note that as the number of relations is larger than 10, the overall accuracy of Mr.G-Tree is always better than TILDE and CrossMine.

Next, we turn to ﬁx the variable x and z, respectively as 20 and 10% to generate 5 databases for the analysis of the accuracy in each classiﬁer when the tuples are getting increased. The results are illustrated in Fig. 9 and Table 10. As fromFig. 9, it is found that the accuracy of the posi-tive in Mr.G-Tree is always higher than TILDE and Cross-Mine no matter how many tuples there are. FromTable 10, it is shown that among the overall accuracy of TILDE, CrossMine and Mr.G-Tree, none is always better than the other two. In other words, Mr.G-Tree displays a com-parable overall accuracy to TILDE, CrossMine. Similarly, when the tuples in every relation are over 1000, we are unable to show the accuracy of TILDE in Fig. 9 and Table 10. 0 10 20 30 40 50 60 70 80 90 100 10 20 50 100 Number of relations

Fig. 8. The comparison of the accuracy of the positive on diﬀerent number of relations.

Table 9

The comparison of overall accuracy on diﬀerent number of relations

Number of relations Classiﬁer ZR ZP F-measure Overall accuracy

10 Mr.G vs. TILDE 3.141 7.487 23.48 vs. 25.34 Mr.G TILDE Mr.G vs. CrossMine 1.714 2.853 23.48 vs.26.11 Mr.G < CrossMine 20 Mr.G vs. TILDE 3.262 0.328 24.13 vs. 13.47 Mr.G > TILDE Mr.G vs. CrossMine 2.824 0.754 24.13 vs. 14.12 Mr.G > CrossMine 50 Mr.G vs. TILDE 3.079 0.708 18.6 vs. 16.49 Mr.G > TILDE Mr.G vs. CrossMine 2.67 1.285 18.6 vs. 8.43 Mr.G > CrossMine 100 Mr.G vs. TILDE – – 36.78 vs. – Mr.G > TILDE Mr.G vs. CrossMine 3.231 1.22 36.78 vs. 20.74 Mr.G > CrossMine 0 10 20 30 40 50 60 70 80 200 500 1000 2000 5000 Number of tuples

Fig. 9. The comparison of the accuracy of the positive on diﬀerent number of tuples.

(11)

Ultimately, for the evaluation of the imbalanced prob-lem, we ﬁx variable x and y inTable 8, respectively as 20 and 500 to produce 5 databases. The corresponding imbal-anced level of 5 databases is 1%, 5%, 10%, 20% and 40%. As illustrated in Fig. 10, the accuracy of the positive in Mr.G-Tree is better than TILDE and CrossMine apart from 40% as its imbalanced level. This result is not

sur-prised and demonstrates the ability of Mr.G-Tree to mine an imbalanced multi-relational database. Table 11 shows that among the overall accuracy of TILDE, Cross-Mine and Mr.G-Tree, none is always superior to the other two.

5. Conclusion and future research directions

Currently, the structural data are all stored in the rela-tional database, so the techniques of tradirela-tional data min-ing are not workable any more. Although there have been a number of multi-relational data mining classiﬁers pro-posed, such as TILDE, FOIL, CrossMine and so on, those approaches are unable to well handle the imbalanced prob-lem. Hence, Mr.G-Tree algorithm is proposed in this paper as the solutions. In order to build a classiﬁer which can handle the imbalanced problem more accurately, Mr. G-Tree hierarchically pick up the positive by using g-mean mentioned in Section3.1. Then, Mr.G-Tree makes the min-ing in a multi-relational database feasible by usmin-ing GTIP algorithm proposed in Section3.2 to propagate necessary information to all non-target relations. More importantly, GTIP algorithm keeps the g-mean reasonable after the Table 10

The comparison of overall accuracy on diﬀerent number of tuples

Number of tuples Classiﬁer ZR ZP F-measure Overall accuracy

200 Mr.G vs. TILDE 1.803 0.663 20.3 vs. 14.99 Mr.G TILDE Mr.G vs. CrossMine 1.035 0.152 20.3 vs.17.74 Mr.G CrossMine 500 Mr.G vs. TILDE 2.881 0.167 28.78 vs. 16.82 Mr.G > TILDE Mr.G vs. CrossMine 2.582 0.091 28.78 vs. 21.23 Mr.G > CrossMine 1000 Mr.G vs. TILDE 6.548 2.105 20.83 vs. 21.53 Mr.G TILDE Mr.G vs. CrossMine 5.521 2.861 20.83 vs. 22.66 Mr.G CrossMine 2000 Mr.G vs. TILDE – – 24.52 vs. – Mr.G > TILDE Mr.G vs. CrossMine 3.523 4.246 24.52 vs. 26.2 Mr.G CrossMine 5000 Mr.G vs. TILDE – – 21.19 vs. – Mr.G > TILDE Mr.G vs. CrossMine 6.065 11.77 21.49 vs. 32.75 Mr.G > CrossMine 0 20 40 60 80 100 1 10 20 40 Imbalance level (%)

5

Fig. 10. The comparison of the accuracy of the positive on diﬀerent imbalanced levels.

Table 11

The comparison of overall accuracy on diﬀerent imbalanced levels

Imbalance (%) Classiﬁer ZR ZP F-measure Overall accuracy

1 Mr.G vs. TILDE 0.982 0.843 10.44 vs. 8.69 Mr.G > TILDE Mr.G vs. CrossMine 0.982 0.713 10.44 vs.8.13 Mr.G > CrossMine 5 Mr.G vs. TILDE 2.45 4.358 23.01 vs. 27.14 Mr.G < TILDE Mr.G vs. CrossMine 2.139 2.874 23.01 vs. 24.42 Mr.G CrossMine 10 Mr.G vs. TILDE 3.601 6.073 37.66 vs. 42.15 Mr.G < TILDE Mr.G vs. CrossMine 3.331 4.135 37.66 vs. 39.97 Mr.G CrossMine 20 Mr.G vs. TILDE 2.9 6.288 46.15.vs. 53.35 Mr.G < TILDE Mr.G vs. CrossMine 2.362 3.835 46.15 vs. 49.34 Mr.G CrossMine 40 Mr.G vs. TILDE 7.681 0.122 62.14 vs. 85.29 Mr.G < TILDE Mr.G vs. CrossMine 7.66 1.636 62.14 vs. 81.68 Mr.G < CrossMine

(12)

propagation. Finally, by taking the semantic link into account, Mr.G-Tree can accurately and efficiently mine the imbalanced multi-relational databases. In the aspect of experimental analysis, since the accuracy which was widely used to evaluate a classifier is not a proper metric for the imbalanced datasets; in this paper, not only the accuracy of the positive is applied to evaluate the predic-tion ability of a classifier on the minority, but also ZR and ZP and F-measure is utilized to evaluate the overall accuracy. The results shown in Section4demonstrate that Mr.G-Tree can reach better classification accuracy of the positive than TILDE and CrossMine. Also, it shows com-parable consequence on the overall accuracy.

However, Mr.G-Tree currently is only suitable for the database containing two target classes. Although Mr.G-Tree can set the most minor target class as the posi-tive and the rest as the negaposi-tive under the condition of mul-tiple target classes, this way will change the original data distribution and consequently inﬂuences the mining results. Therefore, we will expand Mr.G-Tree in future to make it can accurately manage the databases contain multiple tar-get classes. Another line of future work is incremental Mr.G-Tree that considers the additions, deletions, and updates of tuples.

References

Aha, D., Kibler, D., & Albert, M. K. (1991). Instance-based learning algorithms. Machine Learning, 6(1), 37–66.

Anto, S. N., Susumu, K., & Akira, I. (2000). Fog forecasting using self growing neural network CombNET-II – A solution for imbalanced training sets problem. In Proceedings of the international joint conference on neural networks (pp. 429–434). Italy.

Barandela, R., Sanchez, J. S., Garcia, V., & Rangel, E. (2003). Strategies for learning in class imbalance problems. Pattern Recognition, 36(3), 849–851.

Blockeel, H., De Raedt, L., & Ramon, J. (1998). Top-down induction of logical decision trees. Artiﬁcial Intelligence, 101, 285–297.

Bostro¨m, H. (1995). Covering vs. divide-and-conquer for top-down induction of logic programs. In Proceedings of the fourteenth interna-tional joint conference on artiﬁcial intelligence (pp. 1194–1200). San Mateo.

Burges, C. J. C. (1998). A tutorial on support vector machines for pattern recognition. Data Mining and Knowledge Discovery, 2, 121–168. Clark, P., & Niblett, T. (1989). The CN2 induction algorithm. Machine

Learning, 3(4), 261–283.

Cohen, G., Hilario, M., Sax, H., Hugonnet, S., & Geissbu¨hler, A. (2006). Learning from imbalanced data in surveillance of nosocomial infec-tion. Artiﬁcial Intelligence in Medicine, 37(1), 7–18.

Dehmeshki, J., Karakoy, M., & Casique, M. V. (2003). A rule-based scheme for ﬁltering examples from majority class in an imbalanced training set. In Proceedings of the 13th international conference on machine learning and data mining in pattern recognition (pp. 215–223). Germany.

Derouin, E., Brown, J., Beck, H., Fausett, L., & Schneider, M. (1991). Neural network training on unequally represented classes. Intelligent Engineering Systems Through Artiﬁcial Neural Networks, 135–145. Ezawa, K. J., Singh, M., & Norton, S. W. (1996). Learning goal oriented

bayesian networks for telecommunications management. In Proceed-ings of the 13th international conference on machine learning (pp. 139– 147). San Francisco.

Fawcett, T., & Provost, F. (1996). Combining data mining and machine learning for eﬀective user proﬁling. In Proceedings of 12th international conference on knowledge discovery and data mining (pp. 8–13). Han, J., & Kamber, M. (2001). Data mining: Concepts and techniques.

Morgan Kaufman.

Han, H., Wang, W., & Mao, B. H. (2005). Borderline-SMOTE: A new over-sampling method in imbalanced data sets learning. In Proceedings of international conference on intelligent computing (pp. 878–887). Hefei, China.

Japkowicz, N., & Stephen, S. (2002). The class imbalance problem: A systematic study. Intelligent Data Analysis Journal, 6(5), 429–450. Joshi, M. V. (2002). On evaluating performance of classiﬁers for rare

classes. In Proceedings of 12th IEEE international conference on data mining. Japan.

Kubat, M., Holte, R., & Matwin, S. (1998). Machine learning for the detection of oil spills in satellite radar images. Machine Learning, 30(2/ 3), 195–215.

Lavrac, N., & Dzeroski, S. (1994). Inductive logic programming: techniques and applications. New York: Ellis Horwood.

Lawrence, S., Burns, I., Back, A. D, Tsoi, A. C., & Giles, C. L. (1998). Neural network classiﬁcation and prior class probabilities. Neural Networks: Tricks of the Trade 1998, Lecture Notes in Computer Science (pp. 299–314).

Lewis, D. D., & Catlett, J. (1997). Heterogeneous uncertainty sampling for supervised learning. In Proceedings of the 11th international conference on machine learning (pp. 148–156). San Francisco.

Liu, H., Yin, X., & Han, J. (2005). An eﬃcient multi-relational naı¨ve bayesian classiﬁer based on semantic relationship graphs. In Proceed-ings of ACM-SIGKDD workshop on multi-relational data mining. Chicago.

Michalski, R. S. (1969). On the quasi-minimal solution of the general covering problem. In Proceedings of the 5th international symposium on information processing (pp. 125–128). Yugoslavia.

Mitchell, T. M. (1997). Machine learning. McGraw Hill.

Muggleton, S., & Feng, C. (1990). Eﬃcient induction of logic programs. In Proceedings of the 1st conference on algorithmic learning theory (pp. 368–381). Tokyo.

Muggleton, S. (1995). Inverse entailment and progol. In New Generation Computing. Special issue on Inductive Logic Programming, 13, 245–286. Pazzani, M., Merz, C., Murphy, P., Ali, K., Hume, T., & Brunk, C. (1994). Reducing misclassiﬁcation costs. Proceedings of the 11th international conference on machine learning (pp. 217–225). Quinlan, J. R., & Cameron-Jones, R. M. (1993). FOIL: A midterm report.

In Proceedings of the European conference on machine learning (pp. 3– 20). Vienna, Austria.

Quinlan, J. R. (1993). C4.5: Programs for machine learning. San Mateo, CA: Morgann Kaufmann.

Rastogi, R., & Shim, K. (2000). PUBLIC: A decision tree classiﬁer that integrates building and pruning. Data Mining and Knowledge Discov-ery, 4(4), 315–344.

Riddle, P., Segal, R., & Etzioni, O. (1994). Representation design and brute force induction in a boeing manufacturing domain. Applied Artiﬁcial Intelligence, 8, 125–147.

Tsai, C. J., Lee, C. I., Chen, C. T., & Yang, W. P. (2007). A multivariate decision tree algorithm to mine imbalanced data. WSEAS Transactions on Information Science and applications, 4(1), 50–58.

Yin, X., Han, J., Yang, J., & Yu, P. S. (2004). Crossmine: Eﬃcient classiﬁcation across multiple database relations. In Proceedings of the 20th international conference on data engineering (pp. 399–411). Boston, MA.

Zadrozny, B., & Elkan, C. (2001). Learning and making decisions when costs and probabilities are both unknown. In Proceedings of the 7th international conference on knowledge discovery and data mining (pp. 204–213). San Francisco.

Zhou, Z. H., & Liu, X. Y. (2006). Training cost-sensitive neural networks with methods addressing the class imbalance problem. IEEE Trans-action on Knowledge and Data Engineering, 18(1), 63–77.
