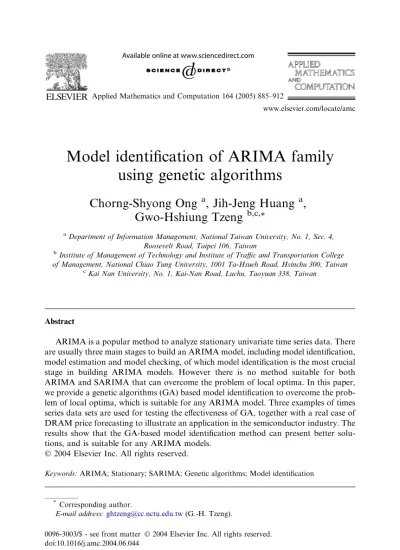

Model identiﬁcation of ARIMA family

using genetic algorithms

Chorng-Shyong Ong

a

, Jih-Jeng Huang

a

,

Gwo-Hshiung Tzeng

b,c,*

a

Department of Information Management, National Taiwan University, No. 1, Sec. 4, Roosevelt Road, Taipei 106, Taiwan

b

Institute of Management of Technology and Institute of Traﬃc and Transportation College of Management, National Chiao Tung University, 1001 Ta-Hsueh Road, Hsinchu 300, Taiwan

c_{Kai Nan University, No. 1, Kai-Nan Road, Luchu, Taoyuan 338, Taiwan}

Abstract

ARIMA is a popular method to analyze stationary univariate time series data. There are usually three main stages to build an ARIMA model, including model identification, model estimation and model checking, of which model identification is the most crucial stage in building ARIMA models. However there is no method suitable for both ARIMA and SARIMA that can overcome the problem of local optima. In this paper, we provide a genetic algorithms (GA) based model identification to overcome the prob-lem of local optima, which is suitable for any ARIMA model. Three examples of times series data sets are used for testing the effectiveness of GA, together with a real case of DRAM price forecasting to illustrate an application in the semiconductor industry. The results show that the GA-based model identification method can present better solu-tions, and is suitable for any ARIMA models.

Keywords: ARIMA; Stationary; SARIMA; Genetic algorithms; Model identiﬁcation

*

Corresponding author.

E-mail address:ghtzeng@cc.nctu.edu.tw(G.-H. Tzeng).

(2)

1. Introduction

ARIMA is the method ﬁrst introduced by Box–Jenkins [1]to analyze sta-tionary univariate time series data, and has since been used in various ﬁelds. The generalized form of ARIMA can be described as

/ðBÞUðBs_{Þð1 BÞ}d

ð1 BÞDYt¼ hðBÞHðBsÞZt; ð1Þ

where B denotes the backward shift operator; d and D denote the non-seasonal and seasonal order of diﬀerences taken, respectively; /(B), h(B), U(B) and H(B) are polynomials in B and Bsof ﬁnite order p and q, P and Q, respectively, and usually abbreviated as SARIMA (p, d, q)(P, D, Q)s. When there is no seasonal

eﬀect, a SARIMA model reduces to pure ARIMA(p, d, q), and when the time series data set is stationary a pure ARIMA reduces to ARMA(p, q).

The original assumptions and limitations of ARIMA include weak station-arity, equally spaced observation intervals, and a length of about 50–100 obser-vations [1,2]; in addition, it provides better formulation for incremental than for structural change[2]. As we know, there are three main stages in building an ARIMA model: (1) model identification, (2) model estimation and (3) model checking. Although many previous papers have concentrated on model estimation [3–10], model identification is actually the most crucial stage in building ARIMA models [11], because false model identification will cause the wrong stage of model estimation and increase the cost of re-identification. The stages of building an ARIMA model are described inFig. 1.

The ﬁrst method uses the sample partial autocorrelation function (PACF) and the sample autocorrelation function (ACF), as proposed by Box and Jen-kins[1]to identify the models in AR and MA, respectively. However, when the time series data sets have mixed ARMA eﬀect, the plot cannot provide clear

(3)

lags to identify. In addition, the lags of a mixed ARMA model usually involve subjective judgment, which make the results unstable [11]. Therefore, this paper proposes a method using genetic algorithms (GA) that can eﬀectively ﬁnd the global optimum solution, are suitable for ARIMA family models, and increase the accuracy of forecasting in business applications.

In order to provide a more objective and consistent method to identify the appropriate order of ARIMA, numerous methods for criterion selection have been proposed [12–21]. Some of these methods, called pattern identification, provide quick and easy methods to pick appropriate lags using a table which is constructed by the integral orders, p and q, of AR and MA, respectively. However, there are some problems such as the lack of pattern identification method for the seasonal ARIMA model and local optimization. These prob-lems may result because the pattern identification cannot be used for seasonal time series models[22], and these methods do not present subset solutions, only searching for local optimum solutions.

The concept of subset regression was described by McClave[23]to propose an algorithm for best subset identification. However that algorithm needs to calculate all possible subsets based on FPE criterion, and it may inefficient in large order or multivariate cases. In order to overcome this problem, Krolzig and Hendry [24] proposed the PcGet algorithm to test insignificant variables based on the t and F test. Chen and Tsay [25]used ACE and BTUTO algo-rithms to identify the best subset regression. Chao and Phillips [26]proposed PIC to reduce rank structure and Winker[27]provided a threshold accepting method to select multivariate lag structure automatically. Although many stud-ies have discussed methods to overcome the problem of subset regression, the difference of this paper can be described as follows: First, the studies above generally focused on the ARX or VAR model (also called dynamic regression) rather than on ARIMA model. Second, in this paper, we focus on order selec-tion of the lag rather than variable selecselec-tion of the lag. Third, we do not know whether these methods can be applied in a seasonal ARIMA model because there are four order parameters (p, q, P, Q) that need to be estimated where ARX or VAR only need two order parameters (VARX(p, s)) to be estimated. In this paper, GA is adopted to provide another method for model selection and is applied in ARIMA family models.

GA was pioneered by John Holland[28]and extended in later works [29– 32]. The advantage of GA is its stochastic global search method that mimics ‘‘the survival of the ﬁttest’’ in natural evolution. Although many studies have presented applications of GA for time series[23–35], these applications gener-ally have focused on the problem of parameter estimation. However, there is no doubt that model identiﬁcation is the most crucial stage in building an ARIMA model, and GA is used for this purpose in this article. The order of ARIMA will be treated as a chromosome, using a genetic operator to select global optimum orders.

(4)

In this study, three time series data sets, including ARMA, ARIMA, and SARIMA models, are illustrated to show the effectiveness of GA in the model identification stage. The forecasting of DRAM pricing trends are implemented for business decision making, and the results show that GA is more appropri-ate than the traditional methods. In additional, the model identification method using GA is suitable for a SARIMA model, whereas the traditional methods are not.

This paper is organized as follows: The statement of the problem caused by traditional model identiﬁcation methods is described in Section 2. Section 3 de-scribes the procedures of GA used to identify the ARIMA model. Three exam-ples of time series data sets illustrate the eﬀective of GA in Section 4. In Section 5 a real case for forecasting the DRAM pricing trends demonstrates an appli-cation in the semiconductor industry. Conclusions are presented in Section 6.

2. Statement of the problem

The first steps in building an ARIMA model are determining the appropri-ate order for the model identification stage, then estimating the unknown parameters, and checking the residuals from the fitted model. Although many papers[3,6–9,36]concentrate on model estimation, the main problem is assess-ing the order of the process, rather than estimatassess-ing the coefficients [37]. The correlogram method, the sample PACF and the sample ACF are used as pro-posed by Box and Jenkins in appropriate differenced series for identifying the orders p and q of the ARMA (p, q) model. However this is complicated and not easily conducted, particularly for the mixed model, in which neither p nor q vanishes.

Various kinds of information criteria, such as the Akaike Information Cri-terion (AIC)[12], the corrected Akaike Information Criterion (AICC)[13], the Final Prediction Error criterion (FPE) [14], the Hannan–Quinn Criterion (HQC) [15], and the Schwarz Bayesian Criterion (SBC) [16] have been pro-posed for model identification to overcome these difficulties. Additionally, in order to effectively and easily identify the order of ARIMA, some pattern iden-tification methods have been proposed, including the R and S array method

[17], the Corner method [18], the ESACF method [19], the SCAN method

[20], and the MINIC method[21].

Although the pattern identification methods seem to provide a better method for determining the appropriate order of ARIMA, there are some problems which need to be considered. First, the pattern identification methods cannot be used for seasonal time series models[22]because the SARIMA needs 4 dimensions. The second problem is that these methods provide only local optimum solutions. The pattern identification methods are used in the following way for determining upper bounds, say pmax and qmax, which are set for the

(5)

orders of /(B) and h(B). Then with p¼ f0; 1; . . . ; pmaxg and q¼ f0; 1; . . . ;

q_maxg, a table is formed to select the order that has optimum solution. However the pattern identification methods do not consider the subset solution. The benefits of a global optimum solution are as follows. If the data set fits the model, say AR(5), by the pattern identification method, then the model can be as Zt¼ l þ ð1 /1B /2B 2_/ 3B 3_/ 4B 4_/ 5B 5_ÞZ t: ð2Þ

However if the global optimum solution falls in the subset, said AR((1, 5)), then the equation should be as

Zt¼ l þ ð1 /1B /5B5ÞZt: ð3Þ

That is, if we can reduce to three parameters for estimation, then the model will be more easy, robust and accurate. Thus the purpose of this paper is to propose a method that can eﬀectively ﬁnd the global optimum solution and is suitable for ARIMA family models.

The main problem in ﬁnding all the solutions lies in the computational cost and time required. Theoretically, if we want to identify a SARIMA model, the total sample space is 2ðpmaxþqmaxþPmaxþQmaxþ4Þ _{which is impractical when a high}

order model exists. The main advantage of GA is that it simultaneously searches a population of points and effectively finds the approximate optimum solution in complex data set. These powerful characteristics of GA are used in this paper for model identification.

3. Model identiﬁcation by genetic algorithms

This section first describes the criteria for model identification using the pat-tern identification method. The characteristics and procedures of GA are pre-sented in next subsection. Then the string representation, the initial population and fitness computation are proposed; and the settings for the genetic operator and the elitist strategy, stopping criterion in this study are stated. The last part of this section presents the method of stationarity test.

3.1. Criterion of model identiﬁcation

Because the pattern identiﬁcation methods are quick (compare with an exhaustive search) and easily select (compare with a traditional method such as ACF and PACF) appropriate orders, this concept is used in this paper. The ESACF and SCAN methods are represented by the symbols ‘‘X’’ and ‘‘O’’ to indicate the inappropriate and appropriate orders, respectively, and the MINIC method, which has the property of determination, is more conven-ient to select the orders. The MINIC method can tentatively identify the orders of an ARMA (p, q) process, as proposed in[38–40].

(6)

The procedure of the MINIC is described as follows. Assume a stationary and invertible time series {zt: 1 6 t 6 n} with mean corrected form ~zl¼ zl

lz, with a true autoregressive order of p, and with a true moving-average order

of q. Then the MINIC method to compute information criteria for various autoregressive and moving average orders and the error series can be approx-imated by a high-order AR process

^et¼ ^/ðpe;qÞðBÞ~zl el; ð4Þ

where ^etdenotes the error series, ^/ðpe;qÞ denotes the coeﬃcient of AR, and the

parameter estimates, ^/ðpe;qÞare obtained from the Yule–Walker estimates. The

choice of the autoregressive order, pe, is determined by the order that minimizes

the information criterion, such as AIC or SBC. Since SBC had been proved to be strongly consistent, it determines the true model asymptotically [41], and preferred to AIC for comparing diﬀerent models such as neural network[42]; thus the SBC method is adopted in this paper. Once the error series have been estimated for autoregressive test order m = pmin, . . ., pmaxand for

moving-aver-age test order j = pmin, . . ., pmax, then the ordinal least square (OLS) method

estimates, ^/_ðm;jÞand ^hðm;jÞ, are computed from the regression model

~zl Xm i¼1 /ðm;jÞ_i ~z_liX j k¼1 hðm;jÞ_k ^elkþ error: ð5Þ

From the preceding parameter estimates, the SBC is then computed by BICðm; jÞ ¼ lnð~r2 ðm;jÞÞ þ 2ðm þ jÞ lnðnÞ=n; ð6Þ where ~ r2 m;j¼ 1 n Xn l¼t0 ~zl Xm i¼1 /ðm;jÞ_i ~zliþ Xj k¼1 hðm;jÞ_k ^elk !2 ; ð7Þ where t0= pe+ max(m, j).

The MINIC method can tentatively identify the order of a stationary and invertible ARMA process, as described in[43,44]. Through the MINIC method can quickly and easily provide a method to identify the order in ARIMA, it is not appropriate for SARIMA, and there is the problem of local optima. In this paper, GA is used to overcome these problems.

3.2. Concepts of the GA approach

GA was pioneered in 1975 by Holland, and its concept is to mimic the nat-ural evolution of a population by allowing solutions to reproduce, creating new solutions, which then compete for survival in the next iteration. The ﬁtness im-proves over generations and the best solution is ﬁnally achieved. The initial

(7)

population, P(0), is encoded randomly by strings. In each generation, t, the more fit elements are selected for the mating pool; and then processed by three basic genetic operators, reproduction, crossover, and mutation, to generate new offspring. On the basis of the principle of survival of the fittest, the best chromosome of a candidate solution is obtained. The pseudo code of GA illus-trates the procedure of the computation as follows:

procedure GA begin t = 0 initialize P(t) evaluate P(t)

while not satisfy stopping rule do begin t = t + 1 select P(t) from P(t 1) alter P(t) evaluate P(t) end end

The power of GA lies in its simultaneous searching a population of points in parallel, not a single point. Therefore GA can find the approximate optimum quickly without falling into a local optimum. In addition GA does not have the limitation of differentiability, as do other mathematical techniques. These char-acteristics of GA are the reasons it is used here for the problem of model iden-tification in ARIMA models.

3.3. Procedures of GA 3.3.1. String representation

In order to represent the order in an ARMA model, there are four parts in each chromosome to represent the order of AR, MA, seasonal AR and sea-sonal MA. Each chromosome is made up of binary value strings. The ith gen-otype of each part denotes the status of the ith order entry. For example, if the chromosome is represented by (10011; 00110; 11000; 01110), the model can be SARMA (p, q)(P, Q)sas SARMA ((1, 4, 5), (3, 4))((1, 2), (2, 3, 4))s.

3.3.2. Population initialization

The initial population P(0) is selected at random. Each genotype in the pop-ulation can be initialized to present the degree of variance from the uniform

(8)

distribution. Note that there is no standard to determine the size, P(0), of the initial population. Bhandari et al.[45]showed that as the number of iterations extends to inﬁnity, the elitist model of GA will provide the optimal string for any population size, P(0).

3.3.3. Fitness computation

The purpose of this study is to determine the order in an ARMA model. For this, the most crucial issue is determining the ﬁt index. In this study, we adopt the SBC index as the ﬁtness of a chromosome. Note that, although this study uses the SBC index to identify the order, other criteria can be used in the same procedures.

3.3.4. Genetic operators

3.3.4.1. Selection. The selection operator selects chromosomes from the mating pool using the ‘‘survival of the fittest’’ concept, as in natural genetic systems. Thus, the best chromosomes receive more copies, while the worst die off. The probability of variable selection is proportional to its fitness value in the population, according to the formula given by

PðxiÞ ¼ fðxiÞ PN j¼1 fðxjÞ ; ð8Þ

where f(xi) represents the ﬁtness value of the ith chromosome, and N is the

population size.

3.3.4.2. Crossover. The goal of crossover is to exchange information between two parent chromosomes in order to produce two new oﬀspring for the next population. In this study, we use two-point crossover with a crossover proba-bility, Pc. The proceeding in two-point crossover occurs when two parent

chro-mosomes are swapped after two randomly selected points between [1, N 1], creating two children. This instance can be described as follows: If the parent chromosomes are selected by

then two children will be produced as b₁¼ 1 0 0 0 1 0 1 1 0 0 b2¼ 0 1 1 1 0 0 1 1 1 0

3.3.4.3. Mutation. Mutation is a random process where one genotype is re-placed by another to generate a new chromosome. Each genotype has the prob-ability of mutation, Pm, changing from 0 to 1 or vice versa.

(9)

3.3.5. Elitist strategy and stopping criterion

Elitist strategy. The elitist strategy simply carries the ﬁttest chromosome from the previous generation into the next. The advantage of the elitist strategy lies in insuring selection of the best chromosome and decreasing the time of convergence.

Termination criterion. In GA, two termination criteria are usually used: One is to set up a maximum generation, and the other is used when the chromosome cannot increase the ﬁtness. In this study, we use the ﬁrst criterion.

3.4. Unit root tests and variance stationarity

Since ARIMA models are only suitable for stationary time series, the data set will be appropriate differentiated when a time series has a unit root. The problems that caused by the unit root in ARIMA and SARIMA models are discussed in [46,47]. In this paper the ADF unit root tests [46,47], which are a popular technique in financial engineering fields, are used to test the station-arity and seasonal stationstation-arity in time series data sets.

In addition, one of the assumptions in ARIMA models is weak stationarity, which requires not only mean stationarity, but also variance or homogeneous stationarity as well. The log transformation is a popular method[41]to convert time series that are nonstationary with variance into stationary time series, and this method is adopted in this article. The next section describes the implemen-tation of three time series data sets for testing the eﬀective of GA in the model identiﬁcation stage.

4. Implementation for testing three examples

This section illustrates the results using GA to identify the order in ARIMA models. There are three time series examples used for testing the eﬀectiveness of the GA-based model identiﬁcation method. The results using GA are com-pared with the SCAN, the ESACF, and the MINIC methods.

4.1. Data set

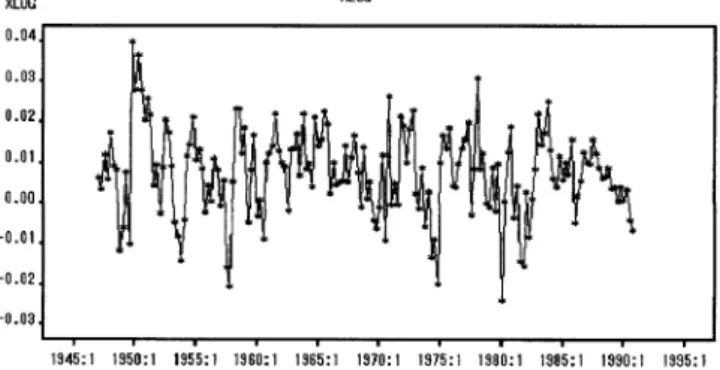

GNP data set. The data set provided in[48]is the US real GNP from the ﬁrst quarter of 1947 to the ﬁrst quarter of 1991, a total of 176 observations.

Unemployment data set. The data set used in[48]is composed of seasonally adjusted quarterly US unemployment rates from 1948 to 1993.

Sales data set. This data set is the monthly sales for a souvenir shop, as used in[49].

(10)

4.2. The application of model identiﬁcation by GA

Three time series data sets are implemented in this subsection. All the data sets process the ADF unit root test, model identiﬁcation, and the test for white noise in the GA-based model, and they are compared with the other pattern identiﬁcation methods.

4.2.1. GNP data set

The results of ADF unit root tests are described inTable 1, which shows that the data set has no unit root effect in the GNP data set and it needs no differ-entiation in the GNP data set. We can process model identification directly in next stage.

The order results of model identiﬁcation using the SCAN, the ESACF, and the MINIC methods are described inTables 2–4, respectively. The models are set as AR(1) or MA(2) in the SCAN method, and the model is ARMA(1, 2) by the ESACF method. Based on Table 4, the MINIC method fulﬁlls the mini-mum information criterion in AR(4).

The GA-based model identification is optimum in the fourth generation, and the best model is the subset model fitted as ARMA(1, (2, 5)). The results of comparison between the SCAN, the ESACF, the MINIC, and the GA-based model identification methods are illustrated in Table 5. Based on Table 5, although using GA-based model identification is not highest in SBC, the other three criteria show the best results.

In order to determine whether the residuals are satisfied with white noise in the GA-based model, chi-square statistics are used for testing the goodness of fit. Based onTable 6, the residuals are white noise in all lags, indicating that the fitted model is suitable for GNP data set.

Table 1

The ADF unit root test in GNP data set

Type Lags Rho P valuea _Tau _{P value}a _{F value} _{P value}a

Zero mean 1 42.2457 <0.0001*** 4.57 <0.000l*** – – 2 46.1027 <0.0001*** 4.49 <0.0001*** – – 3 43.2915 <0.0001*** 4.12 <0.0001*** – – Single mean 1 82.0840 0.0013*** 6.28 <0.0001*** 19.74 0.001*** 2 118.7380 0.0001*** 6.49 <0.0001*** 21.06 0.001*** 3 170.7200 0.0001*** 6.35 <0.0001*** 20.19 0.001*** Trend 1 84.6395 0.0005*** 6.39 <0.0001*** 20.47 0.001*** 2 124.2630 0.0001*** 6.61 <0.0001*** 21.85 0.001*** 3 185.6680 0.0001*** 6.50 <0.0001*** 21.19 0.001*** a

(11)

Table 5

The comparison of each method in GNP data set

Criterion SCAN ESACF MINIC GA-based

p = 1; q = 0 p = 0; q = 2 p = 1; q = 2 p = 4; q = 0 p = 1; q = (2, 5) AIC 1121.10 1124.48 1124.04 1123.62 1125.67 SBC 1114.75 1114.97 1111.35 1107.77 1112.99 SSE 0.017249 0.016729 0.0165823 0.016433 0.016429 Variance 0.000099 0.000097 0.0000960 0.000096 0000096 Standard error 0.009957 0.009834 0.0098190 0.009803 0.009773 Table 2

The SCAN method in GNP data set

Lags MA 0 MA 1 MA 2 MA 3 MA 4 MA 5 AR 0 X X O O O O AR 1 O X O O O O AR 2 O O O O O O AR 3 O O O O O O AR 4 O O O O O O AR 5 O O O O O O

The signiﬁcant level is 0.05 and X denotes p < 0.05, O denotes p > 0.05.

Table 3

The ESACF method in GNP data set

Lags MA 0 MA 1 MA 2 MA 3 MA 4 MA 5 AR 0 X X O O O O AR 1 X X O O O O AR 2 X X O O O O AR 3 X O X O O O AR 4 X X X O O O AR 5 X X O O O O

Table 4

The MINIC method in GNP data set

Lags MA 0 MA l MA 2 MA 3 MA 4 MA 5 AR 0 9.10158 9.16985 9.24115 9.23599 9.29382 9.28837 AR 1 9.23622 9.22119 9.22290 9.21252 9.28045 9.26637 AR 2 9.22864 9.19936 9.21010 9.20027 9.25453 9.23701 AR 3 9.23789 9.21620 9.19958 9.17130 9.22616 9.22490 AR 4 9.30267 9.27538 9.25587 9.22723 9.20040 9.19739 AR 5 9.28241 9.25371 9.23989 9.21777 9.20183 9.17247

(12)

4.2.2. Unemployment data set

The ADF unit root tests show that the unemployment data set has the unit root eﬀect (Table 7) and appropriate diﬀerentiation is needed. InTable 8, after

Table 7

The ADF unit root tests in unemployment data set

Zero mean 1 0.3943 0.5924 0.31 0.5731 – – 2 0.2115 0.6338 0.20 0.6124 – – 3 0.0871 0.6621 0.10 0.6497 – – Single mean 1 29.8348 0.0013*** 3.89 0.0027*** 7.61 0.001*** 2 22.3179 0.0054*** 3.24 0.0196** 5.31 0.0294** 3 18.2629 0.0155** 2.89 0.049** 4.24 0.0735 Trend 1 46.2274 0.0005*** 4.76 0.0008*** 11.34 0.001*** 2 37.2884 0.001*** 4.03 0.0094*** 8.14 0.0069*** 3 31.8174 0.004*** 3.59 0.0341** 6.44 0.0472** a

The signiﬁcant level is 0.05 and **denotes p < 0.05, ***denotes p < 0.01.

Table 8

The ADF unit root test after ﬁrst-order diﬀerencing

Zero mean 1 97.2297 <0.0001*** 6.91 <0.0001*** – – 2 144.6490 0.0001*** 7.03 <0.0001*** – – 3 361.0200 0.0001*** 7.70 <0.0001*** – – Single mean 1 97.4482 0.0013*** 6.90 <0.0001*** 23.80 0.001*** 2 145.1890 0.0001*** 7.02 <0.0001*** 24.63 0.001*** 3 362.4800 0.0001*** 7.68 <0.0001*** 29.50 0.001*** Trend 1 97.5151 0.0005*** 6.88 <0.000l*** 23.66 0.001*** 2 145.5030 0.0001*** 7.00 <0.000l*** 24.50 0.001*** 3 360.2250 0.0001*** 7.64 <0.000l*** 29.32 0.001*** a

The signiﬁcant level is 0.05 and **denotes p < 0.05, ***denotes p < 0.01. Table 6

Autocorrelation checking of residuals in GNP data set

Lags Chi-square DF P valuea

6 1.55 3 0.6706

12 7.70 9 0.5647

18 11.50 15 0.7165

24 13.25 21 0.8996

30 19.28 27 0.8596

(13)

first-order differentiation the ADF unit root tests show that the unemployment data set is stationary, so we can process model identification next.

The results of the SCAN, the ESACF, and the MINIC methods are de-scribed in Tables 9–11, and the model settings are as ARIMA(2, 1, 1), ARIMA(0, 1, 2), and ARIMA(1, 1, 4), respectively.

The GA is optimum occurs in the fourth generation and the ﬁtted model is ARIMA ((1, 4, 5), 1, (4)). The results of model-selection criterion is compared with the other methods in Table 12, indicating that all the criteria show the GA-based model has highest value.

Table 9

The SCAN method in unemployment data set

Lags MA 0 MA 1 MA 2 MA 3 MA 4 MA 5 AR 0 X X O X X O AR 1 X X X X X O AR 2 O O O O O O AR 3 X O O O O O AR 4 O O O O O O AR 5 O O O O O O

Table 10

The ESACF method in unemployment data set

Lags MA 0 MA 1 MA 2 MA 3 MA 4 MA 5 AR 0 X X O X X O AR 1 X X O X X O AR 2 X O X O X O AR 3 X X X O O O AR 4 O X X O O O AR 5 X O O X O O

Table 11

The MINIC method in unemployment data set

Lags MA 0 MA 1 MA 2 MA 3 MA 4 MA 5 AR 0 5.22816 5.46309 5.58178 5.58326 5.61499 5.6502 AR 1 5.64028 5.6187 5.62651 5.59700 5.68619 5.6796 AR 2 5.68406 5.66269 5.63609 5.62604 5.66124 5.65128 AR 3 5.67048 5.64235 5.61342 5.61167 5.63186 5.62658 AR 4 5.68196 5.65349 5.62722 5.59774 5.60249 5.59983 AR 5 5.65547 5.62574 5.59831 5.56877 5.63260 5.61592

(14)

The results of the white noise test are described inTable 13. Based onTable 13it can be seen that there is no autocorrelation between residuals in all lags, indicating that the GA-based model is suitable for forecasting the unemploy-ment data set.

4.2.3. Sales data set

The ADF unit root tests show that the sales data set has a unit root inTable 14. The ADF unit root tests results of ﬁrst-order diﬀerentiation are described in

Table 15, indicating that there is seasonal eﬀect in the 12th lag and the sales data set follows a SARIMA model. The sales data set process 12th order dif-ferentiation and model identiﬁcation is next.

In Box–JenkinÕs seasonal ARIMA model, there is no pattern identiﬁcation method that can conduct a seasonal ARIMA model which needs 4-dimensions to be presented. Here, we use the correlogram method (ACF and PACF graphs) to judge the suitable ARIMA model. After the 1st and 12th diﬀerences, the graph of ACF and PACF is plotted asFig. 2.

Based on the ACF and the PACF, it is reasonable to set the model in ARIMA(2, 1, 0)(0, 1, 1)12. On the other hand, the GA-based model

identi-ﬁcation isoptimum in the 7th generation and the model is set as SAR-IMA(0, 1, 1)(1, 1,(2, 3))12. After computing the ﬁtness criteria, the comparison

of the correlogram method and GA-based model are described as follow.

Table 13

Autocorrelation checking of residuals in unemployment data set

Lags DF Chi-square P valuea

6 2 3.650 0.1610

12 8 8.090 0.4243

18 14 20.280 0.1215

24 20 22.950 0.2912

30 26 30.020 0.2667

a _{The signiﬁcant level is 0.05 and **denotes p < 0.05, ***denotes p < 0.01.} Table 12

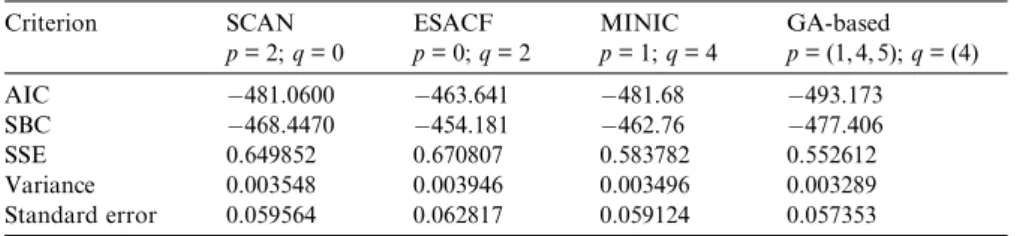

The comparison of each method in unemployment data set

p = 2; q = 0 p = 0; q = 2 p = 1; q = 4 p = (1, 4, 5); q = (4) AIC 481.0600 463.641 481.68 493.173 SBC 468.4470 454.181 462.76 477.406 SSE 0.649852 0.670807 0.583782 0.552612 Variance 0.003548 0.003946 0.003496 0.003289 Standard error 0.059564 0.062817 0.059124 0.057353

(15)

Table 14

The ADF unit root test in sales data set

Type Lags Rho P valuea Tau P valuea F value P valuea

Zero mean 1 0.3106 0.7549 0.69 0.8619 – – 2 0.3251 0.7586 1.15 0.9346 – – 3 0.3049 0.7534 1.20 0.9399 – – Single mean 1 18.7486 0.0114** 2.78 0.0654 4.29 0.0747 2 7.6605 0.2232 1.65 0.4518 2.18 0.5214 3 5.9663 0.3384 1.33 0.6102 1.73 1.6351 Trend 1 85.9587 0.0003*** 6.10 <0.0001*** 18.65 0.001*** 2 55.8660 0.0002*** 4.17 0.0076*** 8.73 0.001*** 3 83.9668 0.0002*** 4.02 0.0116** 8.19 0.0111** a _{The signiﬁcant level is 0.05 and **denotes p < 0.05, ***denotes p < 0.01.}

Table 15

ADF unit test after ﬁrst-order diﬀerencing

Type Lags Rho P valuea Tau P valuea F value P valuea Zero mean 1 268.8630 0.0001*** 11.23 <0.0001*** – – 2 489.1180 0.0001*** 7.46 <0.0001*** – – 12 11.6032 0.0154** 1.91 0.0536 – – Single mean 1 277.0160 0.0001*** 11.34 <0.0001*** 64.28 0.001*** 2 600.9190 0.0001*** 7.60 <0.0001*** 28.87 0.001*** 12 45.3336 0.9999 2.96 0.0435*** 4.47 0.0641 Trend 1 276.6280 0.0001*** 11.27 <0.0001*** 63.55 0.001*** 2 593.8650 0.0001*** 7.55 <0.0001*** 28.62 0.001*** 12 43.2993 0.9999 3.02 0.1335 4.91 0.2088 a

The signiﬁcant level is 0.05, and **denotes p < 0.05, ***denotes p < 0.01.

(16)

Based onTable 16, the GA-based model identiﬁcation can obtain better re-sults than the correlogram method. Additionally, the test for white noise is de-scribed in Table 17, which shows that there is no autocorrelation between residuals in all lags, and the GA-based model identiﬁcation is suitable for the sales data set.

In this section, GA is used to identify the model by three time series. In the first-three data sets, the results show that the GA-based model identification has the highest value for model-selection criteria. In additional, the GA-based model identification is suitable for SARIMA models, for which the SCAN, the ESACF, and the MINIC methods are not suitable. The diagnoses of white noise are all satisfied in three data sets, indicating the excellent goodness of fit using the GA-based model identification method. Next, we apply this meth-od to real-life problems for forecasting DRAM pricing trends.

5. Implementation: a real case for forecasting DRAM pricing trends

Dynamic Random Access Memory (DRAM) is a volatile memory that uses capacitors to hold electrical charges or store information, forming the simplest working memory cell. Recently, DRAMs have been widely used in computing applications, communication systems, graphics peripherals and electronic de-vices. The price of DRAM is critical in the ﬁnal product cost and related inven-tory planning.

Table 16

The comparison of the correlogram and GA-based method

Criterion The correlogram method GA-based model identiﬁcation p = 2, P = 0; q = 0, Q = 1 p = 0, P = 1; q = 1, Q = (2, 3) AIC 24.409300 29.054600 SBC 15.358600 17.741200 SSE 2.633600 2.398247 Variance 0.039307 0.036337 Standard error 0.198259 0.190623 Table 17

Autocorrelation checking of residuals in sales data set

6 2 0.260 0.8787

12 8 8.820 0.3576

18 14 9.250 0.8146

24 20 15.570 0.7426

a

(17)

The data set is the 256 Mb double data rate (DDR) spot price collected from 2001/10/01 to 2003/03/12, a total of 276 records. DDR is one kind of DRAMs, which transfers data on both the rising and falling edge of the clock so that DDR is twice as fast as synchronous dynamic random access memory (SDRAM), and has now become the mainstream product in the DRAM market.

5.1. Problem descriptive

The pricing trend of DRAM is crucial in the semiconductor industry. In or-der to decrease the risks for DRAM ﬁrms in planning various kinds of inven-tory or building plants, the correct forecasting of DRAM price is critical. Next, the GA-based ARIMA is used for predicting the DDR spot price, and the implementation is described as follows.

5.2. DRAM spot price forecasting

The pricing trend of 256 Mb DDR, as shown in Fig. 3, is ﬂuctuating and dynamic. Next, the ADF unit root test is used for testing the stationarity of DDR data set to determine the appropriate diﬀerence.

Based onTable 18, the ADF test shows that the DDR data set has the unit root effect, and appropriate differentiation is needed. InTable 19, after first-order differentiation, the ADF test shows that the DDR data set is stationary, so model identification can be processed in the next stage.

The final optimum model is ARIMA(1, 1, (7)) by using GA; and the compar-ison of the SCAN, the ESACF, and the MINIC methods are described asTable 20. The GA-based ARIMA have the best fitness in all criteria, indicating the advantage over traditional model identification methods.

The pricing trend of DDR plot is described inFig. 4. The real spot and fore-casting price is very close inFig. 3, indicating that the GA-based model iden-tiﬁcation method picked the appropriate order.

(18)

Table 18

The ADF unit root test in DDR data set

Type Lags Rho P valuea Tau P valuea F value P valuea

Zero mean 1 0.2531 0.6250 0.36 0.5547 – – 2 0.2576 0.6240 0.36 0.5539 – – 3 0.2774 0.6195 0.37 0.5489 – – Single mean 1 4.1519 0.5211 1.42 0.5735 1.01 0.8132 2 4.3375 0.5010 1.45 0.5599 1.05 0.8032 3 4.7895 0.4542 1.51 0.5264 1.15 0.7782 Trend 1 4.4415 0.8582 1.59 0.7960 3.60 0.4554 2 4.5737 0.8493 1.62 0.7845 3.63 0.4478 3 4.9320 0.8243 1.68 0.7604 3.57 0.4613 a _{The signiﬁcant level is 0.05 and **denotes p < 0.05, ***denotes p < 0.01.}

Table 19

The ADF unit root test after ﬁrst diﬀerencing

Zero mean 1 167.265 0.0001*** 9.12 <0.0001*** – – 2 152.133 0.0001*** 7.91 <0.0001*** – – 3 125.890 0.0001*** 6.80 <0.0001*** – – Single mean 1 167.266 0.0001*** 9.11 <0.0001*** 41.49 0.001*** 2 152.136 0.0001*** 7.90 <0.0001*** 31.17 0.001*** 3 125.886 0.0001*** 6.79 <0.0001*** 23.09 0.001*** Trend 1 178.618 0.0001*** 9.40 <0.0001*** 44.21 0.001*** 2 167.642 0.0001*** 8.20 <0.0001*** 33.61 0.001** 3 143.097 0.0001*** 7.10 <0.0001*** 25.20 0.001*** a

The signiﬁcant level is 0.05 and **denotes p < 0.05, ***denotes p < 0.01.

Table 20

The comparison of each criterion in DDR data set

p = 1; q = 0 p = 1; q = 2 p = 1; q = 0 p = 1; q = (7) AIC 481.060 463.641 481.68 493.173 SBC 468.447 454.181 462.76 477.406 SSE 4.344314 4.297699 4.344314 4.171514 Variance 0.003548 0.003946 0.003496 0.003289 Standard error 0.059564 0.062817 0.059124 0.057353

(19)

The test of white noise is described inTable 21. The results show there is no autocorrelation between residuals in all lags, so GA-based model identiﬁcation is suitable for the DDR data set.

5.3. Results and discussion

DRAM has played a significant role in the development of the semiconduc-tor industry. Because the DRAM industry is highly capital-intensive and the price of DRAM is volatile, in order to decrease the risk to DRAM firms, the correct forecasting of DRAM price is critical. Although the price of DRAM is of crucial importance to the electronics industry, it shows unexpected and high fluctuations. This uncertainty of DRAM prices makes it difficult for pro-ducers to make decisions such as the timing for establishing a DRAM plant, inventory policies, etc.

In this study, GA is used for model identification and it is compared with traditional pattern identification methods. The results of three examples and this real case show that the GA-based model identification method can provide

Table 21

Autocorrelation checking of residuals in DDR data set

6 2.31 4 0.6797 12 5.10 10 0.8844 18 8.18 16 0.9432 24 15.50 22 0.8397 30 22.37 28 0.7637 36 31.17 34 0.6069 42 31.75 40 0.8210 48 32.98 46 0.9252

a _{The signiﬁcant level is 0.05 and **denotes p < 0.05, ***denotes p < 0.01.} Fig. 4. The ﬁtted model of spot price for 256 Mb DDR.

(20)

more accurate criteria, such as AIC, BIC and SSE; and provide more robust criteria, such as variance and standard error estimation. In addition, this case study also shows that all the estimate parameters are significant and the signif-icant lags can actually be found by the GA-based method in the model estimate stage. This characteristic can help us to easily find the correct lags in a complex problem. The checking results of the model show that the error is random and no information is lost in building the ARIMA model. All the evidence shows that the GA-based model identification method can provide more accurate forecasting results than traditional pattern identification methods in ARIMA type models.

The traditional methods used to identify the order include the correlogram method, the information criterion, and the pattern identification method. However, none of these can provide a sound and objective method to deter-mine the appropriate order in all ARIMA models. In this study, the GA-based model identification method is proposed to overcome the problem of local op-tima, and is suitable for all ARIMA-type models. The comparison of the tra-ditional and the GA-based model identification methods is described inTable 22.

6. Conclusions

ARIMA is one of the most popular techniques for forecasting the trend of a time series data set. There are three main stages in building an ARIMA model, of which model identiﬁcation is the most crucial stage. In order to identify the appropriate order, the correlogram, the information criterion and other

pat-Table 22

The comparison of model identification methods Model identification Correlogram identification Information criterion Pattern identification GA-based identification Method ACF and PACF AIC, AICC,

FPE, HQC, and SBC SCAN, ESACF and MIMIC Recursive model identiﬁcation by GA Criterion Judgement by experience Minimum information criterion Statistic testing or minimum information criterion Minimum information criterion Disadvantage Subjective and

local optimum

Do not provide any method to identify the order

Local optimum Computer eﬃcient and cost Advantage Easily and

quickly

Global optimum Easily and quickly Global optimum automatically

(21)

tern identiﬁcation method were previously developed. However they each have some shortcomings, including the problem of local optimum and together there is no method suitable for either ARIMA or SARIMA models both.

In this paper, we present a data-driven method using GA-based model iden-tification in three example data sets, including ARMA, ARIMA and SARIMA models. A real case of DDR data set is used for forecasting pricing trends. All the results which are compared with the traditional pattern identification meth-ods show that the GA-based model identification method provides a more correct model and more accurate results. In addition, GA-based model identi-fication is more flexible then the traditional pattern identiidenti-fication methods in SARIMA models.

Table A.1

Repeat GA ﬁve times in GNP data set

Iterative Model AIC SBC SSE Variance Standard error 1 p = 1; q = (2, 5) 1125.67 1112.99 0.016429 0.000096 0.009773 2 p = (4); q = 2 1123.40 1110.72 0.016642 0.000097 0.009837 3 p = 0; q = 2 1124.48 1114.97 0.016729 0.000097 0.009834 4 p = 1; q = (2) 1125.88 1116.37 0.016729 0.000096 0.009795 5 p = 0; q = 2 1124.48 1114.97 0.016729 0.000097 0.009834 Table A.2

Repeat GA ﬁve times in unemployment data set

Iterative Model AIC SBC SSE Variance Standard

error 1 p = (1, 4, 5); q = (4) 493.173 477.406 0.552612 0.003289 0.057353 2 p = (1, 3, 4, 5); q = (3, 4) 496.061 473.988 0.531042 0.003199 0.05656 3 p = (1, 4, 5); q = (3, 4) 497.74 478.821 0.5320264 0.003186 0.056443 4 p = (1, 4, 5); q = (1, 4) 495.312 476.392 0.5395478 0.003231 0.05684 5 p = (1, 4, 5); q = (3, 4) 497.74 478.821 0.5320264 0.003186 0.056443 Table A.3

Repeat GA ﬁve times in sales data set

Iterative Model AIC SBC SSE Variance Standard

error 1 p = 0, P = 1; q = 1, Q = (2, 3) 29.0546 17.7412 2.398247 0.036337 0.190623 2 p = 1, P = 0; q = 0, Q = (1, 3, 4, 5) 26.6147 19.8266 2.625946 0.038617 0.196512 3 p = 0, P = (4); q = 1, Q = 0 27.9293 21.1412 2.577772 0.037908 0.194701 4 p = 0, P = 0; q = (1, 3, 5), Q = 0 29.6915 20.6408 2.4447345 0.036489 0.19102 5 p = 0, P = 0; q = 3, Q = 0 30.9537 21.9030 2.4016580 0.035846 0.189329

(22)

Fig. A.2. The time series graph of the unemployment dataset. Fig. A.1. The time series graph of the GNP dataset.

(23)

Table B.1

The 60 records in model 1

Date Zt Date Zt Date Zt Date Zt

February 93 0.811594 May 94 1.477868 August 95 1.266903 November 96 1.790872

March 93 1.030023 June 94 1.27366 September 95 0.92982 December 96 1.215285

April 93 1.286882 July 94 1.13069 October 95 0.793999 January 97 1.996357

May 93 1.03849 August 94 0.432763 November 95 0.97822 February 97 2.11393

June 93 1.426607 September 94 0.076861 December 95 1.716972 March 97 2.96773

July 93 1.912128 October 94 0.495236 January 96 1.63829 April 97 0.915401

August 93 0.161922 November 94 1.20429 February 96 0.593432 May 97 1.227891

September 93 0.587937 December 94 0.09032 March 96 1.218859 June 97 1.046889

October 93 0.02159 January 95 0.58174 April 96 0.181988 July 97 0.393808

November 93 0.551486 February 95 1.09846 May 96 0.306072 August 97 1.275309

December 93 1.711534 March 95 1.78524 June 96 2.461848 September 97 2.069215

January 94 1.821313 April 95 0.670302 July 96 0.26715 October 97 1.755848

Ong et al. / Appl. Math. Comput. 164 (2005) 885–912 907

(24)

Table B.2

November 93 1.21194 February 95 0.8699 May 96 0.330395 August 97 0.59308

C.-S. Ong et al. / Appl. Math. Comput. 164 (2005) 885–912

(25)

Table B.3

November 93 1.335305 February 95 0.96591 May 96 0.24719 Aug 97 0.17826

Ong et al. / Appl. Math. Comput. 164 (2005) 885–912 909

(26)

Although GA needs more computer time in the model identification stage, this can easily be overcome with current technology and accurate forecast-ing results are the only purpose. In addition, incorrect model identification will result in incorrect model estimation and increase the cost of model re-identification.

Appendix A

We repeated GA procedures ﬁve times to assess the quality of the GA in all example data sets and the results are shown inTables A.1–A.3. Based on the results, the SBC which is ﬁtness index in GA can get better results than the tra-ditional methods which are described in content and all example data sets also pass residual test. These results also indicate the GA is a good technique in model selection in ARIMA family models.

The graph of GNP dataset is plotted inFig. A.1.

The graph of unemployment dataset is plotted inFig. A.2. The graph of sales dataset is plotted inFig. A.3.

Appendix B

The 60 records derived by each model are obtained asTables B.1–B.3.

References

[1] G.E.P. Box, G.M. Jenkins, Time Series Analysis: Forecasting and Control, Holden-Day, San Francisco, 1976.

[2] R. McCleary, R. Hay, D. McDowell, Applied Time Series Analysis for the Social Sciences, Sage, Los Angeles, 1980.

[3] C.F. Ansley, An algorithm for the exact likelihood of a mixed autoregressive moving average process, Biometrika 66 (1) (1979) 59–65.

[4] C.F. Ansley, Finite sample properties of estimators for autoregressive moving average models, Journal of Econometrics 13 (1) (1980) 159–185.

[5] M. Morf, G.S. Sidhu, T. Kailath, Some new algorithms for recursive estimation on constant linear discrete time systems, IEEE Transactions on Automatic Control 19 (4) (1974) 315–323. [6] J.G. Pearlman, An algorithm for the exact likelihood of a high-order autoregressive-moving

average process, Biometrika 67 (1) (1980) 232–233.

[7] S.C. Hillmer, G.C. Tiao, Likelihood function of stationary multiple autoregressive-moving average models, Journal of the American Statistical Association 74 (3) (1979) 652–660. [8] G.M. Ljung, G.E.P. Box, The likelihood function of stationary autoregressive-moving average

models, Biometrika 66 (2) (1979) 265–270.

[9] P. Newbold, The exact likelihood function for a mixed autoregressive-moving average process, Biometrika 61 (3) (1974) 423–426.

[10] R. Biondini, Y. Lin, Estimating the Hurst parameter in fractional ARIMA (p, d, q), Mathematics and Computers in Simulation 48 (4) (1999) 407–416.

(27)

[11] C. Chatﬁeld, Time-Series Forecasting, Chapman & Hall/CRC, Florida, 2001.

[12] H. Akaike, A new look at the statistical model identiﬁcation, IEEE Transactions on Automatic Control 19 (6) (1974) 716–723.

[13] H. Akaike, Time Series Analysis and Forecasting. The Box–Jenkins Approach, Butterworths, London, 1978.

[14] H. Akaike, Fitting autoregressive models for prediction, Annals of the Institute of Statistical Mathematics 21 (2) (1969) 243–247.

[15] E.J. Hannan, B.G. Quinn, The determination of the order of an autoregression, Journal of the Royal Statistical Society B 41 (2) (1979) 190–195.

[16] G. Schwarz, Estimating the dimension of a model, Annals of Statistics 6 (2) (1978) 461–464. [17] W.A. Woodward, H.L. Gray, On the relationship between the S array and the Box–Jenkins method of ARMA model identiﬁcation, Journal of the American Statistical Association 76 (3) (1981) 579–587.

[18] J.M. Beguin, C. Gourieroux, A. Monfort, Identiﬁcation of a mixed autoregressive-moving average process: the Corner method, in: O.D. Anderson (Ed.), Time Series, North-Holland, Amsterdam, 1980.

[19] R.S. Tasy, G.C. Tiao, Consistent estimates of autoregressive parameters and extended sample autocorrelation function for stationary and nonstationary ARMA model, Journal of the American Statistical Association 79 (1) (1984) 84–96.

[20] R.S. Tasy, G.C. Tiao, Use of canonical analysis in time series model identiﬁcation, Biometrika 72 (2) (1985) 299–315.

[21] E.J. Hannan, J. Rissanen, Recursive estimation of mixed autogressive-moving average order, Biometrika 69 (1) (1982) 81–94.

[22] W.S. Chan, A comparison of some of pattern identiﬁcation methods for order determination of mixed ARMA models, Statistics & Probability Letters 42 (1) (1999) 69–79.

[23] J. McClave, Subset autoregression, Technometrics 17 (3) (1975) 213–220.

[24] H.M. Krolzig, D.R. Hendry, Computer automation of general-to-speciﬁc model selection procedures, Journal of Economic Dynamics & Control 25 (6/7) (2001) 831–866.

[25] R. Chen, R.S. Tsay, Nonlinear additive ARX models, Journal of the American Statistical Association 88 (3) (1993) 955–967.

[26] J.C. Chao, P.C.B. Phillips, Model selection in partially nonstationary vector autoregressive processes with reduced rank structure, Journal of Econometrics 91 (2) (1999) 227–271. [27] P. Winker, Optimized multivariate lag structure selection-using the global optimization

heuristic threshold accepting, Computational Economics 16 (l/2) (2000) 87–103.

[28] J.M. Holland, Adaptation in Natural and Artiﬁcial Systems, The University of Michigan Press, Ann Arbor, 1975.

[29] D.E. Goldberg, Genetic Algorithms in Search, Optimization and Machine Learning, Addison-Wesley, Reading, MA, 1989.

[30] L. Davis, Handbook of Genetic Algorithms, Van Nostrand Reinhold, 1991. [31] J.R. Koza, Genetic Programming, The MIT Press, Cambridge, MA, 1992.

[32] Z. Michalewicz, Genetic Algorithms + Data Structures = Evolution Programs, Springer-Verlag, 1992.

[33] B.S. Chen, B.K. Lee, S.C. Peng, Maximum likelihood parameter estimation of F-ARIMA processes using the genetic algorithm in frequency domain, IEEE Transaction on Signal Processing 50 (9) (2002) 2208–2220.

[34] B. Wu, C.L. Chang, Using genetic algorithms to parameters (d, r) estimation for threshold autoregressive models, Computational Statistics & Data Analysis 38 (3) (2002) 315–330. [35] M. Beenstock, G. Szpiro, Speciﬁcation search in nonlinear time-series models using the genetic

algorithm, Journal of Economic Dynamics & Control 26 (5) (2002) 811–835.

[36] C.R. Morf, G.S. Sidhu, T. Kailath, Some new algorithms for recursive estimation on constant linear discrete time systems, IEEE Transactions on Automatic Control 19 (4) (1974) 315–323.

(28)

[37] C. Chatﬁeld, Time-Series Forecasting, Chapman & Hall/CRC, London/Boca Raton, 2001. [38] S. Doreisha, T. Pukkila, Fast linear estimation methods for vector autoregressive moving

average models, Journal of Time Series Analysis 10 (4) (1989) 325–339.

[39] B.G. Quinn, Order determination for a multivariate autoregression, Journal of the Royal Statistical Society Series B 42 (2) (1980) 182–185.

[40] H. Spliid, A fast estimation for the vector autoregressive moving average models with exogenous variables, Journal of the American Statistical Association 78 (4) (1983) 843–849. [41] T.C. Mills, The Econometric Modeling of Financial Time Series, second ed., Cambridge

University Press, Cambridge, 1999.

[42] J. Faraway, C. Chatﬁeld, Time series forecasting with neural networks: a comparative study using the airline data, Applied Statistics 47 (2) (1998) 231–250.

[43] E.J. Hannan, J. Rissanen, Recursive estimation of mixed autogressive-moving average order, Biometrika 69 (1) (1982) 81–94.

[44] G.E.P. Box, G.M. Jenkins, G.C. Reinsel, Time Series Analysis, Forecasting and Control, third ed., Prentice-Hall, New Jersey, 1994.

[45] D. Bhandari, C.A. Murthy, S.K. Pal, Genetic algorithm with elitist model and its convergence, International Journal of Pattern Recognition Artiﬁcial Intelligence 10 (6) (1996) 731–747. [46] D.A. Dickey, D.P. Hasza, W.A. Fuller, Testing for unit roots in seasonal time series, Journal

of the American Statistical Association 79 (2) (1984) 355–367.

[47] D.A. Dickey, W.A. Fuller, Distribution of the estimators for autoregressive time series with a unit root, Journal of the American Statistical Association 74 (2) (1979) 427–431.

[48] D. Pena, G.C. Tiao, R.S. Tsay, A Course in Time Series Analysis, Wiley, New York, 2001. [49] S. Makridakis, S.C. Wheelwright, R.J. Hyndman, Forecasting: Methods and Applications,
