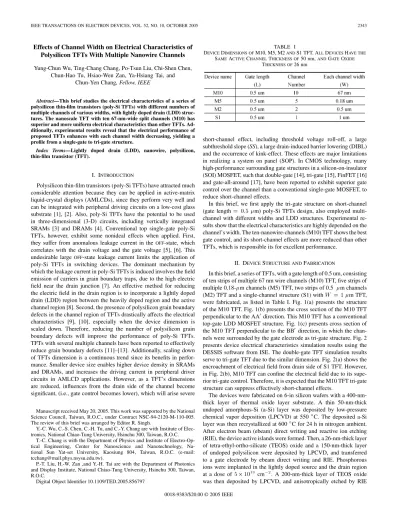

IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 52, NO. 10, OCTOBER 2005 2343
Effects of Channel Width on Electrical Characteristics of Polysilicon TFTs With Multiple Nanowire Channels Yung-Chun Wu, Ting-Chang Chang, Po-Tsun Liu, Chi-Shen Chen,
Chun-HaoTu, Hsiao-Wen Zan, Ya-Hsiang Tai, and Chun-Yen Chang, Fellow, IEEE
Abstract—This brief studies the electrical characteristics of a series of
polysilicon thin-film transistors (poly-Si TFTs)with different numbers of multiple channels of various widths, with lightly doped drain (LDD)struc-tures. The nanoscale TFT with ten 67-nm-wide split channels (M10)has superior and more uniform electrical characteristics than other TFTs. Ad-ditionally, experimental results reveal that the electrical performance of proposed TFTs enhances with each channel width decreasing, yielding a profile from a single-gate to tri-gate structure.
Index Terms—Lightly doped drain (LDD), nanowire, polysilicon,
thin-film transistor (TFT).
I. INTRODUCTION
Polysilicon thin-film transistors (poly-Si TFTs) have attracted much considerable attention because they can be applied in active-matrix liquid-crystal displays (AMLCDs), since they perform very well and can be integrated with peripheral driving circuits on a low-cost glass substrate [1], [2]. Also, poly-Si TFTs have the potential to be used in three-dimensional (3-D) circuits, including vertically integrated SRAMs [3] and DRAMs [4]. Conventional top single-gate poly-Si TFTs, however, exhibit some nonideal effects when applied. First, they suffer from anomalous leakage current in theOFF-state, which correlates with the drain voltage and the gate voltage [5], [6]. This undesirable largeOFF-state leakage current limits the application of poly-Si TFTs in switching devices. The dominant mechanism by which the leakage current in poly-Si TFTs is induced involves the field emission of carriers in grain boundary traps, due to the high electric field near the drain junction [7]. An effective method for reducing the electric field in the drain region is to incorporate a lightly doped drain (LDD) region between the heavily doped region and the active channel region [8]. Second, the presence of polysilicon grain boundary defects in the channel region of TFTs drastically affects the electrical characteristics [9], [10], especially when the device dimension is scaled down. Therefore, reducing the number of polysilicon grain boundary defects will improve the performance of poly-Si TFTs. TFTs with several multiple channels have been reported to effectively reduce grain boundary defects [11]–[13]. Additionally, scaling down of TFTs dimension is a continuous trend since its benefits in perfor-mance. Smaller device size enables higher device density in SRAMs and DRAMs, and increases the driving current in peripheral driver circuits in AMLCD applications. However, as a TFT’s dimensions are reduced, influences from the drain side of the channel become significant, (i.e., gate control becomes lower), which will arise severe
Manuscript received May 20, 2005. This work was supported by the National Science Council, Taiwan, R.O.C., under Contract NSC-94-2120-M-110-005. The review of this brief was arranged by Editor R. Singh.
Y.-C. Wu, C.-S. Chen, C.-H. Tu, and C.-Y. Chang are with Institute of Elec-tronics, National Chiao-Tung University, Hsinchu 300, Taiwan, R.O.C.
T.-C. Chang is with the Department of Physics and Institute of Electro-Op-tical Engineering, Center for Nanoscience and Nanotechnology, Na-tional Sun Yat-set University, Kaosiung 804, Taiwan, R.O.C. (e-mail: [email protected]).
P.-T. Liu, H.-W. Zan ,and Y.-H. Tai are with the Department of Photonics and Display Institute, National Chiao-Tung University, Hsinchu 300, Taiwan, R.O.C.
Digital Object Identifier 10.1109/TED.2005.856797
TABLE I
DEVICEDIMENSIONS OFM10, M5, M2ANDS1 TFT. ALLDEVICESHAVE THE SAMEACTIVECHANNELTHICKNESS OF50 nm,ANDGATEOXIDE
THICKNESS OF26 nm
short-channel effect, including threshold voltage roll-off, a large subthreshold slope (SS), a large drain-induced barrier lowering (DIBL) and the occurrence of kink-effect. These effects are major limitations in realizing a system on panel (SOP). In CMOS technology, many high-performance surrounding gate structures in a silicon-on-insulator (SOI) MOSFET, such that double-gate [14], tri-gate [15], FinFET [16] and gate-all-around [17], have been reported to exhibit superior gate control over the channel than a conventional single-gate MOSFET, to reduce short-channel effects.
In this brief, we first apply the tri-gate structure on short-channel (gate length= 0:5 m) poly-Si TFTs design, also employed multi-channel with different widths and LDD structures. Experimental re-sults show that the electrical characteristics are highly depended on the channel’s width. The ten-nanowire-channels (M10) TFT shows the best gate control, and its short-channel effects are more reduced than other TFTs, which is responsible its for excellent performance.
II. DEVICESTRUCTURE ANDFABRICATION
In this brief, a series of TFTs, with a gate length of 0.5 um, consisting of ten strips of multiple 67 nm wire channels (M10) TFT, five strips of multiple 0.18-m channels (M5) TFT, twostrips of 0.5 m channels (M2) TFT and a single-channel structure (S1) withW = 1 m TFT, were fabricated, as listed in Table I. Fig. 1(a) presents the structure of the M10 TFT. Fig. 1(b) presents the cross section of the M10 TFT perpendicular tothe AA0direction. This M10 TFT has a conventional top-gate LDD MOSFET structure. Fig. 1(c) presents cross section of the M10 TFT perpendicular tothe BB0 direction, in which the chan-nels were surrounded by the gate electrode as tri-gate structure. Fig. 2 presents device electrical characteristics simulation results using the DESSIS software from ISE. The double-gate TFT simulation results serve totri-gate TFT due tothe similar dimension. Fig. 2(a) shows the encroachment of electrical field from drain side of S1 TFT. However, in Fig. 2(b), M10 TFT can confine the electrical field due to its supe-rior tri-gate control. Therefore, it is expected that the M10 TFT tri-gate structure can suppress effectively short-channel effects.
The devices were fabricated on 6-in silicon wafers with a 400-nm-thick layer of thermal oxide layer substrate. A thin 50-nm-400-nm-thick undoped amorphous-Si (a-Si) layer was deposited by low-pressure chemical vapor deposition (LPCVD) at 550C. The deposited a-Si layer was then recrystallized at 600C for 24 h in nitrogen ambient. After electron beam (ebeam) direct writing and reactive ion etching (RIE), the device active islands were formed. Then, a 26-nm-thick layer of tetra-ethyl-ortho-silicate (TEOS) oxide and a 150-nm-thick layer of undoped polysilicon were deposited by LPCVD, and transferred to a gate electrode by ebeam direct writing and RIE. Phosphorous ions were implanted in the lightly doped source and the drain region at a dose of 5 2 1013 cm02. A 200-nm-thick layer of TEOS oxide was then deposited by LPCVD, and anisotropically etched by RIE 0018-9383/$20.00 © 2005 IEEE
2344 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 52, NO. 10, OCTOBER 2005
Fig. 1. (a) Schematic diagram of M10 poly-Si TFT. (b) Cross-sectional view of (a), AA direction, as a conventional top-gate LDD MOSFET structure. Active layer, gate oxide, and poly-gate thickness are 50, 26, and 150 nm, respectively. (c) One of the channel cross-sectional view of (a), BB direction, as a tri-gate structure.
to form a sidewall spacer that abutted the polysilicon gate. Then, the self-aligned source and drain regions were formed by the implantation of phosphorous ions at a dose of 5 2 1015 cm02. The dopant was activated by rapid thermal annealing at 1000 C. After source and drain (S/D) implantation, a 300-nm-thick TEOS oxide layer was deposited as the passivation layer by LPCVD. Next, the contact hole was defined and Al metallization was performed. The devices were then sintered at 400 C in nitrogen ambient for 30 min. Finally, each device was passivated by NH3 plasma treatment for 1 h at 300 C.
III. RESULTS ANDDISCUSSION
Fig. 3 presents a active region scanning electron microscope (SEM) photograph of the poly-Si M10 TFT, including the gate, source, drain, and ten multiple nanowire channels. The inset SEM photograph presents a magnified area of the ten nanowire channels in the M10 TFT, each of which is 67 nm wide. Fig. 4(a)–(d) plots transfer curves of all poly-Si TFTs. In Fig. 4(a), the single-channel TFT (S1 TFT) shows significant short-channel effect, including DIBL, a large sub-threshold slope (SS) of 334 mV/dec, and a large leakage current of 4 2 10012A. By comparing all studied TFTs in this brief, however,
the transfer characteristics reveal that the M10 TFT performs best, as shown in Fig. 4(d), with the lowestOFF-state leakage current of 3 2 10013A, the highest drain currentON/OFFratioof7:36 2 109,
the smallest SS of 137 mV/dec and an absence of DIBL. In addition,
Fig. 2. Simulation results of potential contour plots and electrical field lines of (a) single-top-gate TFT and (b) tri-gate TFT withL = 0:5 m, gate oxide= 26 nm, channel thickness= 50 nmatVg = 0V,Vd= 2V.
Fig. 3. (a) SEM photograph of active pattern with the gate (with TEOS-SiO2
spacer), source, drain, and ten nanowire channels of M10 TFT. The inset SEM photograph shows the magnified area of ten nanowire channels. Each nanowire width is 67 nm.
the device performance enhances with the channel width decreasing, from S1, M2, and M5 to M10 TFTs
Device performance uniformity is another important issue for realization of large-glass poly-Si AMLCD. The uniformity of device performance can be revealed by measuring the statistical variation of device parameters. For the investigation of device performance uniformity, in the following discussion, each dimension including five TFTs in different areas on the 6-in wafer were characterized.
IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 52, NO. 10, OCTOBER 2005 2345

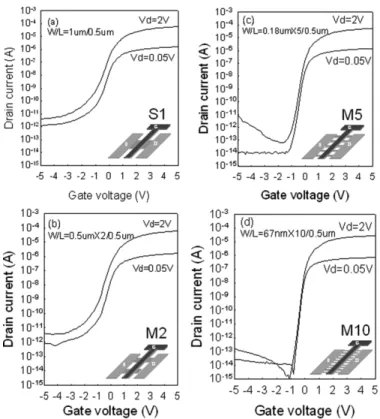

Fig. 4. Device transferId0Vgcurves of (a) S1(W=L = 1 m=0:5 m), (b) M2(W=L = 0:5 m 2 2=0:5 m), (c) M5(W=L = 0:18 m 2 5=0:5 m), and (d) M10(W=L = 67 nm 2 10=0:5 m)poly-Si TFT.
Fig. 5(a) plots the TFTs’Vth(left) and SS (right) versus the multi-channel with different widths. TheVth is defined as the gate voltage required to yield normalized drain current ofId=(W=L) = 1007A
atVd = 2 V. The average Vth value for each TFT device is similar and between 0 and 0.2 V, indicating that the channel width does not affect the mobility for the constant current extraction method ofVth. Notably, the value ofVth for the M10 TFT has the smallest standard deviation, indicating that the M10 TFT is a relatively stable structure in the fabrication and thus involves smaller variations, which in fact is crucial key in the uniform larger-glass AMLCD applications. The av-erage and standard deviation of SS both decrease with the each channel width decreasing. The M10 TFT has a smaller average (137 mV/dec) and standard deviation (23 mV/dec) of SS than those of the other TFTs. The steep SS of the M10 TFT is also explained by the fact that M10 has the robust tri-gate control and exhibits the best NH3plasma passi-vation due to its ten split nanowire, which both are responsible for the steep SS.
Fig. 5(b) plots the TFT’sON/OFFratio(left) and the leakage cur-rentIOFF(right) versus the multichannel with different widths.IOFF
is defined as the minimum drain turn-off current atVd = 2 V. Thus, theON/OFFratiois defined as maximumION=IOFF. The leakage cur-rent is reduced significantly in theOFF-state from10012(A= m) to 10013(A= m) in order from the S1 TFT to the M10 TFT. The
en-hanced performance in electrical characteristics of M10 TFT can be explained that it has a split nanowire structure (Fig. 3), most of which is exposed to NH3plasma passivation, further reducing the number of grain boundary defect density(Nt), which is responding for achieving low leakage current. Thus, the M10 TFT has a higherON/OFF ratio (> 109) than those of other TFTs in this brief.
Fig. 5(c) plots the TFT’sFE(left) and DIBL (right) versus the mul-tichannel with different widths. The FE is extracted from the linear region(Vd = 0:05 V) of transcendence (gm). DIBL is defined as
Fig. 5. (a) Threshold voltage(Vth) and SS, (b) drainON/OFFcurrent ratio (R)and drain leakage current, and (c) field-effect mobility( FE)and DIBL versus multichannel with different widths poly-Si TFTs. In all plots, the dots value present average and error bars present standard deviation.
1Vg=1VdatId= 10010A. The result reveals that the S1, M2, M5,
and M10 poly-Si TFTs yield almost the same carrier mobility, indi-cating that the carrier mobility and the turn-on current are not degraded in TFTs with various numbers of channels. The DIBL effect leads to a substantial increase in electron injection from the source to the drain associated with penetration electrical field from drain. In Fig. 5(c), the M10 TFT has an average and standard deviation of DIBL of zero. The ten nanowire of M10 TFT are strongly controlled by their tri-gate elec-trodes [Fig. 1(c)]. The simulation results of Fig. 2(b) further reveal that the tri-gate TFT has superior gate control, which can confine the elec-trical field penetrated from drain side. Fig. 5 reveals that the M10 TFT performs best in switching applications, with the most stableVthand the smallest SS, and without the DIBL effect. These results are summa-rized by stating that the active channels around the tri-gate of the M10 TFT exhibit the best gate control to highly reduced short-channel effect, as determined by its nanowire structure. Additionally, experimental re-sults also indicate that the gate control enhances with the each channel width decreasing from S1, M2, and M5 to M10, as similar as the struc-ture changes from a single-gate to tri-gate sequentially. Additionally, NH3plasma passivation more efficiently affects M10 TFT than it does other TFTs. Because M10 TFT has a split nanowire structure, most of which is exposed to NH3 plasma passivation, further reducing the number of grain boundary defects.
2346 IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 52, NO. 10, OCTOBER 2005
IV. CONCLUSION
This brief studied the relationship between electrical characteristics and channel width dimension in multichannel poly-TFT with nanowire devices. Experimental results indicate that the device performance en-hances with the each channel width decreasing, from S1, M2, M5, to M10 TFTs, because their structures vary from single-gate to tri-gate controlled devices gradually. Therefore, M10 TFT exhibits superior and uniform characteristics, including a low leakage current, a high ON/OFFdrain current ratio, a steep SS, an absence of DIBL. The fabri-cation of multichannel TFTs with nanowire is compatible with CMOS technology and involves no additional processes. Such TFTs are thus very promising candidates for use in future high-performance poly-Si TFT applications.
ACKNOWLEDGMENT
The authors would like to thank the National Nano Device Labora-tory for its technical support.
REFERENCES
[1] H. Oshima and S. Morozumi, “Future trends for TFT integrated circuits on glass substrates,” in IEDM Tech. Dig., 1989, pp. 157–160. [2] T. Uchida, “Present and future trend of electron device technology in flat
panel display,” in IEDM Tech. Dig., 1991, pp. 5–10.
[3] A. O. Adan, K. Suzuki, H. Shibayama, and R. Miyake, “A half-micron SRAM cell using a double-gated self-aligned polysilicon pMOS thin film transistor (TFT) load,” in Symp. VLSI Tech. Dig. , 1990, pp. 19–20. [4] H. J. Cho, F. Nemati, P. B. Griffin, and J. D. Plummer, “A novel pillar DRAM cell for 4 Git and beyond,” in Symp. VLSI Tech. Dig., 1998, pp. 38–39.
[5] P. Migliorato, C. Reita, G. Tallatida, M. Quinn, and G. Fortunato, “Anomalous off-current mechanisms in n-channel poly-Si thin film transistors,” Solid State Electron., vol. 38, pp. 2075–2079, Aug. 1995. [6] M. Hack, I.-W. Wu, T. H. King, and A. G. Lewis, “Analysis of leakage
currents in polysilicon thin film transistors,” in IEDM Tech. Dig., 1993, pp. 385–387.
[7] K. R. Olasupoand M. K. Hatalis, “Leakage current mechanism in sub-micrometer polysilicon thin-film transistors,” IEEE Trans. Electron De-vices, vol. 43, no. 8, pp. 1218–1223, Aug. 1996.
[8] K.-Y. Choi and M.-K. Han, “A novel gate-overlapped LDD poly-Si thin-film transistor,” IEEE Electron Device Lett., vol. 17, no. 12, pp. 566–568, Dec. 1996.
[9] J. Levinson, F. R. Shepherd, P. J. Scanlon, W. D. Westwood, G. Este, and M. Rider, “Conductivity behavior in polycrystalline semiconductor thin film transistors,” J. Appl. Phys., vol. 53, pp. 1193–1202, 1982. [10] N. Yamauchi, J. J. Hajjar, and R. Reif, “Drastically improved
perfor-mance in poly-Si TFTs with channel dimensions comparable to grain size,” in IEDM Tech. Dig., 1989, pp. 353–356.
[11] T. Unagami and O. Kogure, “Large on/off current ratio and low leakage current poly-Si TFTs with multichannel structure,” IEEE Trans. Electron Devices, no. 11, pp. 1986–1989, Nov. 1988.
[12] J. H. Park and C. J. Kim, “A study on the fabrication of a multigate/mul-tichannel polysilcon thin film transistor,” Jpn. J. Appl. Phys., vol. 36, pp. 1428–1432, Mar. 1997.
[13] I. H. Song, C. H. Kim, S. H. Kang, W. J. Nam, and M. K. Han, “A new multichannel dual-gate poly-Si TFT employing excimer laser annealing recrystallization on pre-patterned a-Si thin film,” in IEDM Tech. Dig., 2002, pp. 561–564.
[14] K. Suzuki, T. Tanaka, Y. Tosaka, H. Horie, and Y. Arimoto, “Scaling theory for double-gate SOI MOSFETs,” IEEE Trans. Electron Devices, vol. 40, no. 12, pp. 2326–2329, Dec. 1993.
[15] B. S. Doyle, S. Datta, M. Doczy, S. Hareland, B. Jin, J. Kavalieros, T. Linton, A. Murthy, R. Rios, and R. Chau, “High performance fully-de-pleted tri-gate CMOS transistors,” IEEE Electron Device Lett., vol. 24, no. 4, pp. 263–265, Apr. 2003.
[16] N. Lindert, L. Chang, Y. K. Choi, E. H. Anderson, W. C. Lee, T. J. King, J. Bokor, and C. Hu, “Sub-60-nm quasi-planar FinFETs fabricated using a simplified process,” IEEE Electron Device Lett., vol. 22, no. 10, pp. 487–489, Oct. 2001.
[17] S. Miyamoto, S. Maegawa, S. Maeda, T. Ipposhi, H. Kuriyama, T. Nishimura, and N. Tsubouchi, “Effect of LDD structure and channel poly-Si thinning on a gate-all-around TFT (GAT) for SRAMs,” IEEE Trans. Electron Devices, vol. 46, no. 8, pp. 1693–1698, Aug. 1999.
