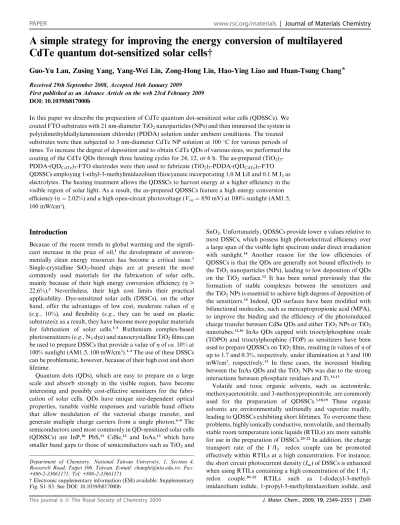

A simple strategy for improving the energy conversion of multilayered
CdTe quantum dot-sensitized solar cells†
Guo-Yu Lan, Zusing Yang, Yang-Wei Lin, Zong-Hong Lin, Hao-Ying Liao and Huan-Tsung Chang*
Received 29th September 2008, Accepted 16th January 2009 First published as an Advance Article on the web 23rd February 2009 DOI: 10.1039/b817000b
In this paper we describe the preparation of CdTe quantum dot-sensitized solar cells (QDSSCs). We coated FTO substrates with 21 nm-diameter TiO2nanoparticles (NPs) and then immersed the system in poly(dimethyldiallylammonium chloride) (PDDA) solution under ambient conditions. The treated substrates were then subjected to 3 nm-diameter CdTe NP solution at 100C for various periods of
times. To increase the degree of deposition and to obtain CdTe QDs of various sizes, we performed the coating of the CdTe QDs through three heating cycles for 24, 12, or 6 h. The as-prepared (TiO2)3 -PDDA-(QDCdTe)3-FTO electrodes were then used to fabricate (TiO2)3-PDDA-(QDCdTe)3-FTO QDSSCs employing 1-ethyl-3-methylimidazolium thiocyanate incorporating 1.0 M LiI and 0.1 M I2as electrolytes. The heating treatment allows the QDSSCs to harvest energy at a higher efficiency in the visible region of solar light. As a result, the as-prepared QDSSCs feature a high energy conversion efficiency (h¼ 2.02%) and a high open-circuit photovoltage (Voc¼ 850 mV) at 100% sunlight (AM1.5, 100 mW/cm2).
Introduction
Because of the recent trends in global warming and the signifi-cant increase in the price of oil,1the development of
environ-mentally clean energy resources has become a critical issue.1
Single-crystalline SiO2-based chips are at present the most commonly used materials for the fabrication of solar cells, mainly because of their high energy conversion efficiency (h > 22.6%).2 Nevertheless, their high cost limits their practical
applicability. Dye-sensitized solar cells (DSSCs), on the other hand, offer the advantages of low cost, moderate values of h (e.g., 10%), and flexibility (e.g., they can be used on plastic substrates); as a result, they have become more popular materials for fabrication of solar cells.3–5 Ruthenium complex-based
photosensitizers (e.g., N3dye) and nanocrystalline TiO2films can be used to prepare DSSCs that provide a value of h of ca. 10% at 100% sunlight (AM1.5, 100 mW/cm2).3–5The use of these DSSCs
can be problematic, however, because of their high cost and short lifetime.
Quantum dots (QDs), which are easy to prepare on a large scale and absorb strongly in the visible region, have become interesting and possibly cost-effective sensitizers for the fabri-cation of solar cells. QDs have unique size-dependent optical properties, tunable visible responses and variable band offsets that allow modulation of the vectorial charge transfer, and generate multiple charge carriers from a single photon.6–9 The
semiconductors used most commonly in QD-sensitized solar cells (QDSSCs) are InP,10 PbS,11 CdSe,12 and InAs,13 which have
smaller band gaps to those of semiconductors such as TiO2and
SnO2. Unfortunately, QDSSCs provide lower h values relative to most DSSCs, which possess high photoelectrical efficiency over a large span of the visible light spectrum under direct irradiation with sunlight.14 Another reason for the low efficiencies of
QDSSCs is that the QDs are generally not bound effectively to the TiO2nanoparticles (NPs), leading to low deposition of QDs on the TiO2 surface.12 It has been noted previously that the formation of stable complexes between the sensitizers and the TiO2NPs is essential to achieve high degrees of deposition of the sensitizers.15Indeed, QD surfaces have been modified with
bifunctional molecules, such as mercaptopropionic acid (MPA), to improve the binding and the efficiency of the photoinduced charge transfer between CdSe QDs and either TiO2NPs or TiO2 nanotubes.12,16 InAs QDs capped with trioctylphosphine oxide
(TOPO) and trioctylphosphine (TOP) as sensitizers have been used to prepare QDSSCs on TiO2films, resulting in values of h of up to 1.7 and 0.3%, respectively, under illumination at 5 and 100 mW/cm2, respectively.13 In these cases, the increased binding
between the InAs QDs and the TiO2NPs was due to the strong interactions between phosphate residues and Ti.13,17
Volatile and toxic organic solvents, such as acetonitrile, methoxyacetonitrile, and 3-methoxypropionitrile, are commonly used for the preparation of QDSSCs.3,18,19 These organic
solvents are environmentally unfriendly and vaporize readily, leading to QDSSCs exhibiting short lifetimes. To overcome these problems, highly ionically conductive, nonvolatile, and thermally stable room temperature ionic liquids (RTILs) are more suitable for use in the preparation of DSSCs.20–22In addition, the charge
transport rate of the I/I
3 redox couple can be promoted effectively within RTILs at a high concentration. For instance, the short circuit photocurrent density (Isc) of DSSCs is enhanced when using RTILs containing a high concentration of the I/I
3 redox couple.20–22 RTILs such as
1-dodecyl-3-methyl-imidazolium iodide, 1-propyl-3-methyl1-dodecyl-3-methyl-imidazolium iodide, and
Department of Chemistry, National Taiwan University, 1, Section 4, Roosevelt Road, Taipei 106, Taiwan. E-mail: [email protected]; Fax: +886-2-33661171; Tel: +886-2-33661171
† Electronic supplementary information (ESI) available: Supplementary Fig. S1–S3. See DOI: 10.1039/b817000b
1-ethyl-3-methylimidazolium thiocyanate have been used to increase the ionic conductivity and, thus, provide DSSCs exhibiting high current densities and photoelectric conver-sions.23,24
In this study, we used poly(dimethyldiallylammonium chlo-ride) (PDDA) to link CdTe QDs to TiO2NPs through electro-static attraction. We expected that CdTe QDs having a high extinction coefficient (4.4 104M1cm1) at 370 nm and valence
band, conduction band, and band gap energies of 3.9, 5.5, and +1.6 eV, respectively, would behave as sensitizers capable of effectively injecting electrons into TiO2 NPs (band gap: 3.4 eV).25,26Through thermal processing, we prepared (TiO
2)m -PDDA-(QDCdTe)n-FTO electrodes that we used in the fabrication of QDSSCs.27 In the QDSSCs, we used
1-ethyl-3-methylimidazolium thiocyanate (EMImSCN) as the solvent to prepare I/I
3electrolytes because of its high conductivity (2.1 S/ m) and low viscosity (21 mPas) at room temperature, relative to those of other RTILs.28 We investigated the impact that the
heating process of coating CdTe QDs on (TiO2)3-PDDA-FTO substrates at 100 C had in determining the optical properties
and h values of the QDSSCs.
Experimental
Chemicals and instruments
TiO2 NPs having diameters of 21 4.5 nm (P25, Degussa), cadmium perchlorate [Cd(ClO4)2, 99%], tellurium powder (200 mesh, 99.8%), ethylene glycol (99%), hydrogen hexa-chloroplatinate(IV) hexahydrate (H2PtCl6$6H2O, 99%), PDDA (Mw400 000–500 000, 20 wt% aqueous solution), MPA (99+%), sodium hydroxide, poly(vinylpyrrolidone) (PVP, Mw 55 000), methyl cellulose (2.0 wt% aqueous solution), polyethylene glycol (PEG, Mw5000), and EMImSCN were purchased from Sigma– Aldrich (Milwaukee, WI, USA).
High-resolution transmission electron microscopy (HR-TEM) images were recorded using an H-7100 TEM system (Hitachi, Tokyo, Japan). Energy-dispersive X-ray (EDX) spectra were obtained using the HR-TEM system. Scanning electron micros-copy (SEM) images were obtained using an ERA-8800 SEM system (Elionix, Tokyo, Japan). Nitrogen (N2) adsorption/ desorption isotherms of TiO2 NP films were measured using a Micromeritics Tristar 3000 apparatus (Particle & Surface Science, Pty. Ltd., NSW, Australia) at liquid nitrogen tempera-ture. Before the measurements, the samples were degassed at 100
C for 12 h. The specific surface areas were evaluated using the
Brunauer–Emmett–Teller (BET) method.
A double-beam UV-Vis spectrophotometer (Cintra 10e, GBC, VIC, Australia) was used to measure the absorption of CdTe QDs. The photocurrent–voltage (I–V) curves were measured under the illumination provided by a solar simulator (Oriel 6691 450-W xenon arc lamp, CT, USA) at 100% sunlight (AM1.5, 100 mW/cm2). A Si photodetector (Photonic Solutions, Edinburgh,
UK) was used as a reference. An Autolab potentiostat/galva-nostat (Eco Chemie B.V., Kanaalweg, Netherlands) was used to record the I–V characteristic of the as-prepared QDSSCs. Photocurrent and open-circuit photovoltages (Voc) were measured using a Keithley 2400 programmable electrometer (Test Equipment Connection Corporation, Lake Mary, FL,
USA). The incident photon-to-current conversion efficiency (IPCE) was measured using a high-intensity grating mono-chromator (Spectra-Physics, Oriel Cornerstone 130); the light intensity was measured using an OPHIR 2A-SH thermopile detector (Oriel, CT, USA).
Preparation of CdTe QDs
Water-soluble CdTe QDs were prepared using a method described previously.29Briefly, NaBH
4(0.08 g) was reacted with Te powder (0.127 g) in water (1.0 mL) to produce sodium hydrogen telluride (NaHTe, 0.99 M). The NaHTe solution (0.5 mL) was then added to a N2-saturated mixture (74.8 mL; pH 11.2) of MPA (38 mM) and Cd(ClO4)2(16 mM) to give a final Cd2+/MPA/HTemolar ratio of 1 : 2.4 : 0.5. This mixture was
then heated under reflux at 80C for 20 min. The color of the solution changed from dark red to orange-yellow, indicating the formation of CdTe QDs that fluoresced at 505 nm when excited at 350 nm. The CdTe QDs were purified by using 10k membranes (Millipore, Carrigtwohill, Co Cork, Ireland), which allowed removal of free ligands such as MPA and unreacted precursor ions from the CdTe QDs. The as-prepared CdTe QDs (ca. 3 nm) were characterized using HR-TEM and EDX spectroscopy (Fig. S1†). UV-Vis absorption measurements30revealed that the
concentration of CdTe QDs was ca. 50 mM. Synthesis of Pt NPs
Pt NPs were synthesized using the polyol method.31In a typical
synthesis, PVP (0.14 g) was added to a solution of 0.01 M H2PtCl6$6H2O in ethylene glycol (50 mL) and then the mixture was heated at 160 C for at least 2 h. The color of the
solution turned black, indicating the formation of Pt NPs. The as-prepared Pt NPs were subjected to three centrifugation/wash cycles (15 000 rpm for 10 min) and then they were stored in ethanol prior to use. A HR-TEM image (not shown) revealed that the diameters of the as-prepared Pt NPs were 4.9 1.1 nm. Preparation of (TiO2)m-PDDA-FTO substrates
TiO2powder (6.0 g) was stirred in diluted aqueous HNO3 solu-tion (1 : 120, v/v%) under heating at 80 C. After 8 h, the
dispersion was dried in a rotary evaporator to provide a TiO2/ NO3 powder (i.e., HNO3 adsorbed on the TiO2 surface). Coating pastes were prepared by mixing TiO2/NO3(0.8 g), H2O (4 mL), methyl cellulose (0.08 g), and PEG (0.24 g); methyl cellulose and PEG were used as thickening and porosity-increasing materials, respectively.32The modified TiO
2paste was degassed and then coated on F-doped tin oxide (FTO) substrates (electrodes) using the doctor-blade technique.33,34 The area of
each of the conducting FTO substrates was 1.5 2.0 cm2
(transmission: >90%; sheet resistance: 9 U sq1). The two edges of
each FTO substrate were sealed using adhesive tape. The FTO substrates, each covered with a TiO2 film, were then dried at 50C. One to three coating/heating cycles were used to fabricate
the (TiO2)m-FTO substrates (m ¼ 1–3). The (TiO2)m-FTO substrates (m¼ 1–3) were then sintered at 450C for 30 min in
dry air. After thermal annealing, the (TiO2)m-FTO substrates were immersed overnight in a solution of 4% PDDA containing 0.5 M NaCl to prepare the (TiO2)m-PDDA-FTO substrates
(Scheme 1A), which each had an effective area of 0.16 cm2.27The
substrates were subjected to air drying and then rinsing with DI water and ethanol to remove any unbound PDDA.
Fabrication of (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes The (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes (n ¼ 1–4) were obtained by immersing the (TiO2)3-PDDA-FTO substrates into CdTe QD solution (lem ¼ 505 nm; 50 mM, 5 mL) and then heating at 100C in an oven (Scheme 1B). This temperature was
chosen to increase the coverage area of the CdTe QDs on the TiO2-PDDA-FTO substrates; it also allowed the band edge of the CdTe QDs on the (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes to be tuned by controlling the reaction time in each step. The (TiO2)3-PDDA-FTO substrates prepared after conducting the first step for 24 h are denoted herein as the (TiO2)3 -PDDA-(QDCdTe)1-FTO electrodes. The (TiO2)3-PDDA-(QDCdTe)1-FTO electrodes were then placed in a freshly prepared CdTe QDs solution (lem¼ 505 nm; 50 mM) for 12 h to perform the second coating step, providing the (TiO2)3-PDDA-(QDCdTe)2-FTO electrodes. Similarly, the (TiO2)3-PDDA-(QDCdTe)2-FTO elec-trodes were used to prepare the (TiO2)3-PDDA-(QDCdTe)3-FTO electrodes, which were then used to prepare the (TiO2)3 -PDDA-(QDCdTe)4-FTO electrodes, at the third and fourth coating times of 6 and 1 h, respectively. All of these as-prepared (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes (n ¼ 1–4) were cleaned sequentially with doubly distilled H2O and ethanol and then dried at 100C.
Fabrication of (TiO2)3-PDDA-(QDCdTe)n-FTO QDSSCs The as-prepared (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes (n¼ 1–4) were dried in an oven at 100C for at least 1 h. Counter electrodes were prepared by placing a drop of the Pt NPs onto the FTO glass substrates and drying at 100C for 30 min. The
Pt-coated counter electrodes were then sintered at 450 C for 30
min. The (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes (n ¼ 1–4)
and Pt-coated counter electrodes were assembled in a sandwich configuration and sealed with a spacer, after annealing at 100C for 1 h. The as-prepared (TiO2)3-PDDA-(QDCdTe)n-FTO QDSSCs (n¼ 1–4) were placed in an oven at 100C for 1 h to
avoid the absorption of water prior to use in the experiment. An EMImSCN solution containing 1.0 M LiI and 0.1 M I2 as electrolytes was injected into each of the (TiO2)3 -PDDA-(QDCdTe)n-FTO QDSSCs (n¼ 1–4).35To enhance the conduc-tivity of electrodes, Cu tapes were pasted on the (TiO2)3 -PDDA-(QDCdTe)n-FTO QDSSCs (n¼ 1–4).
Results and discussion
Preparation of (TiO2)m-PDDA-FTO sfubstrates and (TiO2)3 -PDDA-(QDCdTe)n-FTO electrodes
Scheme 1A displays the doctor-blade method we used to fabri-cate the (TiO2)m-FTO substrates (m¼ 1–3).27The (TiO2)m-FTO substrates were then modified with PDDA to prepare the (TiO2)m-PDDA-FTO substrates (m ¼ 1–3). At pH 10.5, TiO2 NPs (pI ¼ 4.5) possess negatively charged surfaces, whereas PDDA is positively charged; therefore, they interact through electrostatic attraction. Fig. 1 displays SEM images of the surface morphologies of the (TiO2)m-PDDA-FTO substrates (m ¼ 1–3). The surface of each of the coating films was smooth, with no cracks appearing on the surface of the TiO2film. From the SEM and BET analyses, we estimated the (TiO2)m-PDDA-FTO (m ¼ 1–3) substrates to have thicknesses of 26.6, 46.6, and 61.3 mm, respectively, and specific surface areas of 48.1, 52.1, and 54.3 m2g1, respectively. Thus, the amount of TiO
2NPs on
Scheme 1 (A) Fabrication processes employed to prepare the (TiO2)m-PDDA-FTO substrates (m ¼ 1–3). (a) TiO2-FTO substrate
prepared using a doctor-blade technique and then dried at 50C for 1 h in
each preparation cycle. (b) Sintering at 450 C for 30 min. The dry
(TiO2)m-FTO substrates were then immersed separately in PDDA
solu-tions for 12 h. (B) Fabrication processes employed for the preparation of the (TiO2)3-PDDA-(QDCdTe)n-FTO (n¼ 1–4) electrodes at 100C, with
heating times of 24, 12, 6, and 1 h for the first to fourth cycles, respec-tively. Solid circles represent CdTe QDs.
Fig. 1 (a–c) Top-view SEM images of the (a) (TiO2)1-PDDA-FTO, (b)
(TiO2)2-PDDA-FTO, and (c) (TiO2)3-PDDA-FTO substrates and (d–e)
cross-sectional SEM images of the (d) (TiO2)1-PDDA-FTO, (e)
the (TiO2)m-PDDA-FTO substrates increased upon increasing the value of m (i.e., the number of heating cycles). We expected that a greater amount and larger surface area of TiO2NPs on the substrates would increase the electron transfer efficiency of the substrates. In addition, we expected that more PDDA molecules would be present on the films, leading to an increased loading of CdTe QDs. The TiO2film of the (TiO2)4-PDDA-FTO substrate became too fragile for use in the fabrication of the (TiO2)4-PDDA-(QDCdTe)n-FTO electrodes (n ¼ 1–4). Thus, we used the (TiO2)3-PDDA-FTO substrates to fabricate the (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes.
Scheme 1B displays the processes that we used for the fabrica-tion of the (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes (n¼ 1–4) at 100 C, prepared through one to four heating cycles, each for
a different length of time. The CdTe QDs were bound to the TiO2 NPs through electrostatic interactions with surface-bound PDDA. We conducted multiple coating steps and used various heating times to increase the amounts of the differently sized CdTe QDs that adsorbed onto the (TiO2)3-PDDA-FTO substrates. The SEM images of the surface morphologies of the (TiO2)3 -PDDA-(QD)n-FTO electrodes (n¼ 1–4) are shown in Fig. S2.† While heating at 100C, the sizes of the CdTe QDs increased as a result
of Ostwald ripening.36The sizes also increased upon increasing the
reaction time (see the detailed discussion in the next section). As a result of inefficient binding of the larger-sized CdTe QDs to the TiO2NPs, some spaces in the TiO2films remained for the binding of more smaller-sized CdTe QDs. Thus, the reaction time decreased for each subsequent heating cycle: 24, 12, 6, and 1 h for the first to fourth cycles, respectively.
Optical properties of (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes To test the suitability of using the (TiO2)3 -PDDA-(QDCdTe)n-FTO electrodes (n ¼ 1–4) for the fabrication of QDSSCs, we measured their absorption properties. Fig. 2A reveals that the absorbance at ca. 600 nm increased upon increasing the value of n from 1 to 3, but it decreased from 3 to 4. We observed wider absorption peak profiles upon increasing n, mainly due to the coating of the different sizes of CdTe QDs; the increases in absorbance were due mainly to the greater amounts of the CdTe QDs adsorbed on the TiO2film. The ICP-MS results shown in the inset of Fig. 2A also demonstrated that the contents of CdTe QDs in the (TiO2)3-PDDA-(QD)n-FTO electrodes increased upon increasing the values of n from 1 to 3 and then it decreased upon increasing n from 3 to 4. Our success in achieving relatively high coverages of CdTe QDs in these TiO2films arose mainly because we filled small-sized CdTe QDs into the porous networks of the TiO2films. Although the absorbance at ca. 500 nm of the (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes increased upon increasing the value of n from 3 to 4, the absorbance decreased at wavelengths greater than 550 nm, mainly because of the instability of the CdTe QD coating. In other words, some of the larger-sized CdTe QDs were replaced by smaller-sized CdTe QDs. Fig. S3† shows that the size distributions of CdTe QDs in the (TiO2)3-PDDA-(QD)n-FTO electrodes (n¼ 1–4), which were determined by HR-TEM. Upon increasing the deposition cycles from the values of n from 1 to 4, the size distributions of CdTe QDs of each electrodes became broader, which are correlated with the wider absorption of CdTe QDs in the visible region.
The absorption spectrum of a sensitizer plays an important role in determining the energy conversion efficiency of DSSCs.12,16,37,38
We were encouraged that the relatively high absorption in the visible spectrum by our (TiO2)3-PDDA-(QDCdTe)3-FTO elec-trode would ensure a greater absorption (>80%) of the incident visible light. Our multilayer coverage of CdTe QDs on the TiO2 films is analogous to the modification of mesoscopic TiO2films with sensitizing dyes.3–5Our optical analysis suggested that the
(TiO2)3-PDDA-(QDCdTe)3-FTO electrode would be the optimal structure for the fabrication of the QDSSCs.
To further understand the changes in the absorption spectra that occurred during the various heating processes, we conducted similar experiments using aqueous CdTe solutions. Fig. 2B reveals that red shifts in the absorption of the CdTe solutions occurred upon increasing the heating time from 1 to 24 h. This situation arose mainly because Ostwald ripening (i.e., the atoms that dissolved from the smaller-sized CdTe QDs grew onto other CdTe QDs to form larger-sized CdTe QDs) occurred while heating at 100C, leading to increases in the sizes of the CdTe
QDs (see the inset to Fig. 2B), as evidenced from HR-TEM images.29Heating for 24, 12, 6, and 1 h resulted in CdTe QDs
having sizes of 5.7, 4.5, 3.5, and 3.0 nm, respectively. We noted that the absorption wavelengths underwent a red shift upon an increase in the size of the QDs.
Fig. 2 (A) Absorption spectra of the (a) (TiO2)3
-PDDA-(QDCdTe)1-FTO, (b) (TiO2)3-PDDA-(QDCdTe)2-FTO, (c) (TiO2)3
-PDDA-(QDCdTe)3-FTO, (d) (TiO2)3-PDDA-(QDCdTe)4-FTO electrodes,
and (e) (TiO2)3-PDDA-FTO as control. Inset: contents of CdTe QDs in
the (TiO2)3-PDDA-(QD)n-FTO electrodes (n¼ 1–4). The concentrations
of cadmium ions were determined by ICP-MS. (B) Absorption spectra of CdTe QD solutions heated at 100C for (a) 0, (b) 1, (c) 6, (d) 12, and (e)
24 h. Inset: sizes of the CdTe QDs plotted with respect to the heating time.
Photocurrent–voltage characteristics of QDSSCs
The energy diagram showing the operating principle of the QDSSC is depicted in Scheme 2A. At the heart of the system is a mesoscopic TiO2film, which is placed in contact with a redox electrolyte. Photoexcitation of the CdTe QDs results in the injection of an electron into the conduction band of the TiO2 film. The electronic state of the CdTe QDs is regenerated by electron donation from the electrolyte such as the iodide/triio-dide couple. The movement of holes on the QDs surface must be accompanied by the diffusion of charge-compensating anions in the electrolyte layer close to the CdTe QDs surface. The photo-generated holes in CdTe QDs could be scavenged by iodide ions as shown in Scheme 2B.39Fig. 3 displays the I–V curves, recorded
at 100% sunlight (AM1.5, 100 mW/cm2), for QDSSCs that we
prepared from the (TiO2)3-PDDA-(QDCdTe)n-FTO electrodes (n ¼ 1–4). Table 1 summarizes their values of Voc, Isc, fill factor (FF), and h. The magnitudes of the values of Isc and h of the QDSSCs correlate with the absorbances in Fig. 2A. This behavior is consistent with the knowledge that QDs having greater absorption coefficients usually provide greater values of Iscand h.39The values of Isc, FF, and h of the (TiO2)3 -PDDA-(QDCdTe)n-FTO QDSSCs increased upon increasing the value of n from 1 to 3, but then they decreased upon increasing n from 3 to 4. The values of Isc, FF, and h of the (TiO2)3 -PDDA-(QDCdTe)3-FTO QDSSCs were 3.61 mA cm2, 65.8, and 2.02%, respectively. We note that the value of h of our (TiO2)3 -PDDA-(QDCdTe)3-FTO QDSSC (2.02%) is greater than those of QDSSCs fabricated from CdS, CdSe, PbS, InAs, and InP,10–13,37,38 primarily because of the superior value of V
oc (850 mV).10–13,16,37,38 The values of h of the (TiO
2)3 -PDDA-(QDCdTe)n-FTO QDSSC (n ¼ 1–4) are greater than those of QDSSCs fabricated in the presence of PDDA at room
temperature and in the absence of PDDA at 100C, respectively.
The amounts of CdTe QDs adsorbed on these substrates were less (about 5- and 3-fold lower) than the QDSSCs fabricated at 100 C in the presence of PDDA, mainly because only fewer
amounts of CdTe QDs were adsorbed, which were supported by
Scheme 2 (A) Principle of operation of the CdTe QDSSC. Potentials are referred to the normal hydrogen electrode (NHE). (B) Transmission line description of the electron motion through the conduction band of TiO2
particles.
Fig. 3 I–V characteristics of the (a) (TiO2)3-PDDA-(QDCdTe)1-FTO, (b)
(TiO2)3-PDDA-(QDCdTe)2-FTO, (c) (TiO2)3-PDDA-(QDCdTe)3-FTO,
(d) (TiO2)3-PDDA-(QDCdTe)4-FTO, and (e) (TiO2)3
-PDDA-(QDCdTe)3-FTO QDSSCs. (a–d) Illumination with 100% sunlight
(AM1.5, 100 mW/cm2); (e) darkness.
Table 1 Performance characteristics of the CdTe QDSSCs
QDSSCs Isc(mA cm2) Voc(mV) FF (%) h(%) (TiO2)3 -PDDA-(QDCdTe)1-FTO electrode 1.03 780 62 0.50 (TiO2)3 -PDDA-(QDCdTe)2-FTO electrode 2.65 800 67 1.42 (TiO2)3 -PDDA-(QDCdTe)3-FTO electrode 3.61 850 66 2.02 (TiO2)3 -PDDA-(QDCdTe)4-FTO electrode 2.92 920 65 1.83 a(TiO 2)3 -PDDA-(QDCdTe)1-FTO electrode 0.32 471 48 0.07 a(TiO 2)3 -PDDA-(QDCdTe)2-FTO electrode 0.51 570 56 0.16 a (TiO2)3 -PDDA-(QDCdTe)3-FTO electrode 0.72 569 57 0.34 a(TiO 2)3 -PDDA-(QDCdTe)4-FTO electrode 0.77 510 58 0.20 b(TiO 2)3-(QDCdTe)1 -FTO electrode 0.78 641 43 0.21 b(TiO 2)3-(QDCdTe)2 -FTO electrode 1.10 750 46 0.38 b(TiO 2)3-(QDCdTe)3 -FTO electrode 1.66 670 56 0.62 b(TiO 2)3-(QDCdTe)4 -FTO electrode 1.35 679 60 0.55
aConducting the coating procedure at room temperature. Other
conditions are the same as Scheme 1B. bConducting the coating
procedure at 100C in the absence of PDDA. Other conditions are the
the ICP MS data. We suspect that the superior performance of our (TiO2)3-PDDA-(QDCdTe)3-FTO QDSSC arose because of the existence of CdTe QDs of various sizes, leading to more excited electrons being produced under illumination with visible light. The decreasing value of h of the (TiO2)3 -PDDA-(QDCdTe)n-FTO QDSSCs upon increasing the value of n from 3 to 4 is strongly related to the reduction in the values of the FF and Isc, mainly because of decreases in the absorbance in the longer wavelength region and possibly because of blocking of the mesopores of the TiO2NPs.
To further understand the role of the CdTe QDs in deter-mining the value of h of our QDSSCs, we conducted IPCE measurements of the (TiO2)3-PDDA-FTO, (TiO2)3 -PDDA-(QDCdTe)3-FTO, and (TiO2)3-PDDA-(QDCdTe)4-FTO QDSSCs. Fig. 4 shows that the (TiO2)3-PDDA-(QDCdTe)3-FTO QDSSC provided a clear shoulder at 550 nm, with an IPCE of 26.0%, while the (TiO2)3-PDDA-(QDCdTe)4-FTO QDSSC provided a lower value of IPCE (22.7%) at the same wavelength. Both the IPCE and absorption data indicate that the CdTe QDs in our QDSSCs harvested light at wavelengths ranging from 400 to 700 nm.
Conclusions
We have demonstrated a new approach for the preparation of QDSSCs having high energy conversion efficiencies. To the best of our knowledge, this is the first example showing preparation of a wide size distribution of CdTe QDs on the electrode surface by conducting simple heating processes. Table 2 lists a compar-ison of our new developed solar cell with other CdTe/ TiO2based solar cells. When compared to other techniques, our approach
has the advantage of using environmentally friendly, room temperature ionic liquids solvent for the preparation of the electrolyte and CdTe prepared in aqueous solution. However, conducting several heating cycles is required; fabrication time is longer. Because variously sized CdTe QDs were adsorbed onto the (TiO2)3-PDDA-FTO electrodes, the electrode absorbed light over a wider range in the UV-Vis region. As a result, the (TiO2)3-PDDA-(QDCdTe)3-FTO QDSSC provided a higher value of h (2.02%) under illumination with 100% sunlight. Although we have used this approach to prepare QDSSCs featuring only CdTe QDs, we suspect that it could be applied further to the preparation of devices featuring other variously sized QDs, such as CdSe and ZnS, or mixtures of QDs, such as CdSe and CdTe QDs.
Acknowledgements
This study was supported by the National Science Council of Taiwan under contracts NSC 2627-M-002-010, and NSC 97-2627-M-002-011. We thank the Center for Information and Electronic Technologies at National Taiwan University for allowing us to conduct the SEM measurements. Z. Y. and Y.-W. L. thank National Taiwan University for PDF support (96R0044).
References
1 P. D. Thacker, Environ. Sci. Technol., 2005, 39, 436.
2 T. Warabisako, T. Uematsu, S. Muramatsu, K. Tsutsui, H. Ohtsuka, Y. Nagata and M. Sakamoto, Sol. Energy Mater. Sol. Cells, 1997, 48, 137.
3 B. O’Regan and M. Gr€atzel, Nature, 1991, 353, 737. 4 M. Gr€atzel, Nature, 2001, 414, 338.
5 M. K. Nazeeruddin, A. Key, I. Rodicio, R. Humphy-Baker, E. M€uller, P. Liska, N. Vlachopoulos and M. Gr€atzel, J. Am. Chem. Soc., 1993, 115, 6382.
6 A. J. Nozik, Physica E, 2002, 14, 115.
7 R. T. Ross and A. J. Nozik, J. Appl. Phys., 1982, 53, 3813. 8 R. D. Schaller and V. I. Klimov, Phys. Rev. Lett., 2004, 92, 186601. 9 R. J. Ellingson, M. C. Beard, J. C. Johnson, P. Yu, O. I. Micic, A. J. Nozik, A. Shabaev and A. L. Efros, Nano Lett., 2005, 5, 865. 10 A. Zaban, O. I. Micic, B. A. Gregg and A. J. Nozik, Langmuir, 1998,
14, 3153.
11 R. Plass, S. Pelet, J. Krueger and M. Gr€atzel, J. Phys. Chem. B, 2002, 106, 7578.
12 I. Robel, V. Subramanian, M. Kuno and P. V. Kamat, J. Am. Chem. Soc., 2006, 128, 2385.
13 P. Yu, K. Zhu, A. G. Norman, S. Ferrere, A. J. Frank and A. J. Nozik, J. Phys. Chem. B, 2006, 110, 25451.
14 D. Kuang, C. Klein, S. Ito, J.-E. Moser, R. Humphry-Baker, N. Evan, F. Duriaux, C. Gr€atzel, S. M. Zakeeruddin and M. Gr€atzel, Adv. Mater., 2007, 19, 1133.
15 P. Wang, C. Klein, R. Humphry-Baker, S. M. Zakeeruddin and M. Gr€atzel, J. Am. Chem. Soc., 2005, 127, 808.
16 A. Kongkanand, K. Tvrdy, K. Takechi, M. Kuno and P. V. Kamat, J. Am. Chem. Soc., 2008, 130, 4007.
17 J. M. NedeljKovic, O. I. Micic, S. P. Ahrenkiel and A. Miedaner, J. Am. Chem. Soc., 2004, 126, 2632.
18 M. K. Nazeeruddin, P. Pechy, T. Renouard, S. M. Zakeeruddin, R. Humphry-Baker, P. Comte, P. Liska, L. Cevey, E. Costa, V. Shklover, L. Spiccia, G. B. Deacon, C. A. Bignozzi and M. Gratzel, J. Am. Chem. Soc., 2001, 123, 1613.
19 P. Wang, S. M. Zakeeruddin, P. Comte, I. Exnar and M. Gratzel, J. Am. Chem. Soc., 2003, 125, 1166.
20 P. Kawano and M. Watanabe, Chem. Commun., 2005, 2107. 21 N. Yamanaka, R. Kawano, W. Kubo, T. Kitamura, Y. Wada,
M. Watanabe and S. Yanagida, Chem. Commun., 2005, 740. 22 P. Wang, S. M. Zakeeruddin, R. Humphry-Baker and M. Gr€atzel,
Chem. Mater., 2004, 16, 2694. Fig. 4 IPCEs of the (a) (TiO2)3-PDDA-(QDCdTe)3-FTO, (b)
(TiO2)3-PDDA-(QDCdTe)4-FTO, and (c) (TiO2)3-PDDA-FTO QDSSCs.
Table 2 Comparison of the CdTe QDSSC to other CdTe based QDSSCs
Type Isc(mA cm2) Voc(mV) FF (%) h (%) Ref
CdSe/CdTe/TiO2NPs 0.0695 360 48 0.015 40
CdTe/TiO2nanotube 0.44 —a — — 41
CdTe/ TiO2NPs 5–9 650 20 — 42
CdTe/TiO2 NPs 3.61 850 66 2.02 This work
23 P. Wang, B. Wenger, R. Humphry-Baker, J.-E. Moser, J. Teuscher, W. Kantlehner, J. Mezger, E. V. Stoyanov, S. M. Zakeeruddin and M. Gr€atzel, J. Am. Chem. Soc., 2005, 127, 6850.
24 P. K. Singh, K.-I. Kim, N.-G. Park and H.-W. R., Macromol. Symp., 2007, 249, 162.
25 G. K. Zhang, X. M. Ding, F. S. He, X. Y. Yu, J. Zhou, Y. J. Hu and J. W. Xie, Langmuir, 2008, 24, 1026.
26 C.-Y. Chen, C.-T. Cheng, C.-W. Lai, Y.-H. Hu, P.-T. Chou, Y.-H. Chou and H.-T. Chiu, Small, 2005, 1, 1215.
27 Y.-W. Lin, W.-L. Tseng and H.-T. Chang, Adv. Mater., 2006, 18, 1381.
28 G.-H. Sun, K.-X. Li and C.-G. Sun, J. Power Sources, 2006, 162, 1444.
29 M. Gao, A. L. Rogach, A. Kornowski, S. Kirstein, A. Eychmuller, H. Mohwald and H. Weller, J. Phys. Chem. B, 1998, 102, 8360. 30 N. Murase, P. Yang and C. L. Li, J. Phys. Chem. B, 2005, 109, 17855. 31 T. Herricks, J. Chen and Y. Xia, Nano Lett., 2004, 4, 2367. 32 S. Ito, T. Kitamura, Y. Wada and S. Yanagida, Sol. Energy Mater.
Sol. Cells, 2003, 76, 3.
33 S. D. Burnside, V. Shklover, C. Barbe, P. Comte, F. Arendse, K. Brooks and M. Gr€atzel, Chem. Mater., 1998, 10, 2419.
34 J.-H. Yum, S. Nakade, D.-Y. Kim and S. Yanagida, J. Phys. Chem. B, 2006, 110, 3215.
35 K. Fredin, M. Gorlov, H. Pettersson, A. Hagfeldt, L. Kloo and G. Boschloo, J. Phys. Chem. C, 2007, 111, 13261.
36 Y.-M. Sung, K.-S. Park, Y.-J. Lee and T.-G. Kim, J. Phys. Chem. C, 2007, 111, 1239.
37 S.-C. Lin, Y.-L. Lee, C.-H. Chang, Y.-J. Shen and Y.-M. Yang, Appl. Phys. Lett., 2007, 90, 143517.
38 C.-H. Chang and Y.-L. Lee, Appl. Phys. Lett., 2007, 91, 053503. 39 M. Gratzel, Inorg. Chem., 2005, 44, 6841.
40 H.-J. Lee, D.-Y. Kim, J.-S. Yoo, J. Bang, S. Kim and S.-M. Park, Bull. Korean Chem. Soc, 2007, 28, 953.
41 J. A. Seabold, K. Shankar, R. H. T. Wilke, M. Paulose, O. K. Varghese, C. A. Grime and K.-S. Choi, Chem. Mater., 2008, 20, 5266.
42 K. Ernst, R. Engelhardt, K. Ellmer, C. Kelch, H.-J. Muffler, M.-C. Lux-steiner and R. K€onenkamp, Thin Solid Films, 2001, 387, 26.
