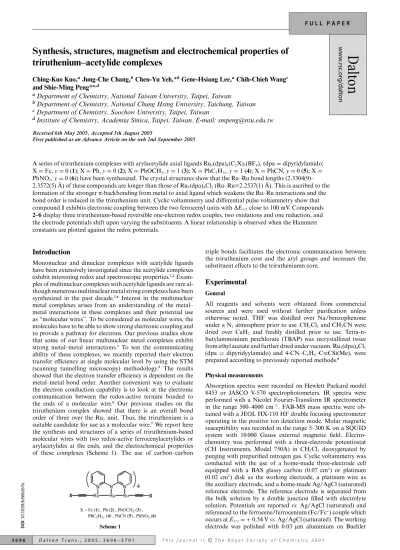

Synthesis, structures, magnetism and electrochemical properties of
triruthenium–acetylide complexes
Ching-Kuo Kuo,aJung-Che Chang,bChen-Yu Yeh,*bGene-Hsiang Lee,aChih-Chieh Wangc
and Shie-Ming Peng*a,d
aDepartment of Chemistry, National Taiwan University, Taipei, Taiwan
bDepartment of Chemistry, National Chung Hsing University, Taichung, Taiwan
cDepartment of Chemistry, Soochow University, Taipei, Taiwan
dInstitute of Chemistry, Academia Sinica, Taipei, Taiwan. E-mail: [email protected]
Received 6th May 2005, Accepted 5th August 2005
First published as an Advance Article on the web 2nd September 2005
A series of triruthenium complexes with arylacetylide axial ligands Ru3(dpa)4(C2X)2(BF4)y(dpa= dipyridylamido;
X= Fc, y = 0 (1); X = Ph, y = 0 (2); X = PhOCH3, y= 1 (3); X = PhC5H11, y= 1 (4); X = PhCN, y = 0 (5); X = PhNO2, y= 0 (6)) have been synthesized. The crystal structures show that the Ru–Ru bond lengths (2.3304(9)– 2.3572(5) A˚ ) of these compounds are longer than those of Ru3(dpa)4Cl2(Ru–Ru=2.2537(1) A˚). This is ascribed to the formation of the stronger p-backbonding from metal to axial ligand which weakens the Ru–Ru interactions and the bond order is reduced in the triruthenium unit. Cyclic voltammetry and differential pulse voltammetry show that compound 1 exhibits electronic coupling between the two ferrocenyl units with DE1/2close to 100 mV. Compounds
2–6 display three triruthenium-based reversible one-electron redox couples, two oxidations and one reduction, and
the electrode potentials shift upon varying the substituents. A linear relationship is observed when the Hammett constants are plotted against the redox potentials.
Introduction
Mononuclear and dinuclear complexes with acetylide ligands have been extensively investigated since the acetylide complexes exhibit interesting redox and spectroscopic properties.1,2 Exam-ples of multinuclear complexes with acetylide ligands are rare al-though numerous multinuclear metal string complexes have been synthesized in the past decade.3,4 Interest in the multinuclear metal complexes arises from an understanding of the metal– metal interactions in these complexes and their potential use as “molecular wires”. To be considered as molecular wires, the molecules have to be able to show strong electronic coupling and to provide a pathway for electrons. Our previous studies show that some of our linear multinuclear metal complexes exhibit strong metal–metal interactions.3 To test the communicating ability of these complexes, we recently reported their electron transfer efficiency at single molecular level by using the STM (scanning tunnelling microscopy) methodology.5 The results showed that the electron transfer efficiency is dependent on the metal–metal bond order. Another convenient way to evaluate the electron conduction capability is to look at the electronic communication between the redox-active termini bonded to the ends of a molecular wire.6 Our previous studies on the triruthenium complex showed that there is an overall bond order of three over the Ru3unit. Thus, the triruthenium is a suitable candidate for use as a molecular wire.7We report here the synthesis and structures of a series of triruthenium-based molecular wires with two redox-active ferrocenylacetylides or arylacetylides at the ends, and the electrochemical properties of these complexes (Scheme 1). The use of carbon–carbon
Scheme 1
triple bonds facilitates the electronic communication between the triruthenium core and the aryl groups and increases the substituent effects to the trirutheniumn core.
Experimental
General
All reagents and solvents were obtained from commercial sources and were used without further purification unless otherwise noted. THF was distilled over Na/benzophenone under a N2atmosphere prior to use. CH2Cl2and CH3CN were dried over CaH2 and freshly distilled prior to use. Tetra-n-butylammonium perchlorate (TBAP) was recrystallized twice from ethyl acetate and further dried under vacuum. Ru3(dpa)4Cl2 (dpa= dipyridyylamido) and 4-CN–C6H4–C≡CSi(Me)3 were prepared according to previously reported methods.8
Physical measurements
Absorption spectra were recorded on Hewlett Packard model 8453 or JASCO V-570 spectrophotometers. IR spectra were performed with a Nicolet Fourier-Transform IR spectrometer in the range 500–4000 cm−1. FAB-MS mass spectra were ob-tained with a JEOL HX-110 HF double focusing spectrometer operating in the positive ion detection mode. Molar magnetic susceptibility was recorded in the range 5–300 K on a SQUID system with 10 000 Gauss external magnetic field. Electro-chemistry was performed with a three-electrode potentiostat (CH Instruments, Model 750A) in CH2Cl2 deoxygenated by purging with prepurified nitrogen gas. Cyclic voltammetry was conducted with the use of a home-made three-electrode cell equipped with a BAS glassy carbon (0.07 cm2) or platinum (0.02 cm2) disk as the working electrode, a platinum wire as the auxiliary electrode, and a home-made Ag/AgCl (saturated) reference electrode. The reference electrode is separated from the bulk solution by a double junction filled with electrolyte solution. Potentials are reported vs. Ag/AgCl (saturated) and referenced to the ferrocene/ferrocenium (Fc/Fc+) couple which occurs at E1/2= + 0.54 V vs. Ag/AgCl (saturated). The working electrode was polished with 0.03 lm aluminium on Buehler
DOI
:10.1039/b506267e
felt pads and was put under ultrasonic radiation for 1 min prior to each experiment. The reproducibility of individual potential values was within±5 mV. The spectroelectrochemical experiments were accomplished with the use of a 1 mm cuvette, a 100 mesh platinum gauze as working electrode, a platinum wire as auxiliary electrode, and a Ag/AgCl (saturated) reference electrode.
Syntheses
Preparation of Ru3(dpa)4(C≡CFc)2 1. To a solution of Ru3(dpa)4Cl2(138 mg, 0.13 mmol) in CH3CN (20 ml) was added AgBF4(38 mg, 0.29 mmol). The mixture was stirred at room temperature for 2 h, and then filtered. LiC≡CFc (1.31 mmol) in THF (20 mL) prepared in situ from HC≡CFc and CH3Li was added to the solution. After the mixture was stirred overnight under argon, the solvent was removed under reduced pressure. Crystallization from CH2Cl2and hexane produced 77 mg of dark green crystals (42%). IR (KBr, cm−1): 2024.3, 1606.6, 1467.4, 1421 (py); UV/Vis (CH2Cl2) kmax/nm (e/dm3 mol−1 cm−1) = 278 (1.23 × 105), 346 (5.91 × 104), 483 (1.49 × 104), 765 (1.97× 104); MS (FAB) m/z 1403 ([Ru3(dpa)4(CCFc)2]+), 1194 ([Ru3(dpa)4(CCFc)]+). EA(%) Ru3Fe2C64H50N12: calcd. C 54.83, H 3.59, N 11.99; found C 53.21, H 3.76, N 11.83.
Preparation of Ru3(dpa)4(C≡CPh)2 2. To a solution of Ru3(dpa)4Cl2(46 mg, 0.044 mmol) in CH3CN (10 ml) was added AgBF4(19 mg, 0.096 mmol). The mixture was stirred at room temperature for 2 h, and then filtered. LiC≡CPh (0.438 mmol) in THF (20 mL) prepared in situ from HC≡CPh and CH3Li was added to the solution. After the mixture was stirred overnight under argon, the solvent was removed under reduced pressure. Crystallization from CH2Cl2 and hexane produced 15 mg of dark green crystals (29%). IR (KBr, cm−1): 2057, 1607, 1454, 1421 (py); UV/Vis (CH2Cl2) kmax/nm (e/dm3 mol−1 cm−1) = 290 (1.5 × 105), 352 (7.0 × 104), 490 (1.44 × 104), 754 (2.79× 104); MS (FAB) m/z 1187 ([Ru3(dpa)4(CCPh)2]+), 1086 ([Ru3(dpa)4(CCPh)]+). EA(%) Ru3C56H42N12: calcd. C 56.7, H 3.57, N 14.17; found C 55.44, H 3.7, N 13.95.
Preparation of [Ru3(dpa)4(C≡CPhOCH3)2](BF4) 3. Com-pound 3 was synthesized using a procedure similar to that for
2 except that LiC≡CPhOCH3instead of LiC≡CPh was used.
Crystallization from CH2Cl2 and hexane produced 22 mg of dark green crystals (40%). IR (KBr, cm−1): 2057, 1600, 1461, 1428 (py); UV/Vis (CH2Cl2) kmax/nm (e/dm3 mol−1 cm−1) = 340 (3.21 × 104), 465 (5.56 × 103), 780 (2.43 × 104), 1525 (2.12× 103); MS (FAB) m/z 1247 ([Ru3(dpa)4(CCPhOCH3)2]+), 1116 ([Ru3(dpa)4(CCPhOCH3)]+). EA(%) Ru3C58H46N12O2BF4: calcd. C 52.26, H 3.48, N 12.61; found C 50.58, H 3.54, N 12.62.
Preparation of [Ru3(dpa)4(C≡CPhC5H11)2](BF4) 4. Com-pound 4 was synthesized using a procedure similar to that for
2 except that LiC≡CPhC5H11 instead of LiC≡CPh was used.
Crystallization from CH2Cl2 and hexane produced 19 mg of dark green crystals (33%). IR (KBr, cm−1): 2057, 1607, 1461, 1421 (py); UV/Vis (CH2Cl2) kmax/nm (e/dm3mol−1cm−1)= 345 (3.54× 104), 470 (6.31× 103), 755 (2.34× 104), 1530 (1.73× 103); MS (FAB) m/z 1327 ([Ru3(dpa)4(CCPhC5H11)2]+), 1156 ([Ru3(dpa)4(CCPhC5H11)]+). EA(%) Ru3C66H62N12BF4: calcd. C 56.09, H 4.42, N 11.89; found C 55.39, H 4.57, N 11.61.
Preparation of Ru3(dpa)4(C≡CPhCN)25. Compound 5 was synthesized using a procedure similar to that for 2 except that LiC≡CPhCN instead of LiC≡CPh was used. Crystallization from CH2Cl2 and hexane produced 16 mg of dark green crystals (30%). IR (KBr, cm−1): 2223, 2057, 1600, 1454, 1421 (py); UV/Vis (CH2Cl2) kmax/nm (e/dm3 mol−1 cm−1) = 274 (1.17× 105), 342 (1.14× 105), 476 (1.68× 104), 755 (2.83× 104); MS (FAB) m/z 1237 ([Ru3(dpa)4(CCPhCN)2]+), 1110
([Ru3(dpa)4(CCPhCN)]+). EA(%) Ru3C58H40N14: calcd. C 56.35, H 3.26, N 15.86; found C 55.77, H 3.34, N 15.31.
Preparation of Ru3(dpa)4(C≡CPhNO2)26. Compound 6 was synthesized using a procedure similar to that for 2 except that LiC≡CPhNO2instead of LiC≡CPh was used. Crystallization from CH2Cl2/1,2-CH2CH2Cl2and hexane produced 12.2 mg of dark green crystals (21%). IR (KBr, cm−1): 2050, 1606.6, 1460.8, 1421 (py); UV/Vis (CH2Cl2) kmax/nm (e/dm3 mol−1 cm−1) = 278 (9.7 × 104), 356 (6.56 × 104), 480 (2.12 × 104), 754 (2.55× 104); MS (FAB) m/z 1277 ([Ru3(dpa)4(CCPhNO2)2]+), 1132 ([Ru3(dpa)4(CCPhNO2)]+). EA(%) Ru3C56H40N14O4: calcd. C 52.70, H 3.16, N 15.37; found C 51.94, H 3.22, N 15.16.
X-Ray crystallographic determinations
Crystallographic information for 1–6 is summarized in Tables 1 and 2. The chosen crystals were mounted on a glass fiber. X-Ray diffraction data for 1–6 were collected at 150 K on a NONIUS Kappa CCD diffractometer installed with monochro-mated Mo-Ka radiation, k= 0.71073 A˚. Cell parameters were retrieved and refined using DENZO-SMN software on all observed reflections.9Data reduction was performed with the DENZOSMN software.9 An empirical absorption was based on symmetry-equivalent reflections and absorption corrections were applied with the SORTAV program.10All the structures were solved by using SHELXS-9711and refined with SHELXL-9712by full-matrix least squares on F2values. Hydrogen atoms were fixed at calculated positions and refined using a riding mode.
CCDC reference numbers 270949–270954.
See http://dx.doi.org/10.1039/b506267e for crystallographic data in CIF or other electronic format.
Results and discussion
Synthesis of r-alkynyl complexes
Early attempts to construct trinuclear metal acetylide complexes were focused on the first row transition metals. The multinuclear complexes of the first row transition metals with acetylide ligands are relatively unstable, this is why examples of trinuclear metal acetylide complexes are rare.13In 1996 we reported the syn-thesis and structure of the triruthenium complex Ru3(dpa)4Cl2.7 The soft nature of the ruthenium atoms facilitates the synthesis of the acetylide complexes. We first examined the reaction between Ru3(dpa)4Cl2and various arylacetylides. However, the reaction resulted in an inseparable mixture of monosubstituted and disubstituted acetylide complexes. Using a procedure similar to those for the diruthenium complexes with alkynyl ligands,14 Ru3(dpa)4Cl2was first treated with AgBF4and then reacted with the corresponding arylacetylides to give the desired disubstituted products 1–6 in fair yields. Under the reaction conditions, compounds 1, 2, 5, and 6 were obtained in the neutral forms, and compounds 3 and 4 in the one-electron oxidized form. Compounds 1–6 were characterized by various spectroscopic techniques. The IR spectrum of compound 1 displays a characteristic band at 2024 cm−1 corresponding to the C≡C stretching frequency. The mass spectrum shows peaks at m/z 1403, 1194, and 985 corresponding to [Ru3(dpa)4(C≡CFc)2]+, [Ru3(dpa)4(C≡CFc)]+, and [Ru3(dpa)4]+, respectively. For com-pounds 2–6, the IR spectra display characteristic bands m(C≡C) around 2050–2057 cm−1. The absorption spectra of compounds
2–6 show a broad peak in the range between 750 and 770 nm.
The broadened bands in the visible region may be ascribed to the charge-transfer transitions of axial ligand to metal.14,15
Structural results
Crystals of 1 were obtained from CH2Cl2 solution layered with hexane. The molecular structure was further confirmed by X-ray diffraction analysis. As shown in Fig. 1, the linear
T able 1 Crystal d at a a nd structur e refinement fo r comple x es 1–6 1· 5CH 2 Cl 2 2· 10H 2 O 3· 4CH 2 Cl 2 ·2H 2 O 4· 4CH 2 Cl 2 5· 2CH 2 Cl 2 6· 1.5CH 2 Cl 2 ·C2 H4 Cl 2 ·2H 2 0 Fo rm u la C69 H60 Cl 10 Fe 2 N12 Ru 3 C56 H62 N12 O10 Ru 3 C62 H58 BCl 8 F4 N12 O4 Ru 3 C70 H70 BCl 8 F4 N12 Ru 3 C60 H40 Cl 4 N14 Ru 3 C59.5 H51 Cl 5 N14 O6 Ru 3 M 1826.70 1366.39 1708.82 1753.00 1402.07 1538.60 T /K 150(1) 150(1) 150(1) 150(1) 150(1) 150(1) Crystal system O rthorhombic O rthorhombic O rthorhombic O rthorhombic O rthorhombic M onoclinic Space gr oup Fdd 2 Fdd 2 Fdd 2 Fdd 2 Fdd 2 P 2/ c a /A ˚ 23.9110(5) 25.4999(5) 24.3107(5) 23.6843(5) 24.6541(9) 18.1581(4) b /A ˚ 27.1780(5) 26.1497(5) 24.5552(5) 25.8795(5) 25.7043(9) 19.5166(4) c/A ˚ 21.8541(5) 21.5252(4) 23.5200(4) 23.3208(5) 21.6051(7) 19.00706(4) a / ◦ 90 90 90 90 90 90 b / ◦ 90 90 90 90 90 104.5956(11) c / ◦ 90 90 90 90 90 90 V /A ˚ 3), Z 14202.0(5), 8 14353.3(7), 8 14040.4(5), 8 14294.2(5), 8 13691.5(8), 8 6540.2(2), 4 l /mm − 1 1.45 0.678 1.007 0.987 0.854 0.948 R eflections collected 26 079 31 911 24 086 29 798 19 311 58 926 Independent reflections 7342 (R int = 0.0600) 7841 (R int = 0.0525) 7497 (R int = 0.0435) 7484 (R int = 0.0471) 5427 (R int = 0.0500) 11501 (R int = 0.0853) RF , RwF 2(all da ta) a 0.1019, 0.2338 0.1079, 0.2444 0.0757, 0.1725 0.0593, 0.1282 0.1156, 0.2823 0.1330, 0.2880 RF , RwF 2(I > 2 r (I )) a 0.0775, 0.2113 0.0835, 0.2215 0.0592, 0.1582 0.0456, 0.1152 0.0903, 0.2488 0.0856, 0.2441 GOF 1 .098 1.079 1.079 1.011 1.120 1.004 aR F = R |Fo − Fc |/ R |Fo |; RwF 2= [R w |Fo 2− Fc 2| 2/ R wF o 4] 1/2 .

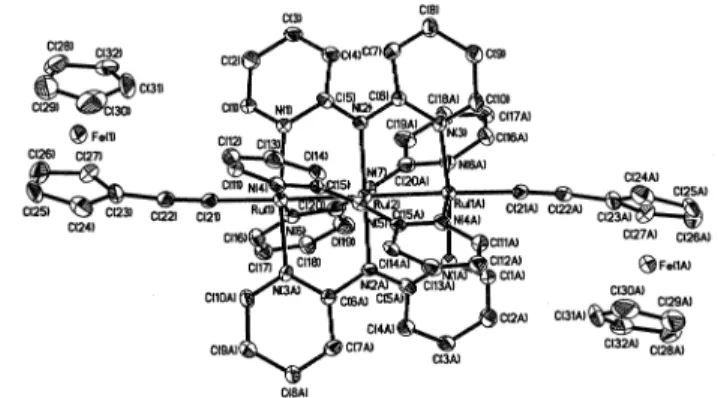

Fig. 1 ORTEP view of the crystal structure of 1. Thermal ellipsoids are drawn at the 30% probability level. Hydrogen atoms are omitted for clarity.
Ru3 unit is symmetrical and is helically supported by four dpa ligands with two ferrocenylacetylide anions as the axial ligands. Some selected bond lengths are listed in Table 2. All the Ru–N bond distances in compound 1 are comparable to those in [Ru3(dpa)4Cl2].7 The Ru–Ru bond lengths (2.357 A˚ ) in compound 1 are significantly longer than in the analogue [Ru3(dpa)4Cl2] (2.254 A˚ ). The lengthening of the Ru–Ru bond can be ascribed to the formation of a stronger Ru–axial ligand bond since acetylide is a strong r-donor and a p-acceptor. The Ru(1)–C(21) bond length of 2.000(9) A˚ and the C(21)–C(22) bond length of 1.207(15) A˚ are strong evidence for a C≡C moiety r-bonded to ruthenium. The Ru–C≡C chain slightly deviates from linearity, with the bond angle at C(21) and C(22) of 175.1(10)◦. Owing to steric reasons, the cyclopentadienyl rings are positioned between the pyridyl groups of the dipyridylamide ligands and the two ferrocenyl units do not adopt a conven-tionally eclipsed orientation.16 The distance between the two iron(II) centers is 16.286 A˚ . The average Fe–C bond lengths of 2.040 A˚ are similar to those observed for ferrocene-containing complexes.
Crystals of compounds 2–6 were obtained from CH2Cl2 (CH2Cl2/1,2-CH2CH2Cl2) solution layered with hexane. Figs. 2– 6 show the crystal structures of compounds 2–6, respectively. The crystal data for these complexes are summarized in Table 1 and some selected bond lengths and angles are given in Table 2. Compounds 1–5 that have their center metal atom on a 2-fold axis crystallize in the space group Fdd2, whereas compound 6 crystallizes in the space group P2/c and has two independent molecules in an asymmetric unit, each with the central metal atom on a 2-fold axis. The crystal structures of compounds 2–6 have much in common except that the axial ligands are different. The central Ru ion of compounds 2–6 is wrapped with four short Ru–Namido distances in the range 2.005–2.030 A˚ , which are comparable with those in compound 1 and Ru3(dpa)4Cl2. Unlike Ru3(dpa)4Cl2, compounds 1–6 show a nearly linear Ru– Ru–Ru arrangement. The averaged Ru–Ru distances in 2–6
Fig. 2 ORTEP view of the crystal structure of 2. Thermal ellipsoids are drawn at the 20% probability level. Hydrogen atoms are omitted for clarity.

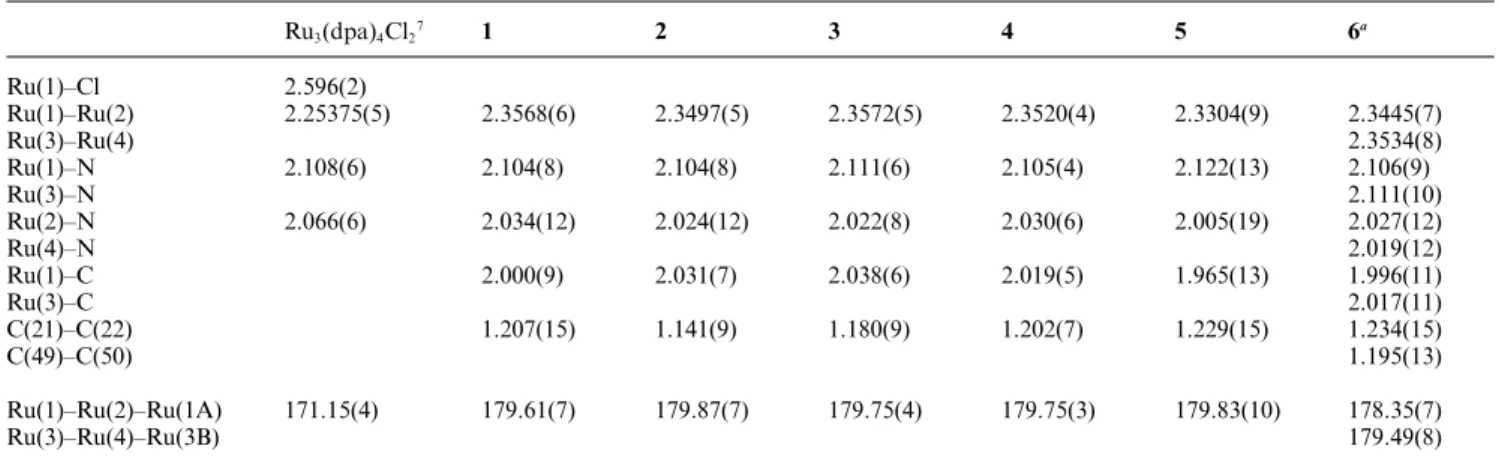

Table 2 Selected bond distances (A˚ ) and angles (◦) for complexes Ru 3(dpa)4Cl27and 1–6 Ru3(dpa)4Cl27 1 2 3 4 5 6a Ru(1)–Cl 2.596(2) Ru(1)–Ru(2) 2.25375(5) 2.3568(6) 2.3497(5) 2.3572(5) 2.3520(4) 2.3304(9) 2.3445(7) Ru(3)–Ru(4) 2.3534(8) Ru(1)–N 2.108(6) 2.104(8) 2.104(8) 2.111(6) 2.105(4) 2.122(13) 2.106(9) Ru(3)–N 2.111(10) Ru(2)–N 2.066(6) 2.034(12) 2.024(12) 2.022(8) 2.030(6) 2.005(19) 2.027(12) Ru(4)–N 2.019(12) Ru(1)–C 2.000(9) 2.031(7) 2.038(6) 2.019(5) 1.965(13) 1.996(11) Ru(3)–C 2.017(11) C(21)–C(22) 1.207(15) 1.141(9) 1.180(9) 1.202(7) 1.229(15) 1.234(15) C(49)–C(50) 1.195(13) Ru(1)–Ru(2)–Ru(1A) 171.15(4) 179.61(7) 179.87(7) 179.75(4) 179.75(3) 179.83(10) 178.35(7) Ru(3)–Ru(4)–Ru(3B) 179.49(8)
aThe pairs of independent Ru atoms are labelled as Ru(1) and Ru(2) in one molecule and as Ru(3) and Ru(4) in the other.
Fig. 3 ORTEP view of the crystal structure of 3. Thermal ellipsoids are drawn at the 30% probability level. Hydrogen atoms are omitted for clarity.
Fig. 4 ORTEP view of the crystal structure of 4. Thermal ellipsoids are drawn at the 30% probability level. Hydrogen atoms are omitted for clarity.
Fig. 5 ORTEP view of the crystal structure of 5. Thermal ellipsoids are drawn at the 20% probability level. Hydrogen atoms are omitted for clarity.
are 2.3497(5), 2.3572(5), 2.3520(4), 2.3304(9), and 2.3445(7) A˚ , respectively. The slight lengthening of the Ru–Ru distances in
3 and 4 is attributed to the electron-donating nature of the
para substituents. However, it is possible that the repulsion
Fig. 6 ORTEP view of the crystal structure of one of the two independent molecules of 6. Thermal ellipsoids are drawn at the 30% probability level. Hydrogen atoms are omitted for clarity.
between the ruthenium ions increases as the oxidation state of the triruthenium core increases. This results in lengthening of the metal–metal bond. The Ru(1)–C(21) bond lengths are longer in 3 and 4 than those in 5 and 6, while the C(21)–C(22) bond distances are shorter in 3 and 4 than those in 5 and 6. This can be explained by the stronger p-back donation resulting from the electron-withdrawing nature of the CN and NO2groups.
Electrochemistry
It is well known that ruthenium complexes have various oxidation states. Thus, rich redox chemistry for our triruthe-nium complexes is expected and it is desirable to study the electrochemical properties of these complexes. Fig. 7 shows one of their cyclic voltammograms in CH2Cl2 containing 0.1 M TBAP. All these complexes exhibit three one-electron redox couples: two oxidations (Eox1and Eox2) and one reduction (Ered). The electrochemical data are summarized in Table 3.
To evaluate the electron conduction capability, the electronic communication between the two ferrocenyl units was studied using electrochemical techniques. As shown in Fig. 8, the cyclic voltammagram of compound 1 displays three reversible redox couples. Fig. 9 shows the spectral changes for the oxidations of compound 1. Upon one and two electron oxidations, the
Fig. 7 Cyclic voltammogram of 1.0 mM compound 3 in CH2Cl2 at
Table 3 Redox potentials and r values for compounds 2–6
Compound rYa E1/2(Ox2)/V E1/2(Ox1)/V E1/2(Red)/V
2 0 1.249 0.643 −0.492
3 −0.27 1.145 0.600 −0.517
4 −0.15 1.219 0.633 −0.497
5 0.66 1.351 0.722 −0.369
6 0.78 1.352 0.723 −0.355
aTaken from ref. 22.
Fig. 8 Cyclic voltammogram (top) and differential pulse
voltammo-gram (bottom) of 0.5 mM compound 1 in CH2Cl2 at 0.1 V s−1with
0.1 M TBAP.
Fig. 9 UV/Vis/Near IR spectral changes for the oxidation of
com-pound 1 in CH2Cl2 with 0.1 M TBAP at applied potentials of+0.20
(solid),+0.48 (dash), +0.65 (dot), and +0.90 V (dash dot).
broad band in the near IR region corresponds to the charge transfer between ferrocene units and from the Ru3unit to the oxidized ferrocene. In the case of compounds 2–6, no peaks are observed in the near IR region upon oxidation. The Ru3-centered ([Ru3]7+/[Ru3]6+) redox reaction occurs at E1/2 = + 0.76 V, which is higher than those of analogues [Ru3(dpa)4(CCAr)2] (E1/2 = +0.60–+0.72 V). This is attributed to the increased electron withdrawing ability of the ferrocence axial ligands upon oxidation. The stepwise one-electron oxidations instead of a two-electron oxidation are indicative of electronic coupling between the two iron centers, suggesting that the bridge may provide a passive path for electrons. These reversible waves for the ferrocenyl units are resolved by using differential-pulse techniques. The comproportionation constant Kcis calculated to be about 33.17This is larger than for the corresponding tricobalt complex (Kc= 16) in which the Co3unit is unsymmetrical18and an overall bond order of 1.5 over the Co3unit is estimated. As compared to the diruthenium complex with ferrocenylacetylide axial ligands,14bthe electronic coupling of our system is weaker due to the longer Fe–Fe distance. Complex 1 can be classified as a weakly coupled (class II) mixed-valence system, and is comparable to the a,x-dipyridylpolyene molybdenum complex [Mo(4,4-NC5H4(CH=CH)4H4C5N)Mo] and the polyyne rhe-nium complex [ReC16Re].19
Compounds 2–6 exhibit similar electrochemical properties. As summarized in Table 3, all these complexes exhibit three reversible redox couples and these electrochemical reactions involve one electron transfer as ascertained by spectroelectro-chemistry.20The redox potentials of all three electron transfer processes shift cathodically as the electron-donating ability of
the para substituents increases. Hammett constants provide an approximate measure of substituent effects in para positions relative to the triruthenium core.21According to the following equation:22E1/2(Y)= E1/2(H)+ q(2rY), where q is the reactivity constant, a plot of E1/2for the Eox1, Eox2, and Eredcouples vs. the sum of the Hammett constants for the different substituents is shown in Fig. 10. The reactivity constants are 93 (R= 95.1%), 62 (R= 97.0%), and 84 mV (R = 99.6%) for the two oxidations and one reduction, respectively. The linear relationship reflects the electron density on the triruthenium center related to the electron-withdrawing and electron-donating ability of the substituents. For example, when the OCH3group is replaced by the more electron-withdrawing NO2group, the electron density on the triruthenium unit is reduced considerably and this results in a higher redox potential.
Fig. 10 Hammett plot of E1/2vs. 2r. The squares() are the measured
values of E1/2(Ox2), circles (䊉) are the measured values of E1/2(Ox1),
triangles () are the measured values of E1/2(Red), and the solid lines
are the least-squares fit.
Tong et al. reported the structures and eletrochemi-cal properties of a series of diruthenium acetylide com-plexes Ru2(DMBA)4(C≡CAr)2, where DMBA is N,N -dimethylbenzamidinate and C≡CAr is arylacetylide. The re-activity constants of these complexes are 110 and 86 mV for the oxidation and reduction processes, respectively.14a Our triruthenium acetylide complexes exhibit comparable reactivity constants to the diruthenium system.
Bonding and magnetic properties
According to theoretical calculations, the electronic config-uration of the Ru3 unit in [Ru3(dpa)4Cl2] is described as r2p4d2pnb4dnb2d*2rnb2, thus resulting in the diamagnetism of the complex and a bond order of three over the Ru3 unit, i.e., a bond order of 1.5 between adjacent ruthenium ions. While replacing axial ligands from chloride to the stronger p-acid groups (acetylide, cyanide. . .etc), the electronic configuration of the Ru3unit in [Ru3(dpa)4×2] transforms to r2p4d2pnb4dnb2d*2p*2, resulting in two unpaired electrons of the complex and a bond order of two over the Ru3unit, i.e. a bond order of 1 between adjacent ruthenium ions.23 As shown in Scheme 2, the strong p-back donation results in a decrease in the energy level of the p* orbitals. Fig. 11 shows that the effective magnetic moment of 2.82 lBat 300 K in compound 2 indicates that the triruthenium
Fig. 11 Temperature-dependent magnetic effective moment (䊉) and
Scheme 2
acetylide complex is paramagnetic with two unpaired elec-trons and this is consistent with theoretical calculations. For compounds 3 and 4, the values of leff are 3.78 and 3.74 lB, respectively. This indicates that the electron is removed from the d* orbital upon one electron oxidation and there are three unpaired electrons for the oxidized complexes. Due to the metal– axial ligand interactions of the stronger p-acid groups, a bond order of three over the Ru3unit in Ru3(dpa)4Cl2is reduced to two over the Ru3unit in Ru3(dpa)4(C≡CPhX)2(see Scheme 2). The Ru–Ru bond lengths in compounds 1–6 (2.330–2.357 A˚ ) are longer than that in Ru3(dpa)4Cl2(2.254 A˚ ). It is ascribed to the stronger p-backbonding from metal to ligand.
Conclusion
A series of novel triruthenium adducts comprised of a linear triruthenium core and acetylide have been synthesized in a facile way. Compound 1 is the first example of a triruthenium system incorporating ferrocene entities with p-conjugation. The electrochemical data show that the molecule exhibits electronic communication between the redox sites via the triruthenium unit.
The results shed light on the use of these molecules as “molecular wires”. Longer multinuclear metal complexes with various redox ligands will allow us detailed investigations of their efficiency for electron or hole conducting. In compounds
2–6, the redox properties of the triruthenium core can be
fine-tuned by the para substituent of the arylacetylide and these complexes exhibit a linear E1/2–r relationship. By employing similar conditions, a new type of one dimensional polymer composed of a trinuclear unit and diacetylide bridge may be synthesized. Work along this line is in progress in our laboratory.
Acknowledgements
The authors acknowledge the National Science Council and Ministry of Education of Taiwan for financial support. We also thank Professor Kuan-Jiuh Lin for the access of UV-Vis-Near IR spectrometer.
