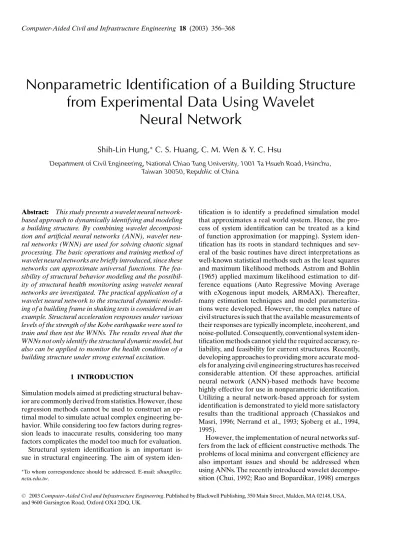

Nonparametric Identification of a Building Structure
from Experimental Data Using Wavelet
Neural Network
Shih-Lin Hung,
∗C. S. Huang, C. M. Wen & Y. C. Hsu
Department of Civil Engineering, National Chiao Tung University, 1001 Ta Hsueh Road, Hsinchu, Taiwan 30050, Republic of China
Abstract: This study presents a wavelet neural network-based approach to dynamically identifying and modeling a building structure. By combining wavelet decomposi-tion and artificial neural networks (ANN), wavelet neu-ral networks (WNN) are used for solving chaotic signal processing. The basic operations and training method of wavelet neural networks are briefly introduced, since these networks can approximate universal functions. The fea-sibility of structural behavior modeling and the possibil-ity of structural health monitoring using wavelet neural networks are investigated. The practical application of a wavelet neural network to the structural dynamic model-ing of a buildmodel-ing frame in shakmodel-ing tests is considered in an example. Structural acceleration responses under various levels of the strength of the Kobe earthquake were used to train and then test the WNNs. The results reveal that the WNNs not only identify the structural dynamic model, but also can be applied to monitor the health condition of a building structure under strong external excitation.
1 INTRODUCTION
Simulation models aimed at predicting structural behav-ior are commonly derived from statistics. However, these regression methods cannot be used to construct an op-timal model to simulate actual complex engineering be-havior. While considering too few factors during regres-sion leads to inaccurate results, considering too many factors complicates the model too much for evaluation.
Structural system identification is an important is-sue in structural engineering. The aim of system iden-∗To whom correspondence should be addressed. E-mail: slhung@cc.
nctu.edu.tw.
tification is to identify a predefined simulation model that approximates a real world system. Hence, the pro-cess of system identification can be treated as a kind of function approximation (or mapping). System iden-tification has its roots in standard techniques and sev-eral of the basic routines have direct interpretations as well-known statistical methods such as the least squares and maximum likelihood methods. Astrom and Bohlin (1965) applied maximum likelihood estimation to dif-ference equations (Auto Regressive Moving Average with eXogenous input models, ARMAX). Thereafter, many estimation techniques and model parameteriza-tions were developed. However, the complex nature of civil structures is such that the available measurements of their responses are typically incomplete, incoherent, and noise-polluted. Consequently, conventional system iden-tification methods cannot yield the required accuracy, re-liability, and feasibility for current structures. Recently, developing approaches to providing more accurate mod-els for analyzing civil engineering structures has received considerable attention. Of these approaches, artificial neural network (ANN)-based methods have become highly effective for use in nonparametric identification. Utilizing a neural network-based approach for system identification is demonstrated to yield more satisfactory results than the traditional approach (Chassiakos and Masri, 1996; Nerrand et al., 1993; Sjoberg et al., 1994, 1995).
However, the implementation of neural networks suf-fers from the lack of efficient constructive methods. The problems of local minima and convergent efficiency are also important issues and should be addressed when using ANNs. The recently introduced wavelet decompo-sition (Chui, 1992; Rao and Bopardikar, 1998) emerges
C
2003 Computer-Aided Civil and Infrastructure Engineering. Published by Blackwell Publishing, 350 Main Street, Malden, MA 02148, USA, and 9600 Garsington Road, Oxford OX4 2DQ, UK.
as a highly effective approach for function approxi-mation. Furthermore, wavelet decomposition combined with the neural network structure, namely, wavelet neu-ral networks (WNN) has been recently discovered as a more powerful tool for signal analysis. Zhang and Benveniste (1992) first proposed this methodology. Thereafter, several studies extended their work to im-prove the network structure (Jun and Huihe, 1999; Zhang et al., 1995), initialization procedure, parame-ter adoption law, and learning algorithm (Zhang, 1997; Ciuca and Ware, 1997; Liu et al., 1998; Oussar et al., 1998) of the WNN. Meanwhile, the adoption of the WNN to approximate functions has been considered in various areas of scientific and engineering research (Lu and Li, 1997; Cheng et al., 1998; Adeli and Karim, 2000; Adeli and Samant, 2000; Karim and Adeli, 2002a). However, until now, few studies have addressed WNNs in the area of dynamics of civil engineering structure.
Another relevant issue in structural engineering, which has actively been studied in recent years, is the health monitoring of structures. Structural health monitoring schemes based on a system identifica-tion approach have been extensively studied during the past decade (e.g., Agbabian et al., 1991; Masri et al., 1996; Abdelghani et al., 1997; Nakamura et al., 1998; Masri et al., 2000). Masri et al. (1996, 2000) and Nakamura et al. (1998) proposed a practical scheme for monitoring the health of real structures. In their works, the artificial neural networks (ANN) was first trained using the dynamic responses of a healthy (undamaged) structure. Then, the well-trained ANN was fed with the dynamic responses under various scenarios for the same structure. The condition of the structure can be diag-nosed and evaluated by monitoring the system output errors of the ANN. The concept behind their proposed method is adopted in this article to explore the relevance of WNN to monitoring structural health, based on the dynamic model identification results for the structure.
This work attempts to demonstrate the feasibility of adapting a wavelet neural network to model the behav-ior of a structure in an earthquake. Not requiring in-formation concerning physical parameters, the proposed model can easily simulate structural behavior, based only on the input and the output data of the structure. An ex-ample of a five-story 1/2-scaled steel frame in different scales of the Kobe earthquake is considered to elucidate the power of the proposed model. Illustrative examples indicate that the proposed WNN system identification model can yield an exact structural dynamic response. WNN and ANN approaches will also be compared, using the same experimental data. The proposed exam-ple will also clarify the potential of using WNNs for mon-itoring structural health, according to the computed out-put errors of WNNs under various levels of excitation.
2 THEORETICAL BASIS 2.1 Artificial neural network model
with one hidden layer
The multilayered neural network is probably the most frequently used type of network structure in practical applications. The architecture of the network includes an input layer, one or more hidden layers, and an out-put layer. Frequently considered single hidden layer net-works have the following form:
f (x)=
N
i=1
wihθi(x) (1)
where hθi(·) represents the hidden neurons
parameter-ized byθi, andwi(i= 1 ∼ N) represents a linear
combi-nation of weights of the hidden neurons.
However, implementing neural networks suffers from a lack of efficient constructive methods of determining the parameters of the neurons and choosing network structures. The presence of local minima and low con-vergent efficiency are also important issues, and must be addressed when using ANNs.
2.2 Wavelet transform
Wavelet transform and wavelet decomposition have been newly discovered as powerful tools and have been applied in many research areas (e.g., Guler et al., 2001; Jang et al., 2001; Zhao et al., 2001; Samant and Adeli, 2000, 2001; Karim and Adeli, 2002b, 2003; Adeli and Ghosh-Dastidar, 2003). Wavelet theory states that func-tions of L2space can be represented by their projections
onto the space linearly spanned by a family of wavelet functions. The wavelet functions are typically chosen to have compact supports in both time and frequency do-mains, so that they have local time-frequency proper-ties. Functions can be approximated by the truncated discrete wavelet decomposition because of their local time-frequency properties.
A wavelet family associated with the mother wavelet ψ(x) is generated by two operations—dilation and trans-lation. It can be written as,
ψa,b(x)= a−1/2ψ x− b a (2) where a and b are dilation and translation parame-ters, respectively. Both are real numbers and a must be positive.
Using the mother wavelet functionψ(x), the continu-ous wavelet transform of a signal f (x) is defined as
w (a,b) = a−1/2 +∞ −∞ f (x)ψ x− b a dt (3)
whereψ(x) indicates the complex conjugate of ψ(x). The mother wavelet must satisfy an admissibility condition to ensure existence of an inverse wavelet transform
Cψ = +∞
−∞
|Fψ(ω)|2
|ω| dω < ω (4) where Fψ(ω) indicates the Fourier transform of ψ(x). The signal f (x) then can be reconstructed by an inverse wavelet transform of w(a, b) as defined by
f (x)= 1 Cψ +∞ −∞ +∞ −∞ w(a, b)ψ x− b a 1 a2da db (5)
To meet the requirement for digital computation, the continuous inverse wavelet transform is normally trans-formed to the discrete form,
f (x)= i wia− 1 2 i ψ x− bi ai (6)
The discretization involves determining the parameters wi, ai, biin Equation (6), based on a data sample.
2.3 Wavelet neural network
A wavelet neural network (Zhang and Benveniste, 1992), which logically connects an artificial neural net-work with wavelet decomposition, is based on a novel neural network structure, and involves the wavelet trans-form. As a matter of fact, Equation (6) refers to a single hidden layer feedforward network, which is a particu-lar case of network represented by Equation (1). Here, a hidden neuron is a dilated and translated wavelet. Some-times, the function to be approximated is partially linear. Some additional terms were introduced to the network specified by Equation (6) to capture the linear charac-teristics of nonlinear problems. This modification yields
f (x)= i wia− 1 2 i ψ x− bi ai + cTx+ d (7)
Figure 1 shows the architecture of the wavelet neural net-work. In Figure 1, the combination of translation (−bi),
dilation (ai), and wavelet (ψi), all lying on the same line,
is called a wavelon.
The wavelets are considered as a family of parameter-ized nonlinear functions which can be used for nonlin-ear regression. Their parameters are estimated through a training procedure. In general, the adopted training algorithm is similar to the one in a back-propagation procedure.
Fig. 1. Wavelet neural network structure for approximation.
2.4 Dynamic modeling using wavelet neural network According to several publications on system identifica-tion (Juang, 1994; Ljung and Glad, 1994), perhaps the most basic relationship between the input u and output y, is the linear difference equation,
y(t)= f (y(t − 1), . . . , y(t − na), u(t − nk), . . . ,
u(t− nk− nb+ 1)) (8)
where na represents the number of poles and nb− 1 is
the number of zeros, whereas nkis the pure time-delay
(the dead time) in the system. The equation describes the system in terms of a functional expansion of lagged in-puts and outin-puts. Several studies have shown that a large class of discrete-time nonlinear systems derived from the difference equation can be represented by the nonlinear ARMAX (NARMAX) model. Its ability to approximate a system to a desired accuracy depends on an appropri-ately selected set of known functions. Wavelet functions are then involved in an NARMAX model.
The NARMAX model representation of nonlinear discrete time systems with r input and m output can be expressed as
y(t)= f (y(t − 1), . . . , y(t − ny), u(t − 1), . . . ,
u(t− nu), e(t − 1), . . . , e(t − ne))+ e(t) (9)
where
y(t)= [y1(t) y2(t) · · · ym(t)]T
u(t)= [u1(t) u2(t) · · · ur(t)]T
e(t)= [e1(t) e2(t) · · · em(t)]T
(10a–c)
are the system output, input, and noise vectors, respec-tively; ny, nu, and neare the maximum delay time (lags)
zero-mean noise signal, and f (·) is a vector-valued non-linear function.
Here, the use of WNN was extended to identify the nonlinear system governed by the model:
y(t)= f (y(t − 1), . . . , y(t − ny), u(t − 1), . . . , u(t − nu))
(11) in which the noise terms in Equation (9) are neglected.
According to Equation (11), the output at the present time is a functional representation of the past input and output data. When the WNN is well trained using a training set of the system input-output responses, the network structure parameters associated with the WNN can be considered as the dynamic characteristics of the system. If the dynamic characteristics of the system do not change, the trained WNN will perform just like the measured response of a real structure. However, if the dynamic characteristics of the system change due to dam-age or deterioration of structural elements, the network structure parameters associated with the WNN can no longer represent the dynamic characteristics of the sys-tem, and the WNN will exhibit a marked difference be-tween computed and measured responses.
3 CONSTRUCTING WAVELET NEURAL NETWORK
Figure 2 briefly depicts the processes of constructing a WNN. Before training the WNN (searching for the best parameters, ai, bi, andwi in Equation (7)), some
oper-ating parameters should be determined first. They are (1) network architecture parameters, such as number of wavelons; and (2) wavelet initialization parameters, such as number of scale levels scanned and the minimum num-ber of input patterns to be covered by each wavelon.
3.1 Selecting the number of wavelons
Like the number of hidden layers and neurons, the number of wavelons in WNN is critical. The number of wavelons may be selected by relying on appropriate versions of standard model order criteria. A systematic methodology based on information theory and used for system identification to determine the model order can be applied to WNN. Akaike’s final prediction error cri-terion (FPEC) (Akaike, 1969) is adopted here to deter-mine the number of wavelons. The criterion is defined as JFPE( ˆf )= 1+ np/N 1− np/N 1 2N N k=1 ( ˆf (xk)− yk)2 (12)
where (xk, yk) are training data pairs; N is the sample
length of training data, and npis the number of
parame-Determining WNN parameters
Initializing WNN
Training WNN
Determine number of scale levels scanned and number of patterns each
wavelon covered Determine number of wavelons Selecting wavelet regressors Is the WNN convergent? Yes No
Adjust the parameters of WNN
Start
Akaike,s FPEC
END
Fig. 2. The processes of approximation using WNN.
ters in the estimator and is calculated using the following formula.
np= M(d + 2) + d + 1 (13)
where M is the number of wavelets in the network and d is the input dimension.
3.2 Selecting the number of wavelet initialization parameters
Two wavelet initialization parameters, the number of scale levels scanned during initialization and the mini-mum number of input patterns to be covered by each wavelon, can be determined by experiential rule (Zhang and Benveniste, 1992) as follows:
nc= 2 + nv; lv= 4 (14a, b)
where nc is the minimum number of input patterns to
variables, and lv is the number of scale levels scanned during initialization.
3.3 Mother wavelet
If the function f (x) is mostly compact in both time and frequency domains, and the mother wavelet is well con-centrated in both time and frequency domains, then good approximation of f (x) using a finite number of terms in Equation (6) can be achieved. Therefore, this article uses the following mother wavelet adopted in the WNN to generate a wavelet family:
ψ(x) = (xTx− n) × e−12xTx, x ∈ Rn (15)
According to the initialization parameters, the wavelets in the network are selected based on the in-put/output data of the samples, and the wavelons are initially established after the wavelet is selected using regression. Next, the weights in the net are calculated using quasi-Newton algorithm (Battiti, 1992). After iter-ative training and adjustment of the parameters ai, biand
wiin Equation (7), the difference between the measured
outputs and the calculated output values becomes mini-mum, and the WNN is established and ready to simulate structural behavior.
4 EXAMPLE 4.1 Problem statement
System identification allows engineers to build mathe-matical models of a dynamics system, based on measured data. The most commonly used models are difference equations. These include ARX and ARMAX models, and all types of linear state-space models. Lately, black-box nonlinear structures, such as artificial neural net-works, fuzzy models, and others, have been extensively applied. In this article, the feasibility of using a WNN to model a five-story 1/2-scaled steel frame at the Na-tional Center for Research on Earthquake Engineering (NCREE) is examined by processing the dynamic re-sponses of this test structure to different scales of the original Kobe earthquake, in shaking table tests. The test structure is a 3-m long, 2-m wide, and 6.5-m high steel frame (Figure 3). Lead blocks were piled on each floor such that the mass of each floor was approximately 3664 kg. The frames were subjected to the base excitation of the Kobe earthquake, weakened to various extents. The displacement, velocity, and acceleration response histories of each floor were recorded during the shaking table tests. Additionally, some strain gauges were also in-stalled in one of the columns and near the first floor. The rate of sampling the raw data was 1000 Hz. For practical reasons, only the experimental data concerning the
ac-Fig. 3. Photograph of the five-story test structure.
celeration responses in the long span direction are used here.
4.2 Data processing
The measured story acceleration responses are the in-put/output data for system identification using WNN. Five sets of experimental data, which are structural ac-celeration responses under 20%, 32%, 40%, 52%, and 60% Kobe earthquakes, were considered. The originally measured data were recorded at a frequency of 1000 Hz. In order to reduce the dimensionality of the data without losing the features of the dynamic response, the original data were processed by changing the sampling rate of the signal. The data were resampled at ten times the origi-nal sample rate, 100 Hz. A lowpass FIR filter was used in resampling. Thus, about 2000 records were used to identify the system. Moreover, all input/output data of WNN were normalized by being transformed into a hy-percube [−1, 1]n. The learning procedure was applied to
this hypercube, and the computed output recovered by transforming the data back to their original shape.
4.3 Dynamic modeling of the test frame
Figure 4 presents a proposed feedback predictor net-work. In Figure 4, Ne is number of external inputs to
the network; Ns is number of state inputs variables to
the network. The WNN is used to identify the accelera-tion response of the second floor from the data obtained above and below that floor. Figure 5 schematically de-picts the network input/output assignment. The response is selected at these degrees of freedom because: (1) the structural element is shaken to yield at the bottom floor under the 60% Kobe earthquake; and (2) practically, only few of the total degrees of freedom are measured for a complex structure. Consequently, only the response data at the first, second, and third floors were considered here.
During the training, the originally measured data of the test structure are treated as input-output data. After training, the computed output and originally measured data are used as the past time input data to determine the subsequent output. For example, the acceleration re-sponses of the first, second, and third stories during the previous time interval are used as inputs to the WNN, and the current acceleration response of the second story is used as the output of the WNN. After training, the acceleration response is computed using the trained WNN. The measured acceleration response of the first and third stories, and the computed previous accelera-tion response of the second story are input to the input
ψ1
∑
u(n-1) u(n-Ne) y(n-1) y(n-2) y(n) Unit delays y(n-Ns) y(n-2) y(n-1) y(n-Ns+1) ψ2 ψΝ ωFig. 4. Feedback predictor networks.
Fig. 5. Schematic diagram of network I/O assignment for
steel frame structure.
nodes to calculate the current acceleration response of the second story.
The normalized root mean square error (RMSE) value is employed as a performance indicator of the perfor-mance of the WNN: RMSE( ˆy)= ( ˆy− y)2 ( ˆy− ¯y)2 (16)
where y is the desired output, ˆy is the computed output, and ¯y is the mean of computed output. A smaller RMSE implies a better performing WNN.
4.4 Identification results
The simulation is implemented using the MATLAB WNET toolbox, provided by Zhang (Anonymous FTP), on the Windows 2000 Professional platform, using an AMD Duron-700 PC.
The data concerning the response to a 20% Kobe exci-tation are used to determine the parameters of the WNN.
Fig. 6. Radar diagram of RMSE.
First the dynamic model order, ny, nuin Equation (11),
suitable for describing the structural behavior is deter-mined. According to the authors’ experience, the WNN can have good performance when the values ny and
nu are set to be the same. The accuracy of the
pre-diction, represented by RMSE, and the computational times spent initializing and training are both considered in selecting the order. After trial and error, order ten is selected, since it yields satisfactory accuracy (RMSE) and requires relatively little computational time. The network parameters should be determined. The num-ber of scale levels scanned and the minimum numnum-ber of input patterns to be covered by each wavelon are de-termined by the empirical rule, Equation (14). Akaike’s FPEC determines that one wavelon suffices in this ex-ample. After initialization of the WNN, the WNN was then trained with the quasi-Newton method.
Based on the WNN parameters obtained above, four other sets of experimental data obtained at different excitation levels (i.e., 32%, 40%, 52%, and 60% Kobe earthquakes) were also used to train their own WNNs. After training, each trained WNN is tested with the five
sets of experiment data in sequence. Figure 6 presents simulation results and the performance indicator RMSE for five difference excitation levels, Kobe 20%, 32%, 40%, 52%, and 60%. Figures 7–10 present and com-pare the absolute errors between computed and mea-sured acceleration responses of the structure, at various excitation levels. Figures 7 and 8 present the results con-cerning the structural response to Kobe 20% excitation, used as a training source to simulate the structural re-sponses to Kobe 32% and 60% excitations. Figures 9 and 10 present the results concerning the structural re-sponse to Kobe 60% excitation, used as a training source to simulate the structural responses to Kobe 32% and 60% excitations.
According to the results shown in Figure 6, the net-work trained with data concerning responses to 20%, 32%, 40%, and 52% Kobe earthquakes can simulate the structural response under 20%, 32% (Figure 7), 40%, and 52% Kobe earthquakes. The performance indicators (RMSE) are under 7% and the maximum absolute errors between the computed and measured response are around 0.04 g. However the network cannot
0 5 1 0 1 5 2 0 2 5 tim e (se c.) -0 .6 -0 .4 -0 .2 0 0 .2 0 .4 0 .6 ac c e le ra ti on r e s p ons e (g) p re d ic tiv e m e a s u re d 7 .5 8 8 .5 tim e (se c.) -0 .4 -0 .2 0 0 .2 0 .4 0 .6 ac c e le ra ti on r e s p ons e (g) p r e d ic tiv e m e a s u re d 0 5 1 0 1 5 2 0 2 5 tim e (se c.) 0 0 .0 4 0 .0 8 0 .1 2 0 .1 6 0 .2 abs ol u te e rr o r( g )
Fig. 7. The WNN system identification results (trained by Kobe NS 20% for forecasting Kobe NS 32%).
perform equally well for the structure under 60% Kobe earthquake (Figure 8). Furthermore, the network trained with the data concerning the response to the 60% Kobe earthquake cannot simulate the structural re-sponse under 20%, 32% (Figure 9), 40%, and 52% Kobe earthquakes. The maximum absolute error is around 0.2 g. The RMSE slightly exceeds 15%, very far from the value under 7%. These results imply that the struc-tural behavior may change when the input excitation ex-ceeds that of a 52% Kobe earthquake. The results also imply that, if the structural element does not change (or
yield), then WNNs can obtain almost the same response as would be measured. However, if the structural ele-ment does change (or yield), then the WNNs trained with the response of a baseline (undamaged) structure will no longer be sufficient to represent the dynamic be-havior of this structure, and the outputs of the WNNs significantly differ from the measured response. Inter-estingly, the frame has been reported (Yeh et al., 1999) to respond linearly to 20%, 32%, 40%, and 52% Kobe earthquakes. Measured strains and visual inspection re-vealed that a 60% Kobe earthquake input caused the
0 5 1 0 1 5 2 0 2 5 tim e (se c.) -1 .2 -0 .8 -0 .4 0 0 .4 0 .8 a c c e le ra ti on r e s pons e( g ) p re d ic tiv e m e a s u re d 7 7 .5 8 tim e (s e c.) -1 .2 -0 .8 -0 .4 0 0 .4 0 .8 a cce le ra ti o n r e sp o n se (g ) p re d ic tiv e m e a s u re d 0 5 1 0 1 5 2 0 2 5 tim e (se c.) 0 0 .0 4 0 .0 8 0 .1 2 0 .1 6 0 .2 abs ol ut e er ro r( g)
Fig. 8. The WNN system identification results (trained by Kobe NS 20% for forecasting Kobe NS 60%).
steel columns near the first floor to yield. The dynamic modeling results shown in this example seem to reflect such facts.
The structural response is also determined by ANN to compare the result of system identification using ANN and WNN. The architecture of the ANN used included one hidden layer with 4 hidden nodes, and the training al-gorithm was the Levenberg–Marquardt (LM) alal-gorithm (Hagan and Menhaj, 1994). Figure 11 presents the sim-ulation results of the WNN and ANN that were trained with the 20% and 60% Kobe earthquake data
individ-ually. The figure shows that the WNN gives simulation results that are similar to those obtained using the ANN. Although the values of RMSE by the ANN are very close to those obtained using the WNN, the WNN provides a more systematic approach to determining the network structure. Moreover, after the networks are initialized, a longer training period is needed for the ANN to perform as well as the WNN in this example. The training time for the WNN is about 100 seconds, whereas the training time for the ANN to reach the same level of RMSE is more than two hours.
0 5 1 0 1 5 2 0 2 5 tim e (s e c.) -0 .8 -0 .4 0 0 .4 0 .8 ac c e le ra ti on r e s p o n s e( g ) p re d ic tiv e m e a s u re d 8 8 .5 9 tim e (se c.) -0 .4 -0 .2 0 0 .2 0 .4 ac c e le ra ti on r e s p o n s e( g ) p re d ic tiv e m e a s u re d 0 5 1 0 1 5 2 0 2 5 tim e (s e c.) 0 0 .0 4 0 .0 8 0 .1 2 0 .1 6 0 .2 abs ol ut e e rr o r( g)

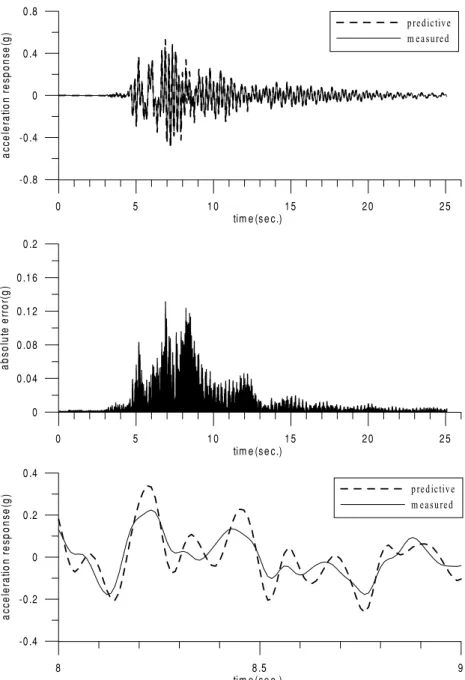

Fig. 9. The WNN system identification results (trained by Kobe NS 60% for forecasting Kobe NS 32%).
5 CONCLUDING REMARKS
This work presents a wavelet neural network-based ap-proach to dynamically identify and model a building structure. The proposed approach is applied to analyze the response of a structure to an earthquake, to verify the feasibility of modeling structural behavior. The wavelet neural network, which combines wavelet decomposi-tion and neural networks, has a very strong mathemat-ical foundation, rooted in wavelet transformation for solving chaotic signal processing. The basic operations and method of training of the wavelet neural network
are introduced owing to its effectiveness in approximat-ing universal functions. A practical application of the wavelet neural network to structural dynamic modeling of a building frame in the shaking tests is illustrated. Structural acceleration responses to different levels of the Kobe earthquake were used to train and then test the WNNs. Based on the results in this study, the follow-ing conclusions are made:
1. System dynamic models can be obtained by a WNN with a simple network structure (only one wavelon is used in the example) and few training iteration
0 5 1 0 1 5 2 0 2 5 tim e (s e c.) -1 .2 -0 .8 -0 .4 0 0 .4 0 .8 ac c e le ra ti on r e s p o n s e( g ) p re d ic tiv em e a s u re d 7 7 .5 8 tim e (se c.) -1 .2 -0 .8 -0 .4 0 0 .4 0 .8 ac c e le ra ti on r e s p o n s e( g ) p re d ic tiv e m e a s u re d 0 5 1 0 1 5 2 0 2 5 tim e (s e c.) 0 0 .0 4 0 .0 8 0 .1 2 0 .1 6 0 .2 abs ol ut e e rr o r( g)

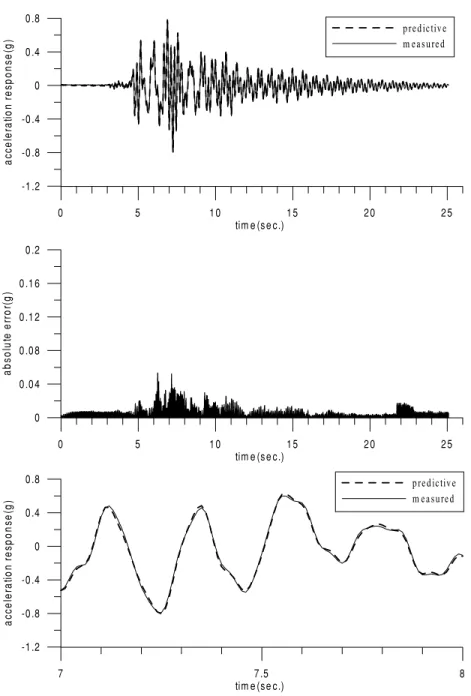

Fig. 10. The WNN system identification results (trained by Kobe NS 60% for forecasting Kobe NS 60%).
epochs, so the computation and cost and time taken is low. Simulation results in the example reveal that the WNN can identify and model a dynamic system. 2. The significant increase in the RMSE can be used to monitor the health of a structural system and detect the failure of the structure. The example in this study shows the possibility of using WNNs for monitoring structural health purposes.
3. Comparing the RMSE of the WNN with that of ANNs in previous research shows that WNN is highly suitable for identifying a system and
per-forms as well as ANN. However, the training time needed for the WNN is much less than the one for the ANN.
ACKNOWLEDGMENT
The authors would like to thank the National Science Council of the Republic of China for financially support-ing this research under Contract No. NSC-2211-E-009-031.
Fig. 11. RMSE comparison between the WNN and ANN: (a)
trained with the 20% Kobe earthquake data; (b) trained with the 60% Kobe earthquake data.
REFERENCES
Abdelghani, M., Basseville, M. & Benveniste, A. (1997), In-operation damage monitoring and diagnostics of vibrating structures, with applications to offshore structures and ro-tating machinery, in Proceedings of the 15th International
Modal Analysis Conference, 3089/Part 2, 1815–21.
Adeli, H. & Ghosh-Dastidar, S. (2003), Mesoscopic-wavelet freeway work zone flow and congestion feature extrac-tion model, Journal of Transportaextrac-tion Engineering, ASCE,
129(5).
Adeli, H. & Karim, A. (2000), A fuzzy-wavelet RBF neural network model for freeway incident detection, Journal of
Transportation Engineering, ASCE, 126(6), 464–71.
Adeli, H. & Samant, A. (2000), An adaptive conjugate gradient neural network-wavelet model for traffic incident detection,
Computer-Aided Civil and Infrastructure Engineering, 13(4),
251–60.
Agbabian, M. S., Masri, S. F., Miller, R. F. & Caughey, T. K. (1991), System identification approach to detection of
struc-tural changes, Journal of Engineering Mechanics, ASCE,
117(2), 370–90.
Akaike, H. (1969), Fitting autoregressive model for prediction,
Annals of Institute of Statistical Mathematics, 21.
Anony-mous FTP [ftp://ftp.irisa.fr/local/wavenet]
Astrom, K. J. & Bohlin, T. (1965), Numerical identification of linear dynamic systems from normal operating records, in IFAC Symposium on Self-Adaptive System, Teddington, England.
Battiti, R. (1992), First and second order methods for learn-ing: Between steepest descent and Newton’s method, Neural
Computing, 4(2), 141–66.
Chassiakos, A. G. & Masri, S. F. (1996), Modeling unknown structural system through the use of neural networks,
Earth-quake Engineering and Structure Dynamics, 25(2), 117–
28.
Cheng, Y. M., Chen, B. S. & Shiau, F. Y. (1998), Adaptive Wavelet Network Control Design for Nonlinear Systems, in Proceedings of the National Science Council, Republic
of China, Part A: Physical Science and Engineering, 22(6),
Taipei, Taiwan, R.O.C., 783–99.
Chui, C. K. (1992), An Introduction to Wavelets, Acadamic Press.
Ciuca, I. & Ware, J. A. (1997), Wavelet networks as an alter-native to neural networks, in Proceedings of the 6th
Inter-national Conference on Emerging Technologies and Factory Automation, 353–58.
Guler, I., Hardalac, F. & Muldur, S. (2001), Determination of aorta failure with the application of FFT, AR and wavelet methods to Doppler technique, Computers in Biology and
Medicine, 31(4), 229–38.
Hagan, M. T. & Menhaj, M. (1994), Training feedforward net-works with the Marquardt algorithm, IEEE Transactions on
Neural Networks, 5(6), 989–93.
Jang, W. Y., Ryou, J. R., Lee, C. & Sohn, K. (2001), Error-resilient zero-tree wavelet image coding technique over noisy channels, Optical Engineering, 40(5), 861–67. Juang, J. N. (1994), Applied System Identification, PTR Prentice
Hall, Englewood Cliffs, NJ.
Jun, Q. & Huihe, S. (1999), Novel algorithm of wavelet network structural design, Journal of Shanghai Jiaotong University,
33(4), 422–24.
Karim, A. & Adeli, H. (2002a), Comparison of the fuzzy-wavelet RBFNN freeway incident detection model with the California algorithm, Journal of Transportation Engineering,
ASCE, 128(1), 21–30.
Karim, A. & Adeli, H. (2002b), Incident detection algo-rithm using wavelet energy representation of traffic patterns,
Journal of Transportation Engineering, ASCE, 128(3), 232–
42.
Karim, A. & Adeli, H. (2003), Fast Automatic incident detec-tion on urban and rural freeways using the wavelet energy algorithm, Journal of Transportation Engineering, ASCE,
129(1), 57–68.
Liu, G. P., Billings, S. A., & Kadirkamanathan, V. (1998), Nonlinear system identification using wavelet networks, in
UKACC International Conference on Control ’98, IEE.
Ljung, L. & Glad, T. (1994), Modeling of Dynamic Systems, PTR Prentice Hall, Englewood Cliffs, NJ.
Lu, B. Q. & Li, T. D. (1997), Approach of fault detection based on wavelet network, Transactions of China Electrotechnical
Society, 12(4), 34–36.
Masri, S. F., Nakamura, M., Chassiakos, A. G. & Caughey, T. K. (1996), Neural network approach to the detection of changes
in structural parameters, Journal of Engineering Mechanics, ASCE, 122(4), 350–60.
Masri, S. F., Smyth, A. W., Chassiakos, A. G., Caughey, T. K. & Hunter, N. F. (2000), Application of neural networks for detection of changes in nonlinear systems, Journal of
Engi-neering Mechanics, ASCE, 126(7), 666–76.
Nakamura, M., Masri, S. F., Chassiakos, A. G. & Caughey, T. K. (1998), A method for non-parametric damage detec-tion through the use of neural networks, Earthquake
Engi-neering and Structural Dynamics, 27(9), 997–1010.
Nerrand, O., Roussel-Ragot, P., Personnaz, L. & Dreyfus, G. (1993), Neural networks and non-linear adaptive filtering: unifying concepts and new algorithms, Neural Computation,
5(2), 165–99.
Oussar, Y., Rivals, I., Personnaz, L. & Dreyfus, G. (1998), Train-ing wavelet networks for nonlinear dynamic input-output modeling, Neurocomputing, 20, 173–88.
Rao, R. M. & Bopardikar, A. S. (1998), Wavelet
Trans-form: Introduction to Theory and Applications,
Addison-Wesley.
Samant, A. & Adeli, H. (2000), Feature extraction for traffic incident detection using wavelet transform and linear dis-criminant analysis, Computer-Aided Civil and Infrastructure
Engineering, 13(4), 241–50.
Samant, A. & Adeli, H. (2001), Enhancing neural network incident detection algorithms using wavelets,
Computer-Aided Civil and Infrastructure Engineering, 16(4), 239–
45.
Sjoberg, J., Hjalmarsson, H. & Ljung, L. (1994), Neural net-works in identification, in Proceedings of the SYSID’94, 10th
IFAC Symposium on System Identification, Copenhagen,
Denmark.
Sjoberg, J., Zhang, Q., Ljung, L., Benveniste, A., Delyon, B., Glorennec, P. Y., Hjalmarsson, H. & Juditsky, A. (1995), Nonlinear black-box modeling in system identification: a unified overview, Automatica, 31(12), 1691–724.
Yeh, S. C., Cheng, C. P. & Loh, C. H. (1999), Shaking table tests on scaled down five-story steel structures, NCREE
Re-port No. NCREE-99-002, National Center for Research on Earthquake Engineering, R.O.C. (in Chinese)
Zhang, Q. (1997), Using wavelet network in nonparametric estimation, IEEE Transcations on Neural Networks, 8(2), 227–36.
Zhang, Q. & Benveniste, A. (1992), Wavelet networks, IEEE
Transactions of Neural Networks, 3(6), 889–98.
Zhang, J., Walter, G. G., Miao, Y. & Lee, W. N. W. (1995), Wavelet neural networks for function learning, IEEE
Trans-actions on Signal Processing, 43(6), 1485–97.
Zhao, W., Song, Y. H. & Chen, W. R. (2001), Improved GPS traveling wave fault locator for power cables by using wavelet analysis, International Journal of Electrical Power &
