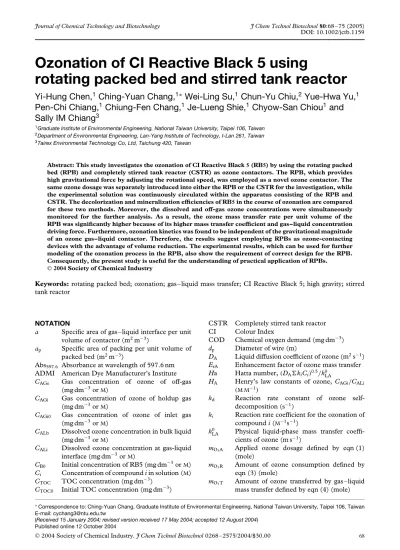

Ozonation of CI Reactive Black 5 using
rotating packed bed and stirred tank reactor
Yi-Hung Chen,
1Ching-Yuan Chang,
1∗Wei-Ling Su,
1Chun-Yu Chiu,
2Yue-Hwa Yu,
1Pen-Chi Chiang,
1Chiung-Fen Chang,
1Je-Lueng Shie,
1Chyow-San Chiou
1and
Sally IM Chiang
31Graduate Institute of Environmental Engineering, National Taiwan University, Taipei 106, Taiwan 2Department of Environmental Engineering, Lan-Yang Institute of Technology, I-Lan 261, Taiwan 3Tairex Environmental Technology Co, Ltd, Taichung 420, Taiwan
Abstract: This study investigates the ozonation of CI Reactive Black 5 (RB5) by using the rotating packed bed (RPB) and completely stirred tank reactor (CSTR) as ozone contactors. The RPB, which provides high gravitational force by adjusting the rotational speed, was employed as a novel ozone contactor. The same ozone dosage was separately introduced into either the RPB or the CSTR for the investigation, while the experimental solution was continuously circulated within the apparatus consisting of the RPB and CSTR. The decolorization and mineralization efficiencies of RB5 in the course of ozonation are compared for these two methods. Moreover, the dissolved and off-gas ozone concentrations were simultaneously monitored for the further analysis. As a result, the ozone mass transfer rate per unit volume of the RPB was significantly higher because of its higher mass transfer coefficient and gas– liquid concentration driving force. Furthermore, ozonation kinetics was found to be independent of the gravitational magnitude of an ozone gas– liquid contactor. Therefore, the results suggest employing RPBs as ozone-contacting devices with the advantage of volume reduction. The experimental results, which can be used for further modeling of the ozonation process in the RPB, also show the requirement of correct design for the RPB. Consequently, the present study is useful for the understanding of practical application of RPBs.
2004 Society of Chemical Industry
Keywords: rotating packed bed; ozonation; gas – liquid mass transfer; CI Reactive Black 5; high gravity; stirred tank reactor
NOTATION
a Specific area of gas – liquid interface per unit volume of contactor (m2m−3)
ap Specific area of packing per unit volume of packed bed (m2m−3)
Abs597.6 Absorbance at wavelength of 597.6 nm ADMI American Dye Manufacturer’s Institute CAGe Gas concentration of ozone of off-gas
(mg dm−3orM)
CAGi Gas concentration of ozone of holdup gas (mg dm−3orM)
CAGi0 Gas concentration of ozone of inlet gas (mg dm−3orM)
CALb Dissolved ozone concentration in bulk liquid (mg dm−3orM)
CALi Dissolved ozone concentration at gas-liquid interface (mg dm−3orM)
CB0 Initial concentration of RB5 (mg dm−3orM) Ci Concentration of compound i in solution (M)
CTOC TOC concentration (mg dm−3) CTOC0 Initial TOC concentration (mg dm−3)
CSTR Completely stirred tank reactor CI Colour Index
COD Chemical oxygen demand (mg dm−3) dp Diameter of wire (m)
DA Liquid diffusion coefficient of ozone (m2s−1) ErA Enhancement factor of ozone mass transfer Ha Hatta number, (DAkiCi)0.5/k0LA
HA Henry’s law constants of ozone, CAGi/CALi (M M−1)
kd Reaction rate constant of ozone self-decomposition (s−1)
ki Reaction rate coefficient for the ozonation of
compound i (M−1s−1)
k0LA Physical liquid-phase mass transfer coeffi-cients of ozone (m s−1)
mO3A Applied ozone dosage defined by eqn (1) (mole)
mO3R Amount of ozone consumption defined by eqn (3) (mole)
mO3T Amount of ozone transferred by gas – liquid mass transfer defined by eqn (4) (mole)
∗Correspondence to: Ching-Yuan Chang, Graduate Institute of Environmental Engineering, National Taiwan University, Taipei 106, Taiwan
E-mail: [email protected]
(Received 15 January 2004; revised version received 17 May 2004; accepted 12 August 2004) Published online 12 October 2004
QG Gas flow rate (dm3s−1) QL Liquid flow rate (dm3min−1) r Radial position of packed bed (m) r1 Inner radius of packed bed (m) r2 Outer radius of packed bed (m) r2 Regression coefficient
RB5 Reactive Black 5 RPB Rotating packed bed t Time (s)
TOC Total organic carbon VH Volume of gas holdup (dm3) VL Volume of liquid (dm3)
VR Gas – liquid contacting volume (dm3) Wp Weight of packing in packed bed (kg) ZB Axial height of packed bed (m)
ηTOC TOC removal efficiency defined by eqn (2) (%)
ρp Density of wire (kg m−3)
1 INTRODUCTION
Ozone is widely used as an oxidant in water and wastewater treatments. The ozone-containing gas generated from the ozone generator is transferred to water by introducing it through the gas – liquid contactor. The common advantages of ozonation are to increase the decolorization, mineralization and biodegradability of the solution.1,2 Furthermore, the rate-limiting step in many ozonation processes is attributed to the gas – liquid mass transfer rate.3 – 5 It indicates that the ozonation performance can be enhanced by increasing the gas – liquid mass transfer rate of ozone. Consequently, the innovation of an ozone-contacting device with better mass transfer efficiency is desirable.
Rotating packed beds (RPBs) have been used as gas – liquid contactors for the applications of adsorp-tion, distillation and stripping, etc.6 – 8 RPBs are designed to generate high acceleration of liquid owing to the centrifugal force. The target solution contacted with gas flows through the packed material in the environment of high gravity. This novel technology is also named ‘Higee’. According to previous studies,6 – 12 RPBs have high gas – liquid mass transfer coefficients, which are important for increasing the gas – liquid mass transfer rate. Recently, RPBs have been introduced as ozonation contactors by Lin and Liu13 and Chen et al.14Their studies investigated the effects of operat-ing variables on the ozonation in RPBs. It is still essen-tial, however, to compare the ozonation process using the RPB with that using the convectional contactors such as the completely stirred tank reactor (CSTR). The comparison would clarify the advantages of mass transfer properties and the possible difference of ozonation dynamics for ozone gas – liquid mass transfer combined with reactions of pollutants in an RPB.
This study employs the RPB and CSTR separately as the ozonation contactor to treat the reactive dyes of the textile. The reactive dyes, which are predominant
in the application of dyes, have significant impacts upon the conventional methods of wastewater treat-ments due to their poor biodegradability, especially those containing azo-groups.15,16 The CI Reactive Black 5 (RB5) is one of the common reactive dyes and was chosen as a target pollutant. The experimental solution of 5.5 dm3was continuously circulated within the apparatus consisting of the RPB and CSTR, while the same ozone dosage was separately introduced into either the RPB or the CSTR for comparison. The removal of the absorbance, ADMI value and total organic carbon (TOC) concentration are measured in the course of RB5 ozonation. Moreover, the dissolved and off-gas ozone concentrations are simultaneously monitored for further analysis.
As a result, the ozone mass transfer rate per unit volume of the RPB was found to be remarkably higher than that of the CSTR. This can be attributed to the higher mass transfer coefficient and gas – liquid concentration driving force in the RPB. Furthermore, the ozonation kinetics of RB5 was examined and compared with the uses of these two types of ozone gas contactors. The ozonation of RB5, however, seems to be better when in ozone is introduced into the CSTR due to its significantly larger volume than the RPB in this study. Consequently, the use of an RPB was considered advantageous to reduce the volume of an ozone contactor. This study provides useful information about the application of an RPB in ozonation processes.
2 EXPERIMENTAL 2.1 Materials
The RB5, chemical formula C25H26N5O19S6·4Na, was purchased from Aldrich Chemical Company (Amherst, NY, USA); it was of 55% purity, and had a molecular weight of 991.8. The characteristic wavelength of absorbance of RB5 is 597.6 nm, which is responsible for the dark blue color arising from aromatic rings connected by azo groups. The prescription of RB5 concentration (CB0) as the sole organic target was 100 mg dm−3 with the initial TOC concentration (CTOC0) of about 24.6 mg dm−3. The initial pH value of the solution was 8.3. All experimental solutions were prepared with deionized water. No other chemical, as scavenger or promoter, was added to the solution.
2.2 Ozone gas– liquid contactors
Figure 1 shows a simple description of an RPB, which consists of a rotator and a stationary case. The 304 stainless steel wire wrapped in the shape of annular rings is stacked in the packed bed. The density (ρp) and diameter (dp) of the wire are 8478 kg m−3 and 2.2× 10−4m, respectively. The rotator is connected to a rotor shaft on two bearings, which are in turn mounted on a steel structure. The shaft is connected to a motor, which is controlled by a speed regula-tor. The rotational speed is controlled at 1500 rpm, which provides gravitational force of 103 g based on
Liquid inlet Liquid outlet Gas inlet Gas outlet r1 r r2 ZB 1 2 3 2 4 5 6
Figure 1. Schematic diagram of RPB contactor. Components: 1, stationary liquid distributor; 2, seal; 3, packed bed rotator; 4, housing case; 5, rotor shaft; 6, motor.
Table 1. Specification of RPB contactor used in this study
Item Unit Value
Inner radius of packed bed, r1 m 0.023
Outer radius of packed bed, r2 m 0.059
Axial height of packed bed, ZB m 0.02
Weight of packing in packed bed, Wp kg 0.0686
Volume of gas-liquid contacting, VR dm3 0.185
Volume of housing case dm3 1.04
Specific area of packing per unit volume
of packed bed, ap
m2m−3 793
Total packing area, ap× VR m2 0.147
Voidage of packed bed m3m−3 0.956
the arithmetic mean radius of the RPB. Liquid enters the RPB through six holes in the liquid distributor. These six holes are arranged in two vertical groups of three per group with groups spaced 180◦ apart. The liquid is sprayed on the inside edge of the RPB and thrown outwards by the centrifugal force. The gas is introduced from the outside and flows counter-currently with respect to the liquid in the RPB. The specification of the RPB contactor is given in Table 1. The CSTR of 17.2 cm inside diameter, volume 5.5 dm3, is made of Pyrex glass and equipped with a water jacket to maintain a constant solution temperature of 25◦C in all experiments. The design of the CSTR is based on the criteria of the shape factors of a standard six-blade turbine.17The stirring speed is as high as 800 rpm to ensure complete mixing, based on the results of previous tests.18,19The gas diffuser, of cylindrical shape with the pore size of 10µm, is located at the bottom of the CSTR. Note that the gas – liquid contacting volume (VR) in the CSTR (5.5 dm3) is about 30 times that in the RPB (0.185 dm3) due to the small dimensions of the RPB. In addition, the VR, specific area of packing (ap) and voidage of packed bed are determined as π ZB(r22− r12), 4Wp/(dpVRρp) and 1− Wp/(VRρp), respectively.
2.3 Analytical
The color of the RB5 solution is measured by both the absorbance of characteristic wavelength (Abs597.6) and
an ADMI method. The optical spectra (200 – 900 nm) in UV-visible absorption are scanned by the UV-visible spectrometer (model Cintra 20, GBC, Dandenong, VIC, Australia). The pH value is continuously monitored by the pH meter (model 300T, Suntex, Taipei, Taiwan) with a glass probe sensor. The TOC concentration (CTOC) of the sample is analyzed by a TOC analyzer (model 700, OI Corporation, Texas, USA). The instrument utilizes the UV-persulfate technique to convert the organic carbon for the subsequent analysis by an infrared carbon dioxide analyzer calibrated with the potassium hydrogen phthalate standard. Moreover, the dissolved ozone concentration (CALb) is measured instantly by the liquid ozone monitor (model 3600, Orbisphere Lab, Neuchˆatel, Switzerland) with a sensor of membrane-containing cathode.
2.4 Experimental procedures
Ozone-containing gas generated from pure oxygen by the ozone generator (Tairex Environmental Technology, Taiwan) is introduced into RPB and CSTR separately with the gas flow rate (QG) of 0.0323 dm3s−1. Before starting the ozonation experiments, the ozone gas is bypassed to the photometric analyzer (model SOZ-6004, Seki, Tokyo, Japan) to assure the stability of the fed ozone concentration (CAGi0) as 30 mg dm−3. Then, the gas stream at the preset flow rate is directed into the contactor when reaching the set conditions. The total experimental solution of 5.5 dm3 (VL) is circulated between the CSTR and RPB continuously with the flow rate (QL) of 0.6 dm3 min−1. The same applied ozone dosage (mO3A) for the RPB or CSTR is defined
in eqn (1).
mO3A= QG× CAGi0× t (1)
Liquid samples are drawn out from the CSTR at desired time intervals in the course of experiments to analyze their properties. The residual dissolved ozone in the samples is removed by stripping with nitrogen. According to the test results, the residual dissolved ozone with the initial value of 5 mg dm−3 can be stripped by nitrogen with more than 98% removed (below 0.1 mg dm−3) within 30 s and complete removal within 60 s from the solution, which is determined by the indigo method with the detection limit of 0.01 mg dm−3. The sample volume and nitrogen flow rate are 20 cm3and 0.0167 dm3s−1, respectively. For the ozonation regime with negligible residual dissolved ozone, the sampling time interval does not affect the measurements of absorbance and TOC of solution. In the ozonation regime with significant residual dissolved ozone, the sampling time interval should be longer, say 10 min, in order to reduce the lag effect of nitrogen stripping. For the sampling time interval of 10 min, the lag effect of quenching the ozonation reaction on the experimental results is less than 5% (estimated by noting that
5 5 8 7 O2 1 2 3 4 ON OFF A V 13 10 9 12 11 9 6 5 5 14
, ozone gas stream , experimental solution , isothermal water

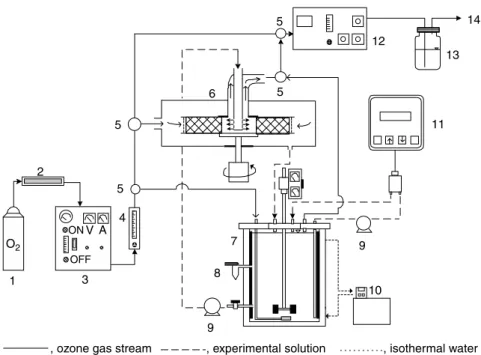

Figure 2. Experimental apparatus sketch. Components: 1, oxygen cylinder; 2, drying tube; 3, ozone generator; 4, flow meter; 5, three-way valves; 6, rotating packed bed gas–liquid contactor; 7, stirred reactor; 8, sample port; 9, pumps; 10, thermostat; 11, liquid ozone monitor; 12, gaseous ozone detector; 13, KI solution; 14, vent to hood.
30 s/10 min is about 5%) and may be tolerable. Thus, the results are presented with the ozonation time intervals as noted above. In addition, a circulation pump is used to transport the liquid from the CSTR to the sensor of dissolved ozone monitor with a flow rate of 0.18 dm3 min−1, and to reflow it back during the ozonation. All the experiments are carried out repeatedly to guarantee the accuracy of the obtained data. From the study of Chen et al,14 the Henry’s constant (HA) and volumetric mass transfer coefficient of ozone (k0
LAa) in the RPB are 4.18 and 0.0975 s−1, respectively. The experimental apparatus employed in this work is illustrated in Fig 2.
3 RESULTS AND DISCUSSION
3.1 Decolorization and mineralization of RB5 by ozonation
The initial values of Abs597.6 and ADMI for the RB5 solution were 2.69 and 1620 units, respectively. As shown in Fig 3, the reductions of Abs597.6 and ADMI remarkably increase with ozonation time to reach 100%, because the first attack of ozone on RB5 is through the cleavage of dye chromophores, resulting in the reduction of absorbance in visible wavelengths, which are characterized by an N=N bond.20 In addition, the variations of Abs597.6 and ADMI (which is calculated from the absorbances at 438, 540 and 590 nm) show similar trends under the same condition of ozone introduction, which indicates the consistent reductions of absorbances in these characteristic wavelengths during the ozonation of RB5. Furthermore, the efficiency of decolorization is obviously greater with the introduction of ozone into the CSTR. The time required for 99% removal
0 5 10 15 20 25 30
Ozonation time (min) 0 20 40 60 80 100 Abs 597.6 or ADMI reductions (%)
, Abs597.6, with ozone in RPB
, Abs597.6, with ozone in CSTR
, ADMI, with ozone in RPB , ADMI, with ozone in CSTR Figure 3. Variations of Abs597.6and ADMI reductions with time for
the ozonation of RB5.
of color is about 10 and 30 min by introducing ozone into the CSTR and RPB, respectively.
In terms of mineralization of the RB5 solution, the variations of the normalized TOC concentration (CTOC/CTOC0) are shown in Fig 4. The TOC of the solution is reduced by 41% (at 90 min) and 60% (at 100 min) by using the RPB and CSTR as the ozone contactors, respectively. Apparently, the mineralization rate is slower than the decolorization rate. This can be explained in terms of the degradation of the parent compound’s aromatic rings which lags behind that of the chromophores. Another cause is
Ozonation time (min) 0.2 0.4 0.6 0.8 1 CTOC /C TOC0 (-) 20 40 60 80 100 0 , ozone in RPB , ozone in CSTR
Figure 4. Variation of CTOC/CTOC0with time for the ozonation of RB5.
CTOC= CTOC0at t= 0.
that the intermediates containing organic carbons are resistant toward further oxidation. This explanation is consistent with the experimental results of other azo dyes reported by Alvares et al20who observed a lag of COD removal behind the decolorization. Additionally, the elimination rate of TOC, CTOC, was also found to be faster when introducing ozone into the CSTR compared with introducing it into the RPB.
Moreover, the variations of dissolved (CALb) and off-gas (CAGe) ozone concentrations were analyzed to examine the consumption of ozone, which is related to the solution reactivity in the course of ozonation of RB5 (Fig 5). The CALbremained almost undetectable in the early period of ozonation, while the CAGe increased gradually with ozonation time. The higher CAGevalue of the RPB reveals its overall lower ozone utilization for ozonation times <27 min. In this early stage, the reactivity of the solution is high and the ozone transferred from the fed gas into solution (CALb) is consumed immediately. Afterwards the CALb value starts to increase in the liquid phase, indicating the lower reactivity of the solution in the later ozonation stage. Then both CAGe and CALb approach to the steady values of about 27 and 5 mg dm−3, respectively. It is observed that the increase in the CALbvalue started earlier and increased faster with the introduction of ozone into the CSTR compared with the RPB results. Hence, according to the results of decolorization, mineralization and ozone accumulation, the ozonation of RB5 progresses faster by employing the CSTR as the ozone contactor.
3.2 Comparison of ozonation processes with ozone gas introduced in the RPB and CSTR The dissimilar ozonation performance may be caused by different ozone gas – liquid mass transfer rates. Therefore, further examination was made to dis-tinguish the mass transfer characteristics of these
0 20 40 60 80 100 120
Ozonation time (min) 0 1 2 3 4 5 6 CALb (mg dm -3) (a) 0 20 40 60 80 100 120
Ozonation time (min) 0 5 10 15 20 25 30 CAGe (mg dm -3) , ozone in RPB , ozone in CSTR (b)
Figure 5. Variations of CALb(a) and CAGe(b) with time for the
ozonation of RB5.
two contactors. As for different ozonation kinetics and mechanisms, variation in mineralization efficiency could be observed with the same ozone consumption. Accordingly, the dependence of TOC removal effi-ciency (ηTOC) on the amount of ozone consumption (mO3R) was examined during the ozonation of RB5.
The ηTOCand mO3R are defined by eqns (2) and (3),
respectively.
ηTOC= (CTOC0− CTOC)/CTOC0 (2)
mO3R= ozone applied − ozone exited − ozone accumulated in holdup gas and liquid =
t
0
QG(CAGi0− CAGe)dt− CAGiVH
− CALbVL (3)
In eqn (3), CAGiis the ozone concentration in holdup gas of the contactor, and taken as CAGe in the calcu-lation for simplicity, and VH is the volume of holdup gas in the contactor. As shown in Fig 6, the extent
0 10 20 30 40 mO 3R /(CB0VL) (mol mol -1) 0 15 30 45 60 75 ηTOC (%) , ozone in RPB , ozone in CSTR
Figure 6. ηTOCvs mO3R/(CB0VL) for the ozonation of RB5. Line: the plot of correlation equation of
ηTOC(%)= 1.68 mO3R/(CB0VL) (mol mol
−1) with r2= 0.958.
of mineralization of the solution apparently and con-sistently depends on the value of mO3R/(CB0VL) for
these two contactors. The equation of ηTOC(%)= 1.68 mO3R/(CB0VL) (mol mol−1) is presented, with
r2= 0.958. The ozonation mechanism of the pollu-tant in the RPB is the same as that in the CSTR. Fig 6 shows that the ozonation kinetics is independent of the gravitational magnitude of ozone gas – liquid con-tactors. Accordingly, the ozonation kinetics obtained from other kinds of ozonation reactors can be directly applied for the RPB contactor.
The pH value of solution slightly increases from 8.3 to 8.7 during the ozonation. The radical ozonation, which is more non-selective toward the pollutant elimination, would be enhanced at higher pH values by the generation of hydroxyl radicals from ozone decomposition.21 In Fig 5, the steady ozone concentrations in the later period reveal that the consumption of ozone in the experimental conditions of this study mainly resulted from the self-decomposition of ozone, while the TOC content of the solution was still noticeable and decreasing. The reaction rate constant of ozone self-decomposition (kd) can be calculated as 0.00 332 s−1 by employing kd= QG(CAGi0− CAGe)/(VLCALb) with the steady state values of CAGe(27.2 mg dm−3) and CALb(5.0 mg dm−3). This kd value in the basic condition at pH= 8.3–8.7 is evidently greater than that of 0.000 145 s−1 at pH= 5.25. Furthermore, the approximately linear relationship of ηTOC with mO3R/(CB0VL) as shown in Fig 6 also supports that the contribution of the radical ozonation on the elimination of RB5 is significant.
In addition, the ratio of consumed to applied ozone (mO3R/mO3A) is used as a quantitative indicator to
represent the ozone utilization, as depicted in Fig 7. The mO3R/mO3A value decreases with mO3A from
0 0.03 0.06 0.09 0.12 0.15 mO3A (mol) 0 0.2 0.4 0.6 0.8 1 mO 3 R /m O3 A (-) , ozone in RPB , ozone in CSTR
Figure 7. mO3R/mO3Avs mO3Afor the ozonation of RB5.
0 0.01 0.02 0.03 mO3T (mol) 0 0.01 0.02 0.03 mO 3 R (mol) , ozone in RPB , ozone in CSTR Figure 8. mO3Rvs mO3Tfor the ozonation of RB5.
0.52 to 0.14 and 0.80 to 0.18 for the cases with RPB and CSTR as ozone contactors, respectively. The decreasing mO3R/mO3A value may be caused
by the lower reactivity of the reacted solution and the accumulation of dissolved ozone. Evidently, the mO3R/mO3A value was apparently lower at the same mO3A when using the RPB as the ozone contactor.
The ozone utilization increased 24 – 67% as ozone was introduced into the CSTR. This phenomenon caused the difference of overall ozonation performance between the two cases.
Figure 8 shows that the mO3R value was slightly
lower than the amount of ozone transferred (mO3T) by
the gas – liquid mass transfer. The mO3T is defined by
the double integration of the specific gas – liquid mass transfer rate, ErAk0LAa (CAGi/HA− CALb), with respect to the volume of gas – liquid contactor and time, as
0 30 60 90 120 Ozonation time (min)
14 17 20 23 26 (m O3 T /V R )RPB /(m O3 T /V R )CSTR
Figure 9. Variation of (mO3T/VR)RPB/(mO3T/VR)CSTRwith time for the ozonation of RB5. shown in eqn (4). mO3T= t 0 VR 0
ErAk0LAa(CAGi/HA− CALb)dV dt = ozone applied − ozone exited − ozone
accumulated in holdup gas =
t
0
QG(CAGi0− CAGe)dt− CAGiVH (4)
In eqn (4), ErA is the enhancement factor of ozone gas – liquid mass transfer. As a result, the better ozonation performance of the CSTR is due to its higher mO3Tvalue.
Further, the average amount of ozone transferred by gas – liquid mass transfer per unit gas – liquid contacting volume, mO3T/VR, for these two contactors
were calculated respectively for the comparison. As shown in Fig 9, the variation of the ratio of the values of mO3T/VRof RPB to CSTR with ozonation time ranged between 17 and 23. Based on eqn (4), the mO3T/VR
depends on the ErA, k0LAa, gas – liquid concentration driving force (CAGi/HA− CALb) and t; the ErA depends on the value of the Hatta number (Ha= √
DAkiCi/k0LA),
3,4 which is inversely proportional to the k0LA. Referring to previous studies, the k0LAvalues of the RPB (2.97× 10−5– 1.32× 10−4m s−1)14 and CSTRs (4.75× 10−5– 2.32× 10−4m s−1)3,4,22 were found to be in the same order of magnitude. Accordingly, the ErA value may not be significantly different for these two contactors. Therefore, the larger value of ratio of (mO3T/VR)RPB/(mO3T/VR)CSTR
is mainly attributed to the difference of k0 LAa and CAGi/HA− CALb. The k0LAa value in the RPB (0.0975 s−1) is apparently higher than that in the CSTR (0.02 – 0.04 s−1) reported by Zaror.23 In this study, the k0LAa value in the CSTR was 0.0248 s−1. Moreover, the ratio of the values of CAGi/HA− CALb in the RPB to the CSTR was approximately
estimated to be about 3.1 computed from the average values of CAGe/HA− CALbin Fig 5. Additionally, the hydrodynamics of the RPB is close to plug flow, which is more beneficial for a higher gas – liquid concentration driving force because of the higher ozone concentration gradient profiles.24 The better ozonation performance by using the CSTR in this study may be attributed to its larger volume. Certainly, the comparison of ozonation performance in a CSTR with that in a RPB of the same volume would be helpful to further support this point.
Consequently, it is feasible to reduce the volume of an ozone gas – liquid contactor by employing RPBs based on the above analysis. It is worthy of mention that the further modeling and pilot test are helpful in the correct design of the size and dimensions of the RPB. The experimental data obtained in this study can be used to establish the ozonation model for using a RPB gas – liquid contactor.
4 CONCLUSIONS
The rotating packed bed (RPB) and completely stirred tank reactor (CSTR) are compared as an ozone gas – liquid contactor to treat CI Reactive Black 5 (RB5). During the ozonation course of RB5, both the absorbance of characteristic wavelength and ADMI value decreased quickly and similarly to zero. The mineralization rate of RB5 was significantly slower than the decolorization rate because of the selective attack of ozone and low reactivity of intermediates. The removal efficiency of TOC (%) was proportional to the ratio (mol mol−1) of moles of consumed ozone to that of treated RB5 with the pre-multiplying coefficient of 1.68. Furthermore, the ozonation kinetics obtained elsewhere can be applied adequately for the RPB system. Note that the mass transfer rate of ozone per unit volume in the RPB gas – liquid contactor was significantly higher because of its higher volumetric mass transfer coefficient (k0LAa= 0.0975 s−1) and gas – liquid concentration driving force as compared with the CSTR gas – liquid contactor (k0LAa= 0.0248 s−1). The enhancement factor of ozone gas – liquid mass transfer may not have significant difference between the RPB and the CSTR. As a result, it is feasible to reduce the volume of an ozone gas – liquid contactor by using a RPB, while the correct design of the size and dimensions of the RPB is required.
