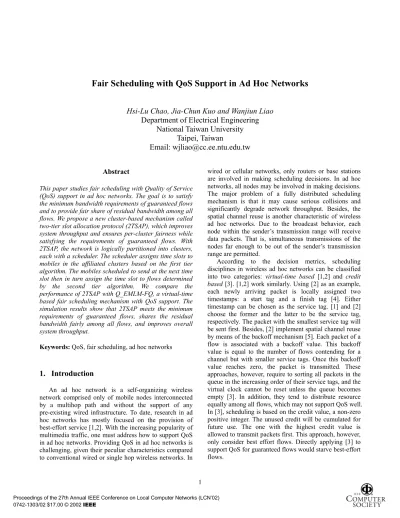

Fair Scheduling with QoS Support in Ad Hoc Networks
Hsi-Lu Chao, Jia-Chun Kuo and Wanjiun Liao
Department of Electrical Engineering
National Taiwan University
Taipei, Taiwan
Email: [email protected]
AbstractThis paper studies fair scheduling with Quality of Service (QoS) support in ad hoc networks. The goal is to satisfy the minimum bandwidth requirements of guaranteed flows and to provide fair share of residual bandwidth among all flows. We propose a new cluster-based mechanism called two-tier slot allocation protocol (2TSAP), which improves system throughput and ensures per-cluster fairness while satisfying the requirements of guaranteed flows. With 2TSAP, the network is logically partitioned into clusters, each with a scheduler. The scheduler assigns time slots to mobiles in the affiliated clusters based on the first tier algorithm. The mobiles scheduled to send at the next time slot then in turn assign the time slot to flows determined by the second tier algorithm. We compare the performance of 2TSAP with Q_EMLM-FQ, a virtual-time based fair scheduling mechanism with QoS support. The simulation results show that 2TSAP meets the minimum requirements of guaranteed flows, shares the residual bandwidth fairly among all flows, and improves overall system throughput.
Keywords: QoS, fair scheduling, ad hoc networks
1. Introduction
An ad hoc network is a self-organizing wireless network comprised only of mobile nodes interconnected by a multihop path and without the support of any pre-existing wired infrastructure. To date, research in ad hoc networks has mostly focused on the provision of best-effort service [1,2]. With the increasing popularity of multimedia traffic, one must address how to support QoS in ad hoc networks. Providing QoS in ad hoc networks is challenging, given their peculiar characteristics compared to conventional wired or single hop wireless networks. In
wired or cellular networks, only routers or base stations are involved in making scheduling decisions. In ad hoc networks, all nodes may be involved in making decisions. The major problem of a fully distributed scheduling mechanism is that it may cause serious collisions and significantly degrade network throughput. Besides, the spatial channel reuse is another characteristic of wireless ad hoc networks. Due to the broadcast behavior, each node within the sender’s transmission range will receive data packets. That is, simultaneous transmissions of the nodes far enough to be out of the sender’s transmission range are permitted.
According to the decision metrics, scheduling disciplines in wireless ad hoc networks can be classified into two categories: virtual-time based [1,2] and credit based [3]. [1,2] work similarly. Using [2] as an example, each newly arriving packet is locally assigned two timestamps: a start tag and a finish tag [4]. Either timestamp can be chosen as the service tag. [1] and [2] choose the former and the latter to be the service tag, respectively. The packet with the smallest service tag will be sent first. Besides, [2] implement spatial channel reuse by means of the backoff mechanism [5]. Each packet of a flow is associated with a backoff value. This backoff value is equal to the number of flows contending for a channel but with smaller service tags. Once this backoff value reaches zero, the packet is transmitted. These approaches, however, require to sorting all packets in the queue in the increasing order of their service tags, and the virtual clock cannot be reset unless the queue becomes empty [3]. In addition, they tend to distribute resource equally among all flows, which may not support QoS well. In [3], scheduling is based on the credit value, a non-zero positive integer. The unused credit will be cumulated for future use. The one with the highest credit value is allowed to transmit packets first. This approach, however, only consider best effort flows. Directly applying [3] to support QoS for guaranteed flows would starve best-effort flows.
In this paper, we consider an environment with a mix of guaranteed and best effort flows. Our goal is to guarantee the minimum bandwidth requirements of guaranteed flows, while ensuring fair share of residual bandwidth among all flows (i.e., both best effort and guaranteed)1. We propose a mechanism called Two-Tier
Slot Allocation Protocol (2TSAP), which uses the concept of “credit” as in [3], instead of “service tag” in [1,2], to make scheduling decisions.
The rest of this paper is organized as follows. Section 2 describes the proposed two-tier slot allocation protocol. Section 3 shows the simulation results. Finally, the conclusion is drawn in Section 4.
2. Two-Tier Slot Allocation Protocol
(2TSAP)
This section describes the proposed Two-Tier Slot Allocation Protocol (2TSAP), which provides QoS support for guaranteed flows and ensures fairness in resource sharing among all flows. The detailed mechanism is described as follows.
2.1 Assumptions
1. Wireless media may exhibit time-varying errors due to co-channel interference, fading, link errors, and collisions. In this paper, we only consider the errors caused by collisions when the two mechanisms are compared.
2. We assume a TDMA-based system on a single channel shared by all hosts. To avoid collisions, CDMA can be overlaid on the top of the TDMA system. We assume a code assignment algorithm is running in the lower layer of our system. Each TDMA frame contains a fixed number of time slots. The network is synchronized on a frame and slot basis. A frame is comprised of a control phase and a data phase. The control phase is used for mobile nodes and schedulers to send time-slot requests and replies. The data phase is used for designated nodes to transmit packets [6].
3. We consider packet-switched multihop wireless networks, but do not consider host mobility as in existing work [1,2].
1 Note that our mechanism can work with different scenarios of residual bandwidth allocation, including fair scheduling for best effort flows only, for a mix of best effort and guaranteed flows, or for a mix of flows but with an upper limit on the resource share for guaranteed flows. In this paper, we just demonstrate the second case, i.e., for a mix of flows without an upper bound on each flow.
2.2 Data Structure
(1) Node Allocation Table (NAT): maintained by the schedule; each entry of the NAT is for a (node, service type) pair and has six fields: a node ID, a service type, a Resv, a Credit, a Usage, and an Excess.
(2) Flow Allocation Table (FAT): maintained by the node; each entry of the FAT is for a flow and has seven fields: a flow ID, a scheduler ID, a service type, a Resv, a Credit, a Usage, and an Excess.
2.3 Scheduling Parameters
There are four parameters defined in the two-tier scheduling mechanism: Resv, Credit, Usage, and Excess.
(1) Resv: for the guarantee service, Resv represents the minimum time slot requirement to meet the desired QoS level, with a value between 0 and 1; for the best effort service, the value is always zero.
(2) Credit: the cumulative time slots reserved for a guaranteed flow, or the remaining slot quota for a best effort flow per iteration2. For guaranteed service
type, the value of an increase at each time slot is equal to a Resv value. For the best effort service type, the initial Credit value is equal to the total number of best effort flows currently scheduled by the node, and is decreased by one after a slot is assigned. Note that for a best effort flow, the Credit field is only valid in the NAT and is always set to zero in the FAT.
(3) Usage: cumulative time slots assigned to a request. The Usage value could be a zero or any positive integer.
(4) Excess: this value is used to determine to whom the next time slot is assigned. The next slot is assigned to the request with the smallest Excess value. For guaranteed-service entries, the Excess values are equal to “Usage minus Credit,” and are updated at each time slot. For best effort-service entries, the initial Excess values are set to zero, and are increment at each “update.” The Excess value only is updated when the corresponding Credit value is count down to zero. Once the Excess value has been updated, the Credit value is reset to a Resv value, and a new iteration starts.
2.4 Cluster-based Mechanism
2TSAP is a cluster-based mechanism. Each cluster has a scheduler (or master). Clusters may be overlapped, each with a designated code. The cluster can be formed as
2 Each iteration indicates a cycle in which the slot quota is counted down from the original value to zero.
follows. Each mobile node periodically broadcasts beacons. Based on the received beacons, mobile nodes learn their neighbors, and related information, such as node ID, node stability. According to the selected criterion [7,8], each cluster can determine its scheduler. To receive the service, each node must join a cluster and register with the scheduler. Each scheduler periodically advertises itself as the scheduler to its cluster, from which newly arriving mobile nodes learn where to register.
2.5 Path Selection
A flow sender must first determine a flow path before a transmission, using an ad hoc routing mechanism such as [9,10,11]. If the flow needs guaranteed service, the determined path must meet the desired QoS level of the flow. The sender first broadcasts a Route REQuest (RREQ) message with a flow ID, a destination ID, a Resv, and a service type to its neighbors. The value of the Resv depends on the service type of the RREQ, i.e., for guaranteed flow, the Resv value is set between 0 and 1, and for best effort, it is always zero.
On receiving a new request, say request i, to relay the flow’s packets, the node will verify if the summation of the reservation levels (i.e., Resvs) of all flows scheduled by the node, including the newly arriving one, is less than or equal to the target link utilization. If it is the case, the node further sends a resource Allocation ReQuest (ARQ) to its scheduler to ensure that the verification holds at the scheduler as well (i.e., the summation of Resvs of all flows scheduled by the scheduler including the new ARQ is less than or equal to the target link utilization level.) If either verification fails, the request is denied; otherwise, the request is tentatively accepted. The scheduler creates a temporary entry for the node in the NAT, and responds to the node with an acceptance. The node then creates a temporary entry for the flow in the FAT. Once the request is accepted, the node rebroadcasts the RREQ to its neighbors. Duplicated RREQs are dropped. When the destination receives this RREQ, it sends back a Route REPly (RREP) message along the reverse path. The node changes the respective entry from temporary to regular upon receipt of the RREP, and informs its scheduler to do likewise. Those who do not receive the corresponding RREP after a period of time will clear the temporary entries in NAT and FAT, respectively.
2.6 Two-Tier Slot Allocation Algorithm
The slot allocation is based on a two-tier mechanism. The scheduler assigns time slots based on the first tier slot allocation mechanism. The node to whom the time slot is assigned then in turn assigns the time slot to a flow based on the second tier slot allocation mechanism. Both the
scheduler and the node allocate slots only to regular entries of their respective tables. The two tier slot allocation mechanisms are repeated as long as there is a flow relayed through any node.
Suppose that there are m and n entries in both NAT and FAT, respectively. These m entries in NAT can be divided into two sets: Sg and Sb. Sg and Sb indicate
guaranteed and best effort service type, respectively. The first tier slot allocation mechanism works as follows. (1) The scheduler assigns the next time slot to the node
with the smallest Excess value in the NAT at decision time.
The scheduler then updates the values of Credit, Usage, and Excess in all entries of the NAT, as follows.
(2) Increment the Usage value of the entry of the node scheduled to send at the next time slot, say node A, and leave all the others intact, i.e., Usage (A) Å Usage (A) +1, where Excess (A) = min {Excess (x)| x=1,2,…m}.
(3) Increase an amount of Resv to Credit for each guaranteed-service entries in the NAT, i.e., Credit (x) Å Credit (x) + Resv (x), x∈Sg. Besides, if next time
slot is assigned to node A with best effort service type, decrement the Credit value of node A, i.e., Credit (A) Å Credit (A) − 1.
(4) Update the Excess values of all guaranteed-service entries in the NAT, i.e., Excess (x) Å Usage (x) – Credit (x), x∈Sg; in addition, if the next time slot is
assigned to the best effort service type of node A, and the Credit value equals to zero, the Excess value is increased by one and the Credit value is reset to the Num value, i.e., if Credit (x) = 0, Excess (x) Å Excess (x) + 1, and Credit (x) Å Num (x). Otherwise, the Excess value stays unchanged.
The second tier slot allocation algorithm works as follows.
(1) The node cannot schedule any flow packet unless a time slot is assigned to it. Once a time slot is assigned, the node assigns the time slot to the flow which satisfies the following two conditions:(a) the flow has the smallest Excess value, and (b) the flow’s service type matches the service type of the node granted by the scheduler.
The node then updates the values of Credit, Usage, and Excess in all entries of the FAT, as follows.
(2) Increment the Usage value of the entry of the flow scheduled to send at the next time slot, say flow F, and leave the others intact. Usage (F) = Usage (F) + 1, where Excess (F) = min {Excess (y)| y=1,2,…n}. (3) Credit (y) = Credit (y) + Resv (y), y=1,2,…n.
(4) Update the Excess values of all entries in the FAT, i.e., Excess (y) = Usage (y) – Credit (y), y=1,2,…n.
Figs. 1 and 2 show how 2TSAP works. Fig. 1(a) shows the node topology and Fig. 1(b), the flow information. All nodes are located within the transmission range of node S, and S is the cluster scheduler for nodes A to I. Node A sends two ARQs to node S: one for best effort service with a reservation level of 0, and the other for guaranteed service with a reservation level of 0.2. Node B sends two ARQs to node S: again, one for best effort service, and the other for guaranteed service with a reservation level of 0.3. Node H sends node S an ARQ with the best-effort service type. Scheduler S records the states of nodes A, B, and H in its NAT.
Fig. 2(a) shows the slot allocation by node S to nodes A, B, and H, and the updates on the NAT in a 6-slot time span. K(b) and K(r) denote the entries of the NAT for node K with the best effort and guaranteed service types, respectively. Initially (i.e., at time 0), the Resv values of the entries are 0, -0.2, 0, -0.3, and 0, respectively. Thus
based on the first-tier slot allocation mechanism, the first time slot is assigned to the node with the least Excess value, i.e., node B with guaranteed service type. Fig. 2 (b) shows the slot allocation by node A to its flows, again in a 6-slot time span. We can see that node A gets scheduled at time slots 2, 3, and 6 when it schedules flows passing through using the second tier slot allocation mechanism.
A C D S E B G F H F1 F2 F3 F4 F5 F6 I
Flow Source Dest. Resv. Scheduler F1(b) F2(r) F3(b) F4(b) F5(r) F6(b) A A B B B H D C F E G I 0.2 0 0.3 0 0 0 S S S S S S
(a) Network topology (b) Flow information
Figure 1. Network topology and flow information
0 1 2 3 4 5 Time Node C U E C U E C U E C U E C U E C U E A(b) 1 0 +0.0 1 0 +0.0 1 1 +1.0 1 1 +1.0 1 1 +1.0 1 1 +1.0 A(r) 0.2 0 -0.2 0.4 1 +0.6 0.6 1 +0.4 0.8 1 +0.2 1.0 1 +0.0 1.2 2 +0.8 B(b) 2 0 +0.0 2 0 +0.0 2 0 +0.0 1 1 +0.0 1 1 +0.0 1 1 +0.0 B(r) 0.3 1 +0.7 0.6 1 +0.4 0.9 1 +0.1 1.2 1 -0.2 1.5 2 +0.5 1.8 2 +0.2 H(b) 1 0 +0.0 1 0 +0.0 1 0 +0.0 1 0 +0.0 1 0 +0.0 1 0 +0.0
(a) NAT updates at scheduler S
0 1 2 3 4 5 Time
Flow C U E C U E C U E C U E C U E C U E
F1(b) 0.0 0 +0.0 0.0 0 +0.0 0.0 1 +1.0 0.0 1 +1.0 0.0 1 +1.0 0.0 1 +1.0 F2(r) 0.2 0 -0.2 0.4 1 +0.6 0.6 1 +0.4 0.8 1 +0.2 1.0 1 +0.0 1.2 2 +0.8
(b) FAT updates at node A
Figure 2. 2TSAP operation
3. Simulation
This section evaluates the performance of 2TSAP by simulation. There are 20 mobile nodes randomly distributed in a 670-by-670 area. We randomly selected nodes, some as flow senders and some as flow receivers. Each flow may be best effort or guaranteed. For best effort flows, their Resv values are zeros, and for guaranteed flows, their values are randomly generated between zero and one. Each packet is assumed to occupy one time slot, and has fixed packet length.
We compare the result with [2], a virtual-time based
fair scheduling protocol. [2], however, does not consider the QoS aspect while ensuring fairness. Thus we modify the definition of weight in [2] as follows to enable minimum bandwidth guarantee. We call the modified version as Q_EMLM-FQ in the rest of the paper. For each flow f passing through node N, the flow weight wf is
defined as f } bgflows { i f f N Ri 1 R
w = + −∑∈
,
where Rfand Nf are theResv value of flow f and the total number of flows passing through node N., respectively; bgflows indicates the set of backlogged flows with guaranteed service type.
For a best effort flow, its
R
fvalueis zero.We first randomly generated five flows in a single clu
now turn to the residual bandwidth. We define a sha
e residual bandwidth for each flo
s again, with three gua

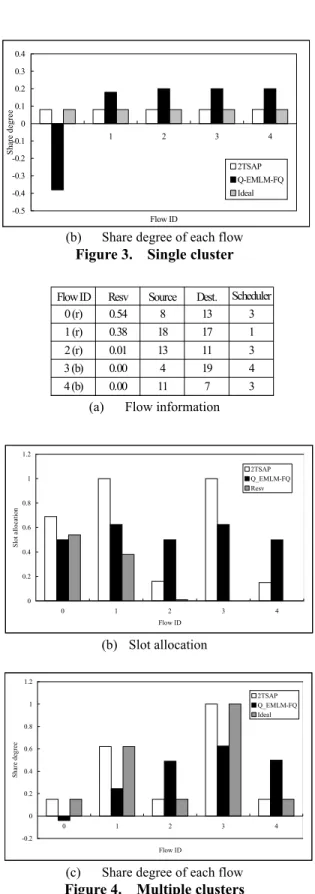

(b) Share degree of each flow Figure 3. Single cluster
(c) Share degree of each flow
Figur ers
Fig. 5 sho th put for both
approaches. T and the gray
ars are for Q_EMLM-FQ. 2TSAP has better overall network throughput as the number of clusters increases, ster network. Flows 0 and 1 were guaranteed flows
with Resv values of 0.58 and 0.02, respectively. Flows 2, 3, and 4 were best effort flows. Fig. 3(a) shows the slot allocation to all flows for both approaches. The white bars are for 2TSAP, the black bars are for Q_EMLM-FQ, and the gray bars indicate the initial reservation level of each flow. Fig. 3(a) shows that 2TSAP meets the minimum requirement of all flows, and Q_EMLM-FQ fails to satisfy the requirement of flow 1. In fact, Q_EMLM-FQ tends to distribute bandwidth equally among all flows, thus failing to meet the requirements of some guaranteed flows.
We
re degree to better observe the fairness among all flows, as follows. The share degree is the percentage of residual bandwidth shared by each flow, with a value between zero and one. The larger the value, the more bandwidth the flow uses.
Ideally, the share of th
w should be (1-0.58-0.02)/5=0.08, which is indicated as gray bars in Fig. 3(b). Again, 2TSAP allows flows to share the residual bandwidth fairly, as shown in Fig. 3(b), while Q_EMLM-FQ fails to do so.
Next, we generated five flow
ranteed flows (i.e., flows 0, 1, 2) and two best effort flows (i.e., flows 3 and 4) in the network logically partitioned into three clusters. Flows 1 and 3 are each located in a separate cluster; flows 0, 2, and 4 are located in another cluster. Fig. 4(a) summarizes the flow information of this scenario. Ideally, flows 0, 2 and 4 share the residual bandwidth in one cluster with each getting a fraction (1-0.54-0.01)/3=0.15. Flows 1 and 3 use all the residual bandwidths of 0.62 and 1 in their respective clusters. Again, from Figs. 4(b) and (c), 2TSAP meets the flows’ minimum requirements, and provides per-cluster based, fairly sharing the residual bandwidth for each flow. Q_EMLM-FQ, however, cannot always meet the requirements.
(a) Slot allocation
0 0.1 0.2 0.3 0.4 0.5 0.6 0 1 2 3 4 Flow ID Slot allocation 2TSAP Q-EMLM-FQ Resv
(a) Flow information
(b) Slot allocation 0 0.2 0.4 0.6 0.8 1 0 1 2 3 4 Flow ID Slot allocation 2TSAP Q_EMLM-FQ Resv e 4. Multiple clust
ws e overall system through he white bars are for 2TSAP
-0.5 -0.4 -0.3 -0.2 -0.1 0 0.1 0.2 0.3 0.4 0 1 2 3 4 Flow ID Share degree 2TSAP Q-EMLM-FQ Ideal
Flow ID Resv Source Dest. Scheduler 0 (r) 1 (r) 2 (r) 3 (b) 4 (b) 0.54 0.38 0.01 0.00 0.00 8 13 18 17 13 11 4 19 11 7 3 1 3 4 3 1.2 -0.2 0 0.2 0.4 0.6 0.8 1 1.2 0 1 2 3 4 Flow ID Share degree 2TSAP Q_EMLM-FQ Ideal 0.7 b
tha
In t r slot
locati o s fair
heduling with QoS support for multihop, multimedia SAP uses the concept of “time-slot sage,” instead of “service tag”, to make scheduling dec
an, under Grant Number 1-2213-E-002 –048, and in part by the Computer &
Co
[1] Haiyun Luo and Songwu Lu, “A topology-independent ing model in ad hoc wireless networks,” Proc. IEEE ICNP’00, pp. 325-335. OM’01, pp. 1370-1379. ., [4] Trans. [5] .1426-1438. .
ile Computing Systems and [10]
MM ’94, pp. [11]
nks to the cluster-based structure (similar to the channel reuse concept in cellular systems). In addition, nodes in the same cluster are coordinated with the same scheduler, and only one node can transmit a packet in one slot. Thus 2TSAP can further reduce collisions and increase the throughput.
5 6
2TSAP
Q_EMLM-FQ
Figure 5. Overall network throughput
4. Conclusion
0 1 2 3 1 2 3 4 5 Number of clusters Network throughputhis paper, we have proposed a two-tie on protoc l (2TSAP), which provide al
sc
wireless networks. 2T u
isions. It is a two-tier scheduling algorithm. The first tier is for schedulers to assign time slots to mobile nodes in their respective clusters. The second tier is for mobile nodes to assign such time slots to the flows passing through. The simulation result shows 2TSAP improves system throughput and ensures per-cluster fairness while satisfying the requirements of guaranteed flows. In the future, we will extend 2TSAP to handle host mobility in ad hoc wireless networks.
