Independent measurement of the neutrino mixing angle
θ
13via neutron
capture on hydrogen at Daya Bay
F. P. An,1 A. B. Balantekin,2 H. R. Band,2 W. Beriguete,3 M. Bishai,3 S. Blyth,4 I. Butorov,5 G. F. Cao,6 J. Cao,6 Y. L. Chan,7 J. F. Chang,6L. C. Chang,8 Y. Chang,9 C. Chasman,3 H. Chen,6Q. Y. Chen,10S. M. Chen,11X. Chen,7 X. Chen,6Y. X. Chen,12Y. Chen,13Y. P. Cheng,6J. J. Cherwinka,2M. C. Chu,7J. P. Cummings,14J. de Arcos,15Z. Y. Deng,6 Y. Y. Ding,6 M. V. Diwan,3 E. Draeger,15X. F. Du,6 D. A. Dwyer,16W. R. Edwards,16S. R. Ely,17J. Y. Fu,6 L. Q. Ge,18 R. Gill,3M. Gonchar,5G. H. Gong,11H. Gong,11W. Q. Gu,19M. Y. Guan,6X. H. Guo,20R. W. Hackenburg,3G. H. Han,21
S. Hans,3 M. He,6K. M. Heeger,2,22Y. K. Heng,6 P. Hinrichs,2 Y. K. Hor,23Y. B. Hsiung,4 B. Z. Hu,8L. M. Hu,3 L. J. Hu,20T. Hu,6 W. Hu,6E. C. Huang,17H. Huang,24X. T. Huang,10P. Huber,23G. Hussain,11Z. Isvan,3 D. E. Jaffe,3 P. Jaffke,23K. L. Jen,8S. Jetter,6X. P. Ji,25X. L. Ji,6H. J. Jiang,18J. B. Jiao,10R. A. Johnson,26L. Kang,27S. H. Kettell,3 M. Kramer,16,28 K. K. Kwan,7 M. W. Kwok,7 T. Kwok,29W. C. Lai,18K. Lau,30L. Lebanowski,11J. Lee,16 R. T. Lei,27 R. Leitner,31A. Leung,29J. K. C. Leung,29C. A. Lewis,2 D. J. Li,32F. Li,18,6 G. S. Li,19Q. J. Li,6 W. D. Li,6 X. N. Li,6 X. Q. Li,25Y. F. Li,6 Z. B. Li,33 H. Liang,32C. J. Lin,16G. L. Lin,8 P. Y. Lin,8S. K. Lin,30Y. C. Lin,18J. J. Ling,3,17 J. M. Link,23L. Littenberg,3B. R. Littlejohn,26D. W. Liu,30H. Liu,30J. L. Liu,19J. C. Liu,6S. S. Liu,29Y. B. Liu,6C. Lu,34
H. Q. Lu,6 K. B. Luk,28,16Q. M. Ma,6X. Y. Ma,6 X. B. Ma,12Y. Q. Ma,6 K. T. McDonald,34M. C. McFarlane,2 R. D. McKeown,35,21 Y. Meng,23I. Mitchell,30J. Monari Kebwaro,36Y. Nakajima,16J. Napolitano,37D. Naumov,5 E. Naumova,5 I. Nemchenok,5 H. Y. Ngai,29Z. Ning,6 J. P. Ochoa-Ricoux,38,16A. Olshevski,5 S. Patton,16V. Pec,31 J. C. Peng,17L. E. Piilonen,23 L. Pinsky,30C. S. J. Pun,29F. Z. Qi,6 M. Qi,39X. Qian,3 N. Raper,40B. Ren,27 J. Ren,24 R. Rosero,3B. Roskovec,31X. C. Ruan,24B. B. Shao,11H. Steiner,28,16 G. X. Sun,6 J. L. Sun,41Y. H. Tam,7 X. Tang,6 H. Themann,3K. V. Tsang,16R. H. M. Tsang,35C. E. Tull,16Y. C. Tung,4B. Viren,3V. Vorobel,31C. H. Wang,9L. S. Wang,6 L. Y. Wang,6M. Wang,10N. Y. Wang,20R. G. Wang,6W. Wang,21,33W. W. Wang,39X. Wang,42Y. F. Wang,6Z. Wang,11 Z. Wang,6Z. M. Wang,6D. M. Webber,2H. Y. Wei,11Y. D. Wei,27L. J. Wen,6K. Whisnant,43C. G. White,15L. Whitehead,30 T. Wise,2H. L. H. Wong,28,16S. C. F. Wong,7E. Worcester,3Q. Wu,10D. M. Xia,6J. K. Xia,6X. Xia,10Z. Z. Xing,6J. Y. Xu,7 J. L. Xu,6 J. Xu,20 Y. Xu,25 T. Xue,11J. Yan,36C. C. Yang,6 L. Yang,27M. S. Yang,6 M. T. Yang,10M. Ye,6 M. Yeh,3 Y. S. Yeh,8B. L. Young,43G. Y. Yu,39J. Y. Yu,11Z. Y. Yu,6S. L. Zang,39B. Zeng,18L. Zhan,6 C. Zhang,3F. H. Zhang,6
J. W. Zhang,6 Q. M. Zhang,36Q. Zhang,18S. H. Zhang,6 Y. C. Zhang,32 Y. M. Zhang,11Y. H. Zhang,6 Y. X. Zhang,41 Z. J. Zhang,27Z. Y. Zhang,6Z. P. Zhang,32J. Zhao,6 Q. W. Zhao,6Y. Zhao,12,21Y. B. Zhao,6L. Zheng,32W. L. Zhong,6
L. Zhou,6 Z. Y. Zhou,24 H. L. Zhuang,6and J. H. Zou6 (Daya Bay Collaboration)
1Institute of Modern Physics, East China University of Science and Technology, Shanghai 2
University of Wisconsin, Madison, Wisconsin 53706, USA 3Brookhaven National Laboratory, Upton, New York 11973, USA
4
Department of Physics, National Taiwan University, Taipei 5Joint Institute for Nuclear Research, Dubna, Moscow Region
6
Institute of High Energy Physics, Beijing 7Chinese University of Hong Kong, Hong Kong 8
Institute of Physics, National Chiao-Tung University, Hsinchu 9National United University, Miao-Li
10
Shandong University, Jinan
11Department of Engineering Physics, Tsinghua University, Beijing 12
North China Electric Power University, Beijing 13Shenzhen University, Shenzhen 14
Siena College, Loudonville, New York 12211, USA
15Department of Physics, Illinois Institute of Technology, Chicago, Illinois 60616, USA 16
Lawrence Berkeley National Laboratory, Berkeley, California 94720, USA
17Department of Physics, University of Illinois at Urbana-Champaign, Urbana, Illinois 61820, USA 18
Chengdu University of Technology, Chengdu 19Shanghai Jiao Tong University, Shanghai
20
Beijing Normal University, Beijing
21College of William and Mary, Williamsburg, Virginia 23186, USA 22
Department of Physics, Yale University, New Haven, Connecticut 06520, USA 23Center for Neutrino Physics, Virginia Tech, Blacksburg, Virginia 24061, USA
24
China Institute of Atomic Energy, Beijing 25School of Physics, Nankai University, Tianjin 26
27Dongguan University of Technology, Dongguan 28
Department of Physics, University of California, Berkeley, California 94720, USA 29Department of Physics, The University of Hong Kong, Hong Kong 30
Department of Physics, University of Houston, Houston, Texas 77004, USA 31Faculty of Mathematics and Physics, Charles University, Prague
32
University of Science and Technology of China, Hefei 33Sun Yat-Sen (Zhongshan) University, Guangzhou 34
Joseph Henry Laboratories, Princeton University, Princeton, New Jersey 08544, USA 35California Institute of Technology, Pasadena, California 91125, USA
36
Xi’an Jiaotong University, Xi’an
37Department of Physics, College of Science and Technology, Temple University, Philadelphia, Pennsylvania 19122, USA
38Instituto de Física, Pontificia Universidad Católica de Chile, Santiago, Chile 39
Nanjing University, Nanjing
40Department of Physics, Applied Physics, and Astronomy, Rensselaer Polytechnic Institute, Troy, New York 12180, USA
41China Guangdong Nuclear Power Group, Shenzhen 42
College of Electronic Science and Engineering, National University of Defense Technology, Changsha 43Iowa State University, Ames, Iowa 50011, USA
(Received 24 June 2014; published 3 October 2014)
A new measurement of the θ13 mixing angle has been obtained at the Daya Bay Reactor Neutrino Experiment via the detection of inverse beta decays tagged by neutron capture on hydrogen. The antineutrino events for hydrogen capture are distinct from those for gadolinium capture with largely different systematic uncertainties, allowing a determination independent of the gadolinium-capture result and an improvement on the precision of the θ13 measurement. With a 217-day antineutrino data set obtained with six antineutrino detectors and from six2.9 GWthreactors, the rate deficit observed at the far hall is interpreted as sin22θ13¼ 0.083 0.018 in the three-flavor oscillation model. When combined with the gadolinium-capture result from Daya Bay, we obtain sin22θ13¼ 0.089 0.008 as the final result for the six-antineutrino-detector configuration of the Daya Bay experiment.
DOI:10.1103/PhysRevD.90.071101 PACS numbers: 14.60.Pq, 13.15.+g, 28.50.Hw, 29.40.Mc
Neutrino oscillations are described by the three angles ðθ13; θ23; θ12Þ and phase (δ) of the Pontecorvo-Maki-Nakagawa-Sakata matrix [1,2]. Recent results [3–7]have established that θ13 is nonzero, as had been indicated by accelerator and reactor neutrino experiments [8–14]. Accurate and precise knowledge of θ13 is essential to forthcoming experiments to determine the neutrino mass hierarchy and to search for CP violation in the lepton sector
[15]. Definite θ13 results were obtained by measuring the changes of reactor antineutrino rates and spectra at multiple sites via the inverse-beta decay (IBD) reaction, ¯νeþ p → eþþ n, in which the prompt eþsignal is tagged by the delayed ∼8 MeV γ-cascade signal from neutron capture on gadolinium (nGd) [3–6]. In this paper, with comparable statistics as the nGd case, a new measurement obtained by tagging the delayed 2.2 MeVγ from neutron capture on hydrogen (nH) [14,16,17] at Daya Bay is presented. New analysis approaches have been developed to meet the challenges associated with the higher back-ground, longer neutron capture time (∼200 μs), and a lower energyγ ray from neutron capture for nH IBD events. This nH analysis provides an independent measurement of sin22θ13, and leads to an improved precision on the θ13 mixing angle when combined with the nGd result obtained
from the same period of the six-antineutrino-detector (AD) configuration [6]. The inclusion of nH capture results will improve the ultimate precision of Daya Bay for both θ13 and the ¯νe mass-squared difference jΔm2eej [6]. Optimization of the nH analysis method will be applicable to future reactor neutrino experiments that address the reactor antineutrino anomaly [18–21] and determine the neutrino mass hierarchy[22–25].
A detailed description of the Daya Bay experiment can be found in Refs.[26,27]. The ongoing experiment consists of two near experimental halls, EH1 and EH2, and one far hall, EH3. The power-weighted baselines to the six commercial power reactors are∼500 m and ∼1.6 km for the near and far halls, respectively. In this analysis, EH1, EH2, and EH3 have two, one, and three ADs, respectively. All ADs are submerged in water pools consisting of optically separated inner (IWS) and outer water shields (OWS), which also function as Cherenkov detectors to tag cosmic-ray muons. All ADs utilize an identical three-zone design with 20 tons of Gd-loaded liquid scintillator (GdLS) in the innermost zone, 22 tons of liquid scintillator (LS) in the middle zone to detect γ’s escaping from GdLS, and 40 tons of mineral oil in the outermost zone where photomultiplier tubes (PMTs) are installed. Unlike the
nGd events, nH capture can occur in both the LS and GdLS regions, resulting in more nH than nGd events before event selection. The trigger threshold for each AD was set at ∼0.4 MeV based on the logical OR of the number of over-threshold PMTs and the analog sum of their signals [28]. The vertex and energy were reconstructed utilizing the charge topological information collected by the PMTs. For a 2.2 MeVγ, the vertex resolutions were ∼8 cm in the x-y plane and ∼13 cm in the z direction in a Cartesian coordinate system with the origin at the AD center and the þz axis pointing upwards. Detector simulation was based onGEANT4[29]with the relevant physical processes validated[26]. All data from December 24, 2011 to July 28, 2012 were used for this analysis. The live time of each AD is listed in TableI.
All triggered events at each site were sequenced accord-ing to their time stamps after removaccord-ing an instrumental background resulting from spontaneous light emission of PMTs [3,5]. Because of the latency between detectors, events with time separations less than2 μs in the same hall were grouped together for identifying cosmic-ray muons. A water-pool muon was defined as an event with the number of over-threshold PMTs > 12 in the IWS or > 15 in the OWS, while an AD (shower) muon had a visible energy greater than 20 MeV (2.5 GeV) in an AD. TableIlists the total muon rate per AD, Rμ, which was stable over the entire data-taking period. Due to the long lifetimes of muon spallation products, the AD events were required to occur at least 400 μs, 800 μs, or 1 s after a water-pool, AD, or shower muon, respectively. The visible energy for each AD event was also required to be greater than 1.5 MeV to reject the low-energy background. The surviving AD events were denoted as “good” events for further study. Coincident events were identified within a 399 μs time window, Tc, beginning at1 μs after each prompt signal candidate[30]. This procedure classified all good events into single-coincidence, double-coincidence (DC), and multicoinci-dence categories. Events in the latter category account for ∼2% of the total and were not included for further analysis.
Since the DC events were dominantly accidentally coincident background, especially in the far hall, a maxi-mum distance of 50 cm between the prompt and delayed vertices was required, rejecting 98% of this background at the cost of a 25% acceptance loss. This cut was one of the major differences between the nH and the nGd analyses. Figure1(a)shows the prompt energy vs the delayed energy for all the DC events after this cut in the far hall. The IBD bands are clearly seen for both the 2.2 MeV nH and the
TABLE I. Summary of the hydrogen capture data sample. All the rate quantities are corrected withεμεm. The bottom row contains the ratio of the measured nH IBD rate to that of nGd from Ref.[6].
EH1 EH2 EH3
AD1 AD2 AD3 AD4 AD5 AD6
Live time (day) 191.0 191.0 189.6 189.8 189.8 189.8
Rμ (Hz) 201.0 201.0 150.6 15.73 15.73 15.73
εμεm 0.7816 0.7783 0.8206 0.9651 0.9646 0.9642
Candidates 74136 74783 69083 20218 20366 21527
Accidental rate (/AD/day) 64.96 0.13 64.06 0.13 57.62 0.11 62.10 0.06 64.05 0.06 68.20 0.07
Fast n rate (/AD/day) 2.09 0.56 1.37 0.40 0.10 0.04
9Li=8He rate (/AD/day) 2.75 1.38 2.14 1.07 0.26 0.13
241Am−13C rate (/AD/day) 0.09 0.05 0.09 0.05 0.09 0.05 0.06 0.03 0.06 0.03 0.06 0.03 IBD rate (/AD/day) 426.71 2.36 434.09 2.37 382.69 2.04 47.87 0.79 46.78 0.79 49.02 0.82 nH/nGd 0.653 0.004 0.654 0.004 0.658 0.004 0.653 0.012 0.641 0.012 0.679 0.013
2 3 4 5 6 7 8 9 10
Prompt Energy [MeV]
2 3 4 5 6 7 8 9 10 0 50 100 150 200 250 (a) 2 3 4 5 6 7 8 9 10
Prompt Energy [MeV]
2 3 4 5 6 7 8 9 10 0 5000 10000 15000 20000 25000 30000 (b)
Delayed Energy [MeV]
2 3 4 5 6 7 8 9 10 Entries/0.01MeV -100 0 100 200 300 400 500 600 700 800 (c)
FIG. 1 (color online). (a) The prompt vs delayed energy of double-coincidence events with a maximum 50 cm vertex separation for all far-hall ADs, (b) the accidental background sample events, and (c) the delayed energy distribution after subtracting the accidentally coincident background for the far hall (black) and the near halls (red), where the total near-site spectrum was normalized to the area of the far-site spectrum.
8 MeV nGd cases. The measured nH peak was around 2.33 MeV with a resolution of 0.14 MeV. The offset from the true peak value arose from the nonlinear and nonuni-form energy response, which was pegged to the nGd capture peak in the reconstruction. Theγ’s from 40K and 208Tl decays are observed around 1.5 and 2.6 MeV, respectively, and the continuous bands from 1.5 to 3 MeV are from the decay products of 238U and 232Th. The nH IBD candidates were obtained by requiring the prompt energy to be less than 12 MeV and the delayed energy to be within3σ of the measured nH peak in each AD. The numbers of the candidates are listed in Table I.
The four identified backgrounds in the selected sample are accidental coincidences, cosmogenically produced fast neutrons and 9Li=8He, and neutrons from the retracted 241Am-13C calibration source. The delayed signals of the latter three are all from correlated neutron captures.
The following procedure was adopted for removing the accidental coincidence background. An accidental back-ground sample (ABS) consisting of NABS-totevents was first generated by pairing two single events separated by at least 10 hours. The same distance and energy cuts were then applied to the ABS events, resulting in NABS-cut events. As shown in Fig.1(b), the ABS describes well the pattern of the low-energy region in Fig.1(a). The spectra of correlated events dominated by IBD, NIBDðξÞ, were then obtained by subtracting the accidental background from the DC events, NDC:
NIBDðξÞ ¼ NDCðξÞ − R · Tlive·
NABS-cutðξÞ NABS-tot
; ð1Þ
where ξ represents the quantity under study (such as the delayed energy), Tliveis the live time of data taking listed in Table I, and R is the random coincidence rate that can be written as [30]
R ¼ Rs× e−RsTc× RsTce−RsTc; ð2Þ where Rs is the singles rate, e−RsTc gives the probability of no prior coincidence within Tc, and RsTce−RsTc is the probability of a trigger from an accidental coincidence within Tc. Table I lists the average rate of the accidental background in Eq. (2)for each AD.
While the statistical uncertainty of Rs is negligible, a systematic uncertainty is caused by the presence in the single event sample of a very small fraction of genuine correlated events for which either the prompt or the delayed event is not detected. The singles rate Rswas determined to be ∼22 Hz from the average of the good triggered event rates before and after excluding both the DC events and the multicoincidence events. The systematic uncertainty in Rs, estimated from the difference of these two rates, was found to be 0.18%, 0.16%, and 0.05% for the EH1, EH2, and EH3, respectively. The singles rate Rswas observed to have a slow downward trend (< 0.36%=day) immediately after
an AD was installed in water and became stable after about 4 months. The slow variation of Rs was taken into account by performing the accidental subtraction [Eq.(1)] on a run-by-run basis, with each run lasting about 2 days. Figure 1(c) shows the delayed energy spectra for the DC events in the near and far halls after subtracting the accidental background. Very similar spectra, clearly show-ing the nH and nGd peaks, were observed for all ADs. The procedure of accidental background subtraction was vali-dated by checking the distribution of distance between the prompt and delayed vertices, as shown in Fig.2. Simulation studies indicated IBD events rarely occurred with the prompt and delay vertices separated beyond 200 cm. Figure 2 shows a flat distribution consistent with zero for the region beyond 200 cm. The distribution of the difference of the delayed and prompt times after all other cuts is shown in Fig.3 to further validate the accidental subtraction and justify the399 μs Tc cut. The accidental-background-subtracted spectra are consistent with no events of coincidence time longer than 1.5 ms.
The procedures for evaluating the9Li=8He, fast neutron, and 241Am−13C backgrounds follow those in Ref. [3], except for three different selection cuts: the delayed energy cut, the distance cut, and an additional cut, E > 3.5 MeV, on the prompt energy to suppress the accidental back-ground. The fast-neutron background is significantly higher than in the nGd case because the LS region is more accessible to the externally produced fast neutrons. The other two backgrounds are also slightly different due to detector geometry configuration. All background rates are listed in TableI.
The number of predicted IBD events, N, summed over various detector volumes v (GdLS, LS, and acrylic vessels) is given as Distance [mm] 0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 Entries/20 mm -2000 0 2000 4000 6000 8000 10000 12000 After Subtraction:
Near halls Far hall
Distance [mm] 0 1000 2000 3000 4000 5000 Entries/20 mm 0 5000 10000 15000 20000 Before Subtraction: Near halls DC Accidental
FIG. 2 (color online). Distributions of the distance between the prompt and the delayed vertices after the accidental background was subtracted for the near halls (blue) and the far hall (red). The inset plot shows the distance distributions for both the near-hall DC events (blue) and the expected accidental background sample (black).
N ¼ ϕσεμεm GdLS;LS;Acry:X v Np;vfvεep;vεed;vεt;v εd; ð3Þ where ϕ is the antineutrino flux, which was modeled as in Ref.[6], and Np,σ, and f are the number of protons, the IBD cross section, and the hydrogen capture fraction, respectively. The efficiency εμ is the efficiency of the muon veto andεmis the efficiency of the multiplicity cut for the DC selection[30]. The efficiencyεep(εed) is the prompt (delayed) energy cut efficiency, and εt (εd) refers to the efficiency of the time (distance) cut.
The θ13 analysis is based on relative rates, as in Refs. [3,5], such that uncertainties that are correlated among ADs largely cancel and the uncorrelated uncertain-ties give the dominant contributions.
The central values ofεepandεedwere evaluated from the simulation. The prompt energy cut at 1.5 MeV caused about 5% inefficiency inεepfor GdLS and LS events and a much higher loss in the acrylic. The slight variations in energy scale and resolution among different ADs intro-duced an uncorrelated uncertainty of 0.1%. Forεed, the3σ energy cut around the nH capture peak made the efficiency largely insensitive to the small variations of energy cali-bration and resolution. The efficiencyεed also included a small contribution from the low-energy tail of nGd capture events. The uncertainty inεed was determined by using a spallation neutron sample. Since the spallation neutron fluxes for neighboring ADs were nearly identical and the relative nGd acceptance in the GdLS region was accurately measured[3,5], a comparison of the spallation neutron rates between nH and nGd captures gave an uncertainty of 0.5%. Simulations of IBD events in different ADs with as-built dimensions were also consistent with this uncertainty estimate.
The central value of εt was also evaluated with the simulation. The sources of the uncorrelated uncertainty include the number densities of various isotopes in LS and GdLS, the neutron elastic and capture cross sections, and the precision of time measurements. A chemical analysis showed that the density difference among the ADs is less than 0.1% and that the weight fractions of carbon and hydrogen among the ADs differed by less than 0.3%, limited by the instrumental precision. The uncertainty in number densities introduced a 0.1% uncorrelated uncer-tainty inεt. The precision of the timing measurement was studied usingβ-α coincident events from the decay chain of 214Bi-214Po-210Pb originating from the 238U cascade decays. With the same procedure of accidental subtraction applied, a comparison of the measured lifetime of 214Po with the known value (237 μs) verified that the uncertainty on the timing precision due to the electronics was at the level of 0.1%. In total, the uncorrelated uncertainty was taken as 0.14%. A study of a clean nH IBD sample with the prompt energy > 3.5 MeV for the ADs in the two near halls also confirmed this conclusion.
The central value ofεd was directly measured from the distribution of the distance between the prompt and delayed vertices (see Fig.2). The uncorrelated uncertainty, caused by the slight variations in the vertex reconstruction bias and resolution, was estimated to be 0.4%.
The value and uncertainty of Npin GdLS were discussed in Ref.[26]. The proton number Npin the LS region was determined in the same way and its uncorrelated uncer-tainty of 0.13% was dominated by the unceruncer-tainty of the Coriolis-mass-flow meter. The H-capture fraction, f, was less than unity due to neutron capture on Gd and C, and was estimated by the simulation to be 96% in the LS region and 16% in the GdLS region. The relative difference among ADs is negligible[5].
The selected nH IBD sample was about 65% of the size of the nGd IBD sample [6]. The total uncorrelated uncertainty per AD was 0.67%, as summarized in TableII. The nH/nGd ratios among ADs 1, 2, and 3 agreed
s]
µ
Delayed - prompt time [
0 200 400 600 800 1000 1200 1400 s µ Entries/10 0 500 1000 1500 2000 2500 3000 EH3: Before subtraction Accidental prediction

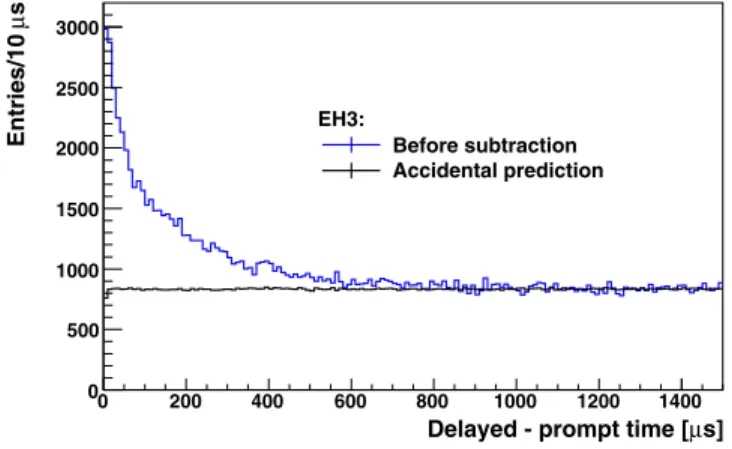

FIG. 3 (color online). Distribution of the delayed minus prompt time of the EH3 data sample. The blue histogram shows coincidences after all cuts except on the time difference. The black curve shows the predicted distribution for accidental coincidences.
TABLE II. The per-AD relative uncorrelated uncertainty sum-mary. The quoted uncertainties on the efficiencies are indepen-dent of volume. The combined uncertainty takes into account the relative GdLS, LS, and acrylic masses. The last column indicates whether the uncorrelated uncertainties for the nH and nGd analyses are coupled.
Uncorrelated uncertainty Coupled
Np;GdLS 0.03% yes Np;LS 0.13% no Np;Acrylic 0.50% no εep;v 0.1% yes εed;v 0.5% no εt;v 0.14% yes εd 0.4% no Combined 0.67%
within 0.6%, as shown in TableI, which provided a strong confirmation of the uncorrelated uncertainty per AD.
Figure4shows a comparison of the prompt spectra of the far hall and the near halls weighted by the near-to-far baseline ratio, along with the ratio of the measured-to-predicted rates as a function of baseline. Clear evidence for electron antineutrino disappearance is observed. Aχ2 with pull terms for nuisance parameters as in Refs.[3,5]
is minimized to extract sin22θ13 from the detected nH IBD rate deficit. The value of jΔm231j is taken from MINOS [31]. The best fit is sin22θ13¼ 0.083 0.018 with χ2¼ 4.5 for four degrees of freedom. The increase in χ2 is 20 when θ13 is set to zero, ruling out this null assumption at 4.6 standard deviations. The expected far/ near ratio based on the best-fit sin22θ13value is compared to data in Fig. 4.
The nH result is an independent measurement of θ13 and provides a strong confirmation of the earlier meas-urement using nGd [6]. Currently both the nH and nGd
[6] uncertainties are statistics dominated. With only statistical uncertainties considered in the nH fit, the uncertainty of sin22θ13 is 0.015, about 70% of the total uncertainty when uncertainties are added in quadrature, which is the same for the nGd analysis. The dominant systematic uncertainties are also independent of the nGd
analysis. For example, the delayed-energy cut is uncoupled (uncorrelated) because the impact of the relative energy-scale difference on the fixed-energy threshold in the nGd analysis [3,5,6] is avoided with the data-driven 3σ cut. Further couplings are noted in TableII. With all uncoupled uncertainties included in the nH fit, the uncertainty of sin22θ13 is 0.017 (90% of the total uncertainty in quadrature). By conservatively taking all coupled quantities to be fully coupled, the correlation coefficient is about 0.05, indicating an essentially inde-pendent measurement ofθ13. The weighted average of nH and nGd[6]results is0.089 0.008, improving the nGd result precision by about 8%.
In summary, with an nH sample obtained in the six-AD configuration, by comparing the rates of the reactor antineutrinos at the far and near halls at Daya Bay, we report an independent measurement of sin22θ13which is in good agreement with the one extracted from the minimally correlated nGd sample. By combining the results of the nH and nGd samples, the precision of sin22θ13is improved. In general, with different systematic issues, results derived from nH samples will be important when the nGd system-atic uncertainty becomes dominant in the future. It is also expected that nH analysis will enable other neutrino measurements[18,22].
Daya Bay is supported in part by the Ministry of Science and Technology of China, the United States Department of Energy, the Chinese Academy of Sciences, the National Natural Science Foundation of China, the Guangdong provincial government, the Shenzhen municipal govern-ment, the China General Nuclear Power Corporation, Key Laboratory of Particle & Radiation Imaging (Tsinghua University), Ministry of Education, Key Laboratory of Particle Physics and Particle Irradiation (Shandong University), Ministry of Education, Shanghai Laboratory for Particle Physics and Cosmology, the Research Grants Council of the Hong Kong Special Administrative Region of China, University Development Fund of The University of Hong Kong, the MOE program for Research of Excellence at National Taiwan University, National Chiao-Tung University, and NSC fund support from Taiwan, the U.S. National Science Foundation, the Alfred P. Sloan Foundation, the Ministry of Education, Youth and Sports of the Czech Republic, the Joint Institute of Nuclear Research in Dubna, Russia, the CNFC-RFBR joint research program, the National Commission of Scientific and Technological Research of Chile, and the Tsinghua University Initiative Scientific Research Program. We acknowledge Yellow River Engineering Consulting Co., Ltd. and China railway 15th Bureau Group Co., Ltd. for building the underground laboratory. We are grateful for the ongoing cooperation from the China General Nuclear Power Corporation and China Light & Power Company. Entries / 0.5 MeV 0 200 400 600 800 1000 1200 1400 1600 1800 Far hall Near hall weighted
Weighted baseline [km] 0 0.5 1 1.5 2 Meas./Pred. 0.9 0.95 1
Prompt Energy [MeV]
2 4 6 8 10 12 Far/Nea r 0.7 0.8 0.9 1 1.1 1.2
Best fit ratio
FIG. 4 (color online). The detected energy spectrum of the prompt events of the far-hall ADs (blue) and near-hall ADs (open circle) weighted according to baseline. The far-to-near ratio (solid dot) with the best-fitθ13value is shown in the lower plot. In the inset is the ratio of the measured to the predicted rates in each AD vs baseline, in which the AD4 (AD6) baseline was shifted relative to that of AD5 by 30ð−30Þ m.
[1] B. Pontecorvo, Sov. Phys. JETP 6, 429 (1957); 26, 984 (1968).
[2] Z. Maki, M. Nakagawa, and S. Sakata,Prog. Theor. Phys. 28, 870 (1962).
[3] F. P. An et al. (Daya Bay Collaboration),Phys. Rev. Lett. 108, 171803 (2012).
[4] J. K. Ahn et al. (RENO Collaboration),Phys. Rev. Lett. 108, 191802 (2012).
[5] F. P. An et al. (Daya Bay Collaboration),Chin. Phys. C 37, 011001 (2013).
[6] F. P. An et al. (Daya Bay Collaboration),Phys. Rev. Lett. 112, 061801 (2014).
[7] K. Abe et al. (T2K Collaboration), Phys. Rev. Lett. 112, 061802 (2014).
[8] K. Abe et al. (T2K Collaboration), Phys. Rev. Lett. 107, 041801 (2011).
[9] P. Adamson et al. (MINOS Collaboration),Phys. Rev. Lett. 107, 181802 (2011).
[10] P. Adamson et al. (MINOS Collaboration),Phys. Rev. Lett. 110, 171801 (2013).
[11] A. Gando et al. (KamLAND Collaboration),Phys. Rev. D 83, 052002 (2011).
[12] Y. Abe et al. (Double Chooz Collaboration), Phys. Rev. Lett. 108, 131801 (2012).
[13] Y. Abe et al. (Double Chooz Collaboration),Phys. Rev. D 86, 052008 (2012).
[14] Y. Abe et al. (Double Chooz Collaboration),Phys. Lett. B 723, 66 (2013).
[15] C. Adams et al. (LBNE Collaboration),arXiv:1307.7335.
[16] K. Eguchi et al. (KamLAND Collaboration), Phys. Rev. Lett. 90, 021802 (2003).
[17] H. Zhang et al. (Super-Kamiokande Collaboration),
Astropart. Phys. 60, 41 (2015).
[18] T. A. Mueller et al.,Phys. Rev. C 83, 054615 (2011). [19] P. Huber,Phys. Rev. C 84, 024617 (2011).
[20] M. Fallot et al.,Phys. Rev. Lett. 109, 202504 (2012). [21] A. C. Hayes, J. L. Friar, G. T. Garvey, and G. Jonkmans,
Phys. Rev. Lett. 112, 202501 (2014).
[22] S. T. Petcov and M. Piai,Phys. Lett. B 533, 94 (2002). [23] S. Choubey, S. T. Petcov, and M. Piai, Phys. Rev. D 68,
113006 (2003).
[24] J. G. Learned, S. T. Dye, S. Pakvasa, and R. C. Svoboda,
Phys. Rev. D 78, 071302(R) (2008).
[25] L. Zhan, Y. Wang, J. Cao, and L. Wen,Phys. Rev. D 78, 111103(R) (2008).
[26] F. P. An et al. (Daya Bay Collaboration), Nucl. Instrum. Methods Phys. Res., Sect. A 685, 78 (2012).
[27] F. P. An et al. (Daya Bay Collaboration), arXiv:hep-ex/ 0701029.
[28] H. Gong, Y. Lin, G. Gong, T. Xue, X. Wang, B. Shao, S. Chen, X. Li, Z. Wang, and Q. Li,Nucl. Instrum. Methods Phys. Res., Sect. A 637, 138 (2011).
[29] S. Agostinelli et al.,Nucl. Instrum. Methods Phys. Res., Sect. A 506, 250 (2003); J. Allison et al.,IEEE Trans. Nucl. Sci. 53, 270 (2006).
[30] J. Yu, Z. Wang, and S. Chen,arXiv:1301.5085.
[31] P. Adamson et al. (MINOS Collaboration),Phys. Rev. Lett. 106, 181801 (2011).
