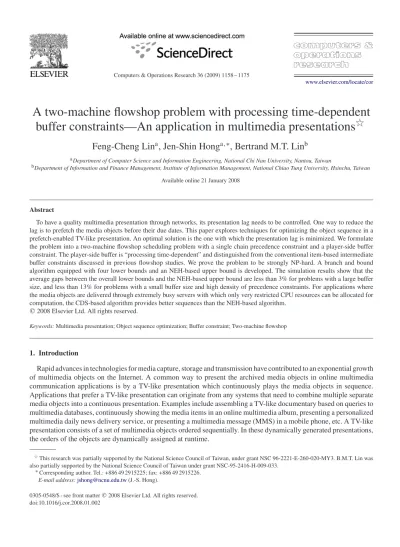

aDepartment of Computer Science and Information Engineering, National Chi Nan University, Nantou, Taiwan
bDepartment of Information and Finance Management, Institute of Information Management, National Chiao Tung University, Hsinchu, Taiwan Available online 21 January 2008
Abstract
To have a quality multimedia presentation through networks, its presentation lag needs to be controlled. One way to reduce the lag is to prefetch the media objects before their due dates. This paper explores techniques for optimizing the object sequence in a prefetch-enabled TV-like presentation. An optimal solution is the one with which the presentation lag is minimized. We formulate the problem into a two-machine flowshop scheduling problem with a single chain precedence constraint and a player-side buffer constraint. The player-side buffer is “processing time-dependent” and distinguished from the conventional item-based intermediate buffer constraints discussed in previous flowshop studies. We prove the problem to be strongly NP-hard. A branch and bound algorithm equipped with four lower bounds and an NEH-based upper bound is developed. The simulation results show that the average gaps between the overall lower bounds and the NEH-based upper bound are less than 3% for problems with a large buffer size, and less than 13% for problems with a small buffer size and high density of precedence constraints. For applications where the media objects are delivered through extremely busy servers with which only very restricted CPU resources can be allocated for computation, the CDS-based algorithm provides better sequences than the NEH-based algorithm.
䉷2008 Elsevier Ltd. All rights reserved.
Keywords: Multimedia presentation; Object sequence optimization; Buffer constraint; Two-machine flowshop
1. Introduction
Rapid advances in technologies for media capture, storage and transmission have contributed to an exponential growth of multimedia objects on the Internet. A common way to present the archived media objects in online multimedia communication applications is by a TV-like presentation which continuously plays the media objects in sequence. Applications that prefer a TV-like presentation can originate from any systems that need to combine multiple separate media objects into a continuous presentation. Examples include assembling a TV-like documentary based on queries to multimedia databases, continuously showing the media items in an online multimedia album, presenting a personalized multimedia daily news delivery service, or presenting a multimedia message (MMS) in a mobile phone, etc. A TV-like presentation consists of a set of multimedia objects ordered sequentially. In these dynamically generated presentations, the orders of the objects are dynamically assigned at runtime.
夡This research was partially supported by the National Science Council of Taiwan, under grant NSC 96-2221-E-260-020-MY3. B.M.T. Lin was
also partially supported by the National Science Council of Taiwan under grant NSC-95-2416-H-009-033. ∗Corresponding author. Tel.: +886 49 2915225; fax: +886 49 2915226.
E-mail address:[email protected](J.-S. Hong).
0305-0548/$ - see front matter䉷2008 Elsevier Ltd. All rights reserved. doi:10.1016/j.cor.2008.01.002
Fig. 1. Graphical illustration of the notations.
Table 1
Correspondence between the media object ordering problem and the two-machine flowshop problem
Media object scheduling for TV-like presentations Two-machine flowshop scheduling Notation
A set of media objects A set of jobs N
A media object A job Ji
Server (send data to the client) First machine M1
Client (receive/playback data from the server) Second machine M2
Download time for a media object Processing time (download time) on first machine ai
Playback time for a media object Processing time (playback time) on second machine bi
Completion time of playback of a media object Completion time of each job Ji Ci
Transmission bit rate (bytes per second) BR
File size of a media object (bytes) si
Buffer size Total size of jobs allowed in buffer BUF
The completion of the presentation Makespan (the maximum of Ci(1in)) Cmax
To have a quality TV-like presentation through the Internet, the presentation lag, which is defined as the difference between the instant a media object really begins and the instant it was previously scheduled to start, needs to be kept controlled. A commonly used strategy to possibly reduce the total presentation lag of a presentation is to prefetch the objects before their due times. Each prefetched media object occupies the player-side buffer until it finishes the playback (here we assume that the media player provides the first-in, first-out buffer control service). The prefetched objects are stored in the buffer for promptly responding to a user request. Such a prefetch mechanism usually can reduce presentation lags by acquiring the future objects during the current object’s view time. When a media object is being played, there could be un-occupied buffer space available for further downloading other subsequent media objects into the buffer.
In typical multimedia presentations, the modalities of the media objects could be text, images (e.g., JPG, GIF), audio (e.g., MP3, MIDI), video (e.g., MPEG, AVI), or vector graphics (e.g., SVG, SWF). Each media type may have a unique data compression ratio. In addition, the objects could be distributed across multiple servers with varied end-to-end bandwidths to the media player. Thus, for the same amount of data transmitted, the anticipated presentation time differs drastically for different media types. If the media objects are ordered appropriately in the server, the total presentation lag perceived by users for a prefetch-enabled TV-like presentation could be significantly reduced.
Since each media object has a download time (ai) and playback time (bi) (refer toFig. 1), so as to reduce the total
presentation lag, the order of these media objects should be properly arranged. Our work explores the optimization techniques for sequencing a set of media objects in a delay prone environment such that the presentation lag is minimized. Based on the corresponding elements list inTable 1,we find that the object ordering problem actually can be formulated as a two-machine flowshop problem F 2Cmax[1], in which F 2 means the machine environment and Cmaxrepresents
the objective. However, the player-side buffer constraint, as described below, appears to be a new type of constraint which has never been explored in the existing two-machine flowshop problems.
constraints, for online multimedia applications with which certain portable devices such as PDA are used for the playback, the maximum buffer size allowed for keeping the prefetched objects needs to be considered in the schedule optimization process.
If two jobs (i.e., media objects), Ji and Jj are temporally related by a precedence constraint (denoted by Ji → Jj), Ji must precede Jj but not necessarily next to Jj. Note that there are two different interpretations of the precedence
constraint addressed in the flowshop problems (refer to [2,3]). Assuming that job Ji precedes job Jj, in the first
interpretation, Jj cannot be started on the first machine until Ji is completed on the second machine (all machines).
The two-machine flowshop scheduling problem with the first type of precedence constraint is NP-hard even if the given graph contains only one arc[4,5].
In the second interpretation, Jj cannot start on the first machine unless Ji is completed on the same machine, that
is, Jjcan start on the first machine while Jiis being processed on machine two. The precedence constraint considered
in the multimedia presentation applications refers to the second interpretation. In general, by a series of concatenation on the constrained objects, the overall precedence constraint for a multimedia presentation might be presented by a general graph. Two-machine flowshop scheduling of makespan minimization in applications with arbitrary precedence constraints (i.e., the F 2|prec|Cmaxproblem) has been proved to be NP-hard[6]. To efficiently compute a near-optimal
solution using numerical approaches, Hariri and Potts[7]and McMahon and Lim[8]developed a variety of branch and bound algorithms where various lower bounds, upper bounds, and dominance rules were proposed to speed up the enumerative procedure. The two-machine flowshop problem with a number of simplified versions of the precedence constraint, including chain, tree, sp-graph, can be solved in polynomial time. Kurisu[9]gave an algorithm for the case of parallel-chain precedence constraints. A tree-based precedence problem F 2|tree|Cmaxis actually a special case of
the series-parallel precedence problem (F 2|sp-graph|Cmax) which was solved by polynomial algorithms in Monma
and Sidney[10], Sidney[11]and Gordon and Shafransky[12]. Valdes et al.[13]presented a linear-time algorithm to recognize series-parallel digraphs. In this paper, we consider only the multimedia presentations where the overall precedence constraint is in the form of a single chain. Problems with more complicated forms of precedence constraint is currently under investigation.
With respect to the player-side buffer constraint, we did not find any existing flowshop scheduling studies that have addressed the problem. In the literature, there are a few studies investigating flowshop problems with limitation of “number of jobs” that can be allocated in the intermediate storage buffer before flowing to the next machine. For the case without any buffer limitation (denoted as the problem ∞-buffer problem in[14]), an optimal solution can be obtained by Johnson’s rule[23]. For the case in which no any job is allowed to be kept in the intermediate storage buffer (denoted as the zero-buffer or no-wait problem in[14]), the polynomial algorithm developed by Gilmore and Gomory[15]for a specific TSP can be used to produce optimal solutions. Other than the above two cases, the buffer-constrained machine flowshop scheduling problem has been shown to be strongly NP-hard by Papadimitriou and Kanellakis[14]. To obtain the exact solution of this NP-hard scheduling problem with a finite intermediate buffer, a number of strategies have been proposed; for example, Leisten[16], Smutnicki[17], Dutta and Cunningham[18], Brucker et al.[19], Tang and Xuan[20], Wang et al.[21], etc. In these flowshop studies, the number of jobs allowed to keep in the buffer is fixed throughout the process. In the online multimedia applications addressed in this paper, we fix the “buffer size” instead of number of objects allowed in the player-side buffer. For a given buffer size, the number of objects allowed in the buffer actually depends on the file sizes of the current playing objects and other unscheduled objects. Since, under an environment with a constant transmission bit rate, the download time of an object (i.e., the processing time on M1) is proportional to its file size, the number of objects allowed in the buffer is
actually “processing time-dependent”. Hence, the media scheduling problem we want to solve is more complicated than the above-mentioned buffer-constrained flowshop scheduling problems. Another unique feature our buffer model exhibits is that the buffer resides on machine M2instead of in an intermediate storage area between two machines.
scheduling problems with buffers, a job released from the buffer for processing immediately frees the space it has acquired.
In summary, two constraints are taken into account in the two-machine flowshop problem to be explored in this paper, including a single chain precedence constraint of a subset of jobs, and a processing time-dependent buffer constraint. We denote the problem addressed in this paper by F 2|ai-buffer, chain|Cmax. The jobs that are not constrained by the precedence chain are mutually independent and can be inserted in any place of the chain. Furthermore, since most web servers do not support resumable download with which the transmission of a media object can be temporarily halt and resume later, the jobs are assumed to be non-preemptive. For a problem with a buffer capacity larger than the sum of all objects, in the case without a precedence constraint, the optimal sequence can be obtained using Johnson’s rule (refer to[22]). In Johnson’s rule, job Ji precedes job Jj if min{ai, bj} min{bi, aj}. In the case with a single chain
precedence constraint, the optimal sequence can be obtained using the algorithm developed in Kurisu[9]. Note that previous works by Allahverdi and Al-Anzi[24], Batra and Eleftheriadis[25]and Blazewicz et al.[26]also addressed the scheduling of objects in multimedia applications. However, the applications and optimization criteria addressed in these studies are different from this paper.
In the following, we introduce the notation which will be referred throughout this paper.
Notation:
N = {J1, J2, . . . , Jn} set of n jobs
Ji a specific job in N
NSD a subset of N in which the jobs are already scheduled N\NSD a subset of N in which the jobs are not yet scheduled
SN a sequence of jobs of set N
SNSD a sequence of jobs of set NSD
ai processing time (download time) of Ji on machine one M1 bi processing time (playback time) of Ji on machine two M2
BR transmission bit rate in byte/s
Ci completion time of Ji
idlei idle time before Jion M2
CSD maximum completion time of the jobs in sequence SNSD Cmax maximum completion time of the jobs in sequence SN
NP = {JP 1, JP 2, . . . , JP k} a subset of jobs that are subject to a single precedence chain, where JP 1must be played before (but not necessarily immediately next
to) JP 2
JP kmust be the last one in NP to be played
NNSDP = {JNSDP 1, JNSDP 2, . . . , JNSDP k} a subset of unscheduled jobs (i.e., N\NSD) in which jobs are not
subject to any precedenceconstraint
NBUF a subset of jobs that currently reside in the buffer
amin the minimum processing time (download time) of ai among the
jobs of N
bmin the minimum processing time (playback time) of bi among the
jobs of N
aprec-first download time of the job with the highest priority in the set of
unscheduled jobs of Np(i.e., Np∩ (N\NSD))
bprec-last playback time of the job with the lowest priority in the set of
unscheduled jobs of Np(i.e., Np∩ (N\NSD)).
2. Strong NP-hardness of theF 2|ai-buffer|Cmaxproblem
In this section, we show that problem F 2|ai-buffer|Cmaxis strongly NP-hard by a reduction from the 3-Partition
Fig. 2. Gantt chart of the optimal schedule with Cmax= Y in Theorem 1.
3-Partition: Given an integer B and a set of A of 3t positive integers{x1, x2, . . . , x3t}, B/4 < xi< B/2, 1i 3t, such that3ti=1xi = tB, does there exist a partition A1, A2, . . . , Atof the set A such thatxi∈Alxi= B, 1l t? Theorem 1. The F 2|ai-buffer|Cmaxproblem is strongly NP-hard.
Proof. It is not hard to see that the decision version of F 2|ai-buffer|Cmax is in the NP class. We next perform a polynomial-time reduction from 3-Partition. Given an instance of 3-Partition, we construct a job set N ={1, 2, . . . , 4t+1} as follows:
Ordinary jobs:
ai= xi, bi = Bxi, 1i 3t,
Enforcer jobs:
a3t+i= B2, b3t+i= B, 1i t + 1,
Y = (t + 1)(B2+ B),
Buffer capacity= B2+ B.
The network bit rate, BR is assumed to be one unit, i.e., si= ai for all jobs.
With the above instance, we claim that there is a partition for the set A as specified in 3-Partition if and only if there exists an optimal schedule of F 2|ai-buffer|Cmaxwhose makespan is no greater than Y. Before proceeding to the proof, we assume t < xi for all elements of A. If it is not the case, we can scale the numerical values in polynomial time to meet the inequality.
If part: Let subsets A1, A2, . . . , Atbe a partition as specified for the set A in 3-Partition. We schedule job J3t+1first, followed by the jobs corresponding to the elements of A1. Next, we schedule job J3t+2and then the jobs corresponding to the elements of A2. Continuing the arrangement, we have a schedule as shown inFig. 2. Inspecting the Gantt chart, we can easily see that the constructed schedule has a makespan Y.
Only if part: Suppose that there is an optimal schedule of F 2|ai-buffer|Cmax with a makespan no greater than Y = (t + 1)(B2+ B). We first note that, without loss of generality, we can assume the enforcer jobs are scheduled
in increasing order of their indices. Due to the buffer constraint, no two enforcer jobs are allowed to stay in the buffer at the same time. This implies that for any two enforcer jobs, say for example J3t+1 and J3t+2, the
machine-two operation of J3t+1 and the machine-one operation of J3t+2 cannot overlap. This can be illustrated by the Gantt
chart given in Fig. 2. With this property and the fact that4ti=3t+1ai +
4t
i=3t+1bi = (t + 1)(B2+ B) = Y , no
ordinary job can be scheduled before enforcer job J3t+1 for otherwise the makespan will be greater than Y. That is,
the ordinary jobs need to be allocated to fully fill up the intervals in between any two consecutive enforcer jobs. Moreover, no idle time on machine one is allowed and no idle time between any two machine-two operations is allowed.
Let N1be the set of ordinary jobs scheduled between jobs J3t+1and J3t+2. We analyze two disjoint cases.
Case 1: Ji∈N1ai< B. The completion time of J3t+2 on machine M1 is B2+Ji∈N1ai + B2. On the other
hand, on machine M2, the completion time of the last job in N1 is B2+ B +
chain of derivations ⎛ ⎝B2+ Ji ai+ B2 ⎞ ⎠ − ⎛ ⎝B2+ B + Ji aiB ⎞ ⎠ = B2+ Ji ai− B − Ji aiB = B(B − 1) − Ji ai(B − 1) = ⎛ ⎝B − Ji ai ⎞ ⎠ (B − 1) > 0.
The strict inequality indicates that on machine M2 a non-zero idle time exists between the last job of N1 and job J3t+2.
Case 2:Ji∈N1ai> B. Let Ji1, Ji2, . . . , Jikbe the ordinary jobs of N1as arranged in the schedule. Let Jij, 1j k,
be the first job such that ai1+ ai2+ · · · + aij −1B and ai1+ ai2+ · · · + aij> B.
Case 2.1: ai1+ ai2+ · · · + aij −1< B. When job Jij is considered for processing on machine one, the buffer contains
enforcer job J3t+1 and ordinary jobs Ji1, Ji2, . . . , Jij −1. The residual space in the buffer is less than aij because ai1+ ai2+ · · · + aij> B. Therefore, job Jijneeds to wait for B − (ai1+ ai2+ · · · + aij −1) time units for the completion
of the playback of job J3t+1. As a sequel, non-zero idle time occurs, a contradiction.
Case 2.2: ai1+ai2+· · ·+aij −1=B. The completion time of the first ordinary job Ji1on machine M2is B
2+B +ai
1B.
On machine M1, the completion time of the last job Jikof N1is at most B
2+ tB, which is smaller than B2+ B + a i1B
as we have assumed tB < xiB. When job J3t+1is to be dispatched to machine M1, all jobs of N1still occupy the buffer with a total size greater than B. Subject to the capacity constraint, we cannot dispatch job J3t+1 onto machine M1, implying non-zero idle time before J3t+1.
From the analysis of Cases 2.1 and 2.2, we known thatJi∈N1ai> B cannot hold.
The above analysis has shown thatJi∈N1ai=B must hold. We let the elements that define the jobs of N1constitute subset A1. Continuing the above line of analysis, we can iteratively come up with A2, A3and At as required by the 3-Partition problem. The proof is complete.
The instance constructed in the proof of F 2|ai-buffer|Cmaxis a degenerate case of F 2|ai-buffer, chain|Cmaxwithout any precedence constraint. The studied problem F 2|ai-buffer, chain|Cmax, with precedence constraints incorporated, is more complicated and thus also computationally intractable. An extreme case of F 2|ai-buffer, chain|Cmaxhas a chain consisting of all jobs. In this case, the sequence defined by the chain is the solution.
3. Branch and bound algorithm
As the media object scheduling problem is strongly NP-hard, it is unlikely to develop polynomial time algo-rithms for producing optimal schedules. In this section, we shall develop a branch and bound algorithm for the
F 2|ai-buffer, chain|Cmax problem. To support the design of an efficient branch and bound algorithm, we develop several lower bounds to curtail unnecessary branching for reducing the computing efforts. An NEH-based heuristic algorithm will also be proposed to produce approximate solutions that will be used as the initial incumbent value of the exact method.
3.1. Lower bounds based on the precedence constraint
In a node in the branch and bound tree, there should be a set of scheduled jobs (i.e., NSD) and other unscheduled
Fig. 3. Lower bound LB1.
Fig. 4. Lower bound LB2.
previously downloaded to the buffer), and buffered jobs waiting for playback on M2. The following two lower bounds,
LB1and LB2, are based on certain characteristics of the precedence constraint.
3.1.1. LB1
Referring toFig. 3, a lower bound at a node must be larger than the total aifor all Ji(i.e.,
Ji∈NSDai+
Ji∈{N\NSD}ai
in Fig. 3) plus the processing time for the final job on M2. Given NS as the set of scheduled jobs, the last job
in a sequence should be either JP k (i.e., the last one to be played in JP) or the job with the smallest bi in NNSDP (NNSDP=(N\NSD)∩(N\NP), i.e., the unscheduled jobs that are not subject to any precedence constraint), whichever
has a smaller playback time bi. Based on the above consideration, a lower bound LB1can be given as LB1= Ji∈N ai+ min min Ji∈NNSDP
{bi}, bprec-last
. (1)
3.1.2. LB2
At a node in the search tree, a lower bound must be larger than the total processing time for all unscheduled jobs on M2(i.e.,J
i∈{N\NSD}bi inFig. 4), plus the time elapsed before these jobs starting on M2. The earliest job to be
scheduled at this stage should be the one with the highest priority in (N\NSD), or the one with the smallest ai in NNSDP, whichever has a smaller ai. Therefore, the time elapsed can be given by min(minJi∈NNSDP(ai), aprec-first).
Given CSDas the flowtime of sequence SNSDof job set NSD, a lower bound can be calculated as LB2= max ⎛ ⎝CSD, Ji∈NSD ai + min min Ji∈NNSDP (ai), aprec-first ⎞ ⎠ + Ji∈N\NSD bi. (2)
3.2. Lower bounds based on the buffer constraint
We further propose two more sophisticated lower bounds that exploit certain general characteristics of a buffer-constrained sequence. At any instant during the presentation, if there is certain vacancy in the buffer, more unscheduled
Fig. 5. Buffer status at the four playback steps.
job(s) can be possibly downloaded into the buffer (that is, M1can process further unscheduled jobs). Each time a job finishes on M2, the newly released buffer space can then be used to download more unscheduled job(s). Note that based on the requirements of real world multimedia applications, we assume the download process needs to be suspended unless the currently available free space in the buffer is sufficient for keeping an incoming media object, that is, the download process is not resumable.
3.2.1. LB3
In a node of the search tree, given the current makespan of the sequence SNSDas CSD, a reasonable estimate on the
minimum remaining processing time is the total processing time (ai) required for all unscheduled jobs minus the total
allowable processing time on M1before all the buffered jobs finish their playbacks.Fig. 5illustrates the general idea
of LB3. The calculation is based on the following three values: (1) duration required to fully fill up an empty buffer
(denoted by Tbuffer), (2) duration allowed for further download after Jpstarts its playback (denoted by Tfill) and (3)
duration allowed for further download during the processing of Jp(denoted by Tduring_p).
Refer toFig. 5and consider an instant when a job Jpis under processing on M2, with a number of other jobs waiting
in the buffer (e.g., Jqand Jr inFig. 5). Assuming the data transmission bit rate on M1(denoted by BR defined above)
to be constant, the time required to completely fill up the empty buffer is calculated as
Tbuffer=
BUF
BR . (3)
At a node, the current free buffer space (denoted by BUFfree) is the total buffer size minus the size of the job being
Fig. 6. Calculation of TR.
starts its playback is given as
Tfill=
BUFfree
BR . (4)
There are two different scenarios for calculating the duration allowed for further download during the processing of a job Jion M2(denoted by Tduring_i). In the first case (step 1,Fig. 5(a)), bpis larger than Tfill. So, during the processing
of Jpon M2, the download process on M1will be suspended once the buffer is full. The maximum allowable download
time is equal to Tfill. Hence, Tduring_p= Tfill.
In the second case (step 2,Fig. 5(b)), the buffer will not be fully occupied before Jq completes on M2. The buffer
has a free space for downloading the next job, say Jr. In such a case, Tduring_q= bq.
By combining the above two scenarios, we compute the allowable download time Tduring_iduring the playback of a
buffered job Ji as
Tduring_i= min(Tfill, bi). (5)
The total allowable download time for all buffered jobs at that node can then be given as
Tduring_buffer= Ji∈NBU F
Tduring_i. (6)
We now propose a lower bound based on Tduring_buffer. Given CSDas the current makespan of the scheduled jobs, the makespan of the complete sequence NSDshould be larger than a presumed ideal sequence with which all the unscheduled jobs can be processed on M1during the playback of all the buffer jobs on M2(i.e.,J
i∈N\NSDai< Tduring_buffer). In
such a case, a lower bound can be given by summing CSD and the total processing time of the unscheduled jobs on
M2. That is, a lower bound is given as CSD+Ji∈N\NSDbi.
In the case where the total processing time on M1of the unscheduled jobs is larger than Tduring_buffer(i.e.,Ji∈N\NSD
aiTduring_buffer), the makespan should then be the sum of the following values: (1) the current makespan CSD, (2) the remaining time required to process all the unscheduled jobs on M1after the playback of current buffered jobs and (3) the total download idle time (the time that cannot be allocated for downloading) when an unscheduled job is under playback on M2. In the following, we elaborate the general idea of this lower bound.
During the playback of the currently buffered jobs on M2(i.e., within CSD), there will be a time slot of Tduring_bufferfor possible download of the unscheduled jobs on M1. The minimum remaining time required to download the unscheduled jobs after the completion time of current buffered jobs is given as TR=Ji∈N\NSDai− Tduring_buffer.
Referring toFig. 6(b), due to the buffer constraint, the time span for downloading all the unscheduled jobs could be larger than TR. When a job Ji is processed on M2, the buffer is at least occupied by Ji itself. Hence, the maximum
Fig. 7. Calculation of the minimum downloading idle time Tdi_ifor Ji.
allowable download time on M1 during its playback is Tbuffer − ai. When Tduring_i< bi (Fig. 7(a)), the minimum
download idle time Tdi_i= bi − (Tbuffer− ai). Otherwise, Tdi_i= 0 (Figs. 7(b) and (c)).
Therefore, Tdi_i can then be given as
Tdi_i = max{bi − (Tbuffer− ai), 0}. (7)
The minimum download idle time TDI for all the unscheduled jobs is the sum of Tdi_i of all unscheduled jobs
TDI = Ji∈N\NSD Tdi_i = Ji∈N\NSD max{bi− (Tbuffer− ai), 0}. (8)
Thus, a lower bound can be given by CSD+ TR+ TDI. In summary, we have the following lower bound:
LB3= ⎧ ⎨ ⎩ CSD+ Ji∈N\NSD bi if Ji∈N\NSD ai< Tduring_buffer CSD+ TR+ TDI otherwise. 3.2.2. LB4
With further elaboration, we can improve the tightness of the previous lower bound LB3 by calculating the best possible job combination so as to optimize the utilization of the residual buffer space in any instance.
Given a partial schedule with Jp starting its playback, there are two cases to consider for calculating Tduring_p (duration allowed for further download during the processing of Jp). In the first case (Fig. 8(a)), bq is smaller than Tfill. The buffer will not be fully occupied before the completion of Jq. In such a case, Tduring_q= bq. In the second
case (Fig. 8(b)), bp is larger than the Tfill. The maximum allowable download time Tduring_p will depend on the
possible combinations of the unscheduled jobs (e.g., inFig. 8(b),{ai, ak} occupies more buffer space than aj). The best
allocation can be calculated using techniques of the 0-1 Knapsack problem[27]. In the studied case, we can compute
Tduring_i using algorithms of the 0-1 Knapsack problem by mapping ai to the item values and Tfill to the knapsack
capacity. The objective is then to determine an optimal combination of ai’s among the unscheduled jobs with which Tduring_i is maximized. The 0-1 Knapsack problem can be solved by dynamic programming algorithms (denoted by
DP) in O(nTfill) time, where n is the number of jobs. We denote the solution obtained from the Knapsack problem by Tduring_knapsack.
Fig. 8. Maximum allowable download time.
Fig. 9. Calculation of Tduring_iby dynamic programming.
By combining the above two cases, we can compute the allowable download time during the playback of a buffered job Jiby
If Tfill> bi (Fig. 9(a)), then Tduring_i= bi,
Else Tduring_i= Tduring_Knapsack_i (Fig. 9(b)). (9)
The total allowable download time for all buffered jobs in the partial schedule is given as
Tduring_buffer= Ji∈NBU F
Tduring_i. (10)
The minimum remaining time required to download the unscheduled jobs after the playback of the currently buffered jobs is TR= max ⎧ ⎨ ⎩ Ji∈N\NSD ai− Tduring_buffer, 0 ⎫ ⎬ ⎭. (11)
Under the buffer constraint, for any sequence, the time span for downloading all unscheduled jobs should be no less than TRdue to the possible idle time in the download process. When Jiis being played, the buffer is at least occupied by Ji. Hence, the maximum of allowable download time during its processing is Tbuffer−ai. When Tfill> bi(Fig. 9(a)),
Tdi_i = 0. When Tfillbi (Fig. 9(b)), Tduring_i can be computed by using the dynamic programming algorithms for
solving the Knapsack problem. The download idle time for Jican then be given as
By combining the above two cases, Tdi_ican be given as
If Tfill> bi, then Tdi_i= 0, else Tdi_i= bi − Tduring_Knapsack_i. (13)
The minimum download idle time for all the unscheduled jobs is the sum of the download idle times of all the unscheduled jobs, given as
TDI = Ji∈N\NSD Tdi_i = Ji∈N\NSD max{bi− Tduring_Knapsack_i, 0}. (14)
Summarizing the above discussions, we have LB4= CSD+ TR+ TDI = CSD+ max ⎧ ⎨ ⎩ Ji∈N\NSD ai− Ji∈NBU F Tduring_i, 0 ⎫ ⎬ ⎭ + TDI. (15) 3.3. Upper bounds
We apply the NEH algorithm proposed by Nawaz et al.[28]to obtain an upper bound. The method has been widely applied in various flowshop scheduling problems with pretty good performances[29,30].
We outline the major steps in the NEH method as follows: NEH-based Algorithm—UB:
Step 1: For each Ji, compute ci= ai+ bi. Sort the jobs by non-increasing ci.
Step 2: Take the first two jobs in the list of sorted jobs in Step 1, and order them (without violating the precedence
constraint) so as to minimize the partial makespan.
Step 3: For k = 3 to n do. Insert the kth job into the partial schedule. There are k possible positions for this insertion.
Select the position which minimizes the partial makespan while compliant to the precedence constraint.
Step 4: Output the final sequence from step 3.
Note that for applications where the multimedia servers typically handle a huge number of requests simultane-ously, the CPU resource that can be allocated for each request to calculate the heuristic sequence is extremely limited. Therefore, the computation time required by the proposed NEH-based heuristic solutions needs to be addressed. In such a case, a faster algorithm giving a potentially worse schedule than NEH-based solutions might be able to give a smaller value of the summation of the computation time and the scheduled makespan. Therefore, for appli-cation with busy servers, we also apply a much more efficient algorithm—the CDS algorithm, which was proposed by Campbell et al.[32]in 1970. The CDS algorithm is a generalization of Johnson’s algorithm and has been fre-quently used for obtaining approximate solutions to m-machine flowshop scheduling problems without precedence constraints.
4. Computational results
This section presents the computational experiments designed to evaluate the effectiveness and efficiency of the proposed lower bounds and upper bound for producing an optimal media sequence. For each job set, processing times ai and bi were randomly generated from the uniform interval [1, 100]. The transmission bite rate was set to be
160 KB/s (i.e., BR=160 K). The simulation codes were written in C++ language, and the experiments were performed on IBM×Series ×206 m computers running Microsoft Window Server 2003. All numerical values of time reported are in CPU-seconds(s). We conducted a series of computational experiments with different problem sizes (small and big size). The instance generation procedure yields test instances encompassing a wide variety of real life scenarios of online multimedia applications. In each media set, we randomly assigned certain precedence constraints among a portion (0%, 20% and 40%) of the objects. For each experiment, 50 different media sets were used to investigate the proposed algorithms. Two buffer size constraints, 16,000 KB and 30,720 KB were given for the experiments.
Tables 2–4list the results for problems with a relatively large buffer size, 30,720 KB.Table 2shows that, without any precedence constraints, in more than 26 experiments out of the 50 experiments conducted, the overall lower bound
T able 2 Buf fer = 30 , 720 KB De viation (% ) n LB = UB UB vs. Opt Opt vs. LB UB vs. LB LB 4 LB 3 A vg. Max. A vg. Max. A vg. Max. avg_nodes max_nodes avg_time Unfound avg_nodes max_nodes 8 2 9 1.04 7.34 0.46 5.52 1.45 10.09 191 2288 0.000 0 337 8293 10 27 0.74 5.89 0.16 3.02 0.87 8.42 5083 99,002 0.008 0 8965 219,171 12 28 0.80 5.08 0.21 2.92 0.98 5.05 8. 43E + 04 3. 67E + 06 0.037 0 84701 3.67E+06 14 26 0.50 3.12 0.12 1.78 0.61 3.58 2. 15E + 07 1. 07E + 09 9.930 0 2. 19E + 07 1. 09E + 09 16 32 0.61 3.94 0.03 0.87 0.62 4.61 N A N A N A 1 N A N A 18 26 0.74 5.31 0.07 0.90 0.79 5.04 N A N A N A 3 N A N A No precedence constraint. UB vs. Opt = UB − Opt Opt × 100 % , Opt vs. LB = Opt − LB Opt × 100 % , UB vs. LB = UB − LB UB × 100 % . T able 3 Buf fer = 30 , 720 KB De viation (% ) n LB = UB UB vs. Opt Opt vs. LB UB vs. LB LB 4 LB 3 A vg. Max. A vg. Max. A vg. Max. avg_nodes max_nodes avg_time Unfound avg_nodes max_nodes 8 2 7 1.33 10.67 0.68 7.62 1.93 10.54 162 2606 0.000 0 205 2606 10 22 1.15 10.07 0.39 5.73 1.49 9.96 7683 136,248 0.004 0 9012 136,259 12 21 0.91 8.88 0.19 2.92 1.07 8.15 7. 49E + 04 2. 95E + 06 0.032 0 7. 56E + 04 2. 96E + 06 14 21 0.64 4.60 0.14 2.04 0.77 4.40 1. 27E + 07 6. 07E + 08 8.528 0 1. 29E + 07 6. 17E + 08 16 25 1.14 7.62 0.06 1.40 1.15 7.08 N A N A N A 1 2. 83E + 07 1. 18E + 09 18 23 1.10 6.73 0.04 0.90 1.10 6.72 N A N A N A 4 N A N A Precedence constraint = 20 % . T able 4 Buf fer = 30 , 720 KB De viation (% ) n LB = UB UB vs. Opt Opt vs. LB UB vs. LB LB 4 LB 3 A vg. Max. A vg. Max. A vg. Max. avg_nodes max_nodes avg_time Unfound avg_nodes max_nodes 8 2 2 1.68 10.64 1.55 12.33 3.11 14.47 273 2956 0.000 0 284 2956 10 13 2.84 14.10 1.31 12.36 3.93 14.03 2956 31,294 0.001 0 2996 31,294 12 14 2.25 11.13 0.48 4.21 2.60 12.17 6. 51E + 04 1. 01E + 06 0.022 0 6. 56E + 04 1. 01E + 06 14 10 1.68 8.38 0.34 3.84 1.95 7.73 1. 06E + 06 1. 84E + 07 0.580 0 1. 08E + 06 1. 87E + 07 16 11 1.94 11.45 0.46 10.10 2.29 11.11 1. 77E + 07 2. 08E + 08 6.658 0 1. 81E + 07 2. 14E + 08 18 13 2.53 9.10 0.19 2.65 2.59 8.34 N A N A N A 3 N A N A Precedence constraint = 40 % .
Table 5
The deviation between UB and LB
Precedence 0% 20% 40%
Gap UB vs. LB UB= LB UB vs. LB UB= LB UB vs. LB UB= LB
Avg./Max. Avg. Max. No. Avg. Max. No. Avg. Max. No.
20 0.652 3.097 19 0.744 3.607 17 2.418 9.626 6 50 0.163 1.030 21 0.407 2.735 18 1.125 4.483 8 100 0.092 0.915 21 0.258 1.478 15 0.728 2.824 3 200 0.058 0.682 19 0.135 1.112 9 0.557 2.166 5 300 0.043 0.370 21 0.109 0.697 7 0.519 1.892 0 500 0.031 0.270 9 0.064 0.341 7 0.332 1.246 1 Buffer= 30, 720 KB.
equals to the NEH-based upper bound (LB = UB) at the root node, i.e., optimal solutions were found. For all the experiments, the average error ratios between the optimal solutions (Opt) and UB or LB are less than 1.45%. For problems with more than 14 jobs, the branch and bound algorithm is not very computationally efficient and there were instances for which the branch and bound algorithm cannot find optimal solutions within 10 min.Tables 3 and 4show that as the density of the precedence constraints increases, the number of instances for which LB= UB decreases as compared to the cases without precedence constraints. On the other hand, the average error ratios between the optimal solutions (Opt) and UB or LB increase accordingly. These results indicate that the proposed lower bounds are more effective in problems with sparse precedence constraints among the jobs. Further, in cases where the buffer size is relatively large, the total number of nodes traversed before the optimal solutions can be obtained is slightly reduced if
LB4(with the dynamic programming algorithm) is applied. Therefore, we conclude that LB4only slightly outperforms LB3for problems with a large buffer size.
As the problem size grows, as listed inTable 5, UB has an average gap to LB less than 2.418%. This result indicates that UB can be used as a pretty good approximate solution in real time multimedia applications.
For problems with a small buffer,Tables 6–8show that the possibility for LB= UB at the root node is minimal. Generally speaking, the gaps between LB and UB are less than 13% on average. As the number of jobs increases, the average CPU time increases significantly. As the percentages of the precedence constraints increase, the average CPU time decreases. For the problems with 40% precedence constraints, the branch and bound algorithm can handle up to 14 jobs. Furthermore, the total number of nodes traversed for a problem is reduced by about 50% if LB4is applied.
However, the computation time is roughly doubled in each case. As the problem size increases,Table 9shows that the average gap between UB and LB could get to 7.919% for problems without precedence constraints. This gap seems to decrease as the problem size increases. But the gap increases slightly as the density of precedence constraints increases. Still, this result indicates that the UB can be used as a rather good approximation solution in real time multimedia applications.
For applications where the multimedia servers typically handle a huge number of simultaneous requests, we have also conducted experiments to compare the performances of the NEH-based algorithm with the CDS-based algorithm.
Table 10lists the computation results of the NEH-based algorithm and the CDS-based algorithm for problems without any precedence constraint. Two different settings of the CPU resources were used in the experiments. The first case simulates a rather busy server with which only 1/100,000 of the CPU time can be allocated to the scheduling task. The second case simulates an extremely busy server with which only 1/1,000,000 of the CPU time can be allocated. The results clearly indicate that for the second case (applications with extremely busy servers), the CDS-based algorithm provides better solutions than the NEH-based algorithm.
5. System implementation
In current web environments, there are a number of technologies available for providing prefetchable multime-dia presentations that integrate different modalities of memultime-dia objects. The most popular ones include SMIL, Flash,
T able 6 Buf fer = 16 , 000 KB 16 , 000 KB De viation (%) n LB = UB UB vs. Opt Opt vs. LB UB vs. LB LB 4 LB 3 A vg. Max. A vg. Max. A vg. Max. avg_nodes max_nodes avg_time Unfound avg_nodes max_nodes 8 3 1.96 10.93 5.67 17.00 7.45 17.00 5073 29630 0.010 0 11735 81880 10 1 2.28 6.89 5.26 13.46 7.36 14.25 1. 75E + 05 2. 06E + 06 0.322 0 4. 56E + 05 3. 38E + 06 12 1 1.95 8.54 6.57 22.75 8.34 22.75 6. 48E + 06 9. 44E + 07 15.915 0 2. 14E + 07 1. 69E + 08 14 0 1.94 6.28 6.84 17.83 8.62 17.83 N A N A N A 18 N A N A 16 0 1.39 5.22 6.93 15.62 8.21 15.62 N A N A N A 46 N A N A No precedence constraint. T able 7 Buf fer = 16 , 000 KB 16 , 000 KB De viation (%) n LB = UB UB vs. Opt Opt vs. LB UB vs. LB LB 4 LB 3 A vg. Max. A vg. Max. A vg. Max. avg_nodes max_nodes avg_time Unfound avg_nodes max_nodes 8 3 2.68 11.04 5.91 16.00 8.32 19.50 3376 16,248 0.007 0 7356 48,819 10 0 2.87 7.49 5.76 14.69 8.37 16.87 5. 17E + 04 5. 53E + 05 0.090 0 1. 14E + 05 5. 53E + 05 12 1 3.52 9.50 6.86 22.75 9.99 23.57 2. 02E + 06 2. 50 E + 07 4.555 0 5. 87E + 06 4. 11E + 07 14 0 2.77 10.13 6.99 17.83 9.48 17.83 N A N A N A 10 N A N A 16 0 2.62 7.65 7.36 15.62 9.71 15.69 N A N A N A 36 N A N A 18 1 1.98 6.97 6.51 13.69 8.31 15.16 N A N A N A 46 N A N A Precedence constraint = 20 % . T able 8 Buf fer = 16 , 000 KB 16 , 000 KB De viation (%) n LB = UB UB vs. Opt Opt vs. LB UB vs. LB LB 4 LB 3 A vg. Max. A vg. Max. A vg. Max. avg_nodes max_nodes avg_time Unfound avg_nodes max_nodes 8 1 3.25 19.96 8.11 17.83 10.88 22.88 1007 2549 0.002 0 1747 5788 10 1 3.68 14.38 7.36 16.28 10.53 21.40 1. 07E + 04 3. 56E + 04 0.018 0 1. 98E + 04 6. 03E + 04 12 0 4.30 12.54 8.00 22.75 11.71 27.06 3. 03E + 05 1. 72E + 06 0.686 0 7. 23E + 05 3. 45E + 06 14 0 4.15 13.75 8.72 18.72 12.27 21.63 6. 38E + 06 6. 81E + 07 25.982 0 1. 97E + 07 3.09E+08 16 0 4.08 15.29 8.75 14.60 12.24 21.16 N A N A N A 9 N A N A 18 0 4.33 14.78 7.35 17.44 11.12 25.39 N A N A N A 28 N A N A Precedence constraint = 40 % .
Table 9
Deviation between UB and LB
Precedence 0% 20% 40%
Gap UB vs. LB UB= LB UB vs. LB UB= LB UB vs. LB UB= LB
Avg./Max. Avg. Max. No. Avg. Max. No. Avg. Max. No.
20 7.919 14.143 0 9.847 17.582 0 12.773 21.930 0 50 6.191 12.985 0 7.957 13.739 0 10.594 16.068 0 100 4.412 6.653 0 6.173 8.409 0 9.342 12.675 0 200 3.632 6.052 0 5.364 7.760 0 8.731 11.246 0 300 3.300 4.821 0 4.944 6.905 0 8.028 9.459 0 500 2.811 4.349 0 4.249 5.584 0 7.433 8.728 0 Buffer= 16, 000 KB. Table 10
Comparison of the NEH-based and the CDS-based heuristic solutions
N Case 1: 1/100,000 CPU time allocated Case 2: 1/1,000,000 CPU time allocated
16,000 KB NEH(UB) CDS 30,720 KB NEH(UB) CDS 16,000KB NEH CDS 30,720KB NEH(UB) CDS
(s) (s) (s) (s)
10 CPU_time 35.40 0.85 CPU_time 27.90 0.60 CPU_time 304.00 7.80 CPU_time 365.70 11.80 Makespan 732.18 841.66 Makespan 546.16 592.62 Makespan 732.18 841.66 Makespan 546.16 592.62 Total time 767.58 842.51 Total time 574.06 593.22 Total time 1036.18 849.46 Total time 911.86 604.42 20 CPU_time 76.50 1.90 CPU_time 63.80 1.90 CPU_time 732.30 20.30 CPU_time 591.00 20.10 Makespan 1460.72 1757.10 Makespan 1069.36 1252.24 Makespan 1460.72 1757.10 Makespan 1069.36 1252.24 Total time 1537.22 1759.00 Total time 1133.16 1254.14 Total time 2193.02 1777.40 Total time 1660.36 1272.34 50 CPU_time 346.28 6.90 CPU_time 293.50 7.20 CPU_time 3399.00 72.00 CPU_time 2806.00 71.00 Makespan 3592.92 4550.98 Makespan 2628.66 3290.94 Makespan 3592.92 4550.98 Makespan 2628.66 3290.94 Total time 3939.20 4557.88 Total time 2922.16 3298.14 Total time 6991.92 4622.98 Total time 5434.66 3361.94
Quicktime, Real Player, etc. With these players and a standard web server, a prefetch-enabled TV-like presentation services can be realized using script languages or APIs supported by the players.Fig. 10shows a snapshot of a prototype Flash-based implementation incorporating the object ordering algorithms developed in this paper.
6. Conclusion
In this paper, we mapped the media object scheduling problem aiming to minimize the presentation span to a conventional two-machine flowshop scheduling problem. Two constraints are considered in this paper, including a single chain precedence constraint and a side buffer constraint. In particular, the characteristics of the player-side buffer constraints have never been explored in previous flowshop scheduling problems. The player-player-side buffer constraint is termed as processing time-dependent buffer so as to distinguish it from the conventional item-based intermediate buffer in flowshop scheduling problems. We have proved that the studied problem is strongly NP-hard in Section 2.
Based on the characteristics associated with the precedence and the buffer constraints, we have proposed four lower bounds and an NEH-based upper bound for a branch and bound solution method. From the simulation experiments, the average gap between the overall lower bound and the NEH-based upper bound is less than 13% for problems with small buffer sizes and high density of precedence constraints, and 3% for problems with large buffer sizes. The performance of the proposed NEH-based heuristic solutions should be satisfactory for typical real time online multimedia applications. For applications where the media objects are delivered through extremely busy servers with

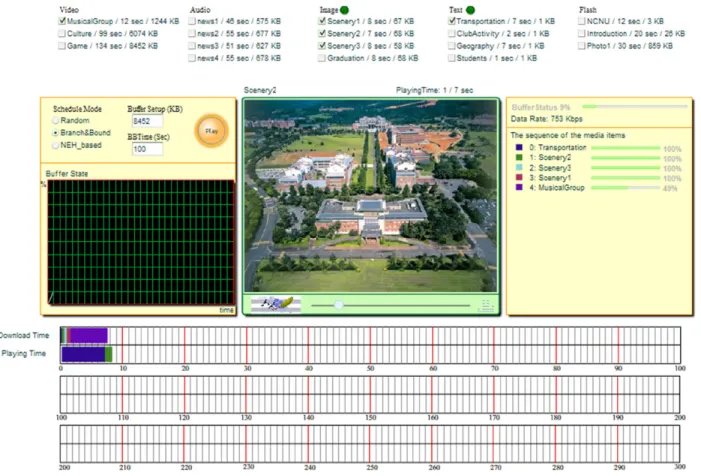

Fig. 10. Snapshot of a prototype prefetch-enabled media player that incorporates the scheduling algorithms discussed in this paper.
which only very restricted CPU resources can be allocated for computation, the CDS-based algorithm provides better sequences than the NEH-based algorithm.
Acknowledgments
The authors are grateful to the anonymous referees for their constructive comments that have improved the presen-tation of this paper.
References
[1]Brucker P. Scheduling algorithms. 3rd ed., Berlin: Springer; 2001.
[2]Strusevich VA. Shop scheduling problems under precedence constraints. Annals of Operations Research 1997;69(1):351–77.
[3]Gladky AA, Shafransky YM, Strusevich VA. Flow shop scheduling problems under machine-dependent precedence constraints. Journal of Combinatorial Optimization 2004;8(1):13–28.
[4]Lenstra J, Rinnooy Kan AHG, Brucker P. Complexity of machine scheduling problem. Annals of Discrete Mathematics 1977;1:343–62.
[5]Lenstra J, Rinnooy Kan AHG. Complexity of scheduling under precedence constraints. Operations Research 1978;26(1):22–35.
[6]Monma CL. Sequencing to minimize the maximum job cost. Operations Research 1980;28(4):942–51.
[7]Hariri AMA, Potts CN. Algorithms for two-machine flow-shop sequencing with precedence constraints. European Journal of Operational Research 1984;17(2):238–48.
[8]McMahon GB, Lim CJ. The two-machine flow shop problem with arbitrary precedence relations. European Journal of Operational Research 1993;64(2):249–57.
[9]Kurisu T. Two-machine scheduling under required precedence among jobs. Journal of the Operations Research Society of Japan 1976;19(1): 1–13.
[10]Monma CL, Sidney JB. Sequencing with series-parallel precedence constraints. Mathematics of Operations Research 1979;4(3):215–24.
[12]Gordon VS, Shafransky YM. Optimal sequencing under series-parallel precedence constraints. Doklady Akademii Nauk BSSR 1978;22: 224–47 (in Russian).
[13]Valdes J, Tarjan RE, Lawler EL. The recognition of series parallel digraphs. SIAM Journal on Computing 1982;11(2):298–313.
[14]Papadimitriou CH, Kanellakis PC. Flowshop scheduling with limited temporary storage. Journal of the Association for Computing Machinery (JACM) 1980;27(3):533–49.
[15]Gilmore PC, Gomory RE. Sequencing a one state-variable machine: a solvable case of the traveling salesman problem. Operations Research 1964;12(5):655–79.
[16]Leisten R. Flowshop sequencing problems with limited buffer storage. International Journal of Production Research 1990;28(11):2085–100.
[17]Smutnicki C. A two-machine permutation flow shop scheduling problem with buffer. OR Spectrum 1998;20(4):229–35.
[18]Dutta SK, Cunningham AA. Sequencing two-machine flow-shops with finite intermediate storage. Management Science 1975;21(9):989–96.
[19]Brucker P, Heitmann S, Hurink J. Flow-shop problems with intermediate buffers. OR Spectrum 2003;25(4):549–74.
[20]Tang L, Xuan H. Lagrangian relaxation algorithms for real-time hybrid flowshop scheduling with finite intermediate buffers. Journal of the Operational Research Society 2006;57:316–24.
[21]Wang L, Zhang L, Zheng DZ. An effective hybrid genetic algorithm for flow shop scheduling with limited buffers. Computers & Operations Research 2006;33(10):2960–71.
[22]Lin FC, Hong JS. Using Johnson’s rule to optimize media object sequence for multimedia autoplay services. NCNU Technical Report TR20060005, 2006.http://tr.csie.ncnu.edu.tw/ .
[23]Johnson SM. Optimal two- and three-stage production schedules with setup time included. Naval Research Logistics Quarterly 1954;1:61–8.
[24]Allahverdi A, Al-Anzi FS. Using two-machine flowshop with maximum lateness objective to model multimedia data objects scheduling problem for WWW applications. Computers & Operations Research 2002;29(8):971–94.
[25]Batra P, Eleftheriadis A. A framework for optimal scheduling of structured and streaming media. CU/ADVENT Technical Report 2000-03, 2000.http://www.ee.columbia.edu/∼pbatra/tr00.pdf .
[26]Blazewicz J, Dell’Olmo P, Drozdowski M. Scheduling of client-server applications. International Transactions in Operational Research 1999;6(4):345–63.
[27]Martello S, Toth P. Knapsack problems: algorithms and computer implementations. Chichester: Wiley; 1990.
[28]Nawaz M, Enscore E, Ham I. A heuristic algorithm for the m-machine, n-job flow shop sequencing problem. OMEGA 1983;11:91–5.
[29]Watson JP, Barbulescu L, Howe AE, Whitley LD. Algorithm performance and problem structure for flow-shop scheduling. In: The 16th national conference on artificial intelligence (AAAI-99) 1999. p. 688–95.
[30]Agarwal A, Colak S, Eryarsoy E. Improvement heuristic for the flow-shop scheduling problem: an adaptive-learning approach. European Journal of Operational Research 2006;169(3):801–15.
[31]Garey MR, Johnson DS. Computers and intractability: a guide to the theory of NP-completeness. San Franciso, CA: Freeman; 1979.
[32]Campbell HG, Dudek RA, Smith ML. A heuristic algorithm for n job, m machine sequencing problem. Management Science 1970;16(10): 630–7.
