Deformation and fracture of Al2O3/Al-Zn-Mg-Cu metal matrix composites at room and elevated temperatures

Deformation and fracture of Al

O

/Al – Zn – Mg – Cu metal matrix

composites at room and elevated temperatures

Yan-Lin Wu

_{, Chuen-Guang Chao}

_*

1001Ta Hsueh Road, Hsinchu,30049Taiwan, ROC

Received 10 June 1999; received in revised form 26 October 1999

Abstract

Al2O3/Al – Zn – Mg – Cu metal matrix composites containing 2.223.08 wt.% Mg in the matrix alloys have been fabricated by

squeeze casting. The aim of the present study is to investigate the deformation and fracture behavior of the composites at RT (room temperature) and elevated temperature. Optical microscopy, scanning electron microscopy and image analysis were used to examine and to analyze the details of the microstructure and the fracture surface. Tensile tests were utilized to evaluate the mechanical properties from 25 to 400°C. The yield stress (YS) values and UTS values for all the composites were larger than those of monolithic alloys. The UTS values for composites and monolithic alloys increased with increasing Mg content. Elevated temperature tests indicated a good strength retention for the composites; especially, UTS values of the composites showed an improvement of 18% exceeds that of the monolithic alloys from 200 to 300°C. Significant dynamic strain aging occurred for composites; however, recovery and softening remained the dominant process for monolithic alloys in the range 25 – 300°C. © 2000 Elsevier Science S.A. All rights reserved.

Keywords:Ai2O3/Al – Zn – Mg – Cu; Dynamic strain aging; Fracture

www.elsevier.com/locate/msea

1. Introduction

Over the past several decades extensive research de-velopments in the field of materials science have been carried out with fiber reinforced matrix composites leading to a wide range of practical application. The fiber reinforced matrix composites, usually offer many advantages in applications where low density, high strength, high wear resistance, and high stiffness are of prime concern. It is well known that a short-fiber-rein-forced aluminum composite was successfully applied to the diesel piston by Toyota in 1983 [1]. This composite showed excellent wear resistance against cast iron, good thermal conductivity, and high strength at elevated temperatures [1,2]. Most of the alloys that were em-ployed as matrices in MMCs are light alloys, particu-larly those based on aluminum. These matrix alloys have included both non-heat-treatable and

heat-treat-able alloys. The heat-treatheat-treat-able alloys such as 2, 6, and 7xxx constitute a metallurgically ‘active’ component of the MMC whose properties can be deliberately altered to influence the properties of the final composit [3 – 5]. However, designing the composite microstructure and aging treatments, so that they are based directly on the precipitation characteristics of unreinforced matrix ma-terial, may impair strengthening without fully utilizing the potentiality of the composite material. It was ob-served that the kinetics are enhanced or retarded by reinforcing the matrix alloy during a heat treatment in difference MMC materials. Nieh and Karlak [6] found an accelerated aging effect owing to B4C reinforcements in a 6061 aluminum alloy matrix. They suggested that the accelerated aging is primarily owing to the high dislocation density generated from thermal mismatch between the B4C reinforcements and the aluminum matrix, and the presence of high diffusive interface in the composites. On the contrary, Ceresara and Fiorini reported that the suppression of Guinier – Preston (GP) zone formation was observed in sintered aluminum powder (SAP) type Al – Cu/Al2O3 [7] and Al – Mg – Si/ * Corresponding author. Tel: + 573-1809; fax: +

886-3-5724727.

E-mail address:[email protected] (C.-G. Chao)

0921-5093/00/$ - see front matter © 2000 Elsevier Science S.A. All rights reserved. PII: S 0 9 2 1 - 5 0 9 3 ( 9 9 ) 0 0 7 6 2 - 5

Al2O3 [8]. The most probable reason of such a phe-nomenon was suggested to be the lack of quenched-in vacancies following the solution treatment, due to the availability of a large number of vacancy sinks at reinforcement-matrix interfaces. Friend and Luxton [9] indicated that the fiber array has a considerable effect on the aging-hardening response of the matrix alloy in MMCs, causing suppression on GP zone formation, which inhibits natural and artificial aging. In addition, our previous studies [10,11] also showed that higher magnesium content induced a larger amount of GP zones and h% phase formation, resulting increasing mi-crohardness and UTS of Al2O3/Al – Zn – Mg – Cu com-posite at room temperature (RT).

Serrated yielding, or the Portevin – Le Chatelier, ef-fect has been observed in a large number of alloy systems, including steels [12,13], aluminum alloys [14,15], nickel-base materials [16], and so on. The effect is generally attributed to a dynamic strain aging process which occurs when solute atoms are diffusing suffi-ciently rapidly to slow down dislocations, moving under the action of an applied stress by forming ‘atmospheres’ around them. If the solutes are interstitial, for example C and N in b.c.c. iron, serrated yielding may be ob-served in tests carried out at temperatures close to RT. For substitutional solutes the effects are normally seen only at elevated temperatures, unless diffusion has been artificially accelerated for example: by quenching from a high temperature to retain excess vacancies; by gener-ating vacancies during plastic deformation; or by radia-tion damage. N. Chung and his coworker [17] reported that the occurrence of shear bands and catastrophic, low-strain fracture in 7075 Al – Zn – Mg – Cu alloy was associated with negative strain-rate sensitivity of the flow stress and exhibited serrated stress – strain curves. Because the precipitation and dynamic strain aging in Al2O3/Al – Zn – Mg – Cu composites with various magne-sium contents, especially at high temperature tensile test, may be complicated and have not been fully characterized before, the purpose of this study was to compare the dynamic strain aging characteristics and to investigate fracture behavior of the composites with various magnesium by studying their tensile properties in the range 25 – 400°C.

2. Experimental procedure

Squeeze casting produced the composite materials. The aluminum matrix alloys were prepared to contain 2.22, 2.70 and 3.08 wt.% Mg, respectively, by melting 7075 Al and Al-10 wt.% Mg master alloy. The composi-tion of the Al-10 wt.% Mg is 10.06 wt.% Mg, 0.01 wt.% Fe and 0.03 wt.% Si. The chemical compositions of the matrix alloys analyzed by inductively coupled plasma-mass spectrometer (ICP-MS) are listed in Table 1.

The basis of the fabrication technique has been de-scribed in our previous study [10]. SAFFIL Al2O3short fibers (3 mm in diameter) were fabricated into a 20× 18 × 100 mm3 _{preform block by press forming. In this} case, short fibers were mixed homogenously with water, accompanied by a small addition of binder (SiO2 nH₂O). During press forming, the slurry was poured into the mold, and dewatering was conducted while the final preform was shape. The fiber volume fraction (V_f) of each composite was 0.1. The preform was preheated at 700°C and introduced in the mold which was pre-heated to 450°C. The liquid aluminum alloy at 780°C was squeezed into fiber preform by a 40 MPa hydraulic press to form the composites.

Using light microscopy and scanning electron mi-croscopy (SEM) carried out microstructural character-istization. Tensile specimens were cut out from the casting as a gauge length of 13 mm with a cross section of 4 × 2 mm2_{. Specimens were solution treated at 480°C} for 48 h, then quenched into water. Aging of com-posites was carried out in an oil bath at 120°C for 24 h while aging of monolithic alloys was at 120°C for 72 h. The peak aging treatment was decided by prior opti-mization of matrix microhardness in the base alloy and the composites [10,11]. Tensile tests were carried out with an Instron tensile test machine at temperature ranging from 25 to 400°C, with a strain rate of 2.3 × 10− 4_s− 1_{. Each specimen was kept for 10 min to ensure} uniformity in the test temperature which was monitored to accuracy of 93°C. A Vickers microhardness mea-surement on the matrix (between fibers) of tensile tested specimens was made using a diamond pyramid indenter and 50 g load and one was excluded as the value was extremely higher to avoid influence of microhardness by the fibers on the measurement. At least ten hardness measurements were made for each tested condition to ensure accurate results. SEM examined the fracture surfaces.

3. Results

3.1. Microstructure

Fig. 1 shows a 3-D light micrograph of the posite. The fibers are randomly distributed in the com-Table 1

Composition of the matrix alloys

Al (wt.%) Cu (wt.%) Zn (wt.%) Heat no. Mg (wt.%) 5.17 3.08 1.25 Balance Heat 1 1.24 2.70 Heat 2 5.20 Balance Balance 1.22 5.15 Heat 3 2.22

Fig. 1. 3-D light micrograph of the composite.

alloys (about 20 mm). It is suggested that Al2O3 fibers acted as obstacles during solidification. Fig. 3 shows typical micrographs of solution-treatment materials. The segregation and dendrite structure are nearly elimi-nated by solution treatment in the composite but exist in 7075 Al.

3.2. Ele6ated temperatures properties

The relationship between tensile properties of com-posites with various Mg and test temperature is shown in Fig. 4. Serrated flow is exhibited by the composites at temperature between RT and 200°C. Some serrated flow is found even at the lower test temperature, 25°C, although its extent is very limited, consisting of only a few serrations in the stress – strain curve. The stress – strain curve is sometimes characterized by successive, regularly spaced load drops of a saw-tooth nature (fine serrations), especially at 100°C. At higher temperature 200°C the appearance of the serrations increases in size somewhat different from those at 100°C. Comparison of the flow curves in Fig. 4 indicates an increase in work hardening rate with increasing magnesium con-tent below 200°C. The monolithic alloys have the same trend shown in Fig. 5. However, serrations are

ob-Fig. 2. Etched light micrographs of the as-cast materials (a) mono-lithic alloy (2.22 wt.% Mg) (b) 0.1 Vfcomposite.

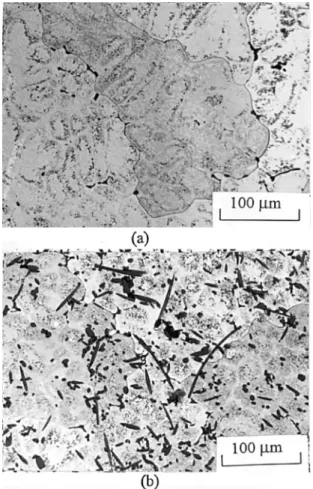

Fig. 3. Etched light micrographs of the solution-treated materials (a) monolithic alloy (2.22 wt.% Mg) (b) 0.1 Vfcomposite.

posite. Fig. 2 shows an etched light micrograph of heat 3 in Table 1 for the as-cast condition (a) the monolithic alloy and (b) the composite. Segregation can not be avoided in both the monolithic alloy and the com-posite. The dendrite arm spacing of the composite (about 13 mm) is smaller than that of the monolithic

Fig. 4. Stress – strain curves of composites at temperature between 25 and 400°C.

RT (s/(sc)RT × 100). It can be inferred from these values that composite have good strength retention at temperature up to 300°C. However, at 400°C the com-posites exhibit a drastic decrease in UTS retention, although UTS values of composites are still higher than one of monolithic alloys. Fig. 7 shows the elongation variation for monolithic alloys and composites at dif-ferent temperatures. Fig. 7(a) shows the elongation of monolithic alloys is almost the same with various mag-nesium below 200°C. However, the elongation

obvi-Fig. 6. Yield stress variation for (a) monolithic alloy (2.22 wt.% Mg) (b) composite at different temperatures.

Fig. 5. Stress – strain curves of monolithic alloys at temperature between 25 and 400°C.

served only on the stress – strain curve of monolithic alloy with 3.08 wt.% Mg at RT; for alloys with 2.22 and 2.70 wt.% Mg the curves are almost completely smooth. Fig. 6 illustrates the yield stress (YS) variation for monolithic alloys and for the composites at differ-ent temperatures. YS values of composites are higher than that of the base alloy at all temperatures. At RT the composite containing 3.08 wt.% Mg exhibits the highest UTS value. Table 2 represents the percentage ratio of UTS for the materials at different temperatures to the composite (containing 3.08 wt.% Mg) strength at

Table 2

The percentage ratio of UTS for the materials at different temperatures to the composite (containing 3.08 wt.%Mg) strength at RT (s/(sc)RT×100)

25°C 100°C 200°C 300°C

Mg content Temperature materials 400°C

100.0 95.8 3.08 wt% Mg MMC 79.8 43.3 11.7 7075 Al 98.3 95.9 67.5 32.8 7.7 MMC 2.70 wt% Mg 96.4 92.7 76.0 43.0 16.0 96.2 91.5 65.9 7075 Al 28.1 8.1 MMC 2.22 wt% Mg 94.0 90.0 72.0 33.6 14.4 7075 Al 93.7 89.0 60.2 27.4 8.7

ously increases with decreasing magnesium at 400°C. The elongation of the composites at all test tempera-tures is almost the same value in various magnesium samples shown in Fig. 7 (b).

3.3. Fractography

Fig. 8 shows micrographs taken from the neighbor-hood of fracture position of monolithic alloys after tensile test at different temperatures. The fractures along the interdendritic segregation at lower tempera-tures (below 300°C) are obviously observed in Fig. 8(a) and (b). The deformed grains and necking at the frac-ture over 300°C are observed in Fig. 8(c). Fig. 9 shows the micrograph taken from the neighborhood of frac-ture position of composites after tensile test at different temperatures. The fracture is not along the interden-dritic segregation because the segregation is eliminated in composites (Fig. 3) by solution treatment. In addi-tion, deformation in the composites is limited at all temperatures as revealed by flat fractures unlike the unreinforced alloy which exhibited necking at elevated temperatures. Fig. 10 shows SEM fractograph of frac-ture surfaces of monolithic alloys. On testing at temper-atures between 25 and 200°C the monolithic alloys produce dimples mixed with intergranular (interden-dritic segregation area) fracture surfaces shown in Fig. 10. The fracture surfaces become dimpled above 200°C shown in Fig. 10(b). Fig. 11 shows SEM fractograph of fracture surfaces of composites. The fracture surface of the sample exhibits many broken fibers as shown in Fig. 11(b). The failures produced in composites in the range 100 – 200°C are essentially similar to those at RT. However, the fracture surface of the sample tested at 300°C exhibits many voids near fibers. In addition, the fracture surface of the sample tested at 400°C exhibits a rougher surface on the fibers shown in Fig. 11(d). It means that at first, plastic deformation of the matrix occurs in tensile tests and then the fiber separates from the matrix above 200°C.

3.4. Microhardness

Fig. 12 shows the room temperautre microhardness

variation for monolithic alloys and composites upon annealing at 200 and 300°C. The microhardness is almost the same within 50 min for all the samples at 200°C, since the precipitation is still not overaged. However, the microhardness drastically decreases over 10 min for all the samples at 300°C, because the precipitation is overaged. Fig. 13 shows the microhard-ness tested soon after quenching for monolithic alloys and composites at various temperatures tensile test. The microhardness increases after tensile test at RT due to work hardening. However, the microhardness is almost the same after tensile test at elevated temperatures except one of composites at 300°C.

4. Discussion

Several strengthening mechanisms have been iden-tified operating independently or concurrently in MMCs. There include quench strengthening, strength-ening due to internal stresses, precipitation hardstrength-ening and load sharing between the reinforcement and matrix [18 – 20]. In the present investigation, Table 2 lists the percentage ratio of UTS for the materials at different temperatures to the composite (containing 3.08 wt.% Mg) strength at RT (s/(sc)RT × 100). The UTS values of composites are almost the same as those of mono-lithic alloys at tested temperature below 100°C. This may be due to the fact that the strengthening phases, GP zones and h% precipicates, are suppressed in the composites [10,11] although the fibers do provide some strengthening. In addition, the UTS value of all materi-als increases with increasing magnesium content. Higher magnesium content induces a larger amount of GP zones andh% phase formation, resulting in increased UTS. However, there is a drop in UTS values for all the materials as shown by Table 2 at elevated test temperature (above 100°C). This is attributed to result of reduction in matrix strength as well as a reduction in dislocation density due to diffusion annealing. The UTS values of composite with various magnesium are degraded in a range from 72.0 to 79.8% and 33.6 to 43.3% at 200 and 300°C, respectively. The UTS values

of monolithic alloys with various magnesium content are degraded in a range from 60.2 to 67.5% and 27.4 to 32.8% at 200 and 300°C, respectively. Obviously, the UTS value for composites 18% (UTS_(c)− UTS(m)/ UTS(m)) exceeds that of the monolithic alloys at the test temperature from 200 to 300°C. It may be proposed that improved strength retention at elevated tempera-ture can be provided a continuity of reinforcement

Fig. 8. Micrograph taken from the neighborhood of fracture position of monolithic alloy (2.22 wt.% Mg) after tensile test at different temperatures (a) RT (b) 100°C (c) 400°C.

Fig. 7. Elongation of (a) monolithic alloys and (b) composites at different test temperatures.

medium by forming an interconnected reinforcement/ matrix network [21] and be affected by dynamic strain aging.

The tensile-strain curves of both monolithic alloys and composites exhibit serration for test temperature between 25 and 200°C, and the stress levels increase with increasing magnesium contents. This behavior is characteristic of dynamic strain aging associated with

one or more of the substitutional elements (presumably Mg and Zn) in the materials. J.G. Morris [22] proposed that basically three types of flow stress-deformation temperature curves could be obtained in aluminum alloys as shown in Fig. 14. If significant dynamic strain aging occurs then curve (a) results. This curve possesses a transient in which the flow stress increases with an increase in deformation temperature. If dynamic strain aging occurs to an extent that it merely nullifies the effect of normal recovery and softening then curve (b)

Fig. 10. SEM fractograph of fracture surfaces of monolithic alloy (2.22 wt.% Mg) at different temperatures (a) RT and (b) 400°C.

Fig. 9. Micrograph taken from the neighborhood of fracture position of composite (2.22 wt.% Mg) after tensile test at different tempera-tures (a) RT (b) 100°C (c) 400°C.

is obtained. In this case, a transient is produced in which the flow stress remains constant with an increase in deformation temperature. If dynamic strain aging occurs to a lesser degree than in either (a) or (b) then recovery and softening remain the dominant processes as the deformation temperature is increased and a transient as shown in curve (c) is produced. If no dynamic strain aging occurs then the flow stress re-sponse is as shown in (d). In this study, the flow stress-deformation temperature curve shown in Fig. 6 obviously belongs to (a) curve for the composite (Heat 3) but belongs to (c) curve for the monolithic alloy. It means that the effect of dynamic strain aging on flow stress is larger than the effect of recovery and softening on flow stress at elevated temperature for composites. However, the effect of dynamic strain aging on flow stress is smaller than the effect of recovery and soften-ing on flow stress for monolithic alloys. The significant dynamic strain aging occurred in composites are due to the high dislocation density generated from thermal mismatch between the Al2O3 reinforcements and the aluminum matrix, and the presence of fibers produced obstacles for dislocation. Comparison of Fig. 12(b) and Fig. 13(b), shows that the microhardness of composite after tensile testing is much higher than that after

annealing at 300°C due to work hardening by dynamic strain aging. Comparison of the elongation at RT with those at 100 and 200°C where dynamic strain aging and serrated yielding shows that dynamic strain aging in monolithic alloys may be regarded as an embrittling effect, similar to ‘Blue Brittleness’ in steel.

M.D. Kulkarni etc [23] reported that the lower value in RT UTS and elongation for the 7075 Al – SiCp composites is attributed to the damage accumulation by particle fracture and the matrix-reinforcement inter-faces decohesion. In this study, the fracture surface of the composite does not exhibit pullout fibers and reac-tion zone at interface shown in Fig. 11. It means that the bonding between the matrix and fibers is good. Therefore, the UTS value of all composites is larger than that of monolithic alloys, although the

strengthen-ing phases, GP zone and h% phase, is depressed in composites.

5. Conclusions

In our present study, the mechanical properties of Al2O3/Al – Zn – Mg – Cu composites containing Mg con-tent from 2.22 to 3.08 wt.% at test temperatures from 25 to 400°C are summarized as follows:

(1) The YS values and UTS values for all the com-posites are larger than those of monolithic alloys. The UTS values for composites and monolithic alloys in-crease with increasing Mg content.

(2) Elevated temperature tests indicate a good strength retention for the composites; especially,

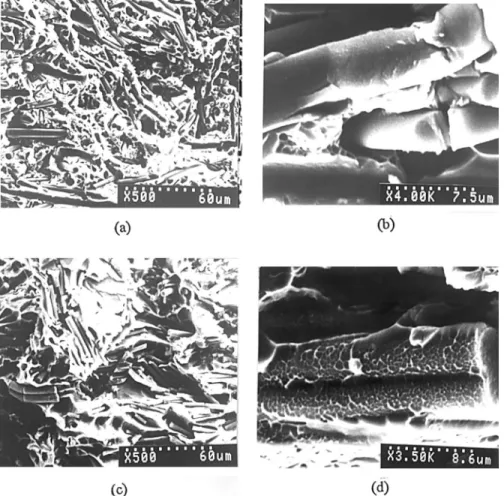

Fig. 11. SEM fractograph of fracture surfaces of composite (2.22 wt.% Mg) at different temperatures (a) R.T. (c) 400°C and enlarge area of (a), (c) respectively in (b) and (d).

U.T.S values of the composites show an improvement of 18% over those of monolithic alloys from 200 to 300°C.

(3) Significant dynamic strain aging occurs for com-posites, while recovery and softening remain the domi-nant process for monolithic alloys in the range 25 to 300°C.

(4) Tensile ductility in the composites is limited at all temperatures as revealed by flat fractures unlike the

unreinforced alloy which exhibits necking at elevated temperatures (above 200°C).

Acknowledgements

The authors are pleased to acknowledge finical sup-port of this research by the National Science Council, PR China, under Grant No. NSC86-2216-E009-012.

Fig. 13. Room temperature microhardness tested soon after quench-ing from tensile tested at 200 and 300°C for (a) monolithic alloys and (b) composites.

Fig. 12. Room temperature microhardness variation for (a) mono-lithic alloys and (b) composites after annealing at 200 and 300°C.

Fig. 14. Schematic flow stress-deformation temperature curves for aluminum alloys [22].

[2] C.S. Liauo, H. Chang, J.C. Hunag, P.W. Kao, Metall. Mater. Trans. 26A (1995) 143.

[3] D. Kwon, S. Lee, B. Roh, Metall. Trans. 24A (1993) 1125. [4] S.M. Pickard, B. Derby, Acta Metall. Mater. 38 (1990) 537. [5] B.V.R. Bhat, Y.R. Mahajan, H.M.D. Roshan, Y.V.R.K.

Prasad, Metall. Trans. 23A (1992) 2223.

[6] T.G. Nieh, R.F. Karlak, Scripta Metall. 18 (1984) 25. [7] S. Ceresara, P. Fiorini, Powder Metall. 4 (1981) 210. [8] S. Ceresara, P. Fiorini, Powder Metall. 1 (1979) 1. [9] C.M. Friend, S.D. Luxton, J. Mater. Sci. 23 (1988) 3173. [10] M.C. Chou, C.G. Chao, Metall. Trans. A26 (1995) 1035. [11] J.H. Hsieh, C.G. Chao, Mater. Sci. Engr. A214 (1996)

133.

[12] M.S. Rashid, Metall. Trans. 7A (1976) 497. [13] A.D. Sachdev, Metall. Trans. A13 (1982) 1793.

[14] P.R. Cetlin, A.S. Gulec, R.E. Reed-Hill, Metall. Trans. 4 (1973) 513.

[15] J.E. King, C.P. You, J.F. Knott, Acta Metall. 29 (1981) 1553. [16] P.A. Mulford, Metall. Trans. A10 (1979) 1527.

[17] N. Chung, J.C. Embury, J.D. Evensen, N.G. Hoagland, C.M. Sargent, Atca Metall. 25 (1977) 377.

[18] W.S. Miller, M.J. Humphreys, Scripta Metall. Mater. 25 (1991) 34.

[19] T.S. Srivatsan, J. Mattingly, J. Mat. Sci. 28 (1993) 611. [20] P. Mummery, B. Derby, Mater. Sci. Engr. A135 (1991) 221. [21] A.G. Evans, J.W. Hutchinson, R.M. McMeekings, Scripta

Metall. Mater. 25 (1991) 3.

[22] J.G. Morris, Mater. Sci. Engr. 13 (1974) 101.

[23] M.D. Kulkarni, P.S. Robi, R.C. Prasad, P. Ramakrishnan, Mater. Trans JIM 37 (3) (1996) 223.

References

[1] Y. Kaneko, H. Murakami, K. Kuroda, S. Nakazaki, Found. Trade J. 148 (1980) 397.
