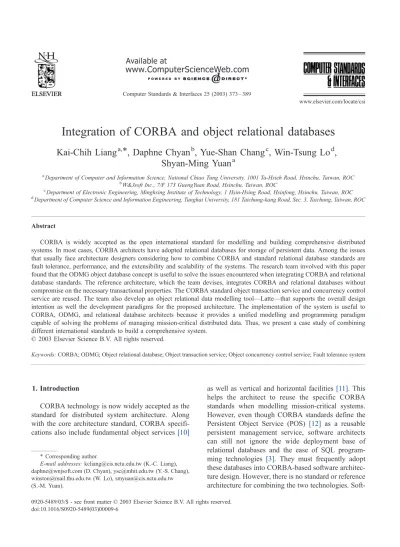

Integration of CORBA and object relational databases
Kai-Chih Liang
a,*, Daphne Chyan
b, Yue-Shan Chang
c, Win-Tsung Lo
d,
Shyan-Ming Yuan
aaDepartment of Computer and Information Science, National Chiao Tung University, 1001 Ta-Hsieh Road, Hsinchu, Taiwan, ROC bW&Jsoft Inc., 7/F 173 GuengYuan Road, Hsinchu, Taiwan, ROC
cDepartment of Electronic Engineering, Minghsing Institute of Technology, 1 Hsin-Hsing Road, Hsinfong, Hsinchu, Taiwan, ROC dDepartment of Computer Science and Information Engineering, Tunghai University, 181 Taichung-kang Road, Sec. 3, Taichung, Taiwan, ROC
Abstract
CORBA is widely accepted as the open international standard for modelling and building comprehensive distributed systems. In most cases, CORBA architects have adopted relational databases for storage of persistent data. Among the issues that usually face architecture designers considering how to combine CORBA and standard relational database standards are fault tolerance, performance, and the extensibility and scalability of the systems. The research team involved with this paper found that the ODMG object database concept is useful to solve the issues encountered when integrating CORBA and relational database standards. The reference architecture, which the team devises, integrates CORBA and relational databases without compromise on the necessary transactional properties. The CORBA standard object transaction service and concurrency control service are reused. The team also develop an object relational data modelling tool—Latte—that supports the overall design intention as well the development paradigms for the proposed architecture. The implementation of the system is useful to CORBA, ODMG, and relational database architects because it provides a unified modelling and programming paradigm capable of solving the problems of managing mission-critical distributed data. Thus, we present a case study of combining different international standards to build a comprehensive system.
D 2003 Elsevier Science B.V. All rights reserved.
Keywords: CORBA; ODMG; Object relational database; Object transaction service; Object concurrency control service; Fault tolerance system
1. Introduction
CORBA technology is now widely accepted as the standard for distributed system architecture. Along with the core architecture standard, CORBA specifi-cations also include fundamental object services[10]
as well as vertical and horizontal facilities [11]. This helps the architect to reuse the specific CORBA standards when modelling mission-critical systems. However, even though CORBA standards define the Persistent Object Service (POS) [12] as a reusable persistent management service, software architects can still not ignore the wide deployment base of relational databases and the ease of SQL program-ming technologies [3]. They must frequently adopt these databases into CORBA-based software architec-ture design. However, there is no standard or reference architecture for combining the two technologies.
Soft-0920-5489/03/$ - see front matterD 2003 Elsevier Science B.V. All rights reserved. doi:10.1016/S0920-5489(03)00009-6
* Corresponding author.
E-mail addresses: kcliang@cis.nctu.edu.tw (K.-C. Liang), daphne@wnjsoft.com (D. Chyan), ysc@mhit.edu.tw (Y.-S. Chang), winston@mail.thu.edu.tw (W. Lo), smyuan@cis.nctu.edu.tw (S.-M. Yuan).
ware architects facing this situation have to reconsider the feasibility and support of classical transactional properties (Atomicity Consistency Isolation Durabil-ity (ACID)) [4] as well as software availability and performance issues. Although CORBA standards also define the Objective Transaction Service (OTS) [13]
and the Concurrency Control Service (CCS) [14]as fundamental supports for ACID properties, the proc-ess is still time-consuming and error-prone. Being able to reuse a proven combinational architecture model is of great benefit.
This paper proposes an integrated reference archi-tecture as well corresponding implementation to address the issues about the combination of CORBA and relational database standards. Classical transac-tional properties, system fault tolerance and system load balance issues are taken into consideration in the architecture. In addition, the design features standard development paradigms. A software tool, Latte, is provided to support the object relational data model-ling. The key design area of the proposed software architecture is the use of the ODMG object database concepts[15].
1.1. Hybrid object relational data management system development process
ODMG defines the standard reference model for the object data management applications. In the
ODMG data model, data is represented logically by the ODMG data object. ODMG defines bindings between ODMG data model and popular object-ori-ented programming languages, such as C++ and Java. ODMG-compliant database users only need to manip-ulate the data via the programming language objects. This greatly reduces the gap between real data and programming language objects and is of benefit to the completion of OOA/OOD/OOP processes. Reusing concepts found in ODMG, this paper is intended to introduce the ODMG paradigms into the solution architecture of combining CORBA and relational databases. In this way, software architects are able to access the relational data either from CORBA or ODMG programming paradigms. They are also able to take this combination as a hybrid architecture pattern that provides new object data management practices similar to both CORBA and ODMG.
Fig. 1 illustrates the hybrid development process for CORBA/ODMG/RDBMS integration.
The three phases in the hybrid development proc-ess are—Data Modelling, Logic Modelling, and Deployment. Latte is the object data modelling tool used to perform the first of these. To reuse the existing relational data model, Latte extracts the existing schema and defines the logical mapping between the relational data model and the object data model. Users can also define a new data model from the object data model, which Latte converts into a relational data
schema. When the data model is ready, Latte registers the schema in specific Meta data storage, which is typically a relational database. In the meantime, Latte also generates a data manipulation code and a corre-sponding CORBA IDL to represent the defined data model in the CORBA. The focus is then on data manipulation logic modelling by the use of new OOA/ OOD knowledge. Note that Latte’s code generator automatically creates data manipulation mechanisms such as load and store operations. Finally, the user compiles the program modules and deploys the com-ponents to the CORBA environment.
2. Previous works
Before work began on designing and developing the integrated object relational data management sys-tem based on CORBA described in this paper, the project research team had completed a series of steps to examine the necessary technologies and their fea-sibility. These are described below.
2.1. CORBA object services
The Object Transaction Service (OTS) and the Concurrency Control Service (CCS) are two CORBA common object services that guarantee transaction and concurrency semantics for CORBA objects. In a previous work, the research team had developed the OTS and the CCS[5,6] over Orbix ORB [2]. These services can be reused through their standard inter-faces.
2.2. WOO-DB Java binding
An ODBMS makes database objects appear as programming language objects in one or more exist-ing programmexist-ing languages. ODMG defines the bind-ing between the ODMG object model and native programming languages such as C++, Smalltalk, and Java. WOO-DB is an ODMG-compliant OODB developed by the Institute for the Information Industry and originally it provided C and C++ binding. The research team has sought to improve the connectivity of WOO-DB [1,8] by designing and implementing WOO-DB Java binding according to ODMG Java Binding Specifications[15].
2.3. Distributed object-based database architecture model
In most cases, the scope of transactions is limited to a single database. For transactions spanning multi-ple databases, other mechanisms such as a TP Monitor have been introduced. Following its experience with WOO-DB Java Binding, the research team proposes an architecture model [7] for a distributed object-based database that supports the ODMG [15]object model. This contains the key features of a distributed object management system that has transactions span-ning multiple databases.
A further purpose of the model is to reduce the burden of maintaining the database architecture caused by the changes in the outside environment and application demands. The database architecture is based on components and relational database, which are built upon a distributed object infrastructure.
Fig. 2reveals the distributed object-based database architecture model. Application objects are found, of course, in the application layer, at the top, and data objects in the middle layer. An application object accesses data from the data object through an interface opened by the data object. The data object is prepared, i.e., the data are defined or created by data definition logic. Data manipulation logic has the function of acquiring a data object, e.g., a query or a transaction. Since placing related objects together achieves better performance, we have included a service/data object container. To support the dynamic requirements of data semantics, the research team separates the seman-tics from data objects. Below the logic layer comes the semantic layer. Data objects delegate their seman-tics requirement, such as relationship, concurrency, and persistent store, to semantic objects in the seman-tic layer. There are certain functions that do not belong to any of the above three layers, such as naming, transaction, and life cycle and these are grouped in the Scope Management System that spans the three layers vertically.
2.4. CORBA/OODB integration
To prove the feasibility of our distributed object-based database architecture model, the research team had done a work to integrate CORBA and ODMG-compliant OODB [16]. OODB developers define
objects by ODL and are able to implement them with no need of any CORBA domain knowledge, as if they were implementing pure OODB objects. CORBA client programmers, for whom object definitions are translated into CORBA IDL, are able to develop clients in their normal way. To reduce the burden of incorporating CORBA with OODB, the associate object implementation code is automatically gener-ated. This provides access to data in database and the transaction and concurrency control functions.
3. System model design
The system serves as a logical object-oriented relational database (ORDB) in a distributed object environment. How to map the relational data model into the object data model is a key question for ORDB system designers. A further question is how to integrate standalone legacy RDBMs, so we decided to introduce into our design such features as trans-actions spanning multiple databases and concurrency control. The integration can be illustrated in different models.
3.1. Three-tier model
It is the limitations of two-tier architecture (client/ server architecture) that spurred the development of three-tier architecture[9], which components are sep-arated into three layers, namely, the presentation layer, the functionality/business layer, and the data layer.
The benefits of the three-tier architecture are the ability to partition application logic, capabilities of system robustness, scalability, as well as single user image. These meet our requirements of our system design.Fig. 3shows how we separate the components of our system architecture into three layers. CORBA application objects are mapped into the presentation layer. In the data layer, all the states of objects are stored in the relational databases. The data manipu-lation logic, that is, the logic to retrieve and to access data, transaction, and concurrency control, resides in the functionality/business logic layer.
3.2. Data model
The relational data model and the object-oriented data model differ in fundamental modelling philoso-phy. To integrate the first with object-oriented logic requires a proper mapping of relations into object-oriented technology. We begin by simply mapping
Fig. 3. The three-tier model.
Orthogonal Scope Management System Application Objects Persistent Store Service/Data Objects Service/Data Object Container e.g. e.g. Semantic Objects Concurrency e.g. Relationship Data
Defination ManipulationData
Logic Semantics Applications
Logic
each table in the relational model into a primitive class. Classes of this type all inherit from a common base class, CORBA_RDB_DataObject. The desired inheritance hierarchy among the classes is constructed with any one of three operations: single_inherits_ from_new, which allows an existing class to inherit from a new class; single_inherits_from_existinng, which allows an existing class to inherit from another existing class; and multiple_inherits_from_new, which allows specified multiple classes to inherit from a new class.
Fig. 4illustrates an example of constructing object types from relational tables. Classes A, B, and C are primitive classes derived from relational tables, while classes X and Y are new classes added by user.
Data type mapping between the database and the CORBA IDL is also necessary. In addition, to reduce the complexity of the system, each row of data is associated with one data object only. The decision on
this design strategy is fundamental to maintaining data consistency.
3.3. Transaction model
Since our system serves as a multidatabase system in a distributed object environment, a mechanism to manage transactions among databases is needed. CORBA OTS is a transaction manager that coordi-nates transactions across multiple processes, threads, or spans more than one logical database.
Fig. 5 illustrates the transaction model in our RDBs/CORBA integration architecture. There are multiple recoverable objects (ROs) within a CORBA transaction that are managed by a Coordinator object. The data associated with the ROs span more than one database and the RO Servers are distributed. Within an RO Server, the ROs participate in the same OTS transaction and associate with the same database to
Fig. 4. An example of user-defined inheritance hierarchy.
form a group. The RO Server has the task of creating a local database transaction for each group within it. These local database transactions may be viewed as the nested transactions of the CORBA transaction.
Data objects in the system are all shared resources. There may be several users accessing the same objects at the same time. So we use CCS to guarantee consistency for concurrent access. It is obvious that the granularity for concurrency control is an object. The system uses three of the lock modes defined in CCS: read, write, and upgrade. To avoid deadlock, our system provides some constraints. To obtain data for later updating, the method is get_upgrade_ < attribute name>and for read-only data, the method is get_readonly_ < attribute name>.
3.4. Failure model
Although failure seldom occurs, the system still has to keep objects and databases in a consistent state if it happens. There are two possible kinds of system failure here:
1. RO Failures: The effect of an RO failure is limited to the object itself. It is detected on request from clients. The states of the object are automatically recovered from the permanent storage.
2. RO Server Failures: When an RO Server fails, it influences all the CORBA clients and the states of the ROs within the server in question. We must keep them all in a consistent state. So when a failure is discovered, we have to REDO or UNDO all operations on the objects.
The recovery process for an RO Server is initiated when the RO Server is restarted from failure. Another
case is for the client to request the ROs that originally resided in a failed RO Server. The recovery process is also initiated.
The point in time at which RO Server fails, it decides whether a transaction should be REDO or UNDO. Our failure mode inFig. 6shows that the OTS recovery point is the boundary between REDO and UNDO. As the OTS receives all of the return votes from participating resources, it makes the final deci-sion to commit or roll back the transaction. The point in time when the OTS makes the final decision is the recovery point.
For a transaction, if the RO Server fails before the recovery point, we have to UNDO all operations, whereas if the failure occurs after the recovery point, we have to REDO or UNDO the operations depending on what the final decision is. As long as the final decision is VoteDcommit, all operations must be made persistent. In contrast, if the final decision is VoteDrollback, all states must be rolled back. We detail our implementation issues later.
4. System architecture design
4.1. System overview
Fig. 7is the functional diagram for the components of RDBs/CORBA integration architecture. They are CORBA client, RO Server, CCS, OTS, and RDBs that support the ODBC interfaces. As can be seen in the three-tier model introduced above, these components are separated into three layers. The interaction between the CORBA client, the OTS, the CCS, and the RO Server is through the CORBA Interface and the RO Server accesses the RDB through the ODBC interface.
Within the RO Server, each RO is associated with a row of data in an RDB. We wrap the data manipulation logic and the recovery function into the ROs. Apart from the RO objects, there are the RO Factories and the RO Managers in the RO Server. They provide the logic function for data object retrieval and transaction man-agement within the RO Server, while the ROs are persistent data objects. The OTS is a transaction manager whose task is to passively begin/end a trans-action. The concurrency control for the shared ROs is provided by the CCS. The CORBA client is an object that manipulates persistent data objects within trans-actions. The RDBs supporting the ODBC interface are pluggable and serve as persistent storage for data objects.
4.2. System architecture 4.2.1. Latte
The word ‘‘Latte’’ refers to a kind of hybrid coffee. Since the tool in our design combines several func-tions, we take our cue from ‘‘hybrid’’ and so name our tool Latte.
In our RDB/CORBA integration architecture, Latte is a realization of the code generation model we described above and provides a GUI tool (see Fig. 8). It hides all the tasks for mapping the relational data model into the object data model. Those tasks are: 1. Schema translation: Schemas are the logical data
structures. Different data models may have
differ-Fig. 7. System components of RDB/CORBA integration architecture.
ent schemas. Latte carries out the task of translating relational schema into object schema.
2. User-defined inheritance hierarchy: We provide a GUI tool to allow users to define their own mapping between relational data and object data. It has three operations: single_inherits_from_new; single_inherits_from_existing, and multiple_inher-its_from_new.
3. Meta data storing: The user-defined mapping information between relational data and object data is called Meta data. This should be stored in permanent storage such as databases, so that information can be retrieves on demand.
4. CORBA IDL: Latte defines interfaces for objects. These interfaces are described by CORBA IDL, which are stored into files.
5. RO component implementation: Latte hides the task of integrating the RDB and the CORBA. We wrap the function of accessing relational data into RO objects. The transaction semantics and con-current access functions are also wrapped into RO objects. The necessary codes for RO objects and those for the RO Factory and the RO Manager are automatically generated by Latte, as is the RO Server program.
4.2.2. RO components
The RO components comprise the RO Servers, the RO Factories, the RO Managers, and the ROs. Since they are closely related, we put them together. Each of these components is detailed as follows.
4.2.2.1. RO Server. We conceptually partition the CORBA Server address space into several RO Servers (seeFig. 9). Each one is associated with an RO Factory object. All the RO objects and the RO Manager objects created by a given RO Factory object also reside in the RO Server corresponding to the given RO Factory. If an RO Server failure occurs, all the object states in that server must be recovered when it is restarted or when any other RO Server detects the failure. In addition, to retain performance, each RO Server has a memory cache that records all the RO objects within the server and associated transaction information.
4.2.2.2. RO. An RO object is a data object. ‘R’ stands for ‘‘Recoverable’’, indicating that this kind of object has the capability to recover. When a failure occurs, an RO object can regain its state, i.e., remain consistent. When a transaction is completed, the state of the object including its data must remain in a consistent state.
4.2.2.3. RO Factory. In the system, the RO Factory is responsible for creating RO objects. Each type of RO is associated with a type of RO Factory. That is, RO Factories of different types are responsible for creating ROs of different types. Thus, all ROs in the same RO Server are associated with the same data type and their persistent data are stored in the same database. An RO Factory retrieves data from a database according to the criteria specified by the user and wraps each data as an RO object. Apart from that, it provides the function of creating a new persistent object within a transaction.
The data of this persistent object are stored into a database when the transaction is committed.
To reduce the complexity of maintaining data con-sistency among the RO objects associated with the same row of data in a database, each row is associated with just one RO object. So we must keep RO object references and some necessary information in persis-tent storage, such as in a database. Therefore, clients requesting ROs according to the same criteria obtain the same set of ROs. When a CORBA client requests an RO object, the RO Factory checks whether there is an RO associated with this data. If so, the RO Factory returns the object reference to the client. If not, the data is wrapped into a new RO object and retained in a log. The RO Factory also has the task of dispatching transactions. It is responsible for mapping a CORBA transaction context into database transaction context within the spanned databases. We detail this task in the next section.
4.2.2.4. RO Manager. Although we claim that an RO object has the capability to recover, it does not imple-ment the CosTransactionsDResource interface. It does not directly register itself as a resource in the OTS. Instead, an RO Manager serves as a mediator between the OTS and the RO object (seeFig. 10). In our design, each CORBA transaction is associated with an RO Manager object for each RO Server it spans. The manager is responsible for controlling the processing of certain transactions within the RO Server. The manager implements the CosTransactions::Resource interface and registers itself as a resource in the OTS. When the OTS tells the RO Manager to prepare/ commit/rollback the transaction that it is associated with, the manager informs all the ROs in the same RO Server and participates in certain transactions to proc-ess the prepare/commit/rollback task.
4.3. Interactions of transactional programs
The interactions of transactional programs are demonstrated in Fig. 11. The client first binds to the desired servers, e.g., the OTS and the RO Factory, to serve the further requests. A new transaction is then initiated and a lookup invoked for the bound RO Factory with the specified criteria. The RO Factory creates a new RO Manager to regulate the transaction processing in the given RO Server. The manager registers itself as a resource in the OTS. A database transaction is also requested. Each row of the query results participates in the database transaction. The RO Factory checks whether the query results have been wrapped as ROs. Here, a has been wrapped, while b has not been wrapped yet. Therefore, the RO Factory checks out RO a and creates RO b to wrap the data in b. RO a and RO b both register themselves in the RO Manager. One manipulates the data of the ROs through transactional operations and then instructs the OTS to commit the transaction and the two-phase commit protocol starts.
In the prepare phase, OTS notifies the RO Man-ager, which then informs all the registered ROs to do the preparatory task, i.e., write their operation results into the database and make logs. It then returns the vote to the OTS. In the commit/rollback phase, the OTS notifies the RO Manager to commit/rollback. The manager also informs all registered ROs to perform the commit/rollback task, perform database commit/roll back operation, and clear the log.
5. Issues and constraints
5.1. Critical issues 5.1.1. RO Server recovery
To ensure the ACID properties, there must be some mechanism to deal with transient system failures. For recovery reasons, we must retain the state of both the CORBA transactions and the ROs in permanent stor-age. In this way, when the RO Server is restarted after a failure, it can recover the state of the CORBA trans-actions.
When a client invokes the RO’s set_ < attribute name>method, we update only the data in the RO’s memory. In the prepare phase, these modified data are
written into the database within a database transaction. Thus, when the user manipulates RO data, we must retain the information about the type of operation (create new, delete, or update) for the RO.
As we described in Section 3, when an RO Server fails, if a CORBA transaction occurs before the OTS recovery, it must abort, whereas if it occurs after the point, it must commit or rollback, all accordance with the OTS’s final decision.
Let us consider the effects of an RO Server failure. If this happens, all the database transactions on the server are automatically rolled back. A problem occurs where the OTS’s final decision is VoteDcommit but where the RO Server has failed before the
correspond-ing database transaction commits. So, in the prepar-atory phase, apart from writing RO data into the database, we must also copy the data into persistent storage, such as in a database or in a log. Note that this log should be made persistent. When an RO Server is restarted after failure, it can obtain the RO’s state from the log and recover the data involved in the transaction to the database. But how do know what state a trans-action is in? The RO Manager must place checkpoints in the persistent storage with which the manager can restore the transaction state when the RO Server is restarted. Such checkpoints are shown inFig. 12.
At the beginning of a transaction, the RO Manager places checkpoint 1 and records the object reference
strings of the OTS Coordinator and RecoveryCoordi-nator corresponding to the transaction. At the same time, the database transaction also begins. When the manager collects all the RO votes participating in the transaction, it makes a local decision based on the votes and returns it to the OTS. This local decision must be retained in checkpoint 2. When the manager receives the commit or abort request from the OTS, it places checkpoint 3 to confirm recognition of OTS’s final decision. The manager then commits or rolls back the corresponding database transaction and places checkpoint 4 to specify that the database transaction has finished. At checkpoint 5, all the logs associated with this transaction in this RO Server are removed.
For a transaction, if the RO Server fails between checkpoints 1 and 2, then clearly the transaction is rolled back. In the case of failure between checkpoints 2 and 3, if the local decision is ‘‘prepare fail’’, then the transaction is rolled back. But if the decision is ‘‘pre-pare succeed’’, since we do not know the final OTS decision, we must ask the OTS for it by issuing a replay request to the corresponding OTS RecoveryCoordina-tor, which can be retrieved from the log. In the case of failure between checkpoints 3 and 4, and if the decision is VoteDcommit, we can restore the ROs’ prefailure states from the backup log. These states must be restored to the database. Finally, if the failure occurs between checkpoints 4 and 5, the only thing we must do is to clear the log associated with the transaction. 5.1.2. Keys
Primary keys and foreign keys are important issues for relations in the relational model. Their function, working in pairs, is to automatically construct
rela-tions between data. The function of unique keys is to specify the uniqueness of attribute values. Since there is no clear concept about keys in an object model in our system, we simply treat all key attributes as normal. The mapping of both key attributes and non-key attributes into object attributes is performed in the same manner.
On the other hand, since the back-end storage is the relational database, certain constraints on key attributes remain, just as there remains for those in the relational model. The constraints are the uniqueness of the primary and unique key attributes and the limitations on updating the values of all the key attributes, etc. To reduce the complexity of the system, we delegate checking these integrity constraints to the RDBMSs and collect the exceptions from back-end databases.
5.1.3. Data modification propagation
When Latte is used to build an inheritance hierarchy, a new class that we term a nonoriginal table class because it does not correspond to any existing table in a database, can be created. Should we provide nonorigi-nal table class persistent storage? If we did so, the modification of data in one class would perhaps prop-agate to other classes. This is an issue worthy of discussion.
If we provide persistent storage for all classes, any modification of data in one class could perhaps propagate to its ancestors and even to its descendants if it has any. But in some cases, such modification could propagate not only to ancestors and descend-ants, but also to siblings. This would usually be due to the overlapping of data among sibling classes. Since we do not know the purpose of the original table
schema, we cannot automatically tell whether in fact the modification will propagate to siblings. Therefore, at this stage we do not provide persistent storage for nonoriginal table class, which makes them virtual classes. At most, any modification will propagate to ancestors and descendants only.
5.1.4. Multi-inheritance
Since the CORBA IDL supports multi-inheritance, an interface can inherit from more than one interface. But if we support multi-inheritance, the problem of modification propagation becomes more complex. Therefore, at this stage, we only support single inheritance.
5.2. System constraints 5.2.1. Transactions
To guarantee correctness, we stipulate that all RO objects may be used only within the transaction in which they were requested. This concept is similar to the one for the database transaction.
Although the user may manipulate an RO object several times within a transaction, the final value is written into the database only once the transaction ends. A problem can arise if the operation order gets lost within the transaction. A possible solution to this is to record every operation performed within the trans-action in question, but that solution is too expensive. So, to achieve higher performance, we just write the final value into database when the transaction ends.
5.2.2. Working together with legacy applications In normal situations, applications in our system can work alongside legacy applications. Concurrent access is guaranteed by the database transactions. But if an RO Server fails, the database transactions are automatically rolled back and the database locks for the data in question are released, with a resulting, perhaps insoluble, problem.
A possible problem can arise where the final decision of an OTS is VoteDcommit but where the RO Server fails before the corresponding database transaction commits. In our system, any failed trans-action is automatically recovered later, and any appli-cation that accesses nonconsistent data is blocked until the recovery process is completed. The ACID properties are preserved. But if there is access through legacy applications to the nonconsistent data directly before the recovery process, there is no guarantee about data consistency because database locks have been released.
In Fig. 13, the CORBA transaction spans two RO Servers A and B. In the commit phase, Server A fails before the database transaction is completed and Server B succeeds in committing the database trans-action. At this time, the data in database a is in pretransaction state, and that in databases a and b may be inconsistent. If legacy application X accesses the data in database a before the beginning of the recovery process for Server A, it retrieves the older version of the data, in which case a version control problem occurs. If legacy application Y accesses the
data in databases a and b before the recovery process for Server A starts, it retrieves the inconsistent data, in which case an inconsistency problem occurs. 5.3. System performance
In measuring performance, since what we are mainly concerned about is the overhead in our system, the data schema and population in back-end databases are ignored. Only certain critical operations to prove whether the performance of our integration system is reasonable are tested.
To evaluate the system performance, we deploy three servers, OTS Server, CCS Server, and RO Server. The OTS Server and the CCS Server provide the transaction semantics and concurrency control functionality. The RO Server is responsible to access database, warp ROs, and vote back to OTS in the two-phase commit protocol (2PC).
The testing involves deploying three servers, the OTS Server, the CCS Server, and the RO Server. The functions provided by the OTS and CCS Servers are transaction semantics and concurrency control. The RO Server is responsible for accessing the database, wrapping ROs, and sending votes back to the OTS in the two-phase commit protocol (2PC).
Table 1 illustrates the testing environment and
Table 2the testing database schema.
The system performance is measured by the response time that clients observe. In addition, we test how retrieval and update operations perform. As a ‘warm-up’ to the measurement, a number of light weight test cases are tried beforehand to ensure that our system has reached a stable state.
5.3.1. Retrieval
In our system, clients issue a lookup request with user-specified criteria to retrieve data objects. When
this is done, the data ensures that the specified criteria are retrieved from the database and wrapped as ROs. In addition, to ensure data consistency, we log the transaction information, with a log for each RO. The performance evaluation for retrieval is shown in Fig. 14a and b.
Here, we define two terms, cold cache and warm cache. The first means Cache Miss, which means that none of the data retrieved has been wrapped as an RO in any memory cache and that, therefore, a wrapping process for data retrieval is needed. The second means Cache Hit, which means that each required data has been wrapped as an RO in a given memory cache. With warm cache, we can simply take the ROs and return them. In contrast, cold cache takes a lot of extra time to wrap the ROs. In general, more time is spent on retrieving data objects with cold cache than with warm cache.
Because we have to request a LockSet for each RO, cold cache spends approximately a quarter of the time on communicating with the CCS. To reduce the overhead, we substitute an in-process CCS for the out-process CCS. The substitute can be reached by a dynamic link library or shared library, thereby reduc-ing the total cost for each lookup operation by almost a quarter.
Although in the distributed object environment, the locations of objects are transparent, placing related objects together can improve performance. Therefore, we measure how warm cache performs in retrieving local and remote ROs. When a client issues a lookup invocation to an RO Server, any retrieved ROs resid-ing in the server in question are local ones and any residing in other servers are remote ROs. We must make a validity check for each remote RO to ensure that no RO Server failure influences the consistency of the data retrieval. In addition, a one-way invocation to the remote server is also needed to check whether a particular RO should participate in a particular
Table 2
The testing database schema
Table 1
CORBA transaction. Since validity checking and one-way invocations lead to overhead, the performance for local ROs is better than that for remote ROs.
Fig. 14a and b shows that the total time curve is exponential and average time curve is linear. This is because we have to check and make a log for data retrieval. As the data retrieval set grows, so too does the time spent in checking and logging.
5.3.2. Update
In the architecture design, we delay the database update to the two-phase commit period. The client issues CosTransactionsDTerminatorDcommit() and the CORBA transaction enters the commit period,
the duration of which is the response time of CosTransactionsDTerminatorDcommit(). We com-pare the update performance for our system and ODBC and show the results in Fig. 15a and b. It can be seen that as the influenced data set grows, the total update time for our system and ODBC both grow linearly, and so too does total overhead.
Since the commit request to the database and the communications between the client, the OTS, and the RO Server do not grow along with the data set, the overhead can be shared by the influenced data set. Consequently, the curves for the average time taken by our system and the ODBC converge to 6 and 1.9 ms, respectively. The average overhead of update also
verges to 4 ms. Therefore, we can say that the update performance evaluation for our system is reasonable. 5.3.3. Discussion on improvements
Since it appears that the performance for date retrieval in the system is not perfect, we offer some suggestions for future improvements. We know that checking validity and logging cause retrieval bottle-necks, so we suggest delegating the logging task of the RO Server to another Log Server by issuing an asynchronous call to perform log operations for all data objects retrieved within a single lookup. Since this call is asynchronous, the RO Server can continue the processing after issuing the call. Note that we must aim to guarantee that the behavior of the new approach is the same as the original one.
6. Concluding remark—aggregating standards
OMG/CORBA and ODMG are two organizations committed to distributed object and object data
management international standards. They both rein-force the completeness of the architecture models as well as the standards for reusability. However, rela-tional databases have dominated the data processing market for more than two decades. Large amount of deployment base makes relational database irreplace-able. Software architects who take advantage of well-defined, distributed computing architecture and adopt existing data assets face their greatest chal-lenge to aggregating standards. Because of the aggregation, several key design issues have to be reexamined.
This paper has proposed novel reference architec-ture to address those issues. Our design preserves the key ACID properties by adopting the CORBA OTS and CCS standards. By synchronizing the interface protocol between the system containers, it achieves high availability and scalability. A reference develop-ment process is available for streamlining activities when applying the reference architecture. The aggre-gated potential of these novel standards, CORBA, ODMG, and RDBMS, lies in the presence of the
framework for distributed object relational data man-agement. This, in the future, can achieve object rela-tional data management standards.
References
[1] H.C. Liao, Java Binding Based on WOO-DB, Department of Computer and Information Science, National Chiao-Tung University, Hsin-Chu, Taiwan, 1998.
[2] Iona, Orbix (http://www.iona.com/products/orbix3_home. htm).
[3] Information Technology—Database Languages—SQL (ISO/ IEC 9075, 1992) (can also be found athttp://www.jcc.com/ SQLPages/jccs_sql.htm#SQL%20Publications).
[4] J. Gray, A. Reuter, Transaction Processing: Concepts and Techniques, Morgan Kaufmann, San Mateo, 1992.
[5] K.C. Liang, Transaction and Concurrency Control Services on CORBA, Master thesis, Department of Computer and Infor-mation Science, National Chiao-Tung University, 1996. [6] K.C. Liang, S.M. Yuan, D. Liang, W. Lo, Nested transaction
and concurrency control services on CORBA, Proceedings of Joint International Conference on Open Distributed Process-ing and Distributed Platforms 1F1PTC6, 1997, pp. 236 – 247, Toronto.
[7] K.C. Liang, S.M. Yuan, A Distributed Object Database Archi-tecture on CORBA, Technical Report, Department of Com-puter and Information Science, National Chiao-Tung Univer-sity, Hsin-Chu, Taiwan, 1998.
[8] K.C. Liang, S.M. Yuan, H.C. Liao, R.K. Sheu, W.J. Lee, J.C. Dai, C.H. Chen, C.H. Cheng, When Java Applet Meets Object Database, 7th WWW Conference, 1998.
[9] N. Jenkins, et al., Client/Server Unleashed, Sams Publishing, Indianapolis, IN, USA, 1996.
[10] Object Management Group, CORBAservices Specification (http://www.omg.org/technology/documents/corbaservices_ spec_catalog.htm).
[11] Object Management Group, CORBAfacilities Specification (http://www.omg.org/technology/documents/corbafacilities_ spec_catalog.htm).
[12] Object Management Group, Persistent Object Service (http:// www.omg.org/cgi-bin/doc?orbos/99-07-07.pdf).
[13] Object Management Group, Object Transaction Service (http://www.omg.org/cgi-bin/doc?formal/00-06-28.pdf). [14] Object Management Group, Concurrency Control Service
(http://www.omg.org/cgi-bin/doc?formal/00-06-14.pdf). [15] R.G.G. Cattell (Ed.), The Object Database Standard: ODMG
3.0, Morgan Kaufmann Publishers, San Francisco, 2000. [16] R.K. Sheu, K.C. Liang, S.M. Yuan, W.T. Lo, A new architecture
for integration of CORBA and OODB, IEEE Transactions on Knowledge and Data Engineering 11 (5) (1999) 748 – 768.
