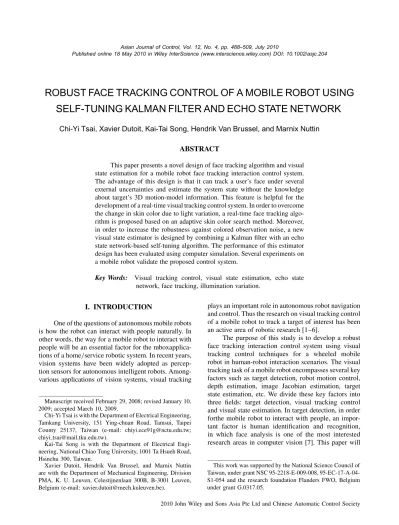

ROBUST FACE TRACKING CONTROL OF A MOBILE ROBOT USING
SELF-TUNING KALMAN FILTER AND ECHO STATE NETWORK
Chi-Yi Tsai, Xavier Dutoit, Kai-Tai Song, Hendrik Van Brussel, and Marnix Nuttin
ABSTRACT
This paper presents a novel design of face tracking algorithm and visual state estimation for a mobile robot face tracking interaction control system. The advantage of this design is that it can track a user’s face under several external uncertainties and estimate the system state without the knowledge about target’s 3D motion-model information. This feature is helpful for the development of a real-time visual tracking control system. In order to overcome the change in skin color due to light variation, a real-time face tracking algo-rithm is proposed based on an adaptive skin color search method. Moreover, in order to increase the robustness against colored observation noise, a new visual state estimator is designed by combining a Kalman filter with an echo state network-based self-tuning algorithm. The performance of this estimator design has been evaluated using computer simulation. Several experiments on a mobile robot validate the proposed control system.
Key Words: Visual tracking control, visual state estimation, echo state network, face tracking, illumination variation.
I. INTRODUCTION
One of the questions of autonomous mobile robots is how the robot can interact with people naturally. In other words, the way for a mobile robot to interact with people will be an essential factor for the mboxapplica-tions of a home/service robotic system. In recent years, vision systems have been widely adopted as percep-tion sensors for autonomous intelligent robots. Among-various applications of vision systems, visual tracking
Manuscript received February 29, 2008; revised January 10, 2009; accepted March 10, 2009.
Chi-Yi Tsai is with the Department of Electrical Engineering, Tamkang University, 151 Ying-chuan Road, Tamsui, Taipei County 25137, Taiwan (e-mail: [email protected]; chiyi [email protected]).
Kai-Tai Song is with the Department of Electrical Engi-neering, National Chiao Tung University, 1001 Ta Hsueh Road, Hsinchu 300, Taiwan.
Xavier Dutoit, Hendrik Van Brussel, and Marnix Nuttin are with the Department of Mechanical Engineering, Division PMA, K. U. Leuven, Celestijnenlaan 300B, B-3001 Leuven, Belgium (e-mail: [email protected]).
plays an important role in autonomous robot navigation and control. Thus the research on visual tracking control of a mobile robot to track a target of interest has been an active area of robotic research[1–6].
The purpose of this study is to develop a robust face tracking interaction control system using visual tracking control techniques for a wheeled mobile robot in human-robot interaction scenarios. The visual tracking task of a mobile robot encompasses several key factors such as target detection, robot motion control, depth estimation, image Jacobian estimation, target state estimation, etc. We divide these key factors into three fields: target detection, visual tracking control and visual state estimation. In target detection, in order forthe mobile robot to interact with people, an impor-tant factor is human identification and recognition, in which face analysis is one of the most interested research areas in computer vision[7]. This paper will
This work was supported by the National Science Council of Taiwan, under grant NSC 95-2218-E-009-008, 95-EC-17-A-04-S1-054 and the research foundation Flanders FWO, Belgium under grant G.0317.05.
because color is a sufficient cue to segment the face from background imagery [8–12]. However, color segmentation suffers from color variation caused by irregular illumination as well as the view of the camera.
In visual tracking control, the reported methods can be categorized into two groups based on motion constraints: the visual servoing for holonomic manipu-lators and the visual tracking for nonholonomic mobile robots. Visual servoing technique for holonomic manip-ulators has been investigated extensively and many powerful tools can be found in the literature [13, 14]. However, the results used in holonomic manipulators are not suitable for most mobile robots due to the nonholonomic motion constraints on the mobile plat-form. On one hand, many efforts have been made to deal with the design of mobile robot visual tracking controllers to track a static object [1–3, 15–17]. On the other hand, only a few efforts focus on the visual tracking control design of tracking a moving (non-static) target [4–6]. Notably, in order to enhance the tracking performance in the case of tracking a moving target, Xu and Hogg suggested that the prediction of target motion can help the visual tracking system to track the target within the camera’s field of view [18]. Therefore, one of the challenges in visual tracking of a moving target is how to predict or estimate the motion of the moving target during visual tracking task execution. This problem motivates us to design a visual state estimator to provide the knowledge about target motion for enhancing the performance of a visual tracking control system.
The visual state estimation problem is well defined in machine vision, which aims to determine the position and velocity of an object moving in the 3D space by observing its motion in the 2D image plane of a perspective vision system (or pinhole camera). Traditionally, the existing methods usually suppose that the pinhole camera is fixed and the target is moving under Riccati dynamics in 3D space [19–23]. However, these assumptions cannot be satisfied in the issue addressed in this paper, since the camera and target both are moving with different dynamics. Recently, a dual-Jacobian visual interaction model has been proposed in [24, 25]. Based on this visual interaction model, the target image velocities can be used instead of the 3D motion velocities, and the visual state estimation problem can be resolved in the 2D image plane directly. In [24], the authors proposed
without the knowledge about its motion in 3D space. It is well known that Kalman filter is one of the best linear estimators for a linear plant model with Gaussian white noise [26]; however, if the noise statistics are unknown, it will be difficult to determine suitable covariance matrices for computing the Kalman gain matrix[27]. Thanks to the neural network techniques, the observation noise statistics can be estimated by an artificial neural network without the knowledge of noise statistics[28]. Therefore, a neural network based self-tuning algorithm is helpful for a Kalman filter to work in an environment with unknown observation noise statistics.
There exist numerous neural network architec-tures. Amongst them, feedforward neural networks (FNNs) are the most popular models. However, FNNs only implement static input-output mappings. On the contrary, recurrent neural networks (RNNs) are better fit for time-dependent and non-reactive tasks, such as the one considered here, as the recurrent connections allow for some short-term memory. However, a major issue with RNNs is the training complexity. Recently, a new technique to use RNNs has been proposed: the echo state networks (ESNs)[29]. The idea of ESN is to use a large RNN while training only the readout layer. The recurrent part is created a priori and left fixed, and a simple linear memory-less readout is trained to project the state of the recurrent part onto the desired output. Thus the training complexity comes down to a one-step linear training, guaranteed to find the global optimum for a given ESN. This advantage motivates us to adopt ESN technique to filter the noise and estimate the noise variance.
In this paper, a novel visual state estimator is proposed by using the ESN-based self-tuning Kalman filter technique. The ESN aims to filter the observa-tion noise and provide the corresponding covariance matrix for the Kalman filter to estimate the optimal system state. In the case of colored observation noise, traditional approaches need to extend the dimension of the original Kalman filter [30] or adjust the original observation equation [28] by a colored noise shaping filter. In contrast, the colored observation noise can be filtered into Gaussian white noise through the proposed ESN noise filter; thus, the robustness of the original Kalman filter can be improved without dimension extension or observation equation adjustment. More-over, in order to overcome the irregular illumination
problem during the visual tracking process, a real-time face tracking algorithm based on a novel adaptive skin color searching method is proposed for face tracking under illumination variation. Therefore, a robust face tracking interaction control system can be achieved by combining the proposed real-time face tracking algorithm with the proposed ESN-based self-tuning Kalman filter. Simulation and experimental results will be presented to validate the estimation performance as well as the robustness of the proposed mobile robot face tracking interaction control system.
The rest of this paper is organized as follows. Section II describes the problem formulation and controller design for a wheeled mobile robot visual tracking control system. In Section III, the proposed ESN-based self-tuning Kalman filter and the design of ESN for noise filtering and variance estimation are presented. Section IV presents the proposed real-time face tracking algorithm under illumination variation. Simulation and experimental results are reported in Section V. Several simulations and experimental obser-vations will be presented and discussed. Section VI concludes the contributions of this paper.
II. PROBLEM FORMULATION AND CONTROLLER DESIGN
Fig. 1 shows the visual tracking problem consid-ered in this paper. In Fig. 1, a wheeled mobile robot
equipped with a tilt camera on top of it aims to track a moving target, such as a human face, in the image plane. The optical-axis of the camera faces the target of
interest. Fig. 1(a) illustrates the model of the unicycle-modeled mobile robot and the target in the world coor-dinate frame Ff, in which the motion of the target is supposed to be holonomic with zero angular motion relative to the robot. Fig. 1(b) is the side view of the scenario under consideration, in which the tilt angle gives the relationship between the camera coordinate frame Fc and the mobile coordinate frame Fm.
2.1 Dual-Jacobian visual interaction model
In order for the mobile robot to interact with the target in the image coordinate frame, a dual-Jacobian visual interaction model was proposed in the authors’ previous work [25]. Fig. 2 shows the definition of observed system states in the image plane used for the visual interaction model. In Fig. 2, xi and yi are the horizontal and vertical position of the centroid of target in the image plane, respectively, and dx is the width of target in the image plane. Let Xi=[xi yi dx]T denote the system states in the image plane, and ( fx, fy) represent fixed focal length along the image
x-axis and y-axis, respectively, The visual interaction
between robot and target in the image plane can be modeled as a dual-Jacobian equation such that

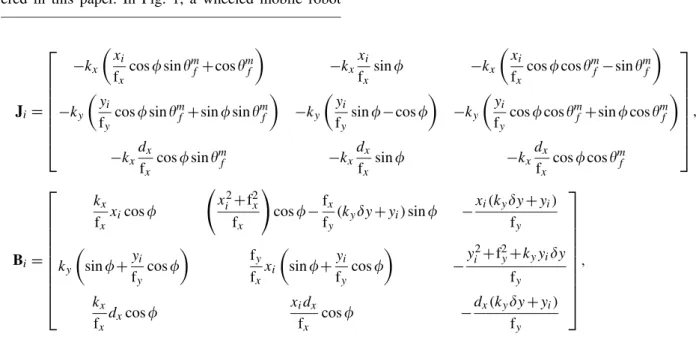

˙Xi= ˙Xti+ ˙Xim=JiVtf+Biu, (1) where Ji= ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ −kx xi fx
cossinmf +cosmf −kx xi fx sin −kx xi fx
coscosmf −sinmf
−ky
yi fy
cossinmf+sinsinmf −ky yi fy sin−cos −ky yi fy
coscosmf +sincosmf −kx dx fx cossinmf −kx dx fx sin −kx dx fx coscosmf ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ , Bi= ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ kx fx xicos xi2+f2x fx cos−fx fy(kyy + yi)sin − xi(kyy + yi) fy ky sin+yi fy cos fy fx xi sin+yi fy cos −y 2 i +f2y+kyyiy fy kx fx dxcos xidx fx cos −dx(kyy + yi) fy ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ ,
kx=dx/W and ky=kxfy/fx are two scalars, W is the actual width of the target, u=[vmf wmf wmt ]T is the vector of control velocities for the mobile
Fig. 1. (a) A model of the wheeled mobile robot and the target in the world coordinate frame and (b) Side view of the mobile robot with a tilt camera mounted on top of it to track a dynamic target.
robot and the tilt camera, and Vtf=[vxf vyf vzf]T is the vector of target velocity in Cartesian coordi-nates. Expression (1) shows that the visual interaction model consists of two parts: the part of target motion
˙Xt
i=[ ˙xit ˙yit ˙dxt]T=JiVft, and the effect of mobile robot motion ˙Xim=[ ˙xim ˙yim ˙dxm]T=Biu. Thus, matrix
Ji is termed as ‘target image Jacobian’ transforming the target velocity Vtf into target image velocity ˙Xti, and matrix Bi is termed as ‘robot image Jacobian’ transforming the mobile robot control velocity u into robot image velocity ˙Xim. In other words, the image velocity ˙Xi is caused by a combination of target image velocity ˙Xit and robot image velocity ˙Xim. Therefore, the visual interaction between robot and target in image coordinate frame can be modeled as a ‘dual-Jacobian’ visual interaction model (1).
2.2 Visual tracking control design
Based on the visual interaction model (1), a feed-back control law can be designed by using feedfeed-back linearization such that
u= B−1i (KgXe−JiVtf), (2a) = B−1i (KgXe− ˙Xti). (2b) where Xe=[xe ye de]T=[¯xi−xi∗ ¯yi− yi∗ ¯dx−dx∗]T is the error coordinates defined in the image plane, in which ¯Xi=[¯xi ¯yi ¯dx]T is the vector of fixed desired states in the image plane, and Xi∗=[xi∗ yi∗ dx∗]T is the vector of estimated states from a visual estimator (see later). Kg=diag(1,2,3)>0 is a 3-by-3 positive gain
Fig. 2. Definition of the observed system state in image plane: xi and yi are the horizontal and vertical position of the centroid of target, respectively, and dx is the width of target.
matrix, where diag(a,b,c) denotes a 3-by-3 diagonal matrix with diagonal element a, b, and c.
The visual tracking control law (2) indicates that the controller requires information about target 3D velocity Vtf or target image velocity ˙Xit. If Vtf is known, the first visual tracking control law (2a) only needs an estimate of target status Xi to calculate the control signal u. However, in practical applications, it is difficult to estimate Vtf on-line in real time when using only one camera. In this situation, the second visual tracking control law (2b) provides a useful solution which only needs the target image velocity
˙Xt
i in the image plane. Since the estimation of target 3D velocity is not considered in the current design, only the estimation of both target status Xi and target image velocity in the image space is realized for the later implementation of the visual tracking controller. This advantage will facilitate more general applications of the proposed tracking control scheme in the image plane. Note that the proposed visual tracking controller (2) can possess some degree of robustness against
system model uncertainties. For the discussion on the robustness analysis of the proposed controller, please refer to[31] for more technical details.
2.3 Visual state estimation problem
Because actual image processing is discrete, the first step of visual state estimator design is to discretize the system model (1) into the corresponding discrete form such that
Xi[n] = Xi[n−1]+T ˙Xit[n−1]+TBiun−1, for n=1,2,... (3) where T denotes the sampling time of the discrete system, and un=[vmf wmf wmt ]T is the discrete-time control signal at time step n. Suppose that the target’s motion can be approximated as a smooth motion during a sampling period, then the target image velocity has the following result
˙Xt
i[n]= ˙Xit[n−1]. (4) Based on (3) and (4), the propagation model can be obtained such that
Xn= I3 TI3 03 I3 Xn−1+ TBi 03 un−1 ≡ AestXn−1+Bestun−1, (5) where Xn=[(Xi[n])T ( ˙Xti[n])T]T is the vector of system estimates at time step n, I3 is a 3-by-3 identity matrix, and 03is a 3-by-3 zero matrix. Next, since the observed image contains only information about target status Xi at each time step, the observation model is given by
Zn=[I3 03]Xn≡HestXn. (6) Based on (5) and (6), the visual state estimation problem is defined as finding the state estimate Xn∗ that mini-mizes the weighted least square criterion:
X∗n= argmin
X [(Xn− X) TP−1
n (Xn− X)
+(Zn−HestX)TR−1n (Zn−HestX)], (7) where Pn=AestPn−1ATest is the covariance matrix of propagation model (5) at time step n, and Rn is the covariance matrix of observation model (6) at time step n.
III. SELF-TUNING KALMAN FILTER USING ECHO STATE NETWORK
This section presents the design of the proposed ESN-based self-tuning Kalman filter to resolve the visual state estimation problem based on the perfor-mance criterion (7) described in Section 2.3.
3.1 ESN-based self-tuning Kalman filter
Define that(Xn,Pn) are the propagation state and the corresponding covariance matrix at time step n,
(X∗
n−1,P∗n−1) are the optimal estimate and the corre-sponding covariance matrix at time step n−1, Xn= [(Xi[n])T ( ˙Xti[n])T]T represents Gaussian propaga-tion uncertainty with zero mean and covariance matrix
Qnat time step n, andZnrepresents Gaussian observa-tion uncertainty with zero mean and covariance matrix
Rn at time step n. Then, when the linear propagation model (5) and the linear observation model (6) both have Gaussian propagation and observation uncertainties
Propagation: Xn =AestX∗n−1+Bestun−1+Xn−1, (8) Covariance Propagation: Pn =AestP∗n−1ATest+Qn−1, (9) Observation: Zn =HestXn+Zn, (10) a Kalman filter will provide the local minimum solu-tion of performance criterion (7) and the corresponding covariance matrix at time step n such that[26]
X∗n= Xnp+Kn(Zn−HestXnp)
and P∗n=(I6−KnHest)Pn, (11) where Xnp=AestXn∗−1+Bestun−1 is the ideal propa-gation state, Kn=PnHestT (HestPnHTest+Rn)−1 is the Kalman gain matrix, and I6is a 6-by-6 identity matrix.
According to [27], the filter performance of a Kalman filter is determined by the covariance matrices
Qn and Rn. Thus, a difficult problem in Kalman filter applications is how to determine the values of matrices
Qn and Rn for computing the Kalman gain matrix
Kn. Typically, this problem is left up to engineering intuition by a trial-and-error method. However, the observation uncertainty usually varies with the condi-tions of target motion (such as orientation and rotation of a tracked human face) and working environment (such as light variation and occlusion), and the corre-sponding covariance matrix Rn are time-varying for
Fig. 3. Proposed ESN-based self-tuning Kalman filter.
different operating conditions. In order to deal with this problem, neural network techniques are useful to filter the observation noise and estimate the noise variance without the knowledge of noise statistics[28]. Therefore, this advantage motivates us to combine a neural network based self-tuning algorithm with a Kalman filter to filter the observation noise and provide a suitable observation covariance matrix Rnin varying environmental conditions. In this paper, ESN technique is adopted into the design of self-tuning algorithm due to the advantages described in Section I. Fig. 3 shows the block diagram of the proposed ESN-based self-tuning Kalman filter, in which ˆZn denotes the measurement with observation noise, and (Zn, Rn) are the filtered measurement and the estimated noise covariance matrix. The covariance matrix of the observation signal is then updated such that
Rn=R0+Rn, (12) where R0 is a fixed initial covariance matrix to avoid the covariance matrix becoming zeros. In the following section, we will present the design of ESN-based self-tuning algorithm. Note that because we do not have an exact mathematic model to describe the propagation of the uncertainty, the propagation covariance matrix Qn is supposed to be fixed without updating in this design.
Remark 1. The observation noise usually is supposed
to be Gaussian white noise in the Kalman filter design; however, the observation noise may be colored rather than white in most practical applications. In this case, the traditional method requires extending the dimen-sions of the original Kalman filter[30] or adjusting the original observation equation [28] by using a shaping filter in order to transform the colored noise into white noise. But this approach also needs the knowledge of colored noise statistics a priori. On the contrary, the proposed method employs ESN technique to filter the
Fig. 4. General architecture of an ESN.
colored noise directly without knowledge of colored noise statistics. If the reservoir of the ESN contains sufficiently many neurons and those neurons are suffi-ciently decorrelated, due to the central limit theorem, the output noise correlation will decrease and the output noise will then tend to be Gaussian white noise. Since these two conditions are usually met in practice, the output of ESN can be directly used by Kalman filter without dimension extension or observation equation adjustment. Thus, the robustness of the original Kalman filter can be improved against not only Gaussian white noise, but also colored noise without any modification. This robustness property of the proposed ESN-based self-tuning Kalman filter will be validated in Section 5.1 and Section 5.3.
3.2 Creation and training of echo state network
We will now describe the neural network used in the current scenario. An ESN is described by an input matrix Wi n, a connection matrix W and a linear readout
Wout (see Fig. 4). 3.2.1 Activation function
At each time step, the state vector s[n] (describing the activation level of every neuron) is updated according to
s[n+1] = f (m ·(Win·i[n]+W·s[n])+(1−m)·s[n]),
∀n>0 (13)
where i[n] is the current input vector, s[n] is the current state (with s[0]=0), f (.) is a non-linear function (here we use a hyperbolic tangent) and m (0<m ≤1) is a parameter controlling the leak rate of each neuron. The output associated with the current state is given by
o[n]=Wout· s[n] 1 . (14)
Note that the leak rate allows one to tune the short-term memory of each neuron and thus to change the dynamics of the reservoir. It has been observed[32, 33] that a crucial point to obtain good performance is to make the dominant time scale of the reservoir match
the dominant time scale of the input data. However, it is hard to say a priori what is the dominant time scale of the input data, so the usual approach is to find the optimal m by ranging through 0 and 1.
3.2.2 Network creation
The matrices Win and W are created randomly. The connection from the inputs should have weights large enough to have sufficient effect inside the reser-voir and small enough not to drive the reserreser-voir to satu-ration [34]. An efficient trade-off has been found by setting the elements of Winto−0.1 or +0.1 with equal probability. The reservoir connections must guarantee the echo state property [29]. This property states that the initial conditions have an asymptotically decreasing influence on the current state of the network. To do so, the elements of W are drawn from a normal distribu-tion, and the whole matrix is then re-scaled to make its spectral radius smaller than 1 (here we use a value of 0.9).
3.2.3 Network training
The output matrix Woutis created then during the training. As the output at each time step is given by (14), the output matrix should satisfy
Wout·
s[1] s[2] ··· s[nt] 1 1 ··· 1
=[ˆo[1] ˆo[2] ··· ˆo[nt]], (15) where nt is the number of time samples and ˆo[n] is the desired output at time step n. Originally, this equation is solved in the least square sense. However, in order to achieve a better generalization to new situations, we applied here ridge regression and solved instead
Wout=argmin W ⎛ ⎝ W· s[1] s[2] ··· s[nt] 1 1 ··· 1
−[ˆo[1] ˆo[2] ··· ˆo[nt]] 2 +·W2 ⎞ ⎠, (16) where is a regression parameter. The optimal value of
is found via grid-search, by leaving out a validation
set during training.
3.3 ESN-Based Self-Tuning Algorithm
In the current implementation, we use 3 indepen-dent ESNs, one for each parameter xi, yi and dx. Each ESN receives as input the corresponding measurement
Fig. 5. Inputs and outputs of the ESNs (detail of the ESN box from Fig. 3).
with noise ˆZn and the corresponding robot image velocity ˙Xmi . It is then trained to output at each time step an estimate of the actual measurement Zn (see Fig. 5).
To estimate the variance of the noise at time step
n, we take in the present design the variance of the time
series (recorded over time with length N) of observation noiseZn= ˆZn− Zn. LetZx,Zy andZddenote the time series of observation noise corresponding to xi, yi and dx, the covariance matrix of observation noise at time step nis estimated by
Rn=diag(var(Zx),var(Zy),var(Zd)), (17) where var(x) denotes the variance value of vector x. In the current design, the time series length N is set as 9. The cross-covariance values of Zn are supposed to be zero since three independent ESNs are used.
IV. REAL-TIME FACE TRACKING UNDER ILLUMINATION VARIATION
This section presents the face tracking algorithm used in the proposed face tracking interaction control
system. The proposed face tracking algorithm is a video color object tracker. Color is an efficient cue for face tracking, but skin color can easily depend on illumi-nation and this can make face tracking fail [11]. To overcome this problem, the proposed face tracking algo-rithm utilizes YCrCb 3D color distribution model to effectively segment the skin color from other objects under illumination variation.
Fig. 6. The flowchart of the face tracking algorithm.
4.1 Face tracking algorithm overview
Fig. 6 shows the flowchart of the proposed face tracking algorithm, which consists of a face detection function and a face tracking function. In the initial state, the face detection function detects a face within the image frame and passes the position, width and height of the face to the face tracking function. With this infor-mation, the face tracking function determines a region of interest (ROI) to locate the face in the center of ROI. In order to obtain the optimal color distribution model (CDM) of the skin color in ROI for color segmenta-tion, a novel adaptive skin color search (ASCS) method is proposed to accomplish this task. If the current skin color area extracted by ASCS method is within a certain proportion of ROI (termed as Tracking Condition, TC), the face tracking task will be regarded as a successful operation. Otherwise, the face tracking algorithm will be re-initialized into face detection stage.
If TC is satisfied, the optimal CDM parameters will be used to generate a binary image in ROI by color segmentation and will also be stored for use in the next tracking iteration. After obtaining a binary image of the skin color segmentation, a 2D histogram projec-tion is generated to find the posiprojec-tion, width and height of the face in ROI. Next, the information about the observed face in the current image will be stored for setting up the ROI in the next tracking iteration and will also be sent to the visual state estimator presented in Section III. Finally, the visual tracking controller
presented in Section 2.2 controls the mobile robot and tilt-camera to track the user by using the estimation results from the visual state estimator.
4.2 Face detection function
If the face tracking function turns off, the face detection function will start to find the user’s face. In our design, any existing face detection algorithm, e.g. [35, 36], can be applied to detect the human face in the current image. In this paper, the face detection algo-rithm proposed in[35] is adopted. When the user’s face is detected, the information about the detected face in the current image will be stored for ROI decision in the face tracking function. Next, the CDM parameters (the color distribution thresholds) of user’s skin color in the current image will be calculated by the Y, Cb, Cr histograms of the detected face and stored for use in the proposed ASCS method. Finally, the face tracking func-tion enables to track the user’s face in the next sampled image.
4.2.1 Proposed CDM parameters analysis method Selecting a proper CDM is favorable not only for color segmentation, but also reduces the undesired error in the segmented result. To do so, we propose a statis-tical method to decide the proper threshold values for each color channel of the image. Let Y1(Y2) is the lower(upper) threshold of Y channel, Cr1(Cr2) is the

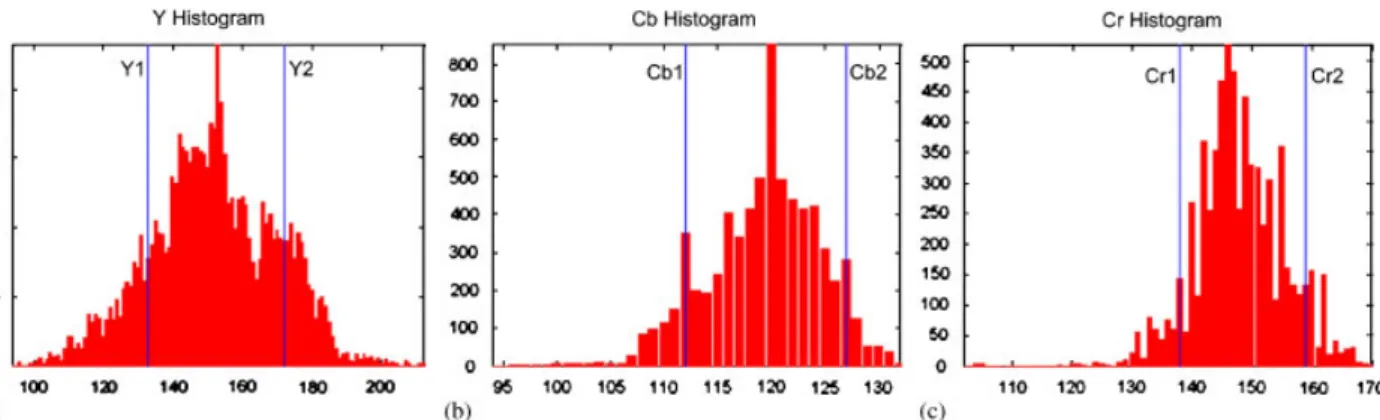

Fig. 7. The lower and upper thresholds of each color channel: (a) Y1 and Y2 of Y channel; (b) Cb1 and Cb2 of Cb channel; and (c) Cr1 and Cr2 of Cr channel.
lower(upper) threshold of Cr channel and Cb1(Cb2) is the lower(upper) threshold of Cb channel (see Figs 7(a), (b) and (c)). These threshold values are obtained by the following equations: C1= argmin i Cmax i=Cmin Chist(i) −Ntotal×S >0, (18) C2= argmin i Cmin i=Cmax Chist(i) −Ntotal×S >0, (19)
where C denotes one of three color channels, Y, Cb or Cr. Chistis the histogram of C channel. S is a scale factor between 0 and 1. In this paper, S is set as 0.9. Ntotal is the total pixel number of a sub-search window (SSW, which will be defined in Section 4.4) in ROI. Fig. 7 shows an example of computing the threshold values for a local CDM of the skin color in a SSW located in ROI. When the threshold values for each color channel are founded, the color segmentation can be done in ROI by these threshold values such that
IskinYCbCr(x, y)|(x,y)∈RO I
= ⎧ ⎪ ⎨ ⎪ ⎩
1, if the pixel (x,y)∈ROI satisfies C1≤C ≤C2 for each color channel C
0, otherwise,
(20)
where IskinYCbCr is a binary image of the skin color region segmented by CDM parameters (Y1,Y2,Cb1,Cb2,Cr1, Cr2). Note that the benefit of the proposed statistical scheme (18) and (19) is that the color distribution thresholds are adapted dependent on the current skin color information. Therefore, there is no limitation on the skin color by adopting the proposed statistical method.
4.3 Face tracking function
Suppose that the position, width and height of the user’s face,(xi[0], yi[0],dx[0],dy[0]), in the image plane have been detected by the face detection function, and the face tracking function is enabled to track the detected face. The execution steps of the proposed face tracking function are described as follows:
1. ROI decision: The purpose of ROI is to shrink the face searching area and locate the face in the center area of ROI. The position, width and height of ROI, (ROI xi[n], ROI yi[n], ROI dx[n], ROI dy[n]), are given by
ROI xi[n] = xi[n−1], ROI yi[n] = yi[n−1], ROI dx[n] = dx[n−1]×2, ROI dy[n] = dy[n−1]×2,
(21)
where the initial position, width and height of ROI are defined such that
ROI xi[0] = xi[0], ROI yi[0] = yi[0], ROI dx[0] = dx[0]×2, ROI dy[0] = dy[0]×2.
(22)
Please see Section 4.3.1 for more discussions on the advantages of ROI.
2. Adaptive skin color search (ASCS): Re-calculate the Y, Cb, Cr histograms of the detected face to find the optimal CDM parameters of the current skin color in ROI. The details of the proposed ASCS method are presented in Section 4.4.

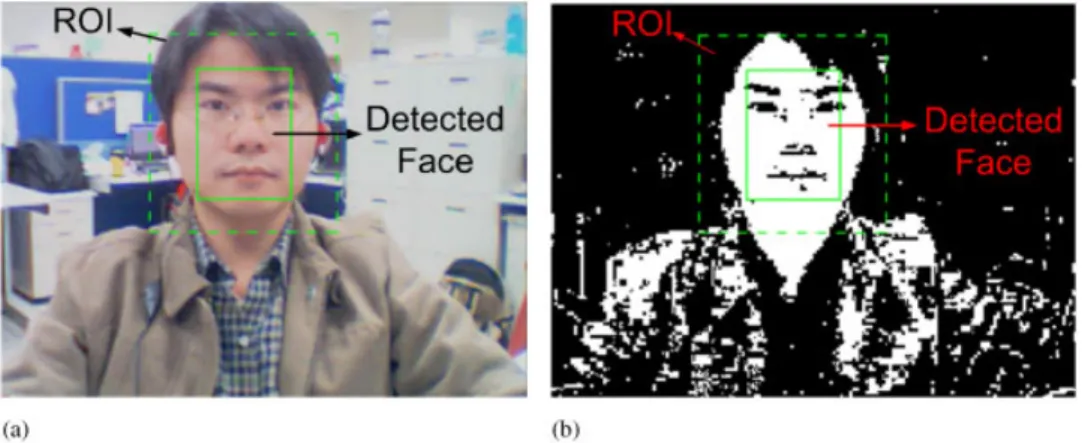

Fig. 8. The setting of the ROI: (a) the test image and (b) the image processed by color segmentation. The window of dotted line is ROI. The solid line in the ROI indicates the detected face.
3. Check the tracking condition (TC): Suppose that S A∗skin denotes the skin color area in ROI segmented by the optimal CDM parameters obtained from ASCS, and T AR O I denotes the total area of ROI. If the following condition
(TC) T AROI/8<S A∗skin<T AROI/2 is satisfied, the face tracking event is successful, then go to both Step 4 and Step 5. Otherwise, the face tracking event is failed, and the face tracking algorithm is re-initialized into face detection stage to detect the user’s face in the next sampled image. 4. CDM parameters update: Store the optimal CDM parameters obtained from ASCS for use in the next tracking iteration.
5. Color segmentation: Segment the skin color region in ROI by using the optimal CDM param-eters obtained from ASCS. Please see Section 4.2 for the descriptions of the color segmentation method used in this paper.
6. 2D histogram projection: Find the position, width and height of the skin color region in ROI by using 2D histogram projection method [35]. Then the new information about the detected face, (xi[n],
yi[n], dx[n], dy[n]), in the current sampled image will be updated for the next ROI decision and passed to the visual tracking control system for the task of face tracking interaction control. For more technical details of 2D histogram method, the interested readers may refer to[35].
4.3.1 Advantages of ROI
In order to obtain CDM parameters of the skin color in real-time, the idea of ROI is applied to achieve
this goal. The advantages of using ROI are listed below:
1. Reduce the computation cost: Because the face tracking focuses inside the ROI, the computation outside the ROI is unnecessary.
2. Shrink the face tracking area: Fig. 8 shows that the areas containing the same color distribution of the current skin color will increase the search areas of face tracking. By searching only in ROI, the undesired areas outside ROI can be neglected for tracking the face efficiently and precisely. 3. Select proper thresholds for the skin color
segmen-tation: In Section 4.2, two thresholds are assigned to each color channel for the skin color segmen-tation. If the thresholds are selected improperly, it may make the face tracking system not work. To resolve this problem, the proper threshold values are determined based on the information inside the ROI only.
Assume that the face is located at the center area of ROI during face tracking procedure (see Fig. 8(a)), then the proposed ASCS, which selects at least one SSW near the center area of the detected face, is exploited to get an optimal CDM of the current skin color for color segmen-tation. Furthermore, the position, width and height of current ROI are set according to the previous ones of the detected face area (see the expression (21)). By this way, the trail of face tracking will follow the previous successful face tracking result.
4.4 Proposed ASCS method
The purpose of the proposed ASCS method is to get the optimal CDM parameters of the current skin
color in ROI even as the color distribution of the skin color is changed due to the illumination variation. The execution steps of the proposed ASCS method are described as follows:
1. Sub-search window (SSW) decision: The purpose of SSW is to re-calculate CDM parameters of the current skin color in ROI. There are two principles to select SSW in ROI. First, the size of SSW is smaller than the detected face, but cannot be too small in order to prevent the loss of most color distribution information. Second, the position, width and height of each SSW are obtained according to the information about the previous detected face. For example, let k denote the number of SSW used in ROI, where
k≥1. By the two principles of selecting SSW
mentioned before, the width and height of each SSW, (SSW j dx[n],SSW j dy[n]) for j =1∼k, are dependent on the information about previous detected face such that
SSW j dx[n] = dx[n−1]/2,
SSW j dy[n] = dy[n−1]/2, for j=1∼k. (23)
The position of the first SSW, (SSW1 xi[n], SSW1 yi[n]), is defined the same as the position of the previous detected face:
SSW1 xi[n] = xi[n−1], SSW1 yi[n] = yi[n−1].
(24)
The position of other SSWs can be assigned to any different position around the center of SSW1 such that SSW j xi[n] = SSW1 xi[n]+dxj, SSW j yi[n] = SSW1 yi[n]+dyj, (25) where 0<dxj<dx[n−1]/4, 0<dyj<dy[n− 1]/4, for j =2∼k, and (dxp,dyp)=(dxq,dqy), for p=q, p,q ∈[1,k].
2. Re-calculate CDM parameters for each SSW: Each SSW is corresponding to a CDM of the skin color, which can be obtained by the proposed CDM analysis method presented in Section 4.2.1. Therefore, let YCbCr|SSWj denote the CDM parameters corresponding to SSW j , and
YCbCr|−opt is the previous optimal CDM param-eters obtained in last sampled image. We then have k+1 groups of CDM parameters needed to be examined.
3. Search for the optimal CDM parameters of the current skin color in ROI: By the color segmenta-tion method (20), each group of CDM parameters is able to obtain a corresponding skin color area in ROI such that
S Askin(YCbCr) =
x
y
IskinYCbCr(x, y)|(x,y)∈ROI, (26)
where IskinYCbCr is a binary image of the skin color in ROI segmented using (20) by CDM parameters
YCbCr. Thus, the optimal CDM parameters can be
obtained by choosing the parameters maximizing the skin color area in ROI such that
YCbCr|∗opt=arg max YCbCr|−opt , YCbCr|SSWj,
j=1∼k
S Askin(YCbCr). (27)
Let S A∗skin(YCbCr|∗opt) denote the maximum skin color area in ROI obtained by the optimal CDM parameters YCbCr|∗opt. The face tracking event then can be validated as succeeded or failed by tracking condition (TC) presented in Section 4.3.
Fig. 9 shows an example of the proposed ASCS method. In this example, four SSWs are used to gather four statistics CDMs on the center (SSW1), right (SSW2), bottom (SSW3) and left (SSW4) positions of the user’s face, respectively. For each SSW, the proposed CDM analysis method, (18) and (19), is applied to obtain the corresponding CDM parameters. Using the previous optimal CDM parameters and four re-calculated ones, the new optimal CDM parameters then can be found by (27) and will be used in the next tracking iteration.
Remark 2. The originality of the proposed face
tracking algorithm is twofold. First, the proposed CDM parameters analysis method presented in Section 4.2.1 can efficiently integrate a face detection function into a color-object-based face tracking algorithm without the restriction on the skin color due to the advantage of the proposed statistical scheme (18) and (19). Second, existing color-object based face tracking algorithms, such as CamShift algorithm [37], usually fail in the problem of rapid illumination variation. In contrast, the proposed real-time face tracking algorithm can efficiently overcome this problem due to the advantage of the proposed ASCS method presented in Section 4.4.

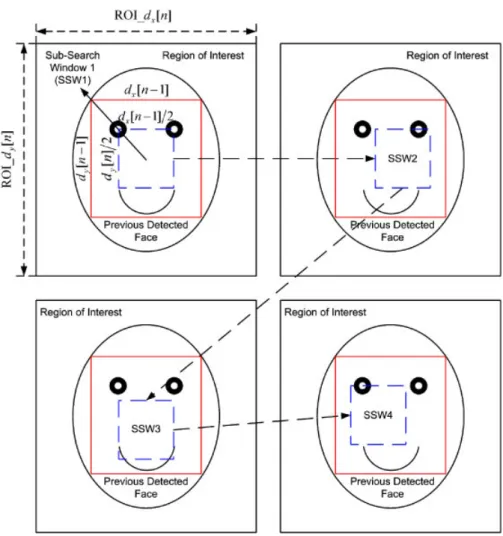

Fig. 9. An example of the proposed ASCS method. This example uses 4 SSWs to re-calculate the optimal CDM parameters of the current skin color in ROI.
V. SIMULATION AND EXPERIMENTAL RESULTS
5.1 Simulation setup
In order to evaluate the performance of the proposed visual state estimator, a simulation environ-ment was setup using MATLAB. Fig. 10 shows the architecture of the simulation setup. In Fig. 10, Xn denotes the reference signal needed to be estimated by a visual state estimator. The input of the visual state estimator is the observation signal ˆZn with random noise (RN) R N= Kn1(0.5−2), if (3<) (1+1)(0.5−2), otherwise (28) where Kn>1 is the noise gain; i∈[0,1], i =1∼3, are three random signals with uniform distribution; and∈ [0,1] is a constant threshold value. Expression (28)
indicates that the intensity of the noise is time-varying and dependent on a random condition. If the condition
(3<) is satisfied, then the random noise will have large noise gain; otherwise the random noise will only have noise gain smaller than 2. Thus, the threshold value
determines the probability of the event of appearing
large observation noise. For example, if=1, then the observation signal will always have the largest noise intensity. This kind of random noise usually happens during practical visual tracking process of the mobile robot, since the intensity of the observation uncertainty usually is position-dependent and light-dependent.
In the following, a visual state estimator is utilized to filter the random noise and provide the optimal esti-mation. The performance of the visual state estimator is then validated by mean-squared-error (MSE) criterion between the ideal signal Xnand the estimated signal X∗n. Table I shows the parameters used in the simulations. Note that we use a threshold=0.75 when generating
Fig. 10. Simulation setup for the performance evaluation of the visual state estimator.
the training data for the ESNs. Moreover, the param-eters used to create the ESNs (found empirically) are
nr=90 neurons (for all three ESNs) and m =0.5, 0.6 and 0.8 for xi, yi and dx respectively.
5.2 Simulation results
There are three visual state estimators used to compare the performance: Kalman filter (KF), self-tuning Kalman filter using linear regression (STKF-LR) [25], and the proposed self-tuning Kalman filter using ESN (STKF-ESN). Table II shows the average results of MSE measurements as the threshold value=1 and
=0 in the simulations (out of 40 simulations for each ). In Table II, the bold font denotes the smallest value
of the MSE measurement across each row.
From Table II, we observe that the estimation results of KF and STKF-LR are very sensitive to the intensity of the observation noise. As the threshold value
increases from 0 to 1, the average MSE
measure-ments also increase apparently. Moreover, when the threshold value=1 (the observation signal always has the largest noise intensity), the proposed STKF-ESN provides the best estimation results compared with the other two estimators. Note that STKF-LR uses the measurement offset for the computation of observation variance. Please refer to[25] for more details.
Table II also records the MSE gap between=1 and=0. A small MSE gap implies a large robustness against the intensity of observation noise. Table II shows that the MSE gaps of KF and STKF-LR for all esti-mates are larger than that of STKF-ESN. This implies that the proposed STKF-ESN provides high robustness against the observation uncertainty compared with KF and STKF-LR. Therefore, the simulation results vali-date the performance and robustness of the proposed ESN-based visual state estimator.
5.3 Experiment setup
Fig. 11 shows the experimental mobile robot,
RoLA, used in the experiments. RoLA stands for robot
of living aid, designed to provide immediate medical care for the elderly. It includes several functions such as location-aware detection, pose estimation, visual tracking and video transmission. For visual tracking and video transmission functions, a pan-tilt USB camera is mounted on the robot to detect and track the user’s face. In the experiments, the linear and angular command velocities (vmf,wmf) are used to control the motion of the mobile robot and the tilt command velocity
wm
t is used to control the tilt angle of the pan-tilt camera (the pan angle of the camera is constant). Fig. 12 depicts the implemented visual tracking control system utilizing the proposed ESN-based visual state estimator to estimate the system state and target image velocity. The processing time of the visual tracking system is less than 80 ms including face tracking algo-rithm, estimator and controller computations. Thus, the overall tracking system can track the user’s face in real-time.
5.3.1 Experimental results of face tracking under illumination variation
In the experiments, RoLA aims to track the user’s face in a practical environment with hand-controlled light-variation situations, which make the intensity of observation noise position-dependent. Thus, the proposed ESN-based visual state estimator plays an important role in overcoming the position-dependent observation noise. Note that the ESN parameters used in the experiments are the same as that used in the simulations.
Fig. 13 shows the experimental results of the implemented visual tracking control system given in Fig. 12. Figs 13(a1)–(a3) illustrate recorded pictures from a digital video (DV) camera, and Figs 13(b1)– (b3) show the corresponding pictures recorded by the on-board USB camera. In Figs 13(a1)–(a3), the tracked person was walking in an environment with light-variation, and the robot tracked the person’s face as expected. As shown in Figs 13(b1–b3), the person’s face suddenly became darker due to a rapid decrease in illumination. In such situations, the proposed face tracking algorithm works to adapt to the change in the skin color. However, the update of new skin color model results rapid random noises in the observation of system state. To overcome this problem, the ESNs work to provide a stable output even when the observation contains rapid random noises. Therefore, the robot still estimated and tracked the person’s face in the image plane stably. Note that the image sequence shown in Fig. 13 is about 1 second.
D 40 cm Distance between two drive wheels
T 80 ms Sampling period of the control system
y 10 cm Distance between the robot head and the camera
(¯xi, ¯yi, ¯dx) (0,0,35) Desired system state in image plane
(1,2,3) (1, 3/2, 2/5) Three distinct positive constants Q0 diag(5, 5, 5, 20, 20, 20) Initial propagation covariance matrix
Table II. Average MSE measurements of computer simulations.
MSE Value KF STKF-LR STKF-ESN
xi =1 1.1979 1.8969 0.7885 =0 0.1766 0.6639 0.1720 MSE Gap 1.0212 1.2330 0.6164 yi =1 1.1488 1.3223 0.5644 =0 0.1544 0.3160 0.3076 MSE Gap 0.9944 1.0063 0.2568 dx =1 4.4150 2.7493 0.9879 =0 0.1825 0.1951 0.1404 MSE Gap 4.2324 2.5542 0.8476 ˙xt i =1 18.0588 23.5390 16.0603 =0 13.6167 17.2235 13.4824 MSE Gap 4.4421 6.3155 2.5778 ˙yt i =1 6.1635 5.2398 2.2938 =0 1.4735 2.0022 1.6126 MSE Gap 4.6900 3.2376 0.6812 ˙dt x =1 14.9345 6.1500 1.5352 =0 0.6867 0.7696 0.4380 MSE Gap 14.2479 5.3805 1.0972

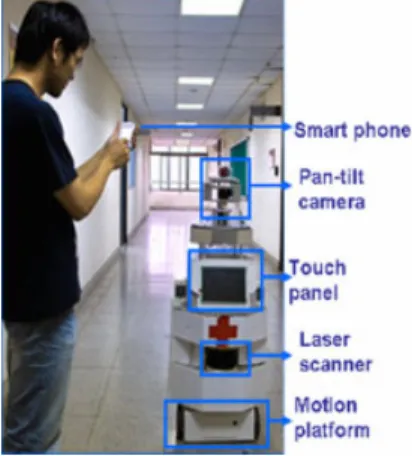

Fig. 11. An elder-care mobile robot, Rola, used in the experiments.
Subsequently, the tracked person was walking in the environment with a low illumination. Fig. 14 illus-trates the experimental results under this situation. As
shown in Figs 14(a1)–(a3) and Figs 14(b1)–(b3), the environment and person’s face suddenly became lighter due to a rapid increase in illumination, and the proposed face tracking algorithm still works to obtain an optimal skin color model to keep tracking the detected face. In this case, the proposed face tracking algorithm and ESNs both have stable outputs even when the illumina-tion is suddenly changed. Therefore, the experimental results show that the proposed face tracking algorithm and ESN-based visual state estimator can track the face under illumination variation and remove the undesired noise in observation, respectively. Note that the image sequence shown in Fig. 14 is about 2 seconds.
Fig. 15 presents the recorded experimental results of face tracking under illumination variation. Figs 15(a)–(c) show a comparison between the observed error states (the dotted lines with spikes) and the corresponding ESN outputs (the solid lines), and the estimated ones (denoted by x∗e, ye∗, and de∗). From Figs 15(a)–(c), we see that the observation noise caused
Fig. 12. Block diagram of the implemented visual tracking control system, which includes the proposed ESN-based visual state estimator.
(a1) (a2) (a3)
(b1) (b2) (b3)
Fig. 13. Experimental results. (a1)–(a3): Image sequence recorded from a DV camera. (b1)–(b3): Corresponding image sequence recorded from on-board USB camera. In the pictures (b1)–(b3), the green window indicates the observation, and the blue window is the corresponding output of ESNs.
(a1) (a2) (a3)
(b1) (b2) (b3)
Fig. 14. Experimental results. (a1)–(a3): Image sequence recorded from a DV camera. (b1)–(b3): Corresponding image sequence recorded from on-board USB camera. In the pictures (b1)–(b3), the green window indicates the observation, and the blue window is the corresponding output of ESNs.
by the effect of illumination variation is removed efficiently by utilizing the proposed ESN-based visual state estimator. Fig. 15(d) shows the control velocities of both mobile robot and tilt camera.
Remark 3. In Fig. 15(a), we observe that the ESN
output of tracking error xe is bounded in (−60,60). This is caused by that the reference (or teacher output) of training data used in training process is bounded in the same range. The main reason to do this is as follows. Empirically, a large tracking error value leads a large control velocity output. Because there is usually a velocity limitation on the motion of a practical mobile robot (≤20cm/s in the experiments), a mechanism is required to guarantee that the control velocity output satisfies the velocity limitation. This can be achieved by bounding the output of system estimator, which usually leads a bounded command output of system controller. With ESN, this can be achieved in a strict way by post-processing the output given by (14) with a bounding function or by putting a hard limit on the weights of the readout matrix Wout(as the activity of each neuron is bounded due to the hyperbolic tangent non-linearity). However, it is usually sufficient to only use a bounded training dataset when training the ESN, and this is the approach we use here. The boundary of the ESN output can then be adjusted by the boundary of the training dataset.
5.3.2 Experimental results of face tracking with occlusion robustness
Fig. 16 shows the recorded images of the mobile robot interacting with a walking person in the exper-iment of face tracking with temporary occlusion. Figs 16(a1)–(a3) and 16(b1)–(b3), respectively, show the recorded photos of the experimental scenario by a DV camera and the on-board USB camera. In the experiment, the person walked around in the room, and the mobile robot kept tracking the person’s face by the tilt camera (Figs 16(a1) and 16(b1)). When the person was walking, another person passed between the tracked person and the robot temporarily (Fig. 16(a2)). Thus, in Fig. 16(b2), the person’s face was temporarily fully blocked by the passing person. Based on the proposed self-tuning Kalman filter algorithm, the propagation information will dominate the estima-tion results in this situaestima-tion even if the target is fully unobservable. Therefore, the visual state estimator still estimated the positions and velocities of the person’s face in the image plane successfully even during full occlusion conditions (Figs 16(a3) and (b3)). Therefore, based on the above experiments of face tracking with illumination variation and occlusion, the robust estimation performance of the proposed face tracking interaction control system is verified. Several video clips of mobile robot visual tracking experimental results are available online in[38].
Fig. 15. Experimental results of the proposed visual tracking controller combined with ESN-based visual state estimator. The observed tracking errors (a) xe, (b) ye, (c) de (dotted lines) compared with the corresponding ESN outputs (solid lines), and the estimated tracking errors (a) xe, (b) ye, (c) de. (d) Command velocities of mobile robot and tilt camera.
5.4 Robustness property of ESN noise filter
Although conventional Kalman filters have a little robustness against some special disturbances, the optimality of the Kalman filter cannot be guaranteed under the condition that the statistics of the obser-vation noise is non-Gaussian and colored. In order to overcome this problem, the proposed self-tuning Kalman filter employs an ESN noise filter to filter the colored observation noise and output the filtered observation with Gaussian white noise, which satisfies the optimal condition of the Kalman filter. In other words, the robustness of the conventional Kalman filter can be enhanced without any modification to handle
colored observation noise by combining an ESN noise filter with a self-tuning algorithm. This section utilizes the colored random noise defined in (28) and three general types of noises, the Gaussian white noise, uniform white noise, and colored noise, to validate the noise filtering capability of ESN noise filter. The colored noise (k) is modeled by a shaping filter with a Gaussian white noise such that
(k +1)= (k)+ε(k), (29)
where=0.95 is the transition matrix of the shaping filter, andε(k)∈[−1,1] is a Gaussian white noise with zero mean and variance 1.
(a1) (a2) (a3)
(b1) (b2) (b3)
Fig. 16. Experimental results. (a1)–(a3): Image sequence recorded from a DV camera. (b1)–(b3): Corresponding image sequence recorded from on-board USB camera. In the pictures (b1)–(b3), the green window indicates the estimation result of the proposed ESN-based visual state estimator.
One of the three independent ESNs used in the experiments is used to demonstrate the noise filtering capability. The simulation results are shown in Fig. 17, which presents the error distribution of ESN input and output data. In Fig. 17, the red curves are the fitting results of the actual distribution by a polynomial curve fitting method. Figs 17(a), (b), (c), and (d) show the results of Gaussian white noise, uniform white noise, shaping filter colored noise (29), and colored random noise given by (28), respectively. In Fig. 17, x denotes the normalized random variable of error distribution, and p(x) is the corresponding probability density func-tion. From Fig. 17, we have the following findings.
1. The error distributions of all ESN output data (the filtered observation) are close to Gaussian white noise.
2. In Fig. 17(a), the error distributions of ESN input and output data are all Gaussian. This means that the optimal condition of the Kalman filter will not be changed by directly using the output measure-ment of the ESN noise filter.
3. Since the colored random noise (28) was used in the training data set, the ESN noise filter provides the best filtering results (the minimum variance of output error distribution) compared to the others. This result also explains why the proposed STKF-ESN has stronger robustness than the general KF and STKF-LR shown in Table II.
4. Because the colored random noise (28) is gener-ated by uniform white noise, the trained ESN noise filter also has good performance to filter uniform white noise as shown in Fig. 17(b).
Therefore, based on the above findings, the conventional Kalman filter can guarantee to provide the optimal esti-mation for ESN output measurement, which implies that the robustness of the conventional Kalman filter can be improved to handle Gaussian white noise and colored random noise as we expected.
VI. CONCLUSION
In this paper, a robust visual tracking control system for a wheeled mobile robot is proposed based on ESN-based self-tuning Kalman filter algorithm and visual tracking control techniques. This design can be applied to several visual tracking applications, such as visual tracking control, visual surveillance, and visual navigation, etc. for a wheeled mobile robot to interact with a target in the image plane. One of the main contri-butions of the proposed ESN-based self-tuning Kalman filter is that the robustness of the original Kalman filter can be improved against not only white noise, but also colored noise without any modification. In order for the robot to interact with the user by visual tracking control, the proposed system is combined with a real-time
Fig. 17. Error distribution of ESN input and ESN output data. ESN Input data with (a) Gaussian white noise, (b) uniform white noise, (c) colored noise modeled by the shaping filter (29), and (d) colored noise given by (28). It is clear that the error distributions of all ESN output data are close to Gaussian white noise. Note that all distributions were normalized.
face tracking algorithm to detect and track the user’s face in the image plane. One merit of the proposed real-time face tracking algorithm is that the proposed ASCS method can overcome the problem of illumi-nation variation during visual tracking processing. By combining the proposed real-time face tracking algo-rithm with the robust visual tracking control system, the performance of the mobile robot face tracking interaction control is thus enhanced to cope with the observation uncertainty caused by colored noise, illu-mination variation and occlusion. This advantage is very useful in robotic applications, since the obser-vation uncertainty usually varies with the conditions of target motion and working environment. Computer
simulations show that the proposed ESN-based visual state estimator provides high robustness against the colored observation noise with time-varying intensity by comparing with the conventional Kalman filter and the linear regression based self-tuning Kalman filter. Moreover, experimental results also verify the tracking performance of the proposed mobile robot face tracking interaction control system in a practical environment under light-varying and occlusion conditions.
REFERENCES
1. Mariottini, G. L., G. Oriolo, and D. Prattichizzo, “Image-based visual servoing for nonholonomic
Trans. Robot., Vol. 22, No. 2, pp. 407–416 (2006).
3. Coulaud, J-B., G. Campion, G. Bastin, and M. D. Wan, “Stability analysis of a vision-based control design for an autonomous mobile robot,” IEEE
Trans. Robot., Vol. 22, No. 5, pp. 1062–1069
(2006).
4. Malis, E. and S. Benhimane, “A unified approach to visual tracking and servoing,” J. Robot. Auton.
Syst., Vol. 52, No. 1, pp. 39–52 (2005).
5. Freda, L. and G. Oriolo, “Vision-based interception of a moving target with a nonholonomic mobile robot,” J. Robot. Auton. Syst., Vol. 55, No. 6, pp. 419–432 (2007).
6. Han, Y. and H. Hahn, “Visual tracking of a moving target using active contour based SSD algorithm,” J.
Robot. Auton. Syst., Vol. 53, No. 3–4, pp. 265–281
(2005).
7. Chou, Y.-T. and P. Bajcsy, “Toward face detection, pose estimation and human recognition from hyperspectral imagery,” Automated Learning
Group, National Center for Supercomputing Applications, Technical Report (2004).
8. Sobottka, K. and I. Pitas, “Face localization and feature extraction based on shape and color information,” Proc. IEEE Int. Conf. Image Process., Lausanne, Switzerland, pp. 483–486 (1996). 9. Jang, G.-J. and I.-S. Kweon, “Robust object
tracking using an adaptive color model,” Proc.
IEEE Int. Conf. Robot. Autom., Seoul, Korea,
pp. 1677–1682 (2001).
10. Stern, H. and B. Efros, “Adaptive color space switching for face tracking in multi-colored lighting environments,” Proc. 5th IEEE Int. Conf.
Auton. Face Gesture Recognit., Washington, DC,
pp. 236–241 (2002).
11. Lee, Y.-B., B.-J. You, and S.-W. Lee, “A real-time color-based object tracking robust to irregular illumination variation,” Proc. IEEE Int. Conf.
Robot. Autom., Seoul, Korea, pp. 1659–1664
(2001).
12. Yang, M.-H., D. J. Kriegman, and N. Ahuja, “Detecting faces in images: a survey,” IEEE
Trans. Pattern Anal. Mach. Intell., Vol. 24, No. 1,
pp. 34–58 (2002).
13. Chaumette, F. and S. Hutchinson, “Visual servo control part I: basic approaches [tutorial],” IEEE
Robot. Autom. Mag., Vol. 13, No. 4, pp. 82–90
(2006).
navigation for a nonholonomic mobile robot,” IEEE
Trans. Robot. Autom., Vol. 15, No. 3, pp. 521–536
(1999).
16. Zhang, H. and J. P. Ostrowski, “Visual motion planning for mobile robots,” IEEE Trans. Robot.
Autom., Vol. 18, No. 2, pp. 199–208 (2002).
17. Fang, Y., W. E. Dixon, D. M. Dawson, and P. Chawda, “Homography-based visual servo regulation of mobile robots,” IEEE Trans. Syst.
Man Cybern. Part B-Cybern., Vol. 35, No. 5,
pp. 1041–1049 (2005).
18. Xu, L.-Q. and D. C. Hogg, “Neural networks in human motion tracking – An experimental study,”
Image Vis. Comput., Vol. 15, No. 8, pp. 607–615
(1997).
19. Ghosh, B. K. and E. P. Loucks, “A perspective theory for motion and shape estimation in machine vision,” SIAM J. Control Optim., Vol. 33, No. 5, pp. 1530–1559 (1995).
20. Ghosh, B. K., H. Inaba, and S. Takahashi, “Identification of Riccati dynamics under perspective and orthographic observations,” IEEE
Trans. Autom. Control, Vol. 45, No. 7, pp. 1267–1278 (2000).
21. Chen, X. and H. Kano, “A new state observer for perspective systems,” IEEE Trans. Autom. Control, Vol. 47, No. 4, pp. 658–663 (2002).
22. Dixon, W. E., Y. Fang, D. M. Dawson, and T. J. Flynn, “Range identification for perspective vision systems,” IEEE Trans. Autom. Control, Vol. 48, No. 12, pp. 2232–2238 (2003).
23. Chitrakaran, V., D. M. Dawson, W. E. Dixon, and J. Chen, “Identification of a moving object’s velocity with a fixed camera,” Automatica, Vol. 41, No. 3, pp. 553–562 (2005).
24. Tsai, C.-Y. and K.-T. Song, “Dynamic visual tracking control of a mobile robot with image noise and occlusion robustness,” Image Vis.
Comput., Vol. 27, No. 8, pp. 1007–1022 (2009).
25. Tsai, C.-Y., K.-T. Song, X. Dutoit, H. Van Brussel, and M. Nuttin, “Robust mobile robot visual tracking control system using self-tuning Kalman filter,” Proc. IEEE Int. Symp. Comp. Intell.
Robot. Autom., Jacksonville, Florida, pp. 161–166
(2007).
26. Schutter, J. D., J. D. Geeter, T. Lefebvre, and H. Bruyninckx, “Kalman filters: a tutorial,” Journal
27. Korniyenko, O. V., M. S. Sharawi, and D. N. Aloi, “Neural network based approach for tuning Kalman filter,” Proc. IEEE Int. Conf. Electron./Inf. Technol., Lincoln, Nebraska,
pp. 1–5 (2005).
28. Xiong, S.-S. and Z.-Y. Zhou, “Neural filtering of colored noise based on Lalman Filter structure,”
IEEE Trans. Instrument. Measure, Vol. 52, No. 3,
pp. 742–747 (2003).
29. Jaeger, H. “The ‘Echo State’ approach to analysing and training recurrent neural networks,”
German National Research Center for Information Technology, Technical Report (2001).
30. Gibson, J. D., B. Koo, and S. D. Gray, “Filtering of colored noise for speech enhancement and coding,”
IEEE Trans. Signal Process., Vol. 39, No. 8,
pp. 1732–1742 (1991).
31. Tsai, C.-Y. and K.-T. Song, “Visual tracking control of a wheeled mobile robot with system model and velocity quantization robustness,” IEEE Trans.
Control Syst. Technol., Vol. 17, No. 3, pp. 520–527
(2009).
32. Jaeger, H., M. Lukoˇseviˇcius, D. Popovici, and U. Siewert, “Optimization and applications of Echo state networks with leaky integrator neurons,”
Neural Netw., Vol. 20, No. 3, pp. 335–352
(2007).
33. Schrauwen, B., J. Defour, D. Verstraeten, and J. Van Campenhout, “The introduction of time scales in reservoir computing, applied to isolated digits recognition,” Proc. Springer Int. Conf. Artif. Neural
Netw., Part I—Lec. Notes Comput. Sci., Porto,
Portugal, pp. 471–479 (2007).
34. Jaeger, H., “A tutorial on training recurrent neural networks, covering BPPT, RTRL, EKF and the ‘echo state network’ approach,” German National
Research Center for Information Technology, Technical Report (2002).
35. Garcia, C. and G. Tziritas, “Face detection using quantized skin color regions merging and wavelet packet analysis,” IEEE Trans. Multimedia, Vol. 1, No. 3, pp. 264–277 (1999).
36. Song, K.-T. and W.-J. Chen, “Face recognition and tracking for human-robot interaction,” Proc. IEEE
Int. Conf. Syst. Man Cybern., Hague, Netherlands,
pp. 2877–2882 (2004).
37. Bradski, G. R. and S. Clara, “Computer vision face tracking for use in a perceptual user interface,”
Intell. Technol. J., Vol. 2, No. 2, pp. 1–15
(1998).
38. The experiment video website, http://isci.cn.nctu. edu.tw/video/RVTS ESN/.
Chi-Yi Tsai was born in
Kaoh-siung, Taiwan, Republic of China in 1978. He received the B.S. and M.S. degrees in Electrical Engineering from National Yunlin University of Science and Technology, Yunlin, Taiwan, in 2000 and 2002, respec-tively. He received the Ph.D. degree in Electrical and Control Engi-neering, at the National Chiao Tung University, Taiwan, in 2008. From September 2007 to August 2009, he was a software engineer in soft-ware R&D department of softsoft-ware R&D division, ASUSTek Computer Incorporation. From September 2009 to January 2010, he was an assistant researcher in Chung-Shan Institute of Science & Technology, Taiwan. He is currently an assistant professor in department of electrical engineering, Tamkang University, Taiwan. His research interests include image processing, color enhancement processing, visual tracking control for mobile robots, visual servoing and computer vision.
Xavier Dutoit was born in Switzerland in 1981. He received his M.S. degree in Communica-tions Systems from the Ecole Poly-technique Federale de Lausanne, Switzerland, in 2004. From 2005 to 2010, he was conducting research in machine learning and mobile learning robots at the Katholieke Universiteit of Leuven, Belgium, where he received his Ph.D. in engineering in 2010.
Kai-Tai Song was born in Taipei,
Taiwan, in 1957. He received the B.S. degree in Power Mechanical Engineering from National Tsing Hua University in 1979 and the Ph.D. degree from the Katholieke Universiteit Leuven, Belgium in 1989. He was with Chung Shan Institute of Science and Tech-nology from 1981 to 1984. Since 1989 he has been on the faculty and is currently a Professor in the Department of Electrical Engineering, National Chiao Tung University, Taiwan. From 2007 to 2009, he was the Associate Dean of Research & Development Office of the university. Since 2009, he also serves as the Director of Institute of Electrical and Control Engineering, National Chiao Tung University.
Prof. Hendrik Van Brussel
(1944), is full Professor of Mecha-tronics and Automation at the Faculty of Engineering, Katholieke Universiteit Leuven (K. U. Leuven), Belgium, and Chairman of the Division of Production Engineering, Machine Design and Automation (PMA), Department of Mechanical Engineering.
He was a pioneer in robotics research in Europe and an active promoter of the mechatronics idea as a new paradigm in machine design. He has published exten-sively on different aspects of robotics, mechatronics and flexible automation. His present research interest is also shifting towards holonic manufacturing systems, behaviour based robots, and micro and precision engi-neering, including microrobotics.
He is a Fellow of SME and IEEE. He was Pres-ident of CIRP (International Academy for Production
and Nanotechnology).
Marnix Nuttin was born in 1969 in Belgium. He obtained his engineering degree from the Katholieke Universiteit Leuven in 1992, and his Ph.D. in 1998. He has been conducting research on mobile learning robots from 1992 to 2008 in the Department of Mechanical Engineering. He developed learning techniques for Programming by Demonstration and adaptive shared autonomy for wheelchair control. He participated in the ITEA AMBIENCE project (context-aware environ-ments for ambient services). In FP6 he was principle investigator of the projects MOVEMENT (Modular Versatile Mobility Enhancement Technology), MAIA (Non Invasive Brain Interaction with Robots) and DYNAVIS (Dynamically Reconfigurable Quality Control). He is currently affiliated with the Faculty of Engineering.
