Nanomechanical properties of GaSe thin films deposited on Si(1 1 1) substrates
by pulsed laser deposition
Sheng-Rui Jian
a,⇑, Jenh-Yih Juang
b, Chih-Wei Luo
b, Shin-An Ku
b, Kaung-Hsiung Wu
ba
Department of Materials Science and Engineering, I-Shou University, Kaohsiung 840, Taiwan
b
Department of Electrophysics, National Chiao Tung University, Hsinchu 300, Taiwan
a r t i c l e
i n f o
Article history: Received 10 June 2012
Received in revised form 17 July 2012 Accepted 19 July 2012
Available online 27 July 2012 Keywords: GaSe thin films XRD Nanoindentation Hardness
a b s t r a c t
The correlations between the crystalline structure and mechanical properties of GaSe thin films were investigated by means of X-ray diffraction (XRD) and nanoindentation techniques. The GaSe thin films were deposited on Si(1 1 1) substrates deposited at various deposition temperatures using pulsed laser deposition (PLD). The XRD results indicate that all the GaSe thin films are pure hexagonal phase with highly (0 0 0 l)-oriented characteristics. Nanoindentation results revealed apparent discontinuities (so-called multiple ‘‘pop-in’’ events) in the load-displacement curve, while no discontinuity was observed in the unloading segment of the load-displacement curve. The hardness and Young’s modulus of GaSe thin films determined by the continuous stiffness measurements (CSM) method indicated that both mechanical parameters increased with the increasing deposition temperature with the hardness and the Young’s modulus being increased from 1.2 ± 0.1 to 1.8 ± 0.1 GPa and from 39.6 ± 1.2 to 68.9 ± 2.7 GPa, respectively, as the deposition temperature was raised from 400 to 475 °C. These results suggest that the increased grain size might have played a prominent role in determining the mechanical properties of the PLD-derived GaSe thin films.
Ó 2012 Elsevier B.V. All rights reserved.
1. Introduction
Recently, enormous research interest has been focused on lay-ered III–VI semiconducting compounds. The burst of interest has partly arisen from the emergent physical properties associated with the quasi-two-dimensional natures of these compounds and partly because of their attractive technological applications. Among the family of layered III–VI semiconductors, gallium sele-nide (GaSe) is one of the materials subjected to extensive re-searches, owing to the peculiar nonlinear optical properties exhibited in this material. A quadruple layer of GaSe consists of two Ga and two Se sub-layers in the sequence of Se–Ga–Ga–Se, where the Se–Ga and Ga–Ga bonds are covalent within the layers and the Se-Se bond between adjacent quadruple layers is due to van der Waals forces[1,2]. GaSe thin films have been successfully
prepared by using vapour deposition [3,4] and molecular beam
epitaxy[5,6] techniques. Compared to these growth techniques, pulsed laser deposition (PLD) is a relatively new technique used widely for the growth of multi-element materials such as ferro-electrics[7]and superconductors [8]due to its high-energy flux and capability of preserving the stoichiometries from the target materials. The growth rate achieved by PLD can be easily varied
by adjusting the repetition rate and energy density of laser pulses, which is useful for both atomic level investigations and for growing thick layer of films within reasonable time durations. Moreover, the PLD method can also offer the potential of growing high-quality thin films at relatively lower substrate temperatures as compared to other techniques. Therefore, we have tried to grow the GaSe thin films by using PLD method in this study.
Over the last several years, there have been growing interest of fabricating GaSe-based optical and electronic devices using the established thin-film technologies widely adopted in semiconduc-tor industries[9,10]. However, while most of the researches have been concentrated on the devices’ electrical and optical character-istics, the investigations on the mechanical properties of GaSe thin films have not drawn equal attention, albeit that an accurate assessment on the mechanical properties of GaSe thin films is also very crucial in order to obtain the optimal robustness and functionalities of the targeted devices. To this regard, nanoinden-tation has been widely used for characterizing the mechanical properties of various nanomaterials[11–13]and thin films[14– 16], due to its high sensitivity and excellent resolution for obtain-ing the hardness, Young’s modulus and elastic/plastic deforma-tion behaviors in a relatively easier fashion. The primary focus of the present study is to provide insights into the structural and nanomechanical properties of GaSe thin films deposited on Si(1 1 1) substrates at various deposition temperatures by PLD
0925-8388/$ - see front matter Ó 2012 Elsevier B.V. All rights reserved.
http://dx.doi.org/10.1016/j.jallcom.2012.07.089
⇑Corresponding author. Tel.: +886 7 6577711x3130; fax: +886 7 6578444. E-mail address:[email protected](S.-R. Jian).
Journal of Alloys and Compounds 542 (2012) 124–127
Contents lists available atSciVerse ScienceDirect
Journal of Alloys and Compounds
with the aids of X-ray diffraction (XRD) and nanoindentation techniques.
2. Experimental details
The GaSe thin films investigated in this study were deposited on Si(1 1 1) sub-strates at the deposition temperatures of 400, 425 and 475 °C, respectively, by pulsed laser deposition (PLD). The target used was a GaSe single crystal grown by the vertical Bridgeman method. All of the GaSe thin films are about 200 nm thick. The structural features of GaSe thin films were examined by X-ray diffraction (XRD; Bruker D8 Advance TXS with Cu-Karadiation, k = 1.5406 Å).
The nanoindentation measurements were performed on a Nanoindenter MTS NanoXPÒ
system (MTS Cooperation, Nano Instruments Innovation Center, TN, USA) with a pyramid-shaped Berkovich-type diamond indenter tip, whose radius of curvature is 50 nm. The mechanical properties (the hardness and Young’s mod-ulus) of GaSe thin films were measured by nanoindentation with a continuous stiff-ness measurements (CSM) technique[17]. In this technique, a small sinusoidal load with known frequency and amplitude was superimposed onto the quasi-static load. It results in a modulation of the indenter displacement that is phase shifted in re-sponse to the excitation force. The stiffness, S of the material, and the damping, wC, along indentation loading can be respectively calculated using Eqs.(1)and
(2)expressed below. S ¼ Pmax 1 hðwÞcos U ðKs mw2Þ K1 f " #1 ð1Þ wC ¼ P0 hðwÞsin U ð2Þ
where Pmaxand hðwÞ are denoted as the driving force and the displacement response
of the indenter, respectively;Uis the phase angle between Pmaxand hðwÞ; m is the
mass of the indenter column; Ksis spring constant at the vertical direction; Kfis
frame stiffness; m, Ksand Kfare all constant values for specified indentation system;
w is angular speed which equals to 2pf ; f is the driven frequency of the ac signal of 45 Hz for this work, which is used to avoid the sensitivity to thermal drift. The load-ing resolution of the system was 50 nN. The hardness and elastic modulus are, then, calculated by putting the obtained stiffness data into Eqs. (3) and(4)shown below, respectively. H ¼Pmax Ac ð3Þ E 1
v
2¼ ffiffiffiffi p p 2 1 ffiffiffiffiffi Ac p S ð4ÞHere,vis the Possion’s ratio of the material and is set to be 0.25 for the current analysis, and Acis contact area when the material in contact with indenter being
loaded at Pmax:In this way, the hardness and modulus as a function of penetration
depth can be determined for a single loading/unloading cycle[18].
The area function, which is used to calculate contact area, Ac;from contact
depth, hc, was carefully calibrated by using fused silica as the standard sample prior
to the nanoindentation experiments. The nanoindentation tests were carried out in the following sequence: first of all, the Berkovich indenter was brought into contact with the surface at a constant strain rate of 0.05 s1until 80 nm of penetration
was achieved. The load was then held at the maximum value for 10 s in order to determine the creep behavior. The Berkovich indenter was then withdrawn from the surface at the same rate until 10% of the maximum load was reached. This con-stant strain rate was chosen such that the strain-hardening effect can be avoided during the measurements. At least 20 indents were performed on each GaSe thin film. The nanoindentations were sufficiently spaced to prevent each test from mu-tual interactions.
3. Results and discussion
The XRD results of the PLD-derived GaSe thin films with various deposition temperatures are shown inFig. 1. It can be found that the intensity of (0 0 4) diffraction peak increases and the full width at half maximum (FWHM) of the (0 0 4) peak becomes narrower with the increasing deposition temperature and there is no other impurity phases or trace of amorphous regions discernible even from the diffraction pattern for film deposited at the lowest tem-perature of 400 °C. Moreover, the obtained corresponding d-spac-ing values are in good agreement with that reported for hexagonal-structured GaSe (JCPDS 37-0931). These indicate that all of the PLD-derived GaSe thin films are highly (00l)-oriented
and the crystalline quality is progressively improved as the depo-sition temperature is increased.
The grain size, D, of the corresponding thin films can be esti-mated according to the Scherrer’s equation[19]:
D ¼ 0:9k
B cos h ð5Þ
where k, B and h are the X-ray wavelength, the FWHM of GaSe (0 0 4)-oriented peak and the Bragg diffraction angle, respectively. The estimated grain sizes for GaSe thin films deposited at 400, 425 and 475 °C are 23.5, 30.8 and 51.2 nm, respectively.
The typical load-displacement curve for GaSe thin films depos-ited at the deposition temperature of 475 °C is displayed in
Fig. 2(a). The load-displacement response obtained by nanoinden-tation contains information about the elastic and plastic deforma-tion of the indented materials. Therefore, it is often regarded as a ‘‘fingerprint’’ of the film properties under identification. Mechani-cal properties, such as the hardness and Young’s modulus, can be readily extracted from the load-displacement curves like those dis-played inFig. 2(b) and (c).
The hardness and Young’s modulus as a function of penetration depth obtained by using the analyses described above are illus-trated inFig. 2(b) and (c), respectively, for GaSe thin films depos-ited at various temperatures. As shown inFig. 2(b), although the hardness-displacement plots exhibiting substantial differences in details, the behaviors can be roughly divided into two stages. Namely, the hardness initially increases with the penetration depth to a maximum value and then subsequently decreases to a constant value. The increase in hardness at small penetration depth is usually attributed to the transition between purely elastic to elastic/plastic contact and at this stage the measured mean con-tact pressure does not accurately represent the real hardness of the
Fig. 1. XRD patterns of GaSe thin films at various deposited temperatures. S.-R. Jian et al. / Journal of Alloys and Compounds 542 (2012) 124–127 125
material. Only under the condition of a fully developed plastic zone does the mean contact pressure represent the hardness. When there is no plastic zone, or only partially formed plastic zone, the
mean contact pressure is less than the nominal hardness[18]. After the first stage, the hardness decreases and reaches a constant va-lue, which could be regarded as intrinsic properties of the films. The obtained hardness for the GaSe thin films at the deposition temperatures of 400, 425 and 475 °C are 1.2 ± 0.1, 1.5 ± 0.2 and 1.8 ± 0.1 GPa, respectively. Furthermore, as displayed inFig. 2(c), the Young’s modulus as a function of the penetration depth deter-mined using the method of Oliver and Pharr[18]also shows a sim-ilar tendency as that of film hardness. The values of Young’s modulus for GaSe thin films are 39.6 ± 1.2, 61.7 ± 3.8 and 68.9 ± 2.7 GPa at the deposition temperatures of 400, 425 and 475 °C, respectively. Comparing to the hardness of 2.0 ± 0.4 GPa obtained from the bulk single crystal of GaSe[20], the hardness values of the present films appear to be considerably smaller. Nev-ertheless, the values of Young’s modulus of the films are substan-tially larger than the bulk value of 33 ± 3 GPa. The reason for these seemingly anomalous behaviors in mechanical properties is not clear at present and further microstructural analyses are certainly needed. However, the grain size and associated effects from grain boundaries presumably might have been playing some roles. It has been pointed out that, due to the influences of surface stress effect[21,22], the mechanical properties of materials can be very much size-dependent in the nanoscale regime. In particular, in a polycrystalline material where the dislocation activities are drasti-cally suppressed due to the reduced grain size, the deformation behavior will be dominated by grain boundary sliding and/or grain rotations, which in turn would give rise to the manifestations of in-verse Hall–Petch effect[23]. Namely, the material becomes stron-ger when the grain size is larstron-ger. In fact, similar behaviors have been experimentally observed in Ga-doped ZnO films reported elsewhere[14].
Turning back toFig. 2(a), it is evident that there exist multiple discontinuities along the loading course (indicated by the arrows). These features are apparently reflecting certain types of the plastic deformation processes in the material and are generally referred as multiple ‘‘pop-ins’’. The ‘‘pop-ins’’ are ubiquitously observed in materials with hexagonal crystalline structures and usually attrib-uted to indentation-induced nucleation of dislocations[24–26]. On the other hand, the reversal discontinuity occurs during unloading, the so-called ‘‘pop-out’’ event, commonly observed in Si is con-ceived to intimately relate to pressure-induced phase transforma-tion[27,28], which is not observed here. Within the context of the abovementioned scenarios, it is suggestive that the first pop-in event may reflect the transition from perfectly elastic to plastic deformation. In other words, it is the onset of plasticity in GaSe thin film. It is well known that the theoretical stress for the occur-rence of plastic deformation can be approximated as
s
c G=10 [29], which corresponds to the critical stress for initiating the gen-eration of dislocations. Here, (G ¼ E=2ð1 þv
Þ) is the shear modulus of GaSe thin films. According to the Tresca criterion and the Hertz-ian contact model for the indentation of a semi-infinite elastic material the maximum shear stress,s
max, can be calculated as[30]:s
max¼ 0:31 6PcE2p
3R2 !1=3ð6Þ

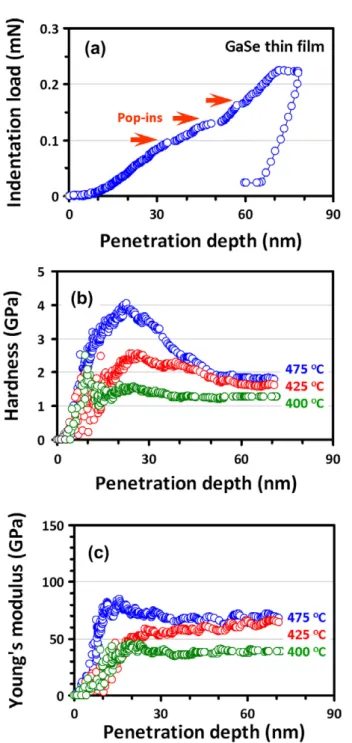

Fig. 2. Nanoindentation measurement results: (a) a typical load-displacement curve for GaSe thin film at 475 °C; (b) hardness–Displacement and (c) Young’s modulus–Displacement curves for GaSe thin films deposited at different temperatures.
