Review article
Na
+/K
+-ATPase inhibitors serve as active ingredients in many
Chinese medicines for the promotion of blood circulation
Ronald JY CHEN1, Tzyy-Rong JINN2, Yi-Ching CHEN1, Tse-yu CHUNG1, Wei-Hung YANG1,2,Jason TC TZEN1,2,3,*
1
Graduate Institute of Biotechnology and 2School of Chinese Medicine, China Medical University, Taichung, 40402, Taiwan, China; 3Agricultural Biotechnology Research Center, Academia Sinica, Taipei 11529, Taiwan, China
*Correspondence to Prof Jason T C TZEN.
Phn 886-4-2284-0328. Fax 886-4-2285-3527.
E mail [email protected]
Key words: cardiac glycoside, ginsenoside, magnesium lithospermate B, neuroprotection, Na+/K+-ATPase inhibitors, promoting blood circulation, steroid-like compound
Abstract
The positive inotropic effect of cardiac glycosides lies in their reversible inhibition on the membrane-bound Na+/K+-ATPase located in human myocardium. Steroid-like compounds containing a core structure similar to cardiac glycosides are found in many Chinese medicines conventionally used for promoting blood circulation. Some of them have been demonstrated to be Na+/K+-ATPase inhibitors, and thus are putatively responsible for the therapeutic effects via the same molecular mechanism triggered by cardiac glycosides. Instead of steroid-like compounds, magnesium lithospermate B is assumed to provide the cardiac therapeutic effect of danshen by effectively inhibiting Na+/K+-ATPase, too. Theoretical modeling suggests that the number of hydrogen bonds and the strength of hydrophobic interaction between the effective ingredients of various medicines and residues around the deep cavity of Na+/K+-ATPase are crucial for the inhibitory potency. Ginsenosides, the active ingredients found in ginseng and sanqi, substantially inhibit Na+/K+-ATPase when sugar moieties are attached only to C-3 position of their steroid-like structure, equivalent to the sugar position in cardiac glycosides. However, their inhibitory potency is abolished when sugar moieties are linked to C-6 or C-20 position of the steroid nucleus; presumably these sugar attachments lead to steric hindrance for the entrance of ginsenosides into the binding pocket of Na+/K+-ATPase. Neuroprotective effects of cardiac glycosides, several steroid-like compounds in Chinese medicines, and magnesium lithospermate B against ischemic stroke have been accordingly observed in a cortical brain slice-based assay model, and cumulated data support that effective Na+/K+-ATPase inhibitors in brain are potential drugs for the treatment of ischemic stroke.
Introduction
In an aging population, cardiovascular diseases, such as congestive heart failure, have gradually become serious health challenges. Congestive heart failure is generally defined as incapability of the heart to supply sufficient blood flow to meet the body's needs, and is frequently associated with significant influence on physical and mental health, resulting in a markedly decreased quality of life and even death[1]. Cardiac glycosides, such as digoxin, digitoxin and ouabain, are steroid-like compounds and have been a cornerstone of the treatment of congestive heart failure for more than two centuries, whereas severe side effects have been reported for cardiac glycosides[2, 3]. Moreover, the narrow therapeutic index (the margin between effectiveness and toxicity) of cardiac glycosides apparently limits their clinical application[4]. The existing remedies offer limited benefits with certain side effects, which has prompted investigators to search for complementary and alternative therapies and drugs.
Many traditional Chinese medicines have long been used in the treatment of various cardiovascular diseases, such as coronary heart disease, heart stroke and myocardial infarction, and some of them are effective in promoting blood circulation, removing blood stasis and supplementing vital energy[5, 6]. Although these medicines display considerable therapeutic effects with low toxicity, little is known about their primary active ingredients and the detailed pharmaceutical mechanisms. Nevertheless, these traditional Chinese medicines, on the basis of their experienced utilization in human history, are regarded as valuable sources to screen potential drugs for the treatment of cardiovascular diseases.
With the rapid evolution of technology, numerous constituents in traditional Chinese medicines have been isolated and structurally determined[7]. Abundant
steroid-like compounds, structurally similar to cardiac glycoside, have been found in many Chinese medicines used for promoting blood circulation[8, 9]. It is likely that these steroid-like compounds are responsible for the therapeutic effects of their corresponding medicines via the same molecular mechanism triggered by effective inhibition of Na+/K+-ATPase. In contrast, no appreciable contents of steroid-like compounds are found in danshen (Salvia miltiorrhiza), a well-known Chinese herb traditionally regarded as an effective medicine for promoting blood circulation[10]. Instead, magnesium lithospermateB (MLB), the major soluble ingredient in danshen, is assumed to be responsible for the therapeutic effect by inhibiting Na+/K+-ATPase in a manner comparable to cardiac glycosides.
This review summarizes Na+/K+-ATPase inhibitory potency of the active ingredients identified in the Chinese medicines used for promoting blood circulation. Molecular modeling and docking of these compounds to Na+/K+-ATPase reveal the difference in their inhibitory potency at molecular level. Potential usage of these active ingredients as brain Na+/K+-ATPase inhibitors for the treatment of ischemic stroke is also discussed.
Structure and function of Na+/K+-ATPase
Na+/K+-ATPase, a P-type ATPase also known as sodium pump, is an active transport system of sodium and potassium ions that is highly conserved in all animal cells. It commonly consumes 20-30% of the adenosine triphosphate (ATP) energy generated in animal cells at rest to actively transport three Na+ out of and two K+ into cells[11].It is generally composed of three subunits (α, β and γ subunits)[12-14] and these subunits have distinct properties with respect to its overall functions. The X-ray crystal structure of Na+/K+-ATPase has been recently resolved[15-17]. The α catalytic
subunit is a 112 kDa protein and contains sites important for ATP binding and phosphorylation as well as ion occlusion (Figure 1A). It also possesses an
ouabain-binding site of Na+/K+-ATPase (Figure 1B), the primary binding site for many pharmacological agents, such as cardiac glycosides, that affect pump activity[18].
Physiological functions of Na+/K+-ATPase have been deduced from its role as an ion pump. Specifically, the ability of Na+/K+-ATPase to establish and maintain ion gradients makes it essential for the generation and maintenance of electrical membrane potentials, which are necessary for neuronal excitability, transmission[19] and cardiac muscle contraction[20]. Na+/K+-ATPase also generates the Na+ gradient that is critical for the reabsorption of sodium ion and water from the glomerular filtrate in the nephron[21] and absorption of fluid from the lungs and intestine[22]. It can also drive secondary active co-/countertransporters, which are coupled to the gradient of extracellular to intracellular Na+ concentration, such as the sodium glucose cotransporter and the Na+/Ca2+ exchanger[23]. In addition, recent findings have suggested additional signaling modes of action of Na+/K+-ATPase[24-26], implicating
its regulation of several important cellular processes and highlighting potential therapeutic roles of its inhibitors (such as cardiac glycosides) in various diseases.
Inhibition of Na+/K+-ATPase by cardiac glycosides leading to a positive inotropic effect
Cardiac glycosides, such as ouabain and digoxin, are a diverse family of naturally derived compounds that bind to and inhibit Na+/K+-ATPase. They show considerable structural diversity, but all members of this family share a common steroidal framework, regarded as the pharmacophoric moiety responsible for the activity of these compounds[27]. Generally, this steroid core is double-substituted with an unsaturated lactone ring at position 17 and a sugar portion at position 3. The
lactone moiety of cardiac glycosides is critical for their potent inhibition of Na+/K+-ATPase. Although the sugar moiety does not greatly influence their biological activity, the addition of sugars to the steroid core affects the pharmacodynamic and pharmacokinetic profile of each glycoside[28].
Cardiac glycosides have been in clinical use for many years for the treatment of
congestive heart failure and cardiac arrhythmia, and the mechanism of their positive inotropic effect is well characterized. According to the most widely accepted molecular mechanism responsible for the therapeutic effect of cardiac glycosides, they act through reversible inhibition of Na+/K+-ATPase located in the membrane of heart muscle cells[29, 30]. In human heart, inhibition of the Na+/K+-ATPase leads to the accumulation of intracellular sodium ion, which decreases the sodium gradient across the membranes of cardiac muscle cells. This reduced sodium gradient in turn limits the activity of the Na+/Ca2+ exchanger in the cell membrane, which normally uses the sodium gradient for energy in the extrusion of calcium ion[31]. Each cardiac action potential is thus followed by elevated levels of residual intracellular calcium ion, and the net effect of which is to strengthen successive heart contractions[32].In this way,
inhibition of the Na+/K+-ATPase by cardiac glycosides produces beneficial effects in patients with congestive heart failure. However, severe side effects and narrow therapeutic index of cardiac glycosides have apparently limited their clinical applications[29].

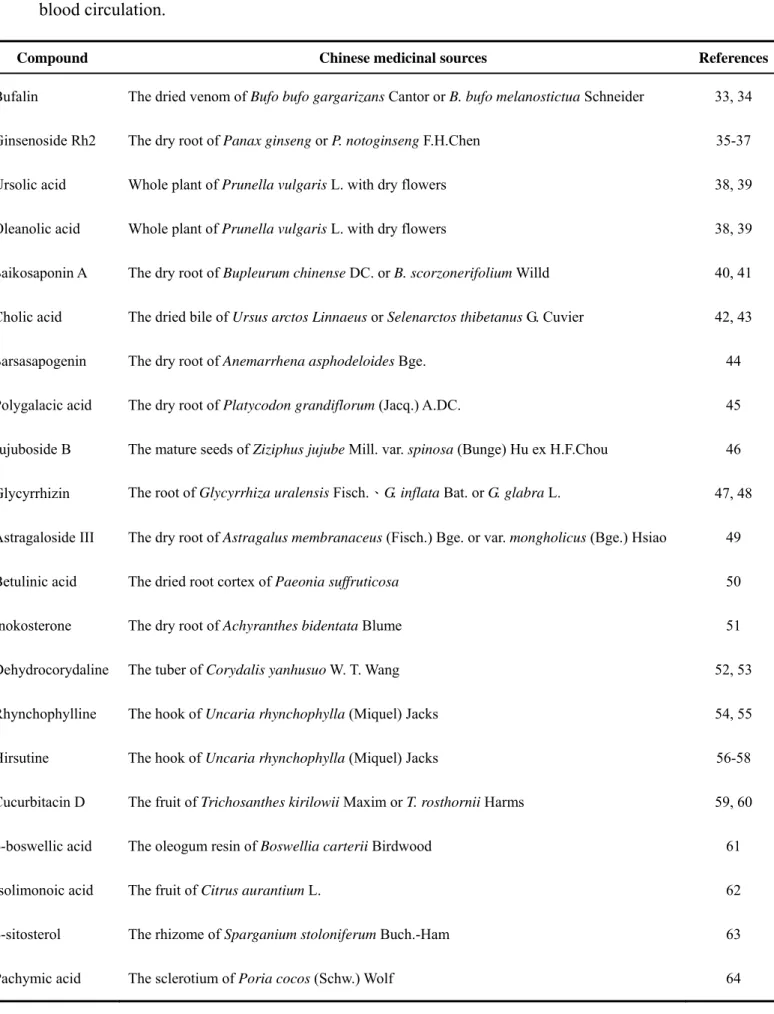

Steroid-like compounds in Chinese medicines for promoting blood circulation and their inhibitory potency on Na+/K+-ATPase
Promoting blood circulation, including improvement of hemodynamic and hemorheology and removing blood stasis, is already an accepted concept in traditional Chinese medicines. Many Chinese medicinal products traditionally used in the
treatment of cardiovascular diseases seem to achieve their therapeutic effects via promotion of blood circulation. A number of steroid-like compounds, such as triterpenoids, steroids and saponins, have been found in many Chinese medicinal products used for promoting blood circulation (Table 1), and regarded as the active ingredients responsible for their therapeutic effects[33-64]. In light of the structural similarity between the core structure of steroid-like compounds and the steroidal framework of cardiac glycosides, we propose that some of these medicines may possess therapeutic effects via inhibition of Na+/K+-ATPase by their steroid-like compounds[65]. Some of the steroid-like compounds listed in Table 1 are commercially available, and thus are subjected to Na+/K+-ATPase inhibition assay (Figure 2). The results show that all the examined steroid-like compounds found in Chinese medicines for promoting blood circulation displayed more or less inhibitory potency on Na+/K+-ATPase. Among these steroid-like compounds, bufalin (structurally almost equivalent to ouabain) exhibits significantly higher inhibitory potency than the others while ginsenoside Rh2, ursolic acid and oleanolic acid are relatively moderate inhibitors of Na+/K+-ATPase with IC
50 values around 50-100 μmol/L. Based on the
experimental observation of inhibitory potency of steroid-like compounds on Na+/K+-ATPase, the therapeutic effects of many cardiac Chinese medicines may be partly attributed to various steroid-like compounds that promote blood circulation via the same molecular mechanism triggered by cardiac glycosides, that is, accentuating the force of myocardial contraction by elevating calcium concentration via the inhibition of Na+/K+-ATPase.
Inhibition of Na+/K+-ATPase by MLB, a non-steroid compound, leading to the therapeutic effect of danshen
most popular Chinese medicines widely used in many medicinal preparations and formulae taken by people in several Asian countries. Traditionally it is regarded as an effective herb for promoting blood circulation, removing blood stasis, relieving pain, stimulating menstrual discharge, and relaxing the mind. Therefore, danshen has also been extensively used in the treatment of coronary heart disease, myocardial infarction, heart failure, menstrual disorders, and other cerebrovascular diseases[66]. The ingredients in Danshen are mainly divided into water-soluble and lipid-soluble compounds. Although some lipid-soluble constituents in this herb, such as tanshinones, have been conventionally considered the active ingredients[67, 68], the major water-soluble components, MLB, a derivative of caffeic acid tetramer, recently has also been demonstrated to possess several medicinal effects, such as vasodilating, antihypertensive, antioxidative, and free radical scavenging activities[69-73]. MLB possesses a relatively rigid structure due to the formation of salt bridges between Mg2+ and the four oxygen atoms of carboxyl groups from the four caffeic acid fragments.
In spite of being a non-steroid compound, MLB possesses potent inhibition on Na+/K+-ATPase in vitro[74]. The molecular organization and configuration of MLB in the 3D structure is somewhat similar to ouabain, a cardiac glycoside with a rigid steroid backbone (Figure 3A), although they are totally different compounds with distinct molecular weights (584.65 for ouabain and 740.67 for MLB). Based on experimental observation and theoretical modeling, we propose that MLB acts as the active component responsible for the cardiac therapeutic effect of danshen by the same molecular mechanism triggered by effective inhibition of cardiac glycosides on Na+/K+-ATPase (Figure 3B). In agreement with this mechanism, the intracellular Ca2+ levels of SH-SY5Y neuroblastoma cells treated with MLB are substantially elevated
in a manner similar to that observed in cells treated with ouabain[75]. The elevated Ca2+ levels seem to be supplied by both extracellular influx through the Na+/Ca2+ exchanger and intracellular release from endoplasmic reticulum.
Cell toxicity caused by cardiac glycosides at high concentrations has been noticed and blamed to their putative triggering of several signaling cascade responses that lead to cell death[76]. In contrast, MLB is generally regarded as an antioxidant without notable toxicity[74]. Similar results were found in our studies; severe cell toxicity accompanied with dendritic shrink was observed in SH-SY5Y cells treated with ouabain, but not in those treated with MLB[75]. Therefore, we surmise that MLB has a great potential, after clinical trials, to become a safer drug than cardiac glycosides.
Molecular modeling of potential inhibitors binding to Na+/K+-ATPase
Molecular modeling and docking of steroid-like compounds and MLB to the α subunit of Na+/K+-ATPase revealed the observed difference in their Na+/K+-ATPase inhibition at molecular level. The drastic difference observed in the inhibitory potency of these active ingredients is ascribed mainly to the number of hydrogen bonds (H-bonds) and partially to the strength of hydrophobic interaction between the compounds and residues around the deep cavity close to the two K+ binding sites of Na+/K+-ATPase (Figure 4). As expected from structural similarity, the interaction of bufalin with the binding pocket of Na+/K+-ATPase nearly matched to that of ouabain reported previously[16] with the unique lactone ring penetrating deeply into the cavity close to two K+ binding sites. Three H-bonds are formed between the lactone ring of ouabain and Ile328 and Ala330 of Na+/K+-ATPase, and two H-bonds between the hydroxyl group at C-14 of ouabain and Thr804 of Na+/K+-ATPase. In contrast, one H-bond is formed between the lactone ring of bufalin and Ala330 of Na+/K+-ATPase,
and two H-bonds between the hydroxyl group at C-14 of bufalin and Thr804 of Na+/K+-ATPase. Two H-bonds are formed between the hydroxyl groups at C-12 and C-20 of ginsenoside Rh2 and Asn129 and Thr804 of Na+/K+-ATPase, respectively. Strong hydrophobic interaction is found between the lactone ring of ouabain or bufalin and six hydrophobic residues (Ile327, Ile328, Val329, Ile787, Phe790, and Ile807) around the deep cavity of Na+/K+-ATPase. The hydrophobic interaction between the alkyl group of ginsenoside Rh2 and the same six hydrophobic residues is also found. Only one H-bond is formed between the carboxyl group of ursolic acid and Ile322 of Na+/K+-ATPase, and moderate hydrophobic interaction is found between the ring E of ursolic acid and four hydrophobic residues (Ile327, Val329, Phe790, and Ile807) of Na+/K+-ATPase. On the whole, no H-bond is formed between those steroid-like compounds of weak inhibitory potency and the binding pocket of Na+/K+-ATPase[65]. However, similar hydrophobic interaction is observed between the hydrophobic steroidal core of all the 12 steroid-like compounds examined and 8 other hydrophobic residues (Leu132, Tyr315, Ile322, Phe323, Ile325, Phe793, Ile794, and Leu802 located in the upper portions of the figures) around the binding pocket of Na+/K+-ATPase.
Three H-bonds are formed between the hydroxyl group at C-4 position of MLB and Lys912 (forming two H-bonds) and Glu915 (forming one H-bond) of Na+/K+-ATPase, one H-bond between the carbonyl group at C-9 position of MLB and Thr804 of Na+/K+-ATPase, and one H-bond between the hydroxyl group at C-4
position of MLB and Leu110 of Na+/K+-ATPase. Similar to the hydrophobic steroidal core of ouabain, the four aromatic rings of MLB form strong hydrophobic interaction with hydrophobic residues (Leu132, Tyr315, Ile322, Phe323, Ile325, Phe793, Ile794, and Leu802) around the binding pocket of Na+/K+-ATPase.
Effects of different sugar attachments to ginsenosides on Na+/K+-ATPase inhibitory potency
Ginsenosides are triterpenoidal saponins that have a common four ring hydrophobic steroid-like structure with various sugar moieties attached mostly at the C-3, C-6, or C-20 position (Figure 4). To date, more than 80 ginsenosides have been isolated from over ten Panax taxa, and most of them are derived from four types of aglycones: protopanaxadiol, protopanaxatriol, oleanolic acid, and ocotillol[77]. Several biological activities, such as neuroprotective effects, antitumour activity, and cardiac therapeutic effects, have been documented for many ginsenosides[78, 79]. Ginsenosides
have also been regarded as the active ingredients in many Chinese herbs, for instance, ginseng and sanqi (the roots of Panax ginseng and Panax notoginseng), two well-known traditional Chinese herbs commonly used for the treatment of coronary heart disease and cerebral vascular disease[80-82].
Based on experimental observation and theoretical modeling, the therapeutic effects of ginseng and sanqi in promoting blood circulation should be at least partly attributed to the effective inhibition of Na+/K+-ATPase by ginsenosides[83], such as ginsenoside Rh2. However, the different sugar moieties in ginsenosides affect their inhibitory potency on Na+/K+-ATPase. In our study, ginsenosides with sugar moieties attached only to the C-3 position of the steroid-like structure, equivalent to the sugar position in cardiac glycosides, possess inhibitory potency on Na+/K+-ATPase. However, their inhibitory potency is significantly reduced or completely abolished when a monosaccharide was linked to the C-6 or C-20 position of the steroid-like structure; replacement of the monosaccharide with a disaccharide molecule at either of these positions causes the disappearance of the inhibitory potency. Molecular modeling and docking show that sugar attachment to the C-6 or C-20 position of the
steroid-like structure apparently causes steric hindrance of the entrance of ginsenosides into the extracellular binding pocket of the Na+/K+-ATPase α subunit, and thus greatly reduces or completely abolishes their inhibitory potency.
Paradoxically, most ginsenosides found in ginseng and sanqi do not seem to be competent inhibitors of Na+/K+-ATPase due to their sugar attachment to the C-6 or C-20 position of the steroid-like structure. Nevertheless, ginsenosides might act as prodrugs, as they tend to be metabolized to their active forms by intestinal bacterial deglycosylation after oral administration[84]. Commonly, the metabolites could be easily absorbed by the intestines due to the increase of hydrophobicity after deglycosylation, and might display the same or different pharmacological actions in comparison with their parent compounds[85]. Therefore, the cardiac therapeutic effects of ginseng and sanqi should be attributed to the effective inhibition of Na+/K+-ATPase by their metabolized ginsenosides, with sugar moieties attached only to the C-3 position of the steroid-like structure.
Combinational usage of danshen and sanqi for the treatment of cardiovascular diseases
In contrast with Western medicines, combinational usage of traditional Chinese medicines of similar or different therapeutic effects is a common phenomenon. Currently, several commercial medicinal products for cardiovascular diseases comprise mainly danshen and sanqi in a variable ratio of combination; mostly danshen is the major constituent and sanqi is a minor one[86]. The active ingredients in danshen and sanqi for cardiac therapeutic effects are MLB and ginsenosides. Being a polyphenolic compound, MLB is metabolized within a few hours after human consumption[87]. In contrast, it takes a few weeks to metabolize ginsenosides, being steroid-like compounds, in human body[88, 89]. In light of our recent studies, we
rationalize that the combinational usage of danshen and sanqi for the treatment of cardiovascular diseases takes advantage of the non-toxic strong Na+/K+-ATPase inhibitory potency of MLB to release the symptom promptly and the moderate Na+/K+-ATPase inhibitory potency of ginsenosides to maintain a relatively long-term basal therapeutic effect.
Inhibition of Na+/K+-ATPase and its potential neuroprotection
In the brain cells, approximately half of all energy is spent for the active exchange of cytosolic sodium for extracellular potassium, a process executed by Na+/K+-ATPase for the maintenance of transmembrane ionic gradients for all
mammalian cells[90-92]. As the brain’s primary consumer of ATP, Na+/K+-ATPase is particularly vulnerable to ATP depletion commonly observed in ischemic stroke. This vulnerability suggests that pharmacological inhibition of the Na+/K+-ATPase in the brain cells should further compromise ATP-depleted neurons. Indeed, there is accumulating evidence that inhibiting the brain Na+/K+-ATPase can actually provide neuroprotection in the context of ischemia[93].
Cardiac glycosides, being potent inhibitors of Na+/K+-ATPase, have been demonstrated to provide neuroprotection against ischemic stroke in a cortical brain slice-based compound screening platform[94]. Moreover, it has been hypothesized that blockade of Na+/K+-ATPase may provide neuroprotective effect in ischemia-reperfusion through ATP conservation and modulating intracellular calcium levels just as the cardiac glycosides do in the heart contraction cycle[93]. Similar neuroprotective effects have also been documented for ginsenosides against ischemic stroke, and some of the results were observed using the same brain slice assay model[95-99]. Oleanolic acid, a steroid-like compound and moderate inhibitor of Na+/K+-ATPase, also displayed neuroprotective effect against focal cerebral ischemic
injury[100]. Furthermore, the same phenomenon was observed when we examined the neuroprotective effect of MLB against ischemic stroke in a similar brain slice assay model[74]. Taken together, these experimental data support that inhibiting Na+/K+-ATPase may provide neuroprotection in the context of ischemia as well as other neurodegenerative conditions. It is more than likely that effective Na+/K+-ATPase inhibitors in brain are potential drugs for the treatment of ischemic stroke.
Conclusions and perspectives
On the basis of experienced utilization in human history, traditional Chinese medicines are regarded as precious resources for screening new drugs. Our recent studies have showed that steroid-like compounds in many Chinese medicines used for promoting blood circulation display more or less inhibitory potency on Na+/K+-ATPase, and may provide the therapeutic effects of their corresponding medicines via the same molecular mechanism triggered by cardiac glycosides. Except bufalin in ChanSu, those steroid-like compounds in the traditional Chinese medicines used for promoting blood circulation are expected to possess less severe side effects than cardiac glycosides. Of course, it is reasonable that the constant consumption of the steroid-like compounds for a long period of time is still probably associated with some side effects. In contrast, MLB, the non-steroid active ingredient responsible for the cardiac therapeutic effect of danshen by effective inhibition of Na+/K+-ATPase, is generally regarded as a non-toxic antioxidant without apparent adverse effects. Therefore, we believe that MLB is of great potential to replace cardiac glycosides for the treatment of congestive heart failure, provided it undergoes necessary clinical trials. Moreover, searching from traditional Chinese medicines for more and more antioxidant polyphenolic compounds that possess inhibitory potency on
Na+/K+-ATPase may lead to the discovery of novel drugs for the treatment of cardiovascular diseases without side effects.
Acknowledgments
Project supported by a grant to Jason TC TZEN from the National Science Council, Taiwan, (No 96-2752-B-005-008-PAE).
We thank Prof Chih-Ning SUN (Department of Entomology, National Chuang Hsing University) for critical reading of the manuscript.
