Compact Genetic Algorithm for Performance Improvement in Hierarchical

Sensor Networks Management

Ming-Hui Jin Department of Computer

Science and Information Engineering, National Taiwan

University, Taipei, Taiwan [email protected]

Win-Zing Liu Tong An Element School,

D. Frank Hsu Dep. of Computer and Information Sciences, Fordham University, LL813, New York, NY 10023, U. S. [email protected] Cheng-Yan Kao Institute of Information Industry, Taipei, Taiwan [email protected]

Abstract

This paper introduces a novel scheduling problem called the active interval scheduling problem in hierarchical wireless sensor networks for long-term periodical monitoring applications. To improve the report sensitivity of the hierarchical wireless sensor networks, an efficient scheduling algorithm is desired. Therefore, in this paper, we propose a compact genetic algorithm (CGA) to optimize the solution quality for sensor network maintenance. The experimental result shows that the proposed CGA brings better solutions in acceptable calculation time.

1. Introduction

Sensors have been widely used in various applications (e.g., health, military, home). Traditionally, people apply sensors to detect the status of certain objects. Whenever the detection results diverge from normality significantly, alerts occur and corresponding procedures may be carried out. This workflow at current juncture no longer satisfies many applications because they do require the function of early warning. To reach the goal of early warning, long-term and periodical monitoring becomes necessary. Since data collection is a costly task, it is desirable to have an automatic detection results collecting mechanism in most long-term periodical maintaining. This motivates the design and implementation of novel and advanced sensor network technologies.

Most wireless sensor networks such as the WINS[1], the PicoRadio[2] and the AMPS[3] base their design on an ad hoc (multi-hop) network technology [4, 5, 6] that focus on organizing and maintaining a network formed by a group of moving objects with a communication device in an area with no fixed base stations or access points. Although ad hoc network technologies are capable of constructing a sensor network, the design and implementation of sensor networks for monitoring stationary nodes such as construction sites, historic buildings and bridge areas can be furthered simplified to reduce power consumption and overhead. Based on the nature of immobile nodes, previous studies such as SMAC [7], TMAC[8] and DMAC[9] proposed their new MAC designs for reducing the power consumption of wireless sensor nodes. Although their solutions do reduce the power consumption of sensor nodes, however, their studies do not improve other network issues such as construction cost minimization, routes

maintenance, scalability, etc. To efficiently reduce the network construction cost and network maintenance cost, [10] proposed a novel hierarchical sensor network (HSN) architecture.

In the HSN architecture, all the sensor nodes in the sensor network are designed to be equipped with no functions for message forwarding and channel scheduling. To forward the detection results for the sensor nodes to the global control center (GCC), a special purpose device call the local control center (LCC) is introduced in the HSN. Each LCC adopts centralized communication protocols to communicate with the adjacent sensor nodes. A LCC and the adjacent sensor nodes form a cluster and hence the network is partitioned into several clusters. The LCC then forward the detection results reported from the sensor nodes in the same cluster to the GCC. To further reduce the power consumption of the sensor nodes, each LCC not only helps its sensor nodes to learn the correct communication time but also avoid the possibly interferences from other clusters to protect the inner-cluster communications. This approach brings numerous advantages in network construction cost minimization and network maintenance cost minimization. We state the obvious advantages as follow.

1. Since the sensor nodes in the HSN architecture can be designed to be equipped with no functions for message forwarding and channel scheduling, the design and implementation cost of the sensor nodes can be reduced significantly. This implies that the network construction cost can be further reduced if each cluster contains sufficient sensor nodes in average.

2. Since the sensor nodes need not forward messages for other sensor node and the LCC can help the sensor node to learn the correct communication time, the sensor node can correctly turn off its antenna. This significantly extends the lifetime of the sensor nodes and hence significantly reduces the network maintenance cost since the network maintainers can make less effort in maintaining the sensor nodes.

3. Because the number of LCC is much less than the number of sensor nodes, the complexity of the condensed network which contains only the LCCs is reduced significantly. This greatly simplifies the network maintenance cost in routing and multiple access problem issues, especially for large scale wireless sensor networks.

(2)

The advantages above motivates us to study the HSN. Although the centralized communication protocol proposed by [10] efficiently solves the multiple access problems [11] inside each cluster, the interferences between the communications in two adjacent clusters still occur. To avoid the interferences between adjacent clusters, adjacent LCCs should communicate with their sensor nodes in different time intervals. That is, the two adjacent clusters should not be active simultaneously. It implies that the GCC should provide a scheduling mechanism which can specify each LCC a periodical time interval to communicate with its sensor node. The scheduling mechanism can be evaluated in several dimensions depending on the applications. For static sensor networks, the scheduling mechanisms are mainly measured by the flexibility of report sensitivity determination and rescheduling frequency. The report sensitivity is the frequency of reporting the detection results from the sensor nodes to the GCC. An ideal scheduling mechanism should allow users to flexibly specify the report sensitivity according to the application requirements and minimize the rescheduling activities.

This paper is organized as follows. The architecture and the protocols of the HSN are presented in Section 2. The active interval scheduling problem and its cost model are presented in Section 3. To provide better solutions for the network maintainer, a compact genetic algorithm [12] is proposed in Section 4. The experimental results and comparisons are presented in Section 5 and the conclusions and future works are drawn in Section 6.

2. Hierarchical sensor network

architecture

2.1 The system architecture

Figure 1. The network architecture for sensor networks with

immobile sensors.

Figure 1 shows the proposed network architecture. In this architecture, the sensor network is partitioned into several clusters. Each cluster contains several sensor nodes and a local control center (LCC). A sensor node has capability to detect and then reports the detection results to its LCC. The detection results are then routed back to the sink through a wireless network called Core Network constructed by only the LCCs. The sink may communicate with the global control center (GCC) via Internet or satellite.

Because this architecture is designed for the applications in which all the sensor nodes are immobile, the corresponding

protocols can apply centralized approaches to solve the multiple access problems inside each cluster. Specifically, inside each cluster, the LCC applies the polling protocol to communicate with all its sensor nodes. This approach allows each sensor node to equip with no functions for message forwarding or channel scheduling and hence significantly reduce the computation cost and design complexity. This also implies that this approach can largely reduce the implementation cost of each sensor node and hence reduce the cost of building and maintaining a sensor network.

2.2 The power saving mechanism for sensor

nodes

Power resource is precious for sensor nodes in many applications [4, 5, 6]. To further reduce the power consumption for each sensor node, the concept of cluster node is introduced. That is, each cluster is a node in the core network. Figure 2 shows the life cycle of a cluster node.

Figure 2. The life cycle of a cluster node.

Whenever a LCC joins this network and completes the initialization procedure, the corresponding cluster node is in the operation stage. In this stage, the cluster node may be in active mode or idle mode. A LCC is allowed to communicate with its sensor nodes if and only if the corresponding cluster node is in active mode. This implies that its sensor nodes can turn off their antenna and idle its CPU whenever its cluster node is in idle mode. This also implies that the sensor nodes can significantly reduce their power consumption in the idle mode.

Although this mechanism significantly reduces the power consumption of all the sensor nodes, however, this also brings several new problems. First, whenever a sensor node turns off its antenna, its LCC cannot communicate with it. In this situation, the sensor node has to correctly set up an alarm clock before its CPU become idle. Therefore, designing a protocol to correctly set the alarm clock for each sensor node is crucial. Second, if two adjacent cluster nodes are in the active mode simultaneously, the communications inside one cluster node may interfere with the communications inside the other cluster node. This implies that adjacent cluster node should not be active simultaneously.

In [10], the authors proposed several protocols to solve the first problem. The second problem is called the active interval scheduling problem in [10]. To facilitate the present of the active interval scheduling problem, we cite the protocols for solving the first problem in Section 2.3. We then state the problem in Section 3 and propose a compact genetic algorithm to solve the active interval scheduling problem in Section 4. Besides, several network topology maintenance

(3)

problems are also crucial for supporting this power saving mechanism. Since they do not affect the main issue of this study, therefore readers may reference [10] for more detail regarding the network topology maintenance mechanism of HSN.

2.3 The protocols inside each cluster

In [10], each cluster node is assumed to be active periodically and all the cluster nodes apply the same period. This assumption is held in most long-term periodical monitoring applications. According to this assumption, the concept of detection cycle is introduced and the length of detection cycle is denoted as ldc. Figure 3 shows an example of detection cycle of a sensor network. In figure 3, a cluster node becomes active at time ts and become idle at time te in each detection cycle. Therefore, each sensor node of a cluster can set its alarm clock at time te and then wake up at time ts in the next detection cycle. For convenient, the time interval (ts, te) is said to be the active interval of the cluster node.

Figure 3. The detection cycle of a sensor network.

Figure 4. The compositions of an active interval.

In the proposed protocols, each active interval is partitioned into three periods as figure 4. The registration period is used for the sensor nodes which belongs to no clusters and desires to join this network. In the ending period the LCC broadcasts the time of the next active interval of this cluster to all its sensor nodes. The ending period is crucial since it allows the system to adjust the active interval of certain clusters. In the polling period, the LCC sequentially communicates with all its sensor nodes. The readers may reference [10] for more details.

3. The active interval scheduling problem

Scheduling the active interval of each cluster is crucial for the HSN maintenance. There are numerous requirements in the active interval scheduling problem. First, the active intervals of the adjacent clusters should not be overlapped to avoid the possibly interferences between adjacent clusters. Second, the system should allow the network maintainers to specify the length of the detection cycle. Since the network topology is not invariant forever, therefore, the existing schedule may become infeasible whenever a sensor node or LCC joins this network. In this situation, the network maintainer has to reschedule the active intervals of the clusters Since the rescheduling procedure is a costly activity, therefore, extending the lifetime of each active interval

schedule is also a key issue in the active interval scheduling problems. In [10], the authors propose an active interval scheduling procedure and we present the procedure in Section 3.1. The procedure takes the above requirements into consideration, with associated to the corresponding optimization problems.

3.1 The active interval scheduling procedure

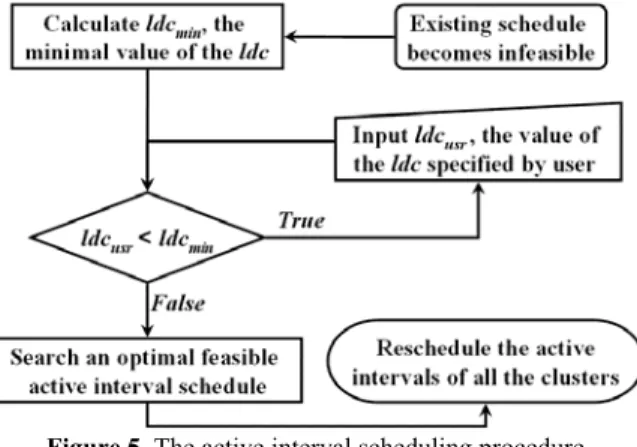

Figure 5 shows the active interval scheduling procedure. Whenever a new sensor node joins a cluster, the active interval of this cluster becomes longer. In this situation, the enlarged active interval may overlap the active interval of the adjacent clusters and hence make the existing schedule infeasible. Whenever the system perceives that the existing active schedule becomes infeasible, it starts the active interval scheduling procedure to reschedule the active intervals of all the clusters to avoid the interferences among the adjacent clusters. Besides, the system would request the corresponding LCC to block the newly joint sensor nodes until it generates a new feasible schedule.

Figure 5. The active interval scheduling procedure.

Activate all the cluster nodes sequentially may be the simplest method in finding a non-interference schedule. Although this approach works, however, when the network contains numerous clusters, the value of the ldc may be too large to make the users unacceptable. Therefore, the system should allow the users to specify the value of the ldc according to the specification of the corresponding applications. Based on this requirement, we say that an active interval schedule is feasible if it is a non-interference active interval schedule and its ldc = ldcusr.

Whenever the user specifies the value of the ldcusr, the system starts to search a feasible active interval schedule. If the value of the ldcusr is too small, there may be no feasible solution. In this situation, the user should try another value. To facilitate the determination of ldcusr, the active interval scheduling procedure first calculates ldcmin, the minimal value of the feasible ldc. Whenever the system estimates the value of the ldcmin, it starts to search the optimal feasible active interval schedule as long as the relation ldcmind ldcusr is true. Otherwise, it requires the user to specify another value for ldcusr. If the value of the ldcmin is small enough, then the users have higher freedom in determining the value of ldcusr.

(4)

As long as ldcmin d ldcusr, the system starts to search an optimal feasible active interval schedule. The method of searching an optimal feasible active interval schedule given ldcmind ldcusr has been satisfied is very simple. The readers may reference [10] for more detailed. Therefore, minimizing the value ldcmin is the main challenge in the active interval scheduling procedure and hence this paper focuses on solving this problem.

3.2 The definitions and cost model

To facilitate the presentation of the cost model and algorithms for minimizing the value of ldcmin, we adopt the following definitions proposed in [10].

Def. 1. CL = {C1, C2, …, Cn} be the set of all clusters, where n is the number of cluster nodes in the core network. Def. 2. For each 1 d i d n, cluster Ci contains si sensors. Def. 3. The active interval of Ci is denoted as (ts(i), te(i)). Def. 4. Two clusters Ci and Cj are adjacent if any sensor

node in Ci can receive any broadcasted messages from the LCC of Cj to the sensor nodes of Cj.

Def. 5. For two different clusters Ci and Cj, Rij= 1 if Ci and Cj are adjacent and Rij= 0 otherwise.

Since ldcmin = min{ te(i) | Ci  CL}, and the power saving mechanism presented in Section 2.2 requires adjacent cluster nodes can not be active simultaneously. Therefore, the cost model for ldcmin minimization is stated as follow.

Minimize ldcmin (1)

Subject to

 1 d i z j d n, (ts(i), te(i)) (ts(j), te(j)) = I

if Rij= 1 (2)

Where

ldcmin = min { ts(i) + siutr + tc | Ci CL} (3)

4. The proposed compact genetic

algorithm

In [10], the authors proposed two greedy algorithms to minimize the value of ldcmin. Although the greedy algorithms can rapidly generate low cost solutions, however, the solution quality can be further improved by more sophisticated algorithms. In this section, a compact genetic algorithm (CGA) is proposed to generate each selection which brings lower-cost solutions.

The CGA represents the population as a probability distribution over the set of solutions, and is operationally equivalent to the order-one behavior of the simple GA with uniform crossover. Based on CGA and adaptive rules, the proposed approach consists of global and local strategies by probability-based mutations. CGA operates on a population of potential solutions, applying the principle of survival of the fittest [13] to produce successively better approximations to a solution

4.1 The Algorithm Design Principle

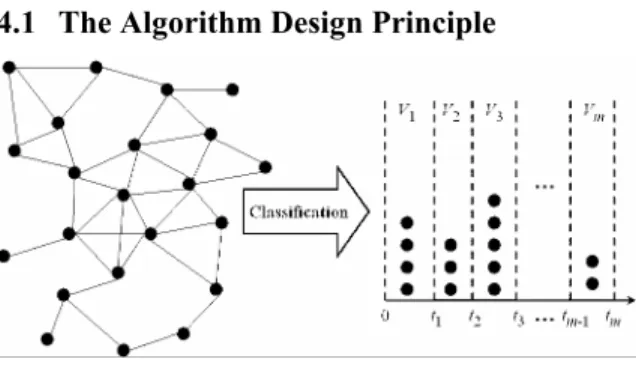

Figure 6. The algorithm design principle.

Figure 6 shows the methodology of the algorithm design for solving the active interval scheduling problem. In figure 6, the set of all clusters are classified into m sets V1, …, Vm. The set Vi is called the ith selection of the solution. The classification only requires that, for each 1 d i d m and for each {X, Y} Vi, X and Y are not adjacent. Because no cluster interfere any other clusters in the same selection, therefore, the clusters in the same selection can be active simultaneously. In figure 6, the active interval of each cluster in the ith_{selection is a sub-interval of (t}

i-1, ti), where ti– ti-1 = max{ te(k) – ts(k) | Ck is a cluster in the ith selection}, and ldcmin = tm.

4.2 The chromosomes and initial population

Assume that i –1 selections have been determined and there are n(i) clusters CL(i) = {CS(i, 1), …, CS (i, n(i))} CL which are not classified to any selection. In this situation, for convenient, we make the following definitions

Def. 6. A chromosome is defined to be a vector of ordered pairs <(u1, p1), …, (un(i), pn(i))>. For each 1 d j d n(i), uj = 1 implies that the cluster CS(i, j) should be selected in the ith selection and uj = 0 otherwise. Besides, pj is denoted as the possibility of selecting the cluster CS (i, j). And we say that the chromosome selects the cluster CS(i, j) iff uj = 1.

Def. 7. For chromosome X = <(u1, p1), …, (un(i), pn(i))>, the vector <u1, …, un(i)> is called the selection vector of X, the vector <p1, …, pn(i)> is called the probability vector of X and the set {1 d j d n(i)| uj = 1} is called the selected index of X.

Def. 8. A chromosome is said to be feasible if, for each two different clusters CS (i, x) and CS (i, y) in CL(i), CS (i, x) and CS (i, y) are adjacent implies (ux, uy)z (1, 1). Def. 9. A chromosome X is said to be a corrected

chromosome of chromosome Y if X is a feasible and the selected index of X is a subset of the selected index of Y. Besides, we denote CC(Y) to be the set of all corrected chromosomes of Y. A correctness chromosome x of chromosome X is said to be a maximal correctness chromosome of X if, x CC(X), the number of elements of the selected index of y is greater than or equal to the number of elements of the selected index of x.

All the chromosomes in the each population are generated by two steps. First, determines the probability

(5)

vector. Second, applies the probability vector to randomly generate the selection vector. That is, the probability of uj = 1 is pj. All the chromosomes in the initial generation own the same probability vector <p1, …, pn(i)> with p = pj for all 1 d j d n(i) . The parameter p is called the initial probability vector generator (IPVG).

4.3 The genetic operators

Given the set of all chromosomes of a certain population, the proposed CGA applies the crossover and competition operators to generate the probability vectors of all the chromosomes in the next generation.

Competition

The competition operator evaluates the fitness of two chromosomes. Given two chromosomes X and Y, the competition operator generates two chromosomes called winner and loser. If the fitness of X is higher than Y, then winner is set to be X and loser is set to be Y. The competition operator applies the following steps to determine the winner and loser.

Step 1. Randomly generate a maximal correctness chromosome of X.

Step 2. Given the condition that the previous i-1 selections have been determined and all the clusters which are selected by the maximal correctness chromosome of X have be classified into the ith selection, apply the Algorithm 1 to generate an active interval schedule AISX.

Step 3. Apply Step 1 and Step 2 to generate an AISY for Y If the cost of AISX is lower than the cost of AISY, then set winner to be X and then set loser to be Y. Otherwise, set winner to be Y and then set loser to be X.

Crossover

Given two chromosomes X and Y, the competition operator derives two chromosomes winner and loser. If the winner selects the cluster CS (i, j) but the loser does not, then the new chromosome should have higher probability to select this cluster. On the other hand, if the loser selects this cluster but the winner does not, then the new chromosome should apply lower probability to select this cluster. Based on this concept, the crossover operator applies the procedures below to generate a new chromosome from two given chromosomes X and Y.

Step 1. Apply the competition operator to derive the two chromosomes winner and loser.

Step 2. Let j = 1

Step 3. If j > n(i), terminates this procedure

Step 4. Let Pwin(j) = the probability that the winner selects the cluster CS(i, j), Plose(j) = the probability that the loser selects the cluster CS(i, j), Pmin(j) = min{ Pwin(j), Plose(j)} and Pmax(j) = max{ Pwin(j), Plose(j)}. Step 5. If the winner selects the cluster CS(i, j), go to step 8. Step 6. If the loser selects the cluster CS(i, j), then set the

probability that the new chromosome will select CS(i, j) to be Pmin(j) – 1/S, where S is the population size. Otherwise, set the probability that the new

chromosome will select to be Pwin(j). Step 7. j = j+1 and then go to step 3.

Step 8. If the loser selects the cluster CS(i, j), then set the probability that the new chromosome will select CS(i, j) to be Pwin(j). Otherwise, set the probability that the new chromosome will select to be Pmax(j) + 1/S. Step 9. j = j+1 and then go to step 3.

4.4 The proposed compact genetic algorithm

According to the definitions Def. 6 – Def. 9, the proposed compact genetic algorithm for generating the ith selection is stated as follow, where G in Step 3 is the maximal generation of this algorithm.

Step 1. Let g = 1.

Step 2. Randomly generate S chromosomes each one of which has the same probability p to select all the remaining clusters.

Step 3. If g > G, go to step 8. Step 4. Let h = 1

Step 5. Randomly selects two chromosomes X and Y generated in the gth generation, and then applies the crossover operator to generate a new chromosome in the (g+1)th_generation

Step 6. Let h = h+1. If hd S, go to step 5.

Step 7. If there are any chromosomes in the (g+1)th generation which definitely select or definitely not select a certain cluster, then let g = g + 1 and then go to step 8. Otherwise, let g = g + 1 and then go to step 3.

Step 8. Apply the Algorithm 1 of [10] to generate an active interval schedule for each chromosome in the gth generation. Select the chromosome whose derived active interval schedule has lowest cost and then terminates this algorithm.

The selection vector of the chromosome which is selected in Step 8 indicates the ith selection of the active interval schedule. Therefore, by applying algorithm 2 continuously until n(i) = 0, an active interval schedule is generated.

5. Experiments and comparisons

The experiments were performed on an Pentium IV 2.6 GHz PC with 1 GB memory running windows XP operation system. In all the experiments, tc is 10 time units, tr is 1 time unit, the population size S of solving each problem is 100, the maximal generation of each experiment G is 60000 and the IPVG is 0.5. Because different hardware brings different value for tc and tr due to the hardware response time, this study does not adopt any time unit.

Five benchmark problems proposed in [10] are examined in the experiments. Each benchmark problem contains an adjacent matrix which specifies the value of Rij and a payload table which indicates the number of sensor nodes of each cluster. Readers may reference [10] for more details about the benchmark problems.

(6)

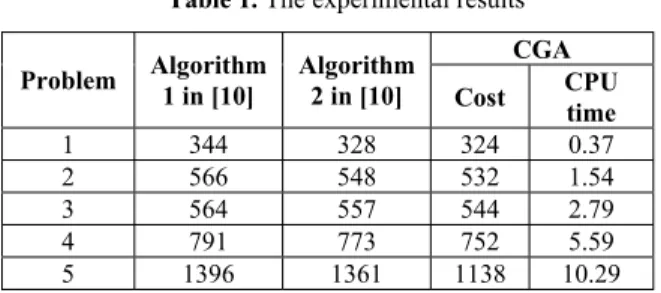

Table 1. The experimental results CGA Problem Algorithm 1 in [10] Algorithm 2 in [10] Cost CPU time 1 344 328 324 0.37 2 566 548 532 1.54 3 564 557 544 2.79 4 791 773 752 5.59 5 1396 1361 1138 10.29

Table 1 compares the cost of the best solution of problem 1 to problem 5 derived by the greedy algorithms (Algorithm 1 and Algorithm 2 in [10]) and the compact genetic algorithm. The CPU times for generating the best solutions by the greedy algorithms are not presented in Table 1 since they are too small and hence been ignored in this table. The unit of the CPU time is 1 second. The experimental result in Table 1 shows that the CGA can further improve the solution quality in acceptable calculation time.

6. Conclusions and future works

In this paper, we first introduce the proposed HSN architecture for sensor networks with immobile sensors and then introduce a new scheduling problem called the active interval scheduling problem in the HSN sensor networks. In order to find sensitive enough schedule, a compact genetic algorithm is designed and proposed. The experimental result shows that the CGA can further improve the solution quality in acceptable calculation time.

The HSN can also be applied in dynamic sensor network with immobile or group moving sensor nodes. In many construction sits, new sensor nodes and LCCs join and disjoint to the sensor network frequently. This implies that the length of the active interval of each cluster changes frequently. Therefore, designing an efficient mechanism for reducing the re-schedule activities is an important issue.

In [10], the author assumes that all the clusters actives periodically with the same period. However, in some applications, the GCC would like to learn the status of certain areas more frequently. In this situation, the assumption should be relaxed. Therefore, designing a scheduling mechanism for the sensor network with heterogeneous active periods is also an important issue for the sensor network managements. Besides, the proposed scheduling mechanism assumes that the sensor network is a homogeneous sensor network. Because the HSN architecture does not forbid heterogeneous sensor nodes, therefore, formulate a new scheduling problem for heterogeneous sensor networks and design a scheduling mechanism for solving the scheduling problem are also important future works.

7. References

[1] G. J. Pottie and W. J. Kaiser, “Wireless Integrated Network Sensors”, Communication ACM, vol. 43, no. 5, May 2000, pp. 51–58.

[2] J. M. Rabaey, et al., “PicoRadio Supports Ad Hoc Ultra-Low Power Wireless Networking”, IEEE Computer, vol. 33, no. 7, July 20000, pp. 42–48.

[3] W. R. Heinzelman, A. Chandrakasan, and H. Balakrishnan, “Energy-Efficient Communication Protocol for Wireless Microsensor Networks”, Proc. 33rd Annu. Hawaii International Conference on System Sciences, 2000, pp. 3005 – 3014.

[4] I. F. Akyildiz, W. Su, Y. Sankarasubramaniam, and E. Cayirci, “A Survey on Sensor Networks”, IEEE Communication Magazine. Aug. 2002, pp. 102 – 114. [5] T. J. Kwon, M. Gerla, V. K. Varma, M. Barton, and T. R.

Hsing, “Efficient Flooding with Passive Clustering – An Overhead-Free Selective Forward Mechanism for Ad Hoc/Sensor Networks”, IEEE Proceeding, vol. 91, no. 8, Aug. 2003, pp. 1210–1220.

[6] T. Y. Lin, and Y. C. Tseng, “An Adaptive Sniff Scheduling Scheme for Power Saving in BlueTooth”, IEEE Wireless Communication Magazine. Dec. 2002, pp. 92–103.

[7] G. Lu, B. Krishnamachari and C. S. Raghavendra, “An Adaptive Energy-Efficient and Low-Latency MAC for Data Gathering in Wireless Sensor Networks”, in Proceeding of the 18th International Symposium on Parallel and Distributed Processing. 2004, pp. 224 - 231. [8] W. Ye, J. Heidemann, and D. Estrin, “Medium Access

Control with Coordinated, Adaptive Sleeping for Wireless Sensor Networks”, in IEEE/ACM Transaction on Networking, vol. 12, issue 3, June 2004, pp. 493-506. [9] Tijs van Dam, Koen Langendoen, “An Adaptive Energy-Efficient MAC Protocol for Wireless Sensor Networks”, in ACM Sensys. Nov. 2003.

[10] Ming-Hui Jin, Yu-Cheng Huang, D. Frank Hsu, Cheng-Yan Kao, You-Rui Wu, and Chih-Kung Lee, “On Active Interval Scheduling in Static Sensor Networks”, Proceeding of IASTED International Conference on Communication System and Applications, July 2004. pp. 126 – 131.

[11] Andrew S. Tanenbaum, Computer Networks, Third edition, Prentice-Hall International, INC.

[12] G. R. Harik, F. G.. Lobo, and D. E. Goldberg, “The Compact Genetic Algorithm”, IlliGAL Report No. 97006, Aug. 1997.

[13] M. Stinivas, and L. M. Patnaik, “Genetic algorithms: A survey”, Computer Journal 27(2), pp. 17-26, 1994.
