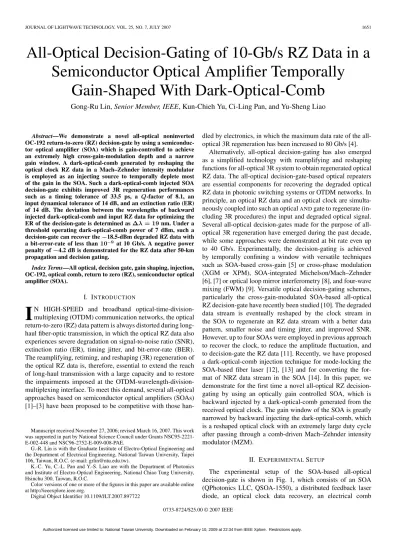

gain window. A dark-optical-comb generated by reshaping the optical clock RZ data in a Mach–Zehnder intensity modulator is employed as an injecting source to temporally deplete most of the gain in the SOA. Such a dark-optical-comb injected SOA decision-gate exhibits improved 3R regeneration performances such as a timing tolerance of 33.5 ps, a Q-factor of 8.1, an input dynamical tolerance of 14 dB, and an extinction ratio (ER) of 14 dB. The deviation between the wavelengths of backward injected dark-optical-comb and input RZ data for optimizing the ER of the decision-gate is determined as ∆λ = 19 nm. Under a threshold operating dark-optical-comb power of 7 dBm, such a decision-gate can recover the−18.5-dBm degraded RZ data with a bit-error-rate of less than 10−9 at 10 Gb/s. A negative power penalty of−4.2 dB is demonstrated for the RZ data after 50-km propagation and decision gating.
Index Terms—All optical, decision gate, gain shaping, injection,
OC-192, optical comb, return to zero (RZ), semiconductor optical amplifier (SOA).
I. INTRODUCTION
I
N HIGH-SPEED and broadband optical-time-division-multiplexing (OTDM) communication networks, the optical return-to-zero (RZ) data pattern is always distorted during long-haul fiber-optic transmission, in which the optical RZ data also experiences severe degradation on signal-to-noise ratio (SNR), extinction ratio (ER), timing jitter, and bit-error-rate (BER). The reamplifying, retiming, and reshaping (3R) regeneration of the optical RZ data is, therefore, essential to extend the reach of long-haul transmission with a large capacity and to restore the impairments imposed at the OTDM-wavelength-division-multiplexing interface. To meet this demand, several all-optical approaches based on semiconductor optical amplifiers (SOAs) [1]–[3] have been proposed to be competitive with thosehan-Manuscript received November 27, 2006; revised March 16, 2007. This work was supported in part by National Science Council under Grants NSC95-2221-E-002-448 and NSC96-2752-E-009-008-PAE.
G.-R. Lin is with the Graduate Institute of Electro-Optical Engineering and the Department of Electrical Engineering, National Taiwan University, Taipei 106, Taiwan, R.O.C. (e-mail: [email protected]).
K.-C. Yu, C.-L. Pan and Y.-S. Liao are with the Department of Photonics and Institute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu 300, Taiwan, R.O.C.
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/JLT.2007.897722
as a simplified technology with reamplifying and reshaping functions for all-optical 3R system to obtain regenerated optical RZ data. The all-optical decision-gate-based optical repeaters are essential components for recovering the degraded optical RZ data in photonic switching systems or OTDM networks. In principle, an optical RZ data and an optical clock are simulta-neously coupled into such an opticalANDgate to regenerate (in-cluding 3R procedures) the input and degraded optical signal. Several optical decision-gates made for the purpose of all-optical 3R regeneration have emerged during the past decade, while some approaches were demonstrated at bit rate even up to 40 Gb/s. Experimentally, the decision-gating is achieved by temporally confining a window with versatile techniques such as SOA-based cross-gain [5] or cross-phase modulation (XGM or XPM), SOA-integrated Michelson/Mach–Zehnder [6], [7] or optical loop mirror interferometry [8], and four-wave mixing (FWM) [9]. Versatile optical decision-gating schemes, particularly the cross-gain-modulated SOA-based all-optical RZ decision-gate have recently been studied [10]. The degraded data stream is eventually reshaped by the clock stream in the SOA to regenerate an RZ data stream with a better data pattern, smaller noise and timing jitter, and improved SNR. However, up to four SOAs were employed in previous approach to recover the clock, to reduce the amplitude fluctuation, and to decision-gate the RZ data [11]. Recently, we have proposed a dark-optical-comb injection technique for mode-locking the SOA-based fiber laser [12], [13] and for converting the for-mat of NRZ data stream in the SOA [14]. In this paper, we demonstrate for the first time a novel all-optical RZ decision-gating by using an optically gain controlled SOA, which is backward injected by a dark-optical-comb generated from the received optical clock. The gain window of the SOA is greatly narrowed by backward injecting the dark-optical-comb, which is a reshaped optical clock with an extremely large duty cycle after passing through a comb-driven Mach–Zehnder intensity modulator (MZM).
II. EXPERIMENTALSETUP
The experimental setup of the SOA-based all-optical decision-gate is shown in Fig. 1, which consists of an SOA (QPhotonics LLC, QSOA-1550), a distributed feedback laser diode, an optical clock data recovery, an electrical comb 0733-8724/$25.00 © 2007 IEEE
1652 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 25, NO. 7, JULY 2007

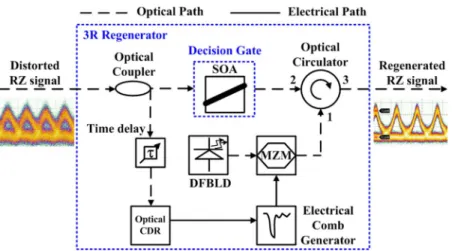

Fig. 1. Schematic diagram of the backward optical-comb injection SOA-based decision-gate.
generator, an MZM, and an optical circulator. Part of the received optical RZ signal is clock recovered and reshaped to inject the SOA for temporal gain depletion. In experiment, a 10-Gb/s optical degraded RZ pseudorandom binary sequence (PRBS) data with pattern length of 223− 1 and output power from −10 to −1 dBm is employed as the incoming data stream. The SOA with a gain peak at 1530 nm and an amplified spontaneous emission linewidth of 35 nm is operated at 280 mA (high-gain condition). The small-signal gain and typical output power of the SOA at nearly saturating condition are 20 dB and 15 mW, respectively. The dark-optical-comb pulse-train is generated by optically reshaping the received clock signal with an MZM driving by an electrical comb generator. A dark-optical-comb with average power, pulsewidth, and a large duty cycle of 4.46 mW,≤ 60 ps, and 78%, respectively, can be obtained at the MZM output by changing the dc-bias level of the MZM at the nonlinear region. To temporally gain-deplete the SOA at highly biased condition, the dark-optical-comb is then amplified from 7 to 18 dBm and backward-injected into the SOA via an optical circulator. The RZ data pattern is analyzed by a digitized sampling oscilloscope (Agilent, 86100+86109A) and a BER detector (Agilent, 71612C).
III. PRINCIPLE ANDSIMULATION
The amplification in an SOA of an input signal depletes the carrier density and reduces gain, which causes a shift of spectrum and a change of carrier lifetime. The ER, which is the main figure-of-merit for a reshaped data-stream, is determined by taking into account both the gain depletion and gain-spectral shifting effects occurring in the SOA under high-power injec-tion. The gain model of two-level system in SOA as having a Lorentzian line shape as given in [15]
gλ,N = a(N− N0) 1 + (λ− λN)2 (∆λg)2 (1)
where N is the carrier density, a is the differential gain, λN
is the peak wavelength at carrier density N , λ0 is the peak
wavelength at transparency, and ∆λg is the 3-dB bandwidth
Fig. 2. SOA gain shift under saturation conditions causing a smaller ER at longer wavelengths and a larger ER at shorter wavelengths.
of the gain coefficient. Such a spectral shift in the SOA can be realized by the expression of
λN = λ0− κ0(N− N0) (2)
where λ0 is the peak wavelength at transparency, and κ0 is
a constant characterizing the gain-peak shift. Under saturated conditions, the peak wavelength of the SOA gain has shifted from 1530 to 1550 nm under the strong backward injection at 1550 nm, as shown in Fig. 2. The shift of SOA gain peak to a longer backward injecting wavelength is mainly attributed due to the depletion of carriers in the SOA by the intense optical-clock injection. The gain of the SOA cannot be fully depleted if the dark-optical-comb injects into the SOA at wavelength nearly the original gain peak (i.e., backward injection at shorter wavelength). Since such a short-wavelength injection only trig-gers the stimulated emission of conduction-band carriers at higher energy states, which thus consumes carriers upon higher energy levels and leaves other carriers below the injecting band undepleted. Then, the undepleted carriers will contribute to an upward offset “0” level of the regenerated signal and cause a small ER. It is preferred to locate the wavelength near but slightly longer than the gain peak, as the gain SOA can be depleted more severely at a larger gain region and, thus, red-shifted to a longer wavelength. However, the depletion of carriers, as well as gain of the SOA, becomes less significant if a backward injecting wavelength is too long to exceed the
Fig. 3. Operating principle of the reshaped optical-clock controlled SOA RZ decision gate.
Fig. 4. Temporally reshaped gain window of the (right) SOA decision gate under the backward injection of (left) the dark-optical-comb. original gain peak, which in turn causes a reduction in ER of
the input data-stream at shorter wavelengths.
On the other hand, the use of the high-level electrical pump-ing accompanied with a strong optical injection to concurrently suppress lasing and enhance carrier/photon interaction in the SOA can significantly result in a transforming speed of larger than the carrier recovery rate of the SOA. The speed limitation for the SOA-based data pattern transformer is determined by the gain recovery time of the SOA. The gain recovery time τ in the SOA is described as
τ−1= τnr−1+ aS (3)
where τnr is the nonradiative recombination time, a is the
stimulated emission rate, and S is the internal photon density in the SOA. It is elucidated that the gain recovery time of the SOA, as well as the rising time of the transformed pulse data pattern, can be effectively shortened by greatly increasing the internal photon density of the SOA after strong backward injection. The backward injection of the dark-optical-comb with extremely large duty-cycle thus results in an ultranarrow gain window with enhanced switching response, facilitating the convertible data rate up to 10 Gb/s and beyond. In contrast, the optical gain of the SOA in our case is relatively complicated, as compared to the amplifier gain obtained under typical operation of the SOA. The gain window of the SOA is temporally modified to implement 3R of the incoming RZ data-stream with distorted shape, as shown in Fig. 3.
Theoretically, the transfer function of transient gain for the SOA under backward dark-optical-comb injection can be de-duced by modifying the similar model [16]. It is necessary to
model pulse propagation through the temporally gain-depleted SOA with a traveling-wave equation containing spatial and time derivatives. Assume that the backward dark-optical-comb in-jection function with a form of Pin(τ ) = P0[1− P(τ )], where
P(τ ) exhibits a Gaussian pulse shape. That is
Pin(τ ) = Ein τ0 √ π 1− exp −τ2 τ2 0 (4)
where Ein is the pulse energy, and τ0 is the full-width at
half-maximum of the dark-optical-comb pulse. The first-term on right-handed side (RHS) is used to complete deplete the SOA gain by inducing stimulated emission at the injecting wavelength, and the second-term leaves the residual gain win-dow of the SOA with a very short duty-cycle within one period. This input power function precisely describes the wave-form of a backward injected dark-optical-comb before entering the SOA.
With an appropriate backward injecting power, the dark-optical-comb (i.e., an inverse Gaussian shape with a small duty cycle in one period) can fully deplete most of the SOA gain within one period, as illustrated in Fig. 4. This eventually leads to a narrowing effect on the residual gain window of the SOA, which remains only a Gaussian shape with a small duty cycle. In our case, the rate equation of carrier density can be transferred into a rate equation for gain that is described as [16] ∂g ∂τ = (g− g0) τc −gPin Esat (5)
1654 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 25, NO. 7, JULY 2007
Fig. 5. Simulation of one-period dark-optical-comb signal.
where g0, τc, and Esat are the small signal gain coefficient,
carrier lifetime, and saturation energy for the amplifier, respec-tively. Solving (5) will lead to
G(τ ) = exp [h(τ )] = exp τ 0 g(z, τ )dz (6)
with h(τ ) denoting the integrated gain and G(τ ) denoting the transfer function of the instantaneous gain of SOA under backward dark-optical-comb injection with an inverse Gaussian like waveform. Integrating (5) and using (6) gives an ordinary differential equation for h
dh dτ = g0L− h τc − Ein τ0 √ πEsat + Ein τ0 √ πEsat exp −τ2 τ2 0 . (7) With the backward injection of an inversed Gaussian-like function h(τ ) shown in Fig. 5, the original SOA gain can almost be depleted in one period. That is, the first-term on the RHS of (7) can be neglected by canceling each other. Concurrently, the residual gain becomes the inverse shape of the incident waveform with its coefficient equivalent to the maximum gain of the SOA. Therefore, we can simplify and rewrite (7) as
dh dτ = g0L τc exp −τ2 τ2 0 − h τc (8)
and (8) can be solved to obtain h(τ ) for a given input inverse pulse shape and gain g0L. The solution of (8) is
h(τ ) =−g0Lτ0 √ π 2τc e τ 20 4τ 2c− τ τcerf τ0 2τc − τ τ0 (9) where erf is the error function
G(τ ) = exp [h(τ )] = exp −g0Lτ0 √ π 2τc e τ 20 4τ 2c− τ τcerf τ0 2τc − τ τ0 . (10)
Fig. 6. Simulation of integrated gain h(τ ) in the SOA by dark-optical-comb injection.
Fig. 7. Simulation of instantaneous gain G(τ ) in the SOA by dark-optical-comb injection.
As a result, the simulations of the injected dark-optical-comb and the reshaped h(τ ) and G(τ ) of the backward dark-optical-comb injected SOA are shown in Figs. 5–7, respectively.
The normalized on-level of the input power function shown in Fig. 5 first reduces the SOA gain to below the transparent (i.e., loss) condition. Subsequently, the SOA gain is built up again within the instantaneous off-level of the power function, providing a short rising-edge but long trailing-edge small-signal gain function. Such an operation eventually reshapes the continuous-wave gain of the SOA into a greatly shortened gain window, as shown in Fig. 7. Our simulation reveals that the temporal shrinkage in the gain window of the SOA is mandatory to optimize the regeneration of the decision-gated data.
IV. RESULTS ANDDISCUSSIONS
In principle, shrinking the gain window of the SOA in the time domain is mandatory to optimize the RZ decision-gating in our proposed scheme. As shown in Fig. 3, the optimized decision-gating of the input data pattern can be achieved under
(Bottom) Converted data stream.
Fig. 9. Eye diagrams of (a) distorted input RZ signal and (b) decision-gated RZ signal.
serious gain depletion in the SOA for strong gain-window narrowing. This can only be implemented by backward inject-ing the SOA with an extremely large-duty-cycle signal. For example, an RZ data stream (11010) encounters the residual gain in the SOA and transforms into a pulse pattern, as shown in Fig. 8. The eye diagrams at the input and after our proposed 3R regenerator are shown in Fig. 9. As the injected optically dark-optical-comb power is turned off (i.e., at a low injected level), the gain experienced by the input data is increased, and the gain recovery time is shortened by the bit “1” of the probe data.
The regenerated eye is very clean and has a slightly reduced pulsewidth (28 ps) due to the shape of the gating window. The amplitude margin defined by the voltage decision level can be used in BER evaluation by measuring the SNR (or Q-factor) in decision circuits. Previously, Bergano et al. have demon-strated a BER evaluation method by measuring the SNR at decision circuit of an optical transmission and receiving system [17], [18], which is given by Q = (I1− I0)/(σ1+ σ0) and
BER = 0.5· erfc(Q/√2), where I1,0 and σ1,0 are the mean
value and standard deviation of the mark and space data rail, and erfc(x) is the complementary error function. The measured BER of the data stream can be accurately calculated from the recorded Q-factor of the received eye pattern at a desired data rate. The equivalent mean and sigma of the marks and spaces are determined by fitting this data to the Gaussian characteristic. The measured Q-factor of the decision-gated RZ data can be improved from 6.0 to 8.1, providing an improved BER from 1× 10−9to 2× 10−16at an RZ data rate of 10 Gb/s.
On the other hand, the noise reduction of the decision-gated data stream is mainly attributed to the gain-saturated SOA with a slightly reduced gating window of only 33.5 ps. It can further be calculated that under a high level accompanied with
Fig. 10. Timing tolerance of the SOA-based all-optical RZ decision gate.
Fig. 11. SNR of the decision-gated RZ signal as a function of RZ data wavelength at different powers.
an intense optical injection, the SOA is forced to suppress its stimulated emission and enhance carrier/photon interactions, thus providing a conversion speed of faster than the carrier recovery rate. In our case, the increase on both of the data and backward injection power also result in the shortened rising and falling time of decision-gated RZ signals, respectively. The timing tolerance for initiating the all-optical decision-gating function in the SOA is evaluated by shifting the phase of the clock-recovered 10-GHz dark-combed signal before injecting into the SOA, which changes the relative time delay between the degraded RZ data stream and the gating window.
As the result, the timing tolerance on the BER of the decision-gated RZ data within 1-dB power penalty up to 33.5 ps is allowed, as shown in Fig. 10. In principle, the all-optical gating in the backward dark-optical-comb injected SOA with a larger SNR can be obtained setting the incoming RZ data at a shorter wavelengths. Fig. 11 shows the SNR of the regenerated RZ signal versus the wavelength of the distorted RZ signal at the input optical powers of−1, −10, and −15 dBm. As the wavelength of the input RZ data is far from that of the backward injected dark-optical-comb, the crosstalk between signal and the controlled optical clock (i.e.,
1656 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 25, NO. 7, JULY 2007
Fig. 12. (Left) Eye diagrams of the (a) back-to-back, (b) distorted, and (c) regenerated RZ PRBS data-streams at 10 Gb/s. (Right) BER analysis the RZ data stream after back-to-back transmission (black solid square), propagation through SMF-28 spool of 25 km (blue solid circle) and 50 km (red solid triangle), and those decision-gated by the dark-optical-comb gain-reshaped SOA (blue hollow circle and red hollow triangle), respectively.
the dark-optical-comb) can effectively be reduced, providing an output RZ data stream with relatively higher SNR. Identical to XGM wavelength conversion, this scheme has the potential advantages of high operation speed, simple implementation, larger dynamical range, and ease of use. Shrinking the gain win-dow of the SOA in the time domain is mandatory to optimize the optical decision gate. Only 1.2-dB degradation on SNR of the decision-gated RZ data is observed.
In our experimental setup, the distorted RZ data stream was made by propagating through SMF-28 fiber spools with lengths of 25 and 50 km. Such chirp-uncompensated RZ data streams experience serious dispersion to degrade its shape during propagation, as shown in Fig. 12(a). The dispersion of SMF simultaneously broadens the RZ data stream and degrades the performance of amplitude noise and timing jitter, as shown in Fig. 12(b). The BER of two distorted data-streams and their regenerated data-streams at 10 Gb/s are measured as a function of received data power, as shown in right part of Fig. 12. In the SOA-based all-optical decision-gator, the in-jected dark-optical-comb pulse-train results in an improvement of conversion speed, which effectively reduces the rise time of the converted signal [19]. The original sensitivity of the back-to-back transmitted RZ data at a BER < 10−12 is as low as −19.5 dBm. After a 25-km transmission without any dispersion compensation, the RZ data stream is greatly distorted with SNR as small as 3. The eye diagram of the distorted signal is consequently broadened and distorted, leading to the receiving power penalties of the optical RZ signals further degraded by 2.7 and 5.4 dB after propagating through 25- and 50-km transmission, respectively. In contrast, the regenerated RZ sig-nal is well shaped with a recovered SNR after decision gating by the backward dark-optical-comb injected SOA, providing a reduced power penalties as low as 0.7 and 1.2 dB with 25- and 50-km transmission. Note that there are error floors shown in the BER analysis of both the propagated and decision-gated RZ data, which could be removed by further suppressing amplified spontaneous noise floor of the SOA with a ultranarrow

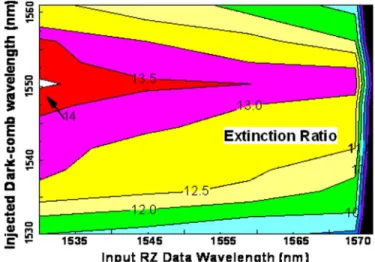

band-Fig. 13. Contour plot of the ER with dark-optical-comb wavelength and input data wavelength.
pass filter with a linewidth of < 0.3 nm. In brief, a negative power penalty of up to −4.2 dB is obtained for the 50-km propagated RZ data after decision-gating.
Most important, the dependence between the input data/ injection wavelength and the ER of the output RZ signal has also been elucidated. Fig. 13 shows the contour plot for the ER of the output RZ data as a function of the injected dark-optical-comb and the input data wavelengths. It is observed from experimental results that the ER of the output RZ data is determined by taking into account both the gain depletion and the gain-spectral shifting effects occurring in the SOA under high-power injection, which increases for shorter wavelength, indicating that shorter data wavelength accompanied with a long-wavelength injection is essentially preferred for the deci-sion gating of the RZ data in the SOA. The deep red region of Fig. 13 indicates the optimized wavelength setting region for the SOA-based decision-gate with the highest ER. The data wavelength set at the gain peak of the SOA for the highest gain is not at 1530 nm, but the injected optical-clock has to be shifted

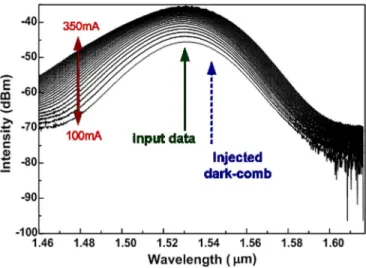

Fig. 14. ASE spectrum of this SOA at different biasing currents.
to 1550 nm for the largest gain depletion of the SOA at the time interval between data bits, which is due to the depletion of carriers by the intense injected optical-clock [15].
The gain SOA can be depleted more severely at longer wavelength, which eventually leads to a higher ER of the input RZ data-stream at shorter wavelengths as the gain of the SOA is changing from the saturation to the depletion condition. This results in the gain peak of ASE and the optimal dark-optical-comb wavelength being shifted to a longer wavelength due to the depletion of carriers, as shown in Fig. 14. It is preferred to locate the injected optical-clock at wavelengths near but slightly longer than the gain peak, as the gain SOA can be depleted more severely at larger gain region and, thus, red-shifted to a longer wavelength. The ER (i.e., power ratio of the transmitted “1” data to the transmitted “0” data) of the incoming distorted RZ PBRS data is about 7 dB. In the optimum region, the measured eye diagram for the RZ PRBS data reveals a greatly improved ER of 14 dB.
It is worth comparing the proposed approach with current architectures employing same device and different techniques. Under a sinusoidal optical clock injection, the conventional XGM scheme usually exhibits a limited pulsewidth and a worse ER due to insufficient gain depletion window under sinusoidal-clock injection, whereas the XPM and interferomet-ric approaches stinterferomet-rictly relies on the rigorous control of the injection power and the timing delay between the data and the clock stream. FWM is a wavelength- and polarization-sensitive technique against most unpolarized optical networks. Except for the XGM approach, the bulky configuration, pre-cisely delay-time control, and specially designed waveguide components of the aforementioned architectures are detrimen-tal to versatile applications. In contrast, our concept adopts the typical XGM system by injecting a dark-optical-comb to cause an extremely narrowed gain window with a duty cycle of less than 30%, which greatly reduces the timing jitter of input data in the SOA to < 2.5 ps. Moreover, such intensity further reduces the rise/fall time and thus improves the effective modulation bandwidth of the SOA, which essentially facilitates the operation of RZ decision-gating at higher data rates. The ON/OFF ER can be enhanced up to 15 dB by taking into
ac-count both the gain depletion and gain-spectral shifting effects occurring in the SOA under high-power clock injection within an extremely large duty cycle. In comparison with conventional approaches, the dark-optical-comb injected single-SOA-based RZ decision-gate exhibits distinguished features, including a simplified configuration, a noninverted polarity, a wavelength preserving operation, an ultralow duty cycle, a high ER, a wide dynamic range, and a large timing tolerance.
To realize the systematic performance of the proposed scheme, we have compared in Table I the characteristics pa-rameters with those achieved by previous configurations, such as the power penalty (P ), the wavelength preserving capability (∆λ), the duty cycle of the decision-gated RZ data (∆τ /τ ), theON/OFFER of the decision-gated RZ data (R), the dynamic range of the input data (∆P ), and the timing tolerance in unit of duty cycle between the input data and the injected dark-optical-comb clock for decision-gating (∆T ). It is observed that the decision-gated RZ data obtained from our approach has reached a relatively small duty cycle with high ER and negative receiv-ing power penalty among all reported schemes, while providreceiv-ing a maximum timing tolerance and a highest dynamic range to the input data stream. Although the proposed system employs the XGM technique, it is a wavelength preserving operation as compared to previous approaches using wavelength converted operation. The dynamic range and timing tolerance of up to 14 dB and 34% duty cycle, respectively, are the best records. In brief, the single SOA-based all-optical decision-gate by reshaped-optical-clock (dark-optical-comb) injection can pre-cisely recover the distorted RZ data to reach good signal quality, even at a relatively low level of the input data. The dynamical 3R regeneration is suitable for the retrieval burst-mode dy-namical signals. Such a new decision-gate effectively enlarges the dynamical range and the sensitivity of receivers, which is efficient for the enhancement of the transmitting distance of 10-Gb/s fiber-optics systems.
V. CONCLUSION
An all-optical OC-192 RZ decision-gate based on backward dark-optical-comb injected SOA is implemented, which simul-taneously achieves reshaping and reamplifying of a degraded
1658 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 25, NO. 7, JULY 2007
PRBS RZ data stream at 10 Gb/s. The scheme of our decision gate has the potential advantages of 10-Gb/s operation speed, simple implementation, larger dynamical range, and non-inverted data priority. We experimentally and theoretically analyze the effect of the reshaped optical clock (i.e., the dark-optical-comb), injecting power and wavelength on the RZ-data reamplifying and reshaping to obtain the optimal ER of the decision-gated RZ pattern. Evaluation on the improved 3R regeneration performances, including the timing tolerance of 33.5 ps, the input dynamical tolerance of 15 dB, and the ER of 14 dB, are discussed. The SNR and the eye-diagram analyses at 10 Gb/s reveals an improvement on the statistically distributed Q-factor from 6.0 to 8.1, corresponding to an optimization on the reachable BER of the decision-gated RZ data stream from 1× 10−9 and 2× 10−16under a receiving power of−6 dBm. After propagating through a 25-km SMF spool, the dispersion tolerance is evaluated, and the power penalty can be reduced from 3.2 to 0.7 dB. Such a decision gate exhibits a threshold injection power of about 7 dBm for the backward injected dark-optical-comb clock signal at an RZ data speed of up to 10 Gb/s.
