Diffusion Barrier Characteristics of Electroless Co(W,P)

Thin Films to Lead-Free SnAgCu Solder

Hung-Chun Pan and Tsung-Eong Hsiehz

Department of Materials Science and Engineering, National Chiao Tung University, Hsinchu, Taiwan 30010

Diffusion barrier and bonding characteristics of amorphous and polycrystalline electroless Co(W,P) layers (α-Co(W,P) and poly-Co(W,P)) to SnAgCu (SAC) solder were investigated. In the SAC/α-Co(W,P) sample subjected to liquid-state aging at 250◦C, the spallation of intermetallic compound (IMC) into solder, a nano-crystalline P-rich layer at SAC/Co(W,P) interface, and the recrystallized Co(W,P) containing Co2P precipitates were observed. As to the SAC/α-Co(W,P) sample subjected to solid-state aging at 150◦C, a thick IMC layer neighboring to the P-rich layer formed at the solder/Co(W,P) interface. Liquid-state aging resulted in an IMC mixture without spallation whereas solid-state aging induced a layer-like IMC in SAC/poly-Co(W,P) samples. Amorphous W-rich layers were also observed in SAC/poly-Co(W,P) samples and it could not inhibit subsequent alloy reactions in the samples. Analytical results indicated theα-Co(W,P) is a sacriﬁcial- plus stuffed-type barrier whereas the poly-Co(W,P) is mainly a sacriﬁcial barrier. The activation energies of IMC growth were 110.7 and 81.8 kJ/mol for SAC/α-Co(W,P) and SAC/poly-Co(W,P) samples, respectively. High P content inα-Co(W,P) was found to degrade the bonding strength to the solder as revealed by the shear test and the control of P content would be a key issue for electroless plating layer applied to under bump metallurgy as the diffusion barrier. © 2011 The Electrochemical Society. [DOI: 10.1149/2.004111jes] All rights reserved.

Manuscript submitted April 25, 2011; revised manuscript received July 29, 2011. Published October 5, 2011.

At present, development of lead (Pb)-free solders is an important issue in electronic industry due to the call for eliminating Pb to avoid the environment contamination and human damage. In addition to exploring the solders with new constitutions, it is equally important to accumulate the knowledge of materials compatible to practical usages of Pb-free solders. For instance, the ﬂip-chip bonding, a popular inter-connection method for advanced electronic packaging which connects the integrated circuit (IC) chips directly to the substrate in a face-down manner, requires the under bump metallurgy (UBM) to facilitate its operation. The UBM mainly serves as the diffusion barrier in between bump body and bond pad material of IC to prevent the degradation resulted from undesired material reactions. As the Pb-free solders may be implanted in the bump body of FC bonding, their interactions with the underlying diffusion barrier materials have to be investigated in detail so as to realize the applications of such solders in electronic products.

Refractory and noble metals, e.g., tungsten (W), molybdenum (Mo), platinum (Pt), palladium (Pd) and rhodium (Rh), are com-mon diffusion barriers for conventional UBM. In contrast to these metallic thin ﬁlms prepared by sputtering or e-beam evaporation, re-cently electroless plating layers become a competitive candidate for diffusion barriers since they offer the advantages of low cost, high process throughput, high corrosion resistance and good step cover-age. For instance, the lower stress status1_{and better diffusion barrier} feature have been reported for electroless nickel (EN) in compari-son with the sputtered Ni.2–5 _{Further, electroless cobalt-phosphorus} (Co(P)) layer was found to possess a good barrier capability in be-tween Cu and interlayer dielectric.6 _{Incorporation of W in} electro-less Co(P), i.e., Co(W,P), might further improve the thermal stability and barrier capability to Cu metallization.7, 8_{Feasibility of electroless} Co(P) and Co(W,P) to the diffusion barrier to PbSn solder was also reported.9, 10

The researches regarding of the available barrier materials and Pb-free solders, e.g., the interactions of Ni-base barriers and Pb-free solders,11–21_{are rather ﬂourishing in recent years. However, the} diffu-sion barrier characteristics of electroless Co(W,P) to Pb-free solders are less investigated. This work presents a study on the diffusion bar-rier characteristics of electroless Co(W,P) to SnAgCu (SAC), the most popular Pb-free solder type. The evolutions of microstructure at the solder/Co(W,P) reacting interfaces were examined in order to gain an understanding on the kinetics of intermetallic compound (IMC) growth. According to these ﬁndings, the effects of crystallinity and

z_{E-mail: [email protected]}

composition of Co(W,P) on the barrier characteristics are discussed so as to clarify the applicability of electroless Co(W,P) as a barrier material in ﬂip-chip Cu-ICs.

Experimental

Silicon (Si) wafers coated by a 50-nm-thick titanium (Ti) adhesion layer and 100-nm-thick Cu layer to simulate the Cu interconnects were the substrates of this work. The substrates were subjected to a pretreatment listed in Table I and then transferred to a plating bath with constitution and conditions listed in Table II to deposit the electroless Co(W,P) layer with the thickness about 6 to 8μm.10_{In order to} inves-tigate the crystallinity effects on the barrier performance, amorphous and polycrystalline Co(W,P) (termedα-Co(W,P) and poly-Co(W,P) hereafter) were prepared by adjusting the pH value of plating bath within a KOH solution. Theα-Co(W,P) prepared at pH = 8.6 contains about 9 to 10 at.% of P and 0.4 to 0.9 at.% of W, whereas the poly-Co(W,P) prepared at pH= 7.6 contains about 4 at.% of P and 8 at.% of W. Note that 1-liter plating solution with composition listed in Table II was able to achieve about 2-μm-thick α-Co(W,P) or 3-μm-thick poly-Co(W,P) layer in 2.5 h. During electroless plating, the pH value of bath was constantly monitored by a pH meter and the plating solution was regularly refurnished so as to yield the electro-less layers with desired compositions and ﬁlm quality. Feasibility of plating process was veriﬁed by the microstructure and composition characterizations of samples presented as follows.

After the electroless plating, the eutectic SAC solder paste, Sn-3.0 wt.% Ag-0.5 wt.% Cu (Shenmao Technology Inc., PF606-P, Lot no.:D0806083; melting point = 217 to 219◦C;), was immediately applied on the Co(W,P) and a brief reﬂow in N2 ambient at 250◦C for 30 s was performed to solidify the solder. The samples were an-nealed in N2atmosphere at 250◦C up to 5 h for the liquid-state aging or were vacuum-sealed and then subjected to a solid-state aging at 150◦C up to 1000 h. Solid-state aging at 130 to 170◦C for at least 500 h was also performed to determine the activation energy (Ea) of IMC growth. Scanning electron microscopy (SEM, JSM-6500F) and transmission electron microscopy (TEM, Philips Tecnai F-20) in conjunction with the energy dispersive spectroscopy (EDS, Genesis) were adopted to examine the evolutions of microstructure and compo-sitions in the specimens. The cross-sectional TEM (XTEM) samples were prepared by the focused-ion-beam (FIB, FEI-201) technique supported by Materials Analysis Technology, Inc. at Chupei, Taiwan, R.O.C.

As to the samples for shear test, a Si substrate coated with Ti(50-nm-thick)/Cu(100-nm-thick)/electroless Co(W,P)(about 6 to

(2)

Table I. Chemicals and processing conditions of pretreatment.10

Step Component Concentration Immersion Time

Roughening H2SO4 5 wt.% 30 s

Sensitization SnCl2· 2H2O 10 g/L 5 min

HCl 40 ml/L

Activation PdCl2· 2H2O 0.1 g/L 1 min

HCl 8 ml/L

8μm) layers was prepared as mentioned above. A grid pattern of bond pads with 200μm in diameter were then formed on Co(W,P) by the photolithography process using an SU-8 permanent photore-sist (manufactured by MicroChem Corp.; 5%-weight-loss thermal de-composition temperature= 279◦C in air) as the mask layer. After the attachment of the 300-μm-diameter SAC solder balls on the pads, a reﬂow treatment in N2at 250◦C for 1, 10, 20, 30 or 60 min was carried out to form the shear test samples containing solder ball joints. Shear test was performed in accord with the JSDEC Standard, JESD22-B117A, by using a Dage 4000 multipurpose bond tester supported by Schmidt Scientiﬁc Taiwan, Ltd. at Hsinchu, Taiwan, R.O.C. The shear tool standoff was set at 30μm from the device planar surface and shear speed was set at 100μm/s. The values of shear force were deduced from the results of at least 25 bumps for each test condition.

Results and Discussion

SAC/α-Co(W,P) samples.— Liquid-state aging.— Figures 1a–1e

present the SEM views of SAC/α-Co(W,P) sample at

as-reﬂow condition and those subjected to liquid-state aging for 20 min, 1 h, 3 h and 5 h. As shown in Fig. 1a, the needle-like CoSn3and (Co,Cu)Sn3intermetallic compounds (IMCs) at the SAC/α-Co(W,P) interface and Ag3Sn IMCs dispersed in the interior of solder were observed in the as-reﬂow sample. After 20-min aging, the spallation of lath-like IMCs into solder occurred and an about 1.7-μm thick reaction layer formed in between IMCs and Co(W,P) as depicted by Fig. 1b. Figures 1c–1e illustrate almost all IMCs spall away from the reaction layer when the aging time exceeds 1 h and the IMCs coarsen into the irregular spheroid form. This observation supports the argument that the IMC spallation is an interface-energy-driven process.22

EDS line scan proﬁles corresponding to the sample shown in Fig. 1c is given in Fig. 1f and Sn and Cu signals are negligibly observed in the unreacted Co(W,P). This indicatesα-Co(W,P) may effectively inhibit the interdiffusion of Sn and Cu elements; however, the formation of IMCs depicted in Figs. 1a–1e implies the sacriﬁcial barrier behavior ofα-Co(W,P).

EDS analysis also revealed the phosphorus (P) and W concen-trations in the reaction layer are as high as 18 at.% and 2.5 at.%, respectively. Owing to the limited solid solubility, accumulation of P and W elements at reacting interface occurred when Co was consumed by Sn to form the IMCs. Such a reaction layer is termed P-rich layer hereafter due to its high-P-content feature. In addition to the

interfa-Table II. Chemicals and processing conditions of electroless Co(W,P) plating.10

Component Concentration (g/L)

Co Source CoSO4· 7H2O 23

Reducing Agent NaH2PO2· H2O 18

Complexing Agent Na3Citrate 144

Buffer Agent H3BO3 31

W Source Na2WO4· 2H2O 10

pH value 7.6 or 8.6 Temperature 90◦C CoSn3+(Co,Cu)Sn3 α-Co(W,P) P-rich layer 5 μm SAC 10 μm SAC α-Co(W,P) Ag3Sn _Ag 3Sn (a) CoSn3+(Co,Cu)Sn3 α-Co(W,P) SAC P-rich layer 5 μm (c) CoSn3+(Co,Cu)Sn3 (b) 0 3 6 9 12 15 Ag Sn P W Co Cu

Intensity (a. u.)

Distance (μm) Ti

Cu Co(W,P)P-richSAC

5 m Co(W SnAgCu rich layer 5 5 5 5 5 5 5 5 5 5 5 5 5 mmmmmmmmmmmmmm C C C C C C C C Coooooo(o(((((((WWWWWWWWWWWWWWWWWWWW S Sn Sn Sn Sn S Sn Sn Sn Sn Sn S Snn Sn Sn Snnn Sn Snn S Sn Sn Snn Snnn S SnAAAgAAAAAAAAAAAAAAAAAAAAAAAggggggggggggCggggggggggggCCuCCCCCCCCCCCCCCCCCCCuuuuuuuuuuuuuuuuuuuuuuuuuuuu ricii ric ric ric ric ric ric ric r ricc ricchhhhhhhhhhhhhhhlllaylllaylaylaylaylaylaylaylaylaylaylaylayayayererererererererererererrrr

α-Co(W,P) SAC P-rich layer 5 μm (d) SAC P-rich layer 5 μm CoSn3+(Co,Cu)Sn3 α-Co(W,P) (f) (e)

Figure 1. Cross-sectional SEM views of (a) as-reﬂowed SAC/α-Co(W,P) sam-ple and those subjected to liquid-state aging at 250◦C for (b) 20 min, (c) 1 h, (d) 3 h and (e) 5 h. EDS line scan proﬁles corresponding to (c) is shown in (f).

cial energy reduction of IMCs, the high P content might also cause the IMC spallation since it suppresses the solderability as reported previously.11–16, 23, 24

Figure 2 schematically draws of the thickness of P-rich layer as a function of aging time in log-log scale and the slope of the nearly-straight-line plot was found to be 0.47. This implies the dominance of diffusion-controlled mechanism in the formation of P-rich layer.21 Previous studies10, 25_{and subsequent TEM analysis indicate the P-rich} layer is in fact a mixture of nano-scale IMCs. As a result, the diffusion of Sn through P-rich layer to induce the IMC formation at the front of Co(W,P) should be the controlled process. Notably, previous study on eutectic SnBi/Co(W,P) system observed the rates of IMC formation and detachment at the P-rich layer are about the same, leading to a nearly constant value of P-rich layer thickness.25_{In contrast, the} P-rich layer apparently thickened with the increase of aging time in the SAC/Co(W,P) system. This is ascribed to a relatively high Sn content

3.0 3.3 3.6 3.9 4.2 0.0 0.2 0.4 0.6 0.8 log (Thickness, μ m)

log (aging time, s) n=0.47

Figure 2. A plot of P-rich layer thickness as a function of aging time for SAC/α-Co(W,P) samples subjected to liquid-state aging test at 250◦C in log-log scale. The n value represents the slope of linear plot.

(3)

SAC

002Co/

1 μm

P-rich layer

101Co 112Co2P/210Co2P

Co(W,P)

110Co3Sn2/201CoSn 202SnP3/200SnP 211CoP

Figure 3. XTEM micrograph of SAC/α-Co(W,P) sample subjected to 1-h liquid-state aging.

in Pb-free SAC solder which results in more Sn ﬂux into the P-rich layer and thus promotes the IMC formation.

The SAC/α-Co(W,P) sample subjected to 1-h liquid-state aging was also characterized by TEM and the result is presented in Fig. 3. Insets at right-hand side of Fig. 3 show the selected area electron diffraction (SAED) patterns taken from the P-rich layer and unreacted Co(W,P) area. Concentric rings in the SAED pattern of P-rich layer indicate the polycrystalline feature and, according to the index of pattern, such a layer is comprised of various IMC types. Further, a carful examination of SAED pattern for unreacted Co(W,P) found the initially amorphous Co(W,P) tends to recrystallize and the cobalt phosphide phase, Co2P, emerges. The presence of uniformly dispersed Co2P phase can also be seen in the TEM image of unreacted Co(W,P) as shown in Fig. 3. Since there is a negligible Cu and Sn diffusion into Co(W,P) as revealed by EDS analysis shown in Fig. 1f, it is believed that the supersaturated P content and Co2P precipitates might provide the stuffed-type barrier capability forα-Co(W,P). Hence, the electrolessα-Co(W,P) serves as a combined-type, i.e., sacriﬁcial- plus stuffed-type, barrier in SAC/α-Co(W,P)/Cu system.

Solid-state aging.— Figures 4a–4c present the SEM image, EDS

line scan profiles and TEM micrograph of a SAC/α-Co(W,P) sample subjected to solid-state aging at 150◦C for 1000 h. As depicted in Fig. 4a, the (Cu,Co)6Sn5 IMCs agglomerate at the reacting interface without spalling into the solder due to the solid reacting environ-ment. Absence of Cu and Sn signals in unreacted Co(W,P) revealed by EDS line scan shown in Fig. 4b delineate the barrier capability of Co(W,P). Above results illustrate the sacrificial-type barrier feature ofα-Co(W,P), similar to that reported in the liquid-state-aging exper-iment. Formation of polycrystalline P-rich layer was also observed by TEM as shown by the SAED inset at upper left-hand corner of Fig. 4c. The emergence of bright spots randomly embedded in SAED patterns is ascribed to the relatively long solid-state aging time which results in the coarsening of IMCs in P-rich layer. Further, the TEM image contrast also reveals a fine dispersion of nano-scale precipi-tates in unreacted Co(W,P) and, in conjunction with SAED analysis, they should be the phosphide phase formed due to the supersaturated P elements inα-Co(W,P). Hence, the analytical results regarding of the solid-state aged sample also indicate the combined-type barrier behavior forα-Co(W,P), similar to that reported in previous section.

SAC/Poly-Co(W,P) samples.— Liquid-state aging.— Figures 5a–

5c present the SEM image, EDS line scan proﬁles and TEM mi-crograph of SAC/poly-Co(W,P) sample subjected to the liquid-state aging at 250◦C for 1 h. EDS analysis revealed the CoSn3is the main IMC type while (Co,Cu)Sn3and (Co,Ag)Sn3IMCs are occasionally

α

-Co(W,P)

IMCs

P-rich layer

500 nm

215

CoSn3

110

Co3Sn2

(c)

0

3

6

9

12

15 Ag

Sn

P

W

Co

Cu

Intensity (a. u.)

Distance (

μ

m)

Ti

Cu Co(W,P)

P-rich

IMC

SAC

Ag

3

Sn

5 μm

α

-Co(W,P)

(Cu,Co)

6

Sn

5

(a)

P-rich layer

(b)

Figure 4. (a) SEM image, (b) EDS line scan proﬁles and (c) XTEM micro-graph of SAC/α-Co(W,P) sample subjected to solid-state aging at 150◦C for 1000 h.

observed. In contrast to theα-Co(W,P) sample subjected to liquid-state aging, IMCs do not spall away from the reacting interface in the poly-Co(W,P) system (see Figs. 5a and 5c) and the IMC layer apparently thickens with the increase of aging time as indicated Fig. 6 which plots the IMC thickness as a function of aging time. Note that the slope of plot in Fig. 6 deduced by the linear curve ﬁtting method is about 0.56. The slope close to 0.5 implies the IMC thickening is via a diffusion-controlled process, i.e., the diffusion of Sn through pre-senting IMC to react with Co underlayer. The liquid-solid interactions

(4)

Poly-Co(W,P)

W-rich layer

IMCs

(c)

1 μm

Poly-Co(W,P)

_{5 μm}

CoSn

3

+(Co,Cu)Sn

3

+(Co,Ag)Sn

3

(a)

SAC

W-rich layer

0

3

6

9

12

15 Ag

Sn

P

W

Co

Cu

Intensity (a. u.)

Distance (

μ

m)

Ti

Cu

_Co(W,P)

W-rich

_SAC

_(b)

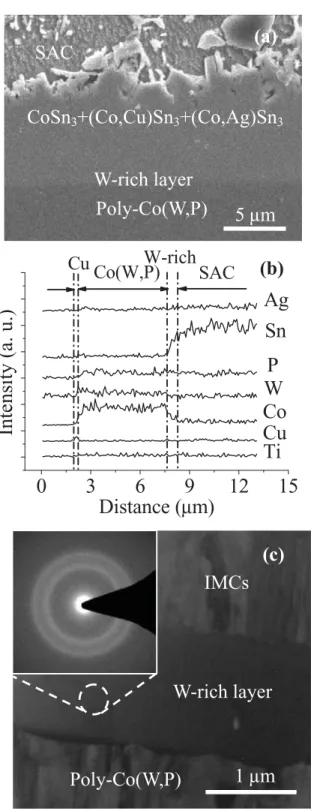

Figure 5. (a) SEM image, (b) EDS line scan proﬁles and (c) XTEM micro-graph of SAC/poly-Co(W,P) sample subjected to liquid-state aging at 250◦C for 1 h.

at the molten solder-IMC interface would be less signiﬁcant in IMC formation although the sample was subjected to the liquid-state aging. TEM/EDS analysis revealed a distinctive feature in the poly-Co(W,P) sample that an amorphous layer enriched with W elements (∼13.5 at.%; termed W-rich layer hereafter) emerges in beneath the IMCs as depicted by the XTEM micrograph shown in Fig. 5c. The exceptionally high W content is ascribed to the element accumulation during the reaction of Sn and Co as well as the comparatively low P content in poly-Co(W,P). Notably, the plot of Fig. 6 delineates the amorphous W-rich layer does not inhibit subsequent alloy reactions

3.4

3.6

3.8

4.0

4.2

4.4

0.8

1.0

1.2

1.4 log (Thickness,

μ

m)

log (aging time, s)

n=0.56

Figure 6. A plot of IMC thickness as a function of aging time for SAC/poly-Co(W,P) samples subjected to liquid-state aging at 250◦C in a log-log scale. The n value represents the slope of linear plot.

of Sn and Co to form IMCs. Hence, the barrier capability is corre-lated to the nature of chemical bonds of the interacting materials25 rather than the structure amorphism of the barrier layer as proposed by conventional classiﬁcation scheme.26

Solid-state aging.— SEM image, EDS line scan proﬁles, and

XTEM micrograph of SAC/poly-Co(W,P) sample subjected to the solid-state aging at 150◦C for 1000 h are separately presented in Figs. 7a–7c. A smoother IMC layer mainly constituted by the (Cu,Co)6Sn5 and a thinner W-rich layer were observed in the SAC/poly-Co(W,P) sample subjected to the solid-state aging, a result of the solid reacting environment and lower temperature of solid-state aging. In conjunction with the analytical results presented in the case of liquid-state aging, the electroless poly-Co(W,P) is categorized as a sacriﬁcial-type diffusion barrier. Poly-Co(W,P) might also possess the stuffed-type barrier feature since the P elements may segregate to the grain boundaries of polycrystalline layer to block the atomic diffusion. However, such a behavior is less obvious in poly-Co(W,P) due to its lower P content in comparison with the case ofα-Co(W,P). As a matter of fact, a pronounced IMC growth depicted by Fig. 6 clearly illustrates the dominance of sacriﬁcial-type barrier feature in poly-Co(W,P).

Determination of the Eaof IMC growth.— In this work, the IMC thickness data as a function of time in the samples containing α-Co(W,P) and ploy-α-Co(W,P) subjected to solid-state aging at 130, 150 and 170◦C up to 500 h were collected in order to determine the Ea’s of IMC growth. For the purpose of comparison, the sample formed by applying SAC on pure Co metal foil was also prepared for aging test. Figure 8a plots the IMC thickness against the square root of time for various types of samples. At the same aging temperature, the IMC growth rates of SAC/electroless Co(W,P) samples are apparently slower than that of SAC/pure Co sample, evidencing the incorporation of P and W elements suppresses the Co-Sn alloy reactions and thus beneﬁts the barrier capability. Further, the linearity of these plots implies the diffusion-controlled IMC growth in the analytical time span and, hence, the IMC thickness-time relation can be expressed by the formula27–29

x=√K t [1]

where x is thickness of IMC, t is aging time duration and K is constant correlating to the diffusional growth of IMC. The values of K can be determined from the slopes of plots presented in Fig. 8a and it is known that K can be expressed in the Arrhenius form:

K= A exp −Ea RT [2] where A is constant, Ea is activation energy for IMC growth, R is ideal gas constant and T is absolute temperature. The values of Ea were calibrated from the slopes of lnK versus 1/T plotted in Fig. 8b,

(5)

SAC

W-rich layer

IMCs

Poly-Co(W,P)

(c)

500 nm

5 m

SnAgCu

Co(W, P)

IMCs

5

5 m

m

S

Sn

n

nA

n

A

g

C

u

C

o

(W

,

P

)

I

IM

M

MC

C

Cs

s

SAC

Poly-Co(W,P)

_{5 μm}

(a)

(Cu,Co)

6

Sn

5

0

3

6

9

12

15

W-rich

IMC SAC

Co(W,P)

Ag

Sn

P

W

Co

Cu

Intensity (a. u.)

Distance (

μ

m)

Ti

Cu

(b)

Figure 7. (a) SEM image (b) EDS line scan proﬁles and (c) XTEM micro-graph of SAC/poly-Co(W,P) sample subjected to solid-state aging at 150◦C for 1000 h.

and it was found that Ea= 68, 81.8, and 110.7 kJ/mole for pure Co, electroless poly-Co(W,P), and electrolessα-Co(W,P), respectively. Apparently, the relatively high P and W contents leading to the stuffed-type characteristic enhances the barrier capability ofα-Co(W,P) so that it becomes a more efﬁcient diffusion barrier. Here the improvement of barrier capability is not ascribed to the amorphism ofα-Co(W,P) since previous TEM characterization has illustrated that the structure amorphism is unnecessarily correlated to the barrier capability of materials.

Shear test.— Figure 9 depicts the average shear strengths of

SAC/α-Co(W,P) and SAC/poly-Co(W,P) samples as a function of

(a) (b)

300

600

900 1200 1500

0

1

2

3

4

5

6

7

8

9

SAC/Co @170°C SAC/Co @130°C SAC/poly-Co(W,P)@170°C SAC/poly-Co(W,P)@150°C SAC/poly-Co(W,P)@130°C

Thickness (

μ

m)

√

aging time (s)

SAC/α-Co(W,P)@170°C SAC/α-Co(W,P)@150°C SAC/α-Co(W,P)@130°C

2.2

2.3

2.4

2.5 -33

-32

-31

-30

-29

pure Co poly-Co(W,P) α-Co(W,P)

ln K

(cm

2

/sec)

1000/T (K

-1

)

Epoly-Co(W,P)_a =81.8 kJ/mol Eα-Co(W,P)_a =110.8 kJ/mol Epure Co_a =68 kJ/mol

Figure 8. (a) IMC thickness against the square root of time for various SAC/Co samples subjected to solid-state aging at 130–170◦C up to 500 h. (b) Plots of lnK versus 1/T for the determination of the values of Eafor IMC growth. time of liquid-state aging. Experimental results of SAC/electroless α-Ni(P)19, 20_{and SAC/electrolytic Ni/Au}21_{systems are also attached} in Fig. 9 for comparison. It can be seen that, regardless of crys-tallinity of Co(W,P), the SAC/Co(W,P) systems exhibit rather high shear strengths in comparison with the systems utilizing Ni as the barrier layers. For SAC/α-Co(W,P) sample, the shear strength in-creased from 62.3 MPa to 91.6 MPa after 10-min aging. The bonding strength increased slightly when ageing time was raised to 30 min and then dropped to 80.8 MPa after 1-h aging. Suppression of mechanical strength due to IMC spallation in the FC bonding systems has been re-ported previously.30, 31_{In conjunction with the SEM characterizations} presented in Fig. 1, this was similarly observed in the SAC/α-Co(W,P) sample that the bonding strength decreased when a substantial IMC spallation occurred in the 1-h aged sample. In the meantime, the solder became in contact with the P-rich layer with highly accumulated P elements. This led to the deterioration of solderability which, in turn, caused the degradation of bonding strength.

As to the SAC/poly-Co(W,P) sample, a maximum shear strength about 112.8 MPa was observed in 20-min aged sample and there was no drop in bonding strength when aging time extended to 1 h. As illustrated in Fig. 8a which depicts an increase of IMC thickness with the increase of aging time, this is similar to previous studies21, 31–37 which reported the thickening of IMC have no apparent inﬂuence on bonding strength. Though bonding strength seems insensitive to the thickness of IMCs, the fracture mode changed in the samples subjected to prolonged aging presented as follows. Furthermore, the P content

(6)

0 10 20 30 40 50 60

20

40

60

80

100

120 Shear Stress (MPa)

Aging Time (min)

SAC/poly-Co(W,P) SAC/α-Co(W,P) SAC/α-Ni-P [19] SAC/α-Ni-P [20] SAC/electrolytic Ni [21]

Figure 9. Shear strengths of SAC/Co(W,P) samples as a function of liquid-stage aging time. The results obtained by the studies19–21 regarding of Ni barrier layers are also added for comparison.

in ploy-Co(W,P) is comparatively lower than that inα-Co(W,P) and there is no IMC spallation in poly-Co(W,P) system as shown in Fig. 5. Analytical results presented above clearly indicate high P content is in fact adverse to the bonding strength. In practical view, the control of P content would be a key issue for electroless plating layer applied to UBM as the diffusion barrier.

Figures 10a and 10b separately present the summary of failure modes for SAC/α-Co(W,P) and SAC/poly-Co(W,P) samples in terms

(b) (a)

0

10

20

30

60

0

20

40

60

80

100

BallLift Interfacialbreak

Percentag

e (

%

)

Aging Time (min)

Ductile PadLift

0

10

20

30

60

0

20

40

60

80

100

Ductile Pad Lift

Percentage (

%

)

Aging Time (min)

Ball Lift Interfacial Break

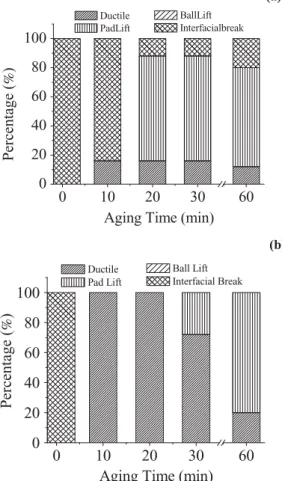

Figure 10. Summary of failure modes of (a) SAC/α-Co(W,P) and (b) SAC/poly-Co(W,P) samples in terms of the SEM observations on facture sur-faces and JESD22-B117A Standard.

100 μm SAC solder 100 μm Cu layer (c) 100 μm (d) Cu Co(W,P) + IMCs IMCs 100 μm (b) (a)

Figure 11. Fracture surfaces of (a) as-reﬂow SAC/poly-Co(W,P) sample, (b) SAC/poly-Co(W,P) sample subjected to 20-min aging, (c) SAC/α-Co(W,P) sample subjected to 20-min aging and (d) crack of Co(W,P) layer in SAC/ α-Co(W,P) sample subjected to 30-min aging. The arrow in each micrograph indicates the shear direction.

of the SEM observations on fracture surfaces and the JESD22-B117A Standard. As revealed by a representative image of fracture surface shown in Fig. 11a, both as-reﬂow samples exhibited the interfacial break (mode #4) mode since the exposure of IMC debris indicated the occurrence of fracture at solder/IMC interfaces. When the aging time was increased to about 10 to 20 min, about 20% ofα-Co(W,P) samples transformed from interfacial break to ductile mode (mode #1) while all poly-Co(W,P) samples fractured by such a ball shear mode as illustrated by an SEM image shown in Fig. 11b. Emergence of ductile mode indicated the completion of alloy interactions implies a good bonding in between solder and Co(W,P) layer so that the fracture occurs in the bulk of bumps. Pad lift (mode #2) dominated the frac-ture mode inα-Co(W,P) samples subjected to the aging for more than 20 min as shown by Fig. 10a. The pad lift behavior is depicted by a typical fracture surface image in Fig. 11c which reveals the removal of Co(W,P) layer with solder ball to expose the Cu underlayer. We note the cracked Co(W,P) layers were occasionally observed inα-Co(W,P) samples subjected to prolonged aging as shown in Fig. 11d. In addition to the brittle features of IMCs38–40_{and deterioration of} ad-hesion due to the high P content, the pad lift behavior might also be correlated to the formation of Co2P precipitates and the glassy transition ofα-Co(W,P) layer. The precipitation hardening increases the hardness and suppresses the toughness ofα-Co(W,P) layer. The amorphous-to-crystalline transition in aged Co(W,P) layer caused a change of thermal expansion coefﬁcient (CTE) which, in turn, in-duced the thermal stress that might break the barrier layer. Delamina-tion and, hence, the pad lift occurred to degrade the bonding strength ofα-Co(W,P) samples subjected to prolonged aging. This might be a weakness for amorphous-type diffusion barrier when exposed to high-temperature environments in practical applications.

Ductile mode remained the main fracture mode for poly-Co(W,P) samples subjected to aging up to 30 min. The desired failure mode is ascribed to the relatively low P content and absence of recrystallization in aged poly-Co(W,P) layer. As to the samples aged for 1 h, the pad lift became the dominant failure mode. Though no obvious drop in bonding strength, the breakage in a brittle manner was observed during the shear test in a large portion of 1-h aged poly-Co(W,P) samples. The pad lift behavior might be ascribed to the deterioration of adhesion of

(7)

electroless Co(W,P) on Cu underlayer; however, the exact origin of this phenomenon is still required further study.

Conclusions

Diffusion barrier characteristics of electroless α-Co(W,P) and poly-Co(W,P) layers to lead-free SAC solder were investigated. In the SAC/α-Co(W,P) sample subjected to the liquid-state aging, (Co,Cu)Sn3 IMC spalled into solder and a nano-crystalline P-rich layer formed in between the SAC and Co(W,P). Further, the aging treatment induces the recrystallization ofα-Co(W,P) and precipitation of Co2P phase. As to the SAC/α-Co(W,P) sample subjected to solder-state aging, a thick (Cu,Co)6Sn5IMC formed in between SAC and Co(W,P) without spallation and a P-rich layer beneath the IMCs was similarly seen. Analytical results indicate theα-Co(W,P) is combined-type, i.e., sacriﬁcial- plus stuffed-combined-type, barrier regardless of aging type.

For SAC/poly-Co(W,P) sample subjected to the liquid-state ag-ing test, a mixture of CoSn3, (Co,Cu)Sn3and (Co,Ag)Sn3IMC layer neighboring to a thin amorphous W-enriched layer formed in between solder and Co(W,P). As to SAC/poly-Co(W,P) sample subjected to solid-state aging, a smoother (Cu,Co)6Sn5 IMC layer and a thinner W-rich layer were observed in the reacting interface. Analytical re-sults indicated poly-Co(W,P) is mainly a sacriﬁcial barrier layer. In addition, above characterizations illustrated the diffusion barrier ca-pability should originate from the nature of chemical bonds rather than the amorphism in microstructure.

The values of Ea of IMC growth for SAC/pure Co, SAC/poly-Co(W,P), and SAC/α-Co(W,P) samples deduced from the solid-state aging were found to be 68, 81.8, and 110.7 kJ/mole, respectively. The enhancement of barrier capability inα-Co(W,P) is ascribed to its relatively high P content which leads to the stuffed-type characteristic in the electroless layer.

As indicated by the ball shear test, SAC/α-Co(W,P) and SAC/poly-Co(W,P) samples exhibited bonding strength as high as 91.6 and 112.8 MPa, respectively. In SAC/α-Co(W,P) case, interfacial break was ob-served at short-time aged samples while pad lift became the dominant failure mode when aging time was long. The decrement of bonding strength due to pad lift failure was ascribed to the deterioration of adhesion due to high P content, loss of toughness due to the formation of Co2P precipitates and the thermal stress induced by the difference of CTE due to the recrystallization in aged Co(W,P) layer. Except in the as-reﬂow sample, the ductile mode dominated the failure of SAC/poly-Co(W,P) samples in most aging conditions. The shear test indicated the high P content inα-Co(W,P) is in fact adverse to the mechanical performance of bump joints although it additionally pro-vides the stuffed-type barrier capability to sacriﬁcial barrier feature when implanted in UBM structure.

Acknowledgments

This work is supported by the National Science Council (NSC), Taiwan, R.O.C., under the contract No. NSC-96-2221-E-009-010. The

supports of microstructure analysis and XTEM sample preparation by Materials Analysis Technology, Inc., Chupei, Taiwan, R.O.C., is also deeply acknowledged.
