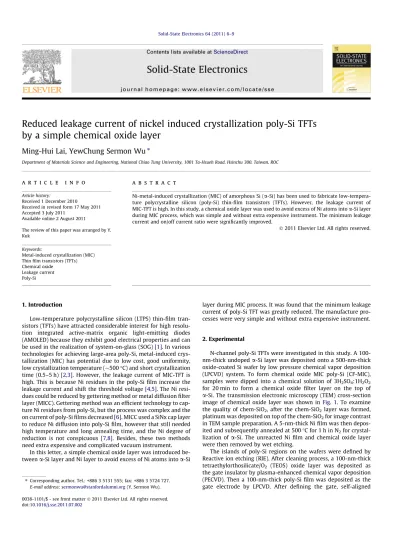

Reduced leakage current of nickel induced crystallization poly-Si TFTs by a simple chemical oxide layer

Reduced leakage current of nickel induced crystallization poly-Si TFTs

by a simple chemical oxide layer

Ming-Hui Lai, YewChung Sermon Wu

⇑

Department of Materials Science and Engineering, National Chiao Tung University, 1001 Ta-Hsueh Road, Hsinchu 300, Taiwan, ROC

a r t i c l e

i n f o

Article history:

Received 1 December 2010

Received in revised form 17 May 2011 Accepted 3 July 2011

Available online 2 August 2011

The review of this paper was arranged by Y. Kuk

Keywords:

Metal-induced crystallization (MIC) Thin film transistors (TFTs) Chemical oxide

Leakage current Poly-Si

a b s t r a c t

Ni-metal-induced crystallization (MIC) of amorphous Si (a-Si) has been used to fabricate low-tempera-ture polycrystalline silicon (poly-Si) thin-film transistors (TFTs). However, the leakage current of MIC-TFT is high. In this study, a chemical oxide layer was used to avoid excess of Ni atoms intoa-Si layer during MIC process, which was simple and without extra expensive instrument. The minimum leakage current and on/off current ratio were significantly improved.

Ó 2011 Elsevier Ltd. All rights reserved.

1. Introduction

Low-temperature polycrystalline silicon (LTPS) thin-film tran-sistors (TFTs) have attracted considerable interest for high resolu-tion integrated active-matrix organic light-emitting diodes (AMOLED) because they exhibit good electrical properties and can be used in the realization of system-on-glass (SOG)[1]. In various technologies for achieving large-area poly-Si, metal-induced crys-tallization (MIC) has potential due to low cost, good uniformity, low crystallization temperature (500 °C) and short crystallization time (0.5–5 h)[2,3]. However, the leakage current of MIC-TFT is high. This is because Ni residues in the poly-Si film increase the leakage current and shift the threshold voltage[4,5]. The Ni resi-dues could be reduced by gettering method or metal diffusion filter layer (MICC). Gettering method was an efficient technology to cap-ture Ni residues from poly-Si, but the process was complex and the on current of poly-Si films decreased[6]. MICC used a SiNx cap layer to reduce Ni diffusion into poly-Si film, however that still needed high temperature and long annealing time, and the Ni degree of reduction is not conspicuous [7,8]. Besides, these two methods need extra expensive and complicated vacuum instrument.

In this letter, a simple chemical oxide layer was introduced be-tween

a

-Si layer and Ni layer to avoid excess of Ni atoms into

a

-Si

layer during MIC process. It was found that the minimum leakage current of poly-Si TFT was greatly reduced. The manufacture pro-cesses were very simple and without extra expensive instrument.

2. Experimental

N-channel poly-Si TFTs were investigated in this study. A 100-nm-thick undoped

a

-Si layer was deposited onto a 500-nm-thick oxide-coated Si wafer by low pressure chemical vapor deposition (LPCVD) system. To form chemical oxide MIC poly-Si (CF-MIC), samples were dipped into a chemical solution of 3H2SO4:1H2O2

for 20 min to form a chemical oxide filter layer on the top of

a

-Si. The transmission electronic microscopy (TEM) cross-section image of chemical oxide layer was shown inFig. 1. To examine the quality of chem-SiO2, after the chem-SiO2 layer was formed,

platinum was deposited on top of the chem-SiO2for image contrast

in TEM sample preparation. A 5-nm-thick Ni film was then depos-ited and subsequently annealed at 500 °C for 1 h in N2for

crystal-lization of

a

-Si. The unreacted Ni film and chemical oxide layer were then removed by wet etching.

The islands of poly-Si regions on the wafers were defined by Reactive ion etching (RIE). After cleaning process, a 100-nm-thick tetraethylorthosilicate/O2 (TEOS) oxide layer was deposited as

the gate insulator by plasma-enhanced chemical vapor deposition (PECVD). Then a 100-nm-thick poly-Si film was deposited as the gate electrode by LPCVD. After defining the gate, self-aligned 0038-1101/$ - see front matter Ó 2011 Elsevier Ltd. All rights reserved.

doi:10.1016/j.sse.2011.07.002

⇑Corresponding author. Tel.: +886 3 5131 555; fax: +886 3 5724 727. E-mail address:[email protected](Y. Sermon Wu).

Solid-State Electronics 64 (2011) 6–9

Contents lists available atScienceDirect

Solid-State Electronics

35 keV phosphorous ions were implanted at a dose of 5  1015cm 2 to form the source/drain and gate. The dopant activation was performed at 600 °C for 24 h. A 500-nm-thick TEOS oxide layer was deposited as the passivation layer by PECVD, fol-lowed by a definition of contact holes. A 500-nm-thick Al layer was then deposited by thermal evaporation and patterned as the electrode. Finally, sintering process was performed at 400 °C for 30 min in N2ambient.

It is worthy to note that this CF-MIC process does not need any additional annealing step and expensive vacuum equipment, and is compatible with conventional MIC processes.

For the purpose of comparison, solid phase crystallization (SPC) TFT, and conventional MIC TFT without chemical oxide layer were also fabricated under the same conditions.

3. Results and discussion

A relation of chemical oxide thickness, as investigated/mea-sured by TEM, versus immersed time is shown in Fig. 2. It was found that oxide thickness increased with immersed time and sat-urated around 3.4 nm when the time reached 10 min. This is be-cause the chemical oxide growth was controlled by diffusion of reactants through the pre-existing oxide layer [9]. Since oxide thickness was saturated when time reached 10 min, in this work, 20 min was chosen as the immersed time to gain stable oxide thickness.

Fig. 3 shows X-ray photoelectron spectroscopy (XPS) of Si2p peak for the chemical oxide on top of

a

-Si layer. By fitting, it was observed Si, SiO and SiO2peaks are located at binding energy of

99.6, 101.7 and 103.2 eV, respectively [10–12]. We believe that the signal of Si peak was from the bottom layer (

a

-Si) because

the thickness of chemical oxide layer is less than XPS sampling depth. In other words, the chemical oxide was composed of SiO and SiO2.

To investigate the effect of chemical oxide on the reduction of Ni residues, samples were purposely dipped into a silicide-etching solution (HNO3:NH4F:H2O = 4:1:50) after unreacted Ni film and

chemical oxide layer were removed. As shown inFig. 4, numerous holes were observed. These holes were residues of Ni silicides that had been etched away by the silicide-etching solution. The Ni res-idues in CF-MIC were much lower than those in conventional MIC. This reduction must be due to the introduction of chemical oxide layer in CF-MIC processes. Oxide filter layer can avoid Ni directly contact with

a

-Si and remove unreacted Ni easily from surface.

Secondary-ion mass spectroscopy (SIMS) depth profile was also used to analyze the Ni concentrations (residues) in Si films (with-out silicide-etching process). As expected, Ni content in CF-MIC was much less than that in MIC as shown in Fig. 5. Obviously, chemical oxide layer can reduce the Ni concentrations in Si films. This is because the diffusivity of Ni in

a

-Si is 108times higher than that in SiO2at 500 °C[13,14]. As a result, chemical oxide as a filter,

which can retard the in-diffusion of Ni into Si. In other words, Ni concentrations in Si films were reduced.

The effect of immersed time on the reduction of Ni concentra-tion is shown inFig. 6. The Ni concentration, as estimated by Ni intensity at 50 nm deep, was found to decrease with the increasing of immersed time and then saturate after 10 min. This is because in CF-MIC process, Ni need diffuse through oxide layer to crystallize

a

-Si. As shown inFig. 2, oxide thickness increased with immersed time. Therefore, the Ni concentration decrease with immersed time Fig. 1. TEM cross-section image of chemical oxide layer. Platinum film deposited on

the top of the chem-SiO2layer was for the TEM sample preparation.

Fig. 2. Formation thickness of chemical oxide versus immersed time.

Fig. 3. X-ray photoelectron spectroscopy (XPS) of Si2p peak for the chemical oxide on top ofa-Si layer.

Fig. 4. SEM of the silicide etching holes after metal induced crystallization of poly-Si with and without chemical oxide layer.

and then saturated after 10 min. In this study, to gain stable oxide thickness/device performance, only 20 min was chosen as the im-mersed time to fabricate devices.

After Ni film and chemical oxide were removed, their surfaces (without silicide-etching) were measured using atomic force microscopy (AFM) to identify the degree of texturing. The root mean square surface (rms) roughness of CF-MIC surface (0.798 nm) was less than that of CF-MIC surface (1.348 nm). These results are in agreement with the MICC studies of Choi et al.[8], who found that MIC with cap layer can achieve a clean and smooth surface.

Finally,Fig. 7exhibits the ID–VGtransfer characteristics of TFTs

at a drain bias of 5 V. The device parameters were extracted at W/ L = 10/10

l

m, and 10 TFTs were measured. The average values with standard deviations in parentheses were shown in Table 1. The threshold voltage (Vth) is defined at a normalized drain current of

IDS= (W/L)  100 nA at VDS= 5 V. The field-effect mobility (

l

FE) is

extracted from the maximum value of transconductance at VDS= 0.1 V. As shown inTable 1, the electrical characters of

CF-MIC TFTs were significantly improved. This improvement must be due to the introduction of chemical oxide layer in CF-MIC

processes. Compared with conventional MIC TFTs, CF-MIC TFTs shows a 17.3-fold increase in the on/off current ratio and a 14.3-fold decrease in the minimum leakage current.

The leakage current improvement was attributed to the reduc-tion of Ni concentrareduc-tion in the CF-MIC films. It is known that Ni-related defects might degrade electric performance because the trap states introduced dangling bonds and strain bonds[15]. The chem-ical oxide layer reduced content of Ni (Ni-related defect) into channel layer during MIC annealing process. With the reduction of the Ni concentration, the minimum leakage current was reduced and therefore the on/off current ratio was increased[16,17]. In addi-tion, the carrier mobility also increased due to lower impurity scat-tering of Ni-related defects. However, the Vthof CF-MIC was showed

a positive shift compared with conventional MIC. The result is sim-ilar to earlier findings suggesting that the negative shift of Vthwas

caused by positive charge in high Ni residues poly-Si film[6]. The electrical performances of SPC TFT were also measured. As shown inTable 1,Fig. 7, the on/off current ratio of CF-MIC TFT was higher than that of SPC TFT. The leakage current of CF-MIC TFT was as low that of SPC TFT. This also demonstrated the reduction of Ni residues through the introduction of chemical oxide layer. 4. Conclusions

The chemical oxide filter layer was introduced into MIC pro-cesses to reduce the leakage current of MIC TFT. The process was very simple and without extra expensive instrument. It just added

a

-Si coated sample into chemical solution before depositing the Ni film. As a result, the electrical performance of MIC TFTs with chem-ical oxide layer was significantly improved. Compared with con-ventional MIC TFT, CF-MIC TFT shows a 14.3-fold decrease in the minimum leakage current and a 17.3-fold increase in the on/off current ratio. This is because the chemical oxide layer can avoid Fig. 5. SIMS depth profiles of nickel and in the structure of poly-Si film after MIC

process.

Fig. 6. A relation of Ni intensity at a depth of 50 nm versus immersed time by SIMS after MIC annealing.

Fig. 7. Typical IDS–VGStransfer characteristics of conventional MIC, CF-MIC and SPC (W/L = 10/10lm).

Table 1

Average device characteristics of MIC, CF-MIC and SPC with standard deviations in parentheses. W/L = 10/10lm MIC CF-MIC SPC lFE(cm2/V-S) 25.5 (2.39) 35.8 (2.65) 17.0 (1.26) Vth(V) 7.11 (0.81) 8.73 (0.88) 13.02 (0.18) S.S (V/decade) 1.86 (0.14) 1.81 (0.12) 1.83 (0.14) Imin (pA/lm) 30.00 (3.71) 2.10 (0.12) 1.26 (0.08) Max on/off ratio (105) 2.08 (0.48) 35.98 (5.21) 18.67 (1.18) 8 M.-H. Lai, Y. Sermon Wu / Solid-State Electronics 64 (2011) 6–9

Ni directly contact with

a

-Si, avoid excess of Ni atoms into

a

-Si layer and remove unreacted Ni easily from surface.

Acknowledgements

This Project was funded by Sino American Silicon Products Incorporation and the NSC of the ROC under Grant No. 98-2221-E-009-041-MY3. Technical supports from the National Nano De-vice Laboratory, Center for Nano Science and Technology and the Nano Facility Center of the National Chiao Tung University are also acknowledged.

References

[1] Stewart M, Howell RS, Pires L, Hatalis MK. IEEE Trans Electron Dev 2001;48:845–51.

[2] Pereira L, Aguas H, Martins RMS, Vilarinho P, Fortunato E, Martins R. Thin Solid Films 2004;451–452:334–9.

[3] Yoon SY, Park SJ, Kim KH, Jang J. J Appl Phys 2000;87:609–11.

[4] Murley D, Young N, Trainor M, McCulloch D. IEEE Trans Electron Dev 2001;48:1145–51.

[5] Bhat GA, Kwok HS, Wong M. Solid State Electron 2000;44:1321–4. [6] Hu CM, Sermon Wu YC, Lin CC. IEEE Electron Dev Lett 2007;28:1000–3. [7] Sohn WS, Choi JH, Kim KH, Oh JH, Kim SS, Jang Jin. J Appl Phys

2003;94:4326–31.

[8] Choi JH, Cheon JH, Kim SK, Jang J. Displays 2005;26:137–42.

[9] Petitdidier S, Bertagna V, Rochat N, Rouchon D, Besson P, Erre R, et al. Thin Solid Films 2005;476:51–8.

[10] Toneva A, Marinova T, Krastev V. J Lumines 1999;80:455–9. [11] Smith GB, McKenzie DR, Martin PJ. Phys State Solid 1989;152:475–80. [12] Nguyen TP, Lefrant S. J Phys: Condens Matter 1989;1:5197–204. [13] Kuznetsov AY, Svensson BG. Appl Phys Lett 1995;66:2229–31. [14] Ghoshtagore RN. J Appl Phys 1969;40:4374–6.

[15] Chang CP, Sermon Wu YC. IEEE Electron Dev Lett 2009;30:130–2. [16] Yazaki M, Takenaka S, Ohshima H. Jpn J Appl Phys 1992;31:206–9. [17] Olasupo KR, Hatalis MK. IEEE Trans Electron Dev 1996;43:1218–23. M.-H. Lai, Y. Sermon Wu / Solid-State Electronics 64 (2011) 6–9 9
