Journal of Modern Optics

Vol. 55, No. 6, 20 March 2008, 1013–1021

Characteristics of single-mode InGaAs sub-monolayer quantum-dot

photonic-crystal VCSELs emitting in the 990 nm range

Hung-Pin D. Yanga*, I.-Chen Hsub, Fang-I. Laib, Gray Lina, Ru-Shang Hsiaoa, Hao-Chung Kuob and Jim Y. Chia

a_{Nanophotonic Center, Industrial Technology Research Institute, Hsinchu, Taiwan;}b_{Institute of}

Electro-Optical Engineering, National Chiao Tung University, Hsinchu, Taiwan (Received 28 January 2007; ﬁnal version received 13 July 2007)

We have made InGaAs sub-monolayer (SML) quantum dot photonic crystal vertical-cavity surface-emitting lasers (QD PhC-VCSELs) for ﬁber-optic applications. The active region of the device contains three InGaAs SML QD layers. Each of the InGaAs SML QD layer is formed by alternate deposition of InAs (<1 ML) and GaAs. Single fundamental mode CW output power of 3.8 mW at 28 mA has been achieved in the 990 nm range, with a threshold current of 0.9 mA. Side-mode suppression ratio (SMSR) larger than 35 dB has been demonstrated over the entire current operation range. Near-ﬁeld images of the PhC-VCSELs were also measured and studied. Keywords: InGaAs; photonic-crystal; sub-monolayer; quantum-dot; VCSEL

1. Introduction

Vertical-cavity surface-emitting lasers (VCSELs) have attracted a lot of attention in recent years. Single-mode VCSELs are necessary for a number of applications, including high-speed laser printing, optical storage and long-wavelength telecommunications. Small oxide aperture VCSELs below about 4 mm diameter operate in the fundamental transverse mode. However, the large resistance inherited from the small aperture limits the modulation bandwidth and degrades the high-speed performance. The lifetime of the oxide VCSEL also decreases proportionally to the diameter of the oxide aperture, even when the device is operated at a reduced current [1]. When the aperture diameter is increased to obtain higher output power, however, multiple higher-order transverse modes oscillate, causing increased noise, a broadened spectrum, and a strong increase of the far-ﬁeld angle. Techniques used to solve the problem include the increase of higher-order mode loss by surface-relief etching [2], hybrid oxide-implanted VCSELs [3,4] and two-dimensional triangular holey structure [5]. Recently, two-dimensional photonic crystal (2-D PhC) structure formed on the VCSEL surface has been used as a control

*Corresponding author. Email: [email protected] ISSN 0950–0340 print/ISSN 1362–3044 online

#_{2008 Taylor & Francis} DOI: 10.1080/09500340701576288 http://www.informaworld.com

(4)

method of transverse modes. Single-mode output was realized from larger aperture photonic crystal VCSELs (PhC-VCSELs) [6, 7]. However, those PhC-VCSELs exhibit relatively high threshold currents (Ith) due to large oxide conﬁned apertures.

For long-wavelength applications, InAs quantum-dot (QD) VCSELs [8] and QD PhC-VCSELs [9] achieved laser emission at 1300 nm. For shorter wavelength emission, InGaAs/GaAs sub-monolayer (SML) quantum dot (QD), embedded in a GaAs matrix shows luminescence peaks and high power lasing performance in the 0.92–1 mm range [10]. Recently single-mode InGaAs SML QD VCSELs with room-temperature output power as high as 4 mW have been demonstrated [11]. However, single-mode operation of the InGaAs SML QD VCSEL with PhC is still yet to be realized. In this paper, we report our results on the InGaAs QD PhC-VCSELs in the 990 nm range. Single-transverse-mode operation with very high side-mode suppression ratio (SMSR) is demonstrated for the ﬁrst time. The beam proﬁles of the PhC-VCSELs were measured and analyzed.

2. Epitaxial growth and device fabrication

The epitaxial layers of the InGaAs SML QD PhC-VCSEL wafers were grown on 3 inch nþ_{-GaAs (001) substrates by molecular beam epitaxy (MBE) in a Riber 49 chamber.}

The bottom distributed Bragg reﬂector (DBR) consists of a 33-pair n-type (Si-doped) quarter-wave stack (=4) of Al0.9Ga0.1As/GaAs. The top DBR consists of 20-period p-type

(carbon-doped) Al0.9Ga0.1As/GaAs quarter-wave stack. Above that, is a heavily doped

p-type GaAs contact layer. The undoped 1-cavity contains three InGaAs SML QD layers, separated by GaAs barrier layers. Each of the InGaAs SML QD layers is formed by alternate deposition of InAs (<1 ML) and GaAs. A 20 nm thick AlAs oxidation layer is placed within the p-type Al0.9Ga0.1 as conﬁnement layer. Firstly, mesas with diameters

varying from 50 to 68 mm were deﬁned by reactive ion etch (RIE). The p-ohmic contact ring with an inner diameter 4 mm larger than the oxide aperture was formed on the top of the p-contact layer. The AlAs layer within the Al0.9Ga0.1As conﬁnement layer was

selectively oxidized to AlOx. The oxidation depth was about 15 to 16 mm toward the

center from the mesa edge so that the resulting oxide aperture varied from 18 to 38 mm in diameter. The oxide aperture was introduced in minimum of optical ﬁeld in order to reduce the lateral optical loss and the leakage current. The n-ohmic contact was formed at the bottom of the nþ_{-GaAs substrate. After that, triangular lattice patterns of photonic}

crystal with a single-point defect in the center were defined within the p-contact ring using photo-lithography and etched through the p-type DBR using RIE. The lateral index around a single defect can be controlled by the hole radius (r)-to-lattice constant (a) ratio and etching depth [6]. This ratio (r / a) is 0.25; the lattice constant a is 5 mm in the PhC-VCSEL and the etching depth of the holes is about 16-pair thick into the 20-pair top DBR layer. The normalized lattice constant (a=) is 5.05 (for ¼ 990 nm). The ratio (r / a) of 0.25 is chosen for better optical confinement and ensuring single mode operation [12]. The designed lattice parameters also provide suitable conduction paths (2:5 mm) for the injection current to flow between vertically etched PhC holes, and then flow toward the central single-point defect area for laser emission. The refractive index of the PhC hole

1014 H.-P.D. Yanget al.

(5)

area is reduced, as compared to that of the central un-etched area. The device structure is shown in Figure 1. By using two types of apertures in this device, we decouple the effects of the current confinement from the optical confinement. The selectively oxidized AlOxlayer

is used to confine the current flow, while the single-point defect (approximately 10 mm in diameter) photonic-crystal structure is used to confine the optical mode. In order to clarify the effect of the photonic-crystal index-guiding layer, an oxide-confined VCSEL (oxide aperture is approximately 18 to 20 mm in diameter without PhC) was also fabricated for comparison.

3. Results and discussions

The continuous-wave (CW) light–current–voltage (L–I–V) output of the InGaAs SML QD VCSEL without photonic crystal (PhC) is shown is Figure 2(a). The oxide aperture of the device is approximately 20 mm in diameter. The maximum output power is 12.2 mW at 30 mA, with a threshold current (Ith) of approximately 1 to 2 mA. The slope eﬃciency is

0.45 to 0.65 W A1 from 1.5 to 16 mA. The device shows multiple transverse mode characteristics. The diﬀerential series resistance of the VCSEL without PhC is approximately 10 at 12 mA. The mesa of the VCSEL is 50 mm in diameter. Figure 2(b) shows CW L–I–V output of the PhC-VCSEL. The near-ﬁeld image of the PhC-VCSEL operated at 4 mA is also shown (inset). The Ithof the PhC-VCSEL is 0.9 mA, with an oxide

aperture of approximately 18 mm in diameter. The PhC-VCSEL emits 3.8 mW maximum power at 28 mA and exhibits single mode operation throughout the current range of operation. This is one of the highest output powers achieved for PhC-VCSELs. The slope eﬃciency is approximately 0.15 to 0.22 W A1from 3 to 15 mA. The near-ﬁeld image of the lasing output remains as the fundamental TEM00 mode at the center of the PhC

structure throughout the current operating range. From the near-ﬁeld image, laser emission from the six photonic crystal holes surrounding the single-point defect area was also observed. This laser emission from the photonic crystal holes corresponds to an

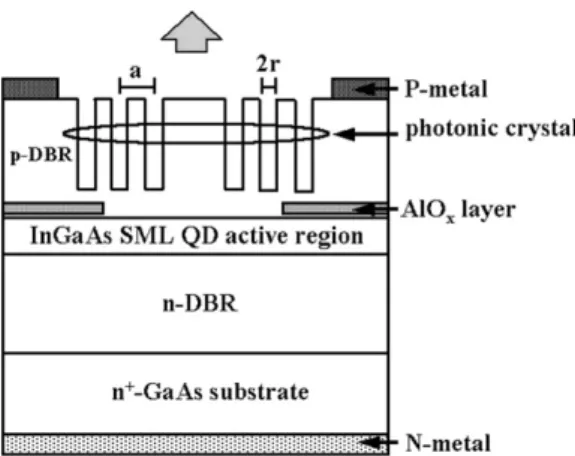

Figure 1. Schematic of InGaAs SML QD PhC-VCSEL. The hole etching depth of the PhC is 16-pair out of the 20-pair top DBR been etched oﬀ.

Journal of Modern Optics 1015

(6)

off-axis laser beam deviated from the optic axis perpendicular to the top-emitting surface of the VCSEL. The differential series resistance of the PhC-VCSEL is approximately 125 at 12 mA. The I–V characteristics exhibit slightly higher series resistance for the PhC-VCSEL, which should be mainly due to blocking of the current flow in the region by photonic crystal holes. Figure 3 shows the temperature-dependent light–current (L–I) characteristics of the PhC-VCSEL. The threshold current increases from 1.3 mA at 20_C

to 2.2 mA at 70_{C. The maximum output power decreases from 2.7 mW at 20}_{C to 0.9 mW}

at 70_C.

Lasing spectra of the PhC-VCSEL is shown in Figure 4(a), conﬁrming single-mode operation within overall operation current. The peak lasing wavelengths are 991, 992, and 996 nm at 3, 9, and 20 mA, respectively. The PhC-VCSEL exhibits a SMSR435 dB throughout the current range. Figure 4(b) shows the current-dependent peak wavelength of the PhC-VCSEL. The peak lasing wavelength increases monotonically with the driving current. For comparison, lasing spectra of the InGaAs SML QD VCSEL without photonic crystal holes shows multiple transverse mode operation as the driving current is increased above Ith (Figure 5). The InGaAs SML QD VCSEL without PhC shows

multiple transverse mode characteristics with a broader wavelength span.

Figure 2. CW L–I–V characteristics of the InGaAs SML QD (a) VCSEL without PhC. (b) PhC-VCSEL. The ratio r / a is 0.25 and the lattice constant a is 5 mm for the PhC-VCSEL. The near-ﬁeld image of the PhC-VCSEL at 4 mA is shown in the inset. The measurement temperature was room temperature (RT).

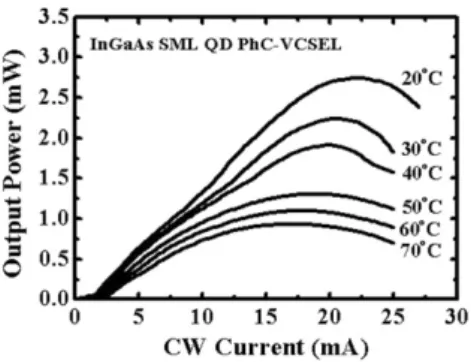

Figure 3. Temperature-dependent L–I characteristics of the InGaAs SML QD PhC-VCSEL.

(7)

Figure 6(a) is the near-ﬁeld image of the PhC-VCSEL at 10 mA, with light illumination on the devices in order to show the laser emission pattern and the photonic crystal structure simultaneously. The fundamental TEM00 laser output is well conﬁned

at the center of the single-point defect area. The laser beam emits not only from the single-point defect area at the center of the photonic crystal structure, but also from the six photonic crystal holes nearby. The laser beam intensity increases with increasing biasing current before thermal rollover occurs. The stray laser emission from the photonic crystal holes is believed to be the off-axis laser emission and diffraction within the laser cavity [13]. There is no other laser emission spot observed, indicating that there is no other lasing mode within the device. This off-axis laser emission also contributes to the divergence angle of the laser beam. The reflectance of the remaining p-DBR layers within the photonic crystal hole is significantly reduced due to RIE etch. The portion of the active region below the PhC hole cannot achieve lasing condition because of lower reflectance of the remaining p-type DBR layers. Therefore, the laser emission from the photonic crystal holes must be contributed from off-axis laser

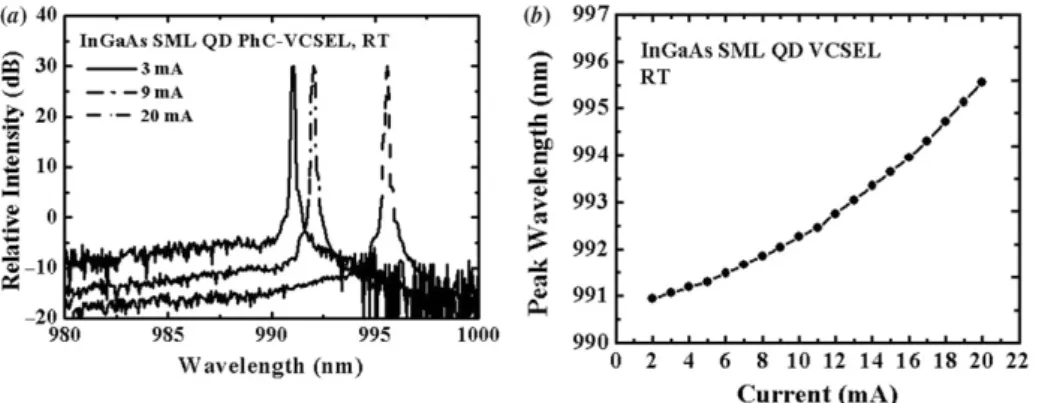

Figure 4. (a) Spectra and (b) current-dependent peak wavelength of an InGaAs SML QD PhC-VCSEL. The measurement temperature was room temperature.

Figure 5. Spectra of an InGaAs SML QD VCSEL without PhC. The measurement temperature was room temperature.

(8)

emission and diﬀraction originated from the TEM00 mode at the center. Other stray

laser emission was blocked by the high-reflectance top DBR. The measured single-mode spectra in Figure 4 indicate that all the laser emission beams, including those from the photonic crystal holes, are of the same lasing wavelength. The spectral single-mode characteristics of the PhC-VCSEL are not affected by the laser emission from the photonic crystal holes. The near-field image of the PhC-VCSEL at 16 mA is shown in Figure 6(b). The near-field image was taken without addition light illumination. The stray laser emission from the six photonic-crystal holes with smaller beam spot sizes was also observed at all current levels. The spot size of the fundamental TEM00 mode

remains unchanged throughout the current range. The three-dimensional (3-D) near-field intensity profiles at 10 mA are shown in Figure 6(c). The height of the intensity profile is the relative intensity of the lasing output at that position. The laser output consists of one TEM00 mode emission at the center and six smaller beams with lower intensity. Figure 6. (a) Near-field image at 10 mA, (b) near-field image at 16 mA without additional light illumination, and (c) three-dimensional (3-D) near-field intensity profile at 10 mA of the InGaAs SML QD PhC-VCSEL.

(9)

The near-field images of the VCSEL without PhC at 3 and 7 mA are shown in Figure 7. The laser output exhibits a multi-mode beam profile with higher intensity at the periphery. This is mainly because of the current spreading, where the inner diameter of the p-ohmic contact ring is 31 mm. The lasing output of the VCSEL without PhC structure is mainly confined by the AlOx oxide aperture of the device. The intensity of

the laser beam increases with increasing current.

The beam profile results obtained from the far-field beam divergence angle measurement system are shown in Figures 8–10. The divergence angles are the full-width half-maximum (FWHM) of the measured beam profiles in Figures 8 and 9. The beam profiles of the PhC-VCSEL are shown in Figure 8. The beam divergence angle obtained from the beam profile of the device remains to be 6:7_{to 6:9}_{. This very small divergence}

angle indicates that the laser beam is well confined by the photonic structure of the device. Figure 9 shows the beam profiles of the VCSEL without PhC at 3, 7, and 10 mA. The divergence angle increases with increasing current, from 17:2 _{at 3 mA to 21:5}_{at 10 mA.} Figure 7. Near-field images of InGaAs SML QD VCSEL without PhC at (a) 3 mA and (b) 10 mA.

(10)

The two laser emission lobes correspond to the annular-shaped laser emission observed by the near-ﬁeld image in Figure 7. Figure 10 shows the current-dependent divergence angle of the InGaAs SML QD PhC-VCSEL and InGaAs SML QD VCSEL without PhC. For the InGaAs SML QD PhC-VCSEL, the divergence angle remains almost unchanged within 6:7_{to 6:9}_{. For the InGaAs SML QD VCSEL without PhC, the divergence angle}

increases monotonically with current.

Figure 8. Beam proﬁles of InGaAs SML QD PhC-VCSEL, measured at 3, 10, and 20 mA.

Figure 9. Beam proﬁles of InGaAs SML QD VCSEL without PhC, measured at 3, 7, and 10 mA.

Figure 10. Current-dependent beam divergence angle of the InGaAs SML QD PhC-VCSEL and InGaAs SML QD VCSEL without PhC.

(11)

4. Conclusion

We report single-mode InGaAs SML QD PhC-VCSELs with SMSR435 dB throughout the operation current range. A maximum single-mode output power of 3.8 mW has been demonstrated. The present results indicate that a VCSEL using an oxide layer for current confinement and photonic crystal for optical confinement is a promising approach to achieve single-mode operation of VCSEL. The beam profile study of the PhC-VCSEL indicates that the laser beam is well confined by the photonic crystal structure of the device.

Acknowledgements

The authors would like to thank Dr A.R. Kovsh of NL Nanosemiconductor GmbH in Germany for providing the InGaAs SML QD-VCSEL epitaxial wafers. The authors would also like to thank Dr N.A. Maleev and Mr S.A. Blokhin of Ioﬀe Physico-Technical Institute in Russia for useful discussions. This work was supported by the Nanophotonics Project, MOEA.

References

[1] Hawkins, B.M.; Hawthorne III, R.A.; Guenter, J.K.; Tatum, J.A.; Biard, J.R. Proceedings of the 52nd Electronic Compounds and Technology Conference,San Diego, CA, May 28–31, 2002, p. 540.

[2] Haglund, A.; Gustavsson, J.S.; Vukusic’, J.; Modh, P.; Larsson, A. IEEE Photon. Technol. Lett. 2004, 16, 368–370.

[3] Hsueh, T.H.; Kuo, H.C.; Lai, F.I.; Laih, L.H.; Wang, S.C. Electron. Lett. 2003, 39, 1519–1521. [4] Young, E.W.; Choquette, K.D.; Chuang, S.L.; Geib, K.M.; Fischer, A.J.; Allerman, A.A. IEEE

Photon. Technol. Lett. 2001, 13, 927–929.

[5] Furukawa, A.; Sasaki, S.; Hoshi, M.; Matsuzono, A.; Moritoh, K.; Baba, T. Appl. Phys. Lett. 2004, 85, 5161–5164.

[6] Yokouchi, N.; Danner, A.J.; Choquette, K.D. Appl. Phys. Lett. 2003, 82, 1344–1346. [7] Berkedal, D.; Gregersen, N.; Bischoﬀ, S.; Madsen, M.; Romsted, F.; Oestergarrd, J. Optical

Fiber Communications Conference Proceedings, 2003, p. 83.

[8] Lott, J.A.; Ledentsov, N.N.; Ustinov, V.M.; Maleev, N.A.; Zhukov, A.E.; Kovsh, A.R.; Maximov, M.V.; Volvovik, B.V.; Alferov, Z.H.I.; Bimberg, D. Electron. Lett. 2000, 36, 1384–1385.

[9] Yang, H.P.D.; Chang, Y.H.; Lai, F.I.; Yu, H.C.; Hsu, Y.J.; Lin, G.; Hsiao, R.S.; Kuo, H.C.; Wang, S.C.; Chi, J.Y. Electron. Lett. 2005, 41, 1130–1132.

[10] Mikhrin, S.S.; Zhukov, A.E.; Kovsh, A.R.; Maleev, N.A.; Ustinov, V.M.; Shernyakov, Yu, M.; Soshnikov, I.P.; Livshits, D.A.; Tarasov, I.S.; Bedarev, D.A.; et al., Semicond. Sci. Technol. 2000, 15, 1061–1064.

[11] Blokhin, S.A.; Maleev, N.A.; Kuzmenkov, A.G.; Shernyakov, Yu.M.; Novikov, I.I.; Gordeev, N.Yu.; Sokolovskii, G.S.; Dudelev, V.V.; Kuchinskii, V.I.; Kulagina, M.M.; et al., Semiconductors 2006, 40, 615–619.

[12] Yokouchi, N.; Danner, A.J.; Choquette, K.D. Appl. Phys. Lett. 2003, 82, 3608–3610. [13] Siegman, A.E. Lasers; University Science Books: Mill Valley, CA, 1986; Chapters 1 and 23.
