The mechanisms of random trap fluctuation in metal oxide semiconductor
field effect transistors
E. R. Hsieh and Steve S. Chunga)
Department of Electronics Engineering and Institute of Electronics, National Chiao Tung University, Hsinchu, Taiwan
(Received 18 July 2012; accepted 8 November 2012; published online 27 November 2012)
An effect, called random trap fluctuation (RTF), is proposed to study the threshold voltage (Vth)
fluctuation of metal oxide semiconductor field effect transistors (MOSFETs) under Fowler-Nordeim (FN) or hot carrier (HC) stress condition. Experiments have been demonstrated on n-channel MOSFETs, and it was found that not only the random dopant fluctuation (RDF) but also the stress-induced traps vary the Vth fluctuation. More importantly, the stress-induced trap barrier
determines the Vthfluctuation. For devices after FN stress, Vthfluctuation is enhanced since the trap
barrier regulates the transporting carriers. For devices after HC stress, Vthfluctuation is supressed
since the carriers are backscattered into the channel by the trap barrier and fewer carriers with higher energy pass through the barrier. These results provide us a clear understanding on another source of Vthfluctuations in addition to the RDF as devices are further scaled.VC 2012 American Institute of
Physics. [http://dx.doi.org/10.1063/1.4768687]
Moore’s law has driven complementary metal-oxide semiconductor (CMOS) devices scaling for several decades.1 The phenomenon of device fluctuations becomes increas-ingly important. One of the most significant issues in the scaling is the threshold voltage (Vth) fluctuation induced by
the process or device structure;1–11 especially the discrete-dopant in the channel induced random discrete-dopant fluctuation (RDF),2which is the major source of Vthfluctuation. It has
been magnified by the scaling of device size (or area) because the electrical characteristics of the device become more and more sensitive to the number of dopants in the channel. Different configurations of dopant position will affect the value of the local Vthin the channel, and the
elec-trical characteristics will not be uniform any more while the numbers of dopants are reduced to quite a few.3Recent stud-ies have shown that the process-induced RDF, e.g., the non-uniform distribution of the generic dopants in the device channel, are required for the further scaling of device dimen-sions to drive the Moore’s law. As a result, it has been a con-sensus to reduce the dopant concentrations in the device channel through the improvement of fabrication process, such as carbon co-implantation,12 fully depleted silicon-on-insulator (FDSOI) or FinFET with undoped (lighter) chan-nel,13,14 which has been reported to reduce the Vth
fluctua-tion effectively. On the other hand, as far as the reliabilities are concerned, for the devices after the stress, the bias-temperature instability (BTI) and random telegraph noise (RTN) may also raise the fluctuation of Vthwith the
evolu-tion of time,15–20as a result of the dynamic exchange of car-rier charges between the traps and channel.
Nevertheless, these transient responses of the electrical characteristics for the devices after the stress have never been examined in view of the variability, and the correlations between the reliability and variability have not been reported. In this paper, we present a concept that the stress-induced
traps which caused the random trap fluctuation (RTF) can be considered as part of the fluctuations. Experimentally, for the device being stressed, the traps are generated in the oxide and at the interface with non-uniform distribution. It will affect the transport of carriers, giving rise to a similar fluctuation of the threshold voltage.21,22 As a consequence, we are inter-ested in understanding the mechanisms behind this additional source of Vthfluctuation. In this paper, the impact of RTF on
the Vth fluctuation, caused by the Fowler-Nordheim(FN) or
hot carrier (HC) stress, has been investigated. By applying the Pelgrom plot,23i.e.,
rVth; fresh¼ AVT=
ffiffiffiffiffiffiffi LW p
; (1)
where L and W are the device length and width, respectively, the dopant fluctuation before the stress can be interpreted and quantified by the standard deviation of Vth,fresh, e.g., rVth,fresh.
The slope, AVT, is an indicator of the Vth,freshfluctuation. For
the device after the stress, the stressed Vth will be shifted,
attributed to the trap generation. If traps are generated in the gate dielectric or the interface randomly after the stress, it is reasonable to treat this single trap as a delta function, i.e.,
rVth;shift ¼ qrDtrap=Cox ¼ q ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi ðTox 0 DNtrapðxÞdðx xtrapÞdx=ðLWÞ s =Cox / 1=pffiffiffiffiffiffiffiLW; (2)
where rVth,shift is the standard deviation of the threshold
voltage shift after the stress. Coxis the inversion capacitance;
q is a constant value, 1.6 1019 (coulomb); rDtrap is the
standard deviation of trap densities; d(x-xtrap) is Dirac’s
delta-function, whose center is located at a trap position, xtrap, with value of unity or zero depending on the trap
loca-tion. Now, the total variation of Vth after the stress,
rVth,stress, can be considered as a root mean square of
rVth,shiftand rVth,fresh, e.g.,
a)
0003-6951/2012/101(22)/223505/4/$30.00 101, 223505-1 VC2012 American Institute of Physics
rVth;stress¼ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi rV2 th;freshþ rV2th;shift q / 1=pffiffiffiffiffiffiffiLW; (3) from which the actual rVth,stress also holds the Pelgrom’s
inversion square rule as does for rVth,fresh in Eq. (1). This
can be judged from Fig.1(b)in that the drain currents at the near threshold voltage region exhibit a parallel shift for the device after the stress.
It is well known that, after stresses, some charges trapped in defect states in the dielectric insulator of the gate exhibits a profound impact on the electric characteristics of nanoscale metal oxide semiconductor field effect transistors (MOSFETs).24 These stress-induced traps will induce the electrostatic effect on the channel potential and will generate a localized barrier effectively, which will reflect the trans-porting carriers randomly. This trap-barrier leads to the Vth
fluctuation,25and we call it RTF. Experimentally, to observe the influence of RDF on the Vth fluctuation, FN and HC
stresses have been employed to generate different types of stress induced trap barriers. Fifty experimental samples, made by the state-of-the-art CMOS technology, are prepared for the experimental measurements. Equivalent oxide thick-ness (EOT) of these samples made by oxynitride (SiON) is
12 A˚ . Devices with various areas are measured to depict the Pelgrom plot. The threshold voltages of devices are deter-mined by the Gm,maxmethod.
By collecting 50 sets of ID-VG curves measured at
VDS¼ 50 mV for fresh nMOS devices, the drain current
pop-ulation is shown in Fig.1(a). In the enlarged insert of the fig-ure, we can see the fluctuation of drain currents in response to the RDF effect, resulting in the Vthfluctuation before any
stresses. In order to observe the stress-inudced Vth
fluctua-tion, FN stress was carried out for those devices in Fig.1(a). After the FN stress, traps were generated at Si/SiO2interface
randomly. The FN stress then causes a fluctuation of the drain current such that the mismatch is significantly larger for stressed nMOS devices, compared to that of the fresh devices, as shown in Fig. 1(b). In general, the RTF will become increasingly significant since more traps will be gen-erated as stress time evolutes.
In order to understand the physics of RTF, Fig. 2(a)
shows the Pelgrom plot of these nMOSFETs after FN stress
FIG. 1. (a) The measured drain current population on 50 sets of fresh n-MOSFETs with same dimensions and (b) the drain current population on 50 sets of n-MOSFETs with same dimensions after the FN-stress.

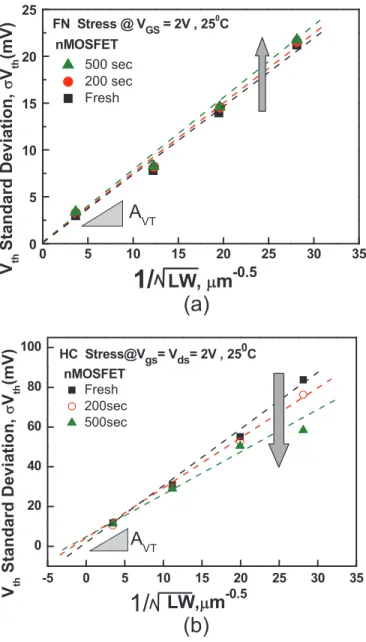

FIG. 2. The time evolution of the Pelgrom plot for n-MOSFETs (a) after FN stress and (b) after HC stress. The slope, AVT, indicates the degrees of Vth
fluctuation. The AVT increases after the FN stress, but decreases after
the HC stress. The device dimension from the left to right, W/L¼ 0.3/0.25, 0.2/0.13, 0.1/0.065, and 0.05/0.028 (lm/lm).
with VGS¼ 2 V for the fresh (0 s), 200 s and 500 s,
respec-tively, showing the increase of the slope, AVT, which is
because during time evolution, random traps are increasingly generated such that the transporting carriers will go through more surface reflecting events from the interface of gate dielectric. On the other hand, we also applied HC stress to the devices with VGS¼ VDS¼ 2 V for the fresh (0 s), 200 s
and 500 s, respectively. Surprisingly, it was observed an
abnormal behavior as compared to that from the FN stress, i.e., instead the AVTis decreased with increasing stress time
after the HC stress, Fig.2(b).
From the above two experimental observations, the evi-dence has been shown that the stress-induced Vthfluctuation
will be dependent on the condition of electrical stress, i.e., FN or HC stress. The schematics in Fig.3illustrate the com-parison of the generated traps between the two different

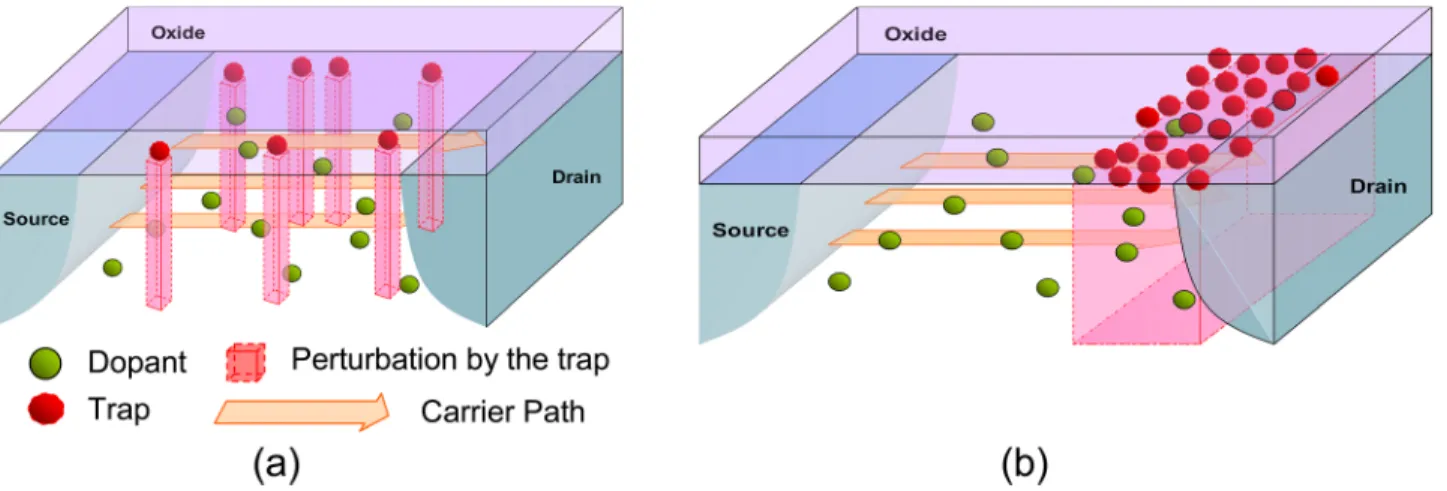

FIG. 3. The schematics to illustrate the dopant distribution, trap distribution, and the carrier transport path: (a) after the FN stress and (b) after the HC stress in n-MOSFETs.
FIG. 4. The lateral profiling of interface traps, DNit, (a) after the FN stress and (b) after the HC stress, by the charge pumping measurement. The schematic of
the fluctuation induced by the trap barriers (c) after the FN stress and (d) after the HC stress. The perturbation of carriers by the trap barrier induces a much wider distribution of the carriers (solid black line) in (c), while the perturbation of carrier by the trap barrier in (d) results in a loss of the carrier bounced back to the channel, which gives rise to a narrower distribution of the carriers (solid blue line).
stress methods. In Fig.3(a), under the FN stress, since the applying electrical field during the stress is uniform, it can be reasonably assumed that the generated traps in the chan-nel potential are generated more evenly and sparsely on the gate dielectric, i.e., there is a random while sparse distribu-tion of traps throughout the whole channel. These fluctua-tions of stress-induced trap-barriers cause the disturbance of the carrier transport such that the Vth of each transistor is
raised as illustrated in Fig.3(a), resulting in the random trap induced fluctuation. However, in Fig. 3(b), under the HC stress, since the high electrical field is located near the drain junction region, the generated traps are highly localized near the drain side. Compared to the random and sparse distribu-tion of traps after the FN stress, traps caused by HC stress is confined only near the drain side and can be recognized as a trap barrier effectively. As carriers are traveling through this stress-induced trap barrier, those whose energies are within this barrier height will be reflected (backscattered), and only those whose energies are higher than the barrier height will reach the drain. In other words, the HC-stress induced trap barrier is an obstacle to reflect most of carriers, while just a small number of carriers can reach the drain side. As a result, the Vthfluctuation is supressed after the HC stress.
To verify the above experimental observation, the inter-face traps profiling techniques26by the charge pumping mea-surement has been utilized to characterize the distribution of traps generated after FN and HC stresses. Fig.4(a)shows the generated distributions of the interface traps (DNit) after the
FN stress, in which the increment of Nitis more uniformly
distributed along the channel except in the middle region of the channel, a little higher Nitwas observed. In comparison,
Fig.4(b)shows the distributions of the interface traps (DNit)
after the HC stress, in which a huge number of traps were generated and highly localized in the near drain region. It has been reported that the scattering events will be affected by the generated traps after the stress.27 In Figs. 4(c) and
4(d), the changes in rVthdistributions have been compared
at the source and drain regions, respectively, from the experi-mental data of Fig. 2. In Fig. 4(c), the carriers travelling from the source with Vth distribution, in Gaussian shape
(solid red line), are scattered by the FN-stress-induced traps and resulted in a broader distribution of rVth (solid black
line). In other words, after FN stress, rVthbecomes larger. In
contrast, in Fig.4(d), the carriers travelling from the source to the drain resulted in a narrower rVthdistribution. In other
words, after the HC-stress, rVthbecomes smaller.
In conclusion, a RTF effect is proposed to study the mech-anisms of the stressed induced fluctuations of MOSFETs. Dif-ferent fluctuations are observed for the devices under difDif-ferent stress conditions. RTF effect increases the Vth fluctuations
when the stress generated trap are uniform in the channel; while the Vthfluctuation is suppressed as a result of the trap barrier
with highly nonuniform localized distribution near the drain. In other words, distributions of trap-barriers determine the Vth
fluctuation. These results provide us an additional source of Vth
fluctuation resulting from the interface traps caused by the FN or HC stress, i.e., r(Vth)2¼ r(dopant)2þ r(Nit)2þ r(others)2.
Furthermore, these results provide us a better understanding of
the device reliability in terms of both the process and stress induced fluctuations.
The authors would like to thank the Central R&D, UMC, Taiwan for advanced wafer fabrication support and this work was supported by the National Science Council, Taiwan, under Contract NSC-99-2221-E009-192.
