Protein–Ligand Docking
HUNG-MING CHEN,1BO-FU LIU,1HUI-LING HUANG,2SHIOW-FEN HWANG,1SHINN-YING HO3,4 1
Department of Information Engineering and Computer Science, Feng Chia University, Taichung, Taiwan
2
Department of Information Management, Jin Wen Institute of Technology, Taipei, Taiwan 3
Department of Biological Science and Technology, National Chiao Tung University, Hsinchu, Taiwan
4
Institute of Bioinformatics, National Chiao Tung University, Hsinchu, Taiwan Received 4 February 2006; Revised 22 July 2006; Accepted 28 August 2006
DOI 10.1002/jcc.20542
Published online 21 December 2006 in Wiley InterScience (www.interscience.wiley.com).
Abstract: Protein–ligand docking can be formulated as a parameter optimization problem associated with an accu-rate scoring function, which aims to identify the translation, orientation, and conformation of a docked ligand with the lowest energy. The parameter optimization problem for highly flexible ligands with many rotatable bonds is more diffi-cult than that for less flexible ligands using genetic algorithm (GA)-based approaches, due to the large numbers of pa-rameters and high correlations among these papa-rameters. This investigation presents a novel optimization algorithm SODOCK based on particle swarm optimization (PSO) for solving flexible protein–ligand docking problems. To improve efficiency and robustness of PSO, an efficient local search strategy is incorporated into SODOCK. The imple-mentation of SODOCK adopts the environment and energy function of AutoDock 3.05. Computer simulation results reveal that SODOCK is superior to the Lamarckian genetic algorithm (LGA) of AutoDock, in terms of convergence performance, robustness, and obtained energy, especially for highly flexible ligands. The results also reveal that PSO is more suitable than the conventional GA in dealing with flexible docking problems with high correlations among pa-rameters. This investigation also compared SODOCK with four state-of-the-art docking methods, namely GOLD 1.2, DOCK 4.0, FlexX 1.8, and LGA of AutoDock 3.05. SODOCK obtained the smallest RMSD in 19 of 37 cases. The av-erage 2.29 A˚ of the 37 RMSD values of SODOCK was better than those of other docking programs, which were all above 3.0 A˚ .
q 2006 Wiley Periodicals, Inc. J Comput Chem 28: 612–623, 2007
Key words: flexible docking; scoring function; genetic algorithm; particle swarm optimization; local search
Introduction
Automated protein–ligand docking is an effective tool for struc-ture-based drug design. Protein–ligand docking identifies the translation, orientation, and conformation of a ligand relative to the active site of a target protein. Virtual screening by molecular docking has become a conventional means of improving effi-ciency in lead finding.1Earlier docking methods that treat both ligands and proteins as rigid objects are called rigid docking.2 Docking methods that consider a ligand as an articulated object, and a protein as a rigid object are named flexible docking.3–5 Because most ligands are not rigid, flexible docking is the most conventionally adopted method. Other methods includesoft dock-ing6–9and partially flexible protein docking,4–6,9 which attempt to reflect the side chain flexibility of proteins. Modeling protein flexibility, along with scoring function development, is a rapidly growing aspect of docking.
Protein–ligand docking can be formulated as a parameter opti-mization problem associated with an accurate scoring function, which aims to identify the docked conformation of a ligand with the lowest energy. An efficient docking method comprises two fundamental components, a good scoring function and an efficient optimization algorithm. The scoring function is an approximation of the free energy of binding interaction between protein and ligands. The native structure of the protein–ligand complex deter-mined from X-ray crystallography is thought to produce the low-est docked energy. An accurate scoring function should reflect this observation. But due to the approximation to the free energy, the native structure may not always have the lowest energy using
Contract/grant sponsor: National Science Council of the Republic of China, Taiwan; contract/grant number: NSC-94-2213-E-009-142. Correspondence to: S.-Y. Ho; e-mail: [email protected]
the existing scoring functions. Wang et al. addressed the issue of scoring functions for flexible protein–ligand docking.10
The optimization algorithm for solving the optimization prob-lem of flexible docking aims to identify the docked conformation with the lowest energy. The performance of the optimization algorithms can be evaluated in terms of docked energy. Various optimization algorithms, including simulated annealing (SA)11 and genetic algorithms (GAs),3,4have been presented for solving protein–ligand docking problems. The free energy landscapes of scoring functions are usually complex, and exhibit a rugged fun-nel shape.12 Hence, an efficient optimization algorithm that can quickly obtain a potentially good approximation to the globally optimal solution of the scoring function is desirable.
The desirable docking method attempts to identify the docked conformation with the smallest root-mean-square deviation (RMSD) between atomic positions in the docked ligand and the corre-sponding position in crystal-structure ligand. A docked confor-mation with a smaller RMSD is considered as a more accurate so-lution to the docking problem. Since a newly created drug-like ligand lacks a crystal structure, RMSD cannot be adopted as an objective function in the optimization process. Therefore, optimi-zation algorithms have to adopt the scoring function based on the docked energy.
The parameter optimization problem for highly flexible ligands with many rotatable bonds is more difficult than that for less flexible ligands using GA-based approaches, due to the large numbers of parameters and high correlations among these param-eters. This investigation presents a novel optimization algorithm SODOCK for obtaining the docked conformation of a ligand with the best score for solving highly flexible docking problems. The proposed algorithm is a hybrid of particle swarm optimization (PSO)13 and a local search. PSO is a population-based search algorithm inspired by social behaviors of organisms, such as the flocking of birds. PSO is simpler and quicker to converge than GAs. Recent studies have revealed that PSO is a robust and effi-cient optimization algorithm for solving continuous nonlinear op-timization problems.14,15To improve PSO, an efficient variant of the Solis and Wets local search technique16is incorporated into SODOCK such that both techniques cooperate fully with each other. Simulation results reveal that SODOCK has a better con-vergence and a lower docked energy than PSO alone.
The implementation of SODOCK adopts the environment and energy function of AutoDock 3.05.4Computer simulation results reveal that SODOCK is superior to the Lamarckian genetic algo-rithm (LGA) of AutoDock, in terms of convergence performance, robustness, and obtained energy, especially for highly flexible ligands. This investigation also compared SODOCK with four state-of-the-art docking methods which can be obtained from public packages, including GOLD 1.2,3DOCK 4.0,2FlexX 1.8,5 and LGA of AutoDock 3.05.4Simulation results reveal that SOD-OCK can yield more accurate results than the other methods in terms of RMSD.
Problem Definition
The investigated flexible protein–ligand docking problem was formulated as a parameter optimization problem using the same
scoring function as AutoDock 3.05.4 The proposed optimization algorithm attempts to identify the translation, orientation, and conformation of a ligand with the best score, i.e., the lowest energy.
Representation
In AutoDock, the translation, orientation, and conformation of a docked ligand are denoted by the following parameters.4
1. Three parameters tx, ty, and tz denote the translation of the ligand relative to the center of a specified 3D grid box. The box should be sufficiently large to enclose the binding site of protein.
2. The orientation of a ligand is represented by a quaternion, which is defined by four parameters, nx, ny, nz, and . The three parameters nx,ny,nz[ [0,1] denote a vector specifying an axis that the ligand rotates along with, and [ [,] denotes the rotation angle about this axis. Although the orien-tation of a ligand can be represented by three Euler angles, using the quaternion can prevent the gimbal lock problem experienced with Euler angles.4
3. Angles tori[ [,] is associated with rotatable bond i of the ligand,i¼ 1, 2, . . . , T where T denotes the number of rotatable bonds.
Therefore, a docked conformation needs to optimizeN¼ 7 þ T parameters. TheN parameters are encoded into individuals, and optimized by GA and SODOCK according to the energy function described in the next section.
Scoring Function
AutoDock 3.05 adopts an empirical energy function as a scoring function to evaluate a docked conformation. The total docked energy of a candidate solutionX is expressed as the sum of inter-molecular interactions of the protein–ligand complex and the in-ternal energy of the ligand:
minEtotalðXÞ ¼ Evdwþ EH– bondþ Eelecþ Einternalþ Edesolvation: (1) The first three terms are intermolecular energies, which are van der Waals force, hydrogen bonding, and electrostatic poten-tial. The term Einternaldenotes the internal energy of the ligand, which also comprises the first three forces. The last term models the desolvation upon binding and the hydrophobic effect. Morris et al. described the energy function in further detail.4
Methods
Particle Swarm Optimization
PSO is a general-purpose search algorithm that exploits a popula-tion of individuals to probe promising regions in the search space. In this context, the population is called aswarm, and the individu-als are calledparticles. Each particle moves with an adaptable ve-locity within the search space, and retains in its memory the best
position that it has encountered. The standard version of PSO is briefly described later.17–19
Assume anN-dimensional search space, S(RN, and a swarm comprisingNpparticles. The positionX¼ [x1,. . . , xN]¼ [tx,ty, tz,nx,ny,nz,, tor1,. . . , torT] of a particle in the search spaceS denotes a candidate solution to the investigated docking problem, whereT is the number of rotatable bonds in the ligand. The cur-rent position of particle i is an N-dimensional vector Xi¼ [xi1, xi2,. . . , xiN]t[ S. The velocity of this particle is also an N-dimen-sional vectorVi¼ [vi1,vi2,. . . , viN]t[ S, which indicates the dis-placement for updating the position of each particle in the search space. The best position encountered by particlei is denoted as Pi¼ [pi1,pi2,. . . , piN]t[ S. Assume that g is the index of the par-ticle that attained the best position found by all parpar-ticles in the neighborhood of particlei. The swarm is manipulated by the fol-lowing equations:17–19
vidðt þ 1Þ ¼ wvidðtÞ þ c1randðÞðpidðtÞ xidðtÞÞ
þ c2randðÞðpgdðtÞ xidðtÞÞ; ð2Þ xidðt þ 1Þ ¼ xidðtÞ þ vidðt þ 1Þ (3) where i ¼ 1, 2, . . . , Np is the particle’s index; d ¼ 1, 2, . . . , N denotes the dimension index; andt¼ 1, 2, . . . , denotes the itera-tion number. The variablew is a parameter called inertia weight, which balances global and local searches in the PSO. The two positive constants c1 and c2 are cognitive and social parameters, respectively. Proper fine-tuning ofc1andc2may improve the per-formance of the PSO. An extended study of the cognitive and social parameters was proposed by Kennedy,20andc1¼ c2¼ 2 were rec-ommended as default values. The functionrand() generates a ran-dom number uniformly distributed within the interval [0,1].
Overlapped neighborhoods are classified into two types, namedgbest and lbest.21In agbest neighborhood, each particle’s neighborhood includes all the particles in the swarm. In anlbest neighborhood, each particle is affected by the best positions of its K immediate neighbors in the ring of topological population. For instance, thelbest neighborhood of ParticleiwithK¼ 2 are Parti-clei1, Particlei, and Particleiþ1. PSO with thegbest neighborhood tends to converge more rapidly than PSO with thelbest neighbor-hood, but also converges more easily to a local minimum.22
Clerc and Kennedy23recently indicated that aconstriction fac-tor may help ensure convergence. The new velocity of a parti-cle is derived by the following equation:
vidðt þ 1Þ ¼ ½vidðtÞ þ d1randðÞðpidðtÞ xidðtÞÞ
þ d2randðÞðpgdðtÞ xidðtÞÞ; ð4Þ
¼ 2
j2 pffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi2 4j; (5) where ¼ d1þ d2> 4. A setting ofd1¼ d2¼ 2.05 is typically used, making the above equation equivalent to eq. (2) withw¼ 0.72984 andc1¼ c2¼ 1.4962.
To prevent the velocity of a particle from increasing uncon-trollably, a maximum velocity Vmax is defined. The velocity is
prevented from exceedingVmaxon each dimensiond for particle i as follows:
Ifvid> Vmax then vid¼ Vmax else ifvid5 Vmax then id¼ Vmax:
The swarm and velocities are randomly initialized in the search space, although more sophisticated initialization approaches can improve the overall performance of PSO.24The initial velocities are often distributed randomly over [Vmax,Vmax]. Eberhart and Shi25 have recommended restricting the maximal velocity Vmax to the upper value of the dynamic search range.
Local Search
If the position of a particle is not a local optimum, a local search operation has a good chance to find a better solution in its neigh-borhood. Local search is a commonly adopted technique to improve the search ability of GA. AutoDock adopts a LGA that is a hybrid of GA and a variant of Solis and Wets local search,16 and is illustrated in Figure 1. One major advantage of this local search is that it does not need gradient information about the local energy landscape to facilitate the search operation.4The perform-ance of the LGA has been shown to be superior to that of both GA and SA.4
PSO using an additional local search strategy can also improve the search performance in a limited amount of computation time. Moreover, recent studies26–28also indicate that maintaining diver-sity of particles can improve the performance of PSO. An effec-tive approach is to incorporate a mutation operator into PSO.27,29 The local search modifies the position parameters of a particle without referring to other particles, and also maintains the diver-sity among particles. Hence, the behavior and effect of the local search in SODOCK are similar to those of a mutation operator. The simulation result reveals that the average Euclidean distance among particles in the search space using SODOCK is greater than that using PSO alone. Therefore, the local search of SOD-OCK is beneficial to maintain diversity of particles and prevent premature convergence.
Hybrid Search of SODOCK
SODOCK is a hybrid of the PSO and Solis and Wets local search, and is designed for flexible docking. The parameters of the docked conformations are encoded into particles and optimized by SOD-OCK. The performance of bothgbest and lbest type neighborhoods in PSO was evaluated with different handling approaches of inertia weight. The lbest type neighborhood with linear decreasing of inertia weight18,19from wmax¼ 0.9 to wmin¼ 0.4 was found to perform best when it cooperated with the local search. The con-striction factor was not adopted, because it resulted in premature convergence in the test cases. Figure 2 illustrates the SODOCK algorithm. The population is evolved over iterations until a speci-fied maximal number nevalmaxof function evaluations is attained. An iteration of SODOCK comprises four steps: updating veloc-ities, moving particles, applying local search, and updating previ-ous best positions of particles. The local search is only applied to
the best (lowest energy) particle. A prespecified maximal number (e.g., itermax¼ 50) of steps for each local search is adopted to bal-ance the global and local searches during the search process. The global best position among all Pi is the final docking result of SODOCK.
The hybrid search is efficient for the optimization problem of flexible docking, because the energy function landscape usually contains many local minima. The performance of the global or local search alone is not satisfactory for solving highly flexible docking problems. PSO has a good global search ability to obtain a potentially good approximation to a global minimum. However, the final positions of particles derived from eq. (2) are usually not local minima. Using the local search operation alone, each indi-vidual rapidly converges to a local minimum instead of the global or nearly global minimum. But PSO and the local search can
effi-ciently compensate each other in SODOCK. The local search pro-vides a highly efficient means of finding a local minimum near the current position of a particle, which can also maintain diver-sity of particles and prevent premature convergence. Simulation results reveal that the hybrid search of SODOCK is more efficient than PSO alone for solving highly flexible docking problems.
Implementation
AutoDock4is free for academic use, and has fully available source code. AutoDock is a good framework for developing novel optimi-zation algorithms. SODOCK is implemented using Cþþ, and adopts the environment and energy function of AutoDock 3.05. The source code of SODOCK and some supplementary information are avail-able at our website http://iclab.life.nctu.edu.tw/sodock/. All docking simulations were performed on a PC with a Pentium 4 2.8-GHz processor running Linux operating system. Table1 summarizes the SODOCK parameter settings used in the computer simulation.
Figure 2. The SODOCK algorithm.
Table 1. Parameter Setting of SODOCK.
Number of particles,Np 50
Number of immediate neighbors,K 4
Maximal number of function evaluation, nevalmax
250,000
Inertia weight,w 0.9*0.4 (linear decreasing)
Cognitive weight,c1 2.0
Social weight,c2 2.0
Maximal velocity,Vmax 2.0 A˚ (for tx,ty, andtz) 1.0 (fornx,ny, andnz) 508 (for and tori)
Maximal steps of local search 50
The other parameters, such as the size and spacing of grid maps, are the same as default values of AutoDock.
Analysis
The optimization problem of highly flexible docking is more dif-ficult than that of less flexible docking due to the strong correla-tions among torsion parameters. The major operators in GA and PSO for dealing with torsion parameters were analyzed to demon-strate the superiority of PSO over GA in obtaining solutions with low-docked energies for highly flexible docking problems.
Interactions Among Encoded Parameters
The core of a flexible ligand is a rigid root, which is typically a group of atoms. The other atoms are connected to the rigid root by rotatable bonds (torsions). A flexible docking problem has seven parameters for the rigid root, andT parameters for torsion angles to be optimized. Because of the interdependence among root and torsion parameters, simultaneous adjustments of these parameters can efficiently obtain a solution with low energy. Tor-sions of a flexible ligand may be nested, as illustrated in the example of Figure 3. Even a small refinement of a torsion near the root results in large adjustments on its following parts. This scenario reflects the strong interactions among the encoded tor-sion parameters, thus making the optimization problem intracta-ble. Therefore, the ability of search operators in dealing with interactions primarily determines the docking performance of the search methods.
Crossover of GA
Interactions among parameters should be handled appropriately when encoding chromosomes of GA and designing GA operators to solve the optimization problem of flexible docking. High-quality partial solutions are known as building blocks.30 General, fixed, problem-independent crossover operators often disrupt building blocks, possibly leading to premature convergence.31The problem of building block disruption is also called the linkage problem. A serious linkage problem degrades the search performance of a GA when using parameters with strong interactions.32,33Several GAs, including Messy GA,34Linkage Learning GA,35and Estimation of Distribution Algorithm,36focus on the linkage problem. However, these algorithms require a high computational cost and have not Figure 3. An example for highly flexible ligand with nested torsions.
(a) Structure of ligand myr and (b) corresponding interactions among parameters.
Table 2. The Lowest Energy Results of SODOCK and LGAs.
PDB Ligand Torsions
SODOCK LGA-default LGA-large LGA-arithmetic
Energy RMSD Energy RMSD Energy RMSD Energy RMSD
1hiv noa 23 23.89 1.66 10.89 11.30 10.86 12.31 10.93 9.12 1aaq psi 20 18.84 0.97 9.51 6.29 13.33 3.29 6.98 3.00 1epo mor 17 16.45 1.27 15.50 2.04 14.03 1.78 9.72 10.05 4phv vac 15 20.75 0.53 15.54 6.39 16.03 3.77 14.39 4.28 1hpv 478 14 15.72 1.30 13.31 4.59 13.70 3.86 12.98 8.68 1htf g26 13 15.77 3.87 15.43 2.27 14.91 2.60 14.72 2.59 1tmn clt 13 15.55 2.16 14.76 3.05 15.24 2.45 12.85 1.55 1cdg mal 12 8.55 5.99 8.28 4.54 8.97 6.50 8.49 6.12 1qbt 146 12 24.33 1.36 23.55 1.34 23.49 1.45 20.60 1.67 1dwd mid 10 15.41 6.64 14.54 1.82 14.48 6.46 14.53 1.62 1ets nas 10 17.83 2.15 16.11 0.87 16.03 2.23 13.83 2.05 4hmg sia 11 8.57 0.66 8.15 0.79 8.06 0.78 7.19 0.58 1hvr xk2 10 21.43 0.64 21.31 0.59 21.26 0.51 21.11 0.93 1stp btn 5 10.91 0.47 10.73 0.52 10.75 0.40 10.50 0.39 2mcp pc 4 6.51 1.95 6.38 2.04 6.47 1.79 5.80 1.84 2cpp cam 0 7.40 3.08 7.39 3.07 7.39 3.07 7.39 3.09 3ptb ben 0 6.95 0.34 6.94 0.34 6.94 0.34 6.94 0.34 Average 14.99 2.06 12.84 3.05 13.06 3.15 11.70 3.41 Wins 16 6 0 6 1 4 0 5
been applied to real-world applications with strong interactions, such as flexible docking.
In LGA of AutoDock, theN parameters of an individual are encoded as a string of real values. Two-point crossover is adopted where cut points are only located on the boundary between pa-rameters. The number of candidate solutions that can be explored per crossover operation is only 2CN12 . The individual parameters can be modified by only mutation and local search operators. Moreover, building blocks are easily disrupted by the crossover, causing the fitness values of newly generated individuals to thrash severely, as discussed later. Thomsen proposed an arithmetic crossover operation to replace the two-point crossover of LGA for flexible docking.37The arithmetic crossover randomly gener-ates two offspring from the hyperbox formed by their parents. That is, no parameter of an offspring is directly inherited from its parents. This property may be undesirable for highly flexible docking problems, because the arithmetic crossover cannot easily keep building blocks growing. These analyses are verified by the simulation results which are described later.
Move Mechanism of PSO
Unlike GA, PSO has no selection operator.17Hence, all particles survive during the entire evolution. They can pass through the local minima to the promising region if sufficient iterations are given. In contrast to GA, the parameter order in encoding par-ticles does not affect the performance of PSO, which adopts a move mechanism instead of crossover as the search operator. The new positionXi(tþ 1) of particle i generated by the move mecha-nism is a linear combination of current positionXi(t), current ve-locityVi(t), its best previous position Pi(t), and the best previous position Pg(t) in its neighborhood, where t denotes the iteration number. The number of candidate solutions per move operation is much larger than that of the per two-point crossover operation. Another merit of PSO is that each particle maintains its best pre-vious positionPi. Thus, the move mechanism always guides par-ticles to positions better than their current positions. These prop-erties improve the search ability of PSO in dealing with strong interactions among parameters.
Results
The computer simulation comprised two parts. In Part 1, three ver-sions of LGA and four verver-sions of PSO were evaluated using 17 test cases, which consisted of six complexes used by Thomsen37 and 11 complexes with highly flexible ligands.38,39In Part 2, the docking accuracy of SODOCK and four state-of-the-art docking methods were compared using 37 complexes. Molecule files and seed values for random number generator used in the simulation are available on our website http://iclab.life.nctu.edu.tw/sodock/.
Data Preparation
Both ligand and protein input files were saved using AutoDock’s PDBQ format. The ligand input files were obtained using the fol-lowing procedure: (1) extract the coordinates of ligand atoms from the PDB file; (2) add hydrogen to all atoms, assign partial charges, and merge nonpolar hydrogen atoms; and (3) define rigid
root and torsions of the ligand. The preparation of proteins is as follows: (1) remove water molecules, ligands, and metal ions not belonging to the binding site; (2) repair residues that have missing atoms; (3) add hydrogen to all atoms, assign partial charges, and merge nonpolar hydrogen atoms; and (4) assign solvent parame-ters. This molecule file preparation stage was conducted using AutoDock Tools.
Part 1: Evaluation of Search Ability
Since optimization algorithms are guided only by energy func-tion, their search ability can be evaluated in terms of docked energy using the same number of function evaluations. Four ver-sions of PSO were implemented by combining two neighbor-hoods, gbest and lbest, and two approaches for handling inertia weight, namelylinear decreasing and constriction factor. For the lbest neighborhood, the number of immediate neighbors was set toK¼ 4. In the linear decreasing approach, the inertia weight w was decreased linearly from 0.9 to 0.4 during the optimization

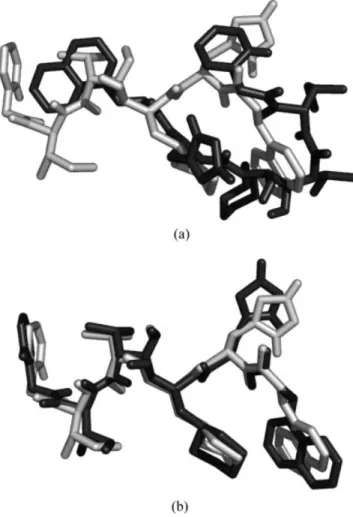

Figure 4. The docked ligand conformations with the lowest energies for 1hiv using 250,000 function evaluations. The native conforma-tions and the predicted conformaconforma-tions are represented by white sticks and black sticks, respectively. (a) LGA-default (RMSD equals to 11.30 A˚ ) and (b) SODOCK (RMSD equals to 1.66 A˚).
Table 3 . Avera ge Resu lts of LGAs and SODO CK. PDB LGA-de fault LGA -large SODOCK Energy Va r. a RM SD Succ. b Time c Ener gy V ar. a RMSD Succ. b Energy Var. a RMSD Succ. b Time c neval hit d Rat io e 1hiv 3.34 22.61 9.25 0.00 26.3 5 3.51 14.8 0 8.53 0.00 16.7 4 22.1 1 5.42 0.13 36.51 51,500 0.21 1aaq 3.21 14.38 7.62 0.00 15.9 4 6.46 9.01 5.44 0.00 15.4 4 4.01 2.92 0.27 23.40 32,000 0.13 1epo 8.92 4.26 8.23 0.00 15.5 2 9.06 3.17 8.16 0.03 11.6 2 2.26 7.45 0.07 20.22 68,000 0.27 4phv 10.5 3 7.31 8.08 0.03 14.8 1 11.3 4 5.80 7.14 0.00 17.1 3 5.47 3.73 0.33 19.92 35,000 0.14 1hpv 10.1 4 2.34 6.02 0.00 10.6 9 11.3 6 1.35 4.20 0.23 14.3 4 1.59 3.04 0.50 12.83 24,000 0.1 1htf 13.7 5 0.86 3.35 0.17 12.6 8 13.5 7 0.48 3.07 0.13 14.2 7 1.78 2.96 0.23 16.31 101,000 0.4 1tmn 10.8 2 4.32 5.61 0.07 9.56 12.3 5 3.01 3.31 0.27 11.6 1 2.59 6.62 0.03 11.67 117,500 0.47 1cdg 6.84 0.17 2.23 0.67 6.59 7.16 0.27 3.72 0.43 7.72 0.04 2.12 0.60 7.15 27,500 0.11 1qbt 9.54 112.21 6.72 0.17 25.8 6 14.3 7 41.5 9 4.69 0.27 22.1 2 26.1 9 1.60 0.87 36.82 16,500 0.07 1dwd 13.3 4 1.29 5.15 0.17 11.1 2 13.6 6 0.24 5.00 0.17 14.4 7 1.43 5.72 0.10 14.17 64,500 0.26 1ets 12.1 5 1.65 6.21 0.03 11.3 5 12.4 8 1.23 4.63 0.13 14.2 0 4.10 4.65 0.20 14.52 51,500 0.21 4hmg 7.48 0.28 1.88 0.80 13.8 4 7.49 0.10 1.42 0.90 8.28 0.03 0.95 0.97 6.09 22,000 0.09 1hvr 20.4 4 6.01 2.16 0.83 12.1 3 21.0 2 0.02 0.88 1.00 21.3 6 0.01 0.80 0.97 14.86 18,500 0.07 1stp 9.61 0.85 1.42 0.73 3.53 10.0 9 0.22 0.70 0.97 10.8 2 0.01 0.41 1.00 3.84 29,000 0.12 2mcp 5.91 0.08 2.28 0.37 2.62 6.18 0.02 1.78 0.67 6.07 0.07 1.86 0.73 2.51 73,500 0.29 2cpp 7.31 0.00 1.49 0.87 1.58 7.34 0.00 2.45 0.40 7.32 0.00 1.45 0.90 1.42 17,500 0.07 3ptb 6.94 0.00 0.33 1.00 1.74 6.94 0.00 0.34 1.00 6.95 0.00 0.34 1.00 1.89 15,000 0.06 Averag e 9.43 10.51 4.59 0.35 11.5 2 10.2 6 4.78 3.85 0.39 12.9 7 4.22 3.06 0.52 14.36 45,000 0.18 Wins 0 2 1 2 3 8 4 3 14 11 12 14 aVa riance of docki ng ene rgy. bThe rate of successf ul docking (RMSD less than 2.0 A˚ ). cAver age execution time in se cond per run. dAverage neval that SODOCK reaches the final ene rgy of LGA-default. eRatio ¼ neval hit /250,00 0.
process, andc1¼ c2¼ 2.0. For the constriction factor approach, the inertia weightw¼ 0.72984 and c1¼ c2¼ 1.4962. The effec-tiveness of local search in these versions of PSO was also eval-uated. SODOCK refers the combination of thelbest neighborhood and the linear decreasing approach, in which local search per-forms best than in other versions. The supplementary simulation results of various versions of PSO are available on our website http://iclab.life.nctu.edu.tw/sodock/.
The evaluations of the search abilities of SODOCK and LGA obtained in AutoDock are presented here. Table 1 shows the default parameter settings of SODOCK, where the maximal num-ber of function evaluations nevalmax is 250,000. The arithmetic crossover operator proposed by Thomsen,37which randomly
gen-erates two offspring in the hyperbox formed by two parents, was also implemented as an extension to AutoDock in this study. Three versions of LGA were evaluated: default mode (Npop¼ 50 and nevalmax ¼ 250,000), large mode (Npop¼ 200, nevalmax ¼ 1,000,000), and arithmetic crossover mode (same as the default mode except that arithmetic crossover is adopted). Each method was run 30 times independently for each protein–ligand complex. Table2 shows the best results in terms of docked energy for the four compared methods. The RMSD of heavy atoms between atomic positions in docked ligand and the corresponding positions in the crystal-structure ligand is also given. Simulation results show that SODOCK performs best among all methods in terms of both docked energies and RMSD. SODOCK obtained the lowest energies for 16 out of 17 complexes. For 1hiv and 1aaq with highly flexible ligands, the energies obtained by SODOCK are much lower than those of LGAs. The RMSD values of 1hiv and 1aaq obtained by SODOCK were also much smaller than those of the three LGAs. For the complexes with less flexible ligands, the differences of both docked energy and RMSD between the four methods are not significant. This finding reveals the superiority of SODOCK for highly flexible docking. According to the schema theorem, KrishnaKumar et al.40showed that GAs need an enor-mously large population size and a large number of function eval-uations to solve a Large Parameter Optimization Problem. How-ever, the average energy obtained by LGA of the large mode (LGA-large) is just slightly lower than that obtained by LGA of the default mode (LGA-default). This scenario reflects that inter-actions among encoded parameters, instead of a large search space, make the optimization problem intractable. The LGA with the arithmetic crossover (LGA-arithmetic) had the worst average performance, possibly because LGA-arithmetic is most effective for ligands with a small number of torsions when it cooperates with a modified mutation operator and a specialized parameter setting.37 Therefore, only the LGA-default and LGA-large were further evaluated. The docked conformations with the lowest energies were also verified. Figure 4 shows that the docked ligand conformation (RMSD equal to 1.66 A˚ ) for 1hiv obtained by
SOD-Figure 5. Comparison of average convergence performance: (a) 1hvr and (b) 1hiv.
Figure 6. Average Euclidean distance among Npparticles using 1hiv as an example.
OCK is much closer to its native conformation. Notably, the result with RMSD equal to 11.30 A˚ obtained by LGA-default is highly unfavorable.
Table3 summarizes the average results of SODOCK and the LGAs. A docked ligand conformation with RMSD less than 2.0 A˚ was defined as a successful docking. The docked energies obtained by SODOCK were better than those obtained by LGAs for all complexes except 1tmn. SODOCK is also more robust than LGAs, which have smaller average variances of energies. The simulation results reveal that the success rates of SODOCK are much better than those of LGAs, especially for highly flexible ligands. The av-erage success rate of SODOCK (0.52) is better than those of LGA-default (0.35) and LGA-large (0.39). For LGA-large, increasing the number of function evaluations did not produce a significant improvement. Moreover, the number of function evaluations nevalhit taken by SODOCK to reach the final energy value of LGA-default was also recorded, showing that SODOCK had better convergence performance using ratio¼ nevalhit/nevalmax¼ 0.18 to obtain the same docked energy of LGA-default. The execution time of SODOCK was slightly greater than that of LGA-default using the same number 250,000 of function evaluations. The
aver-age execution time of SODOCK per independent run was 14.36 s, while that of LGA-default was 11.52 s. The execution time of LGA-large using 1,000,000 function evaluations was *4 times that of LGA-default, and is omitted in Table 3.
To further observe the effectiveness of the used local search, this study compared the convergence performance of SODOCK, PSO only, LGA-default, and GA only (SGA). Two complexes were chosen from Table 2, where 1hiv has the ligand noa with 23 torsions and 1hvr has the ligand xk2 with 10 torsions. Figure 5 shows the average convergence performance for the two docking problems. SODOCK had the lowest docked energies for both 1hiv and 1hvr. SODOCK also had the best convergence performance among all methods. Notably, even PSO without local search per-formed better than LGA and SGA. Additionally, SODOCK and LGA performed better than PSO and SGA, respectively. Thus the local search can improve the search ability of both GA-based and PSO-based methods. For less flexible ligands such as that of 1hvr, PSO alone has sufficient search ability to obtain accurate results (Fig. 5a). However, for highly flexible ligands such as that of 1hiv, the local search of SODOCK is essential to obtain good docked energies and accurate conformations (Fig. 5b).
Figure 6 shows the average Euclidean distance amongNp par-ticles during the optimization process using 1hiv as an example, where the distance is derived as follows:
Dist: ¼ 1 CNP2 X NP1 i¼1 XNP j¼iþ1 kXi Xjk: (6) Without the local search, particles of PSO converged rapidly after 10,000 energy evaluations, and thus did not make any fur-ther improvement. By contrast, SODOCK using the local search can maintain sufficient diversity among particles during entire evolution, and gives the particles the opportunity to improve the docked energies.
Figure 8. Average number of improvements in terms of docked energy of the best individual in every 100 iterations/generations for 30 independent runs on 1hiv.
Figure 7. Docked energy of the best individual having the lowest docked energy for 1hiv during the optimization process: (a) SGA, (b) PSO. Final energies obtained by SGA and PSO are 10.52 and 20.13 kcal/mol, respectively.
The search operators of PSO and SGA were further analyzed. Figure 7 shows the docked energy of the best individual, i.e., the one with the lowest docked energy, during the optimization pro-cess, taking 1hiv as an example. The energy of SGA was recorded before applying an elitist strategy that directly inherits the best individual of previous generation. The energy of the best individual thrashed seriously in SGA, indicating that the cross-over and mutation operators usually disrupt the best individual and produce poor offspring. By contrast, the energy of the best individual in PSO stabilized after a period of evolution. The abil-ity of search operators to generate high-qualabil-ity offspring was also evaluated by counting the number of energy improvements on the best individual every 100 generations (iterations). Figure 8 shows the average number of improvements from 30 runs for 1hiv, showing that PSO can more easily improve the energy of the best
individual than SGA. Above simulation results reveal that PSO is stable in solving docking problems.
Part 2: Docking Accuracy
The 37 protein–ligand complexes obtained from Bursulaya et al.41were adopted to evaluate the docking accuracy of SOD-OCK. Table4 shows the heavy-atom RMSDs of the best scored (lowest-energy) results, where the values of four state-of-the-art docking methods, namely GOLD 1.2,3 DOCK 4.0,2 FlexX 1.8,5 and AutoDock 3.05,4were obtained from Bursulaya et al.41Each method conducted 30 independent runs with its default parameter setting. Since each method adopted different scoring functions, parameter setting, and computation costs, their docking abilities could not be directly compared by the reported RMSD values in

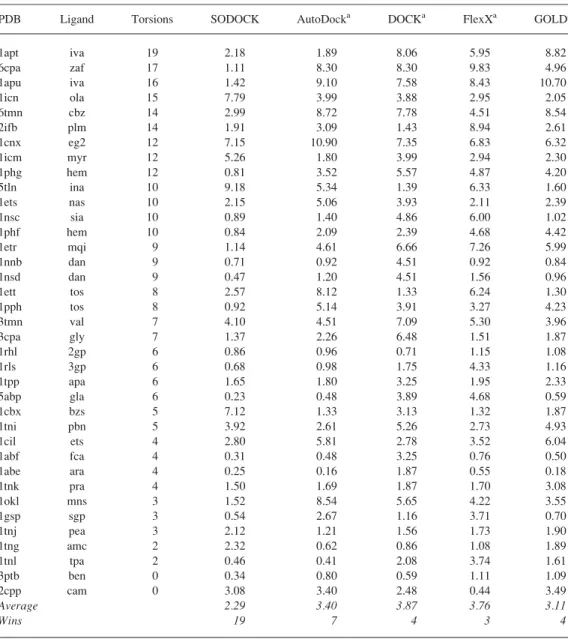

Table 4. RMSD Values of the Results with the Best Scores of Each Method.
PDB Ligand Torsions SODOCK AutoDocka DOCKa FlexXa GOLDa
1apt iva 19 2.18 1.89 8.06 5.95 8.82 6cpa zaf 17 1.11 8.30 8.30 9.83 4.96 1apu iva 16 1.42 9.10 7.58 8.43 10.70 1icn ola 15 7.79 3.99 3.88 2.95 2.05 6tmn cbz 14 2.99 8.72 7.78 4.51 8.54 2ifb plm 14 1.91 3.09 1.43 8.94 2.61 1cnx eg2 12 7.15 10.90 7.35 6.83 6.32 1icm myr 12 5.26 1.80 3.99 2.94 2.30 1phg hem 12 0.81 3.52 5.57 4.87 4.20 5tln ina 10 9.18 5.34 1.39 6.33 1.60 1ets nas 10 2.15 5.06 3.93 2.11 2.39 1nsc sia 10 0.89 1.40 4.86 6.00 1.02 1phf hem 10 0.84 2.09 2.39 4.68 4.42 1etr mqi 9 1.14 4.61 6.66 7.26 5.99 1nnb dan 9 0.71 0.92 4.51 0.92 0.84 1nsd dan 9 0.47 1.20 4.51 1.56 0.96 1ett tos 8 2.57 8.12 1.33 6.24 1.30 1pph tos 8 0.92 5.14 3.91 3.27 4.23 3tmn val 7 4.10 4.51 7.09 5.30 3.96 3cpa gly 7 1.37 2.26 6.48 1.51 1.87 1rhl 2gp 6 0.86 0.96 0.71 1.15 1.08 1rls 3gp 6 0.68 0.98 1.75 4.33 1.16 1tpp apa 6 1.65 1.80 3.25 1.95 2.33 5abp gla 6 0.23 0.48 3.89 4.68 0.59 1cbx bzs 5 7.12 1.33 3.13 1.32 1.87 1tni pbn 5 3.92 2.61 5.26 2.73 4.93 1cil ets 4 2.80 5.81 2.78 3.52 6.04 1abf fca 4 0.31 0.48 3.25 0.76 0.50 1abe ara 4 0.25 0.16 1.87 0.55 0.18 1tnk pra 4 1.50 1.69 1.87 1.70 3.08 1okl mns 3 1.52 8.54 5.65 4.22 3.55 1gsp sgp 3 0.54 2.67 1.16 3.71 0.70 1tnj pea 3 2.12 1.21 1.56 1.73 1.90 1tng amc 2 2.32 0.62 0.86 1.08 1.89 1tnl tpa 2 0.46 0.41 2.08 3.74 1.61 3ptb ben 0 0.34 0.80 0.59 1.11 1.09 2cpp cam 0 3.08 3.40 2.48 0.44 3.49 Average 2.29 3.40 3.87 3.76 3.11 Wins 19 7 4 3 4 a
Table 4. However, all reported RMSD values of the well-known methods could be used as a baseline for evaluating the perform-ance of SODOCK. Table 4 shows SODOCK performed well, obtaining the smallest RMSD values in 19 of 37 cases. The aver-age RMSD 2.29 A˚ of SODOCK was better than those of other docking programs, which were all above 3.0 A˚ . AutoDock obtained the smallest RMSD values in 7 cases; GOLD in 4 cases; DOCK in 4 cases; and FlexX in 3 cases. Apart from SODOCK, no method is significantly better than any other in terms of RMSD.
Conclusions and Future Work
This investigation has presented a novel optimization algorithm SODOCK for flexible protein–ligand docking. SODOCK is more simple and efficient than GA-based methods. Simulation results reveal that SODOCK is superior to the LGA of AutoDock for solving flexible docking problems, in terms of convergence per-formance, docked energy, robustness, and success rate. The dock-ing accuracy of SODOCK was also evaluated usdock-ing 37 com-plexes, whose ligands had numbers of torsions ranging from 0 to 19. The results show that SODOCK can obtain more accurate docked conformations than FlexX 1.8, DOCK 4.0, GOLD 1.2, and LGA of AutoDock 3.05.
Our results indicate that the energy function of AutoDock can-not reflect the affinity between ligand and protein for some test cases, due to the approximation in the scoring function. Figure 9 illustrates the scatter plot of test case 1ets using 30 docked results for each of SODOCK and LGA-default, where each point denotes the result of an independent run. From Figure 9, although the lowest energy of 30 runs obtained by SODOCK is lower than that of LGA-default, the corresponding RMSD of the docked confor-mation with the lowest energy of SODOCK is worse than that of LGA-default. A more appropriate scoring function than that of
AutoDock would further improve the docking accuracy of SOD-OCK in terms of RMSD. Integration of other scoring functions such as X-Score42 with SODOCK is in progress. Moreover, the coefficients of AutoDock’s energy function are also being refined using efficient evolutionary algorithms such as intelligent evolu-tionary algorithm.43
