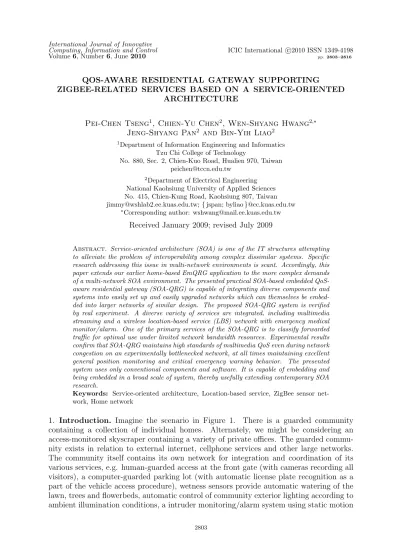

QOS-AWARE RESIDENTIAL GATEWAY SUPPORTING ZIGBEE-RELATED SERVICES BASED ON A SERVICE-ORIENTED ARCHITECTURE

International Journal of Innovative

Computing, Information and Control ICIC International c 2010 ISSN 1349-4198

Volume 6, Number 6, June 2010 pp. 2803–2816

QOS-AWARE RESIDENTIAL GATEWAY SUPPORTING

ZIGBEE-RELATED SERVICES BASED ON A SERVICE-ORIENTED

ARCHITECTURE

Pei-Chen Tseng

, Chien-Yu Chen

, Wen-Shyang Hwang

Jeng-Shyang Pan

and Bin-Yih Liao

1_{Department of Information Engineering and Informatics}

Tzu Chi College of Technology

No. 880, Sec. 2, Chien-Kuo Road, Hualien 970, Taiwan [email protected]

2_{Department of Electrical Engineering}

National Kaohsiung University of Applied Sciences No. 415, Chien-Kung Road, Kaohsiung 807, Taiwan [email protected];{ jspan; byliao }@cc.kuas.edu.tw

∗_{Corresponding author: [email protected]}

Received January 2009; revised July 2009

Abstract. Service-oriented architecture (SOA) is one of the IT structures attempting

to alleviate the problem of interoperability among complex dissimilar systems. Specific research addressing this issue in multi-network environments is scant. Accordingly, this paper extends our earlier home-based EmQRG application to the more complex demands of a multi-network SOA environment. The presented practical SOA-based embedded QoS-aware residential gateway (SOA-QRG) is capable of integrating diverse components and systems into easily set up and easily upgraded networks which can themselves be embed-ded into larger networks of similar design. The proposed SOA-QRG system is verified by real experiment. A diverse variety of services are integrated, including multimedia streaming and a wireless location-based service (LBS) network with emergency medical monitor/alarm. One of the primary services of the SOA-QRG is to classify forwarded traffic for optimal use under limited network bandwidth resources. Experimental results confirm that SOA-QRG maintains high standards of multimedia QoS even during network congestion on an experimentally bottlenecked network, at all times maintaining excellent general position monitoring and critical emergency warning behavior. The presented system uses only conventional components and software. It is capable of embedding and being embedded in a broad scale of system, thereby usefully extending contemporary SOA research.

Keywords: Service-oriented architecture, Location-based service, ZigBee sensor

net-work, Home network

1. Introduction. Imagine the scenario in Figure 1.

There is a guarded community

containing a collection of individual homes. Alternately, we might be considering an

access-monitored skyscraper containing a variety of private offices. The guarded

commu-nity exists in relation to external internet, cellphone services and other large networks.

The community itself contains its own network for integration and coordination of its

various services, e.g. human-guarded access at the front gate (with cameras recording all

visitors), a computer-guarded parking lot (with automatic license plate recognition as a

part of the vehicle access procedure), wetness sensors provide automatic watering of the

lawn, trees and flowerbeds, automatic control of community exterior lighting according to

ambient illumination conditions, a intruder monitoring/alarm system using static motion
