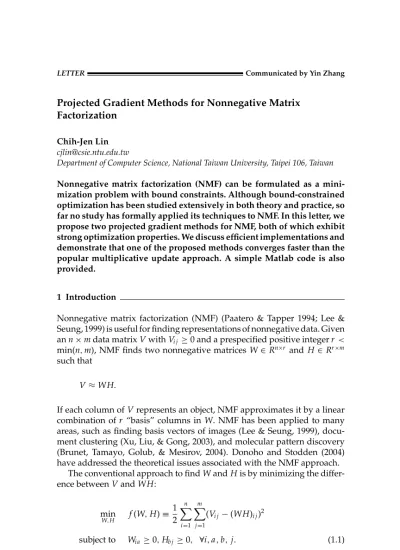

Projected Gradient Methods for Nonnegative Matrix
Factorization
Chih-Jen Lin [email protected]
Department of Computer Science, National Taiwan University, Taipei 106, Taiwan Nonnegative matrix factorization (NMF) can be formulated as a mini-mization problem with bound constraints. Although bound-constrained optimization has been studied extensively in both theory and practice, so far no study has formally applied its techniques to NMF. In this letter, we propose two projected gradient methods for NMF, both of which exhibit strong optimization properties. We discuss efficient implementations and demonstrate that one of the proposed methods converges faster than the popular multiplicative update approach. A simple Matlab code is also provided.
1 Introduction
Nonnegative matrix factorization (NMF) (Paatero & Tapper 1994; Lee & Seung, 1999) is useful for finding representations of nonnegative data. Given an n× m data matrix V with Vi j ≥ 0 and a prespecified positive integer r < min(n, m), NMF finds two nonnegative matrices W ∈ Rn×r and H∈ Rr×m such that
V≈ WH.
If each column of V represents an object, NMF approximates it by a linear combination of r “basis” columns in W. NMF has been applied to many areas, such as finding basis vectors of images (Lee & Seung, 1999), docu-ment clustering (Xu, Liu, & Gong, 2003), and molecular pattern discovery (Brunet, Tamayo, Golub, & Mesirov, 2004). Donoho and Stodden (2004) have addressed the theoretical issues associated with the NMF approach.
The conventional approach to find W and H is by minimizing the differ-ence between V and WH:
min W,H f (W, H) ≡ 1 2 n i=1 m j=1 (Vi j− (WH)i j)2 subject to Wia ≥ 0, Hb j≥ 0, ∀i, a, b, j. (1.1)
The inequalities such that variables are upper- and lower-bounded are referred to as bound constraints. Hence, equation 1.1 is a standard bound-constrained optimization problem. We also note that
n i=1 m j=1 (Vi j− (WH)i j)2= V − WH2F, where · F is the Frobenius norm.
The most popular approach to solve equation 1.1 is the multiplicative update algorithm proposed by Lee and Seung (2001). It is simple to imple-ment and often yields good results. At each iteration of this method, the elements of W and H are multiplied by certain factors. As the zero elements are not updated, all the components of W and H are strictly positive for all iterations. This type of strategy is contrary to the traditional bound-constrained optimization methods, which usually allow iterations to have bounded elements (i.e., zero elements in this case). Thus far, no study has formally applied bound-constrained optimization techniques to NMF. This letter investigates such methods in detail. Some earlier NMF studies require all W’s column sums to be ones:ni=1Wia = 1, ∀a = 1, . . . , r. The function value does not change because f (WD, D−1H)= f (W, H) for any r × r pos-itive diagonal matrix D. With the inclusion of such additional constraints, equation 1.1 no longer remains a bounded problem. As adding these con-straints may complicate the optimization procedures, we do not consider this modification in this study.
Among the existing bound-constrained optimization techniques, the projected gradient method is simple and effective. Although several re-searchers have used this method for NMF (Hoyer, 2002; Chu, Diele, Plem-mons, & Ragni, 2005; Shepherd, 2004), there is neither a systematic study nor an easy implementation comparable to that of the multiplicative up-date method. This letter presents a comprehensive study on using projected gradient methods for NMF. Several useful modifications lead to efficient im-plementations. While the multiplicative update method still lacks conver-gence results, our proposed methods exhibit strong optimization proper-ties. We experimentally show that one of the proposed methods converges faster than the multiplicative update method. This new method is thus an attractive approach to solve NMF. We also provide a complete Matlab implementation.
Another popular NMF optimization formula is to minimize the (gen-eralized) Kullback-Leibler divergence between V and WH (Lee & Seung, 1999): min W,H n i=1 m j=1 Vi jlog Vi j (WH)i j − Vi j+ (WH)i j subject to Wia ≥ 0, Hb j≥ 0, ∀i, a, b, j.
Strictly speaking, this formula is not a bound-constrained problem, which requires the objective function to be well defined at any point of the bounded region. The log function is not well defined if Vi j= 0 or (WH)i j = 0. Hence, we do not consider this formulation in this study.
This letter is organized as follows. Section 2 discusses existing ap-proaches for solving NMF problem 1.1 and presents several new properties. Section 3 introduces the projected gradient methods for bound-constrained optimization. Section 4 investigates specific but essential modifications for applying the proposed projected gradients methods to NMF. The stopping conditions in an NMF code are discussed in section 5. Experiments on synthetic and real data sets are presented in section 6. The discussion and conclusions are presented in section 7. Appendix B contains the Matlab code of one of the proposed approaches. All source codes used in this letter are available online at http://www.csie.ntu.edu.tw/∼cjlin/nmf.
2 Existing Methods and New Properties
There are many existing methods for NMF. Some discussions are in Paatero (1999), but bound constraints are not rigorously handled. A more recent and complete survey is by Chu et al. (2005). This section briefly discusses some existing methods and presents several previously unmentioned ob-servations.
To begin, we need certain properties of the NMF problem, equation 1.1. The gradient of the function f (W, H) consists of two parts:
∇Wf (W, H) = (WH − V)HT and ∇Hf (W, H) = WT(WH− V), (2.1)
which are, respectively, partial derivatives to elements in W and H. From the Karush-Kuhn-Tucker (KKT) optimality condition (e.g., Bertsekas, 1999), (W, H) is a stationary point of equation 1.1 if and only if
Wia ≥ 0, Hb j≥ 0
∇Wf (W, H)ia ≥ 0, ∇Hf (W, H)b j ≥ 0
Wia· ∇Wf (W, H)ia= 0, and Hb j· ∇Hf (W, H)b j= 0, ∀i, a, b, j.
(2.2)
Optimization methods for NMF produce a sequence{Wk, Hk}∞
k=1 of iter-ations. Problem 1.1 is nonconvex and may have several local minima. A common misunderstanding is that limit points of the sequence are local minima. In fact, most nonconvex optimization methods guarantee only the stationarity of the limit points. Such a property is still useful, as any local minimum must be a stationary point.
2.1 Multiplicative Update Methods. The most commonly used ap-proach to minimize equation 1.1 is a simple multiplicative update method proposed by Lee and Seung (2001):
Algorithm 1:Multiplicative Update 1. Initialize W1 ia > 0, Hb j1 > 0, ∀i, a, b, j. 2. For k= 1, 2, . . . Wk+1 ia = Wiak (V(Hk)T)ia (WkHk(Hk)T) ia , ∀i, a (2.3) Hb jk+1= Hb jk ((W k+1)TV) b j ((Wk+1)TWk+1Hk) b j, ∀b, j. (2.4)
This algorithm is a fixed-point type method: if (WkHk(Hk)T)
ia = 0 and
Wiak+1= Wiak > 0, then
(V(Hk)T)ia = (WkHk(Hk)T)ia implies ∇Wf (Wk, Hk)ia = 0, which is part of the KKT condition, equation 2.2. Lee and Seung (2001) have shown that the function value is nonincreasing after every update:
f (Wk+1, Hk)≤ f (Wk, Hk) and f (Wk+1, Hk+1)≤ f (Wk+1, Hk). (2.5) They claim that the limit of the sequence{Wk, Hk}∞
k=1is a stationary point (i.e., a point satisfying the KKT condition, equation 2.2). However, Gonzales and Zhang (2005) indicate that this claim is wrong, as having equation 2.5 may not imply the convergence. Therefore, this multiplicative update method still lacks optimization properties.
To have algorithm 1 well defined, one must ensure that denominators in equations 2.3 and 2.4 are strictly positive. Moreover, if Wiak = 0 at the
kth iteration, then Wia = 0 at all subsequent iterations. Thus, one should
keep Wk
ia > 0 and Hb jk > 0, ∀k. The following theorem discusses when this
property holds:
Theorem 1. If V has neither zero column nor row, and W1
ia > 0 and Hb j1 >
0, ∀i, a, b, j, then
Wiak > 0 and Hb jk > 0, ∀i, a, b, j, ∀k ≥ 1. (2.6)
The proof is straightforward, and is in appendix A.
If V has zero columns or rows, a division by zero may occur. Even if theorem 1 holds, denominators close to zero may still cause numerical problems. Some studies, such as Piper, Pauca, Plemmons, and Giffin (2004)
have proposed adding a small, positive number in the denominators of equations 2.3 and 2.4. We observe numerical difficulties in a few situations and provide more discussion in section 6.3.
Regarding the computational complexity, V(Hk)Tand (Wk+1)TV in equa-tion 2.3 and 2.4 are both O(nmr) operaequa-tions. One can calculate the denomi-nator in equation 2.3 by either
(WH)HT or W(H HT). (2.7)
The former takes O(nmr) operations, but the latter costs O((max(m, n)r2).
As r < min(m, n), the latter is better. Similarly for equation 2.4, (WTW)H
should be used. This discussion indicates the importance of having fewer
O(nmr) operations (i.e., WH, WTV, or V HT) in any NMF code.
In summary, the overall cost of algorithm 1 is
#iterations× O(nmr).
All time complexity analysis in this letter assumes that V, W, and H are implemented as dense matrices.
2.2 Alternating Nonnegative Least Squares. From the nonincreasing property 2.6, algorithm 1 is a special case of a general framework, which alternatively fixes one matrix and improves the other: find Wk+1 such that f (Wk+1, Hk)≤ f (Wk, Hk), and find Hk+1 such that f (Wk+1, Hk+1)≤ f (Wk+1, Hk). The extreme situation is to obtain the best point (Paatero, 1999; Chu et al., 2005):
Algorithm 2:Alternating Nonnegative Least Squares 1. Initialize W1 ia ≥ 0, Hb j1 ≥ 0, ∀i, a, b, j. 2. For k= 1, 2, . . . Wk+1= arg min W≥0 f (W, H k) (2.8) Hk+1= arg min H≥0 f (W k+1, H). (2.9)
This approach is the block coordinate descent method in bound-constrained optimization (Bertsekas, 1999), where sequentially one block of variables is minimized under corresponding constraints and the remaining blocks are fixed. For NMF, we have the simplest case of only two block variables W and H.
We refer to equations 2.8 or 2.9 as a subproblem in algorithm 2. When one block of variables is fixed, a subproblem is indeed the collection of several nonnegative least-squares problems. From equation 2.9,
Hk+1’s jth column= min
h≥0 v − W
k+1h2, (2.10)
where v is the jth column of V and h is a vector variable. Chu et al. (2005) suggest projected Newton’s methods (Lawson & Hanson, 1974) to solve each problem (see equation 2.10). Clearly, solving subproblems 2.8 and 2.9 per iteration could be more expensive than the simple update in algorithm 1. Then algorithm 2 may be slower even though we expect that it better decreases the function value at each iteration. Efficient methods to solve subproblems are thus essential. Section 4.1 proposes using project gradient methods and discusses why they are suitable for solving subproblems in algorithm 2.
Regarding the convergence of algorithm 2, one may think that it is a trivial result. For example, Paatero (1999) states that for the alternating non-negative least-squares approach, no matter how many blocks of variables we have, the convergence is guaranteed. However, this issue deserves some attention. Past convergence analysis for block coordinate descent methods requires subproblems to have unique solutions (Powell, 1973; Bertsekas, 1999), but this property does not hold here: subproblems 2.8 and 2.9 are convex, but they are not strictly convex. Hence, these subproblems may have multiple optimal solutions. For example, when Hkis the zero matrix, any W is optimal for equation 2.8. Fortunately, for the case of two blocks, Grippo and Sciandrone (2000) have shown that this uniqueness condition is not needed. Directly from corollary 2 of Grippo and Sciandrone (2000), we have the following convergence result:
Theorem 2. Any limit point of the sequence{Wk, Hk} generated by algorithm 2 is a stationary point of equation 1.1.
The remaining issue is whether the sequence{Wk, Hk} has at least one limit point (i.e., there is at least one convergent subsequence). In optimiza-tion analysis, this property often comes from the boundedness of the feasible region, but our region under constraints Wia ≥ 0 and Hb j≥ 0 is unbounded. One can easily add a large upper bound to all variables in equation 1.1. As the modification still leads to a bound-constrained problem, algorithm 2 can be applied and theorem 2 holds. In contrast, it is unclear how to eas-ily modify the multiplicative update rules if there are upper bounds in equation 1.1.
In summary, contrary to algorithm 1, which still lacks convergence re-sults, algorithm 2 has nice optimization properties.
2.3 Gradient Approaches. In Chu et al. (2005, sec. 3.3), several gradient-type approaches have been mentioned. In this section, we briefly discuss methods that select the step size along the negative gradient direction. By defining
Wia = Eia2 and Hb j= Fb j2,
Chu et al. (2005) reformulate equation 1.1 as an unconstrained optimization problem of variables Eiaand Fb j. Then standard gradient descent methods can be applied. The same authors also mention that Shepherd (2004) uses
Wk+1= max(0, Wk− αk∇Wf (Wk, Hk)), Hk+1= max(0, Hk− αk∇Hf (Wk, Hk)),
where αk is the step size. This approach is already a projected gradient method. However, in the above references, details are not discussed.
3 Projected Gradient Methods for Bound-Constrained Optimization
We consider the following standard form of bound-constrained optimiza-tion problems:
min
x∈Rn f (x)
subject to li ≤ xi ≤ ui, i = 1, . . . , n, (3.1) where f (x) : Rn→ R is a continuously differentiable function, and l and u are lower and upper bounds, respectively. Assume k is the index of iterations. Projected gradient methods update the current solution xk to xk+1by the following rule:
xk+1= P[xk− αk∇ f (xk)], where P[xi]= xi if li < xi< ui, ui if xi ≥ ui, li if xi ≤ li,
maps a point back to the bounded feasible region. Variants of projected gradient methods differ on selecting the step sizeαk. We consider a simple and effective one called “Armijo rule along the projection arc” in Bertsekas (1999), which originates from Bertsekas (1976). The procedure is illustrated in algorithm 3:
Algorithm 3: A Projected Gradient Method for Bound-Constrained Optimization
1. Given 0< β < 1, 0 < σ < 1. Initialize any feasible x1. 2. For k= 1, 2, . . .
xk+1= P[xk− αk∇ f (xk)],
whereαk= βtk, and tkis the first nonnegative integer t for which f (xk+1)− f (xk)≤ σ ∇ f (xk)T(xk+1− xk). (3.2) Condition 3.2, used in most proofs of projected gradient methods, en-sures the sufficient decrease of the function value per iteration. By trying the step sizes 1,β, β2, . . . , Bertsekas (1976) has proved that α
k> 0 satisfying
equation 3.2 always exists and every limit point of{xk}∞
k=1is a stationary point of equation 3.1. A common choice of σ is 0.01, and we consider β = 1/10 in this letter. In the experiment section, 6.2, we have some discus-sions about the choice ofβ.
Searchingαk is the most time-consuming operation in algorithm 3, so one should check as few step sizes as possible. Sinceαk−1andαk may be similar, a trick in Lin and Mor´e (1999) usesαk−1as the initial guess and then either increases or decreases it in order to find the largestβtk satisfy-ing equation 3.2. Moreover, with nonnegative tk, algorithm 4 may be too conservative by restrictingαk ≤ 1. Sometimes a larger step more effectively projects variables to bounds at one iteration. Algorithm 4 implements a better initial guess ofα at each iteration and allows α to be larger than one:
Algorithm 4:An Improved Projected Gradient Method
1. Given 0< β < 1, 0 < σ < 1. Initialize any feasible x1. Setα 0= 1. 2 For k= 1, 2, . . .
(a) Assignαk ← αk−1
(b) Ifαk satisfies equation 3.2, repeatedly increase it by
αk ← αk/β
until eitherαkdoes not satisfy equation 3.2 or x(αk/β) = x(αk). Else repeatedly decreaseαkby
αk ← αk· β
untilαksatisfies equation 3.2. (c) Set
xk+1= P[xk− α
The convergence result has been proved in, for example, Calamai and Mor´e (1987). One may think that findingα with the largest function reduc-tion leads to faster convergence:
αk ≡ arg min
α≥0 f (P[x
k− α∇ f (xk)]). (3.3)
The convergence of selecting such anαkis proved in McCormick and Tapia (1972). However, equation 3.3 is a piecewise function ofα, which is difficult to be minimized.
A major obstacle for minimizing bounded problems is to identify free (i.e., li < xi< ui) and active (i.e., xi= li or ui) components at the conver-gent stationary point. Projected gradient methods are considered effective for doing so since they are able to add several active variables at a single iteration. However, once these sets have been (almost) identified, the prob-lem in a sense reduces to an unconstrained one, and the slow convergence of gradient-type methods may occur. We will explain in section 4.1 that for NMF problems, this issue may not be serious.
4 Projected Gradient Methods for NMF
We apply projected gradient methods to NMF in two situations. The first case solves nonnegative least-squares problems discussed in section 2.2. The second case directly minimizes equation 1.1. Both approaches have convergence properties following from theorem 2 and Calamai and Mor´e (1987), respectively. Several modifications specific to NMF will be presented.
4.1 Alternating Nonnegative Least Squares Using Projected Gradient Methods. Section 2.2 indicates that algorithm 2 relies on efficiently solving subproblems 2.8 and 2.9, each of which is a bound-constrained problem. We propose using project gradient methods to solve them.
Subproblem 2.9 consists of m independent nonnegative least-square problems (see equation 2.10), so one could solve them separately, a situa-tion suitable for parallel environments. However, in a serial setting, treating them together is better for the following reasons:
r
These nonnegative least-square problems are closely related as theyshare the same constant matrices V and Wk+1in equation 2.10.
r
Working on the whole H but not its individual columns implies thatall operations are matrix based. Since finely tuned numerical linear al-gebra codes have better speed-up on matrix than on vector operations, we can thus save computational time.
For a simpler description of our method, we focus on equation 2.9 and rewrite it as min H ¯f(H)≡ 1 2V − WH 2 F subject to Hb j≥ 0, ∀b, j. (4.1)
Both V and W are constant matrices in equation 4.1. If we concatenate H’s columns to a vector vec (H), then
¯f(H)=1 2V − WH 2 F =1 2vec(H) T WTW . .. WTW
vec(H) + H’s linear terms.
The Hessian matrix (i.e., second derivative) of ¯f (H) is block diagonal, and each block WTW is an r× r positive semidefinite matrix. As W ∈ Rn×r and r n, WTW and the whole Hessian matrix tend to be well conditioned, a good property for optimization algorithms. Thus, gradient-based methods may converge fast enough. A further investigation of this conjecture is in the experiment section, 6.2.
The high cost of solving the two subproblems, equations 2.8 and 2.9, at each iteration is a concern. It is thus essential to analyze the time complexity and find efficient implementations. Each subproblem requires an iterative procedure, whose iterations are referred to as subiterations. When using algorithm 4 to solve equation 4.1, we must maintain the gradient
∇ ¯f(H) = WT(WH− V)
at each subiteration. Following the discussion near equation 2.7, one should calculate it by (WTW)H− WTV. Constant matrices WTW and WTV can be computed respectively in O(nr2) and O(nmr) operations before running subiterations.
The main computational task per subiteration is to find a step sizeα such that the sufficient decrease condition 3.2 is satisfied. Assume ¯H is the current solution. To check if
˜
H≡ P[ ¯H − α∇ ¯f( ¯H)]
satisfies equation 3.2, calculating ¯f ( ˜H) takes O(nmr) operations. If there are
the following strategy to reduce the cost: for a quadratic function f (x) and any vector d,
f (x+ d) = f (x) + ∇ f (x)Td+1 2d
T∇2f (x)d. (4.2)
Hence, for two consecutive iterations ¯x and ˜x, equation 3.2 can be written as
(1− σ )∇ f (¯x)T(˜x− ¯x) +1 2(˜x− ¯x)
T∇2f (¯x)(˜x− ¯x) ≤ 0.
Now ¯f (H) defined in equation 4.1 is quadratic, so equation 3.2 becomes
(1− σ )∇ ¯f( ¯H), ˜H − ¯H +1
2 ˜H − ¯H, (W
TW)( ˜H− ¯H) ≤ 0, (4.3)
where·, · is the sum of the component-wise product of two matrices. The major operation in equation 4.3 is the matrix product (WTW)· ( ˜H − ¯H), which takes O(mr2). Thus, the cost O(tnmr) of checking equation 3.2 is significantly reduced to O(tmr2). With the cost O(nmr) for calculating WTV in the beginning, the complexity of using algorithm 4 to solve subproblem 4.1 is
O(nmr)+ #sub-iterations × O(tmr2),
where t is the average number of checking equation 3.2 at each subiteration. The pseudocode for optimizing equation 4.1 is in section B.2. We can use the same procedure to obtain Wk+1by rewriting equation 2.9 as a form similar to equation 4.1:
¯f(W)≡ 1 2V
T− HTWT2
F,
where VT and HT are constant matrices. The overall cost to solve equation 1.1 is
#iterations× (O(nmr) + #sub-iterations × O(tmr2+ tnr2)). (4.4) At each iteration, there are two O(nmr) operations: V(Hk)T and (Wk+1)TV, the same as those in the multiplicative update method. If t and #subitera-tions are small, this method is efficient.
To reduce the number of subiterations, a simple but useful technique is to warm-start the solution procedure of each subproblem. At final iterations,
(Wk, Hk)’s are all similar, so Wk is an effective initial point for solving equation 2.8.
4.2 Directly Applying Projected Gradients to NMF. We may directly apply algorithm 4 to minimize equation 1.1. Similar to solving the nonneg-ative least-squares problems in section 4.1, the most expensive operation is checking the sufficient decrease condition, equation 3.2. From the current solution ( ¯W, ¯H), we simultaneously update both matrices to ( ˜W, ˜H):
( ˜W, ˜H) ≡ P[( ¯W, ¯H) − α(∇Wf ( ¯W, ¯H), ∇Hf ( ¯W, ¯H))].
As f (W, H) is not a quadratic function, equation 4.2 does not hold. Hence, the trick, equation 4.3, cannot be applied to save the computational time. Then, calculating f ( ˜W, ˜H) = 12V − ˜W ˜H2
F takes O(nmr) operations. The total computational cost is
#iterations× O(tnmr),
where t is the average number of condition 3.2 checked per iteration. Given any random initial (W1, H1), ifV − W1H12
F> V2F, very often
after the first iteration, (W2, H2)= (0, 0) causes the algorithm to stop. The solution (0, 0) is a useless stationary point of equation 1.1. A simple remedy is to find a new initial point (W1, ¯H1) such that f (W1, ¯H1)< f (0, 0). By solving ¯H1= arg min
H≥0 f (W
1, H) using the procedure described in section
4.1, we have
V − W1H¯12
F ≤ V − W1· 02F = V2F.
The strict inequality generally holds, so f (W1, ¯H1)< f (0, 0).
5 Stopping Conditions
In all algorithms mentioned so far, we did not specify when the procedure should stop. Several implementations of the multiplicative update method (e.g., Hoyer, 2004) have an infinite loop, which must be interrupted by users after a time or iteration limit. Some researchers (e.g., Brunet, 2004) check the difference between recent iterations. If the difference is small enough, the procedure stops. However, such a stopping condition does not reveal whether a solution is close to a stationary point. In addition to a time or iteration limit, standard conditions to check the stationarity should also be included in NMF software. Moreover, in alternating least squares, each subproblem involves an optimization procedure, which needs a stopping condition as well.
In bound-constrained optimization, a common condition to check if a point xkis close to a stationary point is the following (Lin & Mor´e, 1999):
∇Pf (xk) ≤ ∇ f (x1), (5.1)
where∇Pf (xk) is the projected gradient defined as
∇Pf (x) i≡ ∇ f (x)i if li< xi < ui, min(0, ∇ f (x)i) if xi= li, max(0, ∇ f (x)i) if xi= ui. (5.2)
This condition follows from an equivalent form of the KKT condition for bounded problems: li ≤ xi ≤ ui, ∀i, and
∇Pf (x) = 0.
For NMF, equation 5.1 becomes
∇Pf (Wk, Hk)
F ≤ ∇ f (W1, H1)F. (5.3)
For alternating least squares, each subproblem 2.8 or 2.9 requires a stop-ping condition as well. Ideally, the condition for them should be related to the global one for equation 1.1, but a suitable condition is not obvious. For example, we cannot use the same stopping tolerance in equation 5.3 for sub-problems. A user may specify = 0 and terminate the code after a certain time or iteration limit. Then the same = 0 in solving the first subproblem will cause algorithm 2 to keep running at the first iteration. We thus use the following stopping conditions for subproblems. The returned matrices Wk+1and Hk+1from the iterative procedures of solving the subproblems 2.8 and 2.9 should, respectively, satisfy
∇P Wf (Wk+1, Hk)F≤ ¯W, and ∇ P Hf (Wk+1, Hk+1)F≤ ¯H, where we set ¯ W = ¯H≡ max(10−3, )∇ f(W1, H1)F
in the beginning and is the tolerance in equation 6.3. If the projected gradient method for solving equation 2.8 stops without any iterations, we decrease the stopping tolerance by
¯
W ← ¯W/10. (5.4)
6 Experiments
We compare four methods discussed in this letter and refer to them in the following way:
r
mult: The multiplicative update method described in section 2.1r
alspgrad: Alternating nonnegative least squares using the projectedgradient method for each subproblem (see section 4.1)
r
pgrad: A direct use of the projected gradient method on equation 1.1(see section 4.2)
r
lsqnonneg: Using Matlab command lsqnonneg to solve m problems(see equation 2.10) in the alternating least-squares framework All implementations are in Matlab (http://www.mathworks.com). We conduct experiments on an Intel Xeon 2.8 GHz computer. Results of using synthetic and real data are presented in the following subsections. All source codes for experiments are available online at http://www.csie.ntu. edu.tw/∼cjlin/nmf.
6.1 Synthetic Data. We consider three problem sizes: (m, r, n) =
(25, 5, 25), (50, 10, 250), and (100, 20, 500). The matrix V is randomly gener-ated by the normal distribution (mean 0 and standard deviation 1)
Vi j = |N(0, 1)|.
The initial (W1, H1) is constructed in the same way, and all four methods share the same initial point. These methods may converge to different points due to the nonconvexity of the NMF problem, equation 1.1. To have a fair comparison, for the same V we try 30 different initial (W1, H1) and report the average results. As synthetic data may not resemble practical problems, we leave detailed analysis of the proposed algorithms in section 6.2, which considers real data.
We set in equation 6.3 to be 10−3, 10−4, 10−5, and 10−6 in order to investigate the convergence speed to a stationary point. We also impose a time limit of 1000 seconds and a maximal number of 8000 iterations on each method. As lsqnonneg takes long computing time, we run it only on the smallest data. Due to the slow convergence of mult and pgrad, for = 10−6 we run only alspgrad.
Results of average time, number of iterations, and objective values are in Table 1. For small problems, Table 1 shows that all four methods give similar objective values as → 0. The method lsqnonneg is rather slow, a result supporting our argument in section 4.1 that a matrix-based approach is better than a vector-based one. For larger problems, when = 10−5, mult and pgradoften exceed the maximal number of iterations. Clearly, mult quickly
T able 1: Results o f R unning Synthetic Data S ets (fr om Small to L ar ge) U nder V arious S topping T o lerances. T ime Number of Iterations Objective V alues 10 − 3 10 − 4 10 − 5 10 − 6 10 − 3 10 − 4 10 − 5 10 − 6 10 − 3 10 − 4 10 − 5 10 − 6 a. m = 25 ,r = 5, n = 125 mu lt 0.10 1.22 2.60 698 4651 7639 390.4 389.3 389.3 alspg rad 0.03 0.10 0.45 0.97 6 26 100 203 412.9 392.8 389.2 389.1 pg ra d 0.05 0.24 0.68 53 351 1082 401.6 389.9 389.1 lsqnonneg 6.32 27.76 57.57 23 96 198 391.1 389.1 3 89.0 b. m = 50 ,r = 10 ,n = 250 mu lt 0.16 14.73 21.53 349 6508 8000 1562.1 1545.7 1545.6 alspg rad 0.03 0.13 0.99 5.51 4 14 76 352 1866.6 1597.1 1547.8 1543.5 pg ra d 0.38 3.17 10.29 47 1331 4686 1789.4 1558.4 1545.5 c. m = 100 ,r = 20 ,n = 500 mu lt 0.41 8.28 175.55 170 2687 8000 6535.2 6355.7 6 342.3 alspg rad 0.02 0.21 1.09 10.02 2 8 31 234 9198.7 6958.6 6436.7 6332.9 pg ra d 0.60 2.88 35.20 2 200 3061 8141.1 6838.7 6375.0 Notes: W e pr esent the average time (in seconds), n umber o f iterations, and o bjective v alues o f u sing 30 initial p oints. Appr oaches with the smallest time o r o bjective v alues ar e in bold type. N ote that w hen = 10 − 5, mu lt and pg ra d often exceed the iteration limit of 8000.

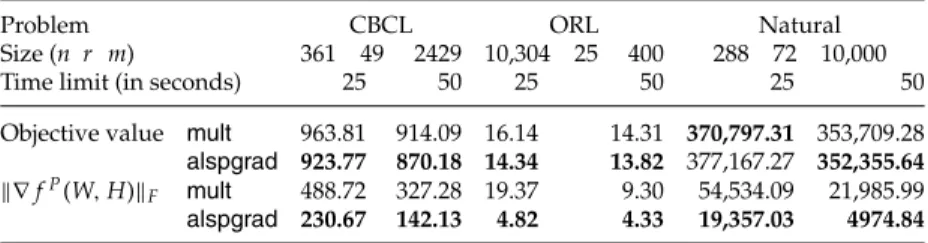

Table 2: Image Data: Average Objective Values and Projected-Gradient Norms of Using 30 Initial Points Under Specified Time Limits.
Problem CBCL ORL Natural
Size (n r m) 361 49 2429 10,304 25 400 288 72 10,000
Time limit (in seconds) 25 50 25 50 25 50
Objective value mult 963.81 914.09 16.14 14.31 370,797.31 353,709.28 alspgrad 923.77 870.18 14.34 13.82 377,167.27 352,355.64 ∇ fP(W, H)
F mult 488.72 327.28 19.37 9.30 54,534.09 21,985.99
alspgrad 230.67 142.13 4.82 4.33 19,357.03 4974.84 Note: Smaller values are in bold type.
decreases the objective value in the beginning but slows down in the end. In contrast, alspgrad has the fastest final convergence. For the two larger problems, it gives the smallest objective value under = 10−6 but takes less time than that by mult under = 10−5. Due to the poor performance of pgrad and lsqnonneg, subsequently we focus on comparing mult and alspgrad.
6.2 Image Data. We consider three image problems used in Hoyer (2004):
r
The CBCL (MIT Center for Biological and Computional Learning)face image database (http://cbcl.mit.edu/cbcl/software-datasets/ FaceData2.html).
r
ORL (Olivetti Research Laboratory) face image database (http://www.cl.cam.ac.uk/research/dtg/attarchive/facedatabase.html).
r
Natural image data set (Hoyer, 2002).All settings are the same as those in Hoyer (2004). We compare objective values and projected-gradient norms of mult and alspgrad after running 25 and 50 seconds. Table 2 presents average results of using 30 random initial points. For all three problems, alspgrad gives smaller objective values. While mult may quickly lower the objective value in the beginning, alspgrad catches up very soon and has faster final convergence. Results here are consistent with the findings in section 6.1. Regarding the projected-gradient norms, those by alspgrad are much smaller. Hence, solutions by alspgrad are closer to stationary points.
To further illustrate the slow final convergence of mult, Figure 1 checks the relation between the running time and the objective value. The CBCL set with the first of the 30 initial (W1, H1) is used. The figure clearly demon-strates that mult very slowly decreases the objective value at final iterations. The number of subiterations for solving equations 2.8 and 2.9 in alspgrad is an important issue. First, it is related to the time complexity analysis. Second, section 4.1 conjectures that the number should be small as WTW
100 101 102 103 800 900 1000 1100 1200 1300
Time in seconds (logged scale)
Objective value
Figure 1: Time (seconds in log scale) versus objective values for mult (dashed line) and alspgrad (solid line).

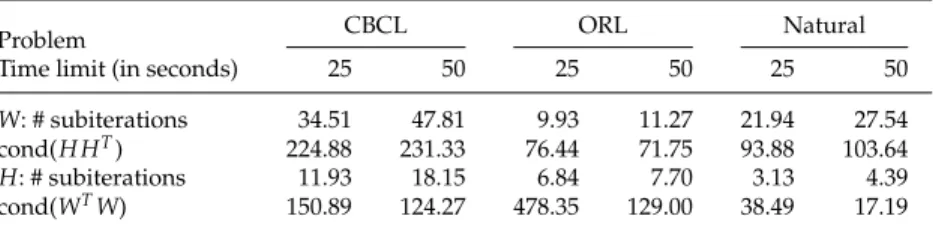

Table 3: Number of Subiterations and Condition Numbers in Solving Equations 2.8 and 2.9 of alspgrad.
CBCL ORL Natural
Problem
Time limit (in seconds) 25 50 25 50 25 50
W: # subiterations 34.51 47.81 9.93 11.27 21.94 27.54
cond(H HT) 224.88 231.33 76.44 71.75 93.88 103.64
H: # subiterations 11.93 18.15 6.84 7.70 3.13 4.39
cond(WTW) 150.89 124.27 478.35 129.00 38.49 17.19
Notes: For subiterations, we calculate (total subiterations)/(total iterations) under each initial point and report the average of 30 values. For condition numbers, we find the median at all iterations, and report the average. Note that H HT (WTW) corresponds to
the Hessian of minimizing W (H).
and H HT are generally well conditioned. Table 3 presents the number of subiterations and the condition numbers of WTW and H HT. Compared to gradient-based methods in other scenarios, the number of subiterations is relatively small. Another projected gradient method pgrad discussed in Table 1 easily takes hundreds or thousands of iterations. For condition numbers, both the CBCL and natural sets have r< n < m, so HHTtends to be better conditioned than WTW. ORL has the opposite as r< m < n. All condition numbers are small, and this result confirms our earlier conjecture. For ORL, cond(WTW)> cond(HHT), but the number of subiterations on solving W is more. One possible reason is the different stopping tolerances for solving equations 2.8 and 2.9.
In the implementation of alspgrad, there is a parameterβ, which is the rate of reducing the step size to satisfy the sufficient decrease condition, equation 3.2. It must be between 0 and 1, and for the above experiments,

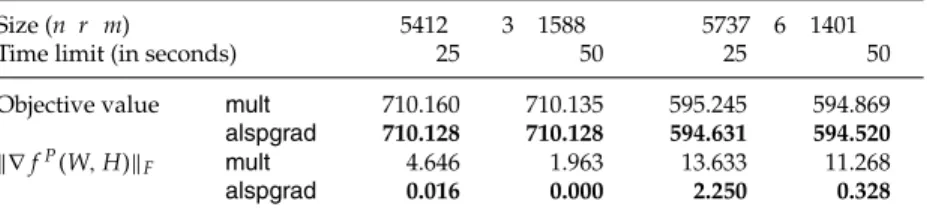

Table 4: Text Data: Average Objective Values and Projected-Gradient Norms of Using 30 Initial Points Under Specified Time Limits.
Size (n r m) 5412 3 1588 5737 6 1401
Time limit (in seconds) 25 50 25 50
Objective value mult 710.160 710.135 595.245 594.869 alspgrad 710.128 710.128 594.631 594.520 ∇ fP(W, H)
F mult 4.646 1.963 13.633 11.268
alspgrad 0.016 0.000 2.250 0.328
Notes: Smaller values are in bold type. Due to the unbalanced class distribution, inter-estingly the random selection of six classes results in fewer documents (i.e., m) than that of selecting three classes.
we useβ = 0.1. One may wonder about the effect of using other β. Clearly, a smallerβ more aggressively reduces the step size, but it may also cause a step size that in the end is too small. We consider the CBCL set with the first of the 30 initial (W1, H1) (i.e., the setting to generate Figure 1, and check the effect of usingβ = 0.5 and 0.1. In both cases, alspgrad works well, but the one using 0.1 slightly more quickly reduces the function value. There-fore,β = 0.5 causes too many checks for the sufficient decrease condition, equation 3.2. The cost per iteration is thus higher.
6.3 Text Data. NMF is useful for document clustering, so we next con-sider a text set RCV1 (Lewis, Yang, Rose, & Li, 2004). This set is an archive of manually categorized newswire stories from Reuters Ltd. The collection has been fully preprocessed, including removing stop words, stemming, and transforming into vector space models. Each vector, cosine normal-ized, contains features of logged TF-IDF (term frequency, inverse document frequency). Training and testing splits have been defined. We remove doc-uments in the training set that are associated with more than one class and obtain a set of 15,933 instances in 101 classes. We further remove classes with fewer than five documents. Using r= 3 and 6, we then randomly se-lect r classes of documents to construct the n× m matrix V, where n is the number of the vocabulary set and m is the number of documents. Some words never appear in the selected documents and cause zero rows in V. We remove them before experiments. The parameter r is the number of clusters that we intend to assign documents to. Results of running mult and alspgrad by 25 and 50 seconds are in Table 4. Again, alspgrad gives smaller objective values. In addition, projected-gradient norms of alspgrad are smaller.
In section 2.1, we mentioned that mult is well defined if theorem 1 holds. Now V is a sparse matrix with many zero elements since words appearing in a document are only a small subset of the whole vocabulary set. Thus, some columns of V are close to zero vectors, and for a few situations, numerical
difficulties occur. In contrast, we do not face such problems for projected gradient methods.
7 Discussion and Conclusions
We discuss some future issues and draw conclusions.
7.1 Future Issues. As resulting W and H usually have many zero com-ponents, NMF is said to produce a sparse representation of the data. To achieve better sparseness, some studies, such as Hoyer (2002) and Piper et al. (2004) add penalty terms to the NMF objective function:
1 2 n i=1 m j=1 (Vi j− (WH)i j)2+ αW2F+ βH2F, (7.1)
whereα and β are positive numbers. Besides the Frobenius norm, which is quadratic, we can also use a linear penalty function,
α i,a Wia+ β b, j Hb j. (7.2)
Our proposed methods can be used for such formulations. As penalty pa-rametersα and β only indirectly control the sparseness, Hoyer (2004) pro-poses a scheme to directly specify the desired sparsity. It is interesting to investigate how to incorporate projected gradient methods in such frame-works.
7.2 Conclusions. This letter proposes two projected gradient methods for NMF. The one solving least-squares subproblems in algorithm 2 leads to faster convergence than the popular multiplicative update method. Its success is due to our following findings:
r
Subproblems in algorithm 2 for NMF generally have well-conditionedHessian matrices (i.e., second derivative) due to the property r min(n, m). Hence, projected gradients converge quickly, although they use only the first-order information.
r
The cost of selecting step sizes in the projected gradient method forsubproblem 4.1 is significantly reduced by some reformulations that again use the property r min(n, m).
Therefore, taking special NMF properties is crucial when applying an opti-mization method to NMF.
Roughly speaking, optimization methods are between the following two extreme situations:
Low cost per iteration;
slow convergence. ←→
High cost per iteration; fast convergence.
For example, Newton’s methods are expensive per iteration but have very fast final convergence. Approaches with low cost per iteration usually de-crease the objective value more quickly in the beginning, a nice property enjoyed by the multiplicative update method for NMF. Based on our anal-ysis, we feel that the multiplicative update is very close to the first extreme. The proposed method of alternating least squares using projected gradients tends to be more in between. With faster convergence and strong optimiza-tion properties, it is an attractive approach for NMF.
Appendix A: Proof of Theorem 1
When k= 1, equation 2.6 holds by the assumption of this theorem. Using induction, if equation 2.6 is correct at k, then at (k+ 1), clearly denominators of equations 2.3 and 2.4 are strictly positive. Moreover, as V has neither zero column nor row, both numerators are strictly positive as well. Thus, equation 2.6 holds at (k+ 1), and the proof is complete.
Appendix B: Matlab Code
B.1 Main Code for alspgrad (Alternating Nonnegative Least Squares Using Projected Gradients)
function [W,H] = nmf(V,Winit,Hinit,tol,timelimit,maxiter)
% NMF by alternative non-negative least squares using projected gradients
% Author: Chih-Jen Lin, National Taiwan University
% W,H: output solution
% Winit,Hinit: initial solution
% tol: tolerance for a relative stopping condition % timelimit, maxiter: limit of time and iterations
W = Winit; H = Hinit; initt = cputime;
initgrad = norm([gradW; gradH’],’fro’); fprintf(’Init gradient norm %f\n’, initgrad); tolW = max(0.001,tol)*initgrad; tolH = tolW;
for iter=1:maxiter, % stopping condition
projnorm = norm([gradW(gradW<0 | W>0); gradH(gradH<0 | H>0)]); if projnorm < tol*initgrad | cputime-initt > timelimit,
break; end [W,gradW,iterW] = nlssubprob(V’,H’,W’,tolW,1000); W = W’; gradW = gradW’; if iterW==1, tolW = 0.1 * tolW; end [H,gradH,iterH] = nlssubprob(V,W,H,tolH,1000); if iterH==1, tolH = 0.1 * tolH; end
if rem(iter,10)==0, fprintf(’.’); end end
fprintf(’\nIter = %d Final proj-grad norm %f\n’, iter, projnorm);
B.2 Solving Subproblem 4.1 by the Projected Gradient Algorithm 4.
function [H,grad,iter] = nlssubprob(V,W,Hinit,tol,maxiter)
% H, grad: output solution and gradient % iter: #iterations used
% V, W: constant matrices % Hinit: initial solution % tol: stopping tolerance % maxiter: limit of iterations
H = Hinit; WtV = W’*V; WtW = W’*W;
for iter=1:maxiter, grad = WtW*H - WtV; projgrad = norm(grad(grad < 0 | H >0)); if projgrad < tol, break end
% search step size for inner_iter=1:20, Hn = max(H - alpha*grad, 0); d = Hn-H; gradd=sum(sum(grad.*d)); dQd = sum(sum((WtW*d).*d)); suff_decr = 0.99*gradd + 0.5*dQd < 0; if inner_iter==1, decr_alpha = ~suff_decr; Hp = H; end if decr_alpha, if suff_decr, H = Hn; break; else
alpha = alpha * beta; end else if ~suff_decr | Hp == Hn, H = Hp; break; else alpha = alpha/beta; Hp = Hn; end end end end if iter==maxiter,
fprintf(’Max iter in nlssubprob\n’); end
Acknowledgments
I thank Marco Sciandrone for pointing out the convergence of two-block coordinate descent methods in Grippo & Sciandrone (2000) and helpful comments.
References
Bertsekas, D. P. (1976). On the Goldstein-Levitin-Polyak gradient projection method.
IEEE Transations on Automatic Control, 21, 174–184.
Bertsekas, D. P. (1999). Nonlinear programming (2nd ed.). Belmont, MA: Athena Sci-entific.
Brunet, J.-P. (2004). An NMF Program. Available online at http://www.broad.mit. edu/mpr/publications/projects/NMF/nmf.m
Brunet, J.-P., Tamayo, P., Golub, T. R., & Mesirov, J. P. (2004). Metagenes and molecular pattern discovery using matrix factorization. Proceedings of the National Academy
of Science, 101(12), 4164–4169.
Calamai, P. H., & Mor´e, J. J. (1987). Projected gradient methods for linearly con-strained problems. Mathematical Programming, 39, 93–116.
Chu, M., Diele, F., Plemmons, R., & Ragni, S. (2005). Optimality, computation and
interpretation of nonnegative matrix factorizations. Preprint. Available online at
http://www4.ncsu.edu/∼mtchu/Research/Papers/nnmf.ps
Donoho, D., & Stodden, V. (2004). When does non-negative matrix factorization give a correct decomposition into parts? In S. Thr ¨un, L. Saul, & B. Sch ¨olkopf (Eds.), Advances in neural information processing systems, 16. Cambridge, MA: MIT Press.
Gonzales, E. F., & Zhang, Y. (2005). Accelerating the Lee-Seung algorithm for non-negative
matrix factorization (Tech. Rep.). Houston, TX: Department of Computational and
Applied Mathematics, Rice University.
Grippo, L., & Sciandrone, M. (2000). On the convergence of the block nonlinear Gauss-Seidel method under convex constraints. Operations Research Letters, 26, 127–136.
Hoyer, P. O. (2002). Non-negative sparse coding. In Proceedings of IEEE Workshop on
Neural Networks for Signal Processing (pp. 557–565). Piscataway, NJ: IEEE.
Hoyer, P. O. (2004). Non-negative matrix factorization with sparseness constraints.
Journal of Machine Learning Research, 5, 1457–1469.
Lawson, C. L., & Hanson, R. J. (1974). Solving least squares problems. Upper Saddle River, NJ: Prentice Hall.
Lee, D. D., & Seung, S. (1999). Learning the parts of objects by nonnegative matrix factorization. Nature, 401, 788–791.
Lee, D. D., & Seung, S. (2001). Algorithms for non-negative matrix factorization. In T. K. Leen, T. G. Dietterich, and V. Tresp (Eds.), Advances in neural information
processing systems, 13 ( pp. 556–562). Cambridge, MA: MIT Press.
Lewis, D. D., Yang, Y., Rose, T. G., & Li, F. (2004). RCV1: A new benchmark collec-tion for text categorizacollec-tion research. Journal of Machine Learning Research, 5, 361– 397.
Lin, C.-J., & Mor´e, J. J. (1999). Newton’s method for large-scale bound constrained problems. SIAM Journal on Optimization, 9, 1100–1127.
McCormick, G. P., & Tapia, R. A. (1972). The gradient projection method under mild differentiability conditions. SIAM Journal on Control, 10, 93–98.
Paatero, P. (1999). The multilinear engine—A table-driven, least squares program for solving multilinear problems, including the n-way parallel factor analysis model.
Paatero, P., & Tapper, U. (1994). Positive matrix factorization: A non-negative factor model with optimal utilization of error. Environmetrics, 5, 111–126.
Piper, J., Pauca, P., Plemmons, R., & Giffin, M. (2004). Object characterization from spectral data using nonnegative factorization and information theory. In
Proceed-ings of AMOS Technical Conference. Mavi, HI.
Powell, M. J. D. (1973). On search directions for minimization. Mathematical
Program-ming, 4, 193–201.
Shepherd, S. (2004). Non-negative matrix factorization. Available online at http://www.simonshepherd.supanet.com/nnmf.htm
Xu, W., Liu, X., & Gong, Y. (2003). Document clustering based on non-negative matrix factorization. In Proceedings of the 26th Annual International ACM SIGIR Conference (pp. 267–273). New York: ACM Press.
