An integrated approach for genome-wide gene expression

analysis

Yuh-Jyh Hu *

Department of Computer and Information Science, National Chiao-Tung Uni6ersity,1001Ta Hsueh Rd., Hsinchu, Taiwan,300,

ROC

Received 8 December 1999; received in revised form 23 May 2000; accepted 21 June 2000

Abstract

Since efficient and relatively cheap methods were developed for determining biosequences, a lot of biosequence data has been generated. As the main problem in molecular biology is the analysis of the data instead of the data acquisition, part of the study of computational biology is to extract all kinds of meaningful information from the sequences. Computer-assisted methods have become very important in analyzing biosequence data. However, most of the current computer-assisted methods are limited to finding motifs. Genes can be regulated in many ways, including combinations of regulatory elements. This research is aimed at developing a new integrated system for genome-wide gene expression analysis. This research begins with a new motif-finding method, using a new objective function combining multiple well defined components and an improved stochastic iterative sampling strategy. Combinatorial motif analysis is accomplished by constructive induction that analyzes potential motif combinations. We then apply standard inductive learning algorithms to generate hypotheses for different gene behaviors. A genome-wide gene expression analysis demonstrated the value of this novel integrated system. © 2001 Elsevier Science Ireland Ltd. All rights reserved.

Keywords:Motifs; Gene regulation; Constructive induction; Decision tree

www.elsevier.com/locate/cmpb

1. Introduction

The completion of genome sequences, e.g.

Sac-charomyces cere6isiae [1], has produced sufficient

data for biological analysis, and the advent of the microarray and the genechip technology [2,3] has resulted in the expanded ability of monitoring simultaneously the levels of mRNA from each

gene in a cell. Because this type of experiment provides comprehensive information about regu-lation of mRNA levels of every gene, it becomes theoretically possible to identify sets of genes that are similarly regulated under a given condition. This allows, (1) inferences about functions of unknown genes that are co-regulated with genes of known functions; (2) discovery of regulatory motifs and combinations of motifs; and (3) greatly improved understanding of the biology of the cellular response to particular environmental

* Tel.: + 886-3-5712121.

E-mail address:[email protected] (Y.-J. Hu).

(2)

stimuli. In order to realize the potential of infor-mation emerging from such global gene regulation studies, data from multiple genes must be ana-lyzed in parallel.

As the advance of the microarray and the genechip technology, two experimental methods of monitoring complete yeast genome expression have been described in the literature; the system developed in the laboratory of P. Brown [2] and the Affymetrix GeneChip system [3]. This technol-ogy provides a global view of changes in gene expression on a genomic scale. As more is learned about the functions of every gene in the entire genome, we have the ability to gain insight into a cell’s response to a changing environment through its global gene expression patterns. Potential ap-plications include predicting drug interaction or drug resistance, exploring the immune system, etc. It is useful to obtain distinct temporal patterns of gene expression, knowing how genes behave differently under a certain condition. Neverthe-less, in addition to the macro view of the changes in gene expression level, biologists are also inter-ested in the following questions, e.g. (1) is there any consensus motif (i.e. pattern) in a given fam-ily of genes; (2) if there exist several motifs com-monly shared by a set of genes, what is the correlation among them in terms of number of repeats and locations, etc.; and (3) what makes these genes behave differently in the same envi-ronment, i.e. why some are up-regulated by the stimuli, but some have no change?

To learn beyond how genes behave over time, it would be valuable if we understand what actually makes these genes behave differently. One way to find possible answers to the questions is to look into the regulatory regions of genes at the se-quence level. In this paper, we introduce a method for gene regulation analysis from a different point of view.

2. Background

Biologists have traditionally studied the regula-tion of genes selected for a particular type of activity or function. Although this approach has allowed the identification of regulatory proteins

that affect the expression of those genes, it has tended to focus attention on specific sets of genes and inferences concerning the regulation of those genes that have by necessity been extended to less well understood genes. It is likely given the num-ber of genes for which no function is known (estimated at one third of the yeast genome), that regulatory proteins remain to be identified. In addition, due to the relatively intensive study of exemplary genes, certain aspects of regulation, including positional effects, multiplicity of regula-tory motifs, orientation of motifs and the role of combinations of different motifs, although appre-ciated conceptually, have not been explored com-prehensively. Emerging knowledge of genome-wide gene activity, combined with the algorithms to infer motifs and to correlate activity and motifs, could broaden our understanding of gene regulation into under-explored areas.

Fundamentally gene regulation is determined by chemical reactions which are, in turn, con-trolled by the shape and physico-chemical proper-ties of the molecules involved. One instance of this is the interaction between regulatory proteins and their target binding site. Unfortunately this information is not typically available. We expect that the local shape of a binding or receptor site will be primarily determined by the bases in-volved, acknowledging the fact that non-local base changes can affect local shape. The difficulty of finding the biologically meaningful motif re-sults from the variability in (1) the bases at each position in the motif, (2) the location of the motif in the sequence, (3) the multiplicity of motif oc-currences within a given sequence, and (4) the orientation of the motif in the sequence. In addi-tion, the short length of many biologically signifi-cant motifs and the fact that motifs often gain biological significance only in combinations, make them difficult to determine using standard statisti-cal methods.

A general framework for these computational methods could be defined on the objective tion we choose. The purpose of an objective func-tion is to approximate the correlafunc-tion between sequence patterns and their biological meanings in terms of a mathematical function. The objective functions are only heuristics. Once the objective

(3)

function is determined, the goal is solely to find those patterns of high objective function value. To reach this goal, two important associated issues are the pattern representation and the search strategy.

As the primary DNA sequences are described by a double-stranded string of nucleic bases, the most basic pattern representation is the exact base string. Due to the complexity and flexibility of the motif binding mechanism, there is rarely any mo-tif that can be exactly described by a string of nucleic bases. To obtain more flexibility, other more expressive representations have been devel-oped such as the IUPAC code, the position weight matrix (PWM) and the hidden Markov model (HMM).

Besides those uncertain factors mentioned ear-lier, the search space of the patterns is also deter-mined by the size of the given set of sequences and the length of the patterns of interest. A systematic search through the sequences for all possible patterns can reach the best results; how-ever, as the search space could be computationally intractable, an exhaustive search strategy could only deal with data sets of relatively small size and detect shorter patterns. By random sampling and iterative improvement, a stochastic approach, on the other hand, could avoid computational explosion, but may not guarantee the optimum results.

3. Design considerations

The current motif detecting approaches alone are not sufficient for the analysis of gene regula-tion due to the inherent complexity of gene con-trol which often involves motif interactions. We thus propose a novel view of the gene regulation analysis. With the assistance of the genechip tech-nology, genes can be grouped into families ac-cording to different temporal patterns. Our analysis method for gene regulation focuses on the search for significant motifs and their combi-nations involved in the regulation as well as po-tential hypotheses regarding how the gene regulation is related to the motifs. This type of analysis not only complements the global study of

the changes of gene expression by looking into the involvement of the motifs in regulation, but may also suggest further biological tests on the genes through the inference from the hypotheses pro-duced by the analysis.

The aim of our gene regulation analysis is to extract the regularity from the DNA sequences. However, the simple but uninformative string-based representation shows very little valuable information by itself. Meanwhile, the goal of con-structive induction is to transform the original representation space into a new one where the regularity is more apparent. As a consequence, these two paradigms become a perfect match.

There are four basic steps in our method of analyzing gene regulation.

1. The first step of analyzing the sequence data is to categorize the genes into families according to their expression patterns. Then by multiple sequence comparison and alignment we could find some consensus information in a given family. Patterns, also called motifs, common to multiple sequences are related to molecular structures, functions and evolution [6]. We use the Affymetrix GeneChip system to collect the data of genome-wide gene expression changes corresponding to specific stimuli under a con-trolled environment in a fixed period of time. According to the gene expression changes over time, genes can be clustered into families for further analyses.

2. For any family of genes of interest, we extract the control region for each gene and apply some motif-finding algorithm to the family to find significant motifs. As discussed earlier, several methods have been developed for de-tection of patterns shared by a set of function-ally related biosequences [5 – 15]. In this paper, we introduce a new motif-finding algorithm called detecting motifs from sequences (DMS), and apply it in our gene regulation analysis. A particular challenge of finding regulatory mo-tifs is that they can be quite short and thus not statistically distinctive per se. As genes can be regulated in many ways, redundancy, location and combinations have to be considered to distinguish regulatory motifs. Finding motifs alone is not sufficient for the analysis of gene

(4)

regulation. The motifs found will serve as the building blocks for representational transfor-mation in the next step. The change of repre-sentation is necessary for revealing more regularity originally implicit in the sequence data.

3. Based on the information of the motifs found by DMS, we transform the original sequences into a higher-level representation. It includes (1) the locations of the motifs, (2) the total number of repeats of each motif, (3) the num-ber of repeats of each motif within a selected location range, (4) the distance between mo-tifs, and (5) combinatorial motifs as Boolean combinations. From the point of view of con-structive induction, the objective of this step is to transform the raw string-based representa-tion into a new one for better understanding and additional analyses. The new representa-tion is used to manifest the regularity origi-nally implicit in the raw string-based data. All the information described by the new represen-tation can be either used as a whole or par-tially used for further analyses.

4. Finally, after the raw sequence data are re-described in an appropriate higher-level repre-sentation, we can apply a suitable standard inductive learning algorithm on the data to generate hypotheses. There are many inductive learning algorithms available. Each has its own advantages and limitations. In our experi-ments, we applied a decision tree learning algorithm to construct hypotheses represented as decision trees. The hypotheses are easily understood and provide a micro view of the families as they suggest reasons for different behaviors of the genes to complement the macro view of the genome-wide gene expres-sion changes.

4. System description

In this section, we will detail the new motif-finding algorithm, DMS, explain how the original string-based DNA sequences are transformed into higher-level representation, and describe how to apply a decision tree learning algorithm to derive comprehensible hypotheses.

4.1. DMS: detecting motifs from sequences

As the sequence segments, such as binding sites for a particular protein, are generally not accu-rately represented by a single consensus sequence pattern, some positions are more conserved than others and the preference for each of the four nucleic bases can be different. Thus, we adopt the weight matrix as our motif representation. By running an iterative sampling optimization pro-cess, DMS outputs a user-specified number of motifs. This number is only used to determine how many motifs will be reported in the output, i.e. the user has the option to see all possible motifs or only part of them. It does not affect the process of the algorithm in any way.

The weight matrix method approach has been used in various pattern-identification problems [6 – 9,14]. It is usually built from the base fre-quency of example biosequences. If we divide every element in the matrix by the total number of sequences, we get a normalized matrix.

Based on the normalized motif matrix, we can calculate the match score of any 6-base sequence by dividing the sum of the value for each position by the width of the motif. The success of these analyses confirms the fact that the frequencies of bases at positions within sites are related to the importance of the bases to the functioning within the sites [4]. The challenge is to find a matrix that well represents the motif in terms of the objective function.

We propose a new motif-finding algorithm, DMS. Unlike other approaches, DMS uses a new type of objective function that consists of multiple components. They are the motif consensus qual-ity, the motif multiplicity significance and the motif coverage. The consensus quality is only used to guide the search for well conserved motif candidates, the motif multiplicity significance reflects the value of multiple copies of a single motif, and the motif coverage addresses the im-portance of a motif’s being commonly shared by a given family of sequences.

The consensus quality of a matrix is derived from the entropy [16]. The lower the entropy, the better conserved the motif. The entropy is calculated from

(5)

the probability that each base occurs at each position in the motif, Pm. More precisely, the

entropy for a particular column n in the matrix is given by:

E(n) = − % b4

i = b1

P_mi log₂P_mi

where b1, …, b4 are the bases A, G, C, T. If the bases are uniformly distributed over a position, then the maximum value of 2 is obtained. If only a single base appears in a position then the mini-mum value of 0 is obtained. Thus, we define the consensus quality of column n as:

C(n) = 2 − E(n)

The final consensus quality of a matrix b, is defined as the average of all position quality. Con(b) =1

w% w

1

C(n)

where w is the width of the motif.

The multiplicity significance is derived from the measure of precision as defined in the information retrieval paradigm. It is simple and empirically effective. We define the multiplicity significance of a motif b as:

Mul(b) =occS(b) occG(b)

where occS(b) is b’s occurrences in a given family S, and occG(b) is b’s occurrences in genome.

The motif coverage is defined as the ratio of the number of the sequences containing b to the total number of sequences given.

Cov(b) =contS(b) S

where contS(b) is the number of sequences in S

that contain b, and S is the total number of sequences in S.

Given a set of N biosequences, DMS carries out an iterative improvement search that attempts to find all potential motifs, e.g. d matrices, which maximizes the consensus quality defined above. These d matrices are motif candidates. DMS then ranks these motifs according to a merit measure based on the combination of the consensus qual-ity, the multiplicity significance and the motif

coverage. Given the d motifs, we first normalize the consensus quality, the multiplicity significance and the motif coverage of each motif b, using the maximum value, as defined below:

Connorm(b) = Con(b) MAX(Con) Mulnorm(b) = Mul(b) MAX(Mul) Covnorm(b) = Cov(b) MAX(Cov)

where MAX(Con) is the maximum consensus quality of the d motifs, MAX(Mul), the maximum multiplicity significance of the d motifs, and MAX(Cov), the maximum motif coverage of the d motifs.

Combining all the objective functions intro-duced above, we propose the final merit measure of a motif b as defined below:

Merit(b) =

1

1/3(1/Connorm(b)) + 1/Mulnorm(b) + 1/Covnorm(b))

The value of merit is in the range between 0 and 1. It reflects the synergy of the consensus quality, the multiplicity significance and the motif coverage.

There are three steps in DMS that are detailed in the following subsections.

4.1.1. Translating subsequences into matrices As the motif location(s) is unknown, we begin by allowing each subsequence of length w to be a candidate motif. Like most current algorithms, the length w is specified by the user. We convert this particular subsequence into a probability ma-trix in two steps, adopting an idea from [9]. First we fix the probability of every base in the subse-quence to some value 0BXB1, and assign prob-abilities of the other bases according to (1 − X)/(4 − 1) (i.e. 4 nucleic bases). Following Bailey and Elkan, we set X to 0.5. This gives us a set of seed probability matrices to be used as starting points for iterative improvement. For a given family of sequences, we can either

(6)

exhaus-tively translate every subsequence into a matrix for analysis or we can select a random subset of the sequences and only generate candidate start-ing points from this subset. Because significant motifs are generally well conserved and thus occur in most sequences, this subsetting strategy is effec-tive without losing generality.

4.1.2. Filtering possible motif occurrences

Rather than making the common assumption that each motif occurs only once per sequence, we allow for the possibility that a motif may occur multiple times in a single sequence. For each matrix and each sequence, we find the position that maximizes the match score and put it in the list of potential motif positions. Then we set the threshold for deciding if a motif occurs at any position as the mean of match scores. Finally we add to the list of motif positions any other posi-tion whose match score is greater than this threshold. Occurrence overlap is allowed. This process defines a set of potential motif positions.

4.1.3. Finding and ranking motif candidates After the likely motif positions are determined, DMS performs an iterative optimization proce-dure to find the motif probability matrix. Unlike current approaches, such as the Gibbs sampler, that search all possible positions within a se-quence, DMS only considers the potential motif positions determined in the previous step. This strategy significantly constrains the search space. For initialization, DMS randomly selects a posi-tion from the set of potential motif posiposi-tions that are determined in the previous step to form the initial probability matrix.

A sequence is then chosen at random for opti-mization. DMS optimizes the consensus quality of the matrix by checking every potential motif posi-tion within the selected sequence. The posiposi-tion that gains the highest consensus quality is chosen to update the matrix. The process is repeated until no improvement is noted. In each optimization cycle, the order of sequences is randomly shuffled. The randomization in each trial cycle is important to remove implicit biases, such as the order of the sequences that can be harmful in search al-gorithms. At this point, in each sequence, the

subsequence that contributes to the last updated matrix is determined. We then compute the mean of the match scores of the subsequences that form the matrix, and isolate all subsequences with a match score over the mean as possible motif repeats in each sequence. All these motif repeats in sequences are used to form the final motif matrix, and it becomes a motif candidate.

The same procedure is performed on all ma-trices to produce the candidate motifs. Finally, DMS ranks the candidate motifs according to its merit measure.

4.2. Representational transformation

Two types of additional motif information be-come available after DMS detects motifs from the given family of sequences, the motif repeats and the motif locations. Based on the information available, we can transform the original sequence data into a higher-level representation as a vector space. This vector representation was chosen be-cause it is the most widely used representation for standard inductive learners in the machine learn-ing community. It increases the applicability of machine learning techniques. Each sequence is transformed into a vector that contains the motif information associated with the sequence, includ-ing the number of motif repeats in the entire sequence and the number of motif repeats within a selected segment of the sequence. Given only one family of sequences, the particular segment is selected based on the background knowledge, i.e. specified by the user. If two or more families of sequences are provided, the sequence segment can be either specified by the domain expert or deter-mined by DMS. It is computationally prohibited to find the optimal segment that gains the maxi-mum discrimination between families by checking all possibilities. Therefore, we divide the se-quences into equal intervals. For each interval, we compute the information gain according to the number of motif repeats in that interval. DMS thus selects the interval that attains the highest information gain.

For example, assuming three motifs are found, M₁, M₂and M₃, an original nucleic sequence can be represented as a vector, (M_total

(7)

Mtotal_–3, M100 – 150 bp_–1, M300 – 450 bp_–2, M50 – 100 bp_–3).

The first three elements are the total number of repeats of M1, M2 and M3. The fourth element

presents the number of repeats of M1 within the

range 100 – 150 bp in the upstream region of the sequence. The last two elements present the num-ber of repeats of M2 and M3 within the range

350 – 400 and 50 – 100 bp, respectively. For in-stance, a sequence can be transformed into (5, 2, 3, 3, 1, 2). This means the sequence has totally five copies of M₁, two copies of M₂ and three copies of M3. There are three copies of M1located

in 100 – 150 bp upstream of the sequence, one copy of M₂ in 350 – 400 bp upstream, and two copies of M3 in 50 – 100 bp upstream.

Given multiple families of genes, after the transformation, the original sequence data is rep-resented as sets of vectors. These vectors are used as the training examples for GALA [17,18] to further analyze motif combinations. From the point of view of GALA, each element of a vector is a primitive attribute. The purpose of applying GALA here is to find combinations of attributes as new attributes to improve the quality of the hypotheses that will be later generated by a stan-dard inductive learning algorithm. GALA applies Boolean operators to construct new attributes represented as Boolean combinations. Boolean combinations are understandable. Comprehensi-bility allows domain experts to explore the new attributes either for further improvement or for justification.

4.3. Hypothesis generation

The final hypothesis for different gene behav-iors in the same environment is produced by the standard inductive learning algorithm C4.5 [17]. The input to C4.5 is a set of feature vectors transformed from the original sequence data com-bined with the combinatorial motifs, i.e. Boolean combinations of motifs, generated by GALA. With the input as the training examples, C4.5 produces a classification hypothesis that could be used to explain why these families of genes behave differently under the same condition as well as suggest further biological tests on the genes.

5. Status report

In this section, we first report the experimental results of DMS on ten regulatory families in yeast genome. Second, we show the analysis results of the yeast genome gene expressions under the oxi-dative stress.

5.1. Finding motifs in real regulons

Yeast metabolism has been widely studied, and in some cases the transcription factors involved in the regulation of members of a common pathway are known. Those families of co-regulated genes provide ideal data sets on which to test the sys-tems designed to detect regulatory motifs.

From the study of the literature, van Helden et al. defined ten families of genes that have known common regulatory site(s) or motif(s). There are many additional motifs involved in regulation generally, but the known ones in these regulons define ten learning tasks for comparing the vari-ous algorithms. It is assumed for this exercise that the regulation of a gene is determined by motifs in the upstream region. The 800 bp upstream region was used for each gene, as this is the same sized region used by van Helden et al. in their experiments.

There are two parameters used by DMS. One is the motif width, and the other is the random subset size (refer to Section 4.1.1). To maintain consistency, for those families with more than ten members, we set the subset size to be 10; other-wise, we set the subset size to be equal to the family size. The motif width is set to that of the published motif in each family. Except for these two parameters, we did not tune DMS or modify the sequence data in any way, e.g. by pre-specify-ing the expected number of motif matches/occur-rences. To test the stability of DMS, we ran DMS on each family five times, using different random seeds. The results showed that DMS identified all the published motifs in all regulatory families in each run. By ‘identified’ we mean that the pub-lished motifs are found and ranked in the top 40 motifs according to the merit measure as defined earlier. Most of the published motifs are ranked the top except for some weak motifs or short

(8)

motifs, e.g. the motif in HAP family, CCAAY, is ranked the 34th, and the less conserved motif in PHO family, GCACGTTTT, is ranked the 18th. We also varied the subset size (e.g. 15, 20, 25) to check its effect, and found that the results of different runs were similar.

5.2. Analysis of global gene expression

Regulation of the stress response occurs at many levels including transcriptional, transla-tional and post-translatransla-tional mechanisms. These forms of stress are sensed by different signaling systems, and a signal in each case is transduced through a MAP kinase regulatory cascade that activates specific sets of transcription factors [20,21]. Because the stress response is highly con-served and there is a base of available information against which the results can be evaluated, several stress induction experiments have been per-formed, using the Affymetrix GeneChip system.

In the Affymetrix GeneChip system, the yeast gene expression probe array interrogates over 6200 yeast genes using 20 complementary 25-mers per gene. These are arrayed at high concentrations on four silicon chips, together totaling an area of approximately 12 _{in. [3]. The oligonucleotide}

probes are synthesized in situ using a photolithog-raphy process and sequential rounds of masking, photo-deprotection, and synthesis. Specificity of hybridization is internally controlled by hy-bridization of a set of antisense oligonucleotide probes arrayed at neighboring positions on the chips. PolyA RNA samples are converted to dou-ble-stranded cDNA and transcribed into tagged RNAs in the presence of biotinylated precursors, providing a 20 – 200-fold amplification. RNA spe-cies are fragmented and hybridized to the mi-croarrays. Bound, biotinylated RNAs are stained with streptavidin – phycoerythin conjugate. The Affymetrix system reads out results using a scan-ning confocal fluorescence microscope with an argon laser light source, and the Affymetrix pro-prietary software is used to process the image file, resulting in the values for each gene proportional to the level of expression of the gene.

The stress responses in yeast are mediated by a network of interacting pathways [20]. The control

by different types of stress response genes is com-plicated by the response of sequence elements to multiple types of stress, and by the presence of multiple, degenerate motifs mediating those ef-fects. Analysis of the oxidative stress response using genome-wide gene expression is expected to result in the identification of candidate regulatory motifs and proteins which can be tested and fur-ther our understanding of this important cellular defense mechanism. For the oxidative stress ex-periment, cells were stressed according to the standard protocols with H2O2. Total RNAs were

prepared from cells, PolyA RNA isolated, cDNA synthesized, and biotinylated cRNA probes pro-duced by in vitro transcription. Different RNAs were used to hybridize to the yeast gene probe array. Gene expression level changes were mea-sured at 0, 5, 10 and 20 min. The results showed that approximately 500 genes changed in tran-scriptional level by greater than two folds over the time course. Sets of genes that behave similarly in terms of expression level changes over a time course are likely to have common regulatory ele-ments. Thus, the first step is to identify sets or clusters of genes that are similarly regulated. Genes were described as vectors of expression levels, and those behaved similarly over the time course were grouped automatically using a varia-tion on the standard k-means clustering al-gorithm. With this clustering algorithm, we clustered the entire yeast genome into families according to how their expression changes over time. Two families were selected for further analy-ses. In one of the families there were 58 up-regu-lated genes under oxidative stress whose final expression level exceeds 1000; in the other there were 100 genes whose expressions remained nearly unchanged over time at the average expression level of 50. Certainly, there are other clusters also worth further exploration. Due to the space limit, in this paper, we only show one example to demonstrate the value of the integrated analysis system.

After we extracted a 500 bp upstream region from each gene, we applied DMS to these se-quences to find candidate motifs. As we focused on short motifs in our current study, for DMS we set the motif width to be 7 and 5. According to

(9)

the merit value, 25 interesting motifs were se-lected. In the 25 motifs, we found two known motifs, the YAP binding site and the stress ele-ment. Based on these selected motifs, we trans-formed each raw DNA sequence into a vector representation. Each vector indicates for each mo-tif the number of total momo-tif occurrences in a sequence, and the number of motif occurrences within a specific range in that sequence. Note that the motif occurrences are determined by DMS with the mean match score as the threshold as explained earlier. From the point of view of in-ductive learning, after the transformation, we have a set of pre-classified data, i.e. oxidative stress up-regulated genes and no-change genes. We first applied GALA [17,18] to the new data set to analyze motif combinations, and used the in-ductive learning program C4.5 [19] to generate a hypothesis, represented as the decision tree shown in Fig. 1. The output of GALA is a list of combinatorial motifs represented as Boolean com-binations. These Boolean combinations will be used by C4.5 to construct a decision tree hypothe-sis. For example, node 1, 2 and 4 described as Boolean combinations in the decision tree shown

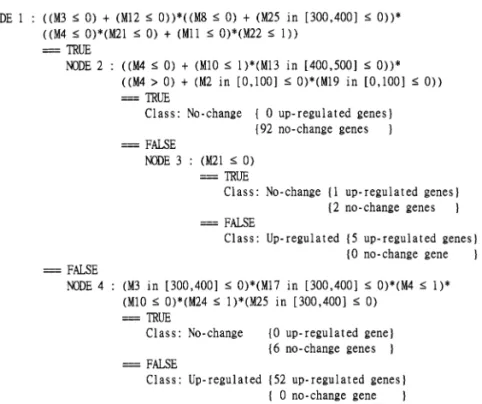

in Fig. 1 are part of the output of GALA. We modified the original output of C4.5 by directly putting in the motif Boolean combinations learned by GALA to increase readability. The decision tree describes features that are found and not found in genes that are positively or not regulated by the oxidative treatment. This descrip-tion can be applied to other genes in order to predict their behavior under oxidative stress.

There are four condition nodes in the hypothe-sis. Each node describes a condition with two outcomes, true or false. In each node, ‘*’ means an ‘AND’ and ‘ + ’ means an ‘OR’. For example, the root (i.e. node 1) describes a condition (if there is no Motif 3 or no Motif 12) AND (if there is no Motif 8 or no Motif 25 located in 300 – 400 bp upstream) AND ((if there is no Motif 4 and no Motif 21) or (if there is no Motif 11 and there is one or less Motif 22)). To classify a gene’s behav-ior, the decision tree was traced from the top, i.e. node 1, to the bottom, i.e. a class. Note that when classifying a new gene, to keep the consistency, we used the same threshold as used by DMS during its search for motif occurrences to determine mo-tif occurrences (refer to Section 4.1.2).

(10)

To verify the usefulness of the motif combina-tions generated by GALA, we performed two iterations of 10-fold cross validation by running C4.5 on the same data set with and without using the motif combinations generated by GALA. To perform one 10-fold cross validation, we first randomly shuffle the total data, i.e. the 58 oxida-tive stress up-regulated genes and the 100 no-change genes, to remove the ordering bias. We then divide the data into ten equal-sized sets, i.e. each set contains 10% of the total data; the distri-bution of the oxidative stress up-regulated genes and the no-change genes in each set will be at random. Each set of data will be iteratively used as the validation data to test the accuracy of the predictor, and the remaining nine sets of data will be used for training the predictor. The final pre-dictive accuracy of the predictor is the average of the accuracy of the total ten runs of experiments. Our experimental results showed that motif com-binations significantly improved the predictive ac-curacy by about 6% (82.24% with combinations compared with 76.13% without combinations) in paired t-test (confidence level 99%).

6. Lessons learned

Computational tools for detecting subtle simi-larities and classifying sequences have become an essential component of the research process. This is essential to our understanding of life and evolu-tion, as well as to the discovery of new drugs and therapies. Bioinformatics is emerging as a strate-gic discipline at the frontier between biology and computer science, impacting medicine, biotechnol-ogy, and society in many ways.

Large databases of biological information cre-ate both challenging data-mining problems and opportunities, each requiring new ideas. In this regard, conventional computer science algorithms have been useful, but are increasingly unable to address many of the most interesting sequence analysis problems. This is due to the inherent complexity of biological systems, brought about by evolutionary stochastic process, and to our lack of a comprehensive theory of life’s organiza-tion at the molecular level. Machine-learning

ap-proaches, on the other hand, are ideally suited for domains characterized by the presence of large amounts of data, noisy patterns, and the absence of general theories. The fundamental idea behind these approaches is to learn the theory automati-cally from the data, trough a process of inference, model fitting, or learning from examples. Thus, they form a viable complementary approach to conventional methods. It is the confluence of all three factors — data, computer and theoretical framework — that is fueling the machine-learning expansion, in bioinformatics and elsewhere [22].

We propose using multiple objective functions to detect meaningful motifs from sequences. Our experimental results demonstrated the synergy of the information content and the multiplicity sig-nificance helps maintain the balance between the consensus quality and the over-representation of motifs. The strategy of using multiple complemen-tary objective functions alleviates the limitations of current approaches.

The advent of the genechip technology has provided a macro view of the gene expression on a genomic scale. With this kind of technology, we are finally able to realize the potential of informa-tion emerging from such global gene regulainforma-tion studies. According to the time course, we are able to obtain the distinct temporal patterns of gene expression, and thus to understand different gene behaviors in the same controlled environment. To learn beyond how genes behave in the course of time on a genomic scale, we propose a novel view of the gene regulation analysis. With the assis-tance of the genechip technology, genes could be grouped into families according to different tem-poral patterns. Our analysis of gene regulation is focused on the search for significant combinato-rial motifs involved in the regulation as well as potential hypotheses of how the gene regulation is related to the motifs. This type of analyses not only complement the global study of the changes of gene expression by looking into the involve-ment of combinatorial motifs in regulation, but also suggest to biologists further biological tests on the genes through the inference from the hy-potheses produced by the analyses.

(11)

7. Future plans

Our yeast genome-wide expression studies and the experimental results provide a useful model system in which to explore computational ap-proaches for several reasons.

1. The complete genome sequence of yeast is known and several array systems are available with which the yeast genome can be further studied using the computational approaches; thus, the contribution of these computational approaches can be verified.

2. Because many protein functions and even reg-ulatory motifs are conserved between yeast and metazoan systems, much of what is learned in the studies should be applicable to more poorly understood complex systems. 3. The stress response itself is particularly

con-served and so information is particularly likely to be transferable in many respects from the model to human systems.

4. Besides the applications in yeast studies, the computational tools can be extended, if neces-sary, to analyze the human genome when it is available.

Besides the cross validation introduced earlier, the candidate motifs, their combinations and the associated hypotheses need to be tested for bio-logical activity. They will be validated in the following way in the biology laboratory. First, mutagenesis can be performed to test the role of candidate simple and complex motifs in transcrip-tional regulation. Examples of genes that contain candidate regulatory motifs or combinations of motifs which are predicted to be novel or of particular interest can be subcloned onto a shuttle vector with the endogenous gene copy disrupted. Motifs can be mutagenized at important positions and cells carrying the construct can be tested by Northern blot analysis to determine whether the motifs contribute, as predicted, to the regulation of the gene. Second, reporter fusion constructs can be used to model and systematically test the roles of candidate complex motifs in transcrip-tional regulation. For example, effects of motif location, copy number, and combinations of mo-tifs can be tested.

Our analysis method is part of the ongoing yeast genome project. The goal of the project is to develop computational tools for interpreting and tracking the enormous amount of data emerging from genome sequence projects and from genome-wide gene expression studies. The objectives in-clude (1) identification of host functions regulated at the transcriptional level by exposure to stress, (2) identification of sequence motifs and combina-tions of motifs, (3) testing of candidate sequence motifs and combinations of motifs for biological activities, (4) identification of regulatory proteins, and (5) enhancing our understanding of regula-tory networks and cell functions including metabolism that are involved in the stress response.

We have already obtained several preliminary but promising results of the yeast genome-wide gene expression analysis. As the microarray and the genechip technologies become more mature, and more biological background knowledge be-comes available, we expect to improve the perfor-mance of this novel analysis method, and finally achieve our ultimate goal.
