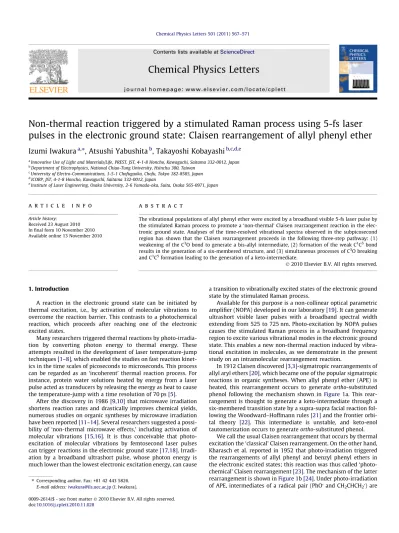

Non-thermal reaction triggered by a stimulated Raman process using 5-fs laser

pulses in the electronic ground state: Claisen rearrangement of allyl phenyl ether

Izumi Iwakura

a,⇑

_{, Atsushi Yabushita}

b

_{, Takayoshi Kobayashi}

b,c,d,e

a

Innovative Use of Light and Materials/Life, PREST, JST, 4-1-8 Honcho, Kawaguchi, Saitama 332-0012, Japan b

Department of Electrophysics, National Chiao-Tung University, Hsinchu 300, Taiwan c

University of Electro-Communications, 1-5-1 Chofugaoka, Chofu, Tokyo 182-8585, Japan d

ICORP, JST, 4-1-8 Honcho, Kawaguchi, Saitama 332-0012, Japan

e_{Institute of Laser Engineering, Osaka University, 2-6 Yamada-oka, Suita, Osaka 565-0971, Japan}

a r t i c l e

i n f o

Article history:

Received 23 August 2010 In ﬁnal form 10 November 2010 Available online 13 November 2010

a b s t r a c t

The vibrational populations of allyl phenyl ether were excited by a broadband visible 5-fs laser pulse by the stimulated Raman process to promote a ‘non-thermal’ Claisen rearrangement reaction in the elec-tronic ground state. Analyses of the time-resolved vibrational spectra observed in the subpicosecond region has shown that the Claisen rearrangement proceeds in the following three-step pathway: (1) weakening of the C3_{O bond to generate a bis-allyl intermediate, (2) formation of the weak C}1_C5_bond results in the generation of a six-membered structure, and (3) simultaneous processes of C3_{O breaking} and C1_C5_{formation leading to the generation of a keto-intermediate.}

1. Introduction

A reaction in the electronic ground state can be initiated by thermal excitation, i.e., by activation of molecular vibrations to overcome the reaction barrier. This contrasts to a photochemical reaction, which proceeds after reaching one of the electronic excited states.

Many researchers triggered thermal reactions by photo-irradia-tion by converting photon energy to thermal energy. These attempts resulted in the development of laser temperature-jump techniques[1–8], which enabled the studies on fast reaction kinet-ics in the time scales of picoseconds to microseconds. This process can be regarded as an ‘incoherent’ thermal reaction process. For instance, protein water solutions heated by energy from a laser pulse acted as transducers by releasing the energy as heat to cause the temperature-jump with a time resolution of 70 ps[5].

After the discovery in 1986 [9,10]that microwave irradiation shortens reaction rates and drastically improves chemical yields, numerous studies on organic syntheses by microwave irradiation have been reported[11–14]. Several researchers suggested a possi-bility of ‘non-thermal microwave effects,’ including activation of molecular vibrations [15,16]. It is thus conceivable that photo-excitation of molecular vibrations by femtosecond laser pulses can trigger reactions in the electronic ground state[17,18]. Irradi-ation by a broadband ultrashort pulse, whose photon energy is much lower than the lowest electronic excitation energy, can cause

a transition to vibrationally excited states of the electronic ground state by the stimulated Raman process.

Available for this purpose is a non-collinear optical parametric ampliﬁer (NOPA) developed in our laboratory[19]. It can generate ultrashort visible laser pulses with a broadband spectral width extending from 525 to 725 nm. Photo-excitation by NOPA pulses causes the stimulated Raman process in a broadband frequency region to excite various vibrational modes in the electronic ground state. This enables a new non-thermal reaction induced by vibra-tional excitation in molecules, as we demonstrate in the present study on an intramolecular rearrangement reaction.

In 1912 Claisen discovered[3,3]-sigmatropic rearrangements of allyl aryl ethers[20], which became one of the popular sigmatropic reactions in organic syntheses. When allyl phenyl ether (APE) is heated, this rearrangement occurs to generate ortho-substituted phenol following the mechanism shown in Figure 1a. This rear-rangement is thought to generate a keto-intermediate through a six-membered transition state by a supra-supra facial reaction fol-lowing the Woodward–Hoffmann rules[21]and the frontier orbi-tal theory [22]. This intermediate is unstable, and keto-enol tautomerization occurs to generate ortho-substituted phenol.

We call the usual Claisen rearrangement that occurs by thermal excitation the ‘classical’ Claisen rearrangement. On the other hand, Kharasch et al. reported in 1952 that photo-irradiation triggered the rearrangements of allyl phenyl and benzyl phenyl ethers in the electronic excited states; this reaction was thus called ‘photo-chemical’ Claisen rearrangement[23]. The mechanism of the latter rearrangement is shown inFigure 1b[24]. Under photo-irradiation of APE, intermediates of a radical pair (PhO

and CH2CHCH2

doi:10.1016/j.cplett.2010.11.028

⇑ Corresponding author. Fax: +81 42 443 5826. E-mail address:[email protected](I. Iwakura).

Contents lists available atScienceDirect

Chemical Physics Letters

(2)

generated in the electronic excited states, and a radical reaction generates the parent phenol as well as ortho- and para-substituted phenols.

In the present study, a 5-fs visible pulse laser was used to excite the vibrational modes of APE in the electronic ground state by the stimulated Raman process to trigger the Claisen rearrangement. Spectroscopic analyses of the time-resolved signals revealed the existence of a six-membered structure. The real-time changes in the vibrational modes indeed follow the reaction scheme of the classical Claisen rearrangement and revealed a detailed three-step molecular process (Figure 1a).

2. Experimental

Allyl phenyl ether (CAS: 1746-13-0), purchased from Tokyo Chemical Industry, was stored in a glass cell (400 mm3_{) for use}

as a neat sample at 295 ± 1 K. The pump–probe experiments were performed using 5-fs laser pulses[19]in the range of 525–725 nm. The pulses were generated by compressing the output from a NOPA seeded by a white-light continuum. The pump source of the NOPA was a regenerative ampliﬁer (Spectra-Physics, model Spitﬁre) with a pulse duration of 100 fs with a central wavelength of 790 nm, and a repetition rate of 5 kHz. The polarizations of the pump and probe pulses were parallel to each other. The experi-ment was performed at the pump and probe pulse intensities of 150 and 25

l

W, respectively. The focal areas of the pump and probe laser pulses were 100 and 75

l

m2_{, respectively.}

The probe pulse was dispersed by a polychromator (300 grooves/mm, blazed at 500 nm) and guided to avalanche photodi-odes (APDs) via a 128-channel ﬁber bundle. The time-resolved dif-ference transmittance,DT, was measured simultaneously by APDs in the range of 525–725 nm. The signal-to-noise ratio was im-proved by coupling the signals of APDs to a 128-channel lock-in ampliﬁer.

3. Results and discussion

Our objective is to excite the vibrational modes in the electronic ground state by ultrashort pulses by the stimulated Raman process and to observe non-thermal reactions occurring in the excited vibrational modes. In the ﬁrst step, we conﬁrmed that the stimulated Raman process of APE excited vibrational modes in the electronic ground state (Section3.1). Then the results of the time-resolved vibrational analyses revealed appearance of the vibrational modes of reaction intermediates of the Claisen rear-rangement that proceeded in these vibrationally excited states (Section 3.2). The observed real-time changes in the vibrational

frequencies indicated a three-step pathway in this rearrangement. A plausible mechanism of this reaction is discussed in Section3.3. 3.1. Stimulated Raman excitation of vibrational modes in the ground electronic state

3.1.1. Scheme of laser-induced excitation

Allyl phenyl ether has an absorption peak at shorter wave-lengths than 280 nm (Figure 2a), which is inaccessible by one-pho-ton absorption of the visible 5-fs pulses (from 525 to 725 nm,

Figure 2b) due to a small cross section. Therefore, the 5-fs pulses are likely to trigger molecular vibrations in the electronic ground state by the stimulated Raman process.

3.1.2. Vibrational frequencies observed in the pump–probe signal When a sample is excited by a short pulse whose duration is shorter than the oscillation period of a molecular vibrational mode, a nuclear wave packet is generated via the impulsive stimulated Raman process. If the sample has no absorption band in the range of the laser wavelengths, the wave packet is produced only in the electronic ground state. The dynamics of the wave packets in such a transparent medium can be observed as a time-resolved differ-ence in the refractive index, which reﬂects the molecular vibra-tions. Since the wave packet is described as a linear combination of the wave functions of several vibrational modes in the spectral bandwidth of the pumping laser pulse, it oscillates along the po-tential surface of the ground state with the period of the corre-sponding vibrational modes. The overlap between the moving wave packet in the ground state and the probe pulse induces a periodical change with a delay time, which modulates the trans-mission spectrum of the probe pulse.

The standard deviation of the induced absorbance difference, DA, oscillating around the zero absorbance change estimated in our study, was less than 0.5 10 4, which is negligible in compar-ison with the oscillation amplitude (dDA) of 3 10 4 ₍_{Figure 3}_).

The deviation from zero is due to a very small accumulated stea-dy-state population of the ground electronic state.

The oscillating component of the real-time trace was obtained by subtraction of the slow dynamics from the time-resolvedDA trace using a high-pass ﬁlter. The fast Fourier transform (FFT) power spectrum of the oscillating component from 200 to 800 fs are shown inFigure 4a. The wavenumber resolution of the FFT power spectrum was estimated to be 16 cm 1_{. The observed}

spec-trum (Figure 4a) agreed well with the ordinary Raman spectrum of APE (Figure 4b), which conﬁrms that the pump–probe observations directly reﬂect the molecular vibration dynamics in the electronic ground state. These spectra are assigned as listed inTable S1 in the Supplementary Information.

Figure 1. Schematic diagrams of (a) classical and (b) photochemical Claisen rearrangements.

Figure 2. (a) Absorption spectrum of allyl phenyl ether and (b) the visible spectrum of the 5-fs pulse laser.

(3)

3.1.3. Pump power dependence of the vibrational amplitudes Another support for the assignment was obtained from the pump-intensity dependence of the vibrational amplitude. InFigure 4c, the powers p(i) of the pump-intensity dependence Ip(i) for four modes were determined to be p(815 cm 1) = 0.9 ± 0.4, p(993 cm 1_{) = 1.0 ± 0.1, p(1286 cm} 1_{) = 0.8 ± 0.1, and p(1645 cm} 1_{) =}

0.6 ± 0.2. The powers of p(815 cm 1_{), p(993 cm} 1_{), and p(1286}

cm 1) are mostly unity. However, that of p(1645 cm 1) deviates largely from unity, and it may be ascribed to contamination of higher-order terms. These results show that the observed states are not electronic excited states originating from two-photon absorption, but rather the excited vibrational levels of the elec-tronic ground state. The linear pump-intensity dependence also suggests that the observed oscillation of DA is predominantly due to the wave-packet motion in the electronic ground state trig-gered by the stimulated Raman process.

3.2. Observed vibrational spectra of reaction intermediates

If the above-mentioned the classical Claisen rearrangement oc-curs, one can observe speciﬁc changes in molecular vibrations, namely, formation of a keto-intermediate through a six-membered structure and keto-enol tautomerization. Their changes are gener-ally expected in the classical Claisen rearrangement. If the photo-chemical Claisen rearrangement occurs, one would not be able to observe formation of the keto-intermediate and keto-enol tauto-merization. The reason is that the radical reaction proceeds in the photochemical case (Figure 1).

In order to determine the reaction scheme, we observed the time-resolved spectra and analyzed changes in the instantaneous frequencies of the vibrational modes. The spectra were obtained by a sliding-window Fourier transformation with a Blackman win-dow function of FWHM of 400 fs[25](Figure 5).

After photo-excitation, only the molecular vibrational modes of the reactant APE were observed (Figures 5andS1). Their real-time changes in the vibrational frequencies were compared with the theoretical calculation by the DFT method (B3LYP/6-311 + G**)

[26](Table 1). The time-resolved spectra showed that the Claisen

Figure 3. (a) Two-dimensional display of the absorbance change of allyl phenyl ether on the probe delay time and wavelength and (b) the real-time trace observed at 670 nm.

Figure 4. Vibrational spectra of allyl phenyl ether: (a) FFT power spectrum of the oscillating components of the time-resolved absorbance difference, (b) Raman spectrum, (c) probe intensity dependences of the FFT amplitude.

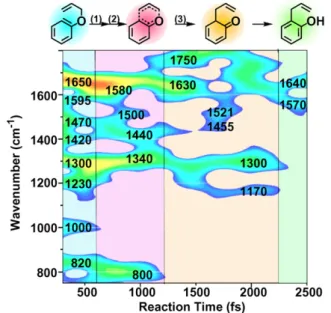

Figure 5. Observed time dependence of the vibrational spectra assigned to reaction intermediates.

(4)

rearrangement triggered by the broadband ultrashort pulse pro-ceeded in a three-step pathway as explained below.

The spectrum shows that all

m

s Ph(1000 cm 1, C6 symmetric

benzene),

m

s C–O–C (1030 cm 1) of the ether group, dCH2 (1230

cm 1_{, twisting mode of the methylene group), and d}

CH2

(1420 cm 1_{, wagging mode of the methylene group) signals}

disap-pear at 700 fs. This implies that the C–O bond is either weakened or broken in the ﬁrst step of the reaction. Next, the

m

C=Csignal of

the phenyl group, observed at 1595 cm 1_{just after}

photo-excita-tion, is red-shifted toward 1500 cm 1 in the probe-delay region from 500 to 750 fs. This indicates that the six-membered structure is formed in the second step of the reaction. The observation that the

m

C=Csignal of the allyl group, at 1650 cm 1just after

photo-excitation, is red-shifted toward 1580 cm 1_{also supports the}

for-mation of the six-membered structure with aromatic C@C bonds. In addition, the dCH2signal of the allyl group, at 1470 cm 1just

after photo-excitation, is red-shifted toward 1440 cm 1, and the dCHsignal of the allyl group, at 1300 cm 1just after

photo-excita-tion, is blue-shifted toward 1340 cm 1_{. These are both in good}

agreement with the DFT results, in which the calculated dCH2

wave-number of the allyl group is red-shifted from 1461 to 1437 cm 1

and the calculated dCH wavenumber of the allyl group is

blue-shifted from 1316 to 1345 cm 1. A new band which can be

assigned to the C@O stretching mode (

m

C=O) appears at

1750 cm 1after 1 ps. This veriﬁes that the keto-intermediate is generated in the third step of the reaction. Instability of the keto-intermediate leads to keto-enol tautomerization as the ﬁnal step of the reaction. Therefore, after 2 ps, the

m

C=O signal disappears

and the phenol product is formed.

The observed frequency changes primarily support that the reaction pathway after photo-irradiation of APE by the broadband visible ultrashort pulse is equivalent to that known as the classical Claisen rearrangement (Figure 1a). Moreover, these results show that the Claisen rearrangement triggered by the broadband ultra-short pulse proceeds in the three-step pathway: (1) The C3_{O bond}

is ﬁrst weakened to generate a bis-allyl intermediate. (2) Then for-mation of the weak C1_C5_{bond generates a six-membered structure}

with aromatic CC bonds. (3) C3_{O breaking and C}1_C5_{formation occur}

simultaneously in the last step and generate the keto-intermediate, which ﬁnally proceeds to the ortho-substituted phenol product. Fig-ure 6shows a frame format of the three-step pathway with eye guide curves reﬂecting the bond order transition in the process.

3.3. Mechanism of vibration-induced non-thermal reaction

In the thermal reaction at temperature T, vibrational modes are randomly (incoherently) excited to the levels with energies of kT or

lower, where k is the Boltzmann constant. Vibrational energy ex-changes with high vibrational quantum numbers take place inco-herently and randomly among as many as 3N-6 modes to be dissipated, where N is the number of atoms in the molecule.

The stimulated Raman excitation by the visible laser pulse ex-cites the molecule at high-energy vibrational levels as high as those which can be excited in the thermal excitation at 7500 K. This is because the laser spectrum has the bandwidths of 5200 cm 1_{extending from 525 to 725 nm. It is different from}

a general method of resonant stepwise multi-photon excitation

using a high-power IR laser via higher-order nonlinear

interactions.

As shown inFigure 4a, however, the symmetry selection rules and the relative cross sections of the stimulated Raman process cause a selective excitation of only a small number of vibrational modes. The strongly activated modes have high vibrational quan-tum numbers equivalent to 7500 K, while other modes retain much lower quantum numbers that correspond to the room tem-perature environment. Since the states excited by this stimulated Raman process is not thermalized just after photoexcitation, the temperature cannot be deﬁned for such a state.

The vibrational population probably follows a Gaussian (non-Boltzmann) distribution that covers the levels up to 5200 cm 1

above the ground state corresponding to the bandwidth of the 5-fs pulses. These excited vibrational populations relax within sev-eral hundreds of femtoseconds[27]to other intramolecular vibra-tional modes, resulting in the activation of the vibration along the reaction coordinate. This explains why the change in the structure to that of the transitional state is much faster than that in Table 1

Observed and calculated vibrational wavenumbers of the chemical species involved in the Claisen rearrangement of allyl phenyl ether. Compounda

Molecular vibration (cm1 )

mC=O mC=C dCH2 dCH dCH2 mC–O–C mPh dPh

Allyl Ph Allyl Methylene Allyl Methylene Ether Ph Ph

Reactant Exp. (Raman) 1650 1595 1460 1420 1290 1245 1030 1000 820

Exp. (5 fs) 1650 1650 1470 1420 1300 1230 1000 1000 820 Calc TS Exp. (5 fs) 1710 1641 1461 1391 1316 1268 1052 1009 837 Calc Keto-intermediate Exp. (5 fs) 1580 1500 1440 1340 800 1600 1550 1437 1345 830 Calc 1750 1630 1521 1455 1300 1170 1720 1699 1600 1451 1325 1220

Phenol product Exp. (5 fs) 1640 1570

Calc 1696 1630

a_See_{Figure. 1}_(a).

Figure 6. Transition-state proﬁle (marked in red) determined by the time depen-dence of the vibrational spectra. (For interpretation of the references to colour in this ﬁgure legend, the reader is referred to the web version of this article.)

(5)

thermally excited reactions. The activation energy of the classical Claisen rearrangement of APE was calculated by a DFT calculation (B3LYP/6-311 + G**) to be 35 kcal/mol, in good agreement with earlier reports [28,29]. The energy of 5200 cm 1 _{is lower than}

the activation energy of the classical Claisen rearrangement trig-gered by the thermal energy. The reason why the reaction proceeds after the stimulated Raman excitation can be explained by the fol-lowing two possible mechanisms:

(a) The reaction progresses even with activation energy lower than the classical Claisen rearrangement for activation of the vibrational mode that corresponds to the reaction coor-dinate in the stimulated Raman process. The vibrational modes of the six-membered structure observed in the spec-trum (Figure 5) evidence that the reaction follows the scheme of the classical Claisen rearrangement (Figure 1a). However, whether or not the detailed reaction pathway to the six-membered structure is different from that of the classical Claisen rearrangement is still controversial. (b) Another possibility is that the stimulated Raman process

generates various transition states helping the reaction to proceed below the activation energy. In any event, the detailed mechanism of the excitation process is left as an important issue for future studies.

The reason that the reaction proceeds coherently after the coherent vibration excitation by the stimulated Raman process is another nontrivial question. The transfer of vibrational coherence or even the creation of coherence that induces a chemical reaction has been discussed by Jean and Fleming[30], who simulated weak oscillations clearly observed in an electronic curve-crossing pro-cess using a multilevel formulation of Redﬁeld’s theory. The coher-ent progress of the reaction was also experimcoher-entally demonstrated for myoglobin[31,32].

4. Conclusion

The excited vibrational states of allyl phenyl ether were pro-duced by the broadband visible 5-fs pulse by the stimulated Raman process. The vibrational excitation was found to induce the Claisen rearrangement reaction. The observed vibrational spectra show that the Claisen rearrangement proceeds in the following three-step pathway: (1) weakening of the C3_{O bond to generate the}

bis-allyl intermediate, (2) formation of the weak C1C5bond results in the generation of the six-membered structure with aromatic CC bonds, and (3) C3_{O breaking and C}1_C5_{formation that occur}

simul-taneously to generate the keto-intermediate, which ﬁnally

produces ortho-substituted phenol. The present work will open a doorway to new non-thermal reactions induced by the molecular vibrational excitation in the electronic ground state.
