Synthesis and properties of new polyimide¡Vsilica hybrid films through both intrachain and interchain bonding

(1)

Synthesis and properties of new polyimide – silica hybrid films through

both intrachain and interchain bonding

Cheng-Tyng Yen

a

, Wen-Chang Chen

a,b,

*, Der-Jang Liaw

c

, Hsin-Yi Lu

c

a

Department of Chemical Engineering, National Taiwan University, No. 1, Sec. 4, Roosevelt Road, Taipei 106, Taiwan, ROC

b

Institute of Polymer Science and Engineering, National Taiwan University, Taipei 106, Taiwan, ROC

c_{Department of Chemical Engineering, National Taiwan University of Science and Technology, Taipei 107, Taiwan, ROC}

Received 8 July 2003; received in revised form 3 September 2003; accepted 4 September 2003

Abstract

In this study, the new polymer – silica hybrid materials were prepared based on the organo-soluble polyimides of 4,40 -hexafluoroisopropylidenediphthalic anhydride (6FDA) and four diamines. 3-Aminopropyl trimethoxysilane (APrTEOS) and g-glycidyloxypropyltrimethoxysilanes (GOTMS) were used to increase the intrachain chemical bonding and interchain hydrogen bonding between the polyimide and silica moieties, respectively. The chemical interaction would significantly affect the morphologies and properties of the prepared films. Highly homogeneous hybrid thin films were obtained according to the studies of atomic force microscopy and TEM. The silica size observed by the TEM picture was smaller than 5 nm. The thermal properties of the organo-soluble polyimides were significantly enhanced by hybridizing only 6.30 – 7.99 wt% of silica. The intrachain chemical bonding could effectively enhance the coefficient of thermal expansion in comparison with the interchain interaction. Low dielectric constants in the range of 2.85 – 3.73 were obtained for the prepared hybrid films. The refractive indices of the prepared materials could be tuned through the polyimide structure or the silica content. The optical losses of the planar waveguides based on the prepared polyimides and their hybrids at 1310 nm were in the range of 0.5 – 2.7 dB/cm, which were mostly due to the higher harmonics of the aromatic C – H vibration and the extrinsic loss. The prepared polyimide – silica hybrid materials could have potential applications for microelectronics or optical communications.

Keywords: Polyimide; Silica; Hybrid

1. Introduction

Organic – inorganic hybrid materials have been recog-nized as a new class of advanced materials because of the versatile approaches on synthesis, processing, and tunable properties [1,2]. The size of the inorganic segment in the hybrid materials could be controlled by the synthetic method (e.g. reverse micelles) or by the combination of synthesis and processing (e.g. sol – gel/spin coating/curing). Recently, several applications of hybrid materials in optoelectronic devices have been reported, including thin film transistors[3], solar cells[4], light-emitting diodes[5], optical waveguides [6], low dielectric constant materials

[7], and high refractive index thin films[8].

Polyimides have been widely used in optoelectronics. However, the thermal and mechanical properties are required to be enhanced if high temperature processing or integrating with other inorganic materials is required. One possible solution is to prepare polyimide – silica hybrid materials. There were several classes of polyimide – silica hybrid materials reported in the literature[6,7,9 – 22], which show improved thermal stability and mechanical strength in comparison with their parent polyimides. One of the primary problems for preparing the hybrid materials is the phase separation between the organic and inorganic moieties. To overcome the phase separation of polyimide and inorganic oxide, the approach of either short chain polyimide segment [6], coupling agents[6,10 – 22], or the combination of both approaches[6] were used to enhance the compatibility by increasing the density of coupling sites. The earlier reports on the preparation of polyimide – silica were from the poly(amic acid) precursors [9 – 21].

www.elsevier.com/locate/polymer

* Corresponding author. Address: Department of Chemical Engineering, National Taiwan University, No. 1, Sec. 4, Roosevelt Road, Taipei 106, Taiwan, ROC. Tel.: þ 886-2-23628398; fax: þ 886-2-23623040.

(2)

Recently, Shang et al. reported the synthesis of polyimide – silica hybrid materials from organo-soluble polyimides

[22]. The coupling agent used by Shang et al. [22], g-glycidyloxypropyltrimethoxysilanes (GOTMS), could have interchain hydrogen bonding with the carbonyl group of the dianhydride moiety. Thus, the silica size in the prepared hybrid materials was controlled in the range of 30 nm – 1.5 mm. For further narrowing the silica domain in the nano-size range, the introduction of the intrachain coupling might be necessary besides the interchain approach used by Shang et al. [22] Besides, it will be necessary to develop a new general reaction scheme for preparing highly homogeneous hybrid materials from organo-soluble polyimides.

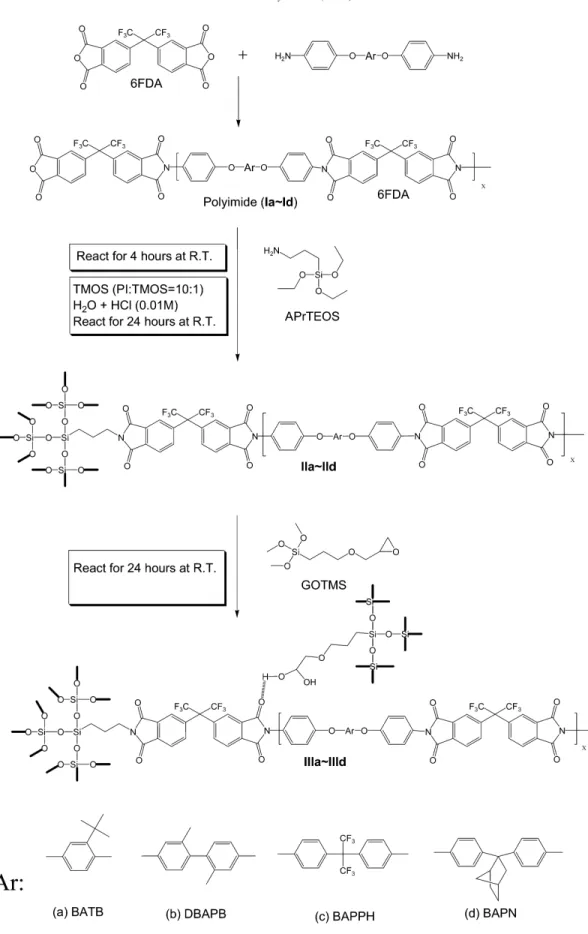

In this study, new polymer – silica hybrid materials were prepared based on organo-soluble polyimides from 4,40 -hexafluoroisopropylidenediphthalic anhydride (6FDA) and four diamines developed by Liaw et al.[23 – 26], as shown in Fig. 1. A dianhydride end-capped polyimides (Ia – Id) were obtained first and then reacted with 3-aminopropyl trimethoxysilane (APrTEOS). In the following, tetra-methoxysilane (TMOS) was reacted with the APrTEOS end-capped polyimides to form the polyimide – silica materials (IIa – IId). Then, GOTMS was used as a compatibilizer to enhance the interchain interaction of the prepared polyimide – silica materials (IIIa – IIId). The APrTEOS and GOTMS were used for the intrachain covalent bonding and interchain hydrogen bonding between the polyimide and silica moieties, respectively, as shown in

Fig. 2. The molecular structure and morphology of the prepared polyimide – silica hybrid films were characterized by FTIR, TEM, and atomic force microscopy (AFM). The thermal, dielectric, and optical properties of the prepared hybrid films were studied and correlated with the molecular structure.

2. Experimental 2.1. Materials

1,4-Bis(4-aminophenoxy)-2-tert-butylbenzene (BATB), 2,20-dimethyl-4,40-bis(4-aminophenoxy)phenyl (DBAPB), 2,2-bis[4-(4-aminophenoxy)phenyl] hexafluoropropane (BAPPH) and 2,20 -bis[4-(4-aminophenoxy)phenyl]norbor-nane (BAPN) were synthesized and purified according to the previous reported methods [23 – 26]. 4,40 -Hexafluoroi-sopropylidenediphthalic anhydride (6FDA, Aldrich, 99%), N,N-dimethylacetamide (DMAc, Tedia, 99%), 3-aminopro-pyltriethoxysilane (APrTEOS, Aldrich, 97%), tetramethyl orthosilicate (TMOS, Aldrich, 99%), and 3-glycidoxypro-pyltrimethoxysilane (GOTMS, Aldrich, 98%) were pur-chased and used without further purification.

2.2. Preparation of organo-soluble polyimides (Ia – Id) The synthesis of organic-soluble polyimides, Ia – Id,

used a similar method as reported in Ref. [6]. The molar ratio of dianhydride and diamine was kept on 5:4 to give a dianhydride end-capped polyimide, and a moderate mol-ecular weight. Here, synthesis of Ia was given as an example. Diamine (1.394 g, 4 mmol), BATB, was first dissolved into 20.387 g of DMAc. Then, 3.554 g (5 mmol) of dianhydride, 6FDA, was slowly added into the above solution with vigorous stirring and purged with nitrogen. The mixture solution was allowed to react for 24 h at room temperature to form a viscous and homogeneous poly(amic acid) (PAA) solution. Chemical imidization of the above prepared PAA was carried out by adding a mixture of 2.756 g of acetic anhydride (27 mmol), 2.732 g of triethy-lamine (27 mmol), and 31.105 g of DMAc, into the above-mentioned PAA solution with vigorous stirring for 30 min at room temperature, and then in a 60 8C silicon oil bath for another 24 h. The homogeneous solution was subsequently poured into de-ionized water, precipitated, filtered out and dried at 160 8C overnight under reduced vacuum to obtain the 6FDA end capped polyimide Ia. The polyimides Ib – Id were prepared by a similar procedure as Ia.

2.3. Preparation of precursor solutions for the polyimide/silica hybrid films, IIa – IId

The preparation of the polyimide – silica solution, IIa, was described here as an example. The above-prepared 6FDA/BATB polyimide, Ia, of 1.0 g was re-dissolved into 6.384 g of DMAc to form a 15 wt% polyimide solution. APrTEOS (26.6 mg) was added to the solution and allowed to react for 4 h at room temperature. To the mixture, 100 mg of TMOS was added and stirred for 15 min. Then, 31 mg of deionized water and 10 mg of 0.01 M HCl solution were added and allowed to react at room temperature for 24 h to give a homogeneous solution. The preparation of the other polyimide/silica solutions, IIb – IId, was prepared by a similar procedure as that of IIa.

2.4. Preparation of precursor solutions for the GOTMS compatiblized polyimide/silica hybrid films, IIIa – IIId

To the above prepared precursor solution of IIa – IId, a proper amount of GOTMS (GOTMS:TMOS ¼ 1:5 in weight) was added and stirred at room temperature for 24 h to give a homogeneous GOTMS compatiblized polyimide/silica solution for the hybrid materials, IIIa – IIId.

2.5. Preparation of polyimide films, Ia – Id, and their corresponding polyimide/silica hybrid thin films, IIa – IId and IIIa – IIId

APrTEOS solution (0.1 wt%) (dissolved in 1-methoxy-2-propanol) used as an adhesion promoter for the prepared polyimides was spin-coated on a silicon wafer at 3000 rpm for 10 s, and cured at 105 8C for 90 s. The prepared

C.-T. Yen et al. / Polymer 44 (2003) 7079–7087 7080

(3)

(4)

precursor solution (15 wt%) was filtered by a 0.2 mm filter prior to use, and then spin-coated on top of the APrTEOS film at 3000 rpm for 20 s. The thin film was then obtained after baking it at 80 8C on a hot plate for 1 h and then cured in a nitrogen purged furnace box up to 350 8C at the ramp rate of 5 8C/min, and held on 350 8C for 30 min. The prepared polyimide/silica hybrid thin films were used for characterizations of FTIR, refractive index measurement, AFM, dielectric constant measurement, and transmission electron microscopy (TEM). The samples for obtaining the UV/visible spectra were prepared by the similar processes but on a clean quartz substrate. The samples for TGA, DSC, TMA, and near-infrared (NIR) spectra characterization were prepared by casting on a Teflon substrate. For the optical waveguide characterization of the prepared materials, the silicon dioxide cladding layer with the thickness of 1.5 mm was prepared on a silicon wafer first. Then, the guiding layer was prepared from a 15 wt% of the polyimide or polyimide/silica precursor solution on top of the above silicon dioxide. APrTEOS solution (0.1 wt%) (dissolved in 1-methoxy-2-propanol) was used as the adhesion promoter before the precursor solution coated.

2.6. Synthesis of precursor solutions for GOTMS compatiblized polyimide/silica hybrid films, IVb

The above prepared 6FDA/DBAPB polyimide, Ib, of 1 g was dissolved into 6.384 g of DMAc to form a 15 wt% polyimide solution. To the solution, 100 mg of TMOS was added and stirred for 15 min. Then, 31 mg of deionized water and 10 mg of 0.01 M HCl solution were added and stirred for 30 min. After that, 20 mg of GOTMS was added and allowed to react at room temperature for 24 h to obtain a precursor solution for IVb as shown inFig. 3. The film of IVbwas prepared similar to those for Ib – IIIb.

2.7. Characterization

The FTIR and NIR spectra of the prepared polymer films were recorded by a DIGILAB FTS-3500GX spectropho-tometer. The molecular weight distribution of the prepared polymers, Ia – Id, was determined by a gel permeation chromatography (GPC) equipped with PLgel 5 mm MIXED-C and D columns, a RI detector, and the elution solvent of THF at 1 ml/min.

A Digital Instrument Model DI-5000 atomic force microscope (AFM) was used to probe the surface mor-phology of the prepared thin films. The TEM diagram of the prepared hybrid film was obtained from the JEOL (model number:2002-EX). The thermal decomposition tempera-tures ðTdÞ of the prepared materials were characterized by a TA Instrument TGA 951 thermogravimetric analyzer (TGA) at a heating rate of 20 8C/min from room temperature to 900 8C. Glass transition temperature ðTgÞ was character-ized by a TA Instrument DSC 910S differential scanning calorimeter (DSC) at a heating rate of 10 8C/min from room temperature to 350 8C. A TA2940 thermomechanical analyzer (TMA) was used to characterize Tgand coefficient of thermal expansion (CTE) at a heating rate of 10 8C/min from room temperature to 350 8C.

The dielectric constant of the prepared materials was determined as below. An aluminum layer of 5000 A˚ was coated on the prepared thin film by a ULVAC EBX-6D thermal evaporator with an attached mask, and probed by a Keithly 590 C-V analyzer with a sweeping frequency of 100 kHz to determine the dielectric constant. A Metricon Model 2100 prism coupler was used to measure the film thickness and refractive indices of the prepared thin films at the wavelength of 1319 nm. The UV – visible spectra of the prepared polymer films were recorded by a Jasco V-570 spectrophotometer. The optical losses of the prepared waveguides at the wavelength of 1310 nm were measured by a cut-back method according to our previous report[6].

3. Results and discussion

Fig. 4shows the FTIR spectra of the prepared materials, Ib– IIIb. The characteristic imide groups are observed at the following peaks: 1785 cm21(CyO asym. str.), 1727 cm21 (CyO sym. str.), and 1379 cm21 (C – N str.). The C – NH stretching band around 1660 cm21was not observed inFig. 4, which indicates the successful chemical imidization of the prepared Ib – IIIb. The strong absorption band about 1180 – 1320 cm21 resulted from the – CF3 group of the 6FDA moiety, which is overlapped with the diphenyl ether band at 1240 cm21. The Si – O – Si stretching band should be observed at 1100 cm21but is overlapped with the in-plane C – H bending vibration band. Therefore, the differences between Ib and IIb – IIIb could not be clearly observed because of the low silica content in the prepared hybrid materials. Note that the silica contents in the polyimide/

Fig. 2. Illustration of the bonding and interactions between organic and inorganic moieties in the prepared hybrid materials.

C.-T. Yen et al. / Polymer 44 (2003) 7079–7087 7082

(5)

silica hybrid thin films are estimated to be from 6.30 to 7.99 wt% by assuming the full condensation of TMOS, APrTEOS, and GOTMS, as shown inTable 2. A very weak OH band around 3400 – 3800 cm21suggests the successful condensation of the silica moiety.

The number averaged molecular weight and

polydisper-sion ðMn; Mw=MnÞ of the prepared polyimides are as below: Ia(18 427, 2.25); Ib (32 460, 2.09); Ic (8434, 1.93); and Id (8429, 1.75). The moderate molecular weight resulted from the unequal mole ratio of dianhydride and diamine. If the prepared polyimides had a high molecular weight, the coupling efficiency between the polyimide and silica moiety

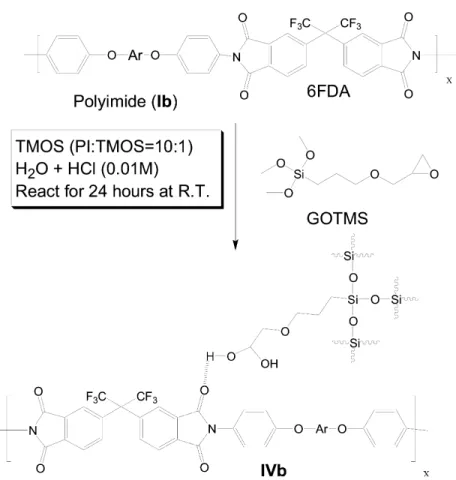

Fig. 3. Reaction scheme for preparing IVb.

(6)

would be low and resulted in macro-phase separation. On the contrary, the thermal and mechanical properties would not be enhanced if the molecular weight of the prepared polyimide was too low.

The thickness and surface roughness of the prepared films are shown inTable 1. The surface roughness, Ra; and Rq; of the prepared films are all smaller than 0.6 nm, which are smaller than 0.1% of the film thickness. Hence, the prepared film had excellent surface planarization. Fig. 5

shows the TEM diagram of the prepared film IIIb, which illustrates the silica domain size smaller than 5 nm, which is much smaller than the reported silica domain from 30 nm to several mm for the polyimide/silica hybrid materials[8 – 11, 17,19 – 20,22]. Large silica domain might deteriorate the optical, thermal and mechanical properties of the prepared hybrid materials. The present approach of combining the interchain and intrachain interaction successfully limited the silica size and could be used to produce highly homogeneous hybrid films. The incorporated silica fraction is in the range of 6.30 – 7.99 wt% and thus the surface roughness and silica size of the prepared hybrid films are similar.

The thermal decomposition temperature ðTdÞ; glass transition temperature ðTgÞ; and CTE of the prepared materials are shown in Table 2. Fig. 6 shows the TGA curves of the prepared materials, Ib – IVb. The order of Tdis IIIb . IIb . IVb h Ib. The intrachain chemical bonding by the APrTEOS could enhance the Tdmore effective than the interchain hydrogen bonding by the GOTMS, which is similar to that reported in the literature[19]. However, the difference in the Tdbetween polyimide and polyimide/silica was not remarkable and might be because the thermal decomposition was from the chain scission of the polyimide moiety and the low silica content could not be effective for inhibiting thermal decomposition of polyimide moieties.

Fig. 7shows the TMA curves of the prepared materials,

Ib– IVb. The order of Tg determined from TMA is IIIb h IIb . IVb h Ib, which can be explained as below. Tg is generally known as the onset temperature as large groups in the main chain start their segmental motion. For the case of IIb and IIIb, the chain end of the polyimide moiety is covalently bonded to the silica domain through the APrTEOS, which might restrict the segmental mobility and thus enhance the Tg: However, the interchain hydrogen

Table 1

The physical properties of the prepared polyimides and the polyimide/silica hybrid films Thickness (nm) 1a _n

1319TE n1319TM Rq(nm) Ra(nm) RLL=Vb(cm23) C – H number densityb(1022cm23) ac(dB/cm)

6FDA/BATB (Ia) 1133 3.16 1.5922 1.5872 0.41 0.32 0.321 4.45 2.7 6FDA/BATB (IIa) 1628 – 1.5773 1.5724 0.57 0.46 – – 2.1 6FDA/BATB (IIIa) 1059 3.22 1.5685 1.5651 0.25 0.200 – – 1.9 6FDA/DBAPB (Ib) 4197 3.05 1.5926 1.5864 0.41 0.28 0.326 4.06 2.4 6FDA/DBAPB (IIb) 3727 – 1.5909 1.5724 0.35 0.28 – – 1.7 6FDA/DBAPB (IIIb) 2496 3.16 1.5866 1.5677 0.26 0.21 – – 1.8 6FDA/BAPPH (Ic) 925 2.85 1.5685 1.5651 0.38 0.28 0.313 3.23 1.2 6FDA/BAPPH (IIc) 1334 – 1.5542 1.5510 0.26 0.20 – – 0.8 6FDA/BAPPH (IIIc) 835 2.91 1.5479 1.5423 0.31 0.26 – – 0.5 6FDA/BAPN (Id) 1132 3.56 1.5859 1.5745 0.44 0.44 0.314 4.34 1.9 6FDA/BAPN (IId) 1135 – 1.5795 1.5712 0.35 0.35 – – 1.1 6FDA/BAPN (IIId) 1133 3.73 1.5767 1.5676 0.30 0.30 – – 1.3 a

Dielectric constant measured at 100 kHz.

b _{Calculated from Ref.}₃₀_. c _{Optical loss measured at 1310 nm.}

Fig. 5. TEM diagram of the prepared hybrid material, IIIb. C.-T. Yen et al. / Polymer 44 (2003) 7079–7087

(7)

bonding by the GOTMS could not limit the main chain segmental motion effectively and thus only enhance Tg slightly in the cases of IIb and Ib. Such a trend is also observed from the other prepared materials, as shown in

Table 2.

Although the incorporation of the silica moiety does not enhance the Td or Tg significantly, it reduced the CTE remarkably. The CTE of the prepared materials shows a significant difference from Table 2, which has a general trend of III . II . I. It suggests a significant difference in the intrachain chemical bonding and interchain hydrogen bonding of the prepared hybrid materials on the obtained CTE. The CTE of polyimide is generally influenced by the chain relaxation and orientation [27,28]. The out-of-plane CTE of the prepared polyimide films is in the range from 123.4 to 726.9 ppm/8C, as shown in Table 2. This large shrinkage of the prepared organo-soluble polyimide films

(I) suggested by the CTE is probably because they have intrinsically more free volumes in the molecular structures than the rod-like polyimide, such as PMDA/ODA. Upon heating, the flexible main chains of the prepared polyimides (I) are significantly relaxed and orientated through the in-plane direction, and induce the dimensional shrinkage in the out-of-plane direction. For the case of the polyimide – silica films (II), the chain end of the flexible polyimide moiety is ‘fixed’ by the silica moiety and thus significantly reduces the relaxation and orientation. By further incorporating the interchain compatibilizer, GOTMS, the chain relaxation and orientation of the polyimide moiety are further constrained, and thus obtain a low CTE for the materials of (III). Consequently, the CTE of the polyimide/silica hybrid films, (III), is the smallest among the studied materials of I – III, which is in the range of 16.6 – 41.6 ppm/8C. These values are very close to much of the rod-like polyimides[29]despite the low loading of silica in this study.

Polyimides have been shown as one of the promising dielectric materials. The dielectric constants of the prepared polyimides (I) and their corresponding PI/silica hybrids (III) are shown inTable 1. The dielectric constants of the materials of I and III are in the range of 2.85 – 3.56 and 2.91 – 3.73, respectively. It is well known that the incorpor-ation of the fluorinated substituents into polymers could decrease the dielectric constant due to the low ratio of the molar polarizability over molar volume by the trifluoro-methyl groups. Hence, the (Ic) and (IIIc) have the smallest dielectric constant in comparison with the other diamine based materials. The dielectric constants of the prepared polyimide/silica hybrid films (III) are higher in comparison with their parent polyimides (I) because of the inherent higher dielectric constant of silica. Although the incorpor-ation of the silica moiety enhances the dielectric constant slightly, it enhances the thermal properties of the studied fluorinated polyimides for the possible microelectronic applications.

Fig. 8 shows the UV – visible absorption spectra of the

Table 2

The thermal properties of the prepared polyimides and the polyimide/silica hybrid materials Silica content (wt%) Td (8C) Tg (8C)a Tg (8C)b CTE (ppm/8C) 6FDA/BATB (Ia) – 502 244 244 357.6 6FDA/BATB (IIa) 6.51 512 255 256 147.4 6FDA/BATB (IIIa) 7.16 517 259 268 24.1 6FDA/DBAPB (Ib) – 517 247 270 292.6 6FDA/DBAPB (IIb) 6.30 523 264 279 64.3 6FDA/DBAPB (IIIb) 6.94 527 266 279 26.9 6FDA/DBAPB (IVb) 6.44 518 256 271 44 6FDA/BAPPH (Ic) – 518 238 256 123.4 6FDA/BAPPH (IIc) 7.29 526 256 263 88.8 6FDA/BAPPH (IIIc) 7.92 524 257 273 24 6FDA/BAPN (Id) – 482 254 264 726.9 6FDA/BAPN (IId) 7.36 507 268 273 266.7 6FDA/BAPN (IIId) 7.99 515 271 271 16.6 a _{By DSC.} b _{By TMA.}

Fig. 6. TGA curves of the prepared 6FDA/DBAPB polyimide (Ib) and polyimide/silica hybrids (IIb – IVb).

Fig. 7. TMA curves of the prepared 6FDA/DBAPB polyimide (Ib) and polyimide/silica hybrids (IIb – IVb).

(8)

prepared polyimide films, (Ib) – (IVb). The prepared materials are highly transparent in the visible region. The formation of charge transfer complex results in the tailing around 350 nm of the spectrum of (Ib), which results in the yellowing of the films. By increasing the silica content, it reduces the density of the charge transfer band at 350 nm and thus increases the transparency for the cases of IIb and IIIb.

The refractive indices of the prepared materials (I) – (III) at the wavelengths of 1319 nm are shown inTable 1. It has a general trend in the order of the refractive index: 6FDA/

DBAPB (c) , 6FDA/BAPN (d) , 6FDA/BATB (a)

, 6FDA/BAPPH (b). According to the Lorentz and Lorenz equation, the refractive index is generally proportional to the ratio of the molar refraction ðRLLÞ to the molar volume ðVÞ: As shown in Table 1, the trend of the obtained refractive index is in consistent with the RLL to V: It suggests that the refractive index of the prepared polyimides could follow the Lorentz and Lorenz equation. The higher refractive index of the 6FDA/DBAPB (b) than that of the 6FDA/BATB (a) is attributed to the additional high molar refractive phenyl group in the diamine moiety of the (b). The large norbornane side group in the diamine moiety results in the lower refractive index of the 6FDA/BAPN (d) than that of the 6FDA/BATB (a). As for the case of the 6FDA/BAPPH (c), both the large steric volume of hexafluoroisopropyl group and the small electronic polariz-ability of the fluorine substitution results in the lowest refractive index among these polyimides. The incorporation of the silica moiety reduces the refractive indices of the hybrid materials because of the low refractive index of the silica (1.44).

The optical losses of the prepared optical waveguides at 1310 nm measured by the cut-back method are in the range of 1.2 – 2.7 dB/cm for the studied polyimides, and 0.5 – 2.1 dB/cm for the studied polyimide/silica hybrids, as shown in Table 1. The intrinsic optical loss could be investigated by the NIR absorption spectra of the studied materials. Fig. 9 shows the NIR spectra of the prepared

polyimides (Ia), (Ib), (Ic), and (Id). There are three major absorption bands shown in the spectra: the first overtone of the C – H stretching vibration band (1600 – 1700 nm), the combination of the C – H stretching and bending bands (1350 – 1450 nm), and the second overtone of the C – H stretching band (1100 – 1160 nm). The absorption bands shown inFig. 9are similar to those reported in the literature

[6]. Hence, the intrinsic optical loss of the prepared polyimide based waveguides at 1310 nm is primarily contributed from the combination band of C – H stretching and bending bands, and the second overtone of C – H stretching vibration. As shown inTable 1, the optical loss of the prepared waveguide is generally proportional to the C – H number density in the molecular structure except for the case of the 6FDA/DBAPB (b). The high optical loss in the 6FDA/DBAPB (b) based waveguide was probably due to the boundary imperfection between the core and the cladding layers. The incorporation of the silica moiety into the polyimides reduces the optical losses because it lowers the C – H number density in the molecular structure. It also suggests that the relatively small silica domain for low scattering loss in the prepared hybrid films.

4. Conclusions

A series of new polymer – silica hybrid materials was successfully prepared through the intrachain coupling by 3-aminopropyl trimethoxysilane (APrTEOS) and interchain hydrogen bonding by g-glycidyloxypropyltrimethoxysi-lanes (GOTMS). The prepared hybrid films were homo-geneous and thermally stable. The thermal properties of the organo-soluble polyimides were significantly enhanced by only hybridizing 6.30 – 7.99 wt% of silica. It was found that the intrachain chemical bonding could effectively enhance the glass transition temperature or CTE in comparison with the interchain interaction. The prepared hybrid films

Fig. 8. UV – visible absorption spectra of the prepared films, Ib – IVb.

Fig. 9. Near-infrared absorption spectra of the prepared polyimides Ia – Id. C.-T. Yen et al. / Polymer 44 (2003) 7079–7087

(9)

had a low dielectric constant, tunable refractive index and high optical transparence, which could have potential applications for optoelectronic devices.
