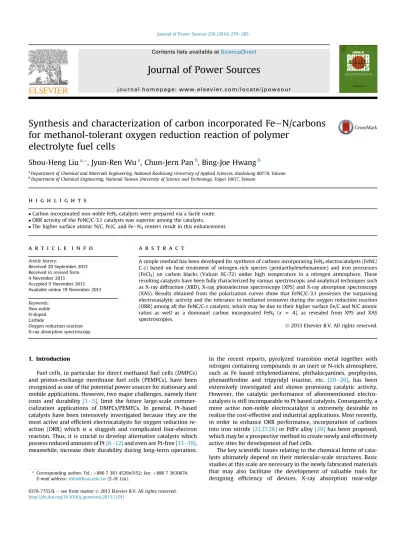

Synthesis and Characterization of Carbon Incorporated Fe-N/carbon for Methanol-tolerant Oxygen Reduction Reaction of Polymer Electrolyte Fuel Cells

(1)

Synthesis and characterization of carbon incorporated Fe

eN/carbons

for methanol-tolerant oxygen reduction reaction of polymer

electrolyte fuel cells

Shou-Heng Liu

a

,

*

_{, Jyun-Ren Wu}

a

_{, Chun-Jern Pan}

b

_{, Bing-Joe Hwang}

b

a_{Department of Chemical and Materials Engineering, National Kaohsiung University of Applied Sciences, Kaohsiung 80778, Taiwan} b_{Department of Chemical Engineering, National Taiwan University of Science and Technology, Taipei 10617, Taiwan}

h i g h l i g h t s

Carbon incorporated non-noble FeNxcatalysts were prepared via a facile route.

ORR activity of the FeNC/C-3.1 catalysts was superior among the catalysts. The higher surface atomic N/C, Fe/C, and FeeN4centers result in this enhancement.

a r t i c l e i n f o

Article history:

Received 20 September 2013 Received in revised form 4 November 2013 Accepted 9 November 2013 Available online 19 November 2013 Keywords:

Non-noble N-doped Carbide

Oxygen reduction reaction X-ray absorption spectroscopy

a b s t r a c t

A simple method has been developed for synthesis of carbons incorporating FeNxelectrocatalysts (FeNC/ C-z) based on heat treatment of nitrogen-rich species (pentaethylenehexamine) and iron precursors (FeCl3) on carbon blacks (Vulcan XC-72) under high temperature in a nitrogen atmosphere. These resulting catalysts have been fully characterized by various spectroscopic and analytical techniques such as X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS) and X-ray absorption spectroscopy (XAS). Results obtained from the polarization curves show that FeNC/C-3.1 possesses the surpassing electrocatalytic activity and the tolerance to methanol crossover during the oxygen reduction reaction (ORR) among all the FeNC/C-z catalysts, which may be due to their higher surface Fe/C and N/C atomic ratios as well as a dominant carbon incorporated FeNx (x z 4), as revealed from XPS and XAS spectroscopies.

1. Introduction

Fuel cells, in particular for direct methanol fuel cells (DMFCs)

and proton-exchange membrane fuel cells (PEMFCs), have been

recognized as one of the potential power sources for stationary and

mobile applications. However, two major challenges, namely their

costs and durability

[1

e5]

, limit the future large-scale

commer-cialization applications of DMFCs/PEMFCs. In general, Pt-based

catalysts have been intensively investigated because they are the

most active and ef

ﬁcient electrocatalysts for oxygen reduction

re-action (ORR) which is a sluggish and complicated four-electron

reaction. Thus, it is crucial to develop alternative catalysts which

possess reduced amounts of Pt

[6

e12]

and even are Pt-free

[13

e19]

,

meanwhile, increase their durability during long-term operation.

In the recent reports, pyrolyzed transition metal together with

nitrogen containing compounds in an inert or N-rich atmosphere,

such as Fe based ethylenediamine, phthalocyanines, porphyrins,

phenanthroline and tripyridyl triazine, etc.

[20

e26]

, has been

extensively investigated and shown promising catalytic activity.

However, the catalytic performance of aforementioned

electro-catalysts is still incomparable to Pt based electro-catalysts. Consequently, a

more active non-noble electrocatalyst is extremely desirable to

realize the cost-effective and industrial applications. Most recently,

in order to enhance ORR performance, incorporation of carbons

into iron nitride

[21,27,28]

or PdFe alloy

[29]

has been proposed,

which may be a prospective method to create newly and effectively

active sites for development of fuel cells.

The key scienti

ﬁc issues relating to the chemical forms of

cata-lysts ultimately depend on their molecular-scale structures. Basic

studies at this scale are necessary in the newly fabricated materials

that may also facilitate the development of valuable tools for

designing ef

ﬁciency of devices. X-ray absorption near-edge

* Corresponding author. Tel.: þ886 7 381 4526x5152; fax: þ886 7 3830674. E-mail address:[email protected](S.-H. Liu).

Contents lists available at

ScienceDirect

Journal of Power Sources

j o u r n a l h o m e p a g e : w w w . e l s e v i e r . c o m/ l o ca t e / j p o w s o u r

http://dx.doi.org/10.1016/j.jpowsour.2013.11.011

(2)

(see

Table 4

), respectively, implying that FeNC/C-3.1

electro-catalysts are dominantly proceeded ORR with four-electron

trans-ferred pathway. Unlike two-electron reduction reactions for FeNC/

C-z (z

¼ 5.6, 8.2 and 10.6), FeNC/C-3.1 electrocatalysts can

circum-vent the production of hydrogen peroxide radicals which lead to an

undesirable degradation of the membrane-electrolyte-assembly

(MEA) of the fuel cells. Based on the XPS data in

Table 1

, it can be

observed that the N/C and Fe/C atomic ratios of FeNC/C-3.1 are the

highest among the FeNC/C-z. The high N/C and Fe/C atomic ratios,

and the moderate FeN

x

coordination number (x

z 4, in

Table 3

)

which were characterized by XPS and EXAFS show that the surface

iron concentration and the number of iron coordinated with proper

pyridinic-N should be responsible for the superior ORR

perfor-mance of FeNC/C-3.1.

The electrocatalytic durability and tolerance to the methanol

crossover at the cathode have been considered as two of the most

critical issues for fuel cells

[54

e56]

. To further study the

methanol-tolerant properties of the synthesized FeNC/C-z electrocatalysts, a

series of LSV tests were also performed to reveal the effect of

different concentrations of methanol (0.5

e2 M) on electrocatalytic

ORR performance of FeNC/C-3.1 catalysts. As shown in

Fig. 7

, little

increase in overpotential is observed for FeNC/C-3.1 electrocatalysts

even in the presence of 2 M methanol as compared to ORR in pure

H

2

SO

4

solution. The signi

ﬁcant inhibition in ORR overpotential on

the FeNC/C-3.1 catalysts is due to the weak competition reaction

between oxygen reduction and methanol oxidation, which could be

attributed to the unique properties of carbon-incorporated FeN

x

catalysts (x

z 4). Transition metal N

4

chelates

[57,58]

were

re-ported to have highly methanol-tolerant ability during ORR.

4. Conclusions

In summary, we report a facile method to prepare carbons

incorporated FeN

x

electrocatalysts (FeNC/C-z) with various Fe

loadings in this study. Electrocatalytic ORR polarization curves

were used to evaluate their corresponding activities. Among all the

FeNC/C-z electrocatalysts, FeNC/C-3.1 was found to have the

superior ORR properties. In addition, transferred electron number

obtained from Koutecky

eLevich equation suggests that the FeNC/

C-3.1 is mostly four-electron transferred ORR process. From XPS

data, the FeNC/C-3.1 was also found to possess the notable

in-creases in the atomic surface Fe/C and N/C ratios and more

pyridinic-N sites. Moreover, combining the results from XRD and

XAS spectroscopies, it can be observed that carbons may

incorpo-rate into the FeN

4

matrix to form Fe

eNeC active centers which are

attributed to the signi

ﬁcant ORR enhancement with methanol

tolerance. Thus, these FeNC/C-3.1 nanocomposites may render

future cost-effective applications in hydrogen-energy related areas,

for instance, as electrocatalysts for PEMFCs and DMFCs.

Acknowledgments

Financial support of this work from the National Science

Council, Taiwan (Contract No.: NSC99-2221-E-151-044-MY2) is

gratefully acknowledged.

Appendix A. Supplementary material

Supplementary data related to this article can be found at

http://

dx.doi.org/10.1016/j.jpowsour.2013.11.011

.

References

[1] Y.Y. Shao, G.P. Yin, Y.Z. Gao, J. Power Sources 171 (2007) 558e566.

[2] G. Gupta, D.A. Slanac, P. Kumar, J.D. Wiggins-Camacho, J. Kim, R. Ryoo, K.J. Stevenson, K.P. Johnston, J. Phys. Chem. C 114 (2010) 10796e10805. [3] S.-H. Liu, C.-C. Chiang, M.-T. Wu, S.-B. Liu, Int. J. Hydrogen Energy 35 (2010)

8149e8154.

[4] S.-H. Liu, S.-C. Chen, W.-H. Sie, Int. J. Hydrogen Energy 36 (2011) 15060e 15067.

[5] D.Z. Mezalira, M. Bron, J. Power Sources 231 (2013) 113e121.

[6] E. Billy, F. Maillard, A. Morin, L. Guetaz, F. Emieux, C. Thurier, P. Doppelt, S. Donet, S. Mailley, J. Power Sources 195 (2010) 2737e2746.

[7] C.S. Rao, D.M. Singh, R. Sekhar, J. Rangarajan, Int. J. Hydrogen Energy 36 (2011) 14805e14814.

[8] J. Zhao, A. Manthiram, Appl. Catal. B: Environ. 101 (2011) 660e668. [9] S.-H. Liu, F.S. Zheng, J.-R. Wu, Appl. Catal. B: Environ. 108e109 (2011) 81e89. [10] F. Su, C.K. Poh, J.H. Zeng, Z.Y. Zhong, Z.L. Liu, J.Y. Lin, J. Power Sources 205

(2012) 136e144.

[11] K. Jayasayee, J.A.R. Van Veen, T.G. Manivasagam, S. Celebi, E.J.M. Hensen, F.A. de Bruijn, Appl. Catal. B: Environ. 111 (2012) 515e526.

[12] Z. Yang, H.G. Nie, X. Chen, X.H. Chen, S.M. Huang, J. Power Sources 236 (2013) 238e249.

[13] L. Zhang, J.J. Zhang, D.P. Wilkinson, H.J. Wang, J. Power Sources 156 (2006) 171e182.

[14] H.J. Zhang, Q.Z. Jiang, L. Sun, X.X. Yuan, Z. Shao, Z.F. Ma, Int. J. Hydrogen Energy 35 (2010) 8295e8302.

[15] G. Wu, K.L. More, C.M. Johnston, P. Zelenay, Science 332 (2011) 443e447. [16] T. Palaniselvam, R. Kannan, S. Kurungot, Chem. Commun. 47 (2011) 2910e

2912.

[17] Z.W. Chen, D. Higgins, A. Yu, L. Zhang, J. Zhang, Energy Environ. Sci. 4 (2011) 3167e3192.

[18] R. Liu, C. von Malotki, L. Arnold, N. Koshino, H. Higashimura, M. Baumgarten, K. Müllen, J. Am. Chem. Soc. 133 (2011) 10372e10375.

[19] S.H. Lim, Z.T. Li, C.K. Poh, L.F. Lai, J.Y. Lin, J. Power Sources 214 (2012) 15e20. [20] G. Lalande, G. Faubert, R. Cote, D. Guay, J.P. Dodelet, L.T. Weng, P. Bertrand,

J. Power Sources 61 (1996) 227e237.

[21] F. Charreteur, F. Jaouen, J.P. Dodelet, Electrochim. Acta 54 (2009) 6622e6630. [22] G. Liu, X. Li, P. Ganesan, B.N. Popov, Appl. Catal. B: Environ. 93 (2009) 156e

165.

[23] L. Zhang, K. Lee, C.W.B. Bezerra, J.L. Zhang, J.J. Zhang, Electrochim. Acta 54 (2009) 6631e6636.

[24] J.Y. Choi, R.S. Hsu, Z.W. Chen, J. Phys. Chem. C 114 (2010) 8048e8053. [25] J.T. Wang, S. Li, G.W. Zhu, W. Zhao, R.X. Chen, M. Pan, J. Power Sources 240

(2013) 381e389.

[26] F.J. Pérez-Alonso, M. Abdel Salam, T. Herranz, J.L. Gómez de la Fuente, S.A. Al-Thabaiti, S.N. Basahel, M.A. Peña, J.L.G. Fierro, S. Rojas, J. Power Sources 240 (2013) 494e502.

[27] C.-W. Tsai, H.M. Chen, R.-S. Liu, K. Asakura, L. Zhang, J. Zhang, M.-Y. Lo, Y.-M. Peng, Electrochim. Acta 56 (2011) 8734e8738.

[28] C.-W. Tsai, M.-H. Tu, C.-J. Chen, T.-H. Hung, R.-S. Liu, W.-R. Liu, M.-Y. Lo, Y.-M. Peng, L. Zhang, J. Zhang, D.-S. Shy, X.-K. Xing, RSC Adv. 1 (2011) 1349e 1357.

[29] Y.-C. Yeh, H.M. Chen, R.-S. Liu, K. Asakura, M.-Y. Lo, Y.-M. Peng, T.-S. Chan, J.-F. Lee, Chem. Mater. 21 (2009) 4030e4036.

[30] F.H.B. Lima, J.F.R. de Castro, L.G.R.A. Santos, E.A. Ticianelli, J. Power Sources 190 (2009) 293e300.

[31] A.R. Malheiro, J. Perez, H.M. Villullas, J. Power Sources 195 (2010) 3111e3118. [32] S.J. Hwang, S.J. Yoo, S. Jang, T.H. Lim, S.A. Hong, S.K. Kim, J. Phys. Chem. C 115

(2011) 2483e2488.

[33] N. Ishiguro, T. Saida, T. Uruga, S. Nagamatsu, O. Sekizawa, K. Nitta, T. Yamamoto, S. Ohkoshi, Y. Iwasawa, T. Yokoyama, M. Tada, ACS Catal. 2 (2012) 1319e1330.

[34] S.-H. Liu, W.-Y. Yu, C.-H. Chen, A.-Y. Lo, B.-J. Hwang, S.-H. Chien, S.-B. Liu, Chem. Mater. 20 (2008) 1622e1628.

[35] T.A. Yamamoto, S. Kageyama, S. Seino, H. Nitani, T. Nakagawa, R. Horioka, Y. Honda, K. Ueno, H. Daimon, Appl. Catal. A: Gen. 396 (2011) 68e75. [36] C.-W. Kuo, I.-T. Lu, L.-C. Chang, Y.-C. Hsieh, Y.-C. Tseng, P.-W. Wu, J.-F. Lee,

J. Power Sources 240 (2013) 122e130.

[37] S. Zabinsky, J.J. Rehr, A.L. Ankudinov, R.C. Albers, M. Eller, J. Phys. Rev. B 52 (1995) 2995e3009.

[38] B. Ravel, M. Newville, J. Synchrotoron Radiat. 12 (2005) 537e541. [39] J.R. Pels, F. Kapteijn, J.A. Moulijn, Q. Zhu, K.M. Thomas, Carbon 33 (1995)

1641e1653.

[40] H. Niwa, K. Horiba, Y. Harada, M. Oshima, T. Ikeda, K. Terakura, J. Ozaki, S. Miyata, J. Power Sources 187 (2009) 93e97.

[41] Z.Y. Lin, G.H. Waller, Y. Liu, M.L. Liu, C.-P. Wong, Nano Energy 2 (2013) 241e248.

[42] M. Sevilla, L.H. Yu, T.P. Fellinger, A.B. Fuertes, M. Titirici, RSC Adv. 3 (2013) 9904e9910.

[43] Z. Luo, S. Lim, Z. Tian, J. Shang, L. Lai, B. MacDonald, C. Fu, Z. Shen, T. Yu, J. Lin, J. Mater. Chem. 21 (2011) 8038e8044.

[44] S.M. Unni, S. Devulapally, N. Karjule, S. Kurungot, J. Mater. Chem. 22 (2012) 23506e23513.

[45] P.H. Matter, L. Zhang, U.S. Ozkan, J. Catal. 239 (2006) 83e96.

[46] H.R. Byon, J. Suntivich, Y. Shao-Horn, Chem. Mater. 23 (2011) 3421e3428. [47] U.I. Kramm, J. Herranz, N. Larouche, T.M. Arruda, M. Lefèvre, F. Jaouen,

P. Bogdanoff, S. Fiechter, I. Abs-Wurmbach, S. Mukerjee, J.P. Dodelet, Phys. Chem. Chem. Phys. 14 (2012) 11673e11688.
