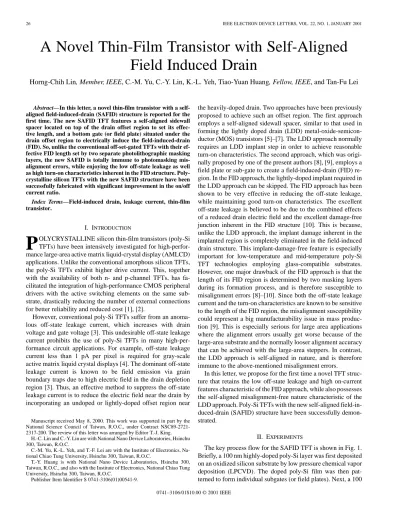

26 IEEE ELECTRON DEVICE LETTERS, VOL. 22, NO. 1, JANUARY 2001
A Novel Thin-Film Transistor with Self-Aligned
Field Induced Drain
Horng-Chih Lin, Member, IEEE, C.-M. Yu, C.-Y. Lin, K.-L. Yeh, Tiao-Yuan Huang, Fellow, IEEE, and Tan-Fu Lei
Abstract—In this letter, a novel thin-film transistor with a
self-aligned field-induced-drain (SAFID) structure is reported for the first time. The new SAFID TFT features a self-aligned sidewall spacer located on top of the drain offset region to set its effec-tive length, and a bottom gate (or field plate) situated under the drain offset region to electrically induce the field-induced-drain (FID). So, unlike the conventional off-set-gated TFTs with their ef-fective FID length set by two separate photolithographic masking layers, the new SAFID is totally immune to photomasking mis-alignment errors, while enjoying the low off-state leakage as well as high turn-on characteristics inherent in the FID structure. Poly-crystalline silicon TFTs with the new SAFID structure have been successfully fabricated with significant improvement in the on/off current ratio.
Index Terms—Field-induced drain, leakage current, thin-film
transistor.
I. INTRODUCTION
P
OLYCRYSTALLINE silicon thin-film transistors (poly-Si TFTs) have been intensively investigated for high-perfor-mance large-area active matrix liquid-crystal display (AMLCD) applications. Unlike the conventional amorphous silicon TFTs, the poly-Si TFTs exhibit higher drive current. This, together with the availability of both n- and p-channel TFTs, has fa-cilitated the integration of high-performance CMOS peripheral drivers with the active switching elements on the same sub-strate, drastically reducing the number of external connections for better reliability and reduced cost [1], [2].However, conventional poly-Si TFTs suffer from an anoma-lous off-state leakage current, which increases with drain voltage and gate voltage [3]. This undesirable off-state leakage current prohibits the use of poly-Si TFTs in many high-per-formance circuit applications. For example, off-state leakage current less than 1 pA per pixel is required for gray-scale active matrix liquid crystal displays [4]. The dominant off-state leakage current is known to be field emission via grain boundary traps due to high electric field in the drain depletion region [3]. Thus, an effective method to suppress the off-state leakage current is to reduce the electric field near the drain by incorporating an undoped or lightly-doped offset region near
Manuscript received May 8, 2000. This work was supported in part by the National Science Council of Taiwan, R.O.C., under Contract NSC89-2721-2317-200. The review of this letter was arranged by Editor T.-J. King.
H.-C. Lin and C.-Y. Lin are with National Nano Device Laboratories, Hsinchu 300, Taiwan, R.O.C.
C.-M. Yu, K.-L. Yeh, and T.-F. Lei are with the Institute of Electronics, Na-tional Chiao Tung University, Hsinchu 300, Taiwan, R.O.C.
T.-Y. Huang is with National Nano Device Laboratories, Hsinchu 300, Taiwan, R.O.C., and also with the Institute of Electronics, National Chiao Tung University, Hsinchu 300, Taiwan, R.O.C.
Publisher Item Identifier S 0741-3106(01)00541-9.
the heavily-doped drain. Two approaches have been previously proposed to achieve such an offset region. The first approach employs a self-aligned sidewall spacer, similar to that used in forming the lightly doped drain (LDD) metal-oxide-semicon-ductor (MOS) transistors [5]–[7]. The LDD approach normally requires an LDD implant step in order to achieve reasonable turn-on characteristics. The second approach, which was origi-nally proposed by one of the present authors [8], [9], employs a field plate or sub-gate to create a field-induced-drain (FID) re-gion. In the FID approach, the lightly-doped implant required in the LDD approach can be skipped. The FID approach has been shown to be very effective in reducing the off-state leakage, while maintaining good turn-on characteristics. The excellent off-state leakage is believed to be due to the combined effects of a reduced drain electric field and the excellent damage-free junction inherent in the FID structure [10]. This is because, unlike the LDD approach, the implant damage inherent in the implanted region is completely eliminated in the field-induced drain structure. This implant-damage-free feature is especially important for low-temperature and mid-temperature poly-Si TFT technologies employing glass-compatible substrates. However, one major drawback of the FID approach is that the length of its FID region is determined by two masking layers during its formation process, and is therefore susceptible to misalignment errors [8]–[10]. Since both the off-state leakage current and the turn-on characteristics are known to be sensitive to the length of the FID region, the misalignment susceptibility could represent a big manufacturability issue in mass produc-tion [9]. This is especially serious for large area applicaproduc-tions where the alignment errors usually get worse because of the large-area substrate and the normally looser alignment accuracy that can be achieved with the large-area steppers. In contrast, the LDD approach is self-aligned in nature, and is therefore immune to the above-mentioned misalignment errors.
In this letter, we propose for the first time a novel TFT struc-ture that retains the low off-state leakage and high on-current features characteristic of the FID approach, while also possesses the self-aligned misalignment-free nature characteristic of the LDD approach. Poly-Si TFTs with the new self-aligned field-in-duced-drain (SAFID) structure have been successfully demon-strated.
II. EXPERIMENTS
The key process flow for the SAFID TFT is shown in Fig. 1. Briefly, a 100 nm highly-doped poly-Si layer was first deposited on an oxidized silicon substrate by low pressure chemical vapor deposition (LPCVD). The doped poly-Si film was then pat-terned to form individual subgates (or field plates). Next, a 100
LIN et al.: NOVEL THIN-FILM TRANSISTOR 27

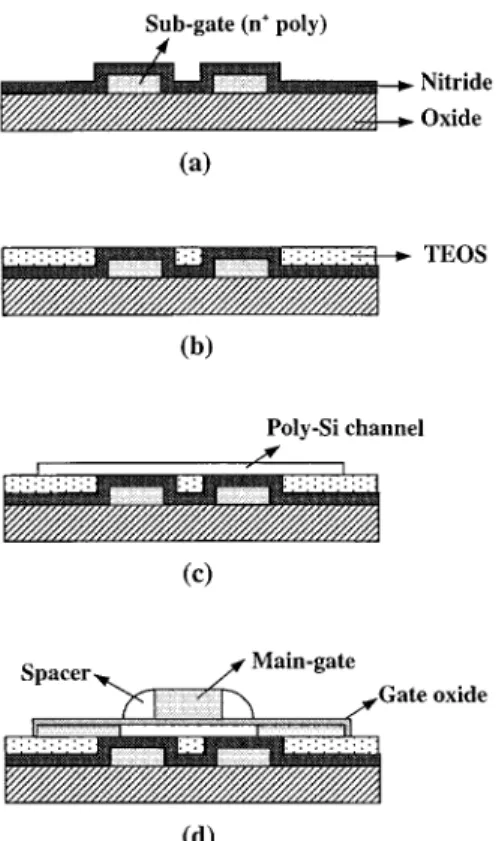

Fig. 1. Key process flow of the SAFID TFTs.
nm CVD nitride was deposited by LPCVD [Fig. 1(a)], followed by the deposition of a thick LPTEOS (550 nm) oxide layer. Chemical mechanical polishing (CMP) was then applied to pla-narize the wafer surface and expose the nitride layer on top of the subgate [Fig. 1(b)]. The nitride layer thus serves not only as the dielectric separation between the field plate (i.e., sub-gate) and the active device layer in the final device structure, but also as a stopping layer for better process control during CMP polishing. It should be noted, however, that the CMP step can actually be skipped for process simplicity, especially for de-vices with large dimensions typically found in large-area ap-plications. Afterwards, a 50 nm CVD amorphous thin Si film was deposited at 550 C, and subsequently transformed into polycrystalline phase by a solid-phase recrystallization (SPC) treatment at 600 C for 24 h [Fig. 1(c)] to serve as the active device layer. A 20 nm CVD oxide layer was then deposited to form the gate insulator. A third poly-Si film was deposited and patterned to form the top-gate (i.e., main-gate). Next, a self-aligned sidewall spacer was formed by the deposition of an oxide layer and subsequent reactive-ion-etching. Finally, self-aligned source/drain regions were formed by a heavy-dose im-plant [Fig. 1(d)]. For n-channel transistors, As implant with a dosage of at 20 KeV was used. The implanted dopants were subsequently activated in N at 600 C for 12 h. Wafers then followed a standard back-end processing to form the contact pads, and received a plasma treatment at 250 C in NH for 1 h before measurements. Poly TFTs with conventional structure (e.g., without the subgate) were also fabricated along-side to serve as the control.
The main feature of the novel SAFID TFT is that the field plate (or the subgate) for creating the field-induced-drain is
lo-Fig. 2. Subthreshold characteristics of the SAFID TFT.L=W of the device is
2=10 m/m.
Fig. 3. Comparison of subthreshold characteristics between SAFID and conventional TFT devices.L=W of the device is 2=10m/m.
cated underneath the offset drain region. While the effective length of the offset drain region is set by the self-aligned side-wall spacer, which is formed abutting the top-gate (i.e., the main gate) of the SAFID TFT. These combinations provide, for the first time, a self-aligned field-induced-drain with the length of its FID region immune to misalignment errors. It should be noted that although both drain and source offset regions are shown in the figure for process simplicity and device symmetry, the source-side offset region can be easily eliminated by selec-tively removing the sidewall spacer on the source side before performing the heavily-doped source-drain implant.
III. RESULTS ANDDISCUSSION
Fig. 2 shows typical subthreshold characteristics of the SAFID TFT devices with a subgate voltage of 40 V. Well-be-haved transfer characteristics and high on/off current ratio ( ) are achieved in the SAFID TFT. As shown in Fig. 3, the off-state current of the SAFID TFT is much lower than that of the conventional TFT control. Specifically, the leakage current is ten
28 IEEE ELECTRON DEVICE LETTERS, VOL. 22, NO. 1, JANUARY 2001

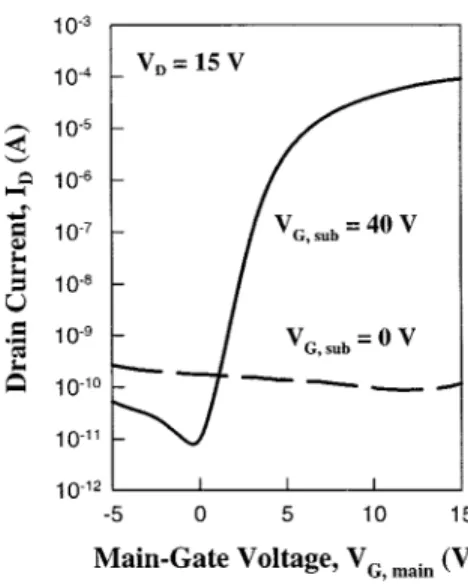

Fig. 4. Effects of subgate bias on the transfer characteristics of the SAFID TFT.L=W of the device is 2=10 m/m.
times smaller at V and 100 times smaller at V, compared to the conventional TFT control. Nevertheless, good drive current capability, comparable to that of the conventional TFT control, is still retained for the SAFID TFT. These features are similar to those reported in previous works [8], [9]. It is worthy to note here that there exists a separation between the top-gated conduction channel and the bottom field-induced drain in the SAFID structure. This is similar to the case in the popular inverted-staggered bottom-gated thin film transistors structure [11]. Although the separation could cause some additional source-drain series resistance, resulting in a slightly higher threshold voltage and lower subthreshold leakage, its effect appears to be minimal and could be further reduced with the use of a thin active device layer so that the separation is minimized. This is indeed confirmed by the excellent turn-on characteristics of the SAFID devices.
The effects of subgate bias on the device operation are shown in Fig. 4. It can be seen that when no subgate bias is applied, the SAFID TFT cannot be effectively turned on even when proper main-gate voltage is applied. This is because under such condi-tions, the field-induced source and drain are not formed, and thus the switching behavior of the device is prohibited. It is interesting to note here that the leakage current at negative main-gate voltage region can even be lowered when the subgate bias is applied. The cause of this phenomenon is still not very clear at this moment, and is presumably related to the defects present at the channel/ni-tride interface induced during the CMP stage.
IV. CONCLUSION
In this work, we have proposed and successfully demonstrated a novel self-aligned field-induced-drain (SAFID) thin-film transistor structure. The new SAFID TFT features a bottom subgate (or field plate) for inducing the field-induced-drain and a top self-aligned sidewall spacer for setting the effective length of the FID region. So, unlike previous versions of TFTs with FID, the new SAFID TFT is therefore not susceptible to photomasking misalignment errors, while preserving the good off-state leakage and turn-on characteristics inherent in the FID structure. SAFID transistors with excellent on/off current ratio have been succesfully demonstrated. The new SAFID TFT therefore appears to be a very attractive device structure for future high-performance large-area device applications.
ACKNOWLEDGMENT
The authors would like to thank the staff of National Nano Device Laboratories for device fabrication, and the anonymous reviewers for their constructive comments.
REFERENCES
[1] I. W. Wu, “Low temperature poly-Si TFT technology for AMLCD ap-plication,” in Tech. Dig. AM-LCD, 1995, pp. 7–10.
[2] T. Serikawa, S. Shirai, A. Okamoto, and S. Suyama, “Low temperature fabrication of high mobility poly-Si TFT’s for large-area LCD’s,” IEEE Trans. Electron Devices, vol. 36, pp. 1929–1933, 1989.
[3] J. G. Fossum, A. Ortiz-Conde, H. Shicjijo, and S. K. Banerjee, “Anoma-lous leakage current in LPCVD polysilicon MOSFET’s,” IEEE Trans. Electron Devices, vol. ED-32, pp. 1878–1884, 1985.
[4] I. W. Wu, “Poly-Si TFT LCD technology and prospect of future dis-plays,” in Tech. Dig. EDMS, 1997, pp. 309–312.
[5] C. T. Liu and K. H. Lee, “An experimental study on the short-channel effects in undergated polysilicon thin-film transistors with and without lightly doped drain structures,” IEEE Electron Device Lett., vol. 14, pp. 149–151, 1993.
[6] P. S. Shih et al., “A novel lightly doped drain polysilicon thin-film tran-sistor with oxide sidewall spacer formed by one-step selective liquid phase deposition,” IEEE Electron Device Lett., vol. 20, pp. 421–423, 1999.
[7] J. I. Han and C. H. Han, “A self-aligned offset polysilicon thin-film tran-sistor using photoresist reflow,” IEEE Electron Device Lett., vol. 20, pp. 476–477, 1999.
[8] T. Y. Huang et al., “A simpler 100-V polysilicon TFT with improved turn-on characteristics,” IEEE Electron Device Lett., vol. 11, pp. 244–246, 1990.
[9] , “Device sensitivity of field-plated high-voltage TFT’s and their application to low-voltage operation,” IEEE Electron Device Lett., vol. 11, pp. 541–543, 1990.
[10] K. Tanaka, K. Nakazawa, S. Suyama, and K. Kato, “Characteristics of field-induced-drain (FID) poly-Si TFT’s with high on/off current ratio,” IEEE Trans. Electron. Devices, vol. 39, pp. 916–920, 1992.
[11] M. S. Shur, K. Hack, and J. G. Shaw, “Capacitance-voltage character-istics of amorphous Si thin film transistors,” J. Appl. Phys., vol. 66, pp. 3381–3388, 1989.
