Electrostatic discharge protection scheme without leakage current path for CMOS IC operating in power-down-mode condition on a system board

(1)

Electrostatic discharge protection scheme without

leakage current path for CMOS IC operating in

power-down-mode condition on a system board

Kun-Hsien Lin, Ming-Dou Ker

*

Nanoelectronics and Gigascale Systems Laboratory, Institute of Electronics, National Chiao-Tung University, 1001 Ta-Hsueh Road, Hsinchu, Taiwan

Received 1 November 2004; received in revised form 1 December 2004 Available online 5 March 2005

Abstract

A new design on the electrostatic discharge (ESD) protection scheme for CMOS IC operating in power-down-mode condition is proposed. By adding a VDD_ESD bus line and diodes, the new proposed ESD protection scheme can block the leakage current from I/O pin to VDD power line to avoid malfunction during power-down-mode operating condition. During normal circuit operating condition, the new proposed ESD protection schemes have no leakage path to interfere with the normal circuit functions. The whole-chip ESD protection design can be achieved by insertion of ESD clamp circuits between VSS power line and both VDD power line and VDD ESD bus line. Experimental results have veriﬁed that the human-body-model (HBM) ESD level of this new scheme can be greater than 7.5 kV in a 0.35-lm silicided CMOS process. Furthermore, output-swing improvement circuit is proposed to achieve the full swing of out-put voltage level during normal circuit operating condition.

1. Introduction

Nowadays power-down-mode feature plays an

important role in portable and mobile SOC (System on a Chip) products that require eﬀective power saving. In order to achieve IC power-down-mode operation, modiﬁcation on I/O circuits and ESD protection circuits

has been studied [1,2]. An example of two chips

con-nected in an electronic system is shown inFig. 1, where

the output pad (O/P) of the chip_1 is connected to the input pad (I/P) of the chip_2. When the chip_2 goes into the power-down-mode operation, two situations are ex-plained as follows. First, if VDD2 power line is grounded, a large leakage current may be induced from the input pad to the VDD2 power line through the par-asitic diode of pMOS connected between the input pad and VDD2 power line, when the voltage level at the out-put pin of chip_1 is high. Second, if the VDD2 power line is ﬂoating, the internal circuits of chip_2 may be triggered to cause malfunction by charging the VDD2 power line through the parasitic diode of pMOS con-nected between the input pad and VDD2 power line, when the voltage level at the output pin of chip_1 is high. Therefore, the parasitic diode of pMOS connected 0026-2714/$ - see front matter Ó 2005 Elsevier Ltd. All rights reserved.

doi:10.1016/j.microrel.2004.12.020 *

Corresponding author. Tel.: +886 3 5131573; fax: +886 3 5715412.

E-mail addresses:[email protected](K.-H. Lin),mdker@ ieee.org(M.-D. Ker).

(2)

between the input pad and VDD2 power line must be re-moved to avoid leakage current or malfunction, when the chip_2 goes into the power-down-mode operation in this typical example.

ESD stresses on an I/O pad have four

pin-combina-tion modes: positive-to-VSS (PS-mode),

negative-to-VSS (NS-mode), positive-to-VDD (PD-mode), and

negative-to-VDD (ND-mode), as shown in Fig. 2(a)–

(d), respectively [3]. For the purpose of avoiding the

unexpected ESD damage in the internal circuits of

CMOS ICs [4–6], the turn-on-eﬃcient power-rail ESD

clamp circuit was often placed between VDD and VSS

power lines [7]. In the traditional ESD protection

scheme shown inFig. 3, ESD current at the I/O pad

un-der the PS-mode ESD stress can be discharged through the parasitic diode of pMOS and the power-rail ESD clamp circuit to ground. Consequently, the traditional I/O circuits cooperating with the power-rail ESD clamp

circuit can achieve a much higher ESD level[7].

How-ever, the absence of the diode between I/O pad and VDD power line for power-down-mode operation will seriously degrade ESD performance of the I/O pad un-der the PS-mode and PD-mode ESD stresses.

In order to solve the ESD protection and leakage is-sue for IC with power-down-mode operation, some

modiﬁed designs had been reported [8,9]. The

gate-grounded nMOS has been used to replace the diode

between the I/O pad and VDD power line [8]. In [9],

VDD VSS 0V VESD +V VDD VSS 0V VESD -V (a) (b) VDD VSS 0V VES D +V VDD VSS 0V VESD -V (c) (d)

Fig. 2. The four pin-combination modes for ESD test on an IC product: (a) positive-to-VSS (PS-mode), (b) negative-to-VSS (NS-mode), (c) positive-to-VDD (PD-mode), and (d) negative-to-VDD (ND-mode)[3].

VDD1 VDD2 VSS CHIP1 CHIP2 O/P I/P System Internal Circuits Internal Circuits Mp1 Mp2 Mn1 Mn2

Fig. 1. An example to show the power-down-mode operation issue on a system with two chips, which are biased with separated VDD1 and VDD2 power supplies.

(3)

the design was focused on improving ESD robustness of the ESD protection circuit between the I/O pad and VSS power line. However, the turn-on eﬃciency of ESD

pro-tection device[8]or the complicated ESD protection

cir-cuit[9]could not be able to protect the internal circuits

in such IC applications with power-down-mode opera-tion, especially under the pin-to-pin ESD zapping

condi-tion[3]. Recently, a new ESD protection design with the

extra VDD_ESD bus had been reported in [10,11] to

solve this power-down-mode operation with consider-ation on ESD discharging paths for pin-to-pin ESD stresses.

In this work, two further modiﬁed ESD protection

designs from [10] are proposed. These new schemes

can overcome the leakage issue and have very high ESD level for IC with power-down-mode operation. Furthermore, the output-swing improvement circuit is proposed to achieve the full swing of output voltage level during normal circuit operating condition. These two modiﬁed ESD protection designs have been success-fully veriﬁed in a 0.35-lm silicided CMOS process.

2. New ESD protection schemes for IC with power-down-mode operation

2.1. ESD protection scheme I

The proposed ESD protection scheme I for the IC

with power-down-mode operation is shown in Fig. 4

with the additional ESD bus line (VDD_ESD), which is realized by wide metal line in CMOS IC. The VDD_ESD bus line is not directly connected to an exter-nal power supply pin, and it is separated into input stage and output stage by the diode D3. The VDD_ESD bus line of output stage is connected to the source of output pMOS (Mp_out). The diode D1 is connected between

the VDD power line and VDD_ESD bus line to block the leakage current path from the input pad to VDD when the power of VDD is off. The diode D2 is con-nected between the VDD power line and the source of Mp_out to block the leakage current path from the out-put pad to VDD when the power of VDD is off. The gate voltage of Mp_out will be dropped down to induce leakage current between I/O pads when the power of VDD is off. The diode of D3 is used to block the leakage current between the I/O pads. One power-rail ESD clamp circuit is connected between VDD power line and VSS power line. A second power-rail ESD clamp circuit is connected between VDD_ESD bus line and VSS power line. In some mixed-voltage I/O buffers, the output pMOS, connected from the I/O pad to the VDD power line, has self-biased circuits for tracking its gate and n-well voltages to avoid the leakage current path from the I/O pad to VDD when an over-VDD

external signal is applied to the I/O pad[12]. However,

during the power-down-mode operation, the tracking circuits have no function because the power of VDD is off. The channel of output pMOS cannot be kept off when the external voltage level connected to the output pad is high. Therefore, the leakage current may be in-duced from the output pad to VDD when the power of VDD is off. By using the new proposed ESD protec-tion scheme, the leakage current path from the I/O pad to VDD can be completely blocked by the diode D2 dur-ing the power-down-mode operation.

The ESD current discharging paths of the input pad under PS-mode ESD stress condition, the output pad under PS-mode ESD stress condition, the input pad under PD-mode ESD stress condition, and the output pad under PD-mode ESD stress condition are shown in

Fig. 5(a)–(d), respectively. The ESD current at the input (or output) pad under PS-mode ESD stress can be dis-charged through the parasitic diode of Mp_in (or Mp_out) to the VDD_ESD bus, (the diode of D3,) and then discharged through the power-rail ESD clamp

Internal Circuits Internal Circuits O/ P VDD VSS VDD_ESD Mp_in Mp_out Mn_in Mn_out I/ P R P o w e r-Rail

ESD Clamp Circuit

P o w e r-Rail

D1 D3 D2

Fig. 4. The new proposed ESD protection scheme I for the IC with power-down-mode operation.

Pow er -Rai l ESD Clamp Circu it I/ P VDD VSS Mp_in Mp_ out Mn_in Mn_out O/ P R Internal Circuits Internal Circuits

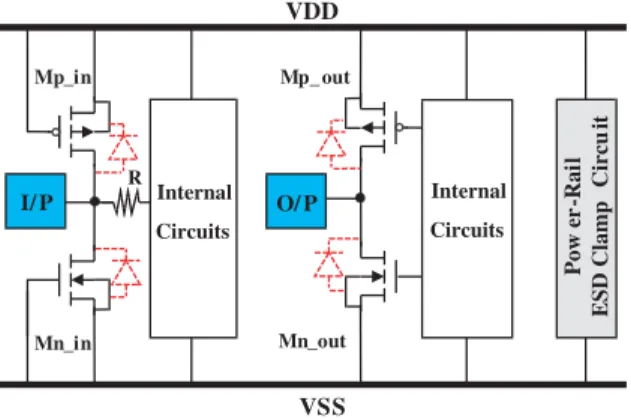

Fig. 3. Traditional ESD protection scheme in a CMOS IC with pMOS and nMOS as ESD protection devices for input and output pads.

(4)

circuit from the VDD_ESD bus to the grounded VSS power line. The ESD current at the input (or output) pad under the PD-mode ESD stress can be discharged through the parasitic diode of Mp_in (or Mp_out) to VDD_ESD bus line, (the diode of D3,) the power-rail ESD clamp circuit to VSS power line, and then through the parasitic diode of power-rail ESD clamp circuit to the grounded VDD power line. The negative ESD cur-rent at the input (or output) pad under the NS-mode ESD stress can be discharged through the parasitic diode of Mn_in (or Mn_out) to ground. The negative ESD current at the input (or output) pad under the ND-mode ESD stress can be discharged through the parasitic diode of Mn_in (or Mn_out) to VSS power line, and then discharged through the power-rail ESD clamp circuit to the grounded VDD power line. The four modes of ESD stresses on the I/O pads can be safely pro-tected by this new proposed ESD protection scheme. 2.2. ESD protection scheme II

The proposed ESD protection scheme II for the IC

with power-down-mode operation is shown in Fig. 6.

The design concept is similar to that of the ESD protec-tion scheme I. The diode D1 is connected between the VDD power line and VDD_ESD bus line to block the leakage current path from the input or output pad to VDD, when the power of VDD is oﬀ. The diode D3 in scheme I is replaced by the Mp1 in scheme II to block the leakage current between the I/O pads when the Internal Circuits Internal Circuits Powe r-Rai l ESD Clam p Circuit O/P VDD VSS VDD_ESD Mp_in _{Mp_out} Mn_in Mn_out I/P R Power-Rail

Power-Rail

ESD Clamp Circui

VES D 0 D1 D3 D2 D1 D2 D3 (a) Internal Circuits Internal Circuits Power-Rail

Power-Rail

O/P VDD VSS VDD_ESD Mp_in Mp_out Mn_in Mn_out I/P R VESD 0 (b) O/P VDD VSS VDD_ESD Mp_in Mp_out Mn_in Mn_out I/P R VES D 0 D1 _D3 D2 D1 _D3 D2 (c) Int ernal Circuits Internal Circuits Internal Circuits Internal Circuits O/P VDD VSS VDD_ESD Mp_in Mp_o ut Mn_in Mn_out I/P R VESD 0 (d) Power-Rail

Power-Rail

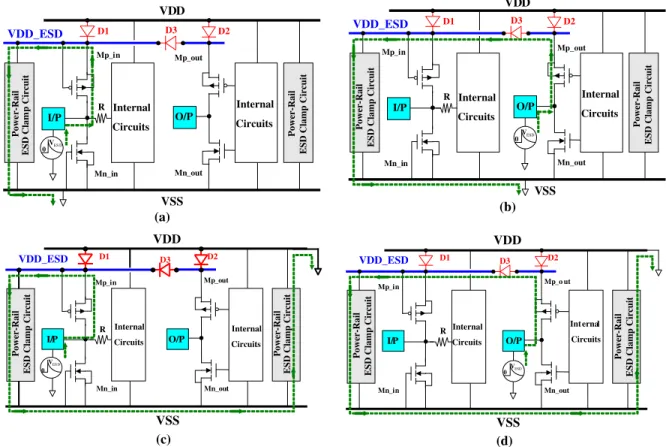

Fig. 5. The ESD current discharging paths of (a) the input pad under PS-mode ESD stress condition, (b) the output pad under PS-mode ESD stress condition, (c) the input pad under PD-mode ESD stress condition, and (d) the output pad under PD-mode ESD stress condition. Pre-driver Internal Circuits Internal Circuits Circuits Power-Rail

Power

-Rai

l

O/ P I/P VDD VSS VDD_ESD Mp_in Mp_out Mn_in Mn_out R D1 _Mp1

Fig. 6. The new proposed ESD protection scheme II for the IC with power-down-mode operation.

(5)

power of VDD is off. The gate of Mp1 is connected to the VDD power line. Therefore, Mp1 is turned off under the normal circuit operating condition. Under power-down-mode operating condition, Mp1 is turned on to keep the Mp_out off. In addition, the power line of the pre-driver internal circuits which controlled the gate of Mp_out is connected to the VDD_ESD bus line to avoid the leakage current from the pre-driver internal circuits to VDD power line, when the power of VDD is off. The ESD current at the input (or output) pad under PS-mode ESD stress condition can be discharged through the parasitic diode of Mp_in (or Mp_out) and the power-rail ESD clamp circuit between the VDD_ESD bus line and the VSS power line to ground. The ESD current at the input (or output) pad under the PD-mode ESD stress condition can be discharged through the parasitic diode of Mp_in (or Mp_out) to VDD_ESD bus line, the power-rail ESD clamp circuit to VSS power line, and then the parasitic diode of ESD clamp circuit to the grounded VDD power line.

Therefore, with the new proposed ESD protection schemes, the leakage current or malfunction issues for the IC with power-down-mode operation can be avoided. The internal circuits of CMOS IC can be fully protected against ESD damage by the new proposed ESD protection schemes.

2.3. Layout consideration

For saving the layout area, the VDD_ESD bus line in the proposed ESD protection schemes can be realized by the diﬀerent parallel metal layer, which overlaps the VDD power line. The junction perimeter of the diodes (D1, D2, and D3) in the proposed ESD protection schemes can be drawn with small layout area, because the ESD current is discharged through these diodes with the forward-diode path. The device dimension of Mp1 in scheme II can be adjusted with less impact on ESD per-formance. In addition, itÕs important to note that the location of power-rail ESD clamp circuit connected be-tween VDD_ESD bus line and VSS power line is an important factor to implement the ESD protection scheme I. Because the ESD bus line is separated into input stage and output stage by the diode D3, the power-rail ESD clamp circuit must be placed in the in-put stage to provide the ESD current discharging path for input pad under ESD stress.

3. Experimental results

The testchip with traditional and new proposed ESD protection schemes had been fabricated in a 0.35-lm sil-icided CMOS process. Some inverters are connected from the input pad to the output pad, being served as the internal circuits for function veriﬁcation of this

test-chip. The input ESD protection devices are realized by the gate-connected-to-source pMOS and gate-grounded nMOS with both the device dimensions (W/L) of 490/0.5 (lm/lm). The output ESD protection devices are real-ized by the output buﬀer of pMOS and nMOS with the same device dimensions. The layout parameters of ESD protection devices and output buﬀers are drawn according to the foundryÕs ESD rules with the silicide-blocking mask. In the proposed ESD protection scheme I, the junction perimeter of the diodes (D1, D2, and D3) is drawn as 50 lm. In the proposed ESD protection scheme II, the junction perimeter of the diode (D1) is drawn as 50 lm, and the device dimension (W/L) of Mp1 is drawn as 20/0.5 (lm/lm). The power-rail ESD clamp circuit is realized by the substrate-triggering

ﬁeld-oxide device (STFOD)[13,14]to have high enough

ESD level in a limited layout area. 3.1. Leakage current

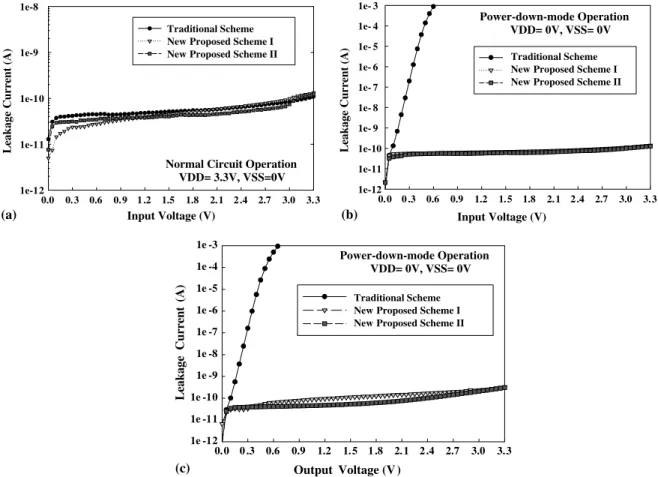

The leakage currents at the input pad of the tradi-tional and new proposed ESD protection schemes under normal circuit operating condition are

com-pared in Fig. 7(a). The leakage current is measured

by applying a voltage ramp from 0 to 3.3 V to the in-put pad under the bias condition of 3.3-V VDD and

0-V VSS. In Fig. 7(a), the leakage currents at the

in-put pad of traditional ESD protection scheme, new proposed ESD protection schemes I, and II are 109 pA, 132 pA, and 122 pA, respectively, with a 3.3-V signal applying to the input pad. From the mea-sured results, the new proposed ESD protection schemes do not induce any extra leakage current un-der normal circuit operating condition.

The leakage currents at input pad and output pad of the traditional and new proposed ESD protection schemes under power-down-mode operating condition

are measured and compared in Fig. 7(b) and (c),

respectively. The leakage current is measured by applying a voltage ramp from 0 to 3.3 V to the input or output pad under the bias condition of 0-V VDD and 0-V VSS. From the measured results, the leakage currents at the input pads (output pads) of the new

proposed ESD protection schemes are only 130 pA

in Fig. 7(b) (300 pA in Fig. 7(c)), when a 3.3-V sig-nal is applied to the input pad (output pad). On the contrary, the traditional ESD protection scheme has a very high leakage current of up to several milli-amperes when the input or output voltage is only increased to 0.7 V. The leakage current in the new proposed ESD protection scheme has been successfully blocked by the diode of D1 or D2. The experimental results have veriﬁed that the new proposed ESD pro-tection schemes can avoid the leakage current from the I/O pin to VDD power line under the power-down-mode operating condition.

(6)

3.2. Function veriﬁcation

The measurement setup to verify the function of I/O cells with the new proposed ESD protection schemes, or the traditional ESD protection scheme, under normal circuit operating condition and power-down-mode

oper-ating condition is shown inFig. 8. To verify the function

among the different designs under normal circuit operat-ing condition, a 0-to-3.3 V voltage pulse with a rise time of 20 ns is applied to the input pad under the bias con-dition of 3.3-V VDD and 0-V VSS. In adcon-dition, to verify the function among the different designs under power-down-mode operating condition, a 0-to-3.3 V voltage pulse with a rise time of 20 ns is applied to the input pad under the bias condition of 0-V VSS but VDD is floating.

Fig. 9(a) and (b) show the voltage waveforms on the input/output pad of the I/O cells with the traditional ESD protection scheme under normal circuit operating condition and power-down-mode operating condition,

respectively. As shown in Fig. 9(a), the I/O cells with

traditional ESD protection circuits can be operated normally under normal circuit operating condition. Input Voltage (V)

0.0 0.3 0.6 0.9 1 .2 1.5 1.8 2.1 2 .4 2.7 3.0 3.3

Leakage Current (A)

1e-12 1e-11 1e-10 1e-9 1e-8 Traditional Scheme New Proposed Scheme I New Proposed Scheme II

Normal Circuit Operation VDD= 3.3V, VSS=0V

(a) Input Voltage (V)

0.0 0 .3 0.6 0.9 1.2 1.5 1.8 2.1 2 .4 2.7 3.0 3.3

1e-12 1e-11 1e-10 1e- 9 1e- 8 1e- 7 1e- 6 1e- 5 1e- 4 1e- 3 Power-down-mode Operation VDD= 0V, VSS= 0V Power-down-mode Operation VDD= 0V, VSS= 0V (b) Output Voltage (V ) 0.0 0 .3 0.6 0.9 1.2 1.5 1 .8 2.1 2 .4 2.7 3.0 3.3 Leakage Current ( A ) 1e -12 1e -11 1e -10 1e -9 1e -8 1e -7 1e -6 1e -5 1e -4 1e -3 (c) Traditional Scheme New Proposed Scheme I New Proposed Scheme II

Traditional Scheme New Proposed Scheme I New Proposed Scheme II

Fig. 7. Comparison of the measured leakage currents at (a) the input pad under normal circuit operating condition, (b) the input pad under power-down-mode operating condition, and (c) the output pad under power-down-mode operating condition, of the traditional and new proposed ESD protection schemes.

Internal Circuits with ES D Protection

Schemes Input

Pad Output_Pad

0 3.3V CH2 CH1 Osc illoscope Voltage Pulse VDD VSS

Fig. 8. The measurement setup to verify the function of I/O cells with the new proposed ESD protection schemes, or the traditional ESD protection scheme, under normal circuit oper-ating condition and power-down-mode operoper-ating condition.

(7)

However, under the power-down-mode condition, the voltage waveform on the output pad is dropped to a

voltage level of1.4 V, when the input voltage level is

0 V, as that shown inFig. 9(b). It implies that the

inter-nal circuits are triggered by the input voltage waveform under power-down-mode operating condition, although the circuits are expected to be oﬀ. With the wrong volt-age waveform at the I/O pads, the system could be malfunction.

Fig. 10(a) and (b) show the voltage waveforms on the input/output pad of the I/O cells with the new proposed ESD protection scheme I under normal circuit operating condition and power-down-mode operating condition,

respectively. As shown inFig. 10(a), the I/O cells with

the new proposed ESD protection scheme I can be oper-ated normally under normal circuit operating condition. The high voltage level on the output pad is kept at

2.7 V (VDD-Vd, where Vdis the cut-in voltage of the

diode D2). InFig. 10(b), the voltage level on the output

pad is always kept at 0 V under power-down-mode

operating condition. This result has veriﬁed that the internal circuits can be really kept inactive by the new proposed ESD protection scheme I under power-down-mode operating condition. In addition, the mea-sured voltage waveforms on the input/output pad of I/O cells with the proposed ESD protection scheme

II have the same results as those shown in Fig. 10(a)

and (b) under normal circuit operating condition and Fig. 9. The measured voltage waveforms on the input/output

pad of IC with the traditional ESD protection scheme under (a) normal circuit operating condition with VDD = 3.3 V and VSS = 0 V, and (b) power-down-mode operating condition with VDD = ﬂoating and VSS = 0 V. (Y-axis = 1 V/Div., X-axis = 200 ns/Div.)

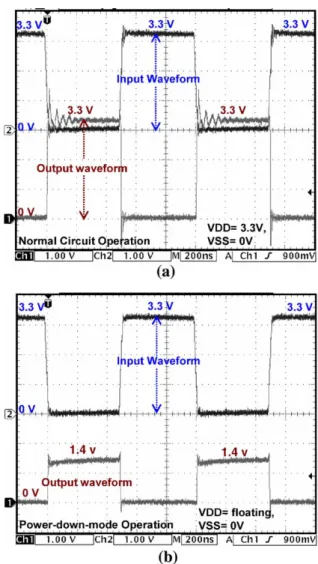

Fig. 10. The measured voltage waveforms on the input/output pad of IC with the proposed ESD protection scheme I under (a) normal circuit operating condition with VDD = 3.3 V and VSS = 0 V, and (b) power-down-mode operating condition with VDD = ﬂoating and VSS = 0 V. (Y-axis = 1 V/Div., X-axis = 200 ns/Div.)

(8)

power-down-mode operating condition, respectively. The experimental results have veriﬁed that the I/O cells with the proposed ESD protection scheme II can be nor-mally operated under normal circuit operating condi-tion, as well as the internal circuits can be really kept inactive under power-down-mode operating condition. 3.3. ESD robustness

The human-body-model (HBM) ESD robustness of I/O pads with the traditional or new proposed ESD pro-tection schemes under diﬀerent pin combinations is

listed in Table 1. The failure criterion is deﬁned as the

leakage current of the circuits after ESD stress is greater than 1 lA under the normal operating voltage of 3.3 V. With the traditional ESD protection scheme, the ESD level of the I/O pads is 5 kV, which is dominated by the I/O pad under the ND-mode ESD stress or positive VDD-to-VSS ESD stress. However, with the new pro-posed ESD protection schemes I and II, the ESD level of the I/O pads is 7.5 kV, which is dominated by the I/O pad under the PS-mode or PD-mode ESD stress. The ESD level of I/O pad under the ND-mode ESD stress or VDD-to-VSS ESD stress is improved by the ex-tra ESD current path in the new proposed ESD protec-tion scheme, which is discharged through the diode D1 and power-rail ESD clamp circuit between the VDD_ESD bus line and VSS power line. As a result, ESD level of the whole chip can be eﬃciently improved by the new proposed ESD protection schemes for IC with power-down-mode operation.

3.4. Output-swing improvement circuit

Although the output signal of the new proposed ESD protection scheme was not pulled up to full-VDD volt-age swing during normal circuit operating condition, it can be further improved with additional output-swing improvement circuit. This circuit block connecting be-tween the VDD power line and VDD_ESD bus line in

the ESD protection scheme I is shown in Fig. 11(a).

The circuit diagram of output-swing improvement

cir-cuit is shown inFig. 11(b). In this circuit, Mp1 is used

as a pull-up device to achieve the full-VDD voltage swing of output signal. During normal circuit operating condition, Mp1 is always turned on. Thus, the output signal can be pulled up to VDD by the turn-on of Mp_out controlled by the pre-driver circuits. Therefore, the device size of Mp1 is determined by the driving cur-rent of the output cell in a CMOS IC. During power-down-mode operating condition, Mp1 is turned oﬀ to avoid the leakage current path from the output pad to VDD. The Mn1 and Mp2 in this circuit are used to con-trol the gate of Mp1 during normal circuit operating Table 1

HBM ESD robustness of the traditional ESD protection scheme and the new proposed ESD protection schemes

ESD protection scheme HBM ESD stress

PS-mode VSS(+), kV NS-mode VSS( ), kV PD-mode VSS(+), kV ND-mode VSS( ), kV VDD-to-VSS(+), kV VDD-to-VSS( ), kV

Traditional scheme (input pin) 7.5 >8 >8 5 5 >8

Traditional scheme (output pin) 7.5 >8 >8 5

New proposed scheme I (input Pin) 7.5 >8 7.5 >8 >8 >8

New proposed scheme I (output pin) 7.75 >8 7.75 >8

New proposed scheme II (input pin) 7.75 >8 7.75 >8 >8 >8

New proposed scheme II (output pin) 7.5 >8 >8 >8

Internal Circuits Internal

Circuits

Power-Rail

O/P VDD_ESD Mp_in Mp_out Mn_in Mn_out I/P R Power-Rail

Output_S wing Improv em en t Circuit VDD VSS D1 D2 D3 (a) Mp1 Mp2 Mn1 VDD_ESD VDD VSS (b)

Fig. 11. (a) The output-swing improvement circuit connecting between the VDD power line and VDD_ESD bus line in the ESD protection scheme I. (b) The circuit diagram of output-swing improvement circuit.

(9)

condition and power-down-mode operating condition, respectively. The gates of Mn1 and Mp2 are connected to the VDD power line. Therefore, Mp2 is turned oﬀ, and Mn1 is turned on to keep the gate voltage of Mp1

at0 V under normal circuit operating condition. With

the turn-on of Mp1, the output signal can be pulled up to full-VDD voltage swing under normal circuit operat-ing condition. Under power-down-mode operatoperat-ing con-dition with the bias concon-dition of 0-V VDD, Mn1 is turned off, and Mp2 is turned on to keep the Mp1 off. The bodies (n-well) of Mp1 and Mp2 are connected to the VDD_ESD bus line to avoid the leakage path of the parasitic diode under power-down-mode operat-ing condition. Therefore, no extra leakage current will be induced under the power-down-mode operating con-dition. This output-swing improvement circuit has been fabrication with the new proposed ESD protection scheme in a 0.35-lm CMOS process to verify its effectiveness.

The leakage currents at I/O pads of new proposed ESD protection scheme I with output-swing improve-ment circuit under normal circuit operating condition and power-down-mode operating condition are

mea-sured inFig. 12. From the measured results, no extra

leakage current is induced by adding output-swing improvement circuit in the new proposed ESD protec-tion scheme under both normal circuit operating condi-tion and power-down-mode operating condicondi-tion.

Fig. 13(a) and (b) show the voltage waveforms on the input/output pad of the new proposed ESD protection scheme with the output-swing improvement circuit under normal circuit operating condition and power-down-mode operating condition, respectively. As shown inFig. 13(a), the output signal has been really pulled up to full-VDD voltage swing under normal circuit

operat-ing condition, when the input voltage level is 0 V. InFig.

13(b), the internal circuits can be really kept oﬀ under

power-down-mode operating condition. Therefore, the output signal of the proposed ESD protection scheme can be pulled up to VDD by the output-swing improve-ment circuit under normal circuit operating condition, without increasing any leakage current.

4. Conclusion

Two modiﬁed ESD protection schemes without leak-age current path for CMOS IC operating in power-down-mode condition has been successfully designed and veriﬁed in a 0.35-lm silicided CMOS process.

Voltage (V)

0.0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.3

1e-12 1e-11 1e-10 1e-9 1e-8 1e-7 1e-6 Input Pad Normal Circuit Operation

(VDD=3.3V, VSS=0V) Input Pad Output Pad Power-down-mode Operation (VDD=0V, VSS=0V) Power-down-mode Operation (VDD=0V, VSS=0V)

Fig. 12. The measured leakage currents at I/O pads of new proposed ESD protection scheme I with the output-swing improvement circuit under normal circuit operating condition and power-down-mode operating condition.

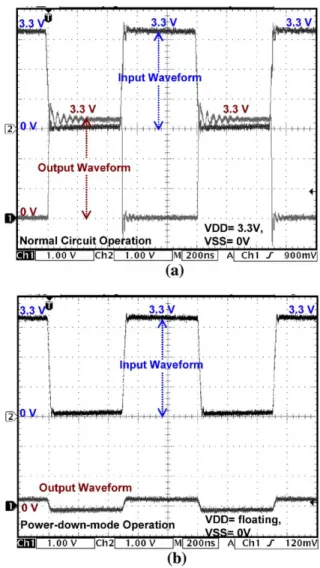

Fig. 13. The measured voltage waveforms on the input/output pad of the proposed ESD protection scheme I with output-swing improvement circuit under (a) normal circuit operating condition with VDD = 3.3 V and VSS = 0 V, and (b) power-down-mode operating condition with VDD = ﬂoating and VSS = 0 V. (Y-axis = 1 V/Div., X-axis = 200 ns/Div.)

(10)

Under the normal circuit operating condition, the I/O cells with the new modified ESD protection schemes can be operated normally. Under the power-down-mode operating condition, the new modified ESD protection schemes can provide the I/O pad without leakage path, and avoid triggering the internal circuits those should be ‘‘off’’. High ESD robustness has been practically achieved in the testchip with these two new modified ESD protection schemes to sustain HBM ESD stress of up to 7.5 kV in a 0.35-lm silicided CMOS process. Furthermore, the output signal of the new modified ESD protection schemes can be successfully pulled up to VDD again by the output-swing improvement circuit under normal circuit operating condition.

Acknowledgment

This work was supported by ESD and Product Engi-neering Department, SOC Technology Center, Indus-trial Technology Research Institute, Hsinchu, Taiwan.

References

[1] Dabral S, Maloney T. Basic ESD and I/O design. New York: Wiley; 1998.

[2] Shigematsu S, Mutoh S, Matsuya Y, Tanabe Y, Yamada J. A 1-V high-speed MTCMOS circuit scheme for power-down application circuits. IEEE J Solid-State Circ 1997;32: 861–9.

[3] Electrostatic discharge sensitivity testing—human body model (HBM)—component level. ESD Association Stan-dard. Test Method ESD STM5.1; 1998.

[4] Duvvury C, Rountree R, Adams O. Internal chip ESD phenomena beyond the protection circuit. IEEE Trans Electron Dev 1988;35:2133–9.

[5] Johnson C, Maloney TJ, Qawami S. Two unusual HBM ESD failure mechanisms on a mature CMOS process. In: Proceedings of the EOS/ESD symposium; 1993. p. 225– 31.

[6] Puvvada V, Duvvury C. A simulation study of HBM failure in an internal clock buﬀer and the design issue for eﬃcient power pin protection strategy. In: Proceedings of the EOS/ESD symposium; 1998. p. 104–10.

[7] Ker M-D. Whole-chip ESD protection design with eﬃcient VDD-to-VSS ESD clamp circuits for submicron CMOS VLSI. IEEE Trans Electron Dev 1999;46:173–83. [8] Bessolo JM, Krieger G. ESD protection circuit and

method for power-down application. US patent no. 5,229,635; 1993.

[9] Lin J, Duvvury C, Haroun B, Oguzman I, Somayaji A. A fail-safe ESD protection circuit with 230 fF linear capac-itance for high-speed/high-precision 0.18 lm CMOS I/O application. Techn Digest IEDM 2002:349–52.

[10] Ker M-D, Lin K-H. Design on ESD protection scheme for IC with power-down-mode operation. IEEE J Solid-State Circ 2004;39:1378–82.

[11] Ker M-D, Lin K-H. ESD protection design for IC with power-down-mode operation. In: Proceedings of the IEEE international symposium on circuits and systems; 2004. p. 717–20.

[12] Pelgrom MJM, Dijkmans EC. A 3/5 V compatible I/O buﬀer. IEEE J Solid-State Circ 1995;30:823–5.

[13] Ker M-D. Area-eﬃcient VDD-to-VSS ESD clamp circuit by using substrate-triggering ﬁeld-oxide device (STFOD) for whole-chip ESD protection. In: Proceedings of the international symposium on VLSI technology, systems, and applications; 1997. p. 69–73.

[14] Ker M-D. Area-eﬃcient VDD-to-VSS ESD protection circuit. US patent no. 5,744,842; 1998.
