Resource allocation in network processors for network intrusion prevention systems

(1)

Resource allocation in network processors for network

intrusion prevention systems

Yi-Neng Lin

a,*

, Yao-Chung Chang

a

, Ying-Dar Lin

a

, Yuan-Chen Lai

b

a_{Department of Computer Science, National Chiao Tung University, Hsinchu, Taiwan}

b_{Department of Information Management, National Taiwan University of Science and Technology, Taipei, Taiwan}

Received 29 May 2006; received in revised form 14 December 2006; accepted 3 January 2007 Available online 6 February 2007

Abstract

Networking applications with high memory access overhead gradually exploit network processors that feature multiple hardware multithreaded processor cores along with a versatile memory hierarchy. Given rich hardware resources, however, the performance depends on whether those resources are properly allocated. In this work, we develop an NIPS (Network Intrusion Prevention System) edge gateway over the Intel IXP2400 by characterizing/mapping the processing stages onto hardware components. The impact and strat-egy of resource allocation are also investigated through internal and external benchmarks. Important conclusions include: (1) the system throughput is influenced mostly by the total number of threads, namely I· J, where I and J represent the numbers of processors and threads per processor, respectively, as long as the processors are not fully utilized, (2) given an application, algorithm and hardware spec-ification, an appropriate (I, J) for packet inspection can be derived and (3) the effectiveness of multiple memory banks for tackling the SRAM bottleneck is affected considerably by the algorithms adopted.

Keywords: Network intrusion and detection system; Network processor; Resource allocation; Benchmark; Bottleneck

1. Introduction

Networking applications offering security and content-aware processing demand powerful hardware platforms to achieve a high performance. General-purpose processors are often adopted for memory-access-intensive applications such as network intrusion detection systems (NIDS) (Roesh, 2006), which accumulate data and analyze traffic to identify possible security breaches. However, such pro-cessors have a high cost and poor throughput owing to that the processor utilization is low, because of the heavy mem-ory access overhead. Conversely, the application-specific integrated circuits (ASICs) (John and Smith, 1997) can sat-isfy the performance requirement with a circuitry designed for strict guarantees on memory access latency using

pipe-lined architecture and embedded memory. Nevertheless, the lack of re-programmability reduces the appeal of ASICs. Network processors (Lekkas, 2003; Lin et al., 2003) are emerging as an alternative means of resolving the above problems for their multithreaded multiprocessor architec-ture and the ﬂexibility. Multiple processors allow simulta-neous data-plane processing of multiple packets on a cluster of processors. Moreover, the hardware threads with a miniaturized context switch overhead can conceal the memory access latency (Shah and Keutzer, 2002) and there-fore increase the throughput. The re-programmability makes functional adaptations much easier in a network pro-cessor than in an ASIC, which must need to be re-designed. Despite rich hardware resources of network processors such as processors, threads and memories, the allocation of components that further inﬂuence their utilizations needs to be carefully planned. For memory-access inten-sive-applications, Bos and Huang (Bos and Huang, 2004)

*

Corresponding author. Tel.: +886 988 211430. E-mail address:ynlin@cs.nctu.edu.tw(Y.-N. Lin).

(2)

have implemented an NIPS on an Intel IXP1200. The pro-totype comprises only the receiver and packet processing using the Aho–Corasick (Aho and Corasick, 1975) algorithm, but does not support multiple ﬂows or inspec-tions of pattern stretching for more than two packets.

Clark (2004) designed a network intrusion detection pre-vention system (NIPS) that incorporates an IXP1200 for header processing and an ﬁeld programmable gate array (FPGA) as the signature-matching engine. The bottleneck is the bus connecting them. Kang et al. (2006) further exploited the high-end IXP2800 and TCAMs to achieve a multi-gigabit NIPS for a core network. Nevertheless, these studies do not thoroughly consider the resource allocation strategies and, therefore, could lead to low component utilization.

This work implements an NIPS edge gateway, which is more frequently adopted than the core device, over an Intel IXP2400 (Intel, 2004) processor, which has a similar archi-tecture to most network processors. The system detects, rather than prevents, the attacks by sniffing flows through an IP/port sockets, and writes the results into a log file. The system includes two signature-matching algorithms, Aho– Corasick and Wu–Manber (Wu and Manber, 1994), due to their popularity in many security-related implementa-tions, such as Snort. Several software components, called the processing stages (Adiletta, 2002) are characterized, in which a tentative processor/thread allocation is applied. After implementation, both external and internal bench-marks are then performed to address the issues considered below:

• Effect of improper ME/Thread allocations on system per-formance: Two factors affect the performance of an application, i.e., the computing power and the memory access latency. The first is determined by the number of processors in use, given by I, while the impact of the second can be alleviated by adjusting the total num-ber of threads in use, given by I· J (Lakshmanamurthy, 2002), where J denotes the number of threads per pro-cessor. Since the total number of processors is fixed in the hardware platform, the effect of an allocation

(I, J), especially an improper one, on the system perfor-mance is of priority concern.

• Derivation of an appropriate I and J: An appropriate (I, J) combination should be calculated, given a certain application and hardware spec such as clock rate and memory service rate, and regardless of the limit on the number of MEs and number of threads per ME in the platform.

• Effectiveness of employing multiple memory banks: Multi-ple memory banks reduce the average memory access latency by alleviating the queuing effect. Nonetheless, the effectiveness of doing so is not clarified.

This article is organized as follows. Section2describes the hardware architectures of IXP2400. Section 3 brieﬂy describes the two matching algorithms, and elaborates the design and implementation of the proposed system. Section4presents the results and observations from exter-nal and interexter-nal benchmarks. Conclusions are drawn in Section5.

2. Hardware architecture of IXP2400

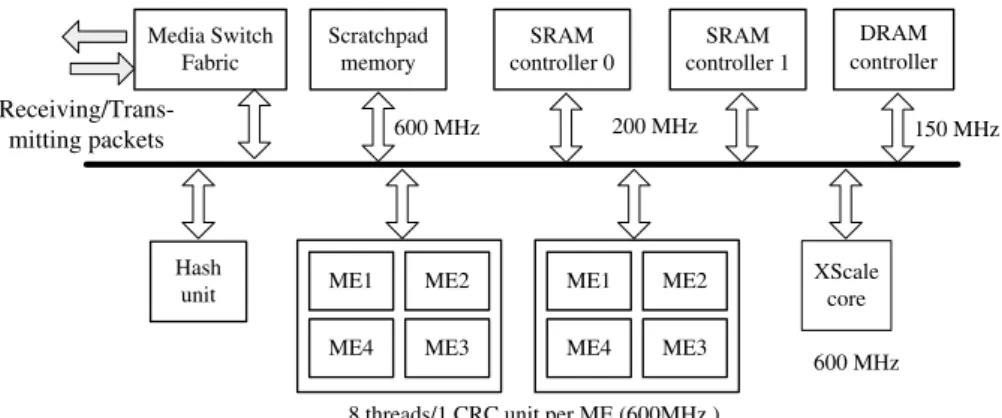

As shown inFig. 1, the IXP2400 comprises several com-ponents, categorized as follows.

2.1. Multithreaded multiprocessor architecture

The IXP2400 features nine programmable processors, which are one Intel XScale core and eight microengines (MEs), operating at 600 MHz. The Intel XScale core is responsible for housekeeping functions such as table initial-ization and exception handling for control-plane packets, which contain control messages such as ‘‘ICMP unreach-able’’. Data-plane processing, which performs the actual manipulation such as checksum calculation, encryption/ decryption and forwarding, and which accounts for the largest part in packet processing, is implemented on MEs. Every ME has eight hardware threads, each with its own register set and program counter to support fast context switching when memory accesses occur.

200 MHz 150 MHz

8 threads/1 CRC unit per ME (600MHz )

600 MHz 600 MHz XScale core DRAM controller SRAM controller 1 SRAM controller 0 Scratchpad memory Media Switch Fabric Hash unit Receiving/Trans-mitting packets ME1 ME2 ME4 ME3 ME1 ME2 ME4 ME3

(3)

2.2. Hierarchical memory structure

To ease the memory access overhead, IXP2400 exploits four memories, DRAM, SRAM, scratchpad, and local memory in an ME, given tradeoﬀs between size and latency. IXP2400 has one channel of Double Data Rate (DDR) memory running at 150 MHz. The channel can support up to 2 GB of DRAM, yielding enough capacity for storing packets received by MEs directly from receive buﬀer (RBUF) at the Media Fabric Switch (MSF). Two channels of Quad Data Rate (QDR) SRAM running at 200 MHz are also provided, and each channel can hold up to 16 MB of data. The SRAM primary accommodates packet descriptors for locating packets in DRAM, queue descriptors and other frequently employed data structures, such as routing tables and matching signatures. The on-chip 16 KB scratchpad memory, i.e., a memory array with the decoding and the column circuitry logic, consumes less power than ordinary cache memories, operates in the form of rings and provides a similar capability to SRAM. Mean-while, the 2560-word local memory functions as the data cache.

2.3. Detailed packet ﬂow in IXP2400

Fig. 1 illustrates the processing flow of an ordinary packet. The MSF of an IXP2400 partitions an arriving packet into several smaller chunks called mpackets, which can be configured to 64, 128, and 256 bytes in size for easy manipulation and, then, places them into the RBUF. The threads of the MEs dedicated for receiving subsequently perform the reassembly of mpackets, and move the result-ing packets directly from the RBUF into DRAM, in which the MEs and XScale core carry out further operations. The exceptions and housekeeping are handled by the XScale core through the interrupt and message queue mechanisms during processing at the MEs. Finally, the transmission process is simply the reverse of the reception process, namely the packet is segmented into several mpackets by the threads dedicated for packet transmission and, then, placed into the transmit buffer (TBUF).

3. Design and implementation 3.1. Adopted algorithms

Packet inspection, i.e., the detection phase, is a criti-cal stage that aﬀects the performance of an NIPS. This study employs two conventionally adopted algorithms, Aho–Corasick (A–C) and Wu–Manber (W–M), owing to their popularity in many applications such as Snort, and are easily implemented. The A–C exploits a pre-computed ﬁnite automation stored as the goto table, and accepts all the strings in the pattern set. Each character is then sequen-tially fed to the automation, which tracks parsequen-tially matched patterns through state transition. The W–M reads a block of characters, rather than one character at a time, and

looks up the pre-calculated hash and shift tables to calcu-late the shift distance. The signatures transformed into an automation or shift table are stored in SRAM for fast retrieval. To support statefull inspection, the ﬁnal state is recorded immediately after a packet is processed for later scrutiny of the succeeding packet in the same ﬂow. Simi-larly, the shift distance for W–M, is kept so that patterns across multiple packets can be inspected.

3.2. Mapping processing stages to the hardware platform

Fig. 2a shows the processing stages, namely the receiver, ﬂow classiﬁer, thread dispatcher, packet inspector and transmitter, of an NIPS, as well as the task and resource allocation for IXP2400. Upon receiving a packet from an input port, the payload is moved from RBUF to DRAM. Additionally, the corresponding packet descriptor is stored in SRAM. Moreover, a duplicate descriptor is passed onto the next stage via the receiving scratch ring.

The flow classifier subsequently retrieves a packet descriptor for flow classification. The descriptor operates as follows. First, the IP and port pairs in the packet are used to compute a hash key for indexing in the hash table in SRAM to verify whether the flow to which the packet belongs exists. Since this task requires a high computa-tional power, a hash unit is adopted to offload the over-head. If a hash hit occurs, then the hash entry pointing to a flow context in SRAM is referred to enqueue the packet descriptor for inspection. Otherwise, an entry for the new flow is created in the hash table. The dispatcher thread then chooses a flow queue and, then, dispatches a free inspector thread to handle the first packet in the queue. A message is delivered to the XScale through the XScale scratch ring to signal an alert when a packet payload is matched against a pattern. Otherwise, the transmitter thread examines the transmitting scratch ring to determine whether an inspected packet is waiting to be sent. If yes, then the thread fetches the packet descriptor in SRAM, and transmits the entire packet in DRAM to TBUF for output.

The proposed implementation tentatively allocates MEs and threads based on the processing stages and the bench-mark results of Snort, which argue that at least 31% of the total processing time is consumed by the inspection phase (Fisk and Varghese, 2001). Therefore, each processing stage is allocated one ME except the packet inspector, which is given four MEs. Hence, 32 threads are available for later adjustment. For thread allocation in the receiver, eight threads are evenly divided into four groups corre-sponding to four gigabit ports. Every port is served by two ordered threads (Johnson and Kunze, 2003), a mecha-nism requiring threads to execute the functions of a pro-cessing stage in order to keep the packet ordering. A thread is signaled only after its predecessor ﬁnishes those functions. In the transmitter, eight ordered threads are assigned to one four-gigabit port. This study employs eight ordered threads in both the classiﬁer and dispatcher stages

(4)

for the following two reasons: (1) classifying packets could take significantly different amounts of time due to hash col-lisions, and could therefore lead to out-of-order packets, and (2) serving flow queues with multiple dispatcher threads requires mutual exclusion on the counter, which records the index of the queue being served.

3.3. Thread dispatcher and packet inspector

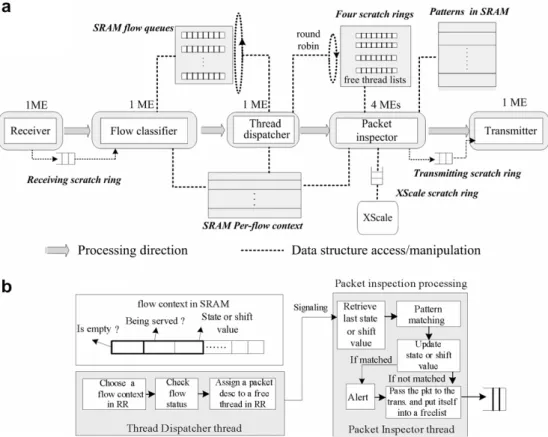

Fig. 2b illustrates the detailed interaction between the thread dispatcher and the packet inspector. As mentioned in Section4.2, a flow queue is selected, and the first packet descriptor in that flow is passed to an inspector thread cho-sen from the free thread lists of the four MEs. This process involves some operations. First, two flags, isEmpty and beingServed, of a flow context are checked in each round. The first flag indicates whether the corresponding flow is empty, while the second indicates whether that flow is being served by a thread. If the flow is not empty (isEmpty = 0) and not being served (beingServed = 0), then a packet descriptor is assigned to an inspector thread, and the beingServed flag is consequently set to 1. This ensures that a flow is served by only one inspector thread at a time, thus preventing the state (for A–C) or shift distance (for W–M) of the flow from being altered by other threads. The inspector thread then examines a packet payload against the patterns in SRAM, and updates the state or shift distance in the flow context accordingly. If no pattern is matched, the packet is passed to the transmitter thread to

be sent out; otherwise the XScale is notified of a match. Finally, the packet inspector thread places itself into the free thread list, waiting for the next signal from the dis-patcher. The four free thread lists implemented by the four scratch rings correspond to the four MEs. The inspector threads are dispatched from the MEs for load balancing. To prevent the system resource from being exhausted by excess idle flows, a timeout counter maintained by the XScale is associated with each flow. The flow queue as well as the flow context and hash entry is removed once the counter times up.

Further support for TCP stream reassembly is yet to be implemented in the receiver stage. Local memory could be exploited to store the sequence numbers of out-of-order packets temporarily held in the SDRAM. The ME com-pares the sequence number of a newly arriving data packet against the local memory entries to determine whether it plugs any of the sequence holes. If all holes are ﬁlled up, then those packets are enqueued to the corresponding ﬂow queue in SRAM.

4. Performance benchmark and bottleneck analysis

This section assesses the performance of the system by externally and internally benchmarking the system imple-mented using two string-matching algorithms. The appro-priate (I, J) for the critical packet inspection stage was explored to ensure that both MEs and SRAM memory were well utilized. Additionally, the feasibility of exploiting

Fig. 2. The (a) processing stages and (b) interaction between the thread dispatcher and packet inspector. Notably all eight threads are active in an ME, though only one of them is actually processing packets.

(5)

multiple memory banks for load balance is discussed since the memory access overhead accounts for a considerable portion of the packet processing.

4.1. Benchmark setup

The clock of the ME in our experiment was 600 MHz. The input interface of the MSF was divided into four giga-bit ports, while the output interface was a four-gigagiga-bit port. Four data streams of 64-byte TCP/IP packets with ran-domly generated payload were injected. All simulations lasted for 50 000 packets.

With 2475 patterns used in the current Snort, 2000 ran-dom patterns were applied, with characters generated uni-formly according to the guidelines discovered in (Antonatos et al., 2004). The length of shortest pattern (LSP), which is known to be a major factor on the perfor-mance of string matching algorithms such as W–M, was set to 4 characters (Liu et al., 2004).

4.2. Eﬀect of improper ME/thread allocations on system performance

Improper ME/thread allocations can yield a poor per-formance. To investigate the effect of such allocations on the system, the performances of A–C and W–M were com-pared, in terms of utilization, for different (I, J) combina-tions. As revealed in Fig. 3, I and J can be configured, while the total number of threads, I· J, is fixed at 12. Some observations are made. First, the throughput, i.e., the link utilization, was influenced mostly by I· J, rather than I,

since it remains unchanged for different (I, J) combinations. This finding suggests that additional threads are needed to advance the memory utilization and the throughput. Sec-ond, the average ME utilization degraded with rising I, because the same traffic load was balanced by extra MEs. Third, the throughput of W–M was only one-fourth of that of A–C owing to the relatively high processing overhead of W–M, as illustrated inFig. 4.

Fig. 4 proﬁles the total computational cycles, denoted by P, and the memory access cycles, represented by M, required by A–C and W–M to handle a 64-byte packet. The ﬁgure indicates that the sum of P and M in W–M is approximately 4 times of that in A–C. This explains the rel-atively low throughput of W–M. Moreover, the memory access overhead dominates the processing time of a packet, namely 94% ( 34920

2309þ34920ﬃ 94% when # of patterns = 500) for

A–C and 98% ( 137340

6763þ137340ﬃ 98% likewise) for W–M.

Fortu-nately, this imbalance is handled through multithreading, which narrows the diﬀerence in utilization of MEs and memory.

4.3. Estimating an appropriate (I, J) pair through bottleneck analysis

Fig. 5depicts the performance of the two implementa-tions by increasing the number of MEs and thus the total number of threads. Some observations can be made. First, the system can scale up to 670 Mbps when implemented using the A–C and 133 Mbps using the W–M. The throughput of A–C is better due to the low computational and memory access overhead. Second, the ME utilizations

Fig. 3. Performance of: (a) A–C and (b) W–M for diﬀerent (I, J) combinations. Total number of threads is ﬁxed at 12.

(6)

of both implementations are far from fully utilized with 1–4 MEs, implying that the number of threads per ME is too small to utilize the MEs eﬀectively. Third, the throughputs in both implementations will increase in direct proportion to I· J. Nevertheless, the throughput rises slightly as I increases to 6 for A–C and to 5 for W–M, because the memory is almost fully utilized, and is therefore the bottle-neck. Fourth, the average ME utilization degrades as I increments and the memory utilization approaches 90%, since the load that stops increasing due to the memory bot-tleneck is diluted by the rising I.

A combination of (I, J) that enables both MEs and memory to be effectively utilized can be further estimated through the bottleneck analysis.Fig. 5 demonstrates that increasing I, and therefore increasing the total number of threads slightly improves the performance when memory utilization is above 90%. For instance, the improvement of memory utilization from incorporating the sixth proces-sor is merely 95.6 91.8 3.8% and 93.5 91.9 1.6% for A–C and W–M, respectively. Hence, the appropriate upperbound, k, 5· 8 = 40 threads should be in both algo-rithms if the memory is to be utilized effectively. Nonethe-less, the ME utilization is low when I = 5, meaning that the computing power is unnecessarily high and should be fur-ther reduced. This problem is fixed by employing four MEs, rather than five, so that the average utilization of MEs becomes 69:9%5

4 ﬃ 87:4% (since 69:9%5

3 ﬃ 116:5% >

100%), and J is thus estimated as40

4 ¼ 10. Similarly, a

com-bination of (3, 13) can be derived for W–M. The derivation can thus be generalized as follows:

APPR-I_J(n = 1,J0_{)//n: number of processors used, J}0_:

threads per processor in the platform while(true)

if m_util(n,J0_)!_{ﬃ 100%}

n++;

elsif m_util(n,J0₎_{ﬃ 100% and p_util(n,J}0₎_{ﬃ 100%}

return(n,J0_);

else //m_util(n,J0₎_{ﬃ 100% and p_util(n,J}0_)!_{ﬃ 100%;}

k = n· J0_;

return i0;k i0

, where i0_{< n} _and p utilðn;J0_Þn

i0 is smaller

and closest to100%.

Empirically, x_util(n,J0₎_{ﬃ 100% means that x_util}

(n,J0_{) > 90%.}

4.4. Eﬀectiveness of multiple memory banks

One solution to the memory bottleneck is to add more memory banks. To evaluate the benefit of this approach, the signatures were stored in two SRAM banks.Table 1a indicates that very limited improvement can be gained for A–C due to the difficulty of splitting the goto table evenly into different memory banks. Conversely, W–M benefits substantially (by about 43.7%) from having two banks as presented inTable 1b, because of the use of two tables that simplifies the distribution of data.

5. Conclusions and future work

This study investigates the resource allocation methodol-ogies of network processors by implementing and evaluating a memory access intensive application, the network intru-sion prevention system. The hardware platform, IXP2400 is introduced, and the necessary software processing stages to be mapped to the platform are identiﬁed. Among these processing stages, the packet inspection is implemented with

Fig. 5. The performance of A–C and W–M with diﬀerent numbers of MEs (eight threads per ME).

Table 1

Performance of (a) A–C and (b) W–M with one and two memory banks, respectively. (I, J) = (6, 8)

One memory bank Two memory banks (a) ME util. (%) 61.1 63.2 MEM util. (%) 95.6 95.2, 1.8 Throughput (Mbps) 670.6 674.4 (b) ME util. (%) 44.0 63.2 MEM util. (%) 93.5 70.0, 57.2 Throughput (Mbps) 133.2 191.4

(7)

the Aho–Corasick and Wu–Manber algorithms. External and internal benchmarks are then undertaken to examine the eﬀect of resource allocation and the possible bottlenecks. The observations should be applicable to other network pro-cessors because of similar components and architectures.

Benchmark results show that the system can scale up to 670 Mbps using Aho–Corasick and 133 Mbps using Wu–Manber. The throughput is inﬂuenced mostly by the total number of threads while the ME utilizations are not fully utilized. SRAM is then found to be the bottleneck, since I· J exceeds the upper bound k of appropriate mem-ory usage. The upper bound can be further adopted to esti-mate an appropriate (I, J) combination for both algorithms. An appropriate (I, J) can always be derived when given an application, algorithm and hardware speci-ﬁcations, such as the memory service time and processor clock rate.

Two work arounds are proposed to solve the SRAM bottleneck. The ﬁrst is to employ multiple memory banks, which yields a 43.7% improvement in Wu–Manber, since the signature can easy be evenly distributed among the banks. The other is to apply a multi-port memory that enables simultaneous memory accesses. The proposed approach appears to be particularly helpful to algorithms, such as Aho–Corasick, that have data structures that are diﬃcult to split uniformly among banks.

Two issues will be investigated in the future. First, although synthesized traﬃc is acceptable given the level of error (Antonatos et al., 2004), real traces are preferable. Another issue is to consider the allocation strategy for computational-intensive applications.
