(1)國立交通大學工業工程與管理學系碩士班. 碩士論文. 對稱與非對稱規格製程準確性之估計與檢定 Estimating and Testing Process Accuracy with Extension to Asymmetric Tolerances. 研究生：戴億昌指導教授：彭文理博士. 中華民國九十四年六月.

(2) 對稱與非對稱規格製程準確性之估計與檢定 Estimating and Testing Process Accuracy with Extension to Asymmetric Tolerances 研究生：戴億昌. Student：Yi-Chang Tai. 指導教授：彭文理博士. Advisor：Dr. Wen-Lea Pearn. 國立交通大學工業工程與管理學系碩士班碩士論文. A Thesis Submitted to Department of Industrial Engineering and Management College of Management National Chiao Tung University in partial Fulfillment of the Requirements for the Degree of Master in Industrial Engineering June 2005 Hsinchu, Taiwan, Republic of China. 中華民國九十四年六月. ii.

(3) 誌謝感謝彭文理老師與鍾淑馨老師這兩年的教導，最感謝彭老師的諄諄教誨，不只是論文上的指導外，對於人生的方向與待人處世上，都讓我有非常深的感受。從一個只知貪玩的混學生，變成知道要如何去面對問題與處困難題的學生。每次在課堂中，老師都會不厭其煩的針對我上台報告的內容提出質詢，把我定在講台上，這樣的感受，不是每個老師都願意提供，碩二的上下學期課堂中與論文的兩次口試，我都完完整整地感受到老師深深教誨。除了感謝老師之外，我還要感謝 MB519 裡的生命共同體：國基、運達與庚鑫和俊穎學長，陪我走過這苦悶的兩年。我們彼此照應，除了偷偷打〝明星三缺一〞的紓解壓力外，日常生活上的打屁，讓我在苦惱寫論文的日子中，得到一點舒緩壓力的時光，感謝生命共同體的每個人，沒有你們，交大的回憶就沒有那麼深。還有要感謝〝一張嘴〞的 MB002 同學，想喝咖啡就找宜穆、想吵嘴就找金門王。AppleCenter 的師傅與同事，雖然只有想處兩個月，但社會的歷練卻很多。還有最重要的人要感謝—我的爸媽與姐姐，在煩躁的日子中，你們陪者我一起承受一切壓力，默默在背後支持我；當彼此有不同的想法，你們認同我的做法，你們陪我走過叛逆與不成熟思想的每一天，沒有你們的關愛與肯定，就沒有現在的我，感謝你們，給我的一切關愛與照顧。謹將此篇論文與榮耀給我親愛的家人與朋友.

(4) 對稱與非對稱規格製程準確性之估計與檢定研究生：戴億昌. 指導教授：彭文理博士. 國立交通大學工業工程與管理學系碩士班. 摘要 Pearn (1998)提出製程準確性指標 Ca 來衡量製程的集中程度(群集於中心之能力)。在本篇論文中，我們根據估計量 Cˆ a 之明確累積分配函數 (CDF)推導 Cˆ a 估計量之統計特性。藉由臨界值、P 值和最低信賴區間值之計算，我們發展出檢測製程準確性之方法。除此之外，為了使工廠製程量測員更容易量測產品之製程準確性，我們進一步將衡量製程準確性指標 Ca 推廣到非對稱規格之製程，並找出非對稱規格製程準確性指標的估計值 Cˆ a′′ 。工廠製程量測員根據附錄裡的製程指標表格，就能快速地作出可信賴的決策與評估產品的製程品質是否需要馬上改善。在論文的最後，我們用三個實際例子來說明如何估計與檢定製程準確性。. 關鍵字：非對稱規格、臨界值、製程準確性、製程集中度. i.

(5) Estimating and Testing Process Accuracy with Extension to Asymmetric Tolerances Student：Yi-Chang Tai. Advisor：Dr. Wen-Lea Pearn. Department of Industrial Engineering and Management National Chiao Tung University. Abstract Pearn et al. (1998) introduced the process accuracy index Ca to measure the degree of process centering (the ability to cluster around the center). In this paper, we derive an explicit form for the cumulative distribution function of the estimator Cˆ a . Subsequently, the distributional and inferential properties of the estimated process accuracy index Ca are provided. Calculations of the critical values, p-values, and lower confidence bounds are developed for testing process accuracy. Further, a generalization of Ca for cases with asymmetric tolerances is proposed to measure the process accuracy. The distributional properties of the corresponding natural estimator are investigated. Based on the results practitioners can easily perform the process accuracy testing, and make reliable decisions on whether actions should be taken to improve the process quality. Three application examples are given to illustrate how we test process accuracy using the actual data collected from the factory.. Keywords: Asymmetric tolerances; Critical value; Process accuracy; Process centering.. ii.

(6) Contents 摘要.................................................................................................................................... i. Abstract ............................................................................................................................. ii Contents ........................................................................................................................... iii List of Table ..................................................................................................................... iv List of Figure.................................................................................................................... vi Notations ......................................................................................................................... vii 1. Introduction................................................................................................................... 1 2. Estimation of Process Capability Accuracy Index Ca for Single Sample .................... 3 3. Estimation of Process Accuracy index Ca for Asymmetric Tolerances........................ 8 4. Decision Making Rule ................................................................................................ 13 5. Illustrative Examples .................................................................................................. 15 5.1 Example I of Testing Plastic Process for Precision............................................. 15 5.2 Example II of Testing the Laser Marking on IC Packages ................................. 16 5.3 Example III of Testing the Length of Steel Meter Sticks.................................... 17 6. Conclusions................................................................................................................. 19 References....................................................................................................................... 20 Appendix......................................................................................................................... 23. iii.

(7) List of Table Table 1. Ca values and ranges of µ ............................................................................... 2 Table 2. The sample data of the steel meter sticks deviation from target measure........ 18 Table 3 The values of Ca′′ , B Cˆ a′′ and MSE Cˆ a′′ for b = 2, ξ = -1.0(0.5)1.0,....... 23 Table 4. The values of Ca′′ , B Cˆ a′′ and MSE Cˆ a′′ for b = 3, ξ = -1.0(0.5)1.0,...... 23 Table 5. The values of Ca′′ , B Cˆ a′′ and MSE Cˆ a′′ for b = 4, ξ = -1.0(0.5)1.0,...... 23 Table 6. The values of Ca′′ , B Cˆ a′′ and MSE Cˆ a′′ for b = 5, ξ = -1.0(0.5)1.0,...... 24 Table 7. Lower confidence bounds CaL of Cˆ a = 0.75 for various parameter values, with α = 0.05, ξ = 1.0:0.1:2.0, and n = 10:10:100. ............................................. 25 Table 8. Lower confidence bounds CaL of Cˆ a = 0.75 for various parameter values, with α = 0.01, ξ = 1.0:0.1:2.0, and n = 10:10:100. ............................................. 25 Table 9. Lower confidence bounds CaL of Cˆ a = 0.50 for various parameter values, with α = 0.05, ξ = 2.0:0.1:3.0, and n = 10:10:100. ............................................. 26 Table 10. Lower confidence bounds CaL of Cˆ a = 0.50 for various parameter values, with α = 0.01, ξ = 2.0:0.1:3.0, and n = 10:10:100. ............................................. 26 Table 11. Critical value c0 of Ca′′ for various parameter values, with Dl = Du = d , α = 0.01, 0.05 and n = 10, 25(25)150.................................................................... 27 Table 12. Critical value c0 of Ca′′ for various parameter values, with Dl : Du = 6 : 4 , α = 0.01, 0.05 and n = 10, 25, 50 and 75. ............................................................. 28 Table 13. Critical Values c0 for various parameter values, Ca′′ =0.75, Dl : Du = 7 : 3 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 29 Table 14. Critical Values c0 for various parameter values, Ca′′ =0.67, Dl : Du = 7 : 3 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 29 Table 15. Critical Values c0 for various parameter values, Ca′′ =0.50, Dl : Du = 7 : 3 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 30 Table 16. Critical Values c0 for various parameter values, Ca′′ =0.25, Dl : Du = 7 : 3 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 30 Table 17. Critical Values c0 for various parameter values, Ca′′ =0.75, Dl : Du = 6 : 4 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 31 Table 18. Critical Values c0 for various parameter values, Ca′′ =0.67, Dl : Du = 6 : 4 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 31 Table 19. Critical Values c0 for various parameter values, Ca′′ =0.50, Dl : Du = 6 : 4 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 32 Table 20. Critical Values c0 for various parameter values, Ca′′ =0.25, Dl : Du = 6 : 4 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 32 Table 21. Critical Values c0 for various parameter values, Ca′′ =0.75, Dl : Du = 4 : 6 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 33. ( ( ( (. ) ) ) ). ( ( ( (. iv. ) ) ) ).

(8) Table 22. Critical Values c0 for various parameter values, Ca′′ =0.67, Dl : Du = 4 : 6 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 33 Table 23. Critical Values c0 for various parameter values, Ca′′ =0.50, Dl : Du = 4 : 6 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 34 Table 24. Critical Values c0 for various parameter values, Ca′′ =0.25, Dl : Du = 4 : 6 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 34 Table 25. Critical Values c0 for various parameter values, Ca′′ =0.75, Dl : Du = 3 : 7 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 35 Table 26. Critical Values c0 for various parameter values, Ca′′ =0.67, Dl : Du = 3 : 7 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 35 Table 27. Critical Values c0 for various parameter values, Ca′′ =0.50, Dl : Du = 3 : 7 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 36 Table 28. Critical Values c0 for various parameter values, Ca′′ =0.25, Dl : Du = 3 : 7 , α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(0.1)1.0 . ............................................. 36 Table 29. Lower Confidence Bounds CaL′′ for various parameter values, Cˆ a′′ =0.75, Dl : Du = 7 : 3 , α = 0.01, 0.05 , n = 20(10)50 , and ξ = 0.6(0.1)1.0 . ................... 37 Table 30. Lower Confidence Bounds CaL′′ for various parameter values, Cˆ a′′ =0.75, Dl : Du = 6 : 4 , α = 0.01, 0.05 , n = 20(10)50 , and ξ = 0.6(0.1)1.0 . ................... 37 Table 31. Lower Confidence Bounds CaL′′ for various parameter values, Cˆ a′′ =0.75, Dl : Du = 4 : 6 , α = 0.01, 0.05 , n = 20(10)50 , and ξ = 0.6(0.1)1.0 . ................... 37 Table 32. Lower Confidence Bounds CaL′′ for various parameter values, Cˆ a′′ =0.75, Dl : Du = 3 : 7 , α = 0.01, 0.05 , n = 20(10)50 , and ξ = 0.6(0.1)1.0 . ................... 38. v.

(9) List of Figure Figure 1. PDF plots of Cˆ a with Ca = 0.50, ξ = 1 for n = 25(25)100 (from bottom to top) ........................................................................................................................... 5 Figure 2. CDF plots of Cˆ a with Ca = 0.50, ξ = 1 for n = 25(25)100 (when Cˆ a >0.50, from bottom to top).................................................................................................. 5 Figure 3. PDF plots of Cˆ a with Ca = 0.75, ξ =1 for n = 25(25)100 (from bottom to top) ........................................................................................................................... 5 Figure 4. CDF plots of Cˆ a with Ca = 0.75, ξ =1 for n = 25(25)100 ( when Cˆ a > 0.75, from bottom to top).................................................................................................. 5 Figure 5. Plots of critical value vs ξ = 3.0(0.1)5.0, for Ca =0.25, n = 25, 75 and 150, α = 0.05 (from top to bottom)................................................................................ 7 Figure 6. Plots of critical value vs ξ = 2.0(0.1)4.0, for Ca =0.50, n = 25, 75 and 150, α = 0.05 (from top to bottom)................................................................................ 7 Figure 7. Plots of critical value vs ξ = 1.33(0.1)3.33, for Ca =0.67, n = 25, 75 and 150, α = 0.05 (from top to bottom)................................................................................ 7 Figure 8. Plots of critical value vs ξ = 1.0(0.1)3.0, for Ca =0.75, n = 25, 75 and 150, α = 0.05 (from top to bottom)................................................................................ 7 Figure 9. Plots of Ca′′ values for processes with 10 ≤ µ ≤ 50 under ( LSL, T , USL) = (10, 40, 50) ..................................................................................... 9 Figure 10. The PDF plots of Cˆ a′′ with Ca = 0.75 , Dl : Du = 6 : 4 , ξ = 1.0 for n = 10, 20, and 50 (from bottom to top)............................................................................. 11 Figure 11. The CDF plots of Cˆ a′′ with Ca′′ =0.75 , Dl : Du = 6 : 4 , ξ = 0.5 for n = 10, 20, and 50 (when Cˆ a′′ > 0.75, from bottom to top). .............................................. 11 Figure 12. The PDF plots of Cˆ a′′ with Ca′′ = 0.50 , Dl : Du = 6 : 4 , ξ = 1.0 for n = 10, 20, and 50 (from bottom to top)............................................................................. 11 Figure 13. The CDF plots of Cˆ a′′ with Ca′′ = 0.50 , Dl : Du = 6 : 4 , ξ = 1.0 for n = 10, 20, and 50 (when Cˆ a′′ > 0.50, from bottom to top). .............................................. 11 Figure 14. The manufacturing flow chart of the steel stick ........................................... 18 Figure 15. MSE plot of Cˆ a′′ (versus n) for d * σ = 2, Dl : Du = 6 : 4 , with ξ =1.0, 0, and 0.5 (from bottom to top).................................................................................. 24 Figure 16. MSE plot of Cˆ a′′ (versus n) for ξ =0.5, Dl : Du = 6 : 4 , with d * σ = 5, 4, 3 and 2 (from bottom to top)..................................................................................... 24. vi.

(10) Notations T. ：target value. LSL ：the lower specification limits preset by the process engineers USL ：the upper specification limits preset by the process engineers d. ：the half specification width. m. ：the midpoint between the upper and lower specification limits. µ. ：the population mean. σ. ：the population standard deviation. ％NC：the fraction of Non-Conformities n ：the number of the sample size Ca ：the process accuracy index of the symmetric tolerances. Ca′′ ：the process accuracy index of the asymmetric tolerances Cˆ a ：the estimator of Ca Cˆ a′′ ：the estimator of Ca′′ X. ：the sample mean. S. ：the sample standard deviation. Du ：the specification width between USL and T in asymmetric tolerances Dl ：the specification width between T and LSL in asymmetric tolerances d * ：the minimum of Du and Dl. α. ：the risk of misjudging an incapable process as a capable one. vii.

(11) 1. Introduction In recent years, process capability indices (PCIs) have received substantial research attention in quality assurance and statistical literatures as well (see Kotz and Lovelace (1998), Palmer and Tsui (1999), Kotz and Johnson (2002), Spiring et al. (2003) for more details). Those indices have become popular as unit-less measures on whether a process is capable of reproducing items meeting the quality requirement preset by the product designer. Based on analyzing the PCIs, a production department can trace and improve a poor process so that the quality level can be enhanced and the requirements of the customers can be satisfied. The first, and the original, process capability index was C p . The C p index reflects product consistency by considering the overall process variability relative to the manufacturing tolerance, which is designed to provide an indirect measure of potential ability to meet requirements (see Juran (1974), Sullivan (1984, 1985) and Kane (1986)). The Ca index measures the degree of process centering (the ability to cluster around the center), which can be regarded as a process accuracy index (see Pearn et al. (1998)). The indices C p and Ca are defined as the following: µ −m USL − LSL Cp = , Ca = 1 − , d 6σ where LSL and USL are the lower and upper specification limit, µ is the process mean, σ is the process standard deviation, m is the mid-point between the upper and the lower specification limits, and d is the half length of the specification interval. In addition, that is m = (USL + LSL) / 2 , and d = (USL − LSL) / 2 . For processes with two-sided specification limits, the percentage of non-conforming items ( %NC ) can be calculated as 1 − F (USL) + F ( LSL) , where F ( ⋅ ) is the cumulative distribution function of the process characteristic X . On the assumption of normality, %NC can be expressed in parts per million (PPM) as: ⎡ ⎛ USL − µ ⎞ ⎛ LSL − µ ⎞ ⎤ 6 % NC = ⎢1 − Φ ⎜ ⎟ + Φ⎜ ⎟ ⎥ ×10 σ σ ⎝ ⎠ ⎝ ⎠⎦ ⎣ where Φ( ⋅ ) is the cumulative distribution function of the standard normal distribution. If the process is perfectly centered at the specification range ( µ = m ), then the %NC can be expressed as 2Φ ( − 3C p ) . For example, C p = 1.00 corresponds to %NC = 2700 PPM, and C p = 1.33 corresponds to %NC = 63 PPM. However, C p does not refer to the mean of the process, it will not give an exact measure of percentage NC in the general case, i.e. µ ≠ m . Therefore, it provides a lower bound on %NC with 2Φ (− 3C p ) . On the other hand, the index Ca provides a quantified measure of the ability to cluster around the center, which alerts the user if the process mean deviates from its midpoint. For example, Ca = 1 indicates that the process is perfectly 1.

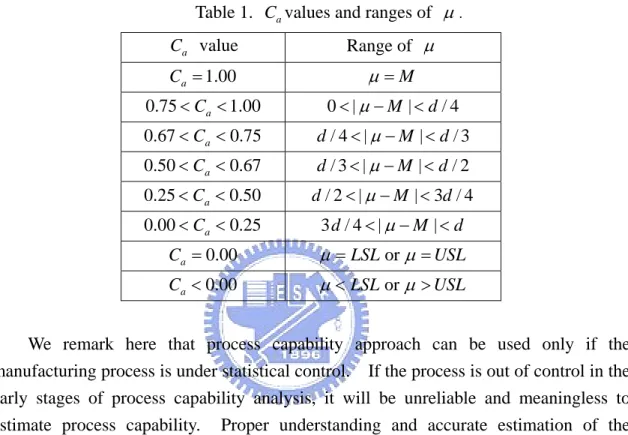

(12) centered ( µ = m ), Ca = 0 indicates that the process mean µ is located at one of the specification limits. Thus, when 0 < Ca < 1 , the process mean is located between the mid-point and one of the specification limits. Obviously, if Ca < 0 then it indicates that µ fall outside the specification limits (i.e. µ > USL or µ < LSL ), the process is severely off-center and it needs an immediate troubleshooting. Table 1 displays various Ca values and the corresponding ranges of the departure magnitude of µ . Table 1. Ca values and ranges of µ . Ca value. Range of µ. Ca = 1.00. µ=M. 0.75 < Ca < 1.00. 0 <| µ − M |< d /4. 0.67 < Ca < 0.75. d /4 <| µ − M |< d /3. 0.50 < Ca < 0.67. d /3<| µ − M |< d /2. 0.25 < Ca < 0.50. d / 2 < | µ − M | < 3d / 4. 0.00 < Ca < 0.25. 3d / 4 < | µ − M | < d. Ca = 0.00. µ = LSL or µ = USL. Ca < 0.00. µ < LSL or µ > USL. We remark here that process capability approach can be used only if the manufacturing process is under statistical control. If the process is out of control in the early stages of process capability analysis, it will be unreliable and meaningless to estimate process capability. Proper understanding and accurate estimation of the capability index is essential for the company to maintain a capable supplier. The usual practice of judging process capability by evaluating the point estimates of process capability indices, have flaws since there is no assessment of the sampling errors. As the use of the capability indices grows more widespread, users are becoming educated and sensitive to the impact of the estimators and their sampling distributions, learning that capability measures must be reported in confidence intervals or via capability testing ( Chou et al. (1990), Kushler and Hurley (1992), Kotz et al. (1993), Nagata and Nagahata (1994), Vännman and Kotz (1995), Tang et al. (1997), Hoffman (2001), Zimmer et al. (2001), Pearn and Lin (2002)). Critical values are usually used for making decisions in capability testing with designated Type I error α , the risk of misjudging an incapable process as a capable one. The p-values present the actual risk of misjudging an incapable process as a capable one. That is, if p-value < α then we reject the null hypothesis, and conclude that the process is capable with actual Type I error α . 2.

(13) Therefore, in order to assess process performance and make decisions in manufacturing capability testing, the exact cumulative distribution functions need to be derived in advance. In this paper, we first give a brief introduction on process capability indices. In Section 2, we derive an explicit form for the cumulative distribution function and probability density function of the estimator Cˆ a . Subsequently, some distributional and inferential properties of the estimated process accuracy index Ca are provided. The calculations of critical value, p-value and lower confidence bound are developed for testing process quality. Furthermore, several implementation issues and extensions of cases with asymmetric tolerances are discussed in Section 3, and discussed decision making rule in Section 4. Practitioners can use the proposed results to perform quality testing and determine the process can reproduce product items to meet the specified quality requirement. For illustrative purpose, three real-world applications are presented in Section 5. Finally, some concluding remarks are made in Section 6.. 2. Estimation of Process Capability Accuracy Index Ca for Single Sample To estimate the accuracy index Ca , Pearn et al. (1998) considered the natural n estimator Cˆ a as the following, where X = ∑ i =1 xi / n is the conventional estimator of the process mean µ , which may be obtained from a stable process. X −m Cˆ a = 1 − . d The estimator can be alternatively written as: |X −m| σ n |X −m| 1 n |X −m| = 1− × = 1− × Cˆ a = 1 − . d σ σ 3 n Cp d n on the assumption of normality, the statistic n | X − m | / σ has a folded normal distribution as defined by Leone et al. (1961). Thus, the probability density function (PDF) of Cˆ a can be expressed as: fCˆ ( x) = 6C p a. ⎧⎪ −9nC p2 ⎡(1 − x) 2 + (1 − Ca ) 2 ⎤ ⎫⎪ n ⎣ ⎦ , 2 cosh ⎣⎡9nC p (1 − Ca )(1 − x) ⎦⎤ exp ⎨ ⎬ 2π 2 ⎪⎩ ⎭⎪. for −∞ < x ≤ 1 and cosh(t ) = [ exp(t ) + exp(−t ) ] / 2 is a Hyperbolic function. The first two moments of Cˆ a therefore can be calculated as follows (Pearn et al. (1998)), and the variance of Cˆ a also can be obtained by calculating Var (Cˆ a ) = E (Cˆ a2 ) − E 2 (Cˆ a ) .. 3.

(14) 1 E (Cˆ a ) = Ca − 3C p E (Cˆ a2 ) = Ca2 −. 2 ⎛ −δ ⎞ exp ⎜ 1 ⎟ + 2(1 − Ca )Φ − δ1 , nπ ⎝ 2 ⎠. (. 1 2 − 2 9nC p 3C p. ). 2 ⎛ −δ ⎞ exp ⎜ ⎟ + 4(1 − Ca )Φ − δ , nπ ⎝ 2 ⎠. (. ). where δ = 9n(C p − C pk )2 . The estimator Cˆ a is biased, but as the sample size approaches to infinity, the following three terms, [2 /(nπ )]1/ 2 , exp(−δ / 2) , and Φ(− δ ) all converge to zero. Therefore, the estimator Cˆ a is asymptotically unbiased. For the percentage bias to be less than five percent (i.e. ˆ | E (Ca ) − Ca | / Ca ≤ 0.05 ) it required n > 30 , and for one percent (i.e. | E (Cˆ a ) − Ca | / Ca ≤ 0.01 ) it requires n > 650 . On the assumption of normality, Pearn et al. (1998) showed that the natural estimator Cˆ a of the process accuracy index Ca , is the maximum likelihood estimator (MLE), consistent, asymptotically efficient estimator and n (Cˆ a − Ca ) converges to N (0, 1/(9C p2 )) in distribution. Therefore, owing to n (Cˆ a − Ca ) converges to N (0,1/(9C p2 )) , then 3 nC p (Cˆ a − Ca ) converges to N (0, 1) in distribution. An approximate 100(1 − α )% confidence interval of Ca can be established as the following:. ⎡ Zα 2 Zα 2 ⎤ , Cˆ a + ⎢Cˆ a − ⎥ 3 nC p 3 nC p ⎦⎥ ⎣⎢ where zα / 2 is the upper α / 2 quartile for the standard normal distribution N ( 0,1) , ∞ C p = bn −1Cˆ p , bn −1 = (2 /(n − 1))1/ 2 × Γ[(n − 1) / 2] / Γ[( n − 2) / 2] , and Γ(k ) = ∫ t k −1 e − t dt 0 is a gamma function. While a 100(1 − α )% lower confidence limit on Ca can be constructed by using only the lower limit as Cˆ a − zα /(3 n C p ) . Subsequently, we now derive an explicit form for the cumulative distribution function (CDF) of the estimator Cˆ a as follows. We first define D = nd σ , Z ′ = n ( X − m) / σ which is distributed as N (δ , 1) , where δ = n ( µ − m ) / σ , and H = Z ′ which is a folded normal distribution. Then, the estimator Cˆ a can be rewritten as Cˆ a = 1 − H / D . Thus, D (1− x ) ⎧ H ⎫ f H ( h )dh (1) FCˆ ( x) = P Cˆ a ≤ x = P ⎨1 − ≤ x ⎬ = 1 − P { H ≤ D (1 − x )} = 1 − ∫ a 0 ⎩ D ⎭ since H = Z ′ is a folded normal distribution, we have. {. }. (. ) (. ). fH (t ) = φ t + ξ n + φ t − ξ n , ξ = ( µ − m) σ . Substituting Eq. (2) into Eq. (1) gives 4. (2).

(15) FCˆ ( x ) = 1 − ∫ a. D (1− x ). 0. (. ) (. ). ⎡φ t + ξ n + φ t − ξ n ⎤dt , for −∞ ≤ x ≤ 1 . ⎣ ⎦. (3). By differential with respect to x gives the probability density function (PDF) of Cˆ a as:. (. ) (. ). fCˆ ( x ) = D ⎡φ D (1 − x ) + ξ n + φ D (1 − x ) − ξ n ⎤ , for −∞ ≤ x ≤ 1 . a ⎣ ⎦. Figures 1 and 2 display the PDF and CDF of Cˆ a with Ca = 0.50, ξ = 1 for various sample sizes n = 25(25)100, respectively. Figures 3 and 4 display the PDF and CDF of Cˆ a with Ca = 0.75, ξ = 1 for various sample sizes n = 25(25)100, respectively.. Figure 1. PDF plots of Cˆ a with Ca = Figure 2. CDF plots of Cˆ a with Ca = 0.50, ξ = 1 for n = 25(25)100 (from 0.50, ξ = 1 for n = 25(25)100 (when bottom to top). Cˆ a >0.50,. from bottom to top). Figure 3. PDF plots of Cˆ a with Ca = Figure 4. CDF plots of Cˆ a with Ca = 0.75, ξ =1 for n = 25(25)100 (from 0.75, ξ =1 for n = 25(25)100 ( when Cˆ a > bottom to top). 0.75, from bottom to top). From these Figures, we can see that as the value of Ca increases, the spread of the 5.

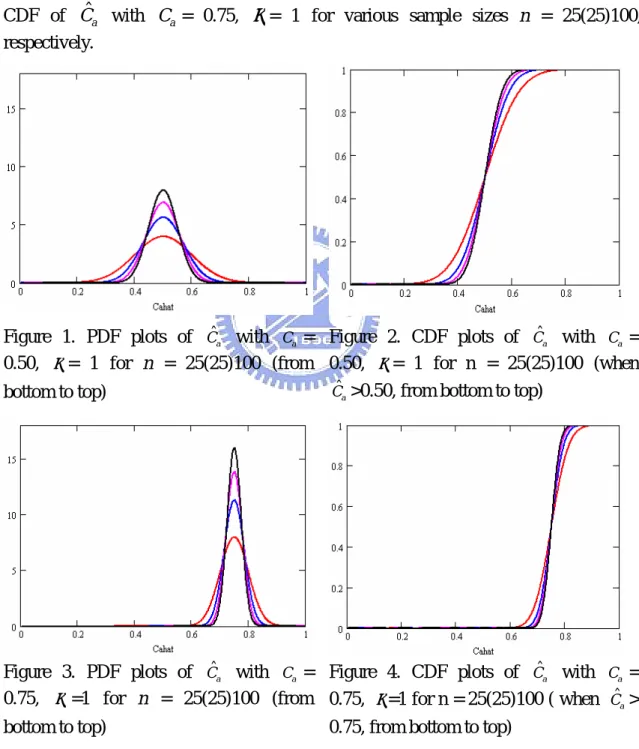

(16) distribution decreases. As the sample sizes n increase, the spread of the distribution decreases. Accordingly, in order to determine whether a given process capability meets the customers’ demands and runs under the desired quality condition, the statistical hypothesis testing can be stated as follows: H 0 : Ca ≤ C (process is inaccurate), H1 : Ca > C (process is accurate). We will reject the null hypothesis H 0 ( Ca ≤ C ), when Cˆ a > c0 with Type I error α (c0 ) = α , the chance of incorrectly concluding an inaccurate process ( Ca ≤ C ) as accurate ( Ca > C ). Based on the CDF of Cˆ a expressed in Eq. (3), given values of capability requirement C , parameter ξ , sample size n , and risk α , the critical value c0 can be obtained by solving the equation P (Cˆ a > c0 | Ca = C ) = α using available numerical methods.. ∫. b n (1− c0 ). 0. (. ) (. ). ⎡φ t + ξ n + φ t − ξ n ⎤ dt = α . ⎣ ⎦. (4). where b = d / σ , ξ = ( µ − m) / σ . Given Ca = C , b = d / σ can be expressed as b = | ξ | /(1 − C ) , the p-value corresponding to c* , a specific value of Cˆ a calculated from the sample data, is: p − value = P (Cˆ a ≥ c* | Ca = C ) =. b n ( 1− c* ). ∫0. ⎡⎣ φ ( t + ξ n ) + φ ( t − ξ n ) ⎤⎦ dt .. (5). Furthermore, based on the CDF of Cˆ a expressed in Eq. (3), the lower confidence limits which conveying critical information regarding the true process capability is also developed as below. In fact, given the sample of size n, the confidence level γ , the estimated value Cˆ a , and ξ , the lower confidence bounds CaL can be obtained using numerical integration technique with iterations, to solve the following Eq. (6) with b =| ξ | /(1 − CaL ) .. (. b n 1−Cˆ a. ∫0. ). ⎡⎣ φ ( t + ξ n ) + φ ( t − ξ n ) ⎤⎦ dt = 1 − γ .. (6). Table 7. to Table 10. display the lower confidence bounds CaL of Cˆ a = 0.75, for various parameter values, with α = 0.05, ξ = 1.0(0.1)2.0, and n = 10(10)100. Table 7. and Table 8. display the lower confidence bounds CaL of Cˆ a = 0.50, for various parameter values, with α = 0.05, ξ = 1.0(0.1)2.0, and n = 10(10)100. Accordingly, practitioners can use the proposed results to perform quality testing and determine the process can reproduce product items to meet the specified process precision requirement. Under the assumption of normality, we proved that the cumulative distribution function of Cˆ a can be expressed in terms of a mixture of the normal distributions. Using the index Ca , the engineers can access the process performance and monitor the manufacturing processes on routine basis. However from 6.

(17) the Eq. (2) to Eq. (6), the distribution characteristic parameter ξ = ( µ − m ) σ is usually unknown, which has to be estimated in real applications, naturally by substituting µ and σ by the sample mean X and the sample variance 2 n S 2 = ∑ i =1 ( xi − X ) ( n − 1) . Such approach introduces additional sample errors from estimating ξ , and would be less reliable. Consequently, any decisions made would provide less quality assurance to the customers. To eliminate the need for further estimating the characteristic parameter ξ = ( µ − m ) σ , we examine the sensitivity of critical value c0 against the parameter ξ . Before testing the sensitivity of c0 and ξ , we need to find the range of ξ . When Ca =0.25 and the µ − m = 3d 4 , then ξ = 3d 4σ = 9 4 C p . If the process is capable, the C p will be required bigger than 1.33. Hence, we need to set ξ ≥ 3 when Ca =0.25.. Figure 5. Plots of critical value vs ξ = Figure 6. Plots of critical value vs ξ = 3.0(0.1)5.0, for Ca =0.25, n = 25, 75 and 2.0(0.1)4.0, for Ca =0.50, n = 25, 75 and 150, α = 0.05 (from top to bottom). 150, α = 0.05 (from top to bottom).. Figure 7. Plots of critical value vs ξ = Figure 8. Plots of critical value vs ξ = 1.33(0.1)3.33, for Ca =0.67, n = 25, 75 and 1.0(0.1)3.0, for Ca =0.75, n = 25, 75 and 150, α = 0.05 (from top to bottom). 150, α = 0.05 (from top to bottom). Figure 5 to 8 plot the curves of the critical value c0 versus the parameter ξ , n = 25, 75 and 150 with Type I error α = 0.05, for four levels of Ca = 0.25, 0.50, 0.67 and 7.

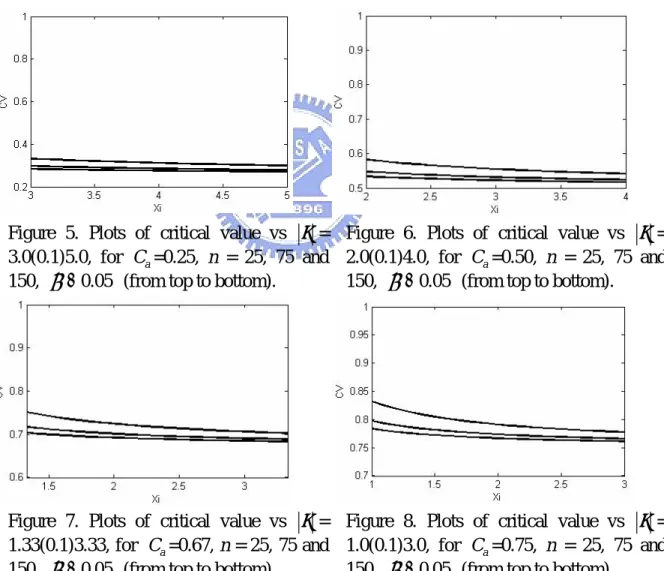

(18) 0.75 in all cases with accuracy up to 10−4 , respectively. From these Figures, the results indicate that as the value of n increasing, the critical value c0 is closed to Ca .. 3. Estimation of Process Accuracy index Ca for Asymmetric Tolerances A process is said to have a symmetric tolerance if the target value T is set to be the mid-point of the specification interval, i.e. T = m = (USL + LSL) / 2 . Most research in quality assurance literature has focus on cases in which the manufacturing tolerance is symmetric. Examples include Kane (1986), Chan et al. (1988), Boyles (1991), Pearn et al. (1992), Vännman (1995), Vännman and Kotz (1995), Spiring (1997), Hoffman (2001), Zimmer et al. (2001), Vännman and Hubele (2003) and many others. Although cases with symmetric tolerances are common in practical situations, cases with asymmetric tolerances ( T ≠ m ) often occur in the manufacturing industry. From the customer’s point of view, asymmetric tolerances reflect that deviations from the target are less tolerable in one direction than in the other (see Boyles (1994), Vännman (1997), and Wu and Tang (1998)). Usually they are not related to the shape of the supplier’s process distribution. However, asymmetric tolerances can also arise in situations where the tolerances are symmetric to begin with, but the process distribution is skewed or follows a non-normal distribution. Dealing with this, the data have been transformed to achieve approximate normality, as shown by Chou et al. (1998) who have used Johnson curves to transform non-normal process data. Moreover, these indices presented above, are designed to monitor the performance for only normal and near-normal processes with symmetric tolerances, which are shown to be inappropriate for cases with asymmetric tolerances (Boyles (1994), Pearn and Chen (1998)). Unfortunately, there has been comparatively little research published on cases with asymmetric tolerances. Exceptions are Choi and Owen (1990), Boyles (1994), Vännman (1997), Chen (1998), Pearn and Chen (1998), Pearn et al. (1999), Chen et al. (1999), and Jessenberger and Weihs (2000). To overcome these drawbacks, we modify Ca index for the asymmetric cases ( USL − T ≠ T − LSL ), denoted here as Ca′′ .. Ca′′ = 1 −. A∗ , d*. where A* = Max{d * ( µ − T ) / Du , d * (T − µ ) / Dl } , d * = min{Du , Dl } , Du = USL − T , Dl = T − LSL . Obviously, if T = m (symmetric tolerance), then d * = Du = Dl = d , A* = | µ − m | and Ca′′ reduces to the original index Ca . The factor A* ensures that the new generalization Ca′′ obtains its maximal value at µ = T (process is on-target) regardless of whether the tolerances are symmetric ( T = m ) or asymmetric ( T ≠ m ). 8.

(19) Figure 3 displays the plots of Ca′′ for processes with 10 ≤ µ ≤ 50 where (LSL, T , USL) = (10, 40, 50) is an asymmetric tolerance. Ca′′ = 0 can be verified when the process mean is on the specification limit ( µ = LSL or µ = USL ). On the other hand, Ca′′ > 0 when LSL < µ < USL . Thus, given two processes E and F with µE > T and µF < T , satisfying ( µE − T ) / Du = (T − µF ) / Dl (i.e., processes E and F have equal departure ratio), the Ca′′ values given to processes E and F are the same. For example, consider processes E and F with µE = 45 > T and µF = 25 < T . Clearly, the corresponding departure ratios are 1/2 for both processes E and F (i.e. (45 – 40)/10 = (40 – 25)/30 = 1/2). We have Ca′′ = 0.50 for both processes E and F (see Figure 3). In addition, the index Ca′′ decreases when mean µ shifts away from target T in either direction. In fact, Ca′′ decreases faster when µ shifts away from T to the closer specification limit than that to the farther specification limit. This is an advantage since the index would respond faster to the shift towards “the wrong side” of T than towards the middle of the specification interval.. Figure 9. Plots of Ca′′ values for processes with 10 ≤ µ ≤ 50 under ( LSL, T , USL) = (10, 40, 50) . To estimate the generalization Ca′′ , we consider the natural estimator Cˆ a′′ defined as:. Aˆ * Cˆ a′′ = 1 − * , d n * * * ˆ and X = ∑ i =1 xi n . We now where A = Max d ( X − T ) Du , d (T − X ) Dl 2 * 12 * 12 * * define D = n ( d σ ) , Z = n ( X − T ) σ , Y = ⎡ Max ( d Du ) Z , − ( d Dl ) Z ⎤ ⎣ ⎦ λ = δ 2 , and δ = n1 2 ( µ − T ) σ . Then, the estimator Cˆ a′′ can be rewritten as:. {. }. {. }. Y Cˆ a′′ = 1 − * . D Under the assumption of normality, Z is distributed as the normal distribution N (δ ,1) with mean δ and variance 1. We note that the statistic Z 2 follows a non-central chi-square distribution with one degree of freedom and non-centrality 9.

(20) parameter λ = δ 2 . Chen (1998) defined the distribution of Y as a weighted non-central chi-square distribution with one degree of freedom and non-centrality parameter λ under the assumption of normality. Chen (1998) also derived the probability density function of Y as: fY ( y ) =. e− λ / 2 2 π. ⎧ ⎛ 1+ j ⎞ ⎨ h j (λ ) Γ ⎜ ∑ ⎟ ⎝ 2 ⎠ j =0 ⎩ ∞. ⎫ (−1)ij fY j ( y / d i2 ) ⎬ , y > 0 . ∑ 2 di i =1 ⎭ 2. (7). where λ = δ 2 , δ = n1/ 2 ( µ − T ) / σ , h j (λ ) = (2λ ) j / 2 /( j !) , d1 = d * / Dl , d 2 = d * / Du and Y j is distributed as χ12+ j . Thus, the cumulative distribution function of Cˆ a′′ can be derived as follows:. (. 2 Y ⎪⎧ ⎪⎫ FCˆ ′′ ( x) = P Cˆ a′′ ≤ x = P ⎨1 − * ≤ x ⎬ = 1 − P Y ≤ ⎡⎣ D (1 − x ) ⎤⎦ a ⎪⎭ ⎩⎪ D. {. = 1− ∫. }. [ D* (1− x )]2. 0. ). fY ( y )dy , for x < 1 .. (8). by substituting Eq. (7) into Eq. (8) gives FCˆ ′′ ( x) = 1 − a. e− λ / 2 2 π. ij ⎧ ⎛ 1 + j ⎞ 2 (−1) λ Γ h ( ) ⎨ j ∑ ⎜ ⎟∑ 2 ⎝ 2 ⎠ i =1 di j =0 ⎩ ∞. ∫. [ D* (1− x )]2. 0. ⎫ fY j ( y / di2 ) dy ⎬ , for x < 1 . ⎭. (9) Changing the variable with t = y / di2 , then dy = di2 dt for i = 1, 2 , and the cumulative distribution function of Cˆ a′′ can be rewritten as Eq. (10). ⎧ e− λ / 2 ⎪1 − FCˆ ′′ ( x) = ⎨ 2 π a ⎪1, ⎩. * 2 ij [ D (1− x ) / di ] ⎛ 1+ j ⎞ 2 h ( ) 1 fY j (t )dt , x < 1 Γ − λ ( ) ∑ j ⎜ ⎟∑ ∫0 ⎝ 2 ⎠ i =1 j =0 x ≥1. ∞. (10). Taking the derivative of the cumulative distribution function of Cˆ a′′ in x , the probability density function of Cˆ a′′ will be obtained as expressed in Eq. (11). e−λ / 2 ∞ ⎛ 1+ j ⎞ 2 * 2 * 2 ij fCˆ ′′ ( x) = h j (λ )Γ ⎜ ∑ ⎟ ∑ (−1) fY j ([(1 − x) D / di ] ) ⎡⎣(1 − x)( D / di ) ⎤⎦ , a π j =0 ⎝ 2 ⎠ i =1 x < 1.. (11). If the manufacturing tolerance is symmetric ( T = m ), then d = Du = Dl = d , d1 = d 2 = 1 , and the cumulative distribution function of Cˆ a′′ in Eq. (9) reduces to: *. ∞ [ D (1− x )]2 ⎧ 1 P ( λ ) f Y2 A (t )dt , x < 1 − ⎪ ∑ A ∫0 FCˆ ′′ ( x) = ⎨ A = 0 a ⎪1, x ≥1 ⎩. and the corresponding probability density function is: 10. (12).

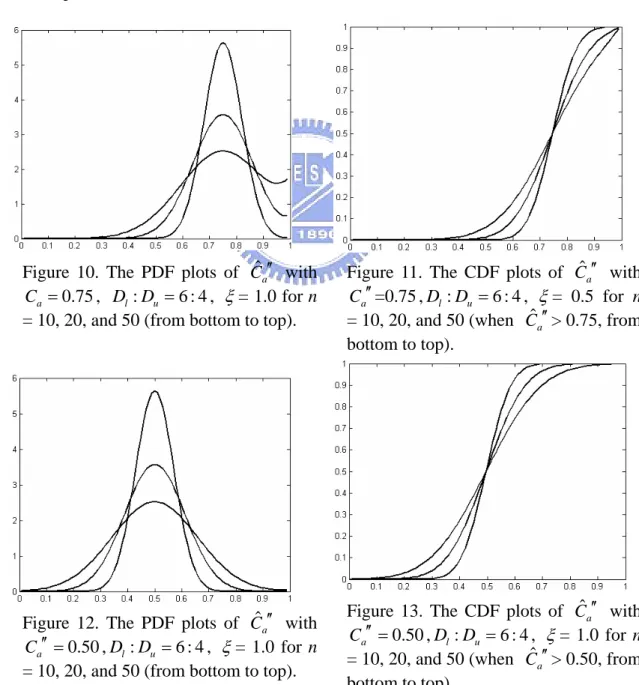

(21) fCˆ ′′ ( x) = a. ∞. ∑ PA (λ ). A =0. 2 D 2 A +1 (1 − x) 2 A e −[ D (1− x )] / 2 , x < 1 (2 A −1) / 2 Γ ( (2A + 1) / 2 ) 2. (13). where D = n1/ 2 (d / σ ) and PA (λ ) = e − λ / 2 (λ / 2)A /(A !) . As the same as symmetric tolerances, we also display the CDF and PDF of Cˆ a′′ . For an asymmetric case ( Dl : Du = 6 : 4 ), depending to the Eq. (11), Figures 10 and 11 display the PDF and CDF of Cˆ a′′ with Ca′′ = 0.75 , ξ = 0.5 for various sample sizes n = 10, 20 and 50, respectively. Figures 12 and 13 display the PDF and CDF of Cˆ a′′ with Ca′′ = 0.50 , ξ = 1.0 for various sample sizes n = 10, 20 and 50, respectively. From these figures, we observe that as n increases the spread decreases and so does the skewness. We also observe that the estimated index Cˆ a′′ is approximately unbiased for sample size n > 50.. Figure 10. The PDF plots of Cˆ a′′ with Ca = 0.75 , Dl : Du = 6 : 4 , ξ = 1.0 for n = 10, 20, and 50 (from bottom to top).. Figure 12. The PDF plots of Cˆ a′′ with Ca′′ = 0.50 , Dl : Du = 6 : 4 , ξ = 1.0 for n = 10, 20, and 50 (from bottom to top).. Figure 11. The CDF plots of Cˆ a′′ with Ca′′ =0.75 , Dl : Du = 6 : 4 , ξ = 0.5 for n = 10, 20, and 50 (when Cˆ a′′ > 0.75, from bottom to top).. Figure 13. The CDF plots of Cˆ a′′ with Ca′′ = 0.50 , Dl : Du = 6 : 4 , ξ = 1.0 for n = 10, 20, and 50 (when Cˆ a′′ > 0.50, from bottom to top). 11.

(22) Moreover, the r-th moment of Cˆ a′′ may be obtained as :. ( ). r. E Cˆ a′′ = ∑ r. j =0. r! ⎛ −σ ⎞ j !(r − j )! ⎝⎜ n ⎠⎟. r− j. ⎛ ⎧ Z −Z ⎫ ⎞ E ⎜⎜ Max ⎨ , ⎬ ⎟⎟ ⎩ Du Dl ⎭ ⎠ ⎝. r− j. .. (14). To obtain the expected value and variance of Cˆ a′′ , we first need to calculate the following (see Pearn and Chen (1998)): ⎛ ⎧ Z −Z ⎫ ⎞ E ⎜⎜ Max ⎨ , ⎬ ⎟⎟ ⎩ Du Dl ⎭ ⎠ ⎝ ⎛ 1 ⎧ δ −δ ⎫ ⎛ δ 1 ⎞ e− λ / 2 δ ⎞ =⎜ + ⎟ + Max ⎨ , − ⎟ Φ ( − | δ |) , ⎬ ⎡⎣1 − 2Φ ( − | δ |) ⎤⎦ + ⎜ ⎝ Du Dl ⎠ 2π ⎩ Du Dl ⎭ ⎝ Du Dl ⎠. (15). ⎛ ⎧ Z −Z ⎫ ⎞ E ⎜⎜ Max 2 ⎨ , ⎬ ⎟⎟ ⎩ Du Dl ⎭ ⎠ ⎝ ⎛ 1 ⎫ 1⎛ 1 1 ⎞ ⎛ λ λ ⎞ 1 ⎞ ⎧ δ e- λ / 2 δ = ⎜ 2 + 2 ⎟ + ⎜ 2 + 2 ⎟ Φ ( − | δ |) + ⎜ 2 − 2 ⎟ ⎨ + ⎡⎣1 − 2Φ ( − | δ |) ⎤⎦ ⎬ 2 ⎝ Du Dl ⎠ ⎝ Du Dl ⎠ ⎭ ⎝ Du Dl ⎠ ⎩ 2π 2 | δ | ⎧ δ −δ ⎫ + Max 2 ⎨ , ⎬ ⎡⎣1 − 2Φ ( − | δ |) ⎤⎦ . ⎩ Du Dl ⎭. (16). hence, we have: 2 ⎧ Z −Z ⎫ ⎞ σ ⎛ 2 E Cˆ a′′ = 1 − E ⎜⎜ Max ⎨ , ⎬ ⎟⎟ , Var Cˆ a′′ = E Cˆ a′′ − E Cˆ a′′ , D D n ⎝ l ⎭⎠ ⎩ u. ( ). ( ). ( ). where E Cˆ a′′. noting that. 2. = 1− 2. ( ). ( ). ⎛ ⎧ Z −Z ⎫ ⎞ σ 2 ⎛ ⎧ Z −Z ⎫ ⎞ E ⎜⎜ Max ⎨ , E ⎜⎜ Max 2 ⎨ , ⎬ ⎟⎟ + ⎬ ⎟⎟ . n ⎝ ⎩ Du Dl ⎭ ⎠ n ⎝ ⎩ Du Dl ⎭ ⎠. σ. ⎧ δ −δ ⎫ Max ⎨ , ⎬ = 1 − Ca′′ , we have n ⎩ Du Dl ⎭. σ. 1 ⎛ d * d * ⎞ e−λ / 2 σ ⎛ δ δ ⎞ + ⎟ + 2(1 − Ca′′)Φ ( − | δ |) − − ⎟ Φ ( − | δ |) , E Cˆ a′′ = Ca′′ − * ⎜ ⎜ 3C p ⎝ Du Dl ⎠ 2nπ n ⎝ Du Dl ⎠. ( ). ( ). 2 E Cˆ a′′ = ( Ca′′ ) + 2. ⎛ ⎛ d * ⎞2 ⎛ d * ⎞2 ⎞ 1 2 ⎛ d * d * ⎞ e− λ / 2 ⎜ ⎟ + − + ⎟ ⎜ ⎟ ⎜ ⎟ ⎜ 2n(3C *p ) 2 ⎜ ⎝ Du ⎠ ⎝ Dl ⎠ ⎟ 3C *p ⎝ Du Dl ⎠ 2nπ ⎝ ⎠. 12.

(23) ⎧⎪ 1 ⎫ ⎛ ⎛ d * ⎞2 ⎛ d * ⎞2 ⎞ 2⎪ ⎜ ⎟ ′′ 2(1 C ) + 4(1 − Ca′′)Φ ( − | δ |) + ⎨ + − − ⎬ Φ ( − | δ |) ⎟ ⎜ ⎟ a * 2 ⎜ ⎪⎩ n(3C p ) ⎜⎝ ⎝ Du ⎠ ⎝ Dl ⎠ ⎟⎠ ⎪⎭ ⎛⎛ d* ⎞ ⎛ d* ⎞ 1 ⎜⎜ + ⎟ −⎜ ⎟ n(3C *p ) 2 ⎜ ⎝ Du ⎠ ⎝ Dl ⎠ ⎝ 2. −2. 2. ⎞ ⎧σ e− λ / 2 ⎫ δ ⎟⎨ + ⎡⎣1 − 2Φ ( − | δ |) ⎤⎦ ⎬ ⎟ ⎩ 2π 2|δ | ⎭ ⎠. σ ⎛ δ. δ ⎞ − ⎟ Φ ( − | δ |) . ⎜ n ⎝ Du Dl ⎠. where C *p = d * 3σ . Additionally, if the manufacturing tolerance is symmetric 2 ( T = m ), then E Cˆ a′′ , E Cˆ a′′ and Var Cˆ a′′ can be reduced to the results obtained in Pearn et al. (1998). We note that the estimator Cˆ a′′ is biased. The magnitude of the bias is B Cˆ a′′ = E Cˆ a′′ − Ca′′ . The mean square error can be expressed as MSE Cˆ a′′ = Var Cˆ a′′ + B 2 Cˆ a′′ . To investigate the behavior of the estimator Cˆ a′′ , the bias and the mean square error are calculated for various values of ξ = ( µ − T ) σ , b = d * σ , dl = d Dl , du = d Du , and sample size n. Form Table 3, 4, 5 and 6(in Appendix), we observe that as the sample size n increases, both the bias and the mean square error of Cˆ a′′ decrease. Figure 15 displays the plot of the MSE of Cˆ a′′ (vs. n) with ξ = 0.5, 0 and 1.0 (from bottom to top) for fixed b = 2 and Dl : Du = 6 : 4 . Figure 16 displays the plot of the MSE of Cˆ a′′ (vs. n) with b = 2, 3, 4 and 5 (from top to bottom) for fixed ξ = 0.5 . By the way, we observe that as the value of b increases, the MSE of Cˆ a′′ decreases. Proper sample sizes for capability estimation are essential. The smaller the sample size is, the higher the value of Cˆ a′′ is required to justify the true process capability.. ( ). ( ). ( ). ( ) ( ) ( ) ( ). ( ). 4. Decision Making Rule Using the index Ca′′ , the engineers can access the process performance and monitor the manufacturing processes on routine basis. To obtain a decision making rule we consider a testing hypothesis with the null hypothesis Ca′′ ≤ C (the process is inaccurate) and the alternative hypothesis Ca′′ > C (the process accurate). The null hypothesis will be rejected if Cˆ a′′ > c0 , where the constant c0 , called the critical value, is determined so that the significance level of the test is α , i.e., Ρ Cˆ a′′ > c0 | Ca′′ = C = α . The decision making rule to be used is then that, for given values of risk α and sample size n , the process will be considered accurate if Cˆ a′′ > c0 and inaccurate if Cˆ a′′ ≤ c0 . We note that by setting ξ = ( µ − T ) σ and b = d * σ , the index Ca′′ can be rewritten as Ca′′ = ⎡⎣b + ξ max {1, r}⎤⎦ b for ξ < 0 and Ca′′ = ⎡⎣b − ξ min {1, r}⎤⎦ b for. (. ). 13.

(24) ξ ≥ 0 where r = Dl Du . Hence, the value of Ca′′ can be calculated given values of ξ , b , and r . For example, if (ξ , b, r ) = (-1, 3, 3/2) then Ca′′ =[3+(-1)/max{1,3/2}]/3 = 0.7778. If Ca′′ = C , we have b = (−1) ⎡⎣ξ max {1, r}⎤⎦ (1 − C ) for ξ < 0 and b = ⎡⎣ξ min {1, r}⎤⎦ (1 − C ) for ξ ≥ 0 . In addition, since D* = n1/ 2 ( d * σ ) and b = d * σ then B 2 = nb 2 . Therefore, if Ca′′ = C then. ( (. ). ⎧n ⎡ξ max {1, r}⎤ (1 − C ) 2 , ξ < 0 ⎦ ⎪ ⎣ D*2 = ⎨ (17) 2 ⎪n ⎡⎣ξ min {1, r}⎤⎦ (1 − C ) , ξ ≥ 0. ⎩ We can use the central chi-square distribution and the normal distribution to find the critical value c0 satisfying Ρ Cˆ a′′ > c0 | Ca′′ = C = α , i.e., 1 − FCˆ ( c0 ) = α given a Ca′′ = C . We note that c0 is larger than zero in general, hence we can find c0 by Eq. (10).. ). ). (. (. Ρ Cˆ a′′ > c0 | Ca′′ = C =. e− λ / 2 2 π. ). ij ⎧ ⎛ 1 + j ⎞ 2 (−1) λ Γ h ( ) ⎨ j ∑ ⎜ ⎟∑ 2 ⎝ 2 ⎠ i =1 di j =0 ⎩ ∞. ∫. [ D* (1− cα )]2. 0. ⎫ fY j ( y / di2 ) dy ⎬ = α ⎭. (18). where λ = δ 2 , δ = n ( µ − T ) σ , h j ( λ ) = ( 2λ ) ( j !) , d1 = d * Dl , d 2 = d * Du . We point out that if T = m (symmetric tolerances) then Cˆ a′′ reduces to Cˆ a . Table 11 (in Appendix) displays the critical values c0 for d σ = 2, 3, 4 and 5 with sample sizes n =10, 25(25)150, ξ = 0.5(0.5)1.5 and α = 0.01 and 0.05 for T = m . Table 12 (in Appendix) displays the critical values c0 for d σ = 2, 3, 4 and 5 with sample sizes n =10, 25, 50 and 75, ξ = 0.5(0.5)1.5 and α = 0.01 and 0.05 for T ≠ m ( Dl : Du = 6 : 4 ). To test if the process meets the precision (quality) requirement, we first determine the value of C and α -risk. Since both the process parameters µ and σ are unknown, then parameter ξ = ( µ − T ) σ is also unknown. But we can estimate ξ by calculating the value ξˆ = ( X − T ) S from the sample. If the estimated value Cˆ a′′ is larger then the critical value c0 ( Ca′′ > c0 ) , then we conclude that the process meets the precision capability requirement ( Ca′′ > C ) . Otherwise, we do not have sufficient information to conclude that the process meets the present precision requirement. In this case, we would believe that Ca′′ ≤ C (the process is inaccurate). In order to make the practitioners easily to perform the process accuracy testing, we show the Table 13 to Table 28 (In Appendix) for critical value of the asymmetric cases ( Dl : Du = 7 : 3 , Dl : Du = 6 : 4 , Dl : Du = 4 : 6 and Dl : Du = 3 : 7 ) with Ca′′ = 0.75, 0.67, 0.50 and 0.25, α = 0.01, 0.05 , n = 10(10)50 , and ξ = 0.1(1.0)1.0 . We also can calculate the p-value, i.e. the probability that Cˆ a′′ exceed the observed estimated index given the values of C, ξ = ( µ − T ) σ , and sample size n, and then j 2. 14.

(25) compare this probability with the significance level α . If the estimated index value is c* , given the values of C, ξ and sample size n, then the p-value can be calculated as: p-value = Ρ Cˆ a′′ > c* | Ca′′ = C. (. =. e− λ / 2 2 π. ). ij ⎧ ⎛ 1 + j ⎞ 2 (−1) Γ h λ ⎨ j( ) ⎜ ∑ ⎟∑ 2 ⎝ 2 ⎠ i =1 di j =0 ⎩ ∞. ∫. [ D* (1− c* )]2. 0. ⎫ fY j ( y / di2 ) dy ⎬ , ⎭. (19). If the p-value is small than the α -risk, than we conclude that the process meets the precision requirement ( Ca′′ > C ) . Otherwise, we do not have sufficient information to conclude that the process meets the present precision requirement. In this case, we would believe that Ca′′ ≤ C (the process is inaccurate). Furthermore, based on the CDF of Cˆ a′′ expressed in Eq. (9), the lower confidence bounds which conveying critical information regarding the true process capability level γ , the estimated value Cˆ a′′ and ξ , the lower confidence bounds CaL′′ can be obtained using numerical integration technique with iterations, to solve the following Eq. (9) with b = ξ 1 − CaL′′ .. ). (. e−λ / 2 2 π. ij ⎧ ⎛ 1 + j ⎞ 2 (−1) λ ⎨h j ( ) Γ ⎜ ∑ ⎟∑ 2 ⎝ 2 ⎠ i =1 di j =0 ⎩ ∞. ∫. [ D* (1− Cˆ a′′ )]2. 0. ⎫ fY j ( y / di2 ) dy ⎬ = 1 − γ ⎭. (20). Table 29-32 (In Appendix) display the lower confidence bounds for the asymmetric cases ( Dl : Du = 7 : 3 , Dl : Du = 6 : 4 , Dl : Du = 4 : 6 and Dl : Du = 3 : 7 ) with Cˆ a′′ = 0.75, 0.67, 0.50 and 0.25, α = 0.01, 0.05 , n = 20(10)50 , and ξ = 0.1(1.0)1.0 . Accordingly, practitioners can use the proposed results to perform quality testing and determine the process can reproduce product items to meet the specified process precision requirement.. 5. Illustrative Examples In the following three examples, we use the critical value, p-value and lower confidence bounds to test if the process is accurate.. 5.1 Example I of Testing Plastic Process for Precision In the following, we consider an example of manufacturing the plastic taken from the factory located on the manufacture-based Industrial Park, Taiwan. The plastics company sells its product to other manufacturers to be used in making such consumer products as automobile bumpers and pens. One of the quality characteristics of plastic is the melt flow ( g min ) at 2000 F . This measures the viscosity of the liquid. The plastic is poured into molds to make razors, pens, disposable lighters, and many other familiar products. The melt flow indicates how the plastic will fill the molds. 15.

(26) The plastics company monitors the process that manufactures the plastic by regularly measuring the melt flow. The company that purchases the plastic is also concerned about the melt flow of the material it is purchasing and so it checks a sample of the raw material. By analyzing the data, the company determines whether the plastic is ready for sale. If the plastic does not have the correct melt flow, then air bubbles may form when the plastic is poured into a mold, causing under-filling or over-filling of the mold. With active efficient quality control effort and effective improvement plan implemented, the manufacturing process of plastic is justified to be in statistical control and follows a near-normal distribution by checking the histogram, normal probability plot, and Shapiro-Wilk test. The plastic is considered to be acceptable if the melt flow falls within the manufacturing specification limits. That is, the melt flow must fall between 9.6 g min and 10.4 g min , i.e. ( LSL, T , USL) = (9.6, 10, 10.4). Since process accuracy is an important criterion set to Ca ≥ 0.75 to ensure good process centering. A sample of n = 100 is taken from the factory, with the calculated Cˆ a = 0.837. The two process characteristic parameters, ξˆ = X − m S , and d S , are also calculated from the sample, to find the corresponding critical value c0 = 0.791 for α = 0.05 (the risk of wrongly concluding an inaccurate process as accurate). Since Cˆ a > 0.791, the process is concluded satisfying the precision requirement. Thus, with 95% confidence we believe Ca ≥ 0.75 (or µ − m < d / 4 ), and no further accuracy improvement action needs to be taken at this time. Subsequently, we calculate the lower confidence bounds CaL = 0.8049 > Ca and conclude that the true value of the process accuracy index Ca is no less than 0.8049 with 95% level of confidence.. 5.2 Example II of Testing the Laser Marking on IC Packages Integrated circuit (IC) packages are used for encapsulating the chips and connections against environmental, electrical and electromagnetic effects, and for establishing thermal path from the semi-conductor junction to the environment and electrical connection from the chip to the printed circuit board (PCB). In mask marking of IC packages, the marking area is determined by the output power of the laser, the cross-section of the beam and the properties of the material being marked. Marked area of 75 mm 2 at 10 J/pulse with pulse duration of about 0.69 ms has been reported for uncoated plastic packages. For the coated plastic packages (e.g. marker ink or varnish), the marked area can reach 600 mm 2 per pulse with pulse energy ranging from 0.1 J to 0.75 J and a pulse repetition frequency of 30 Hz. For mask marking, a minimum character height of about 0.5 mm has been reported. The quality of a mark is assessed by its legibility characteristics such as mark 16.

(27) contrast, mark with, mark depth, spattering, and microcracks. The characteristics are usually evaluated using complementary techniques such as optical microscopy, ultrosonics microscopy, electron microscopy, surface roughness measurement, and contrast evaluation devices. The acceptance of level of each of these characteristics generally depends on the manufacturer's requirements. Mark width refers to the width of the line segment that forms a character. With the mask image marking, the mark width in the characters is essentially determined by the mask geometry and the lens imaging quality. It can be as small as a few micro-meters, which can only be read under a microscope. In beam deflected marking, the line width is mainly determined by the focused beam spot size, which varies between 20-100 mm. The IC packages company monitors the process that laser marking on IC packages by measuring the mark width. According to the customer’s requirement, this company considers the following normally distributed process with asymmetric tolerances LSL = 20 mm, T = 26.5 mm and USL = 32 mm for the mark width and the α -risk = 0.05. We calculate that Dl = T − LSL = 6.5, Du = USL − T = 5.5, d * = min { Dl , Du } = 5.5. The sample of n = 100, the sample mean X = 27.35 and the sample standard deviation S = 2.0. We can calculate Aˆ * = Max d * ( X − T ) Du , d * (T − X ) Dl = 0.85, ξˆ = ( X − T ) S = 0.425 and Cˆ a′′ = 0.845. To test if the process meets the capability We find the requirement, we define a process with Ca′′ ≥ 0.75 is accurate. corresponding critical value c0 = 0.791 for α = 0.05. Since Cˆ a′′ > 0.791, the process is concluded satisfying the precision requirement. Thus, with 95% confidence we believe Ca′′ ≥ 0.75 We find the corresponding p-value is 0.0532 from calculating Eq. (19). Because the α -risk = 0.05 is small than 0.0532, we do not have sufficient information to conclude that the process meets the present precision requirement. Subsequently, the lower confidence bounds CaL′′ = 0.593, so we can conclude that the true value of the process accuracy index Ca′′ is no less than 0.593 with 95% level of confidence.. {. }. 5.3 Example III of Testing the Length of Steel Meter Sticks The iron and steel industry manufactures many kinds of product such as plate products, steel stick and wire rod products, hot-rolled products, cold-rolled products and laminated products. Then, the steel manufacturing process is composed of raw material preparation, ironmaking, steelmaking, and rolling. For the production of the steel stick mill, depicted in Figure 14, begins at the heating of billets in the reheating furnace, and then the billets rolled through rough mill, intermediate mill, finish mill and 3-roller type reducing and sizing mill to the products size. If for coil stick products then formed by pouring reel to become coil stick products. If for straight sticks then 17.

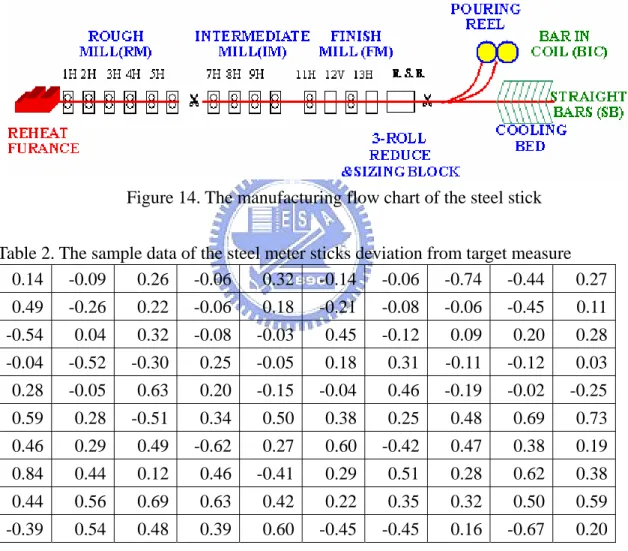

(28) cut by flying shear, cooled in a cooling bed and sheared, compacted to bundles. For a steel factory producing steel meter sticks, the upper specification limit, USL for the length of the steel meter sticks is set to 1001 mm, the lower specification limit, LSL of the length of the steel meter sticks is set to 999 mm and the target value is set to T = 1000 mm. Hence, a meter stick outside these specification limit is considered as nonconforming, or defective. We have collected a total of 100 observations and subtracted 1000 mm from our data to obtain a deviation from target measure. These results are shown in Table 2. After calculating from the sample data, we obtain the sample mean X = 0.1495 , and the sample standard deviation S = 0.3603.. Figure 14. The manufacturing flow chart of the steel stick Table 2. The sample data of the steel meter sticks deviation from target measure 0.14 -0.09 0.26 -0.06 0.32 -0.14 -0.06 -0.74 -0.44 0.27 0.49. -0.26. 0.22. -0.06. 0.18. -0.21. -0.08. -0.06. -0.45. 0.11. -0.54. 0.04. 0.32. -0.08. -0.03. 0.45. -0.12. 0.09. 0.20. 0.28. -0.04. -0.52. -0.30. 0.25. -0.05. 0.18. 0.31. -0.11. -0.12. 0.03. 0.28. -0.05. 0.63. 0.20. -0.15. -0.04. 0.46. -0.19. -0.02. -0.25. 0.59. 0.28. -0.51. 0.34. 0.50. 0.38. 0.25. 0.48. 0.69. 0.73. 0.46. 0.29. 0.49. -0.62. 0.27. 0.60. -0.42. 0.47. 0.38. 0.19. 0.84. 0.44. 0.12. 0.46. -0.41. 0.29. 0.51. 0.28. 0.62. 0.38. 0.44. 0.56. 0.69. 0.63. 0.42. 0.22. 0.35. 0.32. 0.50. 0.59. -0.39. 0.54. 0.48. 0.39. 0.60. -0.45. -0.45. 0.16. -0.67. 0.20. Since process accuracy is an important criterion set to Ca ≥ 0.75 to ensure good process centering. The two process characteristic parameters, ξˆ = X − m S =0.4149 and d S = 2.775 , and the estimator of process accuracy index, Cˆ a = 0.8505 , are calculated from the sample. Hence, we find the corresponding critical value c0 = 0.8491 for α = 0.05 . Since Cˆ a >0.8491, the process is considered satisfying the accuracy requirement. Furthermore, following the calculation of p-value = 18.

(29) 0.0477< α = 0.05 and the lower confidence bounds CaL = 0.7524, we have sufficient information to conclude that this process is accurate and the true value of the process accuracy index Ca is no less than 0.7524 with 95% level of confidence.. 6. Conclusions The idea of measuring process capability is not new, but the use of indices to communicate information about processes and the specified requirements has become widespread. In this paper, to measure the degree of process centering (the ability to cluster around the center), the process accuracy index Ca is investigated. An explicit form for the cumulative distribution function of the estimator Cˆ a is derived. Subsequently, the distributional and inferential properties of the estimated process accuracy index Ca are provided. The calculations of critical value, p-value and lower confidence bound are developed for testing process quality. Furthermore, a new generalization of Ca for cases with asymmetric tolerances is proposed to measure the process accuracy, and the distributional properties of the new estimator are investigated. The results obtained are useful for the practitioners in performing the process accuracy testing, and decisions making rule therefore can be obtained on whether actions should be taken to improve the process quality. For illustrative purpose, three application examples are given to show how to test process accuracy using the actual data collected from the factory.. 19.

(30) References [1]. Boyles, R. A. (1991). The Taguchi capability index. Journal of Quality Technology, 23, 17-26. [2]. Boyles, R. A. (1994). Process capability with asymmetric tolerances. Communications in Statistics: Simulation and Computation, 23(3), 615-643. [3]. Chan, L. K., Cheng, S. W. and Spiring, F. A. (1988). A new measure of process capability C pm . Journal of Quality Technology, 20(3), 162-175. [4]. Chen, K. S. (1998). Incapability index with asymmetric tolerances. Statistica Sinica, 8(1), 253-262. [5]. Chen, K. S., Pearn, W. L. and Lin, P. C. (1999). A new generalization of the capability index C pm for asymmetric tolerances. International Journal of [6]. [7]. [8].. [9].. Reliability, Quality & Safety Engineering, 6(4), 383-398. Choi, B. C. and Owen, D. B. (1990). A study of a new capability index. Communications in Statistics: Theory & Methods, 19, 1231-1245. Chou, Y. M., Owen, D. B. and Borrego, A. S. (1990). Lower confidence limits on process capability indices. Journal of Quality Technology, 22, 223-229. Chou, Y. M., Polansky, A. M. and Mason, R. L. (1998). Transforming non-normal data to normality in statistical process control. Journal of Quality Technology, 30(2), 133-141. Hoffman, L. L. (2001). Obtaining confidence intervals for C pk using percentiles of the distribution of C p . Quality & Reliability Engineering International, 17(2),. 113-118. [10]. Jessenberger, J. and Weihs, C. (2000). A note on the behavior of C pmk with asymmetric specification limits. Journal of Quality Technology, 32(4), 440-443. [11]. Juran, J. M. (1974). Quality Control Handbook (3rd Edition), McGraw-Hill, New York. [12]. Kane, V. E. (1986). Process capability indices. Journal of Quality Technology, 18(1), 41-52. [13]. Kotz, S. and Johnson, N. L. (2002). Process capability indices – a review, 1992-2000. Journal of Quality Technology, 34(1), 1-19. [14]. Kotz, S. and Lovelace, C. (1998). Process Capability Indices in Theory and Practice. Arnold, London, U.K. [15]. Kotz, S., Pearn, W. L. and Johnson, N. L. (1993). Some process capability indices are more reliable than one might think. Journal of the Royal Statistical Society C, 42(1), 55-62. [16]. Kushler, R. and Hurley, P. (1992). Confidence bounds for capability indices. Journal of Quality Technology, 24, 188-195. 20.

(31) [17]. Leone, F. C., Nelson, L. S. and Nottingham, R. B. (1961). The folded normal distribution. Technometrics, 3, 543-550. [18]. Nagata, Y. and Nagahata, H. (1994). Approximation formulas for the lower confidence limits of process capability indices. Okayama Economic Review, 25, 301-314. [19]. Palmer, K. and Tsui, K. L. (1999). A review and interpretations of process capability indices. Annals of Operations Research, 87, 31-47. [20]. Pearn, W. L. and Chen, K. S. (1998). New generalization of process capability index C pk . Journal of Applied Statistics, 25(6), 801-810. [21]. Pearn, W. L., Chen, K. S. and Lin, P. C. (1999). The probability density function of the estimated process capability index C pk . Far East Journal of Theoretical Statistics, 3(1), 67-80. [22]. Pearn, W. L., Kotz, S. and Johnson, N. L. (1992). Distributional and inferential properties of process capability indices. Journal of Quality Technology, 24(4), 216-231. [23]. Pearn, W. L., Lin, G. H. and Chen, K. S. (1998). Distributional and inferential properties of process accuracy and process precision indices. Communications in Statistics: Theory & Methods, 27(4), 985-1000. [24]. Pearn, W. L. and Lin, P. C. (2002). Computer program for calculating the p-values in testing process capability C pmk . Quality & Reliability Engineering International, 18(4), 333-342. [25]. Spiring, F. A. (1997). A unifying approach to process capability indices. Journal of Quality Technology, 29(1), 49-58. [26]. Spiring, F., Leung, B., Cheng, S. and Yeung, A. (2003). A bibliography of process capability papers. Quality & Reliability Engineering International, 19(5), 445-460. [27]. Sullivan, L. P. (1984). Targeting variability - a new approach to quality. Quality Progress, 17(7), 15–21. [28]. Sullivan, L. P. (1985). Letters. Quality Progress, 18(4), 7–8. [29]. Tang, L. C., Than, S. E. and Ang, B. W. (1997). A graphical approach to obtaining confidence limits of C pk . Quality & Reliability Engineering International, 13, 337-346. [30]. Vännman, K. (1995). A unified approach to capability indices. Statistica Sinica, 5, 805-820. [31]. Vännman, K. (1997). Distribution and moments in simplified form for a general class of capability indices. Communications in Statistics: Theory & Methods, 26, 159-179. [32]. Vännman, K. (1997). A General Class of Capability Indices in the Case of Asymmetric Tolerances. Communications in Statistics: Theory & Method, 26, 21.

(32) 2049–2072. [33]. Vännman, K. and Kotz, S. (1995). A superstructure of capability indices distributional properties and implications. Scandinavian Journal of Statistics, 22, 477-491. [34]. Vännman, K. and Hubele, N. F. (2003). Distributional properties of estimated capability indices based on subsamples. Quality & Reliability Engineering International, 19(5), 445-460. [35]. Wu, C. C. and Tang, G. R. (1998). Tolerance design for products with asymmetric quality losses. International Journal of Production Research, 36(9), 2529-2541. [36]. Zimmer, L. S., Hubele, N. F. and Zimmer, W. J. (2001). Confidence intervals and sample size determination for C pm . Quality & Reliability Engineering International, 17, 51-68.. 22.

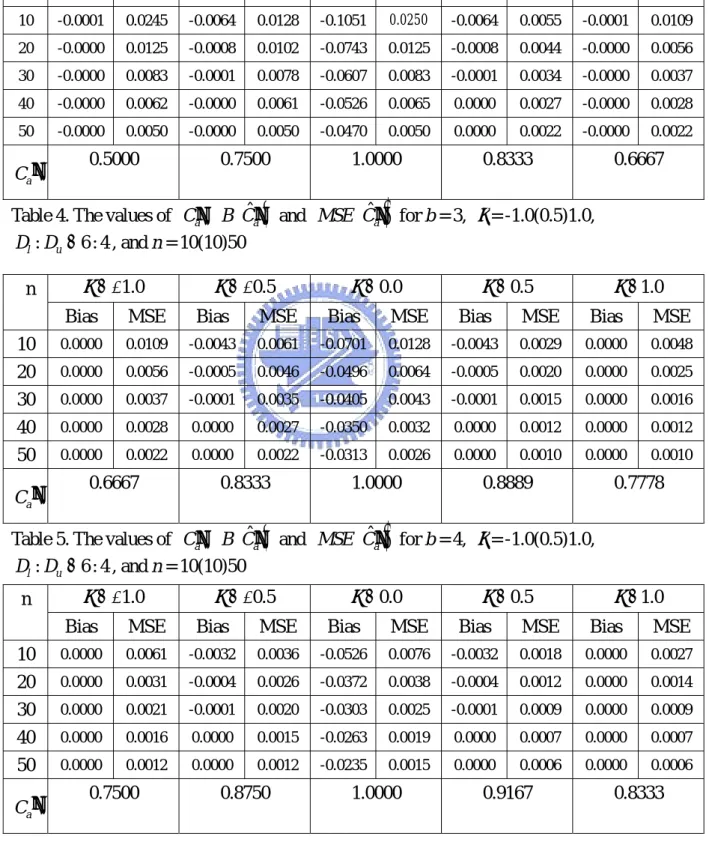

(33) Appendix. ( ). Table 3 The values of Ca′′ , B Cˆ a′′ Dl : Du = 6 : 4 , and n = 10(10)50 n. ξ = −1.0. ( ). and MSE Cˆ a′′. ξ = −0.5. for b = 2, ξ = -1.0(0.5)1.0,. ξ = 0.0. ξ = 0.5. ξ = 1.0. Bias. MSE. Bias. MSE. Bias. MSE. Bias. MSE. Bias. MSE. 10. -0.0001. 0.0245. -0.0064. 0.0128. -0.1051. 0.0250. -0.0064. 0.0055. -0.0001. 0.0109. 20. -0.0000. 0.0125. -0.0008. 0.0102. -0.0743. 0.0125. -0.0008. 0.0044. -0.0000. 0.0056. 30. -0.0000. 0.0083. -0.0001. 0.0078. -0.0607. 0.0083. -0.0001. 0.0034. -0.0000. 0.0037. 40. -0.0000. 0.0062. -0.0000. 0.0061. -0.0526. 0.0065. 0.0000. 0.0027. -0.0000. 0.0028. 50. -0.0000. 0.0050. -0.0000. 0.0050. -0.0470. 0.0050. 0.0000. 0.0022. -0.0000. 0.0022. Ca′′. 0.5000. 0.7500. ( ). Table 4. The values of Ca′′ , B Cˆ a′′ Dl : Du = 6 : 4 , and n = 10(10)50 n. ξ = −1.0. 1.0000. ( ). and MSE Cˆ a′′. ξ = −0.5. 0.8333. 0.6667. for b = 3, ξ = -1.0(0.5)1.0,. ξ = 0.0. ξ = 0.5. ξ = 1.0. Bias. MSE. Bias. MSE. Bias. MSE. Bias. MSE. Bias. MSE. 10. 0.0000. 0.0109. -0.0043. 0.0061. -0.0701. 0.0128. -0.0043. 0.0029. 0.0000. 0.0048. 20. 0.0000. 0.0056. -0.0005. 0.0046. -0.0496. 0.0064. -0.0005. 0.0020. 0.0000. 0.0025. 30. 0.0000. 0.0037. -0.0001. 0.0035. -0.0405. 0.0043. -0.0001. 0.0015. 0.0000. 0.0016. 40. 0.0000. 0.0028. 0.0000. 0.0027. -0.0350. 0.0032. 0.0000. 0.0012. 0.0000. 0.0012. 50. 0.0000. 0.0022. 0.0000. 0.0022. -0.0313. 0.0026. 0.0000. 0.0010. 0.0000. 0.0010. Ca′′. 0.6667. 0.8333. ( ). Table 5. The values of Ca′′ , B Cˆ a′′ Dl : Du = 6 : 4 , and n = 10(10)50 n. ξ = −1.0. 1.0000. ( ). and MSE Cˆ a′′. ξ = −0.5. 0.8889. 0.7778. for b = 4, ξ = -1.0(0.5)1.0,. ξ = 0.0. ξ = 0.5. ξ = 1.0. Bias. MSE. Bias. MSE. Bias. MSE. Bias. MSE. Bias. MSE. 10. 0.0000. 0.0061. -0.0032. 0.0036. -0.0526. 0.0076. -0.0032. 0.0018. 0.0000. 0.0027. 20. 0.0000. 0.0031. -0.0004. 0.0026. -0.0372. 0.0038. -0.0004. 0.0012. 0.0000. 0.0014. 30. 0.0000. 0.0021. -0.0001. 0.0020. -0.0303. 0.0025. -0.0001. 0.0009. 0.0000. 0.0009. 40. 0.0000. 0.0016. 0.0000. 0.0015. -0.0263. 0.0019. 0.0000. 0.0007. 0.0000. 0.0007. 50. 0.0000. 0.0012. 0.0000. 0.0012. -0.0235. 0.0015. 0.0000. 0.0006. 0.0000. 0.0006. Ca′′. 0.7500. 0.8750. 1.0000. 23. 0.9167. 0.8333.

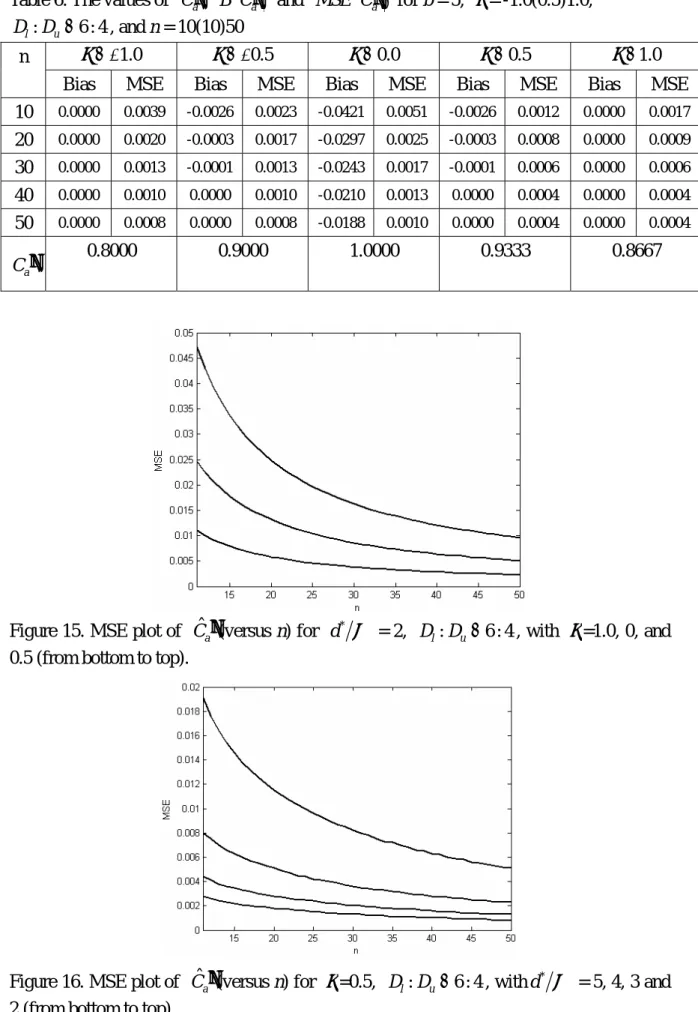

(34) ( ). Table 6. The values of Ca′′ , B Cˆ a′′ Dl : Du = 6 : 4 , and n = 10(10)50 n. ξ = −1.0. ( ). and MSE Cˆ a′′. ξ = −0.5. for b = 5, ξ = -1.0(0.5)1.0,. ξ = 0.0. ξ = 0.5. ξ = 1.0. Bias. MSE. Bias. MSE. Bias. MSE. Bias. MSE. Bias. MSE. 10. 0.0000. 0.0039. -0.0026. 0.0023. -0.0421. 0.0051. -0.0026. 0.0012. 0.0000. 0.0017. 20. 0.0000. 0.0020. -0.0003. 0.0017. -0.0297. 0.0025. -0.0003. 0.0008. 0.0000. 0.0009. 30. 0.0000. 0.0013. -0.0001. 0.0013. -0.0243. 0.0017. -0.0001. 0.0006. 0.0000. 0.0006. 40. 0.0000. 0.0010. 0.0000. 0.0010. -0.0210. 0.0013. 0.0000. 0.0004. 0.0000. 0.0004. 50. 0.0000. 0.0008. 0.0000. 0.0008. -0.0188. 0.0010. 0.0000. 0.0004. 0.0000. 0.0004. Ca′′. 0.8000. 0.9000. 1.0000. 0.9333. 0.8667. Figure 15. MSE plot of Cˆ a′′ (versus n) for d * σ = 2, Dl : Du = 6 : 4 , with ξ =1.0, 0, and 0.5 (from bottom to top).. Figure 16. MSE plot of Cˆ a′′ (versus n) for ξ =0.5, Dl : Du = 6 : 4 , with d * σ = 5, 4, 3 and 2 (from bottom to top). 24.

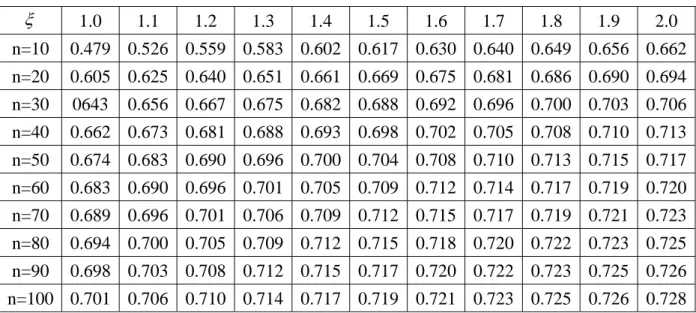

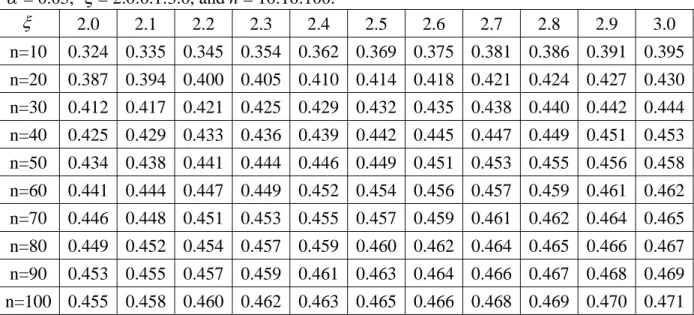

(35) Table 7. Lower confidence bounds CaL of Cˆ a = 0.75 for various parameter values, with α = 0.05, ξ = 1.0:0.1:2.0, and n = 10:10:100.. ξ. 1.0. 1.1. 1.2. 1.3. 1.4. 1.5. 1.6. 1.7. 1.8. 1.9. 2.0. n=10. 0.479 0.526 0.559 0.583 0.602 0.617 0.630 0.640 0.649 0.656 0.662. n=20. 0.605 0.625 0.640 0.651 0.661 0.669 0.675 0.681 0.686 0.690 0.694. n=30. 0643. n=40. 0.662 0.673 0.681 0.688 0.693 0.698 0.702 0.705 0.708 0.710 0.713. n=50. 0.674 0.683 0.690 0.696 0.700 0.704 0.708 0.710 0.713 0.715 0.717. n=60. 0.683 0.690 0.696 0.701 0.705 0.709 0.712 0.714 0.717 0.719 0.720. n=70. 0.689 0.696 0.701 0.706 0.709 0.712 0.715 0.717 0.719 0.721 0.723. n=80. 0.694 0.700 0.705 0.709 0.712 0.715 0.718 0.720 0.722 0.723 0.725. n=90. 0.698 0.703 0.708 0.712 0.715 0.717 0.720 0.722 0.723 0.725 0.726. 0.656 0.667 0.675 0.682 0.688 0.692 0.696 0.700 0.703 0.706. n=100 0.701 0.706 0.710 0.714 0.717 0.719 0.721 0.723 0.725 0.726 0.728 Table 8. Lower confidence bounds CaL of Cˆ a = 0.75 for various parameter values, with α = 0.01, ξ = 1.0:0.1:2.0, and n = 10:10:100.. ξ. 1.0. 1.1. 1.2. 1.3. 1.4. 1.5. 1.6. 1.7. 1.8. 1.9. 2.0. n=10. 0.100 0.246 0.354 0.424 0.473 0.510 0.537 0.559 0.577 0.592 0.605. n=20. 0.479 0.526 0.559 0.583 0.602 0.617 0.630 0.640 0.649 0.656 0.662. n=30. 0.566 0.593 0.613 0.629 0.641 0.651 0.660 0.667 0.673 0.678 0.683. n=40. 0.605 0.625 0.640 0.651 0.661 0.669 0.675 0.681 0.686 0.690 0.694. n=50. 0.628 0.643 0.656 0.665 0.673 0.680 0.685 0.690 0.694 0.698 0.701. n=60. 0.643 0.656 0.667 0.675 0.682 0.688 0.692 0.696 0.700 0.703 0.706. n=70. 0.654 0.666 0.675 0.682 0.688 0.693 0.698 0.701 0.704 0.707 0.710. n=80. 0.662 0.673 0.681 0.688 0.693 0.698 0.702 0.705 0.708 0.710 0.713. n=90. 0.669 0.678 0.686 0.692 0.697 0.701 0.705 0.708 0.711 0.713 0.715. n=100 0.674 0.683 0.690 0.696 0.700 0.704 0.708 0.710 0.713 0.715 0.717. 25.
