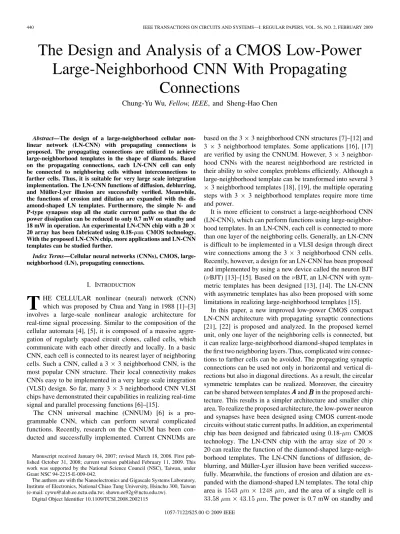

The Design and Analysis of a CMOS Low-Power

Large-Neighborhood CNN With Propagating

Connections

Chung-Yu Wu, Fellow, IEEE, and Sheng-Hao Chen

Abstract—The design of a large-neighborhood cellular

non-linear network (LN-CNN) with propagating connections is proposed. The propagating connections are utilized to achieve large-neighborhood templates in the shape of diamonds. Based on the propagating connections, each LN-CNN cell can only be connected to neighboring cells without interconnections to farther cells. Thus, it is suitable for very large scale integration implementation. The LN-CNN functions of diffusion, deblurring, and Müller-Lyer illusion are successfully verified. Meanwhile, the functions of erosion and dilation are expanded with the di-amond-shaped LN templates. Furthermore, the simple N- and P-type synapses stop all the static current paths so that the dc power dissipation can be reduced to only 0.7 mW on standby and 18 mW in operation. An experimental LN-CNN chip with a 20 20 array has been fabricated using 0.18- m CMOS technology. With the proposed LN-CNN chip, more applications and LN-CNN templates can be studied further.

Index Terms—Cellular neural networks (CNNs), CMOS,

large-neighborhood (LN), propagating connections.

I. INTRODUCTION

T

HE CELLULAR nonlinear (neural) network (CNN) which was proposed by Chua and Yang in 1988 [1]–[3] involves a large-scale nonlinear analogic architecture for real-time signal processing. Similar to the composition of the cellular automata [4], [5], it is composed of a massive aggre-gation of regularly spaced circuit clones, called cells, which communicate with each other directly and locally. In a basic CNN, each cell is connected to its nearest layer of neighboring cells. Such a CNN, called a 3 3 neighborhood CNN, is the most popular CNN structure. Their local connectivity makes CNNs easy to be implemented in a very large scale integration (VLSI) design. So far, many 3 3 neighborhood CNN VLSI chips have demonstrated their capabilities in realizing real-time signal and parallel processing functions [6]–[15].

The CNN universal machine (CNNUM) [6] is a pro-grammable CNN, which can perform several complicated functions. Recently, research on the CNNUM has been con-ducted and successfully implemented. Current CNNUMs are

Manuscript received January 04, 2007; revised March 18, 2008. First pub-lished October 31, 2008; current version pubpub-lished February 11, 2009. This work was supported by the National Science Council (NSC), Taiwan, under Grant NSC 94-2215-E-009-042.

The authors are with the Nanoelectronics and Gigascale Systems Laboratory, Institute of Electronics, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail: cywu@alab.ee.nctu.edu.tw; shawn.ee92g@nctu.edu.tw).

Digital Object Identifier 10.1109/TCSI.2008.2002115

based on the 3 3 neighborhood CNN structures [7]–[12] and 3 3 neighborhood templates. Some applications [16], [17] are verified by using the CNNUM. However, 3 3 neighbor-hood CNNs with the nearest neighborneighbor-hood are restricted in their ability to solve complex problems efficiently. Although a large-neighborhood template can be transformed into several 3 3 neighborhood templates [18], [19], the multiple operating steps with 3 3 neighborhood templates require more time and power.

It is more efficient to construct a large-neighborhood CNN (LN-CNN), which can perform functions using large-neighbor-hood templates. In an LN-CNN, each cell is connected to more than one layer of the neighboring cells. Generally, an LN-CNN is difficult to be implemented in a VLSI design through direct wire connections among the 3 3 neighborhood CNN cells. Recently, however, a design for an LN-CNN has been proposed and implemented by using a new device called the neuron BJT ( BJT) [13]–[15]. Based on the BJT, an LN-CNN with sym-metric templates has been designed [13], [14]. The LN-CNN with asymmetric templates has also been proposed with some limitations in realizing large-neighborhood templates [15].

In this paper, a new improved low-power CMOS compact LN-CNN architecture with propagating synaptic connections [21], [22] is proposed and analyzed. In the proposed kernel unit, only one layer of the neighboring cells is connected, but it can realize large-neighborhood diamond-shaped templates in the first two neighboring layers. Thus, complicated wire connec-tions to farther cells can be avoided. The propagating synaptic connections can be used not only in horizontal and vertical di-rections but also in diagonal didi-rections. As a result, the circular symmetric templates can be realized. Moreover, the circuitry can be shared between templates and in the proposed archi-tecture. This results in a simpler architecture and smaller chip area. To realize the proposed architecture, the low-power neuron and synapses have been designed using CMOS current-mode circuits without static current paths. In addition, an experimental chip has been designed and fabricated using 0.18- CMOS technology. The LN-CNN chip with the array size of 20 20 can realize the function of the diamond-shaped large-neigh-borhood templates. The LN-CNN functions of diffusion, de-blurring, and Müller-Lyer illusion have been verified success-fully. Meanwhile, the functions of erosion and dilation are ex-panded with the diamond-shaped LN templates. The total chip area is , and the area of a single cell is . The power is 0.7 mW on standby and

Fig. 1. Architecture of an LN-CNN kernel unit.

18 mW in operation with a 1.8-V supply voltage. As a result, the proposed kernel unit has a very simple structure, small dc power dissipation, and small chip area, which can be applied to the CMOS implementation of an LN-CNNUM with a huge kernel array size. Also, with the hardware of the proposed LN-CNN structure, many new functions or templates of LN-CNN can be explored.

In Section II, the LN-CNN model, the global architecture of the kernel unit of the LN-CNNUM, and the components of each regular cell are described. In Section III, the CMOS circuits of the neuron, synapses, PSW, and analog memory in the proposed LN-CNN are described, and HSPICE simulation results are pre-sented to verify the circuit functions. The overall chip architec-ture in the design is also illustrated. In Section IV, the measure-ment results are shown and discussed. Finally, a concluding sec-tion is provided.

II. ARCHITECTURE ANDMODELS

For a standard CNN, the state equation is written as [1]–[3] (1)

where , , and are the state, output, and input of the neuron cell in a CNN array, respectively; the coefficient , called the template , is the threshold of the neuron cell

; and and are the coefficients, called templates and , which are multiplied with output and input of the cell , respectively, in the sphere of influence of the neuron cell . The two sets of products are accumulated over all the cells in the sphere of influence of the neuron cell . Where there are nonzero coefficients for templates and at the neighboring cells , is an integer called

neighborhood of radius. If is greater than one, it is called an LN-CNN.

The architecture of the proposed LN-CNN kernel unit is shown in Fig. 1, where the region surrounded by the broken line represents one neural cell defined by the coordinate. In (of Fig. 1), the BODY shown in Fig. 2 consists of the neuron, analog memory, synapses, and control circuits. PU1, PD1, PL1, PR1, PRU, PRD, PLU, PLD, PU2, PD2, PL2, and PR2 are all synapses, which can multiply input signals and result in different gains which are controlled by the synaptic gain con-trolling signals. As a result, these synapses can be combined to realize the coefficients of templates and , except the center coefficients and . Among these synapses, PU2, PD2, PR2, and PL2 can propagate signals to the cells farther than the neighboring cells. For example, the signal from can pass through PL2, be multiplied by the gain of PL2, and then reach . These connections that are used to realize large-neighborhood templates are called propagating connections. PLU, PLD, PRU, PRD, PL1, PD1, PR1, and PU1 are used to connect the neighboring cells directly. These connections between the nearest neighboring cells are called direct connections. PSW is a current switch, and the gain of PSW is one. The polarities of the signals sent out of the BODY in upward, downward, leftward, and rightward directions are determined by four PSWs. The output current of PSW is combined with that sent from the synapse of the propagating connections in the former cell. Eventually, the resultant output is sent into the synapse of the next cell.

The DCS and CLK in Fig. 1 are digital controlling signal and clock signal, respectively, to control logic circuits and switches in the kernel unit. The Pixel input signal of one cell is connected to the Pixel output signal of the former cell. For example, the Pixel input of comes from the Pixel output of . This

Fig. 2. Structure of the BODY in Fig. 1.

signal transfers the input pattern to each cell and the output pat-tern to the output pads in series. The arrows between the cells are connected to the relative positions of each cell. For example, the arrow line from the PRU of is connected to the BODY of , and similarly, the arrow line from the PLD of

is connected to the BODY of .

In the structure of the BODY in Fig. 2, switches S1–S4 are controlled by the signals of DCS and CLK, and switch S5 is controlled by a 5-bit decoder. An SRDA contains one shift reg-ister, digital controlling logic, and a 1-bit D/A converter (DAC) inside. The Pixel input of can be transferred to the next cell by the SRDA. The SRDA provides the binary input signal or the initial state value of each cell during the oper-ation. After the operation, the SRDA can store the binary output of from the neuron, and the analog output can be read out by turning on switch S5.

In Fig. 2, the Neuron is a neuron with a standard piecewise linear ramp function

(2)

The input of the BODY comes from the summation of eight synaptic outputs, as shown in Fig. 1, and the output of the BODY is duplicated eight times and sent to the four PSWs and four corner synapses PRU, PRD, PLU, and PLD. PZ generates the coefficient , where PS is the synapse that generates the center coefficients and of templates and , respectively. The Analog Memory is used to store the following equation:

(3)

Before the Neuron, there is a Sign Controller which is used to adjust the polarities of the signals from the nine synapses.

In the first step of the operation period, only the signal of in (3) is calculated, sampled, and stored by the Analog Memory. In addition, the digital code of the input is sent from the Pixel input to the shift register in the SRDA and stored. Switches S2 and S3 are closed, and S1 and S4 are left open. At this time, all the synapses are set to certain gains to gen-erate the template , and PZ is set to generate . The piece-wise linear ramp function of the neuron is turned off. The input signal from the SRDA passes through the Neuron. At this moment, the output of the neuron is the same with the input signal from the SRDA, multiplied with the template and combined with to form , which is instilled into the Analog Memory. After switch S2 is opened, is stored in the Analog Memory.

In the second step, the digital code of the initial state of the desired function is sent from the Pixel input to the shift register in the SRDA and stored. S1 and S2 are open, and S3 and S4 are closed. is read out, and the neuron is set to the initial state provided by the SRDA. Meanwhile, the gains of all the synapses are set to generate the template . In the third step of the operation period, the S1 switch is turned on, and the S3 switch is turned off. A feedback loop is constructed, and then, the calculation of (1) is started. After the operation is completed, the readout period commences. The output is converted to binary form, and the binary output is sent to and stored at the shift register in the SRDA. As the input pattern of the next operation is sent into the LN-CNN, the output pattern of the former operation can be read out from the Pixel output of the last cell.

Fig. 3 shows a large-neighborhood template, where symbols from letters to represent the template coefficients. The neigh-borhood of radius is redefined, as shown in Fig. 3. Here, the

Fig. 3. Large-neighborhood template generated by an LN-CNN with propa-gating connections.

TABLE I

DERIVEDEQUATIONS OFTEMPLATECOEFFICIENTS ANDGAINS OFSYNAPSES

sphere of influence of a large neighborhood is not consid-ered as a 5 5 matrix but is defined as a diamond-shaped matrix in Fig. 3 with neighborhood of radius . Each coefficient can be derived from the gains of the synapses in Fig. 1 and the PS in Fig. 2. The derived equations are listed in Table I, where the template coefficients in Fig. 3 are expressed by the gains of the synapses, and the gain of each synapse is expressed by the template coefficients. Thus, the architecture in Figs. 1 and 2 can be used to generate the large-neighborhood templates with

shown in Fig. 3.

According to Table I, the gains of synapses PD2, PU2, PL2, and PR2 of propagating connections should be less than one for each. If the synaptic gain of a propagating connection is larger than or equal to one, then the signal coming from the cells along one direction would diverge. The gains of these synapses of propagating connections can be determined from the template coefficients , , , and , as listed in Table I. Because of the propagating connections, if the template coefficients , , , and are not equal to zero, the coefficients , , , and would not

equal zero also, respectively. However, if the template coeffi-cients , , , and are to be set to zero, the template values , , , and would be small enough when compared with the template values , , , and , respectively.

The four corner coefficients , , , and are determined directly by synapses PRD, PLD, PRU, and PLU, respectively, of direct connections. Similarly, the coefficient can be generated directly by the PS in Fig. 2.

III. CIRCUITIMPLEMENTATION ANDSIMULATIONRESULTS

It has already been established that current-mode signals can be easily combined. In addition, current-mode circuits are faster and consume less power than voltage-mode circuits. Therefore, the proposed LN-CNN has been implemented by using cur-rent-mode circuits. In all the curcur-rent-mode circuit realizations, the signals represented in Figs. 1 and 2 and transferred inside the kernel unit are all in current mode, except the DCS, CLK, synaptic gain controlling signals and the digital logic circuits signals.

A. Neurons and PZ

Fig. 4 shows the circuit of the PZ and the Neuron inside the BODY, as indicated by dotted lines in Fig. 2. The PZ is imple-mented by devices and . The gate bias voltages and directly control the current through and , respectively, to generate the threshold current . The circuitry of – is the neuron core with the piecewise linear ramp function. The gate bias voltages and are used not only to maintain the static current of the neuron zero with devices and but also to limit the currents through with and with , respectively. Furthermore, and also act as switch S1 in Fig. 2. The gate bias voltages and are controlled by the external bias current . The transfer characteristic of the neuron is simulated, as shown in Fig. 5. The low and high limit currents of the piecewise linear ramp function range from 351.8 to 487.8 nA and from 389.5 to 534.3 nA, re-spectively, when the is in the range of 250–360 nA and the supply voltage is 1.8 V. When the neuron is on standby or there is no input current, the leakage current is less than 1 nA. In the first and second steps of the operation period, S1 is turned off, i.e., are turned off. In this way, the neuron core acts as two current mirrors. As the input current , shown in Fig. 4, is provided by the SRDA in the first step, the current is calculated, and in the second step, the initial value

is also introduced by the SRDA. Moreover, and are used to send the binary outputs to the SRDA or send the tran-sient currents to the analog outputs through S5.

B. Synapses and Sign Controller

The circuit diagrams of the synapses are shown in Fig. 6(a)–(c) and are indicated by broken lines, whereas the circuit diagram of the Sign Controller is demonstrated by broken lines in Fig. 6(d). The circuit of Fig. 6(a) is used to realize synapses PL2, PR2, PD2, and PU2 of propagating connections. There are two paths, i.e., N and P types, in one synapse to deal with the bidirectional current inputs. If an LN-CNN is on standby or there are no input currents, the synapses consume no power. The device pairs and

Fig. 4. Circuit diagram of the Neuron and PZ in Fig. 2.

Fig. 5. Transfer characteristic of a neuron with different external bias currents Ibias's.

can be seen as two sets of current mirrors, and the maximum gains are determined by the ratios of and . and with gate bias voltages and are operated in the linear region to control the current mirror gains of and , respectively. All the gate bias voltages and of synapses combined with the gate bias voltages and of the PZ form the synaptic gain controlling signals, as shown in Fig. 1. Further-more, the gate bias voltages and are generated by using an on-chip 4-bit DAC. There are 16 different values for and . An HSPICE-simulated Inouta versus Inina diagram of the N-type synapse with differing gate bias voltages 's ranging from 34.4 to 737 mV is shown in Fig. 7. The corresponding N- and P-type current gains of the input current ranging from 300 to 500 nA are shown in Fig. 8, where are operated in the subthreshold region with a supply voltage of 1.8 V. The N-type synaptic gains with different values range from 0 to 1.54 in the input current range of 300–500 nA, while the P-type synaptic gains with different values range from 0 to 1.42. The N-type synaptic gain has an average variation of 6.38%, while the P-type synaptic gain has that of 7.72%, as indicated by short bars over the input current range of 300–500 nA. It can be seen that the synapses can generate the desired templates with a

Fig. 6. Circuit diagrams of (a) synapses PL2, PR2, PD2, and PU2; (b) synapses PL1, PR1, PD1, and PU1; (c) synapses PRU, PRD, PLU, PLD, and PS; and (d) the sign controller.

tolerable level of error by setting the codes for the and voltages with proper values.

The circuits of the synapses of direct connections are shown in Fig. 6(b) and (c), and it can be seen that the circuits and opera-tions are similar to those of the synapses of propagating connec-tions. The circuit in Fig. 6(b) realizes synapses PL1, PR1, PD1, and PU1, while that in Fig. 6(c) realizes PLU, PLD, PRU, PRD,

Fig. 7. HSPICE-simulated Inouta versus Inina diagram of the N-type synapse in Fig. 6(a) with 16 different values forV .

and PS. The P- and N-type synaptic gains of one synapse of di-rect connections can be set to different values to perform more functions. The synapses shown in Fig. 6(b) share two master devices with the synapses of propagating connec-tions, while those shown in Fig. 6(c) share with the Neuron. The output currents of Fig. 6(b) and (c) are sent to the Sign Controller using switches and to decide the polari-ties of the signals. The maximum gains of synapses PLU, PLD, PRU, and PRD are set to two, and those of PL1, PR1, PU1, and PD1 are set to four. The gain of synapse PS is set to eight. Through this design, this LN-CNN can generate the templates, as shown in Fig. 3, where the center coefficient is smaller than eight and the coefficients , , , and are smaller than four, while the coefficients , , , and are smaller than two.

The circuitry of the Sign Controller is shown in Fig. 6(d), where switches and of the nine synapses used to adjust the polarity of the signals from the synapses are also drawn. Devices and with gate bias voltages and , respectively, maintain the static current from to at zero level. and are the current mirrors used to invert the direction of the current flow. If the polarity of the input signal from the synapses is negative, is turned off, and the input signal enters the neuron or analog memory through switch and the Sign Controller. However, in the same situ-ation, if the input signal is positive, is turned off, and the signal enters the neuron through the switch.

C. PSWs

Each of the synapses contains one pair of switches and to control the signal polarities, except the synapses of prop-agating connections. Hence, to confirm that the output signals sent out of the BODY and those sent out of the synapses of prop-agating connections have the same polarities, the PSW has been added to achieve this purpose.

Fig. 9 shows the circuit diagram of the PSW. The output currents of the neuron are mirrored through and to generate the gate voltages on and , respectively. The current through , where the gate is connected to the gate of , is opposite to the current through

Fig. 8. Range of (a) the N-type and (b) P-type current gains of the synapses with an input current range of 300–500 nA.

Fig. 9. Circuit diagram of the PSW.

, whose gate is connected to the gate of . The polarity of the output current in the PSW is selected using switches . For a positive (negative) output of the PSW, switches and ( and ) are closed, and at the same time, switches and ( and ) are opened. There are four PSWs containing switches

TABLE II

COMPARISON OFDEVICENUMBERS ANDINTERCONNECTIONLINES

Fig. 10. Circuit diagram of the analog memory.

and , as shown in Fig. 1, and these four PSWs share the circuits of .

A comparison of the device numbers and interconnection lines of the kernel unit between the proposed structure and the LN-CNN with direct connection using the circuit structure in [9] is given in Table II. As can be seen from Table II, the LN-CNN with direct connections needs 12 connections, in-cluding four connections to the farther neighboring cells. In the proposed structure, more devices are required; however, as each cell only has eight connections to the nearest eight neighboring cells, this facilitates the IC implementation.

D. Analog Memory

Fig. 10 shows the circuit diagram of the analog memory, where and are used to generate the gate voltages of and , respectively, from the input current . The gate voltages are stored at node A (B) by turning off with the signal Vsample (with the comple-mentary signal of Vsample). and are used to compensate for the charge injections and the clock feedthrough

from and , respectively. and are

used to increase the gate–source capacitance of and , respectively, in order to suppress the sampling

error. The current mirror is used

to isolate storage node A (B) from the output node of analog memory so that the stored voltage is not affected by the voltage change at the output node. As the analog memory is read out, the signal Venable (the complementary signal of Venable)

turns on , and at the same time, it also turns on the compensational function of . Furthermore, devices and with gate bias voltages and , respectively, maintain the static current from to at zero level and also act as switch S2, as can be seen in Fig. 2. E. Overall Chip Architecture

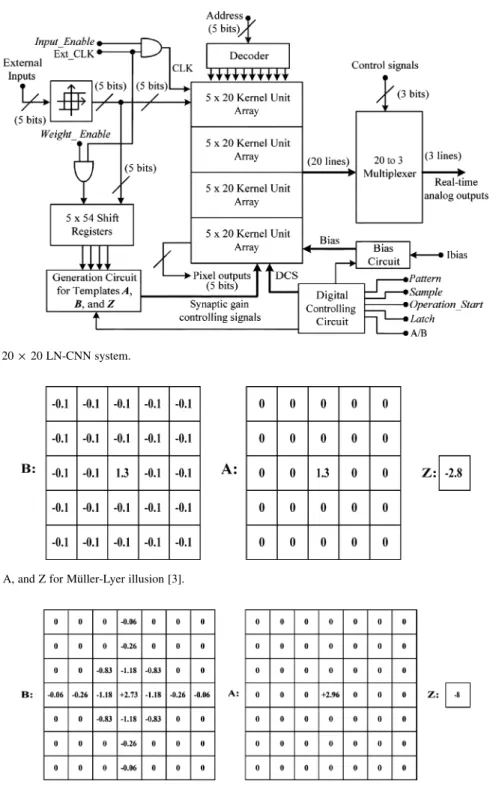

Fig. 11 shows the architecture of the whole system, where the size of the kernel unit array is 20 20. There are 5 54 shift registers to store the digital codes of synaptic gain control-ling signals. The digital codes of each synaptic gain controlcontrol-ling signal are stored in a 4-bit shift register for absolute value and a 1-bit shift register for polarity. However, one synapse requires two synaptic gain controlling signals, and the signals have dif-ferent values when templates and are generated. Hence, there are 5 52 shift registers required for templates and . For the synaptic gain controlling signals of template , a 6-bit register is required for the absolute value of template , and a 1-bit shift register is used for its polarity. Thus, 5 2 1-bit shift registers are required for template . The signal from the Digital Controlling Circuit determines whether the Generation Circuit for templates , , and , which has 28 DACs, gener-ates synaptic gain controlling signals for either template or templates and . The external bias current generates the bias currents and voltages required in the system, particu-larly the bias voltages inside the Neuron, Sign Con-troller, and Analog Memory, as shown in Fig. 1. The signals and with external clock signal

Fig. 11. Architecture of the 202 20 LN-CNN system.

Fig. 12. 52 5 templates B, A, and Z for Müller-Lyer illusion [3].

Fig. 13. Extracted values of the diamond-shaped template from an HSPICE postlayout simulation.

Ext_CLK are used to determine whether the external input sig-nals are input and initial patterns or the digital codes of synaptic gain controlling signals, respectively. In the array, 5-bit binary signals in one clock cycle are sent into the LN-CNN and read out from the Pixel outputs. From 20 neuron analog output sig-nals of one column selected by a 5-bit decoder, three real-time neuron analog output signals can be read out using a 20-to-3 multiplexer.

In the first step, both input pattern and digital codes of the templates , , and are ready for operation, and the signal is set to Low first to cause the template generation circuit to generate synaptic gain controlling signals of the templates

and . Meanwhile, the function of the neuron in the kernel unit is turned off. The signal goes to High in order to inject the input pattern into all the neurons. The result of the first step is sent into the analog memory and stored after the signal

is enabled, and then, the signal returns to Low. In the second step, the pattern in the shift register of the SRDA is replaced by the initial pattern of the desired function. The ini-tial pattern in the shift register is then sent to the neurons as the initial values by enabling the signal again. Meanwhile, the signal is set to High so that the template is generated by the synapses as the template generation circuit generates the synaptic gain controlling signals of the template . In the third

Fig. 14. (a) Input patterns of Müller-Lyer illusion. (b) Resultant output pattern of Müller-Lyer illusion from the HSPICE simulation result.

Fig. 15. Template B of 52 5 and diamond-shaped templates of (a) diffusion [19] and (b) deblurring [3].

step, the signal is enabled, and the signal is disabled to turn off the initial values. The function of the neurons is turned on to start the overall calculation of template with the signals read out from the analog memo-ries. After the outputs are stable, the binary output pattern can be stored in the SRDA as the signals and

are set to High. When the next input pattern comes in, all the dig-ital signals are disabled, except the signal , and the output pattern can be read out from the 5-bit Pixel outputs. F. HSPICE Simulation Results

The proposed LN-CNN circuit was designed using 0.18-CMOS technology. The HSPICE postlayout simulation was

performed with a 20 20 kernel cell array to verify the circuit functions. The function of Müller-Lyer illusion with the 5 5 large-neighborhood template [3], as shown in Fig. 12, was adopted. According to the original 5 5 template, the predicted signs of each diamond-shaped template are set in Fig. 13. Only the center coefficients and are positive, while the others are negative in Fig. 12, so it is reasonable that only the center coefficients in the diamond-shaped template are set to positive. The input pattern of Müller-Lyer illusion is shown in Fig. 14(a). After the HSPICE simulation, the resultant output pattern is shown in Fig. 14(b), where the upper line with outward arrows becomes shorter than the lower line with inward arrows after illusion. The function cannot be realized

by a 3 3 neighborhood template. The coefficients of the diamond-shaped large-neighborhood template in Fig. 3 were extracted from the postlayout simulation results directly and are shown in Fig. 13, which has the same signs as those in Fig. 12. The simulated standby power consumption is about 1.148 mW, where a 1.8-V supply voltage is used. The external bias current is 360 nA. The kernel unit array only consumes 1 , which accounts for about 0.087% of the overall standby power consumption. As the array is extended to 128 128, the standby power consumption is about 7.35 mW and is dominated by the peripheral circuits.

G. Software Simulation Results

The published large-neighborhood templates are limited. Among the four published LN-CNN templates [3], [18], [19], only one template [18] cannot be implemented by using the proposed structure, since it violates the constraint. Other LN templates for diffusion, deblurring, and Müller-Lyer illusion have been successfully verified. The 5 5 template of diffu-sion [19] and deblurring [3] are approximated by the proposed diamond-shaped templates, as shown in Fig. 15(a) and (b). The coefficients of templates A and Z are zero for diffusion. For de-blurring, the center coefficient of template A of 5 5 template is ten, and that of diamond-shaped template is seven. Templates of both functions are zero. The input pattern and simulation results of diffusion and deblurring are shown in Fig. 16(a) and (b), respectively. It is shown that the diamond-shaped template can realize the function of 5 5 templates correctly.

The diamond-shaped LN templates can also realize some op-erations of binary images in one step which can be realized by the 3 3 neighborhood templates in two steps. The erosion and dilation functions with 3 3 neighborhood templates can con-tract and expand the edges of images by one pixel, respectively. However, the diamond-shaped LN templates can reinforce the functions to contract or expand the edges by two pixels. Fig. 17 shows the function of erosion where the boundary cells are set to be white ( 1). For dilation, it can be realized by the same templates of erosion by making template Z positive. In addi-tion, these two functions with the diamond-shaped LN templates cannot be achieved with 3 3 neighborhood templates in one step. Two iterations with 3 3 neighborhood templates are re-quired to realize the same functions. Thus, it takes more time and energy.

IV. EXPERIMENTALRESULTS

An experimental LN-CNN chip has been fabricated using 0.18- CMOS technology. The whole chip area is

, where the unit cell is . Fig. 18 shows the photograph of the fabricated LN-CNN chip.

The input image pattern in Fig. 14(a) was used to verify the illusion function of the fabricated LN-CNN. The digital codes of the synaptic gain were adjusted to achieve the suitable value. The binary output pattern was read out from the 5-bit pixel out-puts, as shown in Fig. 11. The analog current-mode transients can be read out from the three real-time analog outputs in Fig. 11 using the transimpedance amplifiers outside of the chip. When the analog output current is zero, the output voltage of the tran-simpedance amplifier is 0.9 V. Since most pixels in the input

Fig. 16. Input patterns and simulation results of (a) diffusion and (b) deblur-ring.

pattern shown in Fig. 14(a) are in white and all the white pixels remain in white after processing, the N-type synaptic gain of the PS is set to a larger value than the P-type synaptic gain in the measurement. In this way, the problems of variation in the process can be overcome.

The measured binary output pattern is shown in Fig. 19. The experimental result is the same with the postlayout simulation result, except Pixel A which is black in the simulation results of Fig. 14(b). The reason for the error is that the bias current of Pixel A is too small due to process variation. Thus, the self-feedback of Pixel A cannot keep Pixel A in the black state.

The measured analog output voltage of Pixel B through the transimpedance amplifier is shown in Fig. 20. The step signal is the signal , as shown in Fig. 11. As the signal rises, the analog output remains nearly at 0 V within about 1 . Then, it starts to rise and reaches 0.9 V at

Fig. 17. Input and output patterns of erosion with 32 3 neighborhood templates [3] in two iterations and with diamond-shaped templates in one iteration.

Fig. 18. Photograph of the fabricated 202 20 LN-CNN chip.

about 2 . Finally, it takes 3 to achieve the overall opera-tion from the black to the white state. The measured transient response time is 3 . From the result of post simulation, the transient response operation time is less than 0.1 without the transimpedance amplifier. The difference is due to the large loading effect of the transimedance amplifier.

In the experimental result, the overall power consumption was about 0.7 mW on standby and 18 mW during the oper-ation in the third step. The comparisons of power dissipoper-ation and energy consumption per cell in the proposed LN-CNN with those in CNNUC3 [10] and ACE16K [11] are listed in Table III.

Fig. 19. Experimental resultant output pattern of Müller-Lyer illusion.

As may be seen in Table III, the cell in the LN-CNN has lower power dissipation and energy consumption.

V. CONCLUSION

In this paper, a new architecture of LN-CNN has been pro-posed. In the proposed LN-CNN, the propagating connections are utilized to generate diamond-shaped large-neighborhood templates. In such a connected network, each neuron cell only needs to contact the neighboring cells without the need for

TABLE III

COMPARISON OFLN-CNN WITHCNNUC3 [10]ANDACE16K [11]

Fig. 20. Experimental results of Pixel B with the signalOperationOperation StartOperationStartStart.

farther interconnections. Therefore, such network architecture is suitable for VLSI implementation. Moreover, by separating the synapses into N- and P-type parts without static currents, the static power dissipation can be reduced to a minimum level. Moreover, during such an operation, the synapses of direct connections with different N- and P-type synaptic gains can also offer more functions. The connections can also be implemented in both horizontal and vertical directions and in diagonal directions to realize the circular symmetric templates. Furthermore, the LN-CNN functions of diffusion, deblurring, and Müller-Lyer illusion have also been verified successfully. With the proposed LN-CNN structure using propagating con-nections, many new applications and LN-CNN templates can be explored.

A CMOS LN-CNN chip with a 20 20 kernel unit array has been fabricated in 0.18- CMOS technology. From the experimental results of this paper, it can be seen that the 5 5 template of Müller-Lyer illusion is reconstructed into a diamond-shaped LN template, and the function has been successfully realized using the LN-CNN and with a chip power consumption of 0.7 mW on standby and 18 mW in operation. Further research on the universal machine for LN-CNN needs to be conducted for various applications to be realized.
