Ambipolar Schottky barrier silicon-on-insulator metal-oxide-semiconductor transistors

(1)

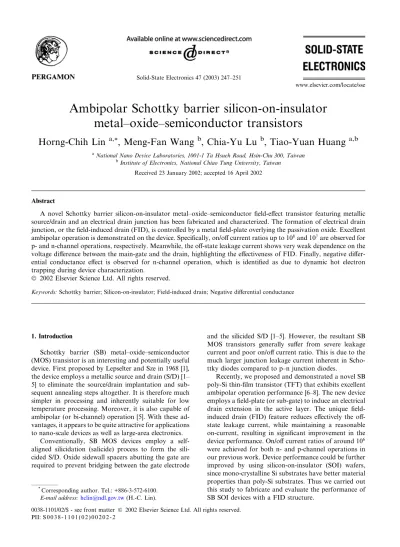

Ambipolar Schottky barrier silicon-on-insulator

metal–oxide–semiconductor transistors

Horng-Chih Lin

a,*

, Meng-Fan Wang

b

, Chia-Yu Lu

b

, Tiao-Yuan Huang

a,b

a_{National Nano Device Laboratories, 1001-1 Ta Hsueh Road, Hsin-Chu 300, Taiwan} b_{Institute of Electronics, National Chiao TungUniversity, Taiwan}

Received 23 January 2002; accepted 16 April 2002

Abstract

A novel Schottky barrier silicon-on-insulator metal–oxide–semiconductor field-effect transistor featuring metallic source/drain and an electrical drain junction has been fabricated and characterized. The formation of electrical drain junction, or the field-induced drain (FID), is controlled by a metal field-plate overlying the passivation oxide. Excellent ambipolar operation is demonstrated on the device. Specifically, on/off current ratios up to 108_{and 10}7_{are observed for} p- and n-channel operations, respectively. Meanwhile, the off-state leakage current shows very weak dependence on the voltage difference between the main-gate and the drain, highlighting the effectiveness of FID. Finally, negative differ-ential conductance effect is observed for n-channel operation, which is identified as due to dynamic hot electron trapping during device characterization.

Keywords: Schottky barrier; Silicon-on-insulator; Field-induced drain; Negative diﬀerential conductance

1. Introduction

Schottky barrier (SB) metal–oxide–semiconductor (MOS) transistor is an interesting and potentially useful device. First proposed by Lepselter and Sze in 1968 [1], the device employs a metallic source and drain (S/D) [1– 5] to eliminate the source/drain implantation and sub-sequent annealing steps altogether. It is therefore much simpler in processing and inherently suitable for low temperature processing. Moreover, it is also capable of ambipolar (or bi-channel) operation [5]. With these ad-vantages, it appears to be quite attractive for applications to nano-scale devices as well as large-area electronics.

Conventionally, SB MOS devices employ a self-aligned silicidation (salicide) process to form the sili-cided S/D. Oxide sidewall spacers abutting the gate are required to prevent bridging between the gate electrode

and the silicided S/D [1–5]. However, the resultant SB MOS transistors generally suﬀer from severe leakage current and poor on/oﬀ current ratio. This is due to the much larger junction leakage current inherent in Scho-ttky diodes compared to p–n junction diodes.

Recently, we proposed and demonstrated a novel SB poly-Si thin-film transistor (TFT) that exhibits excellent ambipolar operation performance [6–8]. The new device employs a field-plate (or sub-gate) to induce an electrical drain extension in the active layer. The unique field-induced drain (FID) feature reduces effectively the off-state leakage current, while maintaining a reasonable on-current, resulting in significant improvement in the device performance. On/off current ratios of around 106 were achieved for both n- and p-channel operations in our previous work. Device performance could be further improved by using silicon-on-insulator (SOI) wafers, since mono-crystalline Si substrates have better material properties than poly-Si substrates. Thus we carried out this study to fabricate and evaluate the performance of SB SOI devices with a FID structure.

*

Corresponding author. Tel.: +886-3-572-6100. E-mail address:[email protected](H.-C. Lin).

(2)

2. Device structure and fabrication

The structure of the proposed SB SOI MOS tran-sistor is illustrated in Fig. 1. For device operation, a ﬁxed bias is applied to the sub-gate to form a FID ex-tension under the sub-gate region. So, depending on the sub-gate bias polarity, the device can function both as

n-channel and p-n-channel transistors with positive and negative sub-gate biases, respectively.

Fig. 2 shows key processing steps in the device fab-rication. SIMOX wafers with 50-nm p-Si layer on 400 nm buried oxide (BOX) are used as the starting sub-strates. After patterning the active device region, a 6-nm thermal gate oxide and an nþ_{poly-Si (200 nm) layer is} deposited (Fig. 2(a)). The nþ _{poly-Si gate layer is} de-lineated to form the main-gate. Next, a 200-nm CVD oxide layer is deposited, followed by lithographic step to define the offset regions for SOI devices with FID (Fig. 2(b)). Then, the silicided source/drain is formed by a self-aligned silicidation (salicidation) treatment, by first depositing a thin Ni layer (30 nm), followed by a rapid-thermal annealing (550°C, 30 s) step and a wet etching step in H2SO4:H2O2¼ 3:1 to remove the non-reacted metals. It should be noted that neither the channel nor the source/drain region receives any deliberate doping, so no post-implant annealing step is necessary. Wafers then follows a standard back-end processing to com-pletion. The metal sub-gate in the new structure is formed simultaneously with the regular metal patterning (Fig. 2(c)), so no extra processing step is required. A post-metal annealing at 400°C in forming gas for 30 min is performed before electrical measurements.

3. Results and discussion

Fig. 3 shows typical ambipolar sub-threshold char-acteristics of the FID SB SOI devices. High on/oﬀ cur-rent ratios of up to 107 _{and 10}8_{are achieved for n- and}

Fig. 1. Structure of the SOI SB MOS device.

Fig. 2. Key device fabrication ﬂow.

Fig. 3. Ambipolar sub-threshold characteristics of a SB MOS transistor. Sub-gate voltages are 30 and30 V for n- and p-channel operations, respectively.

(3)

p-channel operations, respectively. In addition, the off-state leakage current shows only weak dependence on the gate bias, highlighting the effectiveness of FID. We also find that the drive capability is better for p-channel operation, which is reasonable since the barrier height for holes (0.4 eV) is lower than that for electrons (0.7 eV) [9] for the NiSi silicide used in this study.

Figs. 4 and 5 depict the effects of sub-gate bias on the drain current for n-(VD¼ VG;main¼ þ2:5 V) and p-channel (VD¼ VG;main¼ 2:5 V) operations, respec-tively. Since a large jVG;mainj is applied, the channel region underneath the main-gate acts simply as a ‘‘pseudo-source’’, and the results can be regarded as the operation of a FET with the metal field-plate (or the sub-gate) serving as the transistor gate, while XD be-comes the transistor channel length. The transfer char-acteristics shown in these figures are, however, in strong

contrast to the results shown in Fig. 3. The oﬀ-state leakage current is high, especially for n-channel opera-tion, and shows strong dependence on the sub-gate bias in the oﬀ-state regime.

The above characteristics may be explained using the band diagrams shown in Fig. 6 for four different n-channel operation (VD¼ þ2:5 V) conditions. The high off-state leakage in Fig. 4 (VG;main¼ þ2:5 V, VG;sub 0) is ascribed to the field emission of holes from the drain junction (Fig. 6(a)), which is reduced when VG;subis in-creased to 0 V (Fig. 6(b)). When VG;sub is further increased to a high positive value corresponding to a normal on-state condition (VG;main¼ þ2:5 V, Fig. 6(c)), field emission of electrons from the source junction contributes to the drain output current instead [2–5]. On the other hand, when VG;main is switched to the off-sate (i.e., VG;main 0) while maintaining VG;subat a high pos-itive value, the FID in the offset channel region impedes the drain leakage (i.e., hole field emission) [6], as shown

Fig. 4. Drain current as a function of sub-gate bias for n-channel operation. Main-gate and drain voltages are both 2.5 V.

Fig. 5. Drain current as a function of sub-gate bias for p-channel operation. Main-gate and drain voltages are both 2.5 V.

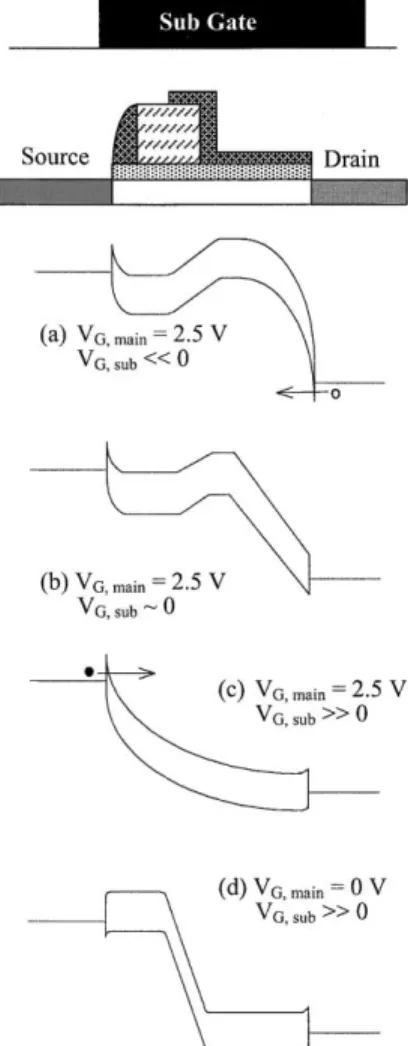

Fig. 6. Band diagrams along the channel for diﬀerent n-channel operation conditions (VD¼ 2:5 V).

(4)

in Fig. 6(d). As a result, extremely low oﬀ-state leakage (Fig. 3) is achieved.

Note that Fig. 6 illustrates the situation under n-channel operation, though similar mechanisms may be used for the case of p-channel operation. The major difference in the two channel modes arises from the difference in barrier height between holes and electrons, which explains why the on-current in Fig. 3 is lower for n-channel operation and the off-state leakage is higher in Fig. 4 than that in Fig. 5.

Drain output characteristics are shown in Figs. 7 and 8 for n- and p-channel operations, respectively. Con-trary to the normal p-channel output characteristics, a negative diﬀerential conductance (NDC) behavior is clearly observed under n-channel operation when VG;main is higher than 4 V. This anomalous phenomenon may be ascribed to the dynamic electron trapping during device

characterization. Supportive evidence is shown in Fig. 9, in which signiﬁcant gate leakage contributed by the electron injection is indeed detected when VG;mainis higher than 4 V. A similar observation has also been reported by Uchida et al. [10], who showed that electron injection occurs at the source side if the source is a Schottky junction. This phenomenon is explained with the band diagrams shown in Fig. 10, which is similar to that shown in Fig. 6(c). The diagram corresponds to the on-state operation of the SB MOS devices. Note that most of the voltage drop along the channel occurs at the re-gion near the source side [11], which is very diﬀerent

Fig. 7. Drain output characteristics of a SB MOS transistor in n-channel operation. Sub-gate bias is 30 V.

Fig. 8. Drain output characteristics of a SB MOS transistor in p-channel operation. Sub-gate bias is30 V.

Fig. 9. Gate current as a function of drain and main-gate voltages. Sub-gate bias is 30 V.

Fig. 10. The band diagrams of (a) source-side hot electron, and (b) hot electron injection into gate.

(5)

from conventional MOS transistors. Therefore, the in-jected electrons from the source may become hot enough to surmount the barrier height of oxide (3.1 eV) if a high drain voltage is applied.

When the main-gate bias is also high, significant electron injection occurs and leads to severe electron trapping, resulting in threshold voltage increase. Since this process proceeds during the device characterization, the drain current is decreased simultaneously, causing the NDC effect. Fig. 11 compares the sub-threshold characteristics of a device before and after the NDC occurrence. Significant shift in Vth observed after NDC is in agreement with the aforementioned model.

NDC is not observed for p-channel operation, pre-sumably due to the higher barrier height (4.7 eV) and heavier eﬀective mass of holes. The NDC phenomenon may be eliminated if the operation voltage is scaled down, which is in line with the scaling of device di-mensions. The electron injection mechanism may, on the other hand, be useful for some ﬂoating-gate non-volatile memory applications.

4. Conclusions

In this work, we have fabricated and characterized a new SB SOI MOS transistor device featuring a FID structure. Ambipolar operation with high on/oﬀ current ratios of up to 107 _{and 10}8 _{for n- and p-channel} oper-ations, respectively, has been demonstrated. Moreover,

the off-state leakage is low and shows very weak de-pendence on the voltage difference between the drain and the main-gate, in strong contrast to that with con-ventional structure. These results indicate that the new structure may indeed significantly improve the perfor-mance of the SB MOS devices.

We have also found that the NDC phenomenon oc-curs for n-channel operation if both gate and drain ap-plied voltages are high enough. Such phenomenon may be ascribed to the dynamic electron trapping mechanism induced during the measurements. It may be avoided by lowering the applied voltage, which is in line with future scaled-down device applications. On the other hand, the electron injection mechanism may be useful for some ﬂoating-gate non-volatile memory applications.

Acknowledgements

This work was supported in part by the National Science Council of ROC under contract number NSC-90-2215-E-009-079 and NSC-90-2721-2317-200. The authors would like to thank Prof. S.M. Sze for his en-couragement and support, and their colleagues at the National Nano Device Laboratories for their assistance in device fabrication.

References

[1] Lepselter MP, Sze M. Proc IEEE 1968;56:1400–1. [2] Tucker JR, Wang C, Carney PA. Appl Phys Lett 1994;

65:618–20.

[3] Saitoh W, Itoh A, Yamagami S, Asada M. Jpn J Appl Phys 1999;38:6226–31.

[4] Kedzierski J, Xuan P, Bokor J, King T-J, Hu C. Tech Dig IEDM 2000:57–60.

[5] Nishisaka M, Ochiai Y, Asano T. Proc Dev Res Conf (DRC) 1998;98:74–5.

[6] Lin H-C, Lin C-Y, Yeh K-L, Huang R-G, Huang T-Y, Sze M. Tech Dig IEDM 2000:857–9.

[7] Lin H-C, Yeh K-L, Huang R-G, Huang T-Y. IEEE Electron Dev Lett 2001;22:179–81.

[8] Lin H-C, Yeh K-L, Huang R-G, Huang T-Y. Tech Dig AMLCD 2001;1:247–50.

[9] Sze M. Physics of semiconductor devices. 2nd ed.;1982. p. 292.

[10] Uchida T, Matsuzawa K, Koga J, Toriumi A. Appl Phys Lett 2000;76:3992–4.

[11] Winstead B, Bavailio U. IEEE Trans Electron Dev 2000; 47:1241–6.

Fig. 11. Sub-threshold characteristics of a SB SOI device before (solid line) and after (dashed line) NDC occurrence.
