Development of a CCD-based fluorimeter for
real-time PCR machine
Da-Sheng Lee
a,∗, Bou-How Chang
b, Ping-Hei Chen
baDepartment of Air Conditioning and Refrigeration, National Taipei University of Technology, Taipei 106, Taiwan bDepartment of Mechanical Engineering, National Taiwan University, Taipei 106, Taiwan
Received 29 April 2004; received in revised form 10 December 2004; accepted 10 December 2004 Available online 19 January 2005
Abstract
A monochromic charged coupled device (CCD) is employed to obtain time evolved fluorescence images that are reflected from PCR mix in a 20L capillary during thermal cycling in the real-time polymerase chain reaction (real-time PCR). This fluorescence detection system consists of a 470 nm light emitting diode (LED) as an excitation light source, a CCD camera, and a rotating disk with six optical filters to provide six fluorescence detection channels at 530, 560, 610, 640, 670 and 710 nm for multiplex real-time PCR DNA quantification. In this study, the PCR mix that contains HBV SC 11 DNA template with SYBR Green I fluorescence labeling dye is tested to verify the prototype performance. An adaptive image processing scheme based on a lower–upper–middle (LUM) filter algorithm is developed to eliminate noise while keeping the necessary information from recorded fluorescence images. The measured results obtained by the proposed image processing scheme illustrate that the real-time PCR prototype with CCD-based fluorimeter can achieve similar DNA quantification reproducibility as the commercial machine even when the initial DNA copies, X, in the tested PCR mix is down to 103copies/mL (0.01 fM).
© 2004 Elsevier B.V. All rights reserved.
Keywords: Real-time PCR; CCD; Fluorescence detection system; LUM filter; Fluorescence image processing
1. Introduction
The PCR[1–3]process was first introduced in 1986 by Mullis and others to replicate the specified DNA fragments in vitro. Since then, the PCR process has become one of the major tools in genomic studies. There are three major steps in a single thermal cycle of PCR that usually requires 20–30 thermal cycles. The first step is called “denaturation” during which the PCR mix in a tube is heated up to 95◦C and the double-strand DNA breaks. The second step is called “an-nealing” that occurs as the temperature of PCR mix drops down to about 53◦C. Primers with an approximate length of 15–30 bp are jiggling around in the mix by Brownian motion and are attached to single-strand DNA with ionic bonds. The
∗Corresponding author. Tel.: +886 928868885; fax: +886 227988272.
E-mail address: [email protected] (D.-S. Lee).
final step is called “elongation” that happens at an approxi-mate temperature of 72◦C. It is the ideal working tempera-ture for the polymerase. Since the primers already have strong ionic bonding to the DNA template at specific position, the polymerase will add dNTP’s from 5 to 3 to the template by reading the template from 3to 5end. The specific DNA sequence is amplified exponentially with thermal cycling.
By integrating a fluorimeter with the thermal cycler, a real-time PCR machine was first introduced in 1997[4,5]. This real-time PCR machine allows the detection of DNA am-plification through the detection of the fluorescence labeling dye in the PCR mix during the early phase of the reaction. In addition, the concentration of target DNA fragment in the PCR mix before thermal cycling can be obtained from the time recorded history of the fluorescence intensity. The real-time PCR machine has high sensitivity and consumes less time when compared to the traditional PCR machine. In ad-dition, there is no need to perform agarose gel
electrophore-0925-4005/$ – see front matter © 2004 Elsevier B.V. All rights reserved. doi:10.1016/j.snb.2004.12.042
sis on PCR mix after thermal cycling from the real-time PCR machine to ensure successful amplification on DNA template that is inevitable for amplified PCR mix from the traditional PCR machine.
The current commercial real-time PCR machine has three discrete channels with photodiodes for detecting fluores-cence emitted from the PCR mix. In order to separate differ-ent fluorescence wavelengths, one set of narrow band filters and dichromatic mirrors are used to allow fluorescence with the required wavelength to reach the corresponding chan-nel. Since the emitting dye fluorescence has to pass through complicated optical path before it reaches the appropriate channel, the intensity is decayed to 40–50% of the fluores-cence intensity detected by the previous channel. Therefore, it is impossible to have the capability to detect five different dyes in one sample of the PCR mix due to significant optical loss.
However, simultaneous detection of multiple target DNA sequences becomes a trend in either virus or blood inspec-tion. The detection of different viruses in one blood sample is called multiplex real-time PCR. It has become the aim for many researchers. Some approaches were proposed to achieve multiplex PCR by using a biochip solution [6,7]. Some employed the multi-channels fluorescence detection
[8,9]to achieve the capability for multiplexing PCR. Wittwer et al.[8]employed a spectrograph with continuous spectral dispersion and a line CCD array detector to monitor the flu-orescence time history during thermal cycling of a real-time PCR machine. The spectrograph with a concave holographic grating can normally achieve a 25–35% collection efficiency in 300–800 nm fluorescence wavelength. The line CCD ar-ray detector has to be cooled to−70◦C for achieving high sensitivity on spectral distribution of the fluorescence. Thus, the whole system with the spectrograph is too big and ex-pensive. There is one commercial machine[9]with a photo demultiplexer that can separate six optical wavelengths from one fluorescence input towards the corresponding photodi-ode detector. Through this sequential optical separation, the fluorescence collection efficiency can exceed 70% for each optical channel. With such a high signal level, the photodi-ode can be used as the optical detector. Although this so-lution can provide a multi-channel detection capability, the reliability of this kind of real-time PCR machine is still un-der evaluation as the photo demultiplexer is not a mature product yet[10–14]. In addition, the cost of demultiplexer is expensive.
Our previous study was to build up a real-time PCR ma-chine with a miniature spectrometer for spectral dispersion of emissive fluorescence[15]. Test results show that the sys-tem provides comparable accuracy and reproducibility as the current commercial machine for DNA quantification and the system is compact comparing with the one suggested by Wit-twer et al. However, this kind of solution is still expensive for laboratory usage.
In order to obtain a compact and inexpensive system for prevalent application, this study aims to develop a real-time
PCR prototype with an inexpensive fluorescence detection system. A CCD detector can offer a wide range of spectral response that can be divided by a sliding interference optical filter into fluorescence detection channels at 530, 560, 610, 640, 670 and 710 nm wavelengths by six interference filters on the rotating holder. This kind of optical engine design is simple and does not need the precision housing structure like the one employed by commercial real-time PCR machine or the miniature spectrometer used in our previous study. It is an inexpensive and convenient solution provided that the performance of the prototype should be comparable with the commercial real-time PCR machine.
Since the design of this prototype fluorescence detection system is different from our previous study, an analytical model based on Beer-Lambert law[16–19]is developed to predict the fluorescence intensity that increases with the am-plification of DNA concentration during PCR thermal cycling in this prototype. The predicted values can be used as a basis for determining DNA initial copies in PCR mix and iden-tifying the noise characters of the results that are obtained through a signal filtering algorithm over fluorescence images captured by the CCD detector. In this study, an adaptive filter with LUM algorithm is employed to eliminate optical noise in the captured fluorescence images due to the high noise level of the CCD detector.
The key performance indices of real-time PCR ma-chine are DNA quantification sensitivity and reproducibil-ity[20,21]. The DNA quantification sensitivity depends not only on the machine itself but also on the selection of PCR primer and fluorescence labeling dye. In this study, the ma-chine performance is evaluated by using known initial DNA template concentration in the PCR samples for DNA quan-titative experiments in both the commercial real-time PCR machine and the prototype. Single DNA template, HBV SC 11, with known concentrations and a single labeling dye, SYBR green I, are used in PCR mix. A comparison will be presented to show that similar sensitivity in DNA quantifica-tion is achieved in both machines.
By repetitive determinations of known concentrations of DNA template in the same run or in different runs in the real-time PCR machine, the coefficient of variation (CV) of intra-assay for the same run or inter-intra-assay for different runs can be determined, respectively. Since the uncertainty in human operation will affect the CV value of inter-assay measure-ments, the CV value of intra-assay runs is employed in this study to evaluate the real-time PCR prototype performance. A lower CV value indicates higher reproducibility. The CV values of intra-assay at different initial DNA copies are ob-tained for both the commercial real-time PCR machine and the prototype.
2. Experimental apparatus
Two real-time PCR machines, the prototype and a com-mercial machine (Roche, Light Cycler, USA), were tested in
this study for quantitative measurements on the concentra-tion of HBV SC 11, DNA fragment. The initial DNA copy in PCR mix ranged from 103to 109copies/mL. LightCycler-Fast Start DNA master with Cat No. 3003230 and SYBR Green I labeling dye were employed as the PCR mix in all runs. The test sample was loaded into a 20l capillary tube and sealed with a plastic plug. The inner diameter of the capillary tube was 0.8 mm and the outer diameter was 1.15 mm. The prototype used in this study is similar to that in the paper of Lee et al.[15]but the spectrometer in their prototype was replaced with a CCD camera and a sliding fil-ter in this study.Fig. 1shows details of the thermal cycling chamber. The thermal cycling condition is stated as follows: It requires a 10 min incubation at 95◦C. After the
incuba-tion, each thermal cycle undergoes 3 s of 95◦C denaturation, 10 s of 53◦C annealing, and 16 s of 72◦C elongation to am-plify the DNA fragment. The chamber temperature can be maintained precisely with a variation of±0.6◦C at 94◦C, a variation of±0.4◦C at 56◦C, and a variation of±0.6◦C at 72◦C without any significant overshooting or undershoot-ing of the chamber temperature. Since Lee et al.[15] pro-vided a detailed description of the thermal cycling system for both the commercial real-time PCR machine and the pro-totype, here we only describe the design of our optical detec-tor.
A monochromic CCD (Watec Inc., WAT-902H, JPN) was used to measure a wide spectral response for fluorescence intensity reflected from the PCR mix. The prototype has a

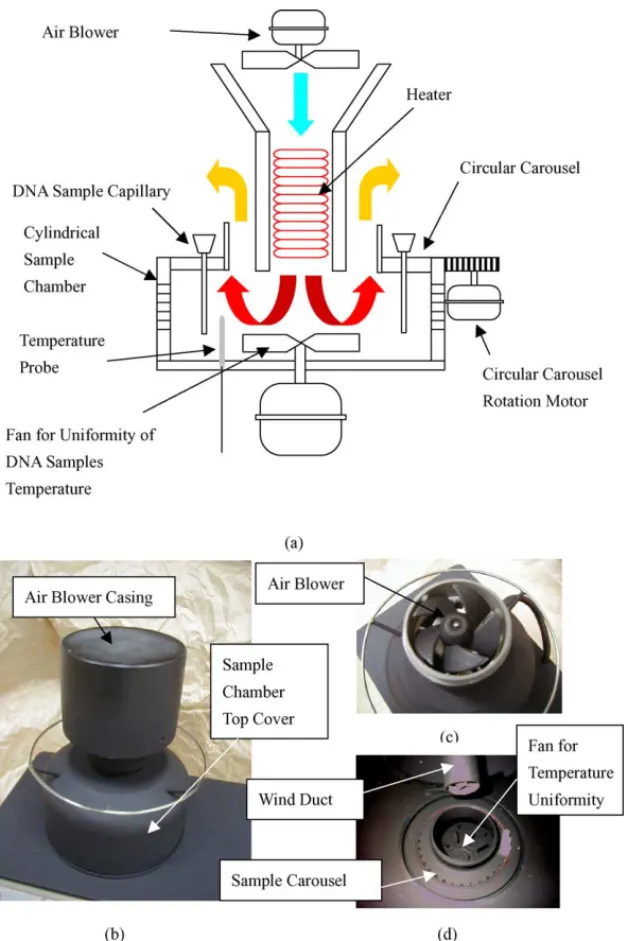

Fig. 1. The thermal cycling system of the present prototype (a) schematic view, (b) the photograph of the system, (c) the air blower, (d) the arrangement of the wind duct with heater inside, DNA samples carousel and the fan for achieving uniformity in DNA samples temperature.
Fig. 2. The fluorescence detection system (a) the schematic view, (b) the optical engine photograph, (c) the arrangement of the DNA sample capillary with PCR mix, the excitation light source and the sliding filters.
capability of six detection channels at 530, 560, 610, 640, 670 and 710 nm by using six 1.0 in. diameter interference filters (UNICE E-O Services Inc., Part No. CWL-F10-25.4, TWN) with 10 nm cut off limit around the central wavelength. A LED (UNICE E-O Services Inc., Part No. RL5-B2430, TWN) was employed as the excitation light source with peak emission at a wavelength of 470 nm and luminous intensity of 2400 mcd. The fluorescence detection system is shown in
Fig. 2.
3. Model simulation and determination of initial DNA copies in PCR mix
Since the design of optical sensing device for fluorescence is different from the commercial real-time PCR machine and our previous study, a new simulation model is introduced to predict the reflected fluorescence from PCR mix with PCR thermal cycling. Predicted fluorescence signals are obtained and they are functions of initial DNA concentration in the PCR mix and thermal cycling number of PCR. The model simulation results are used to determine the initial copies
of target DNA before thermal cycling from the time history of fluorescence intensity that increases with real-time PCR thermal cycle.
3.1. Predicted emissive fluorescence intensity for the real-time PCR prototype
A general expression for emissive fluorescence from a PCR mix based on Beer-Lambert law can be given by
F = Iλ(0) L 0 2π 0 ϕ2(x,θ,ϕ) ϕ1(x,θ,ϕ) sinϕ N i=1 yiai,λci I λ(x) Iλ(0) × Iλ(x) Iλ(0) dϕ dθ dx (1)
whereF denotes fluorescence signal intensity that is pro-portional to multiplication of Iλ(0), excitation light intensity, and labeling dye quantum yield yiai,λdenotes molar
extinc-tion coefficient and cidenotes DNA template concentration
at ith PCR thermal cycle. Two fractional terms (Iλ(x)/Iλ(0)) and (Iλ(L)/Iλ(0)) denote excitation light decay due to the absorption of labeling dye and emissive fluorescence decay
Fig. 3. Definitions of the core angle, the solid angle and the integration length for the real-time PCR prototype with CCD-based fluorescence detection system.
as excitation light and emissive fluorescence pass through the DNA sample in a capillary tube with a sample length of L. Definitions of core angle, solid angle and integral length of the real-time PCR prototype with a CCD-based fluorescence detection system can be referred to in Fig. 3. The integra-tion is performed along the DNA sample length, around the whole core angleθ from 0 to 2π, and over the solid angle ϕ fromϕ1toϕ2. Note that both upper and lower limits of solid angle vary with the design of optical sensing device. The sum-mation index, N, depends on the number of different DNA labeling dyes in the PCR reagent. The model was verified by a comparison between measured and predicted results of the commercial real-time PCR machine with different initial copies of HBV SC11 DNA in the PCR mix. The details can be referred to in our previous study[15].Due to the different arrangements in optical sensing device of the prototype and the commercial one, the emissive fluorescence decay should be revised as:
Iλ(L)
Iλ(0)
= 1 − 0.75(−e−Lai,λci+ 1) (2)
because fluorescence light directly transports through the capillary tube wall and about one fourth of the light can be collected by the detector.
Substituting Eq.(2)into Eq.(1),
F = 2πIλ(0)
L
0
π/12
0
sinϕyiai,λcie−xai,λci
× (1 − 0.75(−e−Lai,λci+ 1) dϕ dx (3)
The core angleϕ is confined by the distance between the DNA sample tube and the CCD collection lens, as shown in
Fig. 3. The value of solid angle can be obtained asπ/12. The integral can then be derived as:
F
Iλ(0) = 2π · 0.0102222(1 − e
−Lai,xci)
× (1 − 0.75(−e−Lai,xci+ 1)) (4)
Fig. 4. Predicted signal gain (F/Iλ(0)), its first and second derivatives with initial 105copies of DNA in 1 mL for the RT-PCR prototype.
3.2. Determination of initial DNA copies in PCR mix for the real-time PCR prototype
Some important biomolecular information can be obtained from signal processing on fluorescence intensity reflected from the PCR mix. Such information includes the specificity of target DNA, the initial copies of target DNA, etc. The aim of this study is to determine the initial copies of target DNA before thermal cycling from the time history of fluorescence intensity that increases with real-time PCR thermal cycle. If the PCR efficiency is assumed perfect at each cycle, the con-centration of target DNA in the mix at ith PCR cycle can be expressed as the following:
ci = N
6.02 × 10202
i (5)
where N denotes the initial DNA template copies/ml. When divided by the constant, it can be expressed by the concen-tration unit.
The predicted fluorescence intensity curve for the RT-PCR prototype and its first and second derivatives versus thermal cycle are shown inFig. 4. There are two local maximum values in the second derivative of predicted fluorescence in-tensity because the fluorescence inin-tensity drops with thermal cycle number after it reaches saturation. To avoid nonspe-cific amplification of DNA caused by excessive PCR thermal cycles, the thermal cycle number corresponding to the first maximum value in the second derivative should be considered as the critical cycle number for determination of the initial DNA copies. Similar approach can be derived for the pro-totype to find a linear relationship between the reciprocity of critical cycle number and the log value of initial DNA copies.
Replacing ai,λciby Ciin Eq.(3), it yields
F = const(1 + 2e−LCi− 3e−2LCi) (6)
The second derivative of the fluorescence intensity reaches a local maximum value when the third derivative of the flu-orescence intensity equals zero. The third derivative can be
expressed as: d3F di3 = const (2L2e−LCi− 4L2e−2LCi)dCi di + (−2L e−LCi+ 2L e−2LCi)d 2C i di2 (7)
It equals zero only if
(2L2e−LCi− 4L2e−2LCi)+ (−2L e−LCi+ 2L e−2LCi)
ln 2= 0 (8)
The solution of Eq.(8)is given by
eLCi =4L
2− 2L ln 2
2L2− 2L ln 2 (9)
By taking log on both sides of Eq.(9)and substitutingCi∝
N2iinto Eq.(9), it yields
Cic= N2ic= 1 Lln 4L2− 2L ln 2 2L2− 2L ln 2 = const (10)
where icdenotes the critical cycle number at which the second
derivative of fluorescence intensity first reaches its local max-imum value. Note that the second derivative of fluorescence intensity reaches a local maximum value at two different ther-mal cycle number for the prototype.
Furthermore, N ∝ const 1 2ic = const 1 eicln 2 (11) and logN ∝ Cc1 ic (12)
It indicates that a linear relationship exists between the reci-procity of critical cycle number and the log value of initial DNA copies. Based on the equation, the coefficient of linear equation, Cc, can be determined from a set of PCR samples
with known copies of target DNA. Once the coefficient is ob-tained, the unknown copies of target DNA in tested samples can be determined from Eq.(12)for the prototype.
4. Signal filtering scheme for fluorescence image captured by the CCD detector of the prototype
From the predicted results by the optical model for the prototype described above, the real-time PCR prototype with CCD-based fluorimeter can be employed for determination of initial DNA copies by recording the time history of fluo-rescence images of each cycle of PCR. However, poor image quality with significant noise may reduce accuracy in deter-mining initial copies of tested DNA. Therefore, an adaptive signal filtering scheme based on a LUM algorithm is intro-duced to eliminate signal noise.
4.1. LUM filter
A filter algorithm, called lower–upper–middle (LUM) fil-ter algorithm, is based on the comparison between lower order statistics, middle order statistics and upper order statistics to determine the signal intensity output. If optimal parameters can be chosen, the LUM algorithm is good at eliminating noise while keeping the useful information of the fluores-cence image.
Considering the fluorescence image over the measured area with M pixels, it requires a matrix of for processing the grayscale of original image. The total number of elements,
k or l, in the matrix must be chosen as an odd number. The
matrix can be expressed as:
f1,1 f1,2 · · · · · · · · · · · · · · · · · · · · · · · · .. .. .. fk,l−1 fk,l (13)
where f*,* is the grayscale at a specified pixel location that
required to be converted. The grayscale of the image over the measured area can be expressed in sequence, and is given by
W = {f(1), f(2), . . . , f(M−1), f(M)} (14) where f(1) < f(2) < · · · < f(M−1)< f(M).Before the con-verting process on grayscale of captured image, two pa-rameters, o and p, must be defined for determining the lower order statistics and upper order statistics. In this study,
o < p < (M + 1)/2. The lower and upper order statistics are
defined as
SL= med{f(o), f∗, f(p)} (15)
SU = med f(M−o+1), f∗, f(M−p+1) (16)
The med calculation algorithm is defined as
If f*< f(o)then SL= f(o)
Else If f(M−o+1)< f*then SL= f(M−o+1)
Else SL= f*
The upper statistics can be determined by the same med expression as that for obtaining lower statistics.
After both lower and upper order statistics are obtained, the middle order statistics can be found by
The algorithm for determining the grayscale at specified pixel location of processed image is
g∗= f(o) iff∗< f(o) f(p) iff(o)< f∗≤ SM f(M−p+1) ifSM < f∗< f(M−p+1) f(M−o+1) iff(M−o+1)< f∗ f∗ others (18)
4.2. Adaptive signal processing scheme
The LUM filter algorithm introduces too many pixels into calculations where no fluorescence signal appears. An adaptive signal pre-processing scheme is proposed to choose significant pixels to form the matrix before conversion on grayscale from the original image into the processed image. The image recognition scheme is based on the cross correla-tion of pixel grayscales between two horizontal neighboring lines. With respect to pixel grayscale on the first horizontal line, the covariance can be calculated by
µj =W1 W i=1 fi,j, σj2= 1 W W i=1 (fi,j− µj)2 (19)
The covariance of pixel grayscale on the second horizontal line is calculated by µj+1= W1 W i=1 fi,j+1, σ2 j+1= 1 W W i=1 (fi,j+1− µj+1)2 (20)
The cross-correlation coefficient of pixel grayscale on two neighboring p lines can be determined by
ˆ
σj,j+1=(1/W)
W
i=1(fi,j− µj)(fi,j+1− µj+1)
σjσj+1 (21)
If the cross-correlation coefficient is larger than a critical value, the grayscale values on the second horizontal line will be included into the matrix for the LUM filter algorithm.
5. Results and discussions
The target DNA fragment, HBV SC 11, was employed for the DNA quantification measurements. The number of initial copies of target DNA ranged from 103to 109/mL. Samples were prepared using the LightCycler-Fast Start DNA mas-ter with Cat No. 3003230 and SYBR Green I labeling dye in all runs. The quantification experiments were performed on both the commercial real-time PCR machine and the pro-totype. The measured results were compared with the pre-dicted fluorescence intensity by the proposed models. For the prototype, the fluorescence signal quality obtained from the

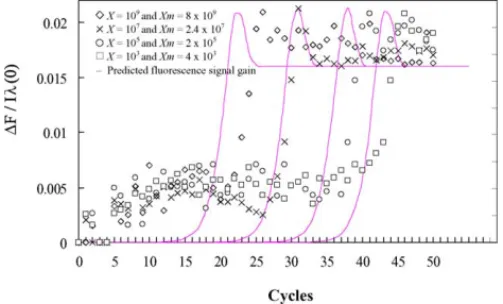

Fig. 5. The comparison of the measured fluorescence intensity calculated from the row fluorescence image with four different initial DNA copies denoted in each curve and fluorescence modeling predicted values.
CCD detector was not good enough for DNA quantification when the measured data were compared with the predicted value from the proposed model. Therefore, an adaptive sig-nal pre-processing approach based on the LUM filter scheme was developed to enhance the fluorescence signal. The re-producibility of DNA quantification for both the machines was also compared by intra-assay as well as inter-assay meth-ods. The comparison can prove whether the present prototype can achieve similar performance as the commercial real-time PCR machine or not.
Without applying the filtering scheme on captured fluo-rescence images, the measured signal gains of fluofluo-rescence intensity at four different initial DNA copies of X = 109, 107, 105and 103order for the prototype are shown inFig. 5By the DNA quantification described above, the initial DNA copies of these four samples can be determined as Xm = 8× 109, 2.4× 107, 2× 105and 4× 103. As shown inFig. 5, a large discrepancy is observed between the predicted and measured fluorescence signal gains for all runs, particularly at the first several cycles in which the fluorescence signal gain is ex-pected to be low. This difference is attributed to the burst noise embedded with the CCD camera. Therefore, an adap-tive signal processing scheme is proposed to eliminate the noise for obtaining better results.
Fig. 6shows the effect of adaptive signal processing on the fluorescence images in six critical cycles to determine DNA quantification. Comparing the images of row data and processed images, it is obvious that the fluorescence signal noise can be eliminated effectively by the adaptive signal processing. The fluorescence signal gain plot obtained by the method is compared with the fluorescence model pre-diction value inFig. 7. The model prediction values agree well with the measured data obtained by the real-time PCR prototype after the fluorescence images are processed. The average error with respect to different initial DNA copies is under 6%.
The agreement between the measured data obtained by the adaptive image processing of fluorescence images and the predicted values indicates that the adaptive signal processing

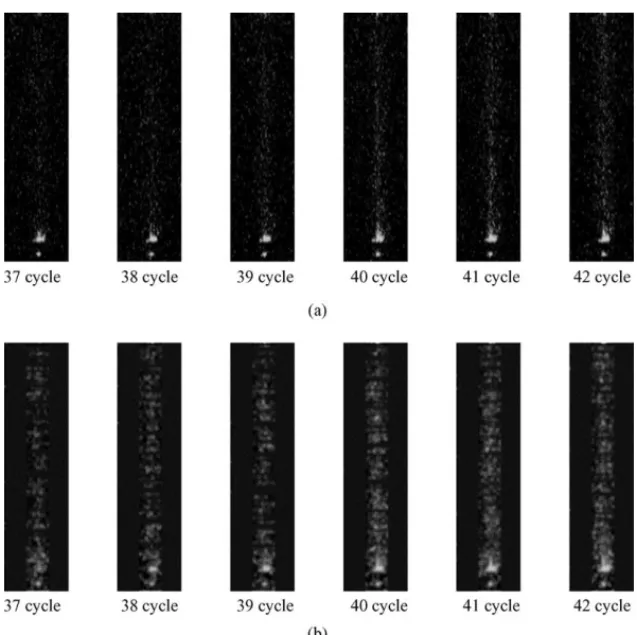

Fig. 6. Fluorescence images from 37th cycle to 42nd cycle at initial DNA copies of 105(a) before image filtering process, (b) after image filtering process.
is an effective way to eliminate noise and achieve fidelity for accurate DNA quantification.
The reproducibility of real-time PCR machine depends on factors such as the fluorescence detection system accuracy and the thermal cycling induced PCR efficiency discrepancy. Coefficient of variation (CV) with percentage unit is usually employed as an index and it is defined as:
CV=log10(
CM/n) − log10(Cs)
log10(Cs) 100% (22)
Fig. 7. The comparison of the measured fluorescence intensity from the fluorescence images after processing with three different initial DNA copies denoted in each curve and fluorescence modeling predicted values.
The CV value indicates discrepancy between the average of several quantification results and the value of specified DNA copies. A low CV value means high reproducibility of the system and that all induced measurement errors are mini-mized.
Fig. 8shows the CV value tested by intra-assay with three replicates for different initial DNA copies in the present pro-totype and the commercial real-time PCR system. Without applying the filtering scheme to the captured images, the quantitative CV results obtained from the prototype are worse than that from the commercial machine.
However, with filtering scheme, the reproducibility of the prototype can be significantly improved to similar CV val-ues as those obtained from the commercial real-time PCR
Fig. 8. Measured CV values of real-time PCR prototype and commercial real-time PCR machine for tests with intra-assay using three replicates.
machine. It proves that a low cost CCD-based fluorescence detection system can achieve good reproducibility in DNA quantification if the captured fluorescence images are filtered with the adaptive image processing scheme developed in this study.
6. Conclusions
The following conclusions can be drawn from the mea-sured results and analytical work on two different real-time PCR machines.
1. The real-time PCR prototype with CCD-based fluorimeter was successfully set up. It has a capacity to measure six fluorescence wavelengths at 530, 560, 610, 640, 670 and 710 nm from the excited fluorescence light from the PCR mix in 20L volume glass capillary for quantifying initial copies of target DNA in the PCR mix.
2. The analytic models based on Beer-Lambert law are pro-posed to predict the time history of fluorescence intensity that is measured by the optical sensing system for the pro-posed prototype.
3. For the prototype, an adaptive image processing algorithm based on LUM filter was developed. After the filtering process on captured images of excited fluorescence from the PCR mix, the CCD detector noise shows a significant reduction.
4. A comparison is made between the real-time PCR proto-type and the commercial real-time PCR machine on the accuracy to determine initial copies of HBV SC11 DNA in the PCR mix. Measured results show that both machines have similar accuracy in determination of initial copies of target DNA in the PCR mix when the number of copies is down to 103copies/mL (= 0.01 fM).
5. The advantages of the prototype over the commercial real-time PCR machine include low-cost and more detecting channels for excited fluorescence intensity of PCR mix. There are only three channels in the commercial real-time PCR but there are six channels in the prototype. For multiplexing real-time PCR, the prototype with six de-tecting channels can be used to detect initial copies of three different target DNAs (two channels for one target DNA).
6. By software image processing, the simple fluorescence de-tection system design described in the paper can achieve similar accuracy as the commercial PCR machine with complex optical engine structure. Since computing power is always improving, it gives strong incentive to replace traditional complex optical detection system and high-accuracy optical sensor by simpler structures with appro-priate computer signal processing. This will be a good ap-proach to significantly reduce the cost for real-time PCR machine.
Acknowledgement
The authors deeply appreciate the financial support pro-vided by National Science Council in Taiwan under the grant number of NSC 92-2218-E-002-046.
References
[1] K.B. Mullis, F. Ferre, R.A. Gibbs, The Polymerase Chain Reaction, Birkhauser, Boston, 1994.
[2] M.A. Innis, D.H. Gelfand, J.J. Shinsky, T.J. White, PCR Protocols: A Guide to Methods and Applications, Academic Press, San Diego, 1990.
[3] R.A. Eeles, A.C. Stamps, Polymerase Chain Reaction (PCR): The Technique and Its Applications, R. G. Landes Co., Austin, TX, 1993. [4] C.T. Wittwer, M.G. Herrmann, A.A. Moss, R.P. Rasmussen, Con-tinuous fluorescence monitoring of rapid cycle DNA amplification, BioTechniques 22 (1997) 130–138.
[5] C.T. Wittwer, K.M. Ririe, R.V. Andrew, D.A. David, R.A. Gundry, U.J. Balis, The LightCyclerTM: a microvolume multisample fluo-rimeter with rapid temperature control, BioTechniques 22 (1997) 176–181.
[6] R. Kumaran, R. Kim, A fluorescence based assay for DNA damage by styrene oxide, Sens. Actuat. B 91 (2003) 205–210.
[7] S. Kai, Y. Akira, I. Yutaka, M. Shigeki, M. Hiroaki, A heater-integrated transparent microchannel chip for continuous flow PCR, Sens. Actuat. B 84 (2002) 283–289.
[8] C.T. Wittwer, M.G. Herrmann, C.N. Gundry, S.J. Kojo, Elenitobe-Johnson, Real-time multiplex PCR assays, Methods 25 (2001) 430–442.
[9] http://www.lightcycleronline.com/lc sys 2/pdfs/flyer.pdf.
[10] A.Q. Liu, X.M. Zhang, V.M. Murukeshan, Q.X. Zhang, Q.B. Zhou, S. Uppili, An optical crossconnect (OXC) using drawbridge mi-cromirrors, Sens. Actuat. A 97–98 (2002) 227–238.
[11] E.S. Kolesar, P.B. Allen, J.W. Wilken, J.T. Howard, Implementa-tion of micromirror arrays as optical binary switches and amplitude modulators, Thin Solid Films 332 (1998) 1–9.
[12] Photonics Industry and Technology Development Association Weekly Report, No. 92078 (2003).
[13] A. Tuantranont, V.M. Bright, J. Zhang, W. Zhang, J.A. Neff, Y.C. Lee, Optical beam steering using MEMS-controllable microlens ar-ray, Sens. Actuat. A 91 (2001) 36–372.
[14] http://usa.hamamatsu.com/sys-glossary/highsensitivity.html. [15] D.-S. Lee, M.-H. Wu, U. Ramesh, C.-W. Lin, T.-M. Lee, H. Chen,
A novel real time PCR machine with a miniature spectrometer for fluorescence sensing in a micro liter volume glass capillary, Sens. Actuat. B 100 (2004) 401–410.
[16] C.J. Appelof, E.R. Davidson, Strategies for analyzing data from video fluorometric monitoring of liquid chromatographic effluents, Anal. Chem. 53 (1981) 2053–2056.
[17] D.R. Christmann, S.R. Crouch, A. Timnick, Precision and accuracy of absorption-corrected molecular fluorescence measurements by the cell shift method, Anal. Chem. 53 (1983) 2040–2044.
[18] D.R. Christmann, S.R. Crouch, A. Timnick, Automated instrument for absorption-corrected molecular fluorescence measurements by the cell shift method, Anal. Chem. 53 (1981) 276–280.
[19] J. Knoester, J.E. Van Himbergen, Monte Carlo simulations on con-centration self-quenching by statistical traps, J. Chem. Phys. 86 (1987) 3577–3582.
[20] LightCycler Operator’s Manual ver. 3.5., 2002.
[21] E. Thomas, K. Gerlinde, P. Birgit, Detection of telomerase compo-nents by quantitative real-time on-line PCR analysis with the light-cycler, Biochemica 4 (2000) 16–19.
