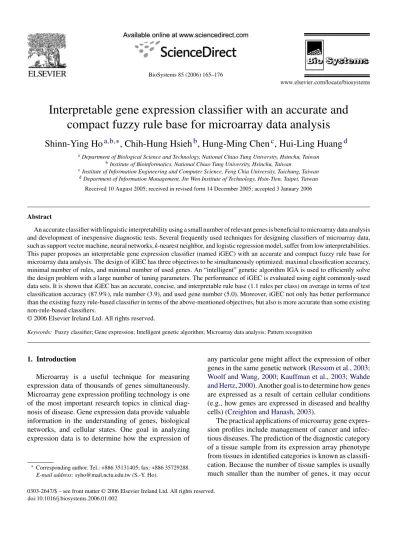

Interpretable gene expression classifier with an accurate and
compact fuzzy rule base for microarray data analysis
Shinn-Ying Ho
a,b,∗, Chih-Hung Hsieh
b, Hung-Ming Chen
c, Hui-Ling Huang
daDepartment of Biological Science and Technology, National Chiao Tung University, Hsinchu, Taiwan bInstitute of Bioinformatics, National Chiao Tung University, Hsinchu, Taiwan
cInstitute of Information Engineering and Computer Science, Feng Chia University, Taichung, Taiwan dDepartment of Information Management, Jin Wen Institute of Technology, Hsin-Tien, Taipei, Taiwan
Received 10 August 2005; received in revised form 14 December 2005; accepted 3 January 2006
Abstract
An accurate classifier with linguistic interpretability using a small number of relevant genes is beneficial to microarray data analysis and development of inexpensive diagnostic tests. Several frequently used techniques for designing classifiers of microarray data, such as support vector machine, neural networks, k-nearest neighbor, and logistic regression model, suffer from low interpretabilities. This paper proposes an interpretable gene expression classifier (named iGEC) with an accurate and compact fuzzy rule base for microarray data analysis. The design of iGEC has three objectives to be simultaneously optimized: maximal classification accuracy, minimal number of rules, and minimal number of used genes. An “intelligent” genetic algorithm IGA is used to efficiently solve the design problem with a large number of tuning parameters. The performance of iGEC is evaluated using eight commonly-used data sets. It is shown that iGEC has an accurate, concise, and interpretable rule base (1.1 rules per class) on average in terms of test classification accuracy (87.9%), rule number (3.9), and used gene number (5.0). Moreover, iGEC not only has better performance than the existing fuzzy rule-based classifier in terms of the above-mentioned objectives, but also is more accurate than some existing non-rule-based classifiers.
© 2006 Elsevier Ireland Ltd. All rights reserved.
Keywords: Fuzzy classifier; Gene expression; Intelligent genetic algorithm; Microarray data analysis; Pattern recognition
1. Introduction
Microarray is a useful technique for measuring expression data of thousands of genes simultaneously. Microarray gene expression profiling technology is one of the most important research topics in clinical diag-nosis of disease. Gene expression data provide valuable information in the understanding of genes, biological networks, and cellular states. One goal in analyzing expression data is to determine how the expression of
∗Corresponding author. Tel.: +886 35131405; fax: +886 35729288. E-mail address: syho@mail.nctu.edu.tw (S.-Y. Ho).
any particular gene might affect the expression of other genes in the same genetic network (Ressom et al., 2003; Woolf and Wang, 2000; Kauffman et al., 2003; Wahde and Hertz, 2000). Another goal is to determine how genes are expressed as a result of certain cellular conditions (e.g., how genes are expressed in diseased and healthy cells) (Creighton and Hanash, 2003).
The practical applications of microarray gene expres-sion profiles include management of cancer and infec-tious diseases. The prediction of the diagnostic category of a tissue sample from its expression array phenotype from tissues in identified categories is known as classifi-cation. Because the number of tissue samples is usually much smaller than the number of genes, it may occur
0303-2647/$ – see front matter © 2006 Elsevier Ireland Ltd. All rights reserved. doi:10.1016/j.biosystems.2006.01.002
that there are multiple different sets with the same small number of genes having the same high classification accuracy (Yeung et al., 2005). In analyzing expression data by designing classifiers, it is better to provide addi-tional biological knowledge associated for verifying the selected genes rather than the emphasis of both high clas-sification accuracy and small number of used genes only. In this study, designing an accurate and compact fuzzy rule-based classifier with linguistic interpretability using a small number of relevant genes is investigated, which is beneficial to microarray data analysis and development of inexpensive diagnostic tests. The desirable classifier is a set of fuzzy rules with linguistic interpretability where each rule is as the similar form: if gene A is up-regulated and gene B is down-regulated, then the probability of disease X is high.
Merz (2003) applied memetic algorithms to the minimum sum-of-squares clustering problem for gene expression profile analysis. Recently, some supervised machine learning techniques, such as support vector machine (SVM), neural networks (NN), k-nearest neigh-bor (k-NN), and logistic regression have been used in designing gene expression data classifiers (Statnikov et al., 2005; Vinterbo et al., 2005).Liu et al. (2004) pro-posed a feature selection method which combines top-ranked, test-statistic, and principle component analysis in conjunction with ensemble NN to design classifiers.
Zhou and Mao (2005) suggested a filter-like evalua-tion criterion, called LS Bound measure, derived from leave-one-out procedure of least squares support vec-tor machines (LS-SVMs), which provides gene subsets leading to more accurate classification.Liu et al. (2005a)
combined the entropy-based feature selection method using simulated annealing and k-NN classifier for can-cer classification.Liu et al. (2005b)proposed a hybrid method which combines GA and SVM for multi-class cancer categorization.
Statnikov et al. (2005) investigated some existing multi-class classification methods and indicated that the multi-category SVM is the most effective classi-fier for tumor classification in terms of classification accuracy using a very large number of genes. How-ever, given thousands of genes, only a small number of genes show strong correlation with a certain pheno-type (Ding, 2003). To advance the classification per-formance using a small number of genes, it is better to take both gene selection and classifier design into account simultaneously (Deb and Reddy, 2003).Li et al. (2001)proposed a hybrid method of the genetic algo-rithm (GA)-based gene selection and k-NN classifier to assess the importance of genes for classification.Ooi and Tan (2003)proposed a maximal likelihood based method
for the multi-category prediction of gene expression data.
However, learning results of the above-mentioned classifiers containing equations involving several coefficients, interaction terms, and constants cannot be summarized into linguistically interpretable forms for biologists and biomedical scientists (Vinterbo et al., 2005).Li et al. (2003)used a tree structure to classify microarray samples. Hvidsten et al. (2003) proposed learning rule-based models of biological process from gene expression time profiles using gene ontology.
Vinterbo et al. (2005) presented a rule-induction and filtering strategy to obtain an accurate, small, and inter-pretable fuzzy classifier using a grid partition of feature space, compared with the classifier of logistic regression. In this paper, we propose an interpretable gene expres-sion classifier (named iGEC) with an accurate and com-pact fuzzy rule base using a scatter partition of feature space for microarray data analysis. Because gene expres-sion data have the property of natural clustering, fuzzy classifiers using a scatter partition of feature spaces often have a smaller number of rules than those using grid partition (Ho et al., 2004a). The design of iGEC has three objectives to be simultaneously optimized: max-imal classification accuracy, minmax-imal number of rules, and minimal number of used genes. In designing iGEC, the flexible membership function, fuzzy rule, and gene selection are simultaneously optimized. An “intelligent” genetic algorithm IGA is used to efficiently solve the design problem with a large number of tuning parame-ters (Ho et al., 2004a).
The performance of iGEC is evaluated using eight gene expression data sets. It is shown that iGEC has an accurate, concise, and interpretable rule base (1.1 rules per class) averagely in terms of test classification accu-racy (87.9%), rule number (3.9), and used gene number (5.0). Moreover, iGEC not only has better performance than the classifier (Vinterbo et al., 2005) in terms of the above-mentioned objectives, but also is more accurate than some existing non-rule-based classifiers (k-NN and NNs).
2. Methods
High performance of iGEC mainly arises from two aspects. One is to simultaneously optimize all parameters in the design of iGEC where all the elements of the fuzzy classifier design have been moved in parameters of a large parameter optimiza-tion problem. The other is to use an efficient optimizaoptimiza-tion algorithm IGA which is a specific variant of the intelligent evolutionary algorithm (Ho et al., 2004b). The intelligent evolutionary algorithm uses a divide-and-conquer strategy to effectively solve large parameter optimization problems. IGA
Fig. 1. Illuminations of FGPMF: (a) a > 0 and d < 1; (b) a < 0 < b; (c) b≤ 0; (d) b ≤ 0 and c ≥ 1. is shown to be effective in the design of accurate classifiers
with a compact fuzzy-rule base using an evolutionary scatter partition of feature space (Ho et al., 2004a).
2.1. Flexible membership function
The classifier design of iGEC uses flexible generic param-eterized fuzzy regions which can be determined by flexible generic parameterized membership functions (FGPMFs) and a hyperbox-type fuzzy partition of feature space. Each fuzzy region corresponds to a parameterized fuzzy rule. In this study, each value of gene expression is normalized into a real number in the unit interval [0,1]. An FGPMF with a single fuzzy set is defined as µ(x) = ⎧ ⎪ ⎪ ⎪ ⎪ ⎪ ⎨ ⎪ ⎪ ⎪ ⎪ ⎪ ⎩ 0 if x ≤ a or x ≥ d x − a b − a if a < x < b d − x d − c if c < x < d 1 if b ≤ x ≤ c (1)
where x∈ [0, 1] and a ≤ b ≤ c ≤ d. The variables a, b, c, and
d determining the shape of a trapezoidal fuzzy set are the
parameters to be optimized. It is well recognized that con-fining evolutionary searches within feasible regions is often much more reliable than penalty approaches for handling con-strained problems (Michalewicz et al., 1996). Therefore, five parameters V1, V2
, . . ., V5∈ [0, 1] without constraints instead of a, b, c, and d are encoded into a GA-chromosome for facilitating IGA. Let an additional variable L = V1which deter-mines the location of the fuzzy set characterizing the occur-rence of training patterns. When Vi are obtained, variables
a, b, c, and d can be derived as follows: a = L− (V2+ V3),
b = L− V3, c = L + V4, and d = L + (V4+ V5). This transforma-tion can always make the derived values of a, b, c, and d feasible and reduce interactions among encoded parameters of GA-chromosomes. Some illuminations of FGPMF are shown in Fig. 1.
2.2. Fuzzy rule and fuzzy reasoning method
The following fuzzy if–then rules for n-dimensional pattern classification problems are used in the design of iGEC:
Rj: If x1is Aj1and . . . and xnis Ajnthen class CLjwith CFj,
j = 1, . . . , N.
where Rjis a rule label, xidenotes a gene variable, Aji is an
antecedent fuzzy set, C is a number of classes, CLj∈ {1, . . .,
C} denotes a consequent class label, CFjis a certainty grade of
this rule in the unit interval [0, 1], and N is a number of initial fuzzy rules in the training phase.
To enhance interpretability of fuzzy rules, linguistic vari-ables in fuzzy rules can be used. Each variable xihas a linguistic
set U ={L, ML, M, MH, H}. Each linguistic value of xiequally
represents 1/5 of the domain [0, 1]. Following the quantization criterion, we can consider genes to be regulated according to a qualitative level. For example, xiis Low for down-regulated
genes; xi is Medium for neutral genes; and xiis High for
up-regulated genes. An antecedent fuzzy set Aji∈ Au where Au
denotes a set of subsets of U. Examples of linguistic antecedent fuzzy sets are shown inFig. 2.
In the training phase, all the variables CLj and CFj are
treated as parametric genes of GA (GA-genes) encoded in chromosomes of GA (GA-chromosomes) and their values are
Fig. 2. Examples of an antecedent fuzzy set Ajiwith linguistic values (L: low, ML: medium low, M: medium, MH: medium high, H: high): (a) Aji
obtained using IGA. The following fuzzy reasoning method is adopted to determine the class of an input pattern xp= (xp1, xp2,
. . ., xpn) based on voting using multiple fuzzy if–then rules:
Step 1: Calculate score SClass v(v = 1, . . . , C) for each class as follows: SClass v= Rj∈ FC CLj= Class v µj(xp)CFj, µj(xp)= n i=1 µji(xpi), (2)
where FC denotes the fuzzy classifier, the scalar value and µji(·) represents the membership function of the
antecedent fuzzy set Aji.
Step 2: Classify xpas the class with a maximal value of SClass v.
2.3. Fitness function and GA-chromosome representation
We define the fitness function Fit() of IGA for designing iGEC as follows:
max Fit(FC) = NCP − WrNr− WfNf (3) where Wrand Wfare positive weights. In this study, the fitness function is used to optimize the three objectives in the following order: to maximize the number NCP of correctly classified training patterns, to minimize the number Nr of fuzzy rules, and to minimize the number Nfof selected genes. Generally, the final number of fuzzy rules is smaller than 10. Therefore, we set Wr= 0.1 to ensure that classification accuracy has the first priority to be optimized. When the two objectives NCP and Nrare simultaneously optimized for microarray data, the best number of used genes is almost determined. Hence, a very small value 0.001 is set to Wf. The sensitive analysis about the different settings of Wrand Wfcan be referred toHo et al. (2004a). It is shown that various combinations of feasible settings of Wrand Wfare not sensitive to performance of the fuzzy-rule based classifier (Ho et al., 2004a).
A GA-chromosome consists of control GA-genes for select-ing useful genes and significant fuzzy rules, and parametric GA-genes for encoding the membership functions and fuzzy rules. The control GA-genes comprise two types of parame-ters. One is parameter rj, j = 1, . . ., N, represented by one bit
for eliminating unnecessary fuzzy rules. If rj= 0, the fuzzy rule
Rj is excluded from the rule base. Otherwise, Rj is included.
The other is parameter fi, i = 1, . . ., n, represented by one bit
for eliminating useless genes. If fi= 0, the gene xiis excluded
from the classifier. Otherwise, xi is included. The
paramet-ric GA-genes consist of three types: Vk
ji∈ [0, 1], k = 1, . . . , 5,
for determining the antecedent fuzzy set Aji; CLjfor
determin-ing the consequent class label of rule Rj; and CFj∈ [0, 1] for
determining the certainty grade of rule Rj; where j = 1, . . ., N
and i = 1, . . ., n. A rule base with N fuzzy rules is represented as an individual, as shown inFig. 3. The number of encod-ing parameters to be optimized is equal to Np= n + 3N + 5Nn.
A GA-chromosome representation uses a binary string for encoding control and parametric GA-genes. There are eight bits for encoding one of parameters Vk
jiand CFj. Since each
fuzzy region defines a fuzzy rule, the initial setting of N is independent of n but dependent on the number of fuzzy regions. Generally, N is set to the maximal number of pos-sible fuzzy regions. In this study, N = 3C. The design of an efficient fuzzy classifier is formulated as a large parameter optimization problem. Once the solution of IGA is obtained, an accurate classifier with a compact fuzzy rule base can be derived.
2.4. IGA for designing iGEC
The main difference between IGA and the traditional GA (Goldberg, 1989) is an efficient intelligent crossover operation. The intelligent crossover is based on orthogonal experimental design to solve intractable optimization problems comprising lots of system parameters. The intelligent crossover is pre-sented while the merits of orthogonal experimental design and the superiority of intelligent crossover can be further referred toHo et al. (2004a, 2004b).
2.4.1. Orthogonal experimental design
The two-level orthogonal arrays (OAs) used in IGA are described below. Let there be α factors, with two levels each. The total number of level combinations is 2α for a complete
factorial experiment. To use an OA of α factors, we obtain an integer M = 2[log2(α+1)]where the bracket represents an upper ceiling operation, build an OA LM(2M− 1) with M rows and
M− 1 columns, use the first α columns, and ignore the other M− α − 1 columns. OA can reduce the number of level
com-binations for factor analysis. The number of OA comcom-binations required to analyze all individual factors is only M = O(α), where α + 1 ≤ M ≤ 2α.
After proper tabulation of experimental results, the summa-rized data are analyzed using factor analysis to determine the relative effects of levels of various factors as follows. Let yt
denote a objective function value of the combination t, where
t = 1, . . ., M. Define the main effect of factor i with level k as Sikwhere i = 1, . . ., α: Sik= M t=1 ytWt (4)
where Wt= 1 if the level of factor i of combination t is k;
other-wise, Wt= 0. Since the fitness function is to be maximized, level
1 of factor i makes a better contribution to the fitness function than level 2 of factor i does when Si1> Si2. If Si1< Si2, level 2
is better. If Si1= Si2, levels 1 and 2 have the same contribution.
The main effect reveals the individual effect of a factor. The most effective factor i has the largest main effect difference
MEDi=|Si1− Si2|. After the better one of two levels of each
factor is determined, an efficient combination consisting of all factors with the better levels can be easily derived.
2.4.2. Intelligent crossover
All parameters are encoded into a GA-chromosome using binary codes. Like traditional GAs, two parents P1and P2 pro-duce two children C1and C2in one crossover operation. Let all encoded parameters be randomly assigned into α groups where each group is treated as a factor. The following steps describe the intelligent crossover operation.
Step 1: Use the first α columns of an OA LM(2M− 1).
Step 2: Let levels 1 and 2 of factor i represent the ith groups of parameters coming from parents P1and P2, respec-tively.
Step 3: Evaluate the fitness values ytfor experiment t where
t = 2, . . ., M. The value y1is the fitness value of P1. Step 4: Compute the main effect Sik where i = 1, . . ., α and
k = 1, 2.
Step 5: Determine the better one of two levels of each factor. Step 6: The GA-chromosome of C1is formed using the com-bination of the better GA-genes from the derived cor-responding parents.
Step 7: The GA-chromosome of C2is formed similarly as C1, except that the factor with the smallest main effect difference adopts the other level.
Step 8: The best two individuals among P1, P2, C1, C2, and
M− 1 combinations of OA are used as the final
chil-dren C1and C2for elitist strategy.
One intelligent crossover operation takes M + 1 fitness eval-uations, where α + 1 ≤ M ≤ 2α, to explore the search space of 2αcombinations.
2.4.3. Intelligent genetic algorithm
The used IGA is given as follows:
Step 1: Randomly generate an initial population with Npop individuals.
Step 2: Evaluate fitness values of all individuals in the popu-lation. Let Ibestbe the best individual in the population. Step 3: Use the simple ranking selection that replaces the worst PsNpopindividuals with the best PsNpop
individ-uals to form a new population, where Psis a selection probability.
Step 4: Randomly select PcNpop individuals including Ibest, where Pcis a crossover probability. Perform intelligent crossover operations for all selected pairs of parents. Step 5: Apply a conventional bit-inverse mutation operator to
the population using a mutation probability Pm. To pre-vent the best fitness value from deteriorating, mutation is not applied to the best individual.
Step 6: Termination test: If a pre-specified termination condi-tion is satisfied, stop the algorithm. Otherwise, go to step 2.
3. Experiments
3.1. Implementation and data sets
The parameter settings of IGA from Ho et al. (2004a)are Npop= 20, Pc= 0.7, Ps= 1− Pc, Pm= 0.01,
and α = 15. Because the search space of optimal design of iGEC is proportional to the number Np of
parame-ters to be optimized, the stopping condition is suggested to use a fixed number 100Npof fitness evaluations (Ho
et al., 2004a) for the following two reasons: (1) for future comparisons with other methods based on the same computation cost; and (2) satisfactory solutions can be obtained which are not sensitive to the number of evaluations used. Of course, if the number of evalua-tions is increased, the results may be slightly improved. Because of the non-deterministic characteristic of GA, all the experimental results are the average values of 30 independent runs. For each run, a 10-fold cross validation (10-CV) is adopted. Note that the algorithm proposed by
Vinterbo et al. (2005)is deterministic that the results are the same for all independent runs.
For comparison, we adopted the same Wilcoxon rank sum test withVinterbo et al. (2005)as a non-parametric feature selection method. In this study, we pre-selected n = 10, 15, 20, and 100 representative genes to evaluate the performance of iGEC. Considering the test accuracy as well as the numbers of rules and genes,
n = 15 (slightly better) is suggested as the default setting
of iGEC in this study. If the number C of classes is fur-ther increased (e.g., C > 10), the number n is suggested to be proportionally increased.
Table 1shows the eight data sets fromStatnikov et al. (2005), which are available from http://www.gems-systems.org/. The following experiments are designed to evaluate the proposed method using comparisons with some existing rule and non-rule based classifiers. The first comparison is made between iGEC and the Vinterbo’s fuzzy rule-based classifier and the second
Table 1
The eight data sets fromStatnikov et al. (2005)
No. Data set Descriptions No. of classes No. of samples No. of genes Np Reference
1 Brain tumor1 5 human brain tumor types 5 90 5920 1185 Pomeroy et al. (2002)
2 Brain tumor2 4 malignant glioma types 4 50 10367 951 Nutt et al. (2003)
3 DLBCL Diffuse large b-cell lymphomas and follicular lymphomas
2 77 5469 483 Shipp et al. (2002)
4 Leukemia1 Acute myelogenous leukemia (AML), Acute lympboblastic leukemia (ALL) B-cell, and ALL T-cell
3 72 5327 717 Golub et al. (1999)
5 Leukemia2 AML, ALL, and mixed-lineage leukemia (MLL)
3 72 11225 717 Armstrong et al. (2002)
6 Lung cancer 4 lung cancer types and normal tissues
5 203 12600 1185 Bhattacharjee et al. (2001)
7 Prostate tumor Prostate tumor and normal tissue 2 102 10509 483 Singh et al. (2002)
8 SRBCT Small, round blue cell tumors of childhood
4 83 2308 951 Khan et al. (2001)
one between iGEC and the non-rule-based classifiers in
Statnikov et al. (2005).
3.2. Results
For comparisons, we conducted two evaluations on the Vinterbo’s method using different numbers of pre-selected genes. One is to use 200 pre-pre-selected genes (V200), which is the same with that inVinterbo et al. (2005). The other is to use 15 genes (V15), which is the same with that of the proposed method.Table 2shows the statistical results (mean and standard deviation) of iGEC and the Vinterbo’s classifier in terms of training accuracy, test accuracy, number of rules, number of genes, and rule number per class. The results of the Vinterbo’s classifier were obtained by running the same program provided by Vinterbo et al. (2005). The same data which have the same partition are used for iGEC, V200, and V15.
Fig. 4presents the experimental results using box plots.
Fig. 5(a) and (b) show the three-dimensional scatter plots in terms of test accuracy, rule number, and gene number for data sets lung cancer and SRBCT, respectively.
From Table 2, we can observe that iGEC performs better than the Vinterbo’s classifier using 200 candidate genes (V200) in the five measures: TrCR (97.1% versus 81.5%), TeCR (87.9% versus 81.2%), Nr(3.9 versus 4.9), Nf(5.0 versus 7.2), and Nr/C (1.1 versus 1.4). Note that
V200 is better than V15 but using more candidate genes and computation time. Moreover, the classifiers V200 compare favorably to those of a logistic regression model which is one of the frequently used classification method applied in the biomedical domain (Vinterbo et al., 2005).
Fig. 6 shows an example of iGEC using the data set leukemia1 where 90% samples are for training and
the rest for test. The classifier has four fuzzy rules using three genes L05148, U46499, and U05259, where TrCR = 100% and TeCR = 100%. The fuzzy rules are lin-guistically interpretable as follows:
R1 If L05148 is not up-regulated and U05259 is not down-regulated, then class “ALL B-Cell” with CF = 0.243;
R2 If L05148 is ALL and U46499 is neutral or up-regulated, then class “ALL B-Cell” with
CF = 0.682;
R3 If L05148 is not down-regulated, U46499 is ALL and U05259 is ALL, then class “ALL T-Cell” with CF = 0.710;
R4 If L05148 is ALL, U46499 is ALL and U05259 is ALL, then class “AML” with CF = 0.722. Where the membership functions of genes U46499 and U05259 in R1and R2, respectively, are “don’t care”
which can reduce the rule length. From the compact rule base, it is easy to interpret the classification model from gene expression data. The fuzzy rules can be examined by biomedical researchers. Due to the natural cluster-ing property of gene expression data, each of the classes “ALL T-Cell” and “AML” has one fuzzy rule correspond-ing to one fuzzy region while the class “ALL B-Cell” has two fuzzy regions overlapped. Furthermore, we can know the distribution of samples of each class from the corresponding membership function in the feature space. The fuzzy rule base can determine the class of unknown samples using Eq.(2).
To further realize whether these three genes L05148, U46499, and U05259 make sense as a group and their biological relationship, we process the average
link-Table 2
The statistical results of iGEC and the Vinterbo’s classifier on training accuracy (TrCR), test accuracy (TeCR), number of rules (Nr), number of genes (Nf), and rule number per class (Nr/C)
Data set Method TrCR (%) TeCR (%) Nr Nf Nr/C
Brain tumor1 iGEC 92.4± 0.1 88.7± 2.5 5.0± 0.1 5.9± 0.2 1.00 V200 80.85 81.25 6.50 8.60 1.30 V15 78.66 85.00 6.00 9.20 1.20 Brain tumor2 iGEC 97.0± 0.2 72.4± 4.4 4.4± 0.1 5.5± 0.3 1.11 V200 60.00 60.00 4.00 8.30 1.00 V15 66.60 63.33 5.10 6.70 1.27 DLBCL iGEC 98.5± 0.7 91.2± 1.8 2.5± 0.3 3.7± 0.4 1.28 V200 85.91 85.00 2.60 3.80 1.30 V15 84.65 78.33 7.00 6.90 3.50 Leukemia1 iGEC 99.7± 0.2 94.0± 2.5 3.5± 0.1 4.1± 0.3 1.18 V200 90.15 92.00 5.30 7.30 1.76 V15 87.61 84.00 4.90 8.10 1.63 Leukemia2 iGEC 98.7± 0.3 85.3± 2.7 3.3± 0.1 4.3± 0.3 1.12 V200 81.97 76.67 4.30 5.50 1.43 V15 74.70 71.67 3.50 4.10 1.16 Lung can-cer iGEC 92.7± 0.2 88.0± 2.7 5.5± 0.2 6.9± 0.4 1.10 V200 85.35 84.44 7.80 14.50 1.56 V15 81.57 82.78 8.30 8.90 1.66 Prostate tumor iGEC 97.9± 0.5 90.9± 4.0 2.4± 0.2 4.1± 0.4 1.21 V200 81.5 82.00 3.00 3.30 1.50 V15 84.46 84.00 2.90 5.10 1.45 SRBCT iGEC 99.8± 0.5 92.3± 9.9 4.3± 0.2 4.8± 0.3 1.08 V200 86.36 88.33 5.80 6.20 1.45 V15 78.44 71.67 5.10 10.20 1.27 Mean iGEC 97.1 87.9 3.9 5.0 1.1 V200 81.5 81.2 4.9 7.2 1.4 V15 79.6 77.6 5.4 7.4 1.6
age (average distance, UPGMA) clustering based on Euclidean distances squared by EPCLUST (Parkinson et al., 2003). Fig. 7shows the clustering result. From
Fig. 7, we can observe that most of the samples belong-ing to same class are grouped together. From thousands of genes, the proposed method can identify few but rele-vant genes to make accurate classification. Furthermore, the biological finding is interpretable from the obtained compact fuzzy rule base. Therefore, iGEC is beneficial to microarray data analysis and development of inexpen-sive diagnostic tests.
Besides the leukemia1 classifier using the gene set
{L05148, U46499, U05259} shown inFig. 6, there are other sets of three genes which can establish the classi-fiers with both 100% training and test accuracies as fol-lows:{L05148, M63138, U05259}, {M11722, L05148, U46499}, {M31523, U16954, U46499}, and {U16954, M27891, U05259}. This scenario results from that the microarray data have a large number of genes but a very
small number of samples. iGEC can provide important knowledge to biological scientists.Table 3gives descrip-tions of the selected genes from the data set leukemia1 of 72 samples. For each gene, we counted the num-ber of articles that were retrieved by a PubMed query containing the gene name and the string “leukemia”. By combining more gene sets of solutions, most of genes highly related to the leukemia disease can be obtained.
Due to different merits of fuzzy partitions such as grid partition, tree partition, and scatter partition, they cannot be directly compared using some specific measurements (Ho et al., 2004a). However, iGEC has 1.1 fuzzy regions for describing the sample distribution of each class aver-agely. Besides the above-mentioned advantages of easy interpretation and economical experiments, the proposed fuzzy rule-base method using a scatter partition of fea-ture space can enclose all possible occurrences of sam-ples in the same class with one or few hyperbox-type
Fig. 4. The box plots of the statistical results: (a) training accuracy; (b) test accuracy; (c) number of rules and (d) number of used genes.
fuzzy regions. In other words, the fuzzy regions of scat-ter partition can represent one class more independently than those of grid partition. Therefore, iGEC can reject the unknown sample if it belongs to no fuzzy region that no fuzzy rule is fired.
To further evaluate accuracy of the proposed method, we compared iGEC with some non-rule-based classi-fiers without using gene selection methods inStatnikov et al. (2005). Table 4 shows the test accuracy
com-parisons using 10-CV on the eight data sets between iGEC and the following methods: multi-category sup-port vector machine (SVM), k-nearest neighbors (k-NN), backpropagation neural networks (NN), and probabilis-tic neural networks (PNN) which are the most common methods for gene expression data analysis. The results are obtained fromStatnikov et al. (2005).
Table 4indicates that the multi-category SVM with 93.63% average test accuracy on the eight data sets is the
Fig. 6. Fuzzy rules of the data set leukemia1 using 90% samples for training and the rest for test. The training and test accuracies are both 100%.
Table 3
Selected genes for the leukemia1 data set example
Gene Description No. of
references M11722 Human terminal transferase mRNA 154 L05148 Human protein tyrosine kinase related
mRNA sequence
26
M63138 Human cathepsin D 24
M31523 Human transcription factor (E2A) mRNA
17 U05259 Human MB-1 gene, complete cds 12 U46499 Homo sapiens microsomal glutathione
transferase (MGST1) gene, 3sequence 10
M27891 Human cystatin C gene 5
U16954 Human (AF1q) mRNA 3
For each gene we counted the number of articles that were retrieved by a PubMed query consisting of the gene name and the string “leukemia”.
most accurate classifier for diseases classification. How-ever, it is not practical to use as many as 7965.6 genes on average to classify diseases samples for economi-cal biomedieconomi-cal test in real applications. The proposed fuzzy classifier iGEC with 87.9% using 5.0 genes on average is superior to k-NN (84.49%), NN (82.54%), and PNN (79.49%) in terms of accuracy and number of genes. Because the sample sizes of microarray data are extremely small, it results in the high training accuracy (97.1%) and relatively low test accuracy (87.9%). When the number of samples is increased, the test accuracy can be further advanced (Ho et al., 2004a). From the viewpoint of analysis and practical applications, iGEC can serve as one of efficient tools for analysis of gene expression profiles.
Table 4
The test accuracies and numbers of used genes for iGEC and non-rule-based classifiers using 10-CV Data set No. of genes in
non-rule-based classifiers
Accuracy (%) No. of genes
in iGEC SVM k-NN NN PNN iGEC Brain tumor1 5920 91.67 87.94 84.72 79.61 88.71 6 Brain tumor2 10367 77.00 68.67 60.33 62.83 72.45 6 DLBCL 5469 97.50 86.96 89.64 80.89 91.22 4 Leukemia1 5327 97.50 83.57 76.61 85.00 94.00 4 Leukemia2 11225 97.32 87.14 91.03 83.21 85.33 4 Lung cancer 12600 96.05 89.64 87.80 85.66 88.09 7 Prostate tumor 10509 92.00 85.09 79.18 79.18 90.97 4 SRBCT 2308 100.00 86.90 91.03 79.50 92.33 5 Mean 7965.6 93.63 84.49 82.54 79.49 87.89 5.0
Fig. 7. The clustering result of 72 samples in data set leukemia1 using the three selected genes by the clustering algorithm EPCLUST (Parkinson et al., 2003).
4. Conclusions
Microarray data analysis and gene expression classi-fication are important research topics in bioinformatics such that how to design an accurate, compact, and lin-guistically interpretable classifier is the major concern in this study. We proposed an interpretable gene expression classifier, named iGEC, for microarray data analysis. The design of iGEC includes almost all aspects related to the design of compact fuzzy rule-based classifica-tion systems: gene selecclassifica-tion, rule selecclassifica-tion, membership function tuning, consequent class determination, and certainty grade tuning. Consequently, an efficient opti-mization algorithm IGA is used to solve the resultant optimization problem with a large number of parame-ters.
The superiority of the proposed iGEC was evaluated by computer simulation on eight data sets of gene expres-sion. The experimental results reveal that the proposed method can obtain interpretable classifiers with an accu-rate and compact fuzzy rule base, compared with the existing fuzzy classifier. iGEC is an efficient tool for analysis of gene expression profiles.
Acknowledgements
The authors would like to thank S.A. Vinterbo and the co-authors for providing the program of their method.
References
Armstrong, S.A., Staunton, J.E., Silverman, L.B., Pieters, R., den Boer, M.L., Minden, M.D., Sallan, S.E., Lander, E.S., Golub, T.R., Korsmeyer, S.J., 2002. MLL translocations specify a distinct gene expression profile that distinguishes a unique leukemia. Nat. Genet. 30 (1), 41–47.
Bhattacharjee, A., Richards, W.G., Staunton, J., Li, C., Monti, S., Vasa, P., Ladd, C., Beheshti, J., Bueno, R., Gillette, M., Loda, M., Weber, G., Mark, E.J., Lander, E.S., Wong, W., Johnson, B.E., Golub, T.R., Sugarbaker, D.J., Meyerson, M., 2001. Classification of human lung carcinomas by mRNA expression profiling reveals distinct adenocarcinoma subclasses. Proc. Natl. Acad. Sci. U.S.A. 98 (24), 13790–13795.
Creighton, C., Hanash, S., 2003. Mining gene expression databases for association rules. Bioinformatics 19 (1), 79–86.
Deb, K., Reddy, A.R., 2003. Reliable classification of two-class cancer data using evolutionary algorithms. BioSystems 72, 111–129. Ding, C., 2003. Unsupervised feature selection via two-way ordering
in gene expression analysis. Bioinformatics 19 (10), 1259–1266. Goldberg, D.E., 1989. Genetic Algorithms in Search. Optimization and
Machine Learning. Addison-Wesley, Reading, MA.
Golub, T.R., Slonim, D.K., Tamayo, P., Huard, C., Gaasenbeek, M., Mesirov, J.P., Coller, H., Loh, M.L., Downing, J.R., Caligiuri, M.A., Bloomfield, C.D., Lander, E.S., 1999. Molecular classi-fication of cancer: class discovery and class prediction by gene expression monitoring. Science 286, 531–537.
Ho, S.-Y., Chen, H.-M., Ho, S.-J., Chen, T.-K., 2004a. Design of accurate classifiers with a compact fuzzy-rule base using an evo-lutionary scatter partition of feature space. IEEE Trans. Systems Man Cybern. Part B 34 (2), 1031–1044.
Ho, S.-Y., Shu, L.-S., Chen, J.-H., 2004b. Intelligent evolutionary algo-rithms for large parameter optimization problems. IEEE Trans. Evolutionary Comput. 8 (6), 522–541.
Hvidsten, T.R., Lgreid, A., Komorowski, J., 2003. Learning rulebased models of biological process from gene expression time profiles using gene ontology. Bioinformatics 19 (9), 1116–1123. Kauffman, S., Peterson, C., Samuelsson, B., Troein, C., 2003. Random
Boolean network models and the yeast transcriptional network. PNAS 100 (25), 14796–14799.
Khan, J., Wei, J.S., Ringner, M., Saal, L.H., Ladanyi, M., Wester-mann, F., Berthold, F., Schwab, M., Antonescu, C.R., Peterson, C., Meltzer, P.S., 2001. Classification and diagnostic prediction of can-cers using gene expression profiling and artificial neural networks. Nat. Med. 7 (6), 658–659.
Li, J., Liu, H., Downing, J.R., Yeoh, A.E.-J., Wong, L., 2003. Simple rules underlying gene expression profiles of more than six subtypes of acute lymphoblastic leukemia (all) patients. Bioinformatics 19 (1), 71–78.
Li, L., Clarice, R., Darden, T.A., Pedersen, L.G., 2001. Gene selection for sample classification based on gene expression data: study of sensitivity to choice of parameters of the GA/KNN method. Bioin-formatics 17, 1131–1142.
Liu, B., Cui, Q., Jiang, T., Ma, S., 2004. A combinational feature selec-tion and ensemble neural network method for classificaselec-tion of gene expression data. BMC Bioinform. 5, 136–147.
Liu, X., Krishnan, A., Adrian Mondry, A., 2005a. An entropy-based gene selection method for cancer classification using microarray data. BMC Bioinform. 6 (1), 76–89.
Liu, J., Cutler, G., Li, W., Pan, Z., Peng, S., Hoey, T., Chen, L., Ling, X., 2005b. Multiclass cancer classification and biomarker discov-ery using GA-based algorithms. Bioinformatics 21 (11), 2691– 2697.
Merz, P., 2003. Analysis of gene expression profiles: an application of memetic algorithms to the minimum sum-of-squares clustering problem. BioSystems 72, 99–109.
Michalewicz, Z., Dasgupta, D., Le Riche, R.G., Schoenauer, M., 1996. Evolutionary algorithms for constrained engineering problems. Comput. Ind. Eng. 30 (4), 851–870.
Nutt, C.L., Mani, D.R., Betensky, R.A., Tamayo, P., Cairncross, J.G., Ladd, C., Pohl, U., Hartmann, C., McLaughlin, M.E., Batchelor, T.T., Black, P.M., Deimling, A.V., Pomeroy, S.L., Golub, T.R., Louis, D.N., 2003. Gene expression-based classification of malig-nant gliomas correlates better with survival than histological clas-sification. Cancer Res. 63 (7), 1602–1607.
Ooi, C.H., Tan, P., 2003. Genetic algorithms applied to multi-class prediction for the analysis of gene expression data. Bioinformatics 19, 37–44.
Parkinson, H., Sarkans, U., Shojatalab, M., Abeygunawardena, N., Contrino, S., Coulson, R., Farne, A., Garcia Lara, G., Holloway, E., Kapushesky, M., Lilja, P., Mukherjee, G., Oezcimen, A., Rayner, T., Rocca-Serra, P., Sharma, A., Sansone, S., Brazma, A., 2003. ArrayExpress—a public repository for microarray gene expression data at the EBI. Nucleic Acids Res. 31 (1), 68–71.
Pomeroy, S.L., Tamayo, P., Gaasenbeek, M., Sturla, L.M., Angelo, M., McLaughlin, M.E., Kim, J.Y., Goumnerova, L.C., Black, P.M., Lau, C., Allen, J.C., Zagzag, D., Olson, J.M., Curran, T., Wetmore, C., Biegel, J.A., Poggio, T., Mukherjee, S., Rifkin, R., Califano, A., Stolovitzky, G., Louis, D.N., Mesirov, J.P., Lander, E.S., Golub,
T.R., 2002. Prediction of central nervous system embryonal tumor outcome based on gene expression. Nature 415 (6870), 436–442. Ressom, H., Reynolds, R., Varghese, R.S., 2003. Increasing the
effi-ciency of fuzzy logic-based gene expression data analysis. Physiol. Genomics 13, 107–117.
Shipp, M.A., Ross, K.N., Tamayo, P., Weng, A.P., Kutok, J.L., Aguiar, R.C., Gaasenbeek, M., Angelo, M., Reich, M., Pinkus, G.S., Ray, T.S., Koval, M.A., Last, K.W., Norton, A., Lister, T.A., Mesirov, J., Neuberg, D.S., Lander, E.S., Aster, J.C., Golub, T.R., 2002. Diffuse large B-cell lymphoma outcome prediction by gene expres-sion profiling and supervised machine learning. Nat. Med. 8 (1), 68–74.
Singh, D., Febbo, P., Ross, K., Jackson, D., Manola, J., Ladd, C., Tamayo, P., Renshaw, A., D’Amico, A., Richie, J., Lander, E., Loda, M., Kantoff, P., Golub, T., Sellers, W., 2002. Gene expres-sion correlates of clinical prostate cancer behavior. Cancer Cell 1, 203–209.
Statnikov, A., Aliferis, C.F., Tsamardinos, I., Hardin, D., Levy, S., 2005. A comprehensive evaluation of multicategory classification methods for microarray gene expression cancer diagnosis. Bioin-formatics 21, 631–643.
Vinterbo, S.A., Kim, E.Y., Ohno-Machado, L., 2005. Small, fuzzy and interpretable gene expression based classifiers. Bioinformatics 21, 1964–1970.
Wahde, M., Hertz, J., 2000. Coarse-grained reverse engineering of genetic regulatory networks. BioSystems 55, 129–136.
Woolf, P.J., Wang, Y., 2000. A fuzzy logic approach to analyzing gene expression data. Physiol. Genomics 3, 9–15.
Yeung, K.Y., Bumgarner, R.E., Raftery, A.E., 2005. Bayesian model averaging: development of an improved multiclass, gene selection and classification tool for microarray data. Bioinformatics 21 (10), 2394–2402.
Zhou, X., Mao, K.Z., 2005. LS bound based gene selection for DNA microarray data. Bioinformatics 21 (8), 1559–1564.
