The growth mechanisms of graphene directly on sapphire substrates
by using the chemical vapor deposition
Meng-Yu Lin,1,2Chen-Fung Su,2Si-Chen Lee,1and Shih-Yen Lin1,2,3,a)
1
Graduate Institute of Electronics Engineering, National Taiwan University, Taipei 10617, Taiwan
2
Research Center for Applied Sciences, Academia Sinica, Taipei 11529, Taiwan
3
Department of Photonics, National Chiao Tung University, Hsinchu 30010, Taiwan
(Received 26 February 2014; accepted 3 June 2014; published online 11 June 2014)
Uniform and large-area graphene films grown directly on sapphire substrates by using a low-pressure chemical vapor deposition system are demonstrated in this paper. The evolution process and the similar Raman spectra of the samples with different growth durations have confirmed that the continuous graphene film is formed by graphene flakes with similar sizes. The layer-by-layer growth mechanism of this approach is attributed to the preferential graphene deposition on sapphire surfaces. The etching effect of H2gas is demonstrated to be advantageous for the larger
graphene grain formation. The smooth surface of substrates is also proved to be a key parameter for continuous graphene film formation with better crystalline quality.VC 2014 AIP Publishing LLC.
[http://dx.doi.org/10.1063/1.4883359]
I. INTRODUCTION
Since the two-dimensional material graphene was fabri-cated by using the mechanical exfoliation method at 2004, massive efforts have been devoted to this research area.1 Among them, most of the effort is focused on the expansion of the graphene film area via different growth methods since only flakes of graphene are obtained by using the mechanical exfoliation approach. At this stage, there are two major approaches, which have been proven to be promising for large-area graphene growth. They are Si sublimation from SiC substrates at high temperatures leaving C atoms on the surface for graphitization and chemical vapor deposition (CVD) for graphene growth on metal templates.2–4Although the SiC sublimation method does provide large-area gra-phene films, the high price of SiC substrates and the only substrate choice would limit the practical application of this approach. Compared with the SiC sublimation method, CVD growth of graphene on metal templates has provided a cheaper and layer number controllable approach to obtain large-area graphene films. Two metals, including Cu and Ni, are commonly chosen in the CVD growth method. Because the graphene film is grown on the metal template, film trans-fer procedure is required. During the transtrans-fer process, dam-ages to the graphene films, including broken holes and doping effect, are usually observed.5These damages would reduce the mobility of the graphene transistors and they are difficult to recover. Therefore, an alternate approach to pro-vide transfer-free graphene films on the dielectric substrates is required for the practical applications of the material.
In previous publications, graphene growth underneath pre-deposited Ni or Cu templates on the SiO2/Si substrates
has been demonstrated.6–8These approaches do provide gra-phene films on dielectric substrates without the common transferring procedure required for CVD grown graphene.
However, the high growth temperature of these approaches may result in the metal template de-wetting and evaporating problem during graphene growth, which would affect the graphene film quality and completeness.9The required metal removal procedure via chemical etching of these approaches may also bring in extrinsic doping to the graphene films. It has been demonstrated in previous publications that gra-phene films can be grown directly on sapphire substrate without using metal catalyst.10 Due to the graphene films prepared by using this method is composed of nano-scale graphene flakes, high defect density is observed on the film. Although high temperature is still required, both film trans-ferring procedure for CVD-grown graphene or metal re-moval for underneath graphene can be avoided by using this approach. Another important parameter for graphene growth is the H2flow rate during growth. It has been reported
else-where that the D peak intensity of the directly grown gra-phene would be greatly affected by the H2flow ratios during
growth.11 Therefore, graphene growth directly on sapphire substrates with proper H2 flow ratios can be an alternate
approach for large-area graphene growth without metal catalyst.
In this paper, we have demonstrated the growth of uni-form and large-area graphene films directly on sapphire sub-strates by using the low-pressure CVD (LPCVD) system. The influence of different growth parameters and growth evolution of the films are investigated. The evolution process and the similar Raman spectra of the samples with growth different durations have confirmed that the continuous gra-phene film is formed by gragra-phene flakes with similar sizes. By changing the H2flow ratios during, the etching effect of
H2gas is demonstrated to be advantageous for the larger
gra-phene grain formation.
II. EXPERIMENTS
Before growth, sapphire substrates are cleaned with ace-tone, isopropanol, and de-ionized (DI) water. The substrate
a)Author to whom correspondence should be addressed. Electronic mail:
is then annealed in a 1-in. quartz tube furnace system at 1100C under Ar environment for 30 min. Since low pres-sure is required for the sapphire substrate during the high-temperature annealing procedure, the LPCVD technique is adopted for graphene growth.3 By using the BRUKER Dimension Icon atomic force microscope system (AFM), the surface roughness of the sapphire substrate improves from 0.09 to 0.05 nm after the high-temperature annealing proce-dure. After the annealing procedure, the Ar, H2, and CH4
mixture gas is introduced into the CVD system to grow gra-phene films directly on the substrate surface. The flow rates of Ar, H2, and CH4are set as 200, 200, and 30 sccm,
respec-tively. After 3 h of growth, the sample is removed out of the chamber. The Raman spectra of the graphene films are meas-ured by a HORIBA Jobin Yvon HR800UV Raman spectros-copy system equipped with 532 nm laser. The surface morphologies of the graphene films are studied by using AFM and scanning electron microscope (SEM) systems.
III. RESULTS AND DISCUSSIONS
The Raman spectrum of the graphene film grown directly on a sapphire substrate for 3 h is shown in Fig.1(a). For comparison, the Raman spectrum of the gra-phene film prepared by using the same method on 25 lm Cu foil and then re-attached to a 300 nm SiO2/Si substrate is
also shown in the figure. Compared with the film grown on Cu foil, more intense D peak and lower 2D peak located near 1346 and 2684 cm 1, respectively, are observed for the film grown directly on the sapphire substrate. The more intense 2D peak of the directly grown graphene film com-pared with its G peak might suggest that a single-layer gra-phene can be obtained. However, the similar 2D peak full width at half maximum (FWHM) 43 cm 1 with the value 45 cm 1 for the bi-layer graphene film grown on Cu foil suggests that bi-layer graphene should be obtained by using this method.12 And from the ID/IGratio, the graphene flake
sizes of the film would be around 83 nm.13 To investigate the surface morphology of the graphene film grown directly on the sapphire substrate, a 10 10 lm2AFM image of the
film is shown in Fig.1(b). As shown in the figure, uniform distributed graphene film can be observed on the sample surface. However, due to the different thermal expansion coefficients between graphene and the sapphire substrates, the cooling procedure from the high temperature 1100C would result in winkle formation on the sample surface. To verify if bi-layer graphene is obtained via this approach, a scratch is fabricated on the film and measured by using AFM. The measured 1.2 nm depth across the scratch edge has confirmed that bi-layer graphene is obtained via this approach.14To further investigate the uniformity of the gra-phene film, Raman mapping over the 5 5 lm2sample area
is performed. The spatial resolution of the mapping is deter-mined by the laser spot size 500 nm. The I2D/IGratios over
the area are shown in Fig. 1(c). As shown in the figure, quite uniform 2D/G peak ratios are observed, which also suggest a uniform graphene film is obtained via this approach. The results are consistent with the observation of the AFM image shown in Fig.1(b).

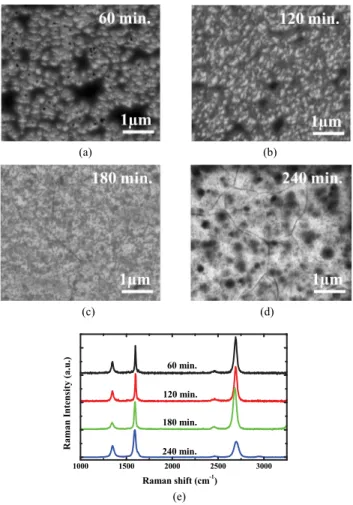

To investigate the growth mechanisms of the directly grown graphene, the SEM images of the graphene films grown for 60, 120, 180 and 240 min are shown in Figs.
2(a)–2(d), respectively. The normalized Raman spectra to the G peak of the four samples are shown in Fig. 2(e). As shown in Fig. 2(a), the sapphire substrate (the dark region) can still be observed between the graphene clusters. The FIG. 1. (a) The Raman spectra of the graphene films prepared by the CVD system on Cu foil and directly on the sapphire substrate, (b) the AFM image of the graphene film grown directly on the sapphire substrate, and (c) the I2D/IGratios obtained from the Raman mapping results over the 5 5 lm2
sample area.
results suggest that after 1 h of growth, the graphene grains do not fully cover the whole substrate. Compared with the 1 h growth time of fully covered graphene film on Cu foil, the growth rate of direct graphene growth on sapphire sub-strates is much slower. And since the film shown in Fig.2(a)
is composed of discrete flakes, more intense D peak of the sample is observed in Fig. 2(e) indicating higher defects around the flakes. With increasing growth duration to 120 min, the density of the graphene flakes increases as shown in Fig. 2(b). Although some of the graphene flakes seem to merge with each other, the graphene flake sizes are similar to the sample with 60 min growth duration. The similar D peak intensity ratios of the two samples confirm this point. This result indicates that unlike the growth mechanism of gra-phene on Cu foil, in which, the gragra-phene growth starts from seeding and then expands to a continuous film,15direct gra-phene growth on sapphire substrates does not seem to undergo lateral growth on substrates. It seems that the gra-phene grains just fall on the substrates. The limited lateral growth procedure may only take place when the flakes over-lap. With further increasing the growth duration to 180 min, the SEM image shown in Fig.2(c)reveals a continuous gra-phene film on the entire sapphire substrate. The sheet resist-ance of the graphene film is 5.7 102
X/sq, which is compatible to the film grown on Cu foil. The slightly lower D peak intensity ratio of the sample suggests that although the film is composed of small graphene grains, the limited
lateral growth at the grain overlapping would still slightly increase the graphene grain sizes. For the sample with even longer growth time 240 min, besides the underlying graphene film, cluster structures are again observed in Fig.2(d). With the observed higher D peak and lower 2D peak intensity ratios of the sample shown in Fig. 2(e), the results suggest that thicker layer of graphene starts to grow on the graphene film, which is quite different with the self-limited growth process of graphene films on the Cu foil.3
One commonly adopted approach to derive the mobility value of the graphene film is to fabricate back-gated gra-phene transistors. However, since the conventional gragra-phene transferring method cannot applied to the film grown directly on sapphire substrates, a different transferring procedure10is employed as follows: (a) deposit 300 nm Cu on directly grown graphene on sapphire substrates, (b) deposit 500 nm polymethylmethacrylate (PMMA) by using spin coating on the Cu film, (c) peel off the PMMA/Cu/graphene film from sapphire substrates in DI water, (d) reattach the film to a 300 nm SiO2/Si substrate, and (e) remove the top PMMA
and Cu films by using acetone and FeNO3solutions,
respec-tively. After the film transferring, a standard back-gated gra-phene transistor is fabricated by using photo-lithography. The ID VGS curve of the device is shown in Fig. 3. The
inset figure shows the SEM image of the device. The gra-phene film is prepared under the same conditions of the film shown in the SEM image of Fig.2(c). As shown in the fig-ure, although the standard graphene transistor behavior is observed, the derived mobility 35.6 cm2 V 1 s 1 from the curve is low compared with other devices fabricated by using CVD-prepared graphene. Since low D-peak intensity is observed from the film, the low mobility of the device may be attributed to the increasing defect number on the graphene film induced during the brutal peeling process. To improve the device performances, other transferring procedure for the graphene film grown on sapphire substrates is to be devel-oped in the future.

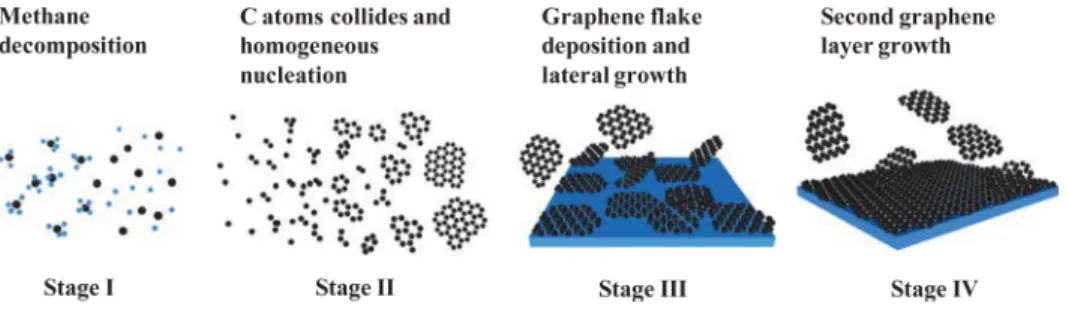

To further explain the growth mechanisms of the gra-phene films on sapphire substrates, schematic diagrams of the growth model are shown in Fig. 4. At the initial stage shown in the figure, methane decomposition into C atoms would take place in the atmosphere of the 1100C quartz FIG. 2. (a)–(d) The SEM images and (e) Raman spectra of the graphene films
grown directly on sapphire substrates with different growth periods. They are 60, 120, 180, and 240 min for figures (a), (b), (c), and (d), respectively.
FIG. 3. The ID VGScurve of the back-gated graphene transistor fabricated
by using the directly grown graphene on sapphire substrate. The inset figure shows the SEM image of the device.
tube.16 After methane decomposition, the C atoms would collide and undergo homogeneous nucleation. In this case, graphene flakes would be formed in the gaseous environ-ment. The graphene flakes would continue to grow in sizes until they fall on the substrate surfaces. Although there seems to be no preference sites for the graphene flake dep-osition, the growth evolution shown in Figs.2(a)–2(d) sug-gests that the graphene/substrate interface adhesion should be superior to graphene/graphene interfaces. In this case, before the substrate surface is fully covered with graphene, most of the flakes fall on the other graphene flakes would be blown away by the injected gas flow. The limited lateral graphene growth in the flake overlappings would also enhance the crystalline quality of the film at this stage. After the substrate surface is fully covered with graphene, the phenomenon of preferential graphene flake deposition on sapphire surfaces disappears and upper graphene flakes start to deposit on the complete graphene film covering the sapphire substrates. However, due to the lack of preferen-tial graphene deposition, uniform upper layer graphene with high crystalline quality is not available by using this approach as shown in the SEM image of Fig.2(d)and the higher D peak of Fig.2(e).
The other parameter affecting graphene growth would be the composition of the flowing gas and the role of H2gas
during growth. With the flow rate of methane kept at 30 sccm and the total flow rate of H2and Ar kept at 400 sccm,
four samples grown under different H2/Ar flow ratios
50/350, 100/300, 150/250, and 200/200 are prepared. The growth duration of the four samples is set at 60 min. The SEM image of the sample with the H2/Ar flow ratio 50/350
is shown in Fig.5(a). Compared with the SEM image of the sample grown with the H2/Ar flow ratio 200/200 and the
same growth duration shown in Fig.2(a), a continuous gra-phene film fully covers the sapphire substrate instead of sep-arate graphene flakes. The results suggest that with higher H2 composition in the gas flow during growth, the growth
rate of the graphene film would be greatly depressed. The possible mechanism responsible for this phenomenon would be the H2 etching effect over defective graphene at high
growth temperature.17 In this case, although methane gas flow is the same for the two samples, the H2etching effect
would effectively decrease the growth rate of the direct gra-phene growth on sapphire substrates. The same effect may also benefit the formation of larger graphene flakes since smaller ones would be etched off by H2gas during growth.
The decreasing D peak intensities of the normalized Raman spectra over the G peak intensities shown in Fig.5(b)of the samples grown with increasing H2/Ar ratios have also
confirmed this attribution since the graphene grain size is inverse proportional to the D/G peak ratios.13,18
The last major parameter, which might affect the gra-phene growth would be the substrate choice. With the growth conditions of methane, H2, and Ar flow rates 30, 200, and
200 sccm and the same growth duration 60 min, direct gra-phene growth is performed on a 600 nm SiO2/Si substrate.
The growth conditions of the sample are described in Sec.II. The SEM image of the graphene grown on SiO2surface is
shown in Fig. 6(a). Unlike the case on the sapphire sub-strates, the graphene that grows on the SiO2/Si substrate
shows a very rough surface. The possible mechanism respon-sible for this phenomenon may lie on the different surface roughnesses of the substrates after the high-temperature FIG. 4. The schematic diagrams show-ing the mechanisms of the direct gra-phene growth on sapphire substrates.
FIG. 5. (a) The SEM image of the sample prepared under H2/Ar flow ratio
50/350 and (b) the Raman spectra of the sample grown under different H2/Ar flow ratios.
growth procedure. The surface roughnesses of SiO2/Si and
sapphire substrates are 0.13 and 0.05 nm, respectively, after 1100C annealing for 60 min under Ar environment. Therefore, the graphene flakes would not uniformly distrib-ute over rougher surfaces. The same mechanism would also affect the crystalline quality of the graphene film. The Raman spectra of the two samples grown under the same growth conditions but on the two different substrates are shown in Fig.6(b). As shown in the figure, significant differ-ence can be observed on the FWHM of the 2D- and the D-peak intensities. The 2D-peak FWHM of the graphene film grown on sapphire substrates is 43 cm 1, while for the film grown the SiO2/Si substrate, the 2D-peak FWHM value
is increased to 97 cm 1, which indicates the graphene grown on SiO2surface has thicker layer number. Also observed in
the figure is the much higher D-peak intensity of the gra-phene film grown on the SiO2/Si substrate. The results
sug-gest that although the directly grown graphene film is composed by graphene flakes, the limited lateral growth of
overlapped graphene flakes would still benefit larger gra-phene flake growth. Gragra-phene deposition preference could be the other key issue for uniform graphene growth. In this case, the rougher surface and different substrate choices would result in a smaller graphene flakes and non-continuous films.
IV. CONCLUSIONS
In conclusion, the growth mechanism of the directly formed graphene on the dielectric substrate has been investi-gated. By changing the growth conditions, the formation mechanism of the graphene films directly on sapphire sub-strates is investigated. With the removal of the required film transferring procedure for conventional graphene films grown on Cu foil or metal etching process for underneath graphene films, the direct graphene growth method on dielectric substrates has provided a ready approach for prac-tical applications.
