Impact of sensor-enhanced mobility prediction on the design

of energy-eﬃcient localization

Chuang-Wen You

a,*

, Polly Huang

b,c

, Hao-hua Chu

a,b

, Yi-Chao Chen

a

,

Ji-Rung Chiang

a

, Seng-Yong Lau

c

a_{Department of Computer Science and Information Engineering, National Taiwan University, No. 1, Sec. 4, Roosevelt Road,}

CSIE Building, Taipei 106, Taiwan, ROC

b_{Graduate Institute of Networking and Multimedia, National Taiwan University, No. 1, Sec. 4, Roosevelt Road,}

CSIE Building, Taipei 106, Taiwan, ROC

c_{Department of Electrical Engineering, National Taiwan University, No. 1, Sec. 4, Roosevelt Road, Boli Building, Taipei 106, Taiwan, ROC}

Available online 24 November 2007

Abstract

Energy efficiency and positional accuracy are often contradictive goals. We propose to decrease power consumption without sacrificing significant accuracy by developing an energy-aware localization that adapts the sampling rate to target’s mobility level. In this paper, an energy-aware adaptive localization system based on signal strength fingerprinting is designed, implemented, and evaluated. Promising to satisfy an application’s requirements on positional accuracy, our system tries to adapt its sampling rate to reduce its energy consumption. The contribution of this paper is fourfold. (1) We have developed a model to predict the positional error of a real working positioning engine under different mobility levels of mobile targets, estimation error from the positioning engine, processing and networking delay in the location infrastructure, and sampling rate of location information. (2) In a real test environment, our energy-saving method solves the mobility estimation error problem by utilizing additional sensors on mobile targets. The result is that we can improve the prediction accuracy by 56.34% on average, comparing to algorithms without utilizing additional sensors. (3) We fur-ther enhance our sensor-enhanced mobility prediction algorithm by detecting the target’s moving foot step and then esti-mate the target’s velocity. This method can improve the mobility prediction accuracy by 49.81% on an average, comparing to previous sensor-enhanced mobility prediction algorithm. (4) We implemented our energy-saving methods inside a work-ing localization infrastructure and conducted performance evaluation in a real office environment. Our performance results show as much as 68.92% reduction in power consumption.

Keywords: Position measurement; Power demand; Quality assurance

1. Introduction

Advances in sensor network technologies enable an array of applications in consumer electronics. Emerging from this trend are an increasing number of commercial and experimental deployments of

* _{Corresponding author.}

E-mail addresses: [email protected] (C.-W. You),

[email protected] (P. Huang), [email protected]

(H.-h. Chu),[email protected](Y.-C. Chen),r93102@csie. ntu.edu.tw(J.-R. Chiang),[email protected](S.-Y. Lau).

Ad Hoc Networks 6 (2008) 1221–1237

(2)

sensor networks for object tracking, such as asset tracking in warehouses, patient monitoring in medical facilities, and using location to infer activi-ties of daily living (ADL) at home. Location infor-mation of the objects is essential for these types of applications.

Traditional localization research [11,13,14,17]

concentrated on improving the accuracy of pin-pointing the spatial position of a target. However, practical deployment of localization systems shows that positional accuracy and energy efficiency are of equal importance, especially in the context of sensor networks where energy is a premium. Energy efficiency of mobile units (e.g., tags or badges) attached to the tracked targets is critical for any practical deployment. A highly accurate localization system may be of little use if it requires frequent recharging of the mobile units. Therefore, both positional accuracy and energy efficiency are necessary in the design of localization systems.

Recent work addressed the issue of energy eﬃciency in localization systems. For examples, object-tracking sensor network systems [1,2,16]

found that energy efficiency and positional accuracy are often two contradictory goals. By changing sampling rate1 of location information, a localiza-tion system can trade higher energy consumplocaliza-tion for better positional accuracy. Sampling rate here is defined as the rate at which the localization infra-structure and its mobile units are triggered to perform necessary communication and computa-tion in determining posicomputa-tions. Furthermore, these systems have identified a number of basic energy-saving solutions that adaptively reduce the sam-pling rate with little impact on positional accuracy. Their general mechanisms are to (1) detect or predict the mobility pattern of a tracked target, and (2) then dynamically adjust the sampling rate accordingly to a changing mobility pattern. For example, when a tracked target changes its position slowly, the sampling rate can be reduced for better energy conservation without losing much positional accuracy.

There are two main drawbacks in the existing solutions. First, current adaptation mechanisms, although dynamic, calculate the sampling rate based

on heuristics. There is no formal analysis of posi-tional error due to signal noise, communication delay, and sampling delay such that given the required positional error-bound speciﬁed by the applications, the system can derive the just right sampling rate to provide accurate enough position information, minimizing the sampling rate, and in turn minimizing the energy consumption.

Second, the mobility prediction of current solu-tions is based on the estimated position informa-tion. The velocity is obtained by taking the two most recent estimations and dividing the distance moved by the time elapsed. The predicted moving velocity is inherently inaccurate due to the position estimation errors. The adverse effect is particularly significant when the object is static. The network might continue to sample frequently thinking the object is moving due to differences between consec-utive position estimations.

Furthermore, existing solutions have been imple-mented and tested only in simulations. Given a lack of real deployment, assessing actual performance of their solutions in real environments is difficult. In this work, we not only propose a positional error model and a mechanism to improve the mobility prediction, but also provide an implementation and evaluation of our energy-saving methods within a real localization system, tested in a real office envi-ronment. More specifically, our energy-saving methods (1) enable an application to specify an error tolerance requirement and then (2) dynami-cally adapt the sampling rate for quasi-optimal energy saving while meeting the application’s error tolerance requirement.

This paper makes the following four contributions:

We developed an accurate positional error model to predict the positional error of a real working positioning engine under diﬀerent mobility levels of mobile targets, estimation error from the posi-tioning engine, processing and networking delay in the localization infrastructure, and sampling rate of location information. This model forms the basis for developing our energy-saving meth-ods on how to adapt sampling rate of location information while conforming to application’s positional requirement.

In real test environment, we found that even a small amount of estimation error from a posi-tioning engine can signiﬁcantly impact the predic-tion accuracy of a target’s mobility, therefore,

1

Sampling rate is deﬁned as the rate at which the localization infrastructure and its mobile units are triggered to perform necessary communication and computation in determining positions.

(3)

causing poor results in sampling rate adaptation. Our energy-saving method solves the problem by utilizing additional sensors on mobile targets. We improve our sensor-enhanced mobility

pre-diction algorithm which utilizes the sensor as 1-bit state indicator that tells if the target is sta-tionary or not. By detecting the target’s foot step to estimate the target’s velocity, we could further improve the mobility prediction accuracy by 49.81% on average, comparing to previous sen-sor-enhanced mobility prediction algorithm. We implemented our energy-saving methods

inside a working localization infrastructure and conducted a performance evaluation in a real oﬃce environment. Our performance results shown as much as 68.92% reduction in power consumption while the positional accuracy is maintained at the same level.

The remainder of this paper is organized as fol-lows. Section 2 formulates the energy-saving problem and develops an accurate positional error model to predict the positional accuracy in our localization system. Section 3 presents the design and implementation of our energy-saving solutions based the developed positional error model. Section

4 describes experimental setups and shows perfor-mance results of our systems in a real working envi-ronment. Section5discusses related work. Section6

draws our conclusion and future work. 2. Rationale

In this section, we ﬁrst formulate the problem of our study. Following a brief description of the positioning engine used in the system, we present the model to predict positional error in our localiza-tion system. This model is then used to derive our energy-saving methods.

2.1. Problem formulation

Given a tracked object (O), an application can specify a tolerable amount of positional error (D) measured in distance. The positional error is deﬁned as the diﬀerence between the actual (ground-truth) position and the reported from a positioning engine. 2.1.1. Problem statement

Given the speciﬁed positional error tolerance D from an application on a tracked object O, develop energy saving methods that provide the maximum

amount of energy saving while minimizing the prob-ability of exceeding the positional error bound D.

Our energy-saving methods reduce energy con-sumption by dynamically adapting the sampling rate of location information based on a positional error model. Our rate adaptation can achieve good performance by accurately predicting the mobility level of the tracked object using sensors attached on mobile targets. Note that no prediction is 100% correct; therefore, there will be probability of occa-sionally exceeding the speciﬁed positional error bound. Our energy-saving methods aim at minimiz-ing this non-conformance rate.

2.1.2. Performance metrics

We can deﬁne the following two performance metrics from the above problem statement:

Energy consumption: it measures the amount of power consumption on a tracked mobile target under an energy-saving method and

Non-conformance rate: it is computed as the probability of occurrences when the positional error exceeds the application’s error tolerance requirement.

2.2. Positional error model

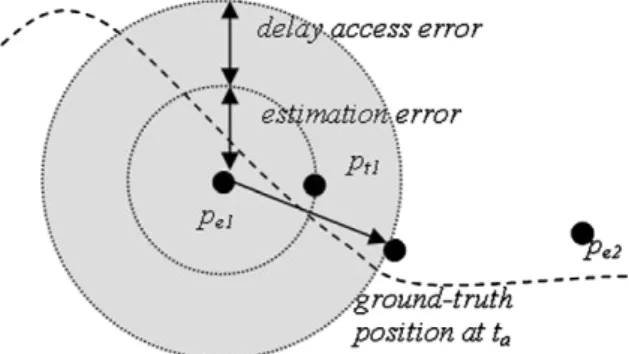

The overall positional error comes from two error sources in a localization system shown in

Fig. 1. The ﬁrst source is the estimation error from a positioning engine when it calculates the position of a tracked object. The engine may think the object is at Pe1 instead of Pt1 because of measurement

problems. The second source is similar to the fresh-ness problem of location sample within a sampling interval. This is illustrated inFig. 1. Two consecu-tive position samples pe1and pe2 are calculated for

(4)

a moving target at times t1and t2. If an application

requests the position of this moving target at time ta

and t1< ta< t2, the position provided to the

appli-cation is pe1, which is no longer the most up-to-date

position of this mobile target. In other words, even when the position information estimated by a posi-tioning engine is perfect at the sampling time, the application might still experience positional error that is proportional to the length of the sampling interval, also called the delay access error.

Before deriving the model for positional error, we provide a brief description of how our localization system works and explain any associated parame-ters that impact its positional accuracy.

Our localization system is composed of infra-structure and mobile components. The infrastruc-ture component consists of beacon nodes installed on the ceiling of a deployed environment. These beacon nodes are made of Taroko motes.2 These beacon nodes use Zigbee radio to periodically broadcast beacon packets containing their beacon-IDs. Since beacon nodes are hardwired to the building’s power source, energy saving for the infra-structure component is not our target.

The mobile component consists of Taroko motes carried as badges by tracked persons. Each badge (Taroko mote) is attached by a customized sensor board quipped with an accelerometer (ADXL330)3 to detect the tracked target’s mobility level. Since each badge runs on battery, its energy consumption is our target. Each badge can take out a record of the receiving power of beacon packets, and a sensor network infrastructure relays this record, pairs of beacon-id and signal-strength back to our position-ing engine which is runnposition-ing on a remote server. This positioning engine was developed previously in our lab. It runs a hybrid algorithm combining signal strength (SS) ﬁngerprint and SS propagation model. Once the positioning engine collects enough SS infor-mation from a mobile badge, it estimates the badge’s current position. The current position is forwarded to a location middleware, which then reports the current position to the application. At the same time, our energy-saving methods calculate a sleep time for a mobile badge, during which the radio interface on the mobile badge can be turned oﬀ to conserve power. The details of positioning algorithm[15]are not the focus here. Instead, the points are: (1) our

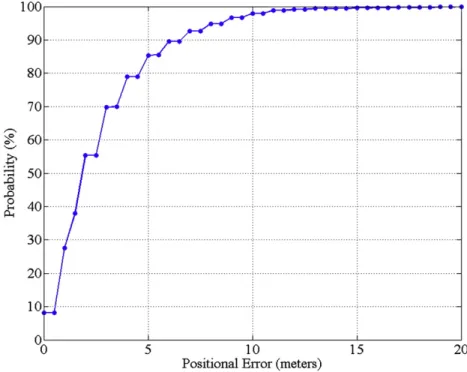

local-ization system is not perfect and it produces estima-tion error, and (2) there is a processing and networking delay between the time when a mobile badge takes SS measurements and the time when the positioning engine calculates the badge’s current position.

Based on the above description, we develop the following model to predict the positional error in our localization system:

overall error¼ estimation error þ ðpn delay

þ sleep timeÞ target velocity: ð1Þ The estimation_error measures the diﬀerence in length between the ground-truth position and the estimated position from our positioning engine. The pn_delay denotes the processing and network-ing delay between the time of SS measurements on a mobile badge and the time a position is calculated on a server. Based on our experimental measure-ment, this delay is relatively small. Therefore, the pn_delay is considered as a known constant given by a localization infrastructure. On the other hand, estimation_error is an unknown variable that can dynamically change based on a localization infra-structure. In our current implementation, we use an average positional error of 3 m for our localiza-tion system. The performance of our localizalocaliza-tion system is plotted inFig. 3, showing its position error cumulative probability distribution.

The target_velocity denotes the current moving speed of a mobile badge. Since it is an unknown dynamic variable, we need to develop a prediction heuristic to estimate its current value. The sleep_time is a time interval in which the badge turns oﬀ its radio interface to conserve power. At the end of the time interval, the badge wakes up for the next position sampling. The sleep_time is a control parameter in which our energy-saving methods trade higher energy reduction for less positional accuracy.

The second term on the right-hand side of Eq. (1)

estimates the distance that a mobile badge traveling at target_velocity can move away from the last sam-pled position. Note that the second term reaches peak at the end of a sampling interval. Therefore, the overall_error approximates an upper bound on the positional error within a sleep_time interval. 2.3. Energy-saving solutions

By setting the error tolerance (D) from an appli-cation equal to the overall error in Eq. (1), we

2

http://www.chnds.com.tw/index_e.html.

3

(5)

obtain the longest possible sleep_time for a mobile badge while meeting the speciﬁed positional error tolerance. The reason for choosing the longest sleep time is to maximize the amount of power saving since the radio on the mobile badge is turned oﬀ. Therefore, this longest sleep_time is calculated using the following equation:

sleep time¼ðerror-tolerance estimation-errorÞ target velocity

pn delay:

ð2Þ There is one unknown variable in Eq. (2): tar-get_velocity. Since this unknown variable is dynamic over time, our energy-saving methods need to con-tinuously predict target_velocity’s current value before using this equation. In addition, our energy-saving methods also need to change sleep_time based on current predicted values of target_velocity. We provide a summary of all parameters in the posi-tional error model in Table 1. These parameters are categorized into a control parameter, known sys-tem parameters, an unknown variable requiring pre-diction, and application speciﬁed input.

3. Design and implementation of power-saving methods

In this section, we describe the design and imple-mentation of our energy-saving localization system. The system architecture is shown in Fig. 2. It con-sists of three components: a positioning engine, a mobility predictor, and a sampling rate adaptor. The system has three main steps. In the ﬁrst step, a positioning engine is invoked to estimate a mobile badge’s position based on its SS measurements. In the second step, the mobility predictor estimates the mobile badge’s current velocity. The inputs to the velocity prediction come from two sources: (a) recent location history and (b) acceleration readings from an accelerometer sensor attached to a mobile

badge. In the third step, the sampling rate adaptor computes a sleep time based on the positional error model deﬁned in Eq. (2). If the mobility prediction is accurate, this time interval is also the longest pos-sible sleep time that meets the positional accuracy required by an application.

We have developed four possible energy-saving methods for calculating the sleep time interval: (1) periodic sampling (PS), (2) adaptive sampling with constant-velocity (ASCV), (3) sensor-assisted adap-tive sampling with mobility detection (SAASMD), and (4) sensor-assisted adaptive sampling with foot-step detection (SAASFD). These four methods are described in details below.

3.1. Periodic sampling (PS)

This method calculates a fixed sleep time regard-less of changing mobility level of a tracked object. This sleep time is calculated by first setting the badge’s velocity to an application-specific value, and then applying Eq. (2)to compute a fixed period for the sleep time. This application-specific value should be a conservative estimation that approxi-mates a fast moving velocity capable of a tracked object. For example, if the tracked object is a person in an office environment, the velocity is set at a fast walking speed of a sporty office worker, which is 1.5 m/s.

Given that periodic sampling uses a conservative velocity (i.e., an upper bound velocity), it can achieve good conformance rate; however, this achievement is at the expense of much higher power consumption as shown in Section4.1. Since periodic sampling does not attempt to predict a user’s cur-rent mobility level, this ﬁxed sleep-time is likely to be much lower than the optimal sleep-time com-puted from the tracked object’s current mobility.

Table 1

Parameters in the positional error model

Description Parameters

Control parameter (adjusted by our energy-saving methods)

sleep_time Known system parameter (given by a

localization system)

pn_delay, estimation_error Unknown variable (required prediction) target_velocity Application speciﬁed input error_tolerance

(6)

3.2. Adaptive sampling with constant-velocity (ASCV)

This method is based on a constant velocity model to predict the current velocity of a mobile badge. The current velocity is calculated as the instantaneous velocity from the most recent two location samples according to the following equation:

target velocity¼positionðtiÞ positionðti1Þ ti ti1

: ð3Þ A potential problem with this prediction heuristic is that a small amount of estimation error from the positioning engine significantly impacts the predic-tion accuracy, causing either under-estimapredic-tion or over-estimation of velocity. Consider the example that our positioning engine tracks a moving person at a normal walking velocity over an office building corridor. Our positioning engine can produce esti-mation error. Fig. 3 shows its accuracy and preci-sion profile. It can limit positional error to 4 m with 80% probability of accuracy. In the case of this moving person, we have observed common occur-rences. For example, in one case, the positioning engine is not sensitive enough; it estimates this mov-ing person’s position at the coordinate (10, 10) at current time and the same coordinate one second

before. The predicted velocity becomes zero with constant-velocity prediction. Plugging this zero velocity into Eq. (2) returns an inﬁnite sleep-time, meaning that the mobile target would turn oﬀ its radio interface forever, which is obviously wrong. This illustrates a need to set an upper bound to pre-vent a mobile target from sleeping too long and missing application’s positional accuracy require-ment, either due to prediction error or due to the tracked objects temporarily staying stationary.

In another case, the positioning engine can pro-duce diﬀerent direction of errors in two subsequent position estimations. The most recent estimation is the coordinate (20 error, 20), and the previous one taken at one second ago is (21 + error, 20). The predicted velocity would be over-estimated by twice the amount of errors. If the error is large, applying Eq. (2) results in a very short sleep_time close to zero. This illustrates a need to set a lower bound to prevent a mobile target from sleeping too little and wasting energy.

There are many ways to obtain the upper and lower bounds. One possibility is for application users to provide a reasonable mobility bound on the tracked objects. For examples, if the tracked objects are people, we can use a fast person’s run-ning speed as an upper bound. A second possibility is to learn the upper and lower bounds of the

(7)

tracked objects by observing their mobility patterns over time. We can start by choosing conservative values for upper and lower bounds, and then grad-ually adjust to the correct values.

3.3. Sensor-assisted adaptive sampling with mobility detection (SAASMD)

This method solves the problem of estimation errors from a positioning engine, especially when tracked objects are in a stationary mode. Since sta-tionary mode oﬀers the highest opportunity for energy saving, this adaptive sampling method is developed speciﬁcally for this purpose.

Consider the example of typical oﬃce workers who spends most of their days sitting in front of their computer. Given a lack of movement, their mobility or velocity should be zero or close to zero most of the time. Again, since our positioning engine produces estimation errors, their estimated positions from a position engine commonly jump around within a radius of 2–4 m at each subsequent location sampling. Assume that the sleep_time is set to be 2–4 s, the predicted velocity is 1 m/s. To address this issue, we look for cost and low-energy sensors to assist mobility prediction.

Our chosen sensors are accelerometers. Readings from an accelerometer are interpreted as a 1-bit state indicator that tells whether the mobile target is moving or stationary. This can be done through simple comparisons of accelerometer readings if they exceed a certain movement threshold and per-sist over a time window. If the accelerometer shows a stationary target, the badge can continue to sleep to conserve power. If the accelerometer detects movement on a mobile target, it triggers the badge to perform location sampling based on the previous adaptive method.

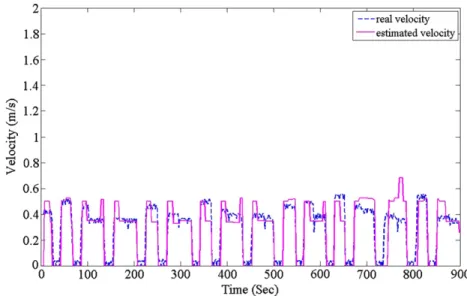

3.4. Sensor-assisted adaptive sampling with foot-step detection (SAASFD)

Since the SAASMD method mentioned above uses only a 1-bit state indicator predicting if a mobile target is stationary or moving, it does not provide an estimated velocity of the mobile target. The SAASFD method uses accelerometer readings to count the number of steps of a moving target (i.e., a person), and then estimate his/her moving velocity from step counts. In the ﬁrst step, step counting is done by detecting the zero crossing of accelerometer readings. In the second step, moving

distance is obtained by multiplying the step count by the average human step size [18]. In the third steps, velocity is estimated as the traveled distance over the traveled time interval. Fig. 4 shows the velocity estimated from our foot-step detection method (in a solid red line4) versus the real moving velocity (in a dotted blue line). This accelerometer-based velocity estimation achieves accurate results with a small average positional error of 2 m. 4. Performance evaluation

In this section, we describe experimental setting and analyze performance results of our energy-saving localization system in a real working environment.

4.1. Experimental setup

To evaluate our adaptive sampling methods, we have conducted experiments to show and compare the eﬀectiveness of periodic and adaptive sampling methods by changing values in the impact factors. These impact factors are: (1) application-speciﬁed error tolerances and (2) the mobile target’s mobility levels. Two performance metrics below are mea-sured and compared:

Unit power consumption: It measures the average power consumption per second on a tracked badge using a power-saving method. We have considered two approaches to measure unit power consumption in a real working environ-ment. The ﬁrst approach is to connect a mobile badge to a power meter. The size and the weight of the power meter, however, make this approach infeasible. The second approach is to collect real data and code traces from mobile badge while it is running in a real environment and then feed the traces to a realistic power estimation tool for Taroko called PowerTOSSIM [5]. Impor-tantly, we would like to stress that our perfor-mance results and collected traces are not based on simulation, but on real implementations. Non-conformance rate: It measures the

percent-age where the reported location from our locali-zation system to an application exceeds the speciﬁed error tolerance.

4

For interpretation of the references to colour in the text, the reader is referred to the web version of this article.

(8)

Our experimental environment is on the third ﬂoor of National Taiwan University’s computer science department building. We incorporated our energy-saving methods in a Zigbee-based localiza-tion system developed prior to this work and described earlier in Section 2. The ﬂoor layout of the experimental environment is shown in Fig. 5. The triangles mark the locations of beacon nodes. They are placed approximately 6 m apart. The cur-rent mobile badge is shown inFig. 6.

During the experiment, a tracked person wears a mobile badge and conducts his/her activities only within the shaded area. The area includes corridors, a meeting room, a lab office, and a restroom.Table 2shows six different scenarios with different levels of user mobility. For example, scenario #3 corre-sponds to relatively high user mobility of 70%. In such a scenario, a user typically walks along a cor-ridor, bumps into a friend, and chats with him/her for a short time. Note that each scenario involves a time length of at least 15 min (900 s). A 70% user mobility level means that a user moves 70% of the time or 630 s at a leisurely walking velocity of 0.5 m/s. He/she is stationary, i.e., standing to chat with a friend, 30% of the time (270 s). Scenario #5 corresponds to a low 30% mobility case, in which a user walks to a meeting room to have a discussion with friends. He/she occasionally moves to a white board to explain an idea. However, he/she sits and listens to friends most of the time. For each of six scenarios shown inTable 2, we run four power-sav-ing methods repeatedly with different application error tolerance at 5, 6, 7, 8, 9, and 10 m.

4.2. Impact on mobility levels

The first set of experiments compares the five energy-saving methods under different mobility levels, i.e. periodic sampling (PS), adaptive sampling with constant velocity (ASCV), adaptive sampling with constant velocity from optimal mobility prediction (O), sensor-assisted adaptive sampling with mobility detection (SAASMD), and sensor-assisted adaptive sampling with foot-step detection (SAASFD). By adaptive sampling with constant velocity from optimal mobility detection, we mean the maximal possible energy saving by measuring the target’s real velocity from external observation and then applying the positional error model to com-pute the most optimal sleep time value.Fig. 7plots the O curve, which is used as a baseline, for compar-ing with our four energy-savcompar-ing methods. We observe the following general performance trends.

Among the four energy-saving methods, PS has the worst performance, followed by ASCV. SAASFD has the best performance. It outper-forms PS in energy saving by a significant margin of 68.92% at the 10% mobility level and 24.64% at the 90% mobility level. SAASFD also outper-forms ASCV by a significant 59% at the 10% mobility level and 0.93% at the 90% mobility level. With the help of an accelerometer, the energy efficiency of the localization system is improved significantly. Comparing two sensor-assisted methods, SAASFD, although, outper-forms SAASMD by 3.69% at the 10% mobility

(9)

level and 1.4% at the 90% mobility level, the beneﬁt of a more accurate mobility prediction method is relatively small.

In all adaptive methods (ASCV, SAASMD, and SAASFD), energy consumption rises with an increasing mobility level. The reason is that to maintain the same error tolerance, a higher mobility level requires a higher sampling rate, resulting in a higher level of power consumption.

For both sensor-assisted adaptive sampling methods (SAASMD and SAASFD), the amount of energy-saving improvement over the periodic sampling method also rises with a decreasing mobility level. The reason is that periodic

Fig. 5. Test environment.

Fig. 6. Mobile badge (Taroko with an accelerometer add-on) and beacon node (Taroko). The rectangle marks the location of accelerometer sensor board.

Table 2

Test scenarios with diﬀerent user mobility levels Scenarios Mobility

levels (%)

Scenario description

1 100 A person jogged repeatedly from one end of corridor to the other end 2 90 A person walked along a corridor,

entered his/her office, briefly sat down to check his/her calendar, and then hurried off to a meeting room 3 70 A person walked along a corridor,

bumped into a friend, and stopped to chat for a short time

4 50 A person leisurely walked and browsed through posters displayed on a wall along a corridor

5 30 A person walked to a meeting room to have a discussion, occasionally moved to a white board to explain an idea. But most of the time, sat and listened to friends

6 10 A person walked to a seminar room, sat and listened to a long lecture

(10)

sampling does not exploit many opportunities for energy saving since the tracked target is station-ary most of the time at the lower mobility level.

Fig. 8shows the aggregate energy consumption. To examine closely the trade-oﬀ of using an additional sensor for adaptive sampling, we sepa-rate the total energy consumption into three components: radio, sensor, and processing power consumptions. As shown in Fig. 8, the additional sensor consumes a much lower amount of energy relative to the amount required by the radio. In other words, the beneﬁt of radio power saving, i.e., lowering the location sampling rate, consider-ably outweighs the cost in sensor power

consump-tion, i.e., powering the accelerometer, in our sensor-assisted methods. For the SAASFD method, we observe that the radio power consumption drops as the mobility level decreases. The reason is that as the mobility level decreases, the SAASFD method can accurately detect a target’s mobility level and reduce the sampling rate to conserve power.

Fig. 9shows the measured non-conformance rate for each energy-saving method under diﬀerent mobility levels. Non-conformance rate measures the probability of positional error exceeding the application’s error tolerance requirement. Fig. 9

shows that these energy-saving methods can con-serve power while most of the time meeting the application’s requirement. In addition, these

meth-Fig. 7. Power consumption given diﬀerent mobility levels under an application-speciﬁed error tolerance of 7 m.

(11)

ods have comparable non-conformance rate. Note that even the Optimal (O) method still produces non-conformance due to the unavoidable estima-tion error from the posiestima-tioning engine.

4.3. Impact on application error tolerance

The second set of experiments show the tradeoff relations between energy consumption and error tolerance for each of the five energy-saving methods and under different positional error tolerance.

Fig. 10a–c plots ﬁve energy consumption curves, corresponding to the PS, ASCV, O, SAASMD, and SAASFD methods, with the mobility levels of 70%, 50%, and 30%. The general trends observed are:

Similar to the results in the ﬁrst experiment, PS has the worst performance, followed by ASCV and SAASMD, and SAASFD has the best per-formance. At the 70% mobility level shown in

Fig. 10a, SAASFD outperforms PS by 37.80% at the 5 m error tolerance and by 29.61% at the 10 m error tolerance. SAASFD also outperforms the ASCV by 25.07% at the 5 m error tolerance and by 3.08% at the 10 m error tolerance. Finally, SAASFD outperforms SAASMD by 6.81% at the 5 m error tolerance and by 5.26% at the 10 m error tolerance.

For two sensor-assisted adaptive sampling meth-ods (SAASMD and SAASFD), its energy-error tradeoﬀ curves shift closer to the O curve at a lower mobility level. The reason is that

sensor-assisted adaptive sampling methods can predict the tracked object’s velocity more accurately at a low mobility level than the non-sensor-assisted ASCV method. For example, Fig. 10a–c shows that at the 5 m error tolerance level, the SAASFD consumes 18.58% more power than the Optimal (O) method for the 70% mobility level. This amount is reduced to 17.88% at the 50% mobility level and further down to 6.06% at the 30% mobility level. However, ASCV does not follow this trend.

4.4. Impact of mobility level on non-conformance rate The third set of experiments show the eﬀect of mobility prediction on the non-conformance rate in each of the four energy-saving methods. This is done by factoring out (subtracting) the location error contributed from the positioning engine in our experiments, leaving only the mobility predic-tion error in the energy-saving methods. Fig. 11

plots four energy non-conformance rate curves, cor-responding to the ASCV, O, SAASMD, and SAASFD methods at the error tolerant distance of 7 m. The general trends observed are:

Although Optimal (O) method uses real instanta-neous velocity to ﬁnd a good sampling rate, the moving target might change its velocity when its radio interface is turned oﬀ. In this case, if the moving target suddenly accelerates, the sam-pling rate will be lower than what is necessary to

(12)

Fig. 10. (a) Tradeoff between power consumption and error tolerance under different mobility levels (70%). (b) Tradeoff between power consumption and error tolerance under different mobility levels (50%). (c) Tradeoff between power consumption and error tolerance under different mobility levels (30%).

(13)

keep the error within the speciﬁed tolerance range. This results in a non-zero non-confor-mance rate even the mobility prediction is opti-mal. However, as shown in Fig. 11, the amount of non-conformance rate due to sudden changes in between samples is small.

Among the three adaptive sampling methods, ASCV has the worse non-conformance rate, followed by SAASMD, and SAASFD has the best non-conformance rate. Because the moving behavior of the target is different in each sce-nario, the performance of detecting foot steps is varying. Therefore, non-conformance rate does not strictly increase as the mobility level increases. However, the improvement of non-conformance rate is quite obvious in each mobility level. Comparing to ASCV, SAASFD improves mobility prediction accuracy by 24.60–88.15%. On average, SAASFD outper-forms ASCV by a significant margin of 56.34% because of more accurate mobility pre-diction. Among two sensor-assisted methods, SAASFD improves mobility prediction accu-racy by 7.10–81.19%. On average, SAASFD outperforms SAASMD by a significant margin of 49.81%.

SAASFD is closest to the Optimal (O) method. SAASFD degrades mobility prediction accuracy by 2.60–75.55%. On average, Fig. 11shows that the non-conformance rate averagely degrades by 31.38% using the SAASFD algorithm. This degradation would be even more serious in other

adaptive sampling methods, ASCV and SAASMD, which are 28.78–89.94% and 32.16– 85.20% respectively.

5. Related work

Our idea is initially inspired by the notion of adaptive sensing or adaptive sampling in sensor net-work research. Energy efficient design is related to mechanisms at various levels of the wireless network protocol suite. The range estimation techniques are related to the localization error estimation. Sam-pling rate adaptation techniques are related to the energy-aware localization. Computation reduction techniques for fingerprinting-based localization are related to the efficient localization. In the following subsections, we review and discuss how this work is relevant or complimentary to the above mentioned research domains.

5.1. Energy-eﬃcient design

Communication has always been the main energy consumer in wireless systems; therefore, the energy-eﬃcient issue has received much attention[6]. This leads to low-power design within the physical layer in order to reduce the sources of power consump-tion within mobile terminals. Adaptive error and power control are applied to energy eﬃcient proto-cols within the MAC layer of wireless networks and power conserving protocols within the LLC layer. Power-aware protocols within the network layer

(14)

exploit the trade-off between frequent topology updates (resulting in improved routing) and pre-cious bandwidth consumed by increased update messages. Opportunities for saving battery power within the transport layer lie in sensitivity to wire-less environment. Selective acknowledgements and explicit loss notification are used to handle losses. At application layer, techniques are developed spe-cifically for different applications. Our work, the adaptive sampling mechanism, focuses on improv-ing energy efficiency to support location-aware applications.

5.2. Range estimation techniques

There are different techniques developed for range estimations. These techniques commonly require signal transmissions between the observer and the target observed. The major differences are the properties of calibration methods and the usage of signal sources. Our adaptive sampling mecha-nism is independent of and complementary to the range estimation techniques in that the frequency of range estimations can be optimized for energy-efficiency.

Most of the techniques use sonic, ultrasonic, and RF as signal sources. Given the assumption that signal propagates with constant velocity, TOA (time of arrival), by measuring the signal propagation time, is the most common method for estimating the distance. AOA (angle of arrival) is a network-based technique exploiting the geo-metric property of the arriving signal. By measur-ing the angle of the signal’s arrival at more then one receiver, AOA is able to give a more precise location. TDOA (time difference of arrival) [7] is also network-based. It measures the time difference instead of the angle to infer distance. Some hybrid approaches of TOA, AOA, and TDOA are also proposed, and this is still an active research topic in the field of localization.

Another class of techniques measures the received signal strength indication (RSSI). These techniques exploit the decaying model of elec-tronic-magnetic ﬁeld to translate RSSI to the corre-sponding distance [8,9,11]. Also, the frequency bands used for transmission vary. For example, the well-known RADAR system[10]uses the radio frequency (RF). LADAR and SONAR use the vis-ible light and the audvis-ible sound bands respectively. LADAR and SONAR, for instances, analyze the signal reﬂected from the object to estimate location.

A recent innovation, Cricket [12], takes a hybrid approach, using both the RF and ultrasonic bands.

5.3. Sampling rate adaptation techniques

Prediction-based energy saving scheme [1]is the closest to our work. Their system accepts an applica-tion request for a report of tracked objects’ locaapplica-tions every T seconds in an object-tracking sensor net-work. Then, their energy-saving scheme tries to meet this application request with minimum energy con-sumption and missed tracking rate. Their energy-saving scheme adapts location sampling frequency based on predicted object movement. In addition, their system also needs to consider energy consump-tion of sensor network infrastructure which also runs on battery. Their energy-saving scheme can dynami-cally turn off sensor nodes that are not in proximity of any tracked object. There are several differences between our system and their system. The largest dif-ference is that their system works only in simulation, whereas our system works in a real working environ-ment. Hence, we believe that our performance results are more realistic. The second difference is that their system assumes that estimation error from a posi-tioning system is ignorable or zero. However, in real environment, no positioning engine is perfect; there-fore, our prediction heuristics must overcome this estimation error using accelerometers. Finally, the application requirement of positional accuracy is also different; their system adapts a coarse-grained reporting period whereas our system uses fine-grained positional error tolerance.

Tilak et al. [2]propose adaptive and predictable protocols for adapting the sampling frequency based on mobility patterns of tracked objects. They have evaluated three protocols: (1) the static fixed rate (SFR) protocol with a fixed sampling fre-quency, (2) the dynamic velocity monotonic (DVM) protocol which adapts the sampling fre-quency based on a tracked object’s mobility pattern, and (3) the mobility-aware dead-reckoning driven (MADRD) protocol which uses a dead-reckoning localization method on a prediction mobility model. Their experiment results have shown that MADRD protocol can provide good energy efficiency with sufficiently accurate location given that the mobility of tracked objects follows predictable moving pat-terns. Our system differs from their work in similar ways as the prediction-based energy-saving schemes described previously. Their system works only in

(15)

simulation, whereas our system works in a real working environment.

5.4. Computation reduction techniques

The Horus system[3]proposes the so-called joint clustering technique that can signiﬁcantly reduce the computational cost of searching for the radio map in a WiFi ﬁngerprinting-based localization system. Computation reduction comes from partitioning location areas into clusters. In each cluster, only a subset of most access points with most distinguish-able received signal strength (RSS) signature is selected as its cluster key.

Chen et al.[4]proposes a similar idea by combin-ing information theory, clustercombin-ing, and decision tree algorithms to reduce the computational cost. Their system makes further improvement in computation reduction over Horus by selecting even a smaller subset of access points and signals. One unique aspect of their system is that the positioning engine is moved to the client-side execution, rather than on the server-side execution. This client-side execution can reduce communication cost to a server, translat-ing into better energy savtranslat-ings on a mobile client device.

Our work diﬀers from these systems by focused on reducing the number of invocations of location sampling rather than reducing the amount of work in each invocation of location sampling (i.e., the positioning engine).

6. Conclusion and future work

In this paper, we present our design, implementa-tion and evaluaimplementa-tion of a sensor-enhanced, energy-efficient adaptive localization system based on our definition of a formal positional error model that accurately predicts positional error of a real work-ing positionwork-ing engine. Given a specified positional error tolerance from an application, our localization system can dynamically adapt the sampling rate of location information to achieve better energy saving while conforming to application’s error tolerance. Furthermore, our energy-saving method utilizes additional sensors on mobile targets to solve the estimation error problem in positioning engines. We improve our sensor-enhanced mobility predic-tion algorithm which utilizes the sensor as 1-bit state indicator that tells if the target is stationary or not. By detecting the target’s foot step to estimate the target’s velocity, we could further improve the

mobility prediction accuracy by 49.81% on average, comparing to previous sensor-enhanced mobility prediction algorithm. We have implemented our energy saving methods in a working localization system and conducted performance evaluation in a real oﬃce environment. Our results have shown that prediction accuracy can be improved by as much as 56.34% on average, comparing to ASCV algorithm. As the mobility level increases, our sensor-assisted adaptive sampling method reduces power consump-tion by as much as 68.92%.

In order to predict a more precise sampling rate, the algorithm must predict a precise estima-tion_error. In the current implementation, we use an average value to approximate the estima-tion_error in our positioning engine. However, the variance of estimation_error of ﬁngerprinting-based positioning engine is quite large. This approxima-tion would give a poor estimaapproxima-tion_error and contrib-ute to a higher non-conformance rate. To predict estimation_error more accurately we envision two future work directions.

The ﬁrst direction is to lower the variance of esti-mation_error in our positioning engine. Then, using an average value to approximate the estima-tion_error in our positioning engine would give a closer estimation_error and contribute to a lower non-conformance rate. We could apply the energy conserving methods on a more accurate positioning engine with small variance of estimation_error [19], this would result in more precise sleep_time as well and save more energy.

The second direction is to predict estimation error based on a confidence model [15]. Our future work will further improve energy efficiency in our localization system. In the current implementation, we use an average value to approximate the estima-tion_error in our positioning engine. However, esti-mation error is dynamic depending on several factors in the environment, such as coverage area, temperature, humidity, human clusters, etc. Based on a confidence model[15], estimation error can be modeled and prediction heuristics introduced. This enables our adaptive sampling localization to deter-mine a more precise sleep_time for better energy consumption and improved conformance to the error tolerance requirement.

Besides, our future work will extend application’s requirement speciﬁcation to include not only the positional error tolerance but also an energy budget for a mobile target. This can be done by creating proﬁles on mappings between positional error and

(16)

energy consumption under different mobility levels. These profile mappings can be obtained through off-line or onoff-line calibrations. Then, when applications specify their desirable energy budgets, our system can provide a positional error bound given a target mobility level.

Acknowledgements

We would like to thank Intel Taiwan for the dig-ital health project, Taiwan NSC and Quanta Com-puter for their general supports under NSC Grants 94-2218-E-002-055, 94-2622-E-002-024, and 94-2218-E-002-075.

References

[1] J. Winter, Y. Xu, W.-C. Lee, Prediction based strategies for energy saving in object tracking sensor networks, in: Proceedings of the IEEE International Conference Mobile Data Management (MDM 04), January 2004, pp. 346–357. [2] S. Tilak, V. Kolar, N.B. Abu-Ghazaleh, K.D. Kang,

Dynamic localization control for mobile sensor networks, in: Proceedings of the IEEE International Workshop on Strategies for Energy Eﬃciency in Ad Hoc and Sensor Networks (IWSEEASN 05), April 2005.

[3] M. Youssef, A. Agrawala, A.U. Shankar, WLAN location determination via clustering and probability distributions, in: Proceedings of the IEEE International Conference Pervasive Computing and Communications (PerCom 03), March 2003, pp. 143.

[4] Y. Chen, Q. Yang, J. Yin, X. Chai, Power-eﬃcient access-point selection for indoor location estimation, IEEE Tran. Knowledge Data Eng. (TKDE 2006) 18 (7) (2006) 877–888. [5] V. Shnayder, M. Hempstead, B.-R. Chen, G. Werner-Allen, M. Welsh, Simulating the power consumption of large-scale sensor network applications, in: Proceedings of the 2nd ACM Conference Embedded Networked Sensor Systems (SenSys 04), November 2004, pp. 188–200.

[6] C.E. Jones, K.M. Sivalingam, P. Agrawal, J.C. Chen, A survey of energy eﬃcient network protocols for wireless networks, ACM Wireless Networks 7 (4) (2001) 343–358. [7] L. Cong, W. Zhuang, Hybrid TDOA/AOA mobile user

location for wideband CDMA cellular systems, IEEE Trans. Wireless Commun. 1 (3) (2002) 439–447.

[8] N. Patwari, Relative location estimation in wireless sensor networks, IEEE Tran. Signal Process. 51 (8) (2003) 2137– 2148.

[9] D. Niculescu, Positioning in ad hoc sensor networks, IEEE Networks 18 (4) (2004) 24–29.

[10] P. Bahl, V. Padmanabhan, An in building RF-based user location and tracking system, in: Proceedings of the Con-ference Computer Communications (IEEE Infocom 00), March 2000, pp. 775–784.

[11] K. Lorincz, M. Welsh, MoteTrack: a robust, decentralized approach to RF-based location tracking, in: Proceedings of the International Workshop on Location- and Context-Awareness (LoCA 05) at Pervasive 2005, May 2005, pp. 63– 82.

[12] N. Priyantha, A. Charkraborty, H. Balakrishnan, The cricket location support system, in: Proceedings of the 6th International Conference Mobile Computing and Network-ing (MOBICOM 00), August 2000, pp. 32–43.

[13] M. Youssef, A. Agrawala, Handling samples correlation in the horus system, in: Proceedings of the 23rd Annual Joint Conference IEEE Computer and Communications Societies (Infocom 04), vol. 2, March 2004, pp. 1023–1031.

[14] D. Madigan, E. Elnahrawy, R. Martin, Bayesian indoor positioning systems, in: Proceedings of the 24th Annual Joint Conference IEEE Computer and Communications Societies (Infocom 05), vol. 2, May 2005, pp. 1217–1227.

[15] L.-W. Chan, J.-R. Chiang, Y.-C. Chen, C.-N. Ke, J. Hsu, H.-H. Chu, Collaborative localization – enhancing WiFi-based position estimation with neighborhood links in clusters, in: Proceedings of the International Conference Pervasive Computing (Pervasive 06), May 2006, pp. 50–66. [16] T.-H. Lin, P. Huang, H.-H. Chu, H.-H. Chen, J.-P. Chen,

Enabling energy-eﬃcient and quality localization services, in: Proceedings of the IEEE International Conference Pervasive Computer and Communications (PerCom 06), Work In Progress Session, March 2006, pp. 624–627.

[17] Y.-C. Chen, J.-R. Chiang, H.-H. Chu, P. Huang, A.W. Tsui, Sensor-Assisted Wi-Fi indoor location system for adapting to environmental dynamics, in: Proceedings of the ACM International Symposium Modeling, Analysis and Simula-tion of Wireless and Mobile Systems (MSWIM 05), October 2005, pp. 118–125.

[18] G. Schindler, T. Starner, C. Metzger, A wearable interface for topological mapping and localization in indoor environ-ments, in: Proceedings of the 2nd International Workshop on Location and Context-Awareness (LoCA 06), May 2006, pp. 64–73.

[19] B. Kusy, Gy. Balogh, A. Ledeczi, J. Sallai, M. Maroti, inTrack: high precision tracking of mobile sensor nodes, in: Proceedings of the 4th European Workshop on Wireless Sensor Networks (EWSN 2007), January 2007, pp. 51–66.

Chuang-Wen You is a Ph.D. Candidate at the Department of Computer Science and Information Engineering, National Taiwan University. He received his B.S. (2002) in the Department of Electro-physics from National Chiao Tung University. His interests are in the broad area of distributed systems or sensor networks. Contact him at Room 336, CSIE building, National Taiwan Uni-versity, No. 1, Sec. 4, Roosevelt Rd., Taipei 106, Taiwan; [email protected]; http://mll.csie. ntu.edu.tw/~cwyou.

(17)

Polly Huang received her Ph.D. (1999) and M.S. (1997) in Computer Science from University of Southern California, and her B.S. (1993) in Mathematics from National Taiwan University. In Febru-ary 2003, she joined the Department of Electrical Engineering of the National Taiwan University at which she currently holds an associate professor position. Prior to joining NTU, she worked as a post-doctoral research scientist at the Computer Engineering and Networks Laboratory (TIK) of the Swiss Federal Institute of Technology (ETH) Zurich and a post-doctoral fellow at the Institute of Pure and Applied Mathematics of UCLA. Her research interest includes sensor networking, multimedia networking, and Internet characterization. She is a member of ACM and IEEE and serves currently on the editorial board of the Journal of Communications and Networks.

Hao-Hua Chu is an associate professor at the Graduate Institute of Networking and Multimedia and Department of Com-puter Science and Information Engineer-ing, National Taiwan University. He received his B.S. (1994) in Computer Sci-ence from Cornell University and Ph.D. (1999) in Computer Science from Uni-versity of Illinois at Urbana Champaign. From 1999 to 2000, he was a senior soft-ware engineer at Intel. From 2000 to 2003, he was a project manager at (NTT) DoCoMo USA Labs. His research areas are in pervasive computing and sensor/wireless network. He is a member of the IEEE and the ACM. Contact him at Room 518, CSIE building, National Taiwan University, No. 1, Sec. 4, Roosevelt Rd., Taipei 106, Taiwan; [email protected]. edu.tw;http://mll.csie.ntu.edu.tw/hchu.php.

Yi-Chao Chen is currently dutifully serv-ing in his mandatory Taiwan military service. He received his M.S. (2006) and B.S. (2004) in the Department of Com-puter Science and Information Engineer-ing from National Taiwan University. His research areas are in pervasive computing and personal experience computing. Contact him at Room 336, CSIE build-ing, National Taiwan University, No. 1, Sec. 4, Roosevelt Rd., Taipei 106, Tai-wan; [email protected];http://mll.csie.ntu.edu.tw/~yichao/.

Ji-Rung Chiang is currently dutifully serving in his mandatory Taiwan mili-tary service. He received his M.S. (2006) in the Department of Computer Science and Information Engineering from National Taiwan University and B.S. (2004) in the Department of Computer Science and Information Engineering from National Chiao Tung University. His research areas are in pervasive computing and sensor networking. Contact him at Room 336, CSIE building, National Taiwan University, No. 1, Sec. 4, Roosevelt Rd., Taipei 106, Taiwan; [email protected].

Seng-Yong Lau is a Ph.D. Candidate in the Graduate Institute of Electrical Engineering, College of Electrical Engi-neering and Computer Science, National Taiwan University. His research interests are wireless sensor network and Internet modeling. He received his B.S. (2001) in the Department of Electrical Engineer-ing from National Taiwan University.
