Group-Based Authentication and Key Agreement

Chien-Chao Tseng

Published online: 1 September 2010

© Springer Science+Business Media, LLC. 2010

Abstract This paper presents an authentication and key agreement protocol to streamline communication activities for a group of mobile stations (MSs) roaming from the same home network (HN) to a serving network (SN). In such a roaming scenario, conventional schemes require the SN to interact with the HN for authenticating respective MSs, at the cost of repeated message exchanges and communication delay. Instead, in our design, when the first MS of a group visits, the SN performs full authentication with the concerned HN and thereby obtains authentication information for the MS and other members. Thus when any other MS of the same group visits, the SN can authenticate locally without subsequent involvement of the HN, so as to simplify protocol operations. We will show that our scheme does not trade performance for security and robustness to the extent that security requirements are unduly weakened. Both qualitative and quantitative discussions indicate that our proposed scheme lends itself to pragmatic settings.

Keywords Wireless network· Security · Group key · Authentication and key agreement · Roaming

This work has been supported by the National Science Council, ROC, under grants NSC 98-2220-E-009-047 and NSC 97-2221-E-009-051-MY3, and by the ministry of Economics, ROC, under the grant 9301× S2210. Y.-W. Chen· C.-C. Tseng (

B

Institute of Computer Science and Engineering, National Chiao Tung University, Hsinchu, Taiwan e-mail: cctseng@cs.nctu.edu.tw

J.-T. Wang

Information and Computer Laboratories, Industrial Technology Research Institute, Hsinchu, Taiwan K.-H. Chi

Department of Electrical Engineering, National Yunlin University of Science and Technology, Yunlin, Taiwan

1 Introduction

Concerning wireless network security, authentication is one of the first measures that must be taken to validate users or the system. There has been active research on developing robust security mechanisms for authentication and cryptographic key management. Several authen-tication and key agreement (AKA) protocols like EAP-AKA [3], EAP-SIM [6], and UMTS AKA [1] are well-known examples that withstand various attacks. Other variants of AKA or applications can also be found in [4,8–11]. Though effective, current protocols incur nontriv-ial communication delay due to potentnontriv-ially prohibitive message exchanges between different network domains.

We note that mobile stations (MSs) belonging to the same Home Network (HN) may form a group that is likely to migrate somewhere together. That is, MSs of an HN may visit the same network and move along the same route, e.g., a tourist group from the same city or country traveling from one place to another, students having a field trip, or even mobile routers on a public transportation system. Such group-based movement may cause repeated invocations of costly authentication procedures within a short period of time, at the expense of signaling traffic between the serving network (SN) and the HN if a traditional AKA protocol is used to authenticate MSs separately. As shown in Fig.1, user-perceived authentication delay and system signaling overhead grow with the involvement of more MSs.

In view of group movement behavior, this paper presents an AKA protocol with refined interactions between an SN and the HN. This is accomplished by authorizing the SN to authenticate MSs using a Group Authentication Key (GAK) generated by the HN. Only the first MS visiting the SN is required to undergo full authentication whereby the SN can acquire a Group Temporary Key (GTK) from the HN. With the GTK in place, the SN is enabled to carry out mutual authentication with remaining MSs of the group, if any, without intervention of the remote HN. In this fashion, authentication delay is trimmed as a whole. Meanwhile, the signaling overhead between the HN and the SN is considerably reduced from a factor of the number of MSs to a factor of the number of groups among MSs.

As shall be seen shortly, our proposed scheme is characterized by several strengths. First, our scheme maintains the same security level as in counterpart AKA protocols. Authentica-tion data received by an SN include sufficient informaAuthentica-tion for the SN to distinguish each MS of a group and establish a unique master key to secure a data session (each MS shares a secure communication channel with the SN). Hence, an MS cannot impersonate any other entity of the same group. Additionally, the freshness of authentication messages is ensured throughout

Home Network Authention message flow Serving Network (move) MS group

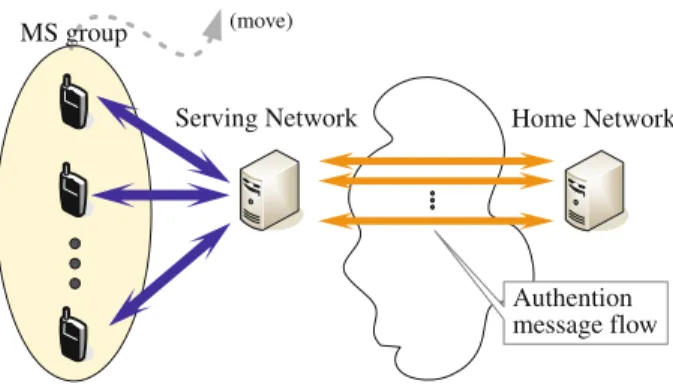

Fig. 1 Group movement causes repeated executions of AKA procedures by the same serving network and

because every authentication for an MS requires both a nonce and a correct number counting how many authentications the MS has performed so far. Further, our scheme can speed up handover procedure if the HN distributes authentication data to neighboring SNs the MS is likely to visit next. Moreover, our design is well applicable to any system accommodating a remote authentication sever, such as TETRA network [12], WiMAX network [2], vehicular ad hoc network [13], and security system in enterprises.

The remainder of this paper is organized as follows. Section2describes some background on AKA protocols. Section3provides the proposed mechanism in full. Next we analyze the security and signaling overhead of our proposal in Sect.4. Lastly Sect.5concludes this study.

2 Background

Here we outline the essence of AKA mechanisms in widespread use by mobile telecommu-nications networks. For a better exposition, let us take UMTS AKA [1] as a representative to exemplify their design tenet.

UMTS AKA can broadly be divided into two stages: authentication data distribution, and user authentication and key agreement (represented above and below, respectively, the dashed line in Fig.2). The former enables the HN of an MS to distribute authentication data to the SN the MS is visiting. The latter is to establish a new pairwise session key between the MS and the SN. Overall, UMTS AKA consists of several messages exchanged in following lines. 1. ID Request: Upon detecting an access request by an MS, the SN initiates an

authenti-cation procedure by asking the MS for its identity. 2. ID Response: The MS sends its identity to the SN.

3. Authentication Data Request: The SN sends this message to acquire n Authentication Vectors AV(1. . . n) from the HN. The operation of generating each attribute in AV is depicted in Fig.3a. In addition to Authentication Management Field (AMF) and Sequence Number (SQN), a pre-shared key for the MS and a random number RAND are parameters taken to generate AV(i ) comprising the Message Authentication Code

AUTN = SQN AK || AMF || MAC AV = RAND || XRES || CK || IK || AUTN . q e R D I . 1 ) D I ( . s e R D I .

2 3 . Auth . Data Req ( ID )

) ) n . . 1 ( V A ( s e R a t a D . h t u A . 4 ) ) i ( N T U A , ) i ( D N A R ( q e R . h t u A . 6 ) ) i ( S E R ( s e R . h t u A . 7 ) ( k c A . h t u A . 8 ) n . . 1 ( V A e t a r e n e G ) n . . 1 ( V A e r o t S . 5 ) i ( N T U A y f i r e V ) i ( K C , ) i ( K I , ) i ( S E R e t u p m o C Select ) i ( K C , ) i ( K I , ) i ( S E R X ) i ( S E R y f i r e V MS ) K ( y e K d e r a h S -e r P SN ) K ( y e K d e r a h S -e r P HN +

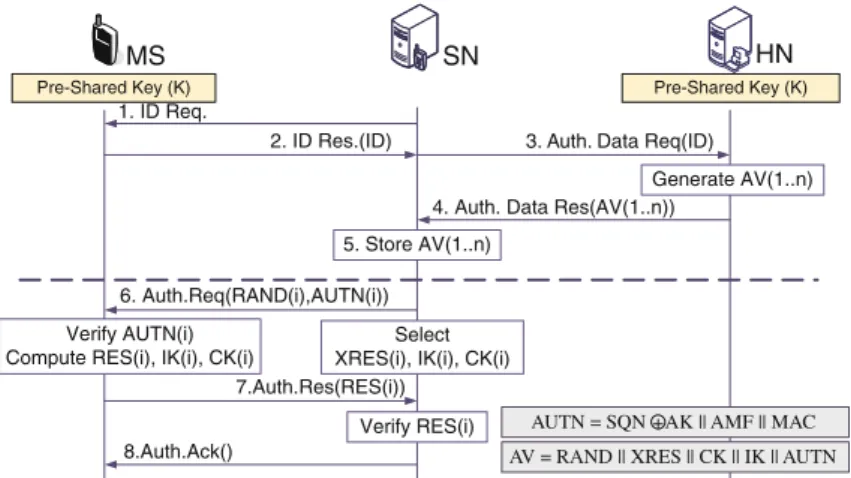

Fig. 2 UMTS AKA message flow. Operatorsand denote exclusive-or and concatenation, respectively, of bit strings of involved operands

AUTN = SQN AK || AMF || MAC Generate RAND MAC f1 _f2 _f3 Key SQN AMF CK Generate SQN f4 _f5 RAND XRES IK AK

AV = RAND || XRES || CK || IK || AUTN

d l e i F t n e m e g a n a M n o i t a c i t n e h t u A : F M A

AUTN : Authentication Token

y e K r e h p i C : K C y e K y t i r g e t n I : K I + VerifyMAC=XMAC XMAC f1 _f2 _f3 Key CK f4 f5 RES IK

Verify that SQN is in the correct range AUTN SQN AK AMF MAC SQN RAND (a) (b) + +

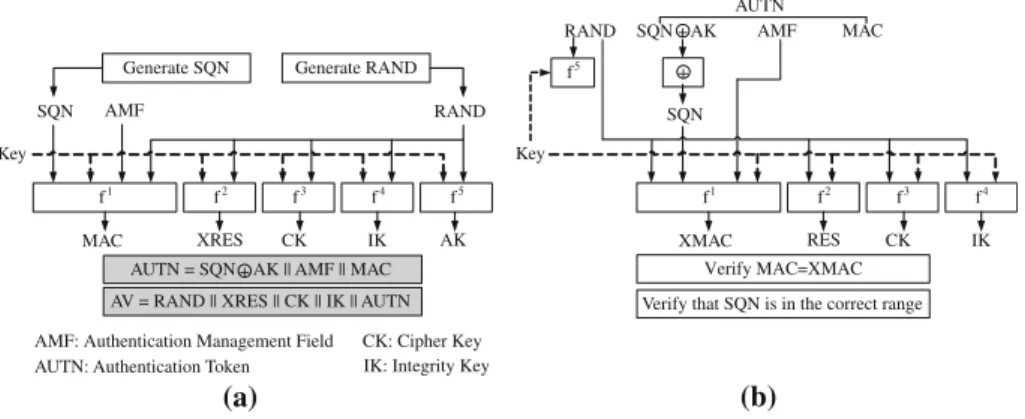

Fig. 3 UMTS AKA operations (with reference to Fig.2). a Generating Authentication Vectors on the HN side, b Verifying a Network Authentication Token on the MS side

(MAC), eXpected Response (XRES), cipher key (CK), integrity key (IK), Anonymity Key (AK), and Network Authentication Token (AUTN).

4. Authentication Data Response: The HN sends back the generated AV (for the corre-sponding MS) so that the SN is authorized to authenticate the requesting MS.

5. User Authentication Request: Upon receipt of a message containing authentication vec-tors, the SN sends RAND(i ) and AUTN(i ) of the i -th selected vector to the MS, enabling the MS to verify the correctness of SQN and compute the corresponding response RES(i ).

6. User Authentication Response: The MS verifies the correctness of SQN by computing MAC and comparing it with the MAC carried in AUTN(i ). If matched, the MS computes and sends the corresponding response RES(i ) back to the SN in a response message. The verification process is depicted in Fig.3b.

7. Authentication Result: Once the SN receives and verifies RES(i ) correctly, it chooses the corresponding CK/IK as the session key to protect its communication with the MS. In the meantime, the MS computes its CK/IK accordingly. Hence both the MS and SN reach a common session key, which terminates the UMTS AKA protocol.

Apart from UMTS AKA, other protocols such as UMTS X-AKA [7] have also been devised to reduce signaling traffic in some extent. However, these conventional mechanisms operate mostly on per-station basis. When more than one MS of a group visit an SN, current mechanisms require the SN to initiate multiple authentication processes for different MSs with the same HN, causing nontrivial overhead during handover.

3 Group-Based AKA Protocol

We propose a group-based AKA (G-AKA) protocol to facilitate users with subscribership in a common HN to roam from network to network. In our G-AKA scheme, every MS pro-vides its identity when visiting an SN. Upon reception, the SN examines whether the MS belongs to an active group of which any member has completed full authentication. If not, the SN acquires authentication data for the MS and its associated group from the concerned HN. This leads MSs of the same group to share the same authentication data, including group temporary authentication key and other necessary information. To realize, our scheme

Table 1 Index table internal to

the HN Group Group ID Member ID Initial value Other information

G1 IDG1 IDM1−1 IVM1−1 – IDM1−2 IVM1−2 – – – – ID_M1−n IV_M1−n – G2 IDG2 IDM2−1 IVM2−1 – – – –

comprises three procedures: group information setup, authentication data distribution, and mutual authentication and key agreement, as shall be described in following three subsections. 3.1 Group Information Setup

In our architecture the HN sends to an SN authentication data for a group of MSs, as opposed to sending authentication data for respective MSs. Initially, the HN configures group infor-mation of MSs, including an index table and GAK. As shown in Table1, the index table contains fields of group identity, member identity, initial value (IVu) for each user member

u, and other context information. For convenience of illustration, the group in the first entry

is referred to as G1, the second entry as G2, and so forth. We let the initial value IVube large

and unique. IVu will behave as a sequence number for synchronization between the user u

and its SN.

The HN also assigns each MS an individual key for communication confidentiality, and each group a common group key, namely GAK, for authentication purpose. The generation and distribution of GAKs along with MSs joining or leaving a group can be managed by the Authentication Center (AuC) within the home network [15–17]. Furthermore, the HN, SNs, and MSs contain MAC algorithms for authenticating messages. The inputs for MAC algorithms consist of a secret key and related information, and outputs of MAC algorithms are irreversible. Without loss of generality, we denote MAC algorithms by f0, f1, f2, and

f3, respectively, for the HN to authenticate an MS, for an MS to authenticate an SN, for an SN to authenticate an MS, and for key generation.

3.2 Authentication Data Distribution

We now consider how the HN distributes authentication data for MSs of the same group migrating to an SN. Let MS_M1−1be the first MS initiating authentication in the roaming group G1. Furthermore, in what follows a parenthetical term in any message represents some specific information to be conveyed in the payload. The distribution procedure is shown in Fig.4, where challenge-response messages can be embodied by CHAP [14], in following lines.

1. ID Request: The SN attempts to identify MS_M1−1.

2. ID Response (AUTHG1): Upon receiving the ID Request message, MSM1−1

gener-ates AUTHG1= (IDG1IDM1−1RNM1−1MACM1−1), where IDG1denotes the group

identity, IDM1−1is the mobile user’s identity, RNM1−1 represents a random number, and MACM1−1 = f0(KM1−1, RNM1−1) for the HN to authenticate MSM1−1(see also Fig.8). Here K_M1−1is the pre-shared secret key with the HN.

1. ID Req.

2. ID Res.(AUTHG1) 3. Auth. Data Req(AUTHG1)

4. Auth. Data Res(AUTHH)

Store AUTHH MSM1-1 KM1-1, GAKG1 SN HN Generate AUTHG1 Verify AUTHG1 Generate AUTHH(GTK) KM1-1, GAKG1

Fig. 4 Authentication data distribution

AUTHG1 MACM1-1 KM1-1 RNM1-1 f0 = Yes/No Generate RNH RNH AMF f3 GAKG1 GTKG1 AUTHH= RNH|| AMF || RNM1-1|| GTKG1 AUTH Generation MS Authentication

Fig. 5 The HN verifying AUTHG1and generating AUTHH

3. Authentication Data Request (AUTHG1): Since MSM1−1is new, the SN without

knowl-edge of the MS relays the foregoing message from MS_M1−1to the HN. The HN shall authenticate the roaming group (G1) which MS_M1−1belongs to.

4. Authentication Data Response (AUTHH): As shown in Fig.5, the HN verifies the

received MACM1−1 in AUTHG1 using KM1−1 (the pre-shared key with MSM1−1). If MS_M1−1 is found authentic, the HN retrieves the corresponding group authentication key GAKG1to generate a Group Transient Key GTKG1= f3(RNM1−1

RNHAMF||GAKG1).

Group authentication data sent to the SN contains AUTHH = (RNHAMFRNM1−1

GTKG1), where RNHis a newly selected random number by the HN, AMF denotes contents

of the Authentication Management Field, and RN_M1−1is the random number chosen a priori for MS_M1−1. The group information for G1 (entire record associated with G1 drawn from the HN’s index table) is piggy-backed on Message 4 above. The SN will keep the received information, particularly AUTHH, in local storage for future use.

3.3 Mutual Authentication and Key Agreement

Upon receipt of group authentication data, the SN proceeds to mutual authentication and key agreement with MS_M1−1. This procedure validates the authenticity of both sides and

5. Auth.Req(AUTHSM1-1) 6.Auth.Res(MACG1) 7.Auth.Ack(Success/Fail) Verify AUTHSM1-1 Compute MK, MACG1 Compute MK Verify MACG1

MS

SN

HN

Fig. 6 Mutual authentication and key agreement (subsequent to the message flow of Fig.4)

establishes the pairwise session key for message encryption between the MS and the SN. As a result of computing different responses of challenge messages with different arguments, both the MS and the SN authenticate each other by verifying the correctness of responses. After both sides have been successfully authenticated, the pairwise session key is generated to protect the traffic in between. This procedure is depicted in Fig.6, starting with Message 5.

5. Authentication Request (AUTHSM1−1): After acquiring AUTHHfor group G1, the SN

conducts instantly the i -th run of mutual authentication with MSM1−1 by generating AUTH_SM1−1= (AMFRNHRNM1−1MACSRNSM1−1), where the first three

parame-ters are meant for MS_M1−1to generate GTKG1, MACS= f1(GTKG1RNM1−1IVM1−1+

i), and RN_SM1−1is a nonce chosen by the SN to challenge M S_M1−1. While waiting for a response from MSM1−1, the SN computes the master key MK= f3(GTKG1IVM1−1+

iRNM1−1RNSM1−1) for subsequent sessions with MSM1−1in advance. (See Fig.7). 6. Authentication Response (MACG1): To acknowledge Authentication Request

(AUTH_SM1−1), MS_M1−1 computes GTKG1 using the first three arguments in

AUTH_SM1−1and GAKG1 stored in each MS of the same group. MSM1−1then

authen-ticates the SN by computing and comparing the corresponding result with MACS.

After successfully authenticating the SN, MSM1−1calculates the master key MK with respect to the SN and generates a message back to the SN containing MACG1 =

f2(GTKG1RNSM1−1IVM1−1+ i). Such operations are diagrammed in Fig.8.

7. Authentication Result (Success/Failure): Upon receiving an Authentication Response message carrying MACG1, the SN checks whether MSM1−1has produced the correct

response using operations as in Fig.7. Then a message with a status code indicating either success or failure for mutual authentication is sent to MSM1−1, whence our key agreement procedure is completed.

After full authentication, both MSM1−1and its SN share a common MK that shall become essential material for subsequent key derivations.

When a second member, say MS_M1−2, arrives, the SN starts on mutual authentication and key agreement with MSM1−2locally using the existing GTKG1. More specifically, Steps 3

and 4 in the prescribed authentication data distribution procedure can be bypassed, leaving out signaling traffic between SN and HN. In this regard, however, the SN needs to generate a new random number RN_SM1−2to create a new challenge message for MS_M1−2(similar to Step 5

AUTHSM1-1= RNH|| AMF || RNM1-1|| MACS|| RNSM1-1 AUTHH Generate RNSM1-1 RNM1-1 MACG1 IVM1-1 i + × f1 f2 f3 × = GTKG1 RNSM1-1 MK MACS Yes/No AUTHG1

AUTH Generation MS Authentication

Fig. 7 An SN generating AUTHSM1−1and MK and verifying MACG1

in Fig.6). Using distinct arguments from those for MS_M1−1, such as RN_SM1−2, RN_M1−2and IV_M1−2, our scheme ensures not only the freshness of challenge-response messages but also the uniqueness of master keys for respective MSs.

To conclude this section, we remark that, when a group of mobile subscribers visits a network, our protocol saves both the HN and the SN from repeated message exchanges by providing group authentication data and GTK. The latter is used in place of GAK to prevent GAK from being divulged to eavesdroppers. Observe that a GTK allows of periodic or ape-riodic updates whenever new random numbers are available. Such a design strengthens the robustness and sustainability of the protocol.

4 Discussions

This section covers security analysis and evaluation of the proposed G-AKA protocol. We will show that G-AKA maintains its due security level and quantify its outperformance to other schemes in terms of storage and message complexity.

4.1 Security Analysis

Here we reason that G-AKA can achieve the comparable security level as other contemporary AKA protocols, without compromising overall security of the system. Our reasoning is as follows.

Mutual Authentication First, each MS achieves mutual authentication with its HN by Steps 2 and 4 of Sect. 3.2and Step 6 of Sect.3.3. To see this, in Step 2 an MS, say MSM1, provides AUTHG1to prove its authenticity. Step 4 enables the HN to validate the

MS’s proof and to generate a GTK as part of AUTHHaddressed back to the SN over a

secure communication channel. Step 6 allows MSM1to authenticate the HN implicitly,

based on the premise that a correct GTK available to the SN can only be sourced from the genuine HN.

Besides, Steps 6 and 7 of Sect.3.3ensure mutual authentication between MSM1and its

SN. This is because the MS authenticates its SN by comparing its computed MACSwith

that in AUTHSM1(Step 6). This step requires the SN to be legitimate for acquiring a

cor-rect GTK from the HN and thereby the SN is assured of authenticity (not a rogue entity). On the other hand, the SN checks whether the returned MACG1 from the MS is correct

(Step 7). By doing so, the MS is authenticated by the SN, and vice versa.

Secure Key Derivation In our G-AKA protocol, the pairwise master key for an MS and its SN are derived on either peer side directly, without being delivered over any com-munication channels. Therefore, the keying material is prevented from being disclosed, attacked, or intercepted by adversaries.

Replay Attack Resistance Our protocol operates free from potentially ill effects caused by an attacker intercepting and re-transmitting authentication messages to spoof or get admitted to the system. In our protocol, whenever any MS, e.g., MSM1 requests to be

authenticated, new random numbers RNM1and RNSM1are produced on the MS and its

SN side, respectively, for temporary use in generating challenge messages toward the opposite side. Meanwhile, these two sites maintain an identical initial value IV_M1−1to keep themselves synchronized throughout AKA processing. An out-of-sync initialization value will lead to authentication failure. Thus a node without the required random numbers and initial value cannot perform a replay attack on our system.

Fraud Control Although all the members of a group share a common GTK, our pro-tocol is not exposed to masquerade attack by the same group. To see this, suppose that MS_M1−1attempts to impersonate another member, say MS_M1−2, by eavesdropping traf-fic between MS_M1−2 and the SN. However, MS_M1−1 is unable to generate a correct Authentication Response message carrying MACG1, because MACG1 can result only

from GTK, RNM1−2, and unique IVM1−2associated with MSM1−2. For the same reason, MS_M1−1cannot learn the master key used by MS_M1−2 and the SN. By application of Steps 6 and 7 of Sect.3.3, the SN aware of the incorrect response message will block the fraud straightway. So, the SN can easily tell one member from another even though all members use the same GTK. Neither can MSM1−1not decrypt traffic between MSM1−2

and the SN, since the traffic has been protected with a master key which is unknown to MSM1−1. A central treatment is that we employ distinct random numbers and initial values for different MSs, so as to guarantee the freshness of challenge-response messages and the uniqueness of master keys for respective MSs.

There are several additional security measures in our design. We avail ourselves of random numbers RNHand RNM1−1generated by the HN and the first MS of a group, respectively,

to ensure the freshness of GTK, as shown in Figs.7and8. These two nonces are incor-porated jointly to protect GTK. Moreover, our scheme uses some parameter to record how many authentications have been performed by an MS so far. The parameter is embedded in our authentication processes (Step 5 of Sect.3.3) to consolidate the freshness of each authentication message.

AUTHSM1-1

AUTHG1= IDG1|| IDM1-1|| RNM1-1|| MACM1-1 MACS RNM1-1 RNH AMF RNM1-1 RNSM1-1 f1 f3 f2 = GTKG1 MK Yes/No GAKG1 f0 MACM1-1 KM1-1 f3 MACG1 Generate RNM1-1 IVM1-1 i + × × n o i t a c i t n e h t u A N S n o i t a r e n e G H T U A

Fig. 8 An MS generating AUTHG1, verifying MACS, and generating MACG1

While our scheme reduces the overhead of the HN, the security focused on SN should be investigated because the SN’s responsibility is increased. If both the SN and HN are under common ownership of an operator, the communication channel between these two sites must be secured when the network was deployed. Any well-known robust security protocols can be leveraged here to enforce confidential information transfers in between. In case that the SN and the HN belong to different operators, it is noted that more and more network service providers have interoperation or roaming agreements. In this case, cross-realm authentica-tion involves the use of AAA (authenticaauthentica-tion, authorizaauthentica-tion, and accounting) entities situated in respective network domains. In practice, the AAA authority of the SN is charged with establishing a security association with the AAA entity of the HN for exchanging MS’ cre-dentials over a secure channel [5]. Both AAA entities are configured with sufficient security relationships and access controls, so they can negotiate the authorization that enables MSs to have access to requested resources. Therefore, the analysis above ensures that the SN in our architecture does not lead to security vulnerability, nor does our G-AKA weaken overall system integrity.

4.2 Performance Results

Let us now compare the proposed G-AKA with UMTS AKA and UMTS X-AKA [7], two probably best known counterpart protocols for mobile telecommunications networks. Note that both our G-AKA and UMTS X-AKA authorize an SN to authenticate an MS locally after the HN has authenticated the MS. Yet our G-AKA takes a step further by introducing the use of a group authentication key to enable the SN to authenticate other MSs of the same group. Therefore our G-AKA can reduce both authentication delay and signaling overhead within the core network.

Considering that n MSs form g groups and that each MS initiates m (re)authentications, Table2compares the three AKA protocols in terms of how many signaling messages shall be

Table 2 Message complexity of AKA protocols

Protocol Signaling message count

1 MS n MSs

m= 1 m> 1 m= 1 m> 1

UMTS AKA 7 7m 7n 7mn

UMTS X-AKA 7 7+ 5(m − 1) 7n n(7 + 5(m − 1))

G-AKA 7 7+ 5(m − 1) 7g+ 5(n − g) 7g+ 5(n − g) + 5n(m − 1)

generated. For an MS, the total number of signaling messages required by UMTS AKA grows linearly with m, thus amounting to m times the message count for running a single round of the protocol, namely 7m. In comparison, UMTS X-AKA reduces message complexity if

m authentication requests are initiated by the same MS that undergoes full authentication at

the cost of 7 messages, with provision of a transient key to the following(m−1) local AKA operations. Since each such local operation costs an MS 5 messages [7], a total of 7+5(m−1) messages is required. Nevertheless, UMTS X-AKA operates on per-MS basis and generates authentication data for each MS. Accordingly, signaling overhead increases in proportion to

n when there are n MSs in the system performing X-AKA procedures. As a result, signaling

traffic between the SN and HN may place a nontrivial processing burden on all the network entities along the routing path.

In our architecture, the first MS of a group carries out the proposed procedure at the expense of 7 messages, whereas the procedure for each of the remaining members entails 5 messages. The latter message complexity applies to every MS invoking a subsequent re-authentication process. Given n MSs forming g groups, the first MS per group still experiences 7 message exchanges. However, for any of other(n−g) members, 5 message exchanges suffice to com-plete our protocol. So, signaling traffic reaches 7g+5(n−g) in number. When each MS needs to perform our protocol another(m−1) times, every MS requires 5 additional messages each time. Therefore overall signaling takes on the sum of 7g+ 5(n − g) + 5n(m − 1) messages. From Table2, it can be seen that our G-AKA outperforms counterpart protocols if n> g. Our design will gain marked improvement when n  g, which is a common occurrence because MSs typically outnumber groups composed of these MSs. The outperformance is attributed to our reduction from a factor of the number of MSs to a factor of the number of MS groups. In this manner, not only signaling traffic in the core network but also authentica-tion delays (part of handover delays) are saved by an appreciable amount. These advantages will become multiplicative when more than one group of MSs need to run re-authentication and key agreement processes repeatedly. Figure9plots the number of signaling messages incurred in different combinations of n MSs, each invoking an AKA protocol m times, and

g groups.

We now address storage space complexity at an SN site. For UMTS AKA, each MS requires its SN to keep a set of Authentication Vectors (AVs) in storage, so n MSs occupy an order of n×AV storage space. As to UMTS X-AKA, n×(Temporal Key (TK)+AUTH) space is occupied because a piece of authentication data (TK+AUTH) is meant for a single MS. Unlike UMTS AKA and X-AKA, however, our G-AKA utilizes group authentication data, i.e., a Group Authentication Key and an Index Table entry, instead of maintaining per-user information. Provided g groups of MSs, the SN spends g×(GTK+Index Table entry) storing authentication data. By comparison, our G-AKA brings the SN g pieces of group data, while counterpart protocols necessitate n distinct copies.

se ga ss e M g nil a n gi S f o re b m u N se ga ss e M g nil a n gi S f o re b m u N se ga ss e M g nil a n gi S f o re b m u N se ga ss e M g nil a n gi S f o re b m u N UMTS AKA X-AKA G-AKA (our scheme)

UMTS AKA X-AKA G-AKA (our scheme) UMTS AKA

X-AKA G-AKA (our scheme)

UMTS AKA X-AKA G-AKA (our scheme)

(a)

(c)

(b)

(d)

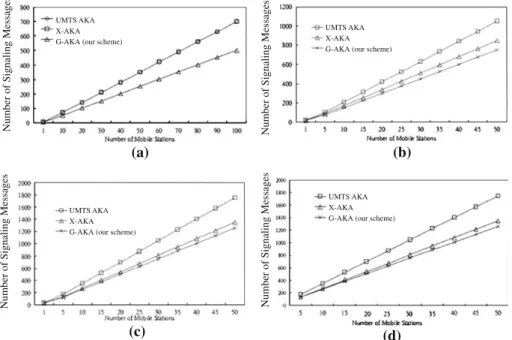

Fig. 9 Comparison of signaling message counts of AKA protocols. a m= 1, g = 1, b m = 3, g = 1, c m= 5, g = 1, d m = 5, g = 5

5 Conclusion

The proposed protocol operates under a notion of group authentication, producing by far fewer message exchanges than those required by counterpart protocols when a group of mobile subscribers request for authentication and key agreement. Unlike conventional pro-tocols that generate different data for respective MSs, our protocol uses a shared GTK and data structure (Index Table) to authenticate these MSs. Protocol operations are thus refined greatly, which allows of better scalability when there is a growing number of MSs in the system.

To summarize, this study identified group movement behavior of MSs roaming from a home network and then developed a mutual authentication and key agreement protocol whereby these MSs can gain secure, fast access to a common visited network. The visited network is authorized to authenticate a group of MSs locally, after the first visiting member has authenticated itself to the network. This results from authentication with the first MS bringing the visited network some security context, which is of utility to authenticate other MSs of the group. So significant authentication delays and signaling overhead between the serving network and home network are reduced. Such a design expedites fast reauthentica-tions as well. Concerning the effectiveness of our development, Sect.4.1has reasoned that the protocol is an efficient means to system-wide access control, without trading performance for security and robustness to the extent that security requirements are unduly weakened. Although group-based authentication is done in our architecture, personal security is still honored, as reasoned in fraud control. Section4.2has also quantified how our protocol out-performs counterpart schemes. Both qualitative and quantitative comparisons indicate the usefulness of our design.

In closing, we stress that mutual authentication and key agreement are preliminary to any secure handover procedure. Our development serves to refine handover processes by which mobile users, upon visiting a new network, can resume secure communication with the net-work by completing handover sooner than would otherwise required. As another variant, our design further speeds up handover procedures if security context information associated with MSs can be distributed to neighbor networks these MSs shall visit next. In a broad sense, our design is well applicable to any system with a remote authentication sever, for example, for network access control or entrance security control.

References

1. 3rd Generation Partnership Project. (2001). Security architecture, 3GPP TS 21.133.

2. IEEE 802.16-2004. (2004). IEEE standard for local and metropolitan area networks part 16: Air interface for fixed broadband wireless access systems.

3. Arkko, J., & Haverinen, H. (2006). Extensible authentication protocol method for 3rd generation authentication and key agreement (EAP-AKA). (RFC 4187). IETF Network Working Group. 4. Bargh, M. S., Hulsebosch, R. J., Eertink, E. H., Laganier, J., Zugenmaier, A., & Prasad, A. R. (2007).

UMTS-AKA and EAP-AKA inter-working for fast handovers in all-IP networks. In IEEE Globecom (pp. 1–6).

5. Glass, S., Hiller, T., Jacobs, S., & Perkins, C. (2000). Mobile IP authentication, authorization, and

accounting requirements. (RFC 2977). IETF Network Working Group.

6. Haverinen, H., & Salowey, J. (2006). Extensible authentication protocol method for global system for

mobile communications (GSM) subscriber identity modules (EAP-SIM). (RFC 4186). IETF Network

Working Group.

7. Huang, C. M., & Li, J. W. (2005). Authentication and key agreement protocol for UMTS with low bandwidth consumption. In Proceedings of 19th IEEE international conference on advanced

information networking and applications (AINA) (pp. 392–397).

8. Kasera, S., & Narang, N. (2005). 3G mobile networks: Architecture, protocols, and procedures. New Delhi: McGraw-Hill.

9. Mitchell, C. J. (2003). Security for mobility. London, IN: Institution of Electrical Engineers. 10. Niemi, V., & Nyberg, K. (2004). UMTS Security. Chichester: Wiely.

11. Ou, H.-H., Hwang, M.-S., & Jan, J.-K. The UMTS-AKA protocols for intelligent transportation systems. EURASIP Journal on Wireless Communications and Networking,http://www.hindawi.com/ journals/wcn/aip.267283.pdf.

12. TETRA Association.http://www.tetramou.com/.

13. Raya, M., & Hubaux, J. P. (2005). The security of VANETs. In Proceedings of the 2nd ACM

international workshop on vehicular Ad Hoc networks (pp. 93–94).

14. Simpson, W. (1996). PPP challenge handshake authentication protocol (CHAP). (RFC 1994). IETF Network Working Group.

15. Tan, C. H., & Teo, J. C. M. (2005). An authenticated group key agreement for wireless networks. In Proceedings of the IEEE wireless communication and networking conference (WCNC). 16. Wallner, D., Harder, F., & Agee, R. (1999). Key management for multicast: Issues and architectures.

(RFC 2626). IETF Network Working Group.

17. Wong, C. K., Gouda, M., & Lam, S. S. (2000). Secure group communications using key graph. IEEE/ACM
